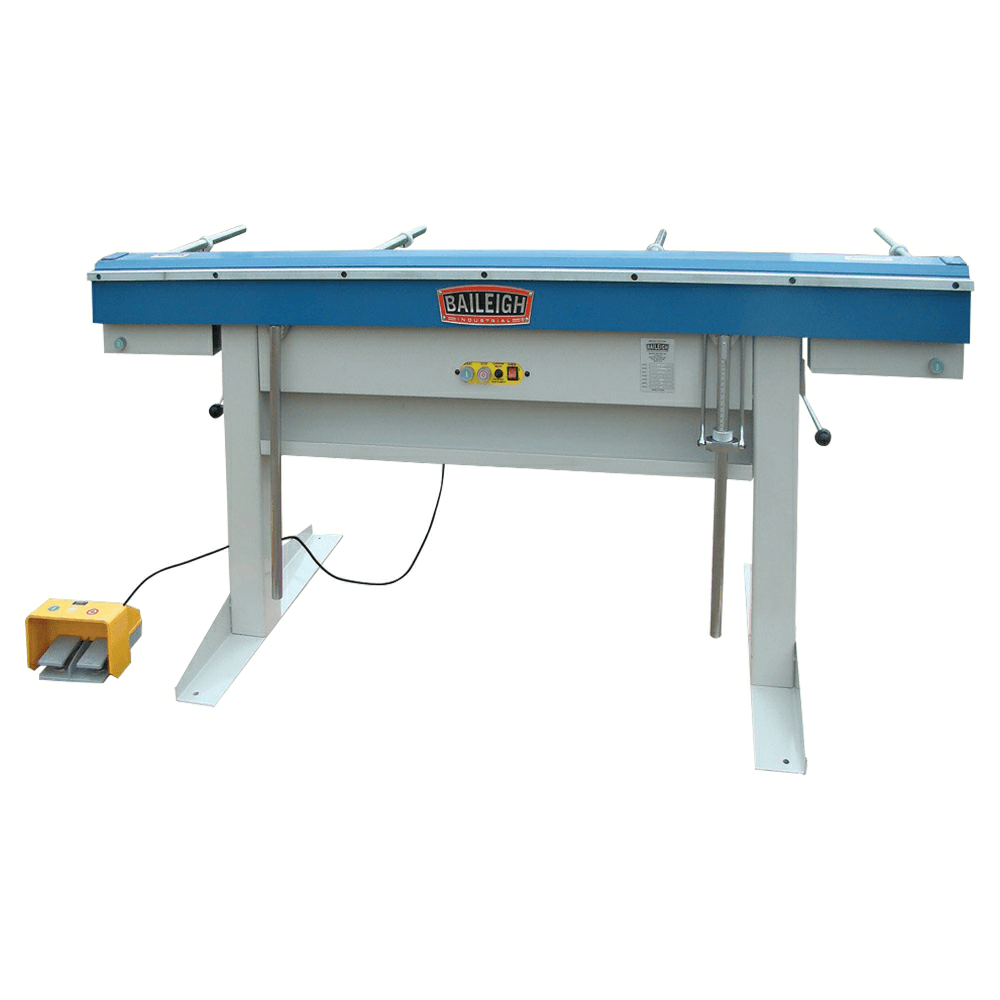

Baileigh BB-7216M Magnetic Box/Pan Brake, 1 Phase/220V
Item # JPWBA9-1000545
•Mfr # BA9-1000545
$8,629.00
/Each
Freight: $645.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
This Magnetic sheet metal brake enables you to make enclosed shapes that would be impossible on a traditional box brake.
Easy, Hands-Free Operation:
• Put a piece of material between the clamping bar to the depth required • Hit the foot pedal control that softly clamps the material and reposition if necessary • Lift the leaf arms to engage full magnetic power, holding the material in place as the leaf arm makes the appropriate bend Features: • Runs on 220-volt single-phase power • 16-gauge mild steel maximum capacity • 6-foot (72") length lets you to get creative with uses for this sheet metal brake • Offers all the features of our BB-4816M model-but with 2 feet of extra length • Maximum bend angle of 180° • Industrial magnetic power of 6 tons is consistent across the entire beam, producing crisp bends even in the middle • Unlimited box depth thanks to its open-ended design • Also makes straight bends if you choose to set up straight (instead of segmented) bars • You can adjust the finger setback for different thicknessesSpecifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 16 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 72" |
| Product Type | Magnetic Sheet Metal Brakes |
| Short Description | *220V single-phase manual brake *16-gauge mild steel capacity *6 feet long *Bends up to 180° and makes enclosed shapes |
| Maximum Lift of Beam | |
| Maximum Box Depth | |
| Beam Adjustment (Front to Rear) | |
| Bending Length Capacity | 72" |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | 220V/1-phase |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
