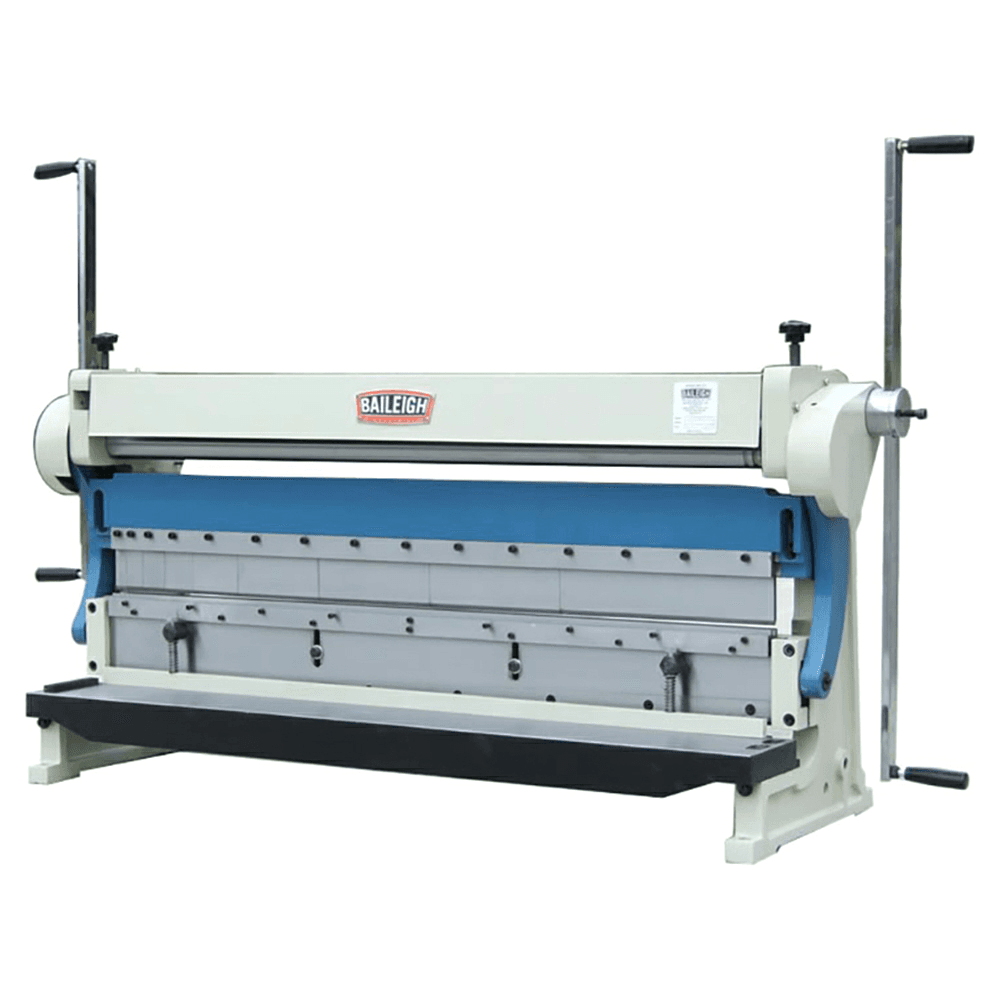

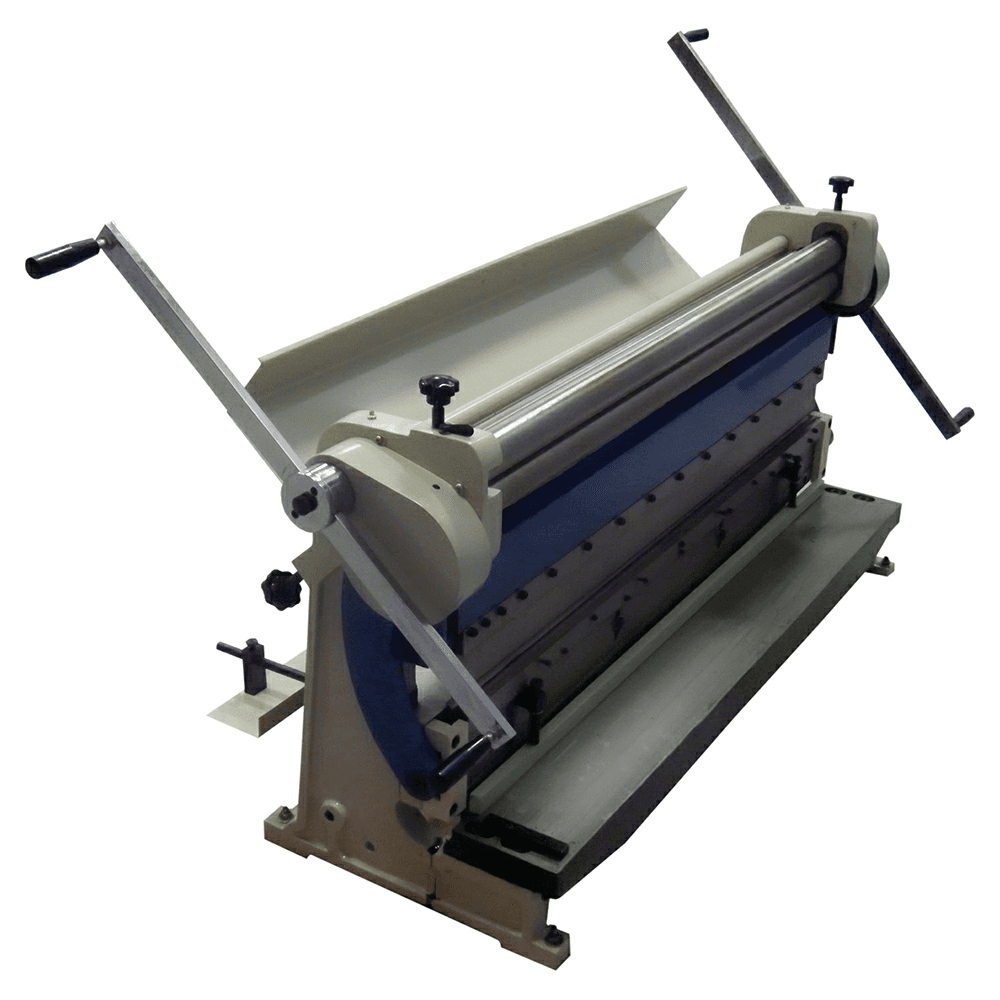

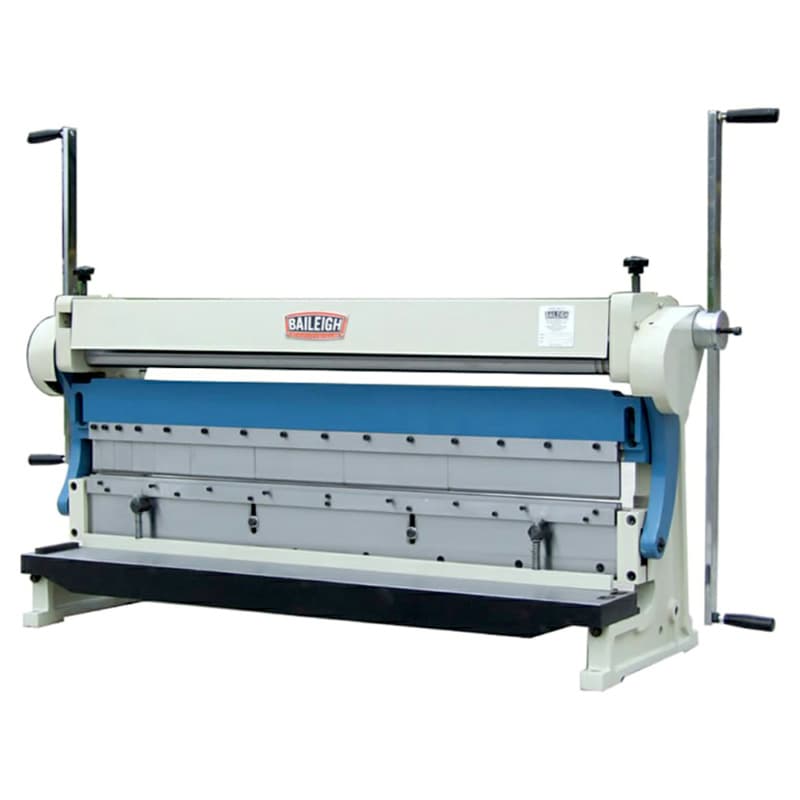

Baileigh SBR-5216 Shear Brake Roll

With a 16 gauge mild steel capacity for all functions, the SBR-5216 is the most powerful 3-in-1 combination machine on the market. This manual combination shear brake and roll saves space and money for small shops.

Features:

• 52" width lets you roll, bend, and shear 4' x 8' sheets
• Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom
• 1.70" minimum rolling diameter

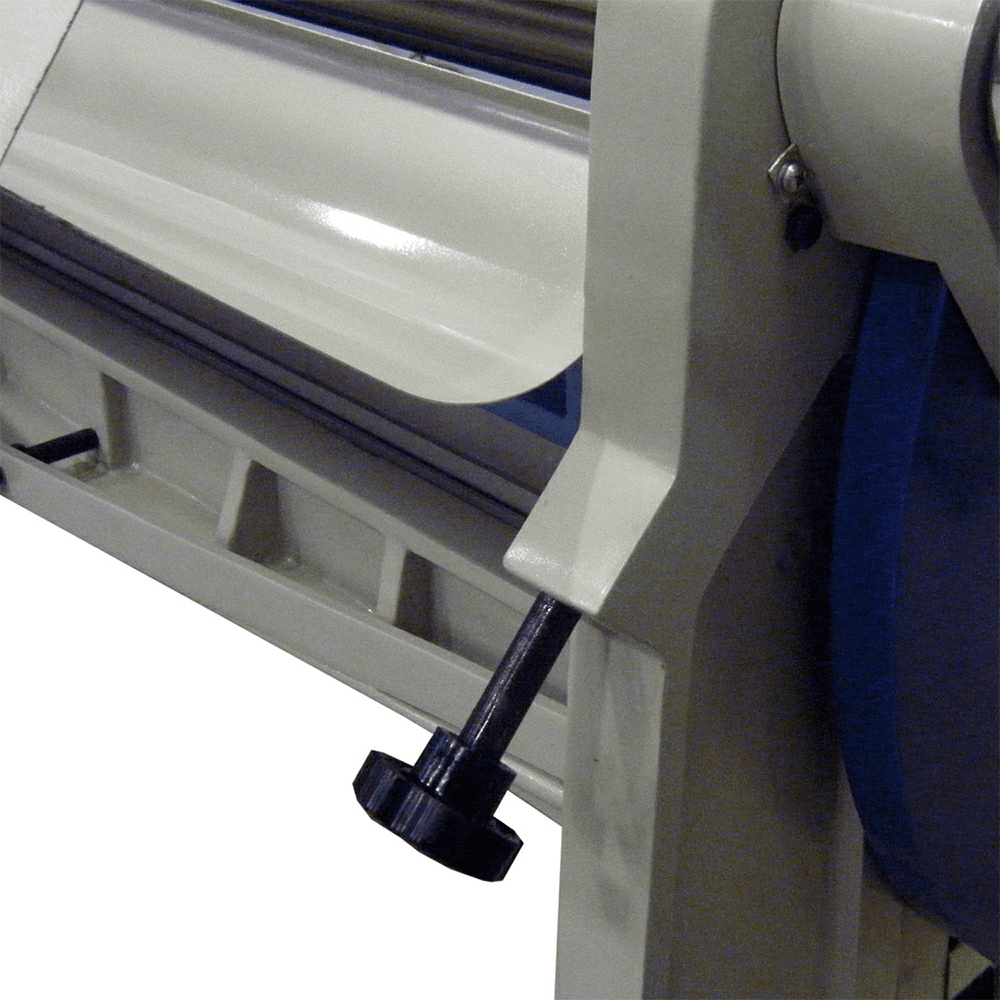

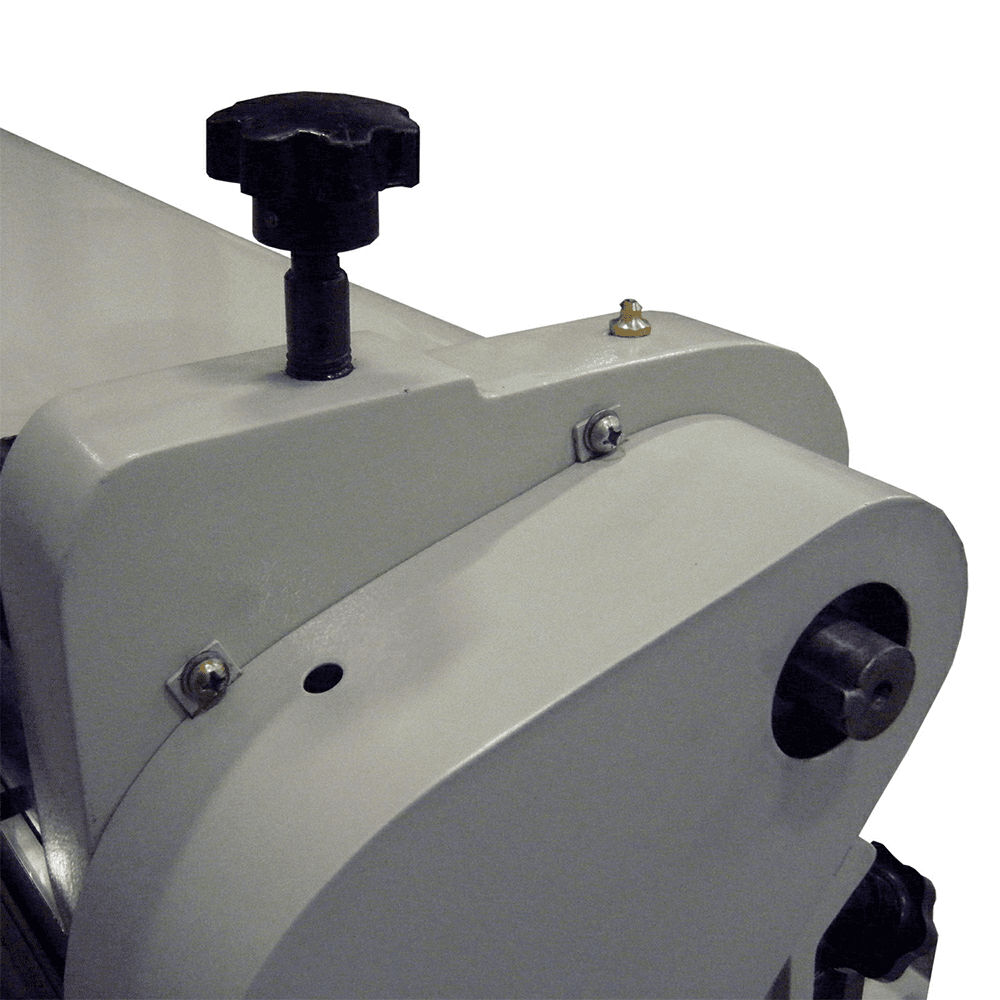

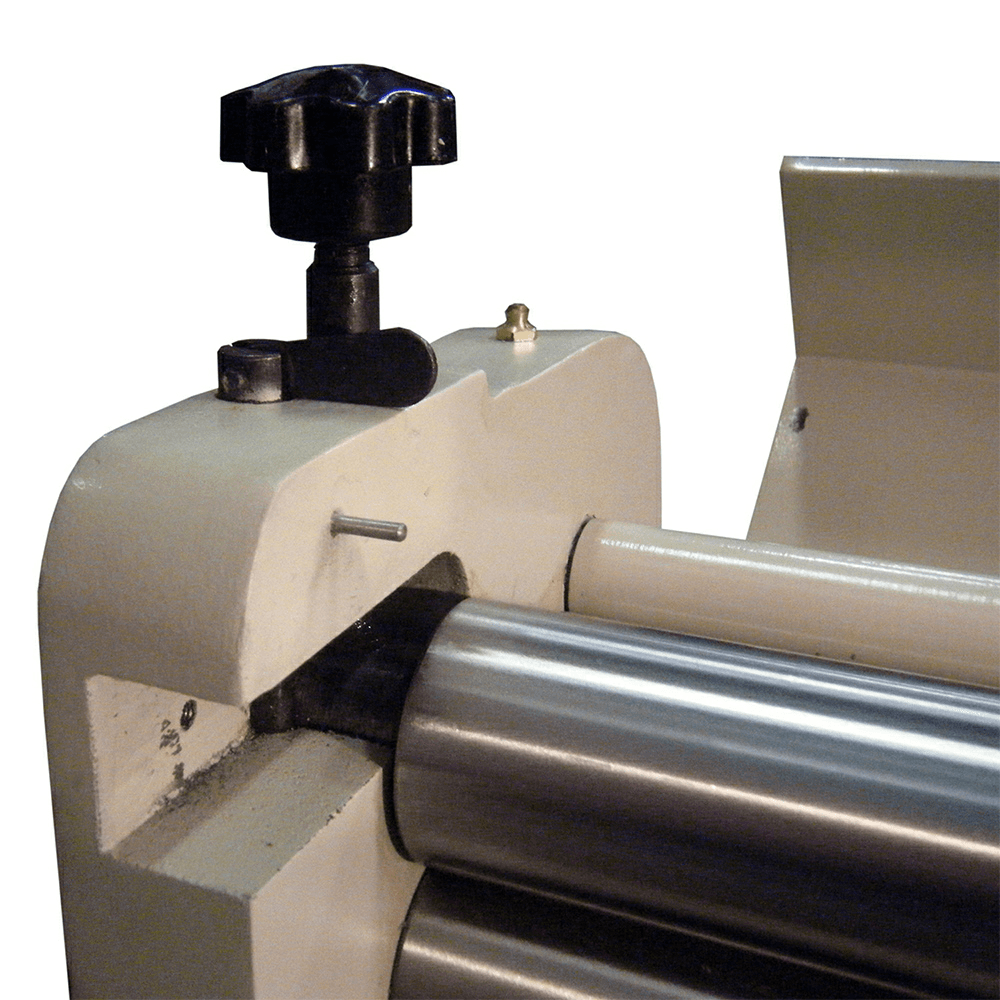

• Hardened, adjustable back and top rolls can form different thicknesses

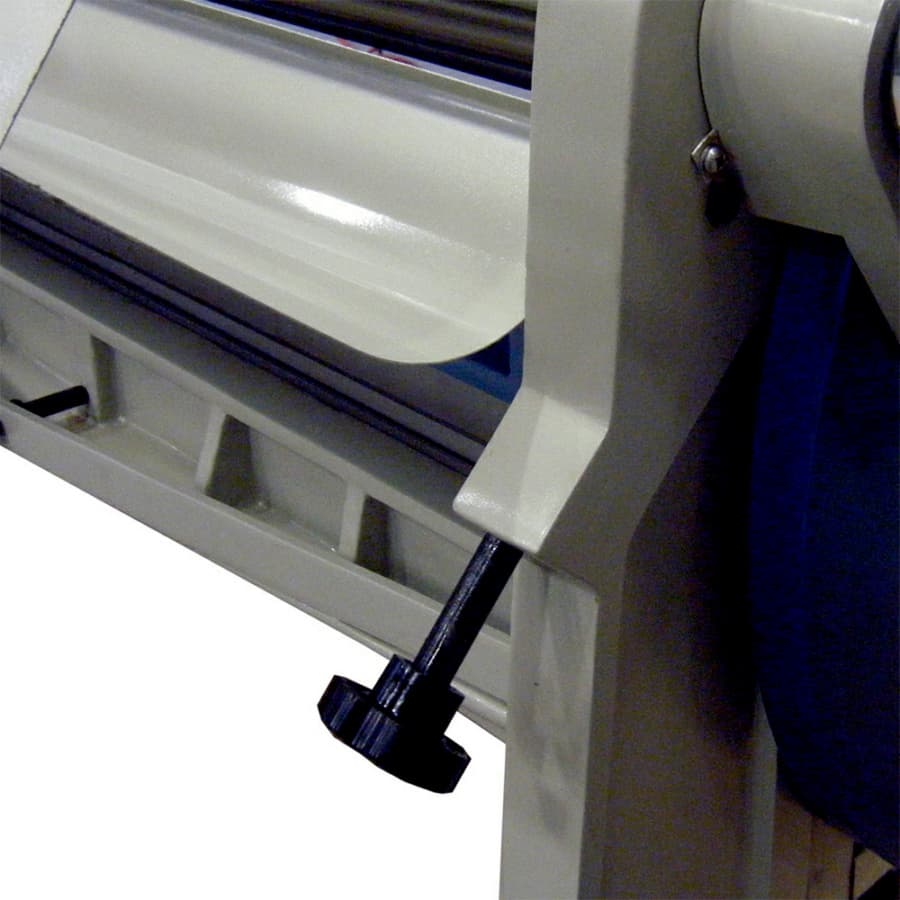

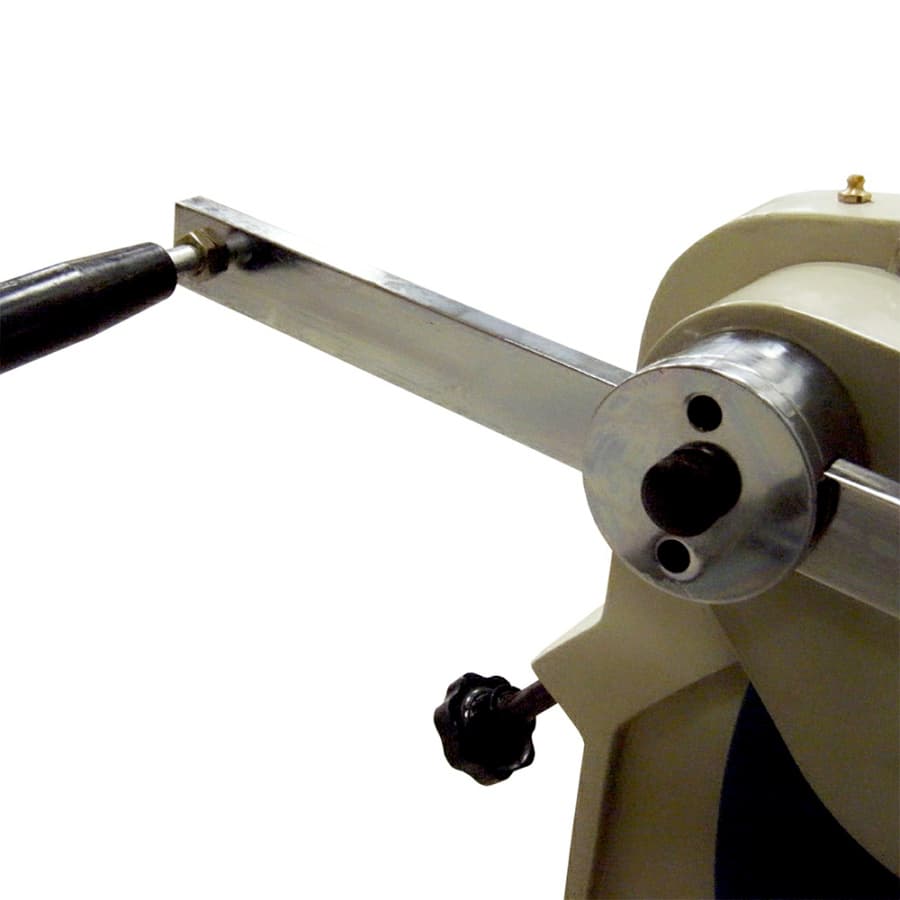

• Top roll can swing away from the machine for convenient material removal

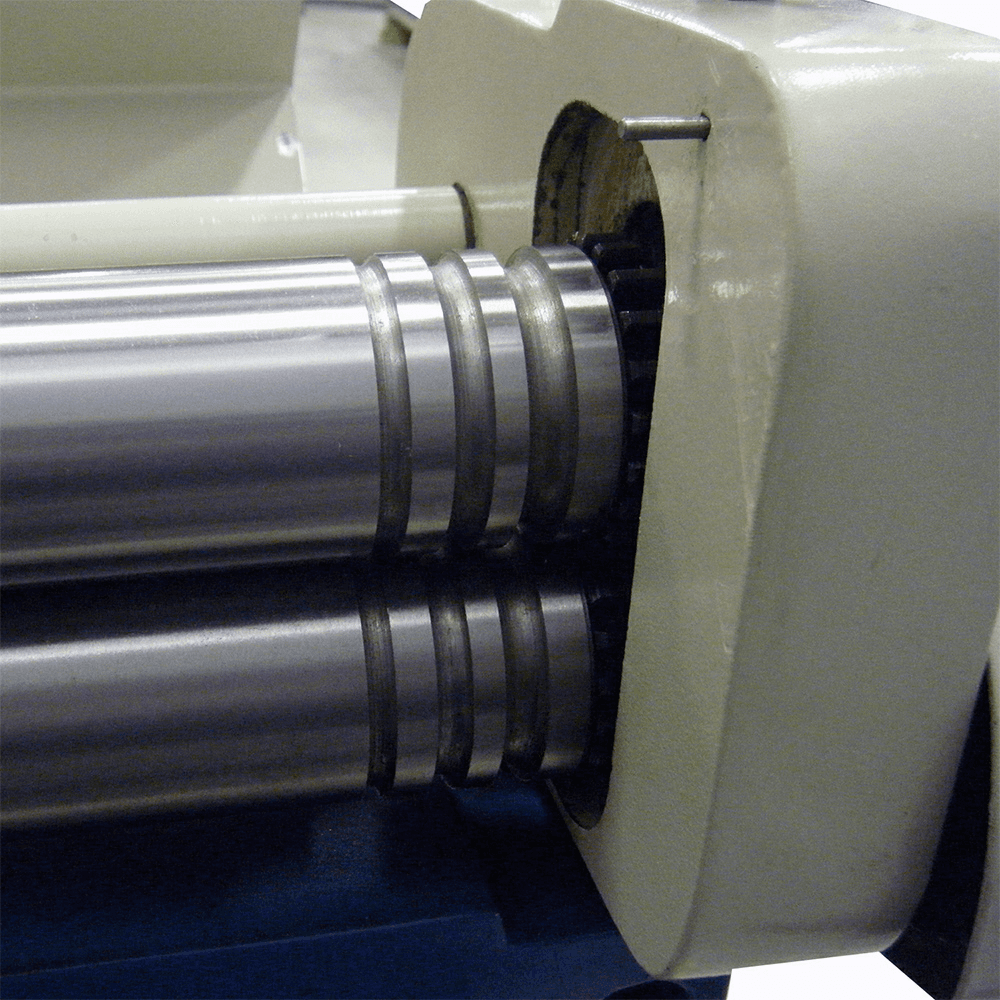

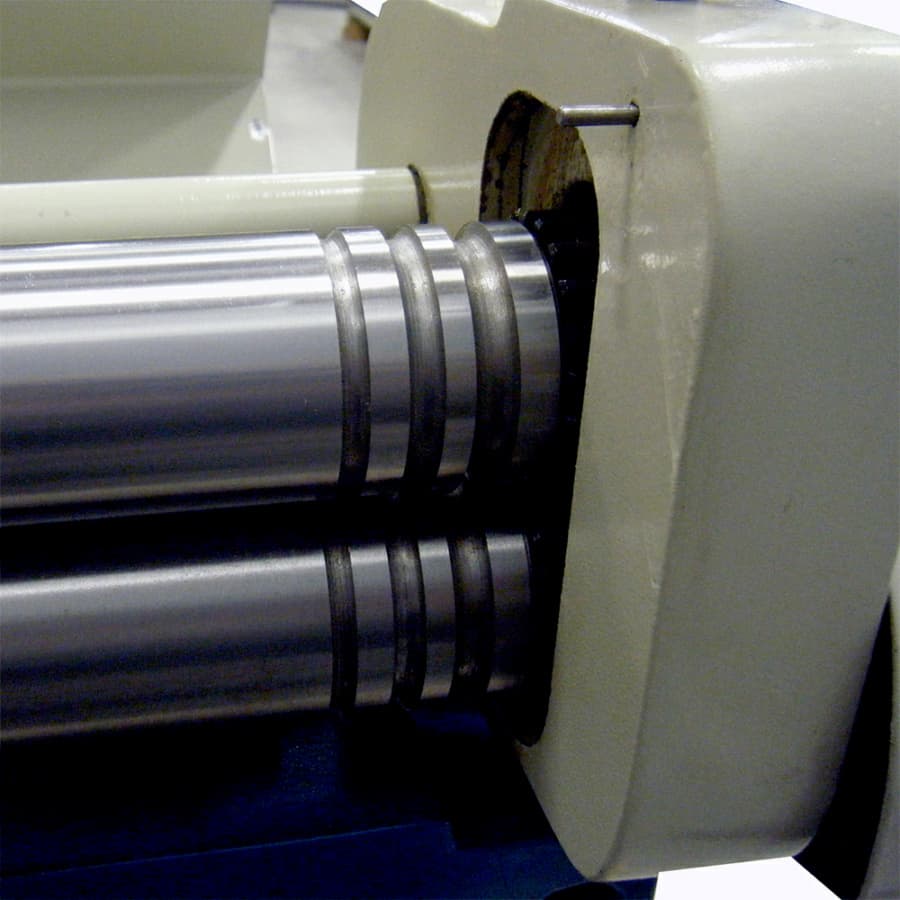

• 3 grooves on the roll can form wire or round rod

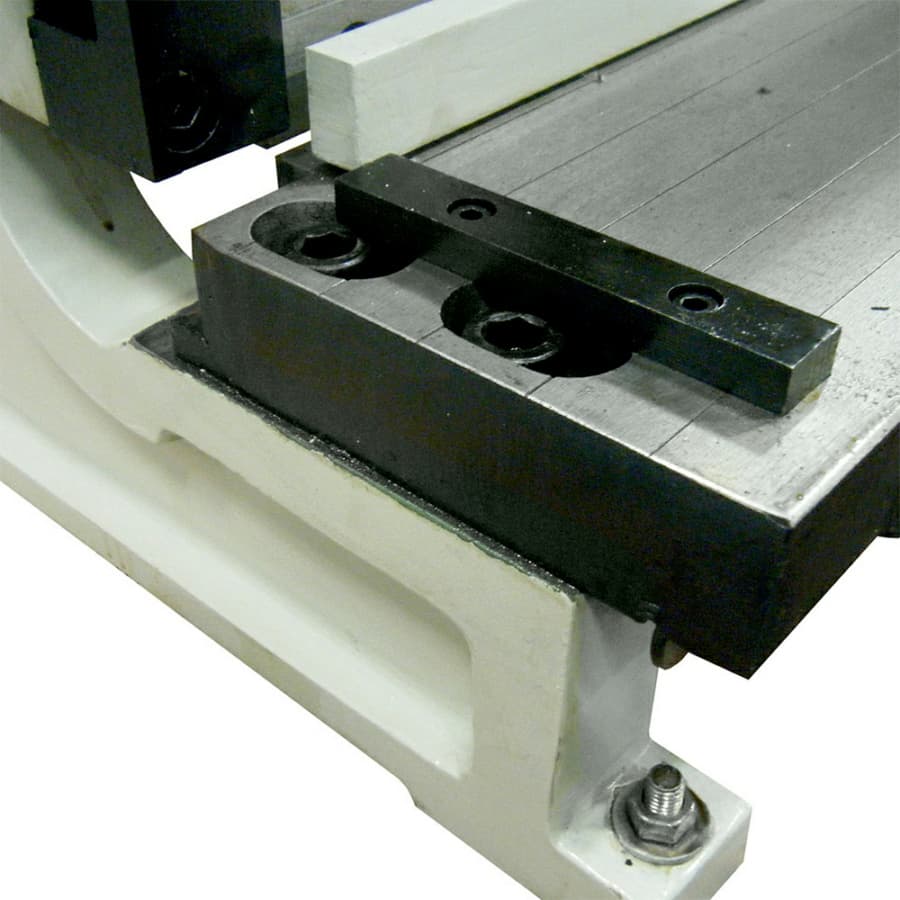

• Manual press brake section comes with a fixed bottom V-block die
• The SBR-5216 combination shear brake roller bends up to 90°, so you can make perfect corners

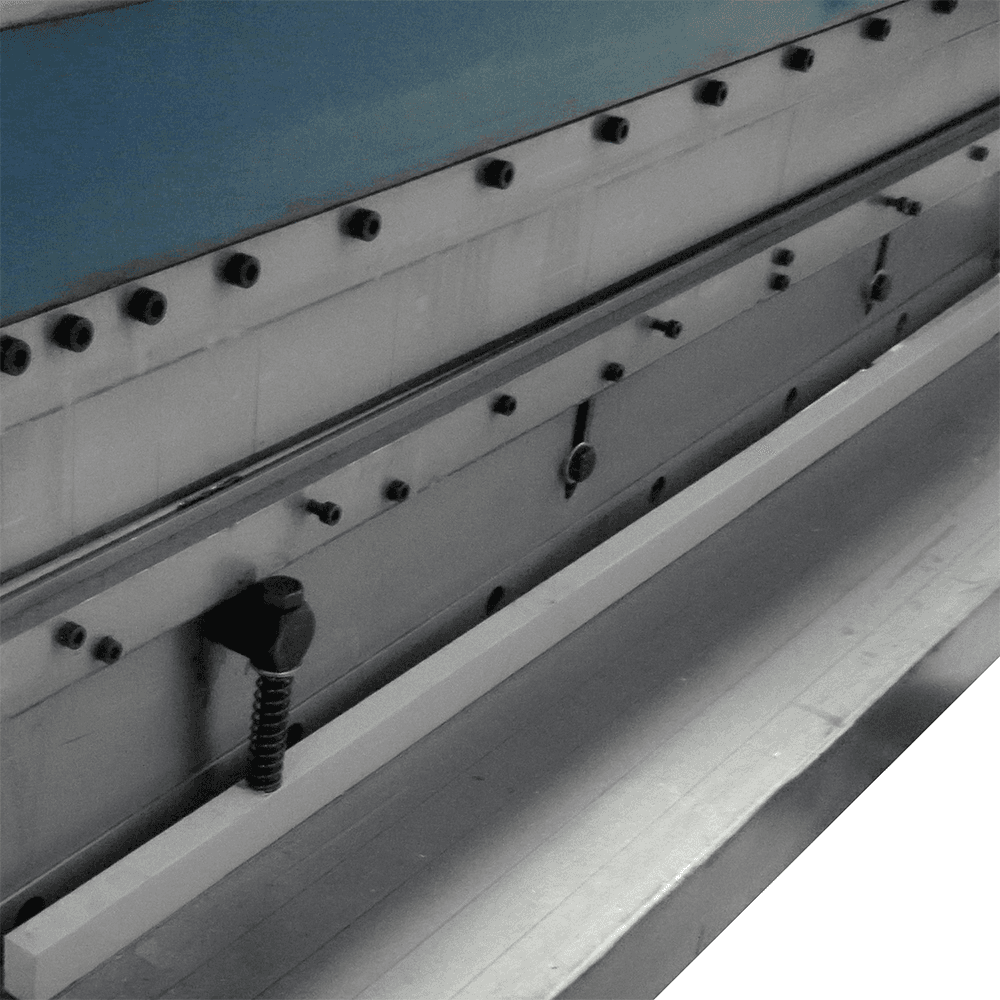

• 9 movable fingers on the top beam can make many sizes of boxes and pans
• Crowning feature adjusts the camber of press brake tooling to make consistent bends across your material

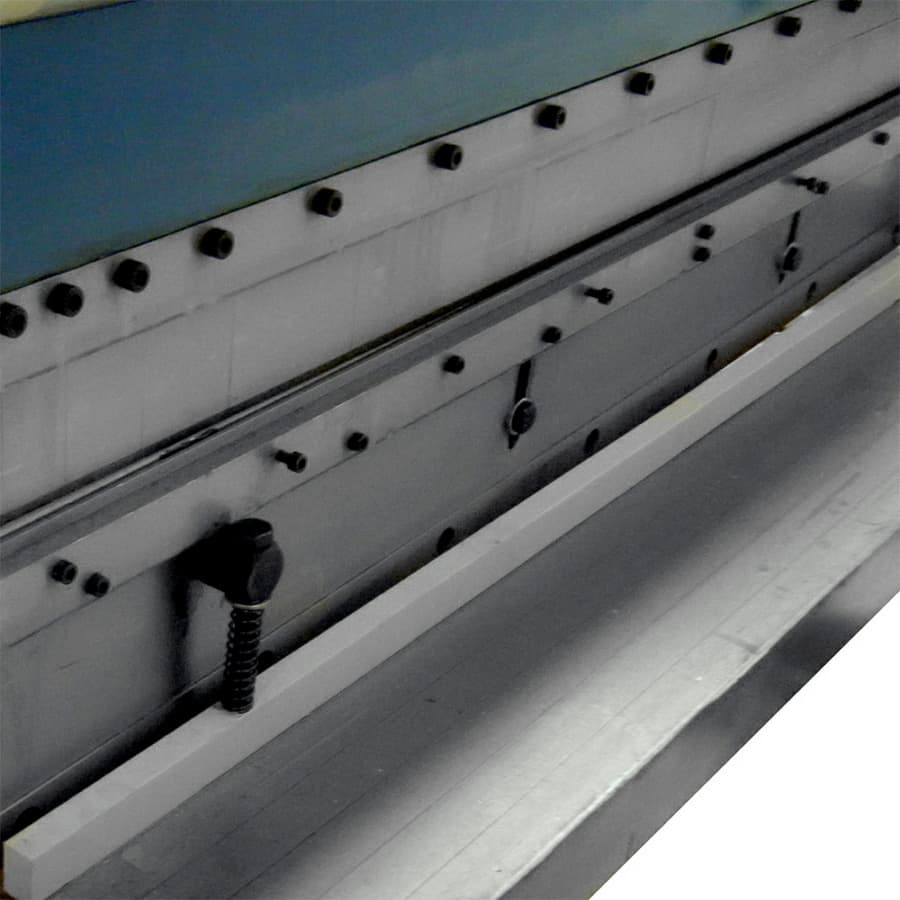

• Shear portion includes a spring-loaded clamp or hold-down to keep the material from lifting up, extend blade life, improve cut quality
• You can adjust the blade gap to fit different gauges of sheet metal

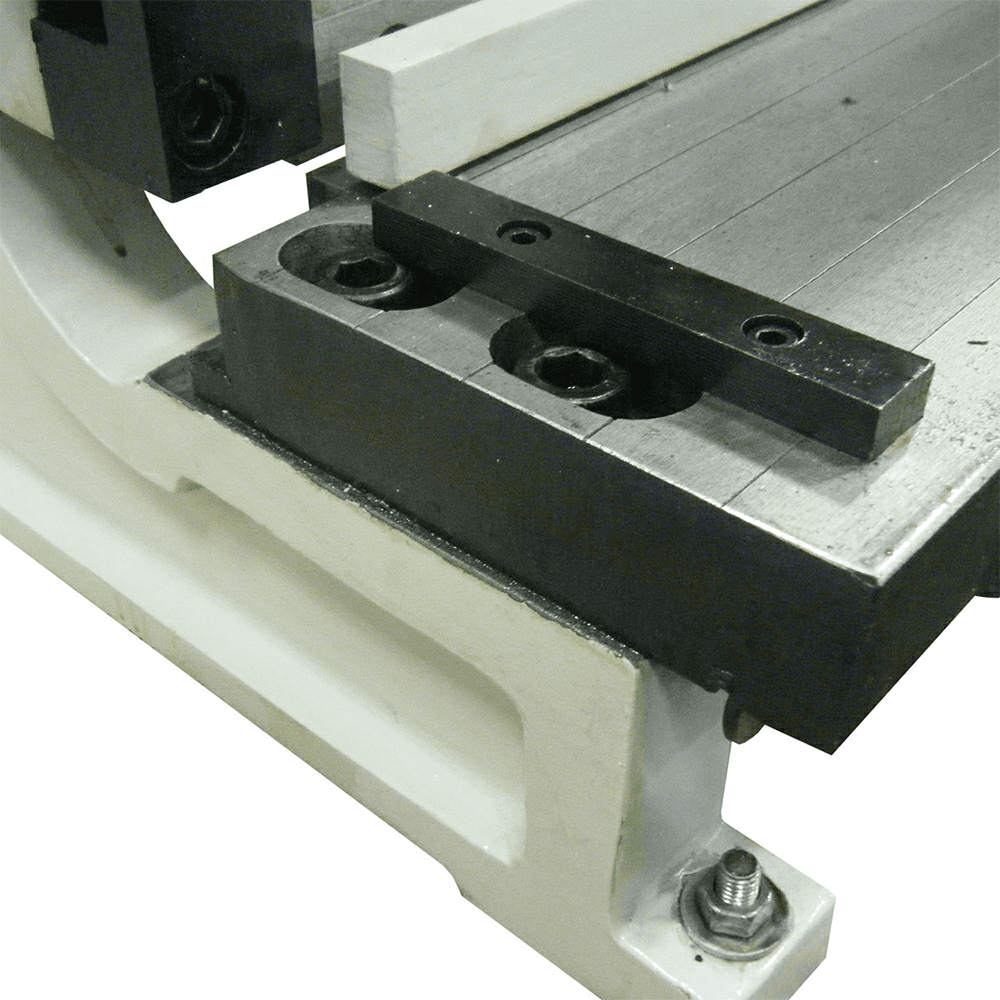

• Includes a material guide
• Hardened, reversible blades stay sharp

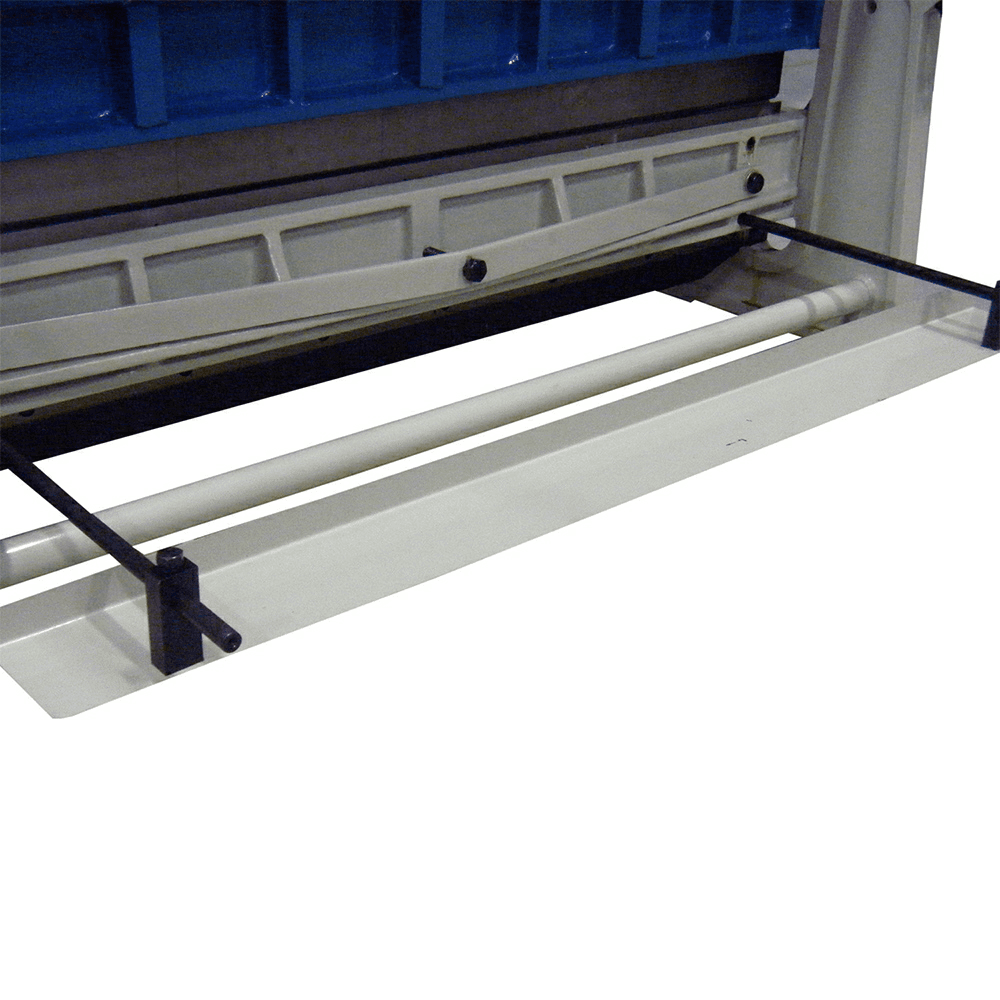

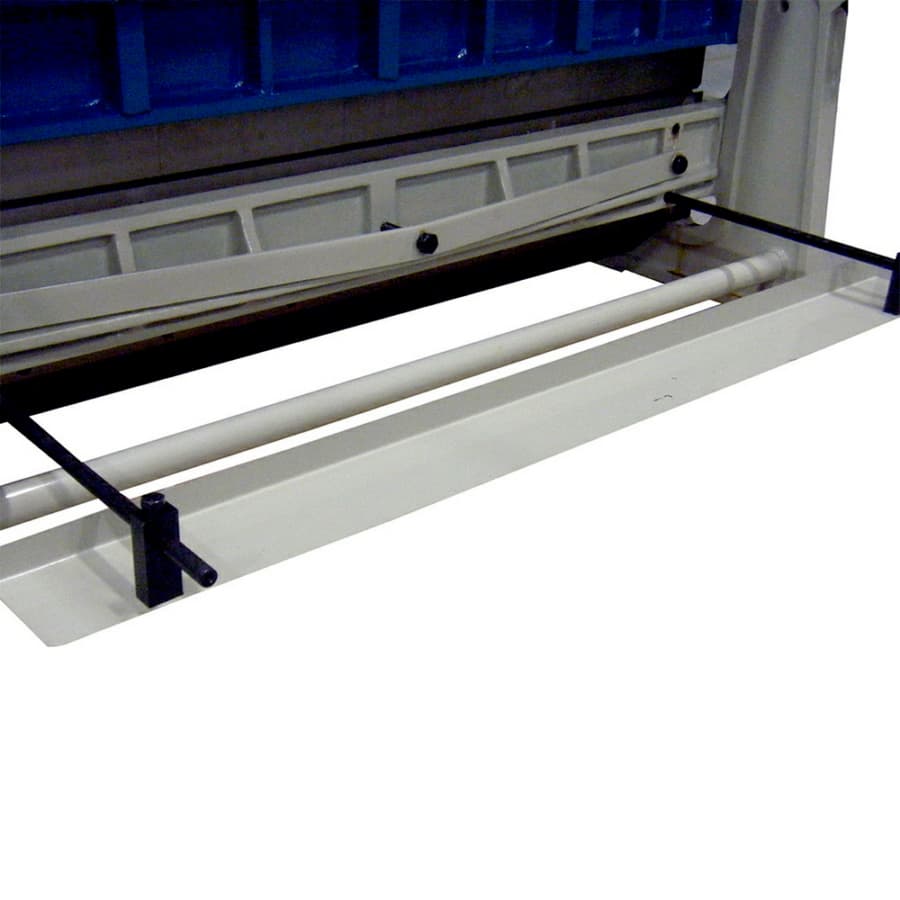

• Manual back gauge helps you easily produce repeatable parts
• Heavy steel construction, weighing 1,200lbs
