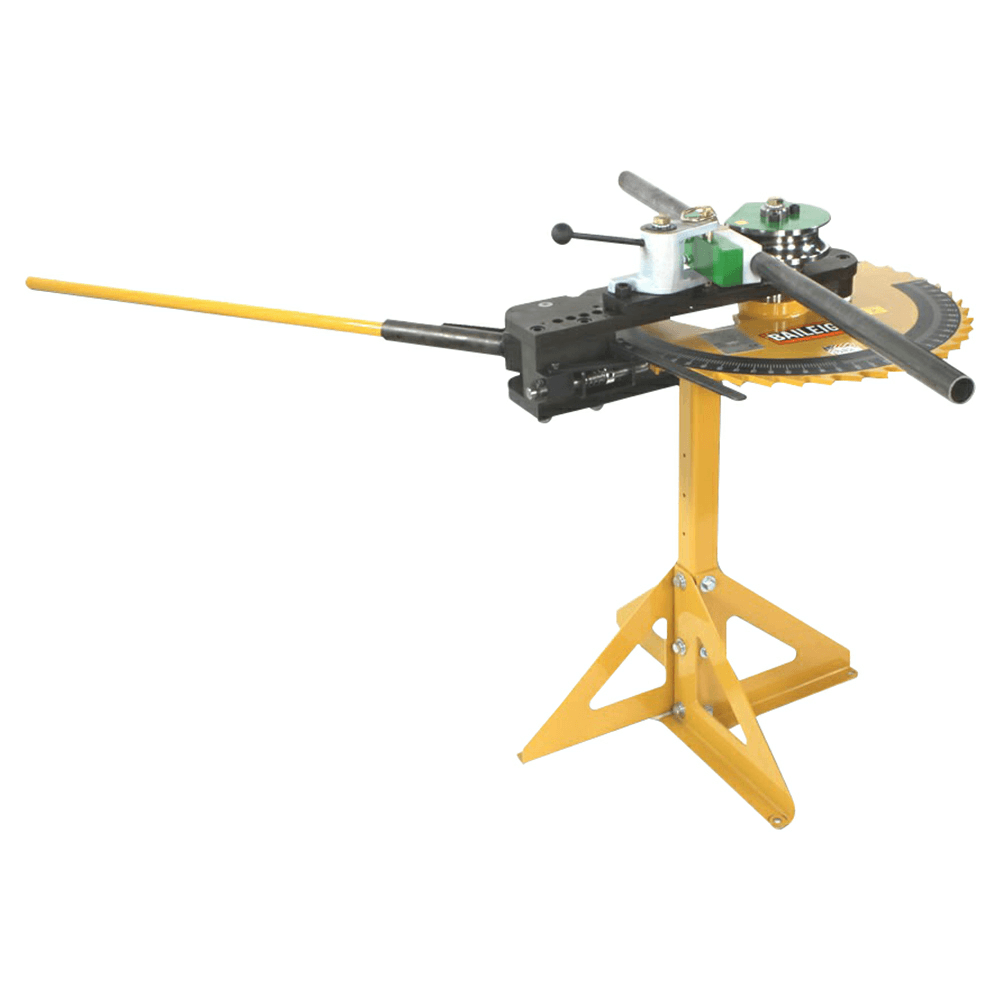

Baileigh RDB-100 Tubing Bender
Item # JPWBA9-RDB100
•Mfr # BA9-RDB100
$3,269.00
/Each
Freight: $350.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
The most compact model in our CNC ring roller line, this double-pinch tube bender ensures accuracy and minimizes flex with an electro-welded steel plate framework.
Why choose the R-CNC45 over similar machines:

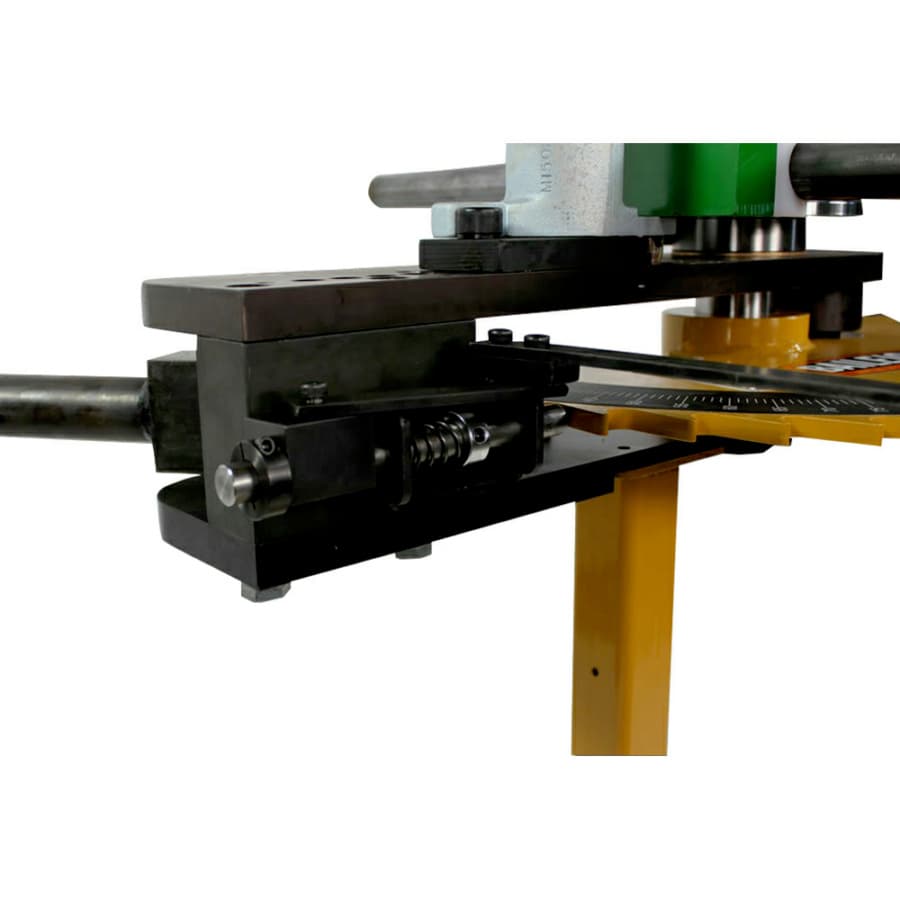

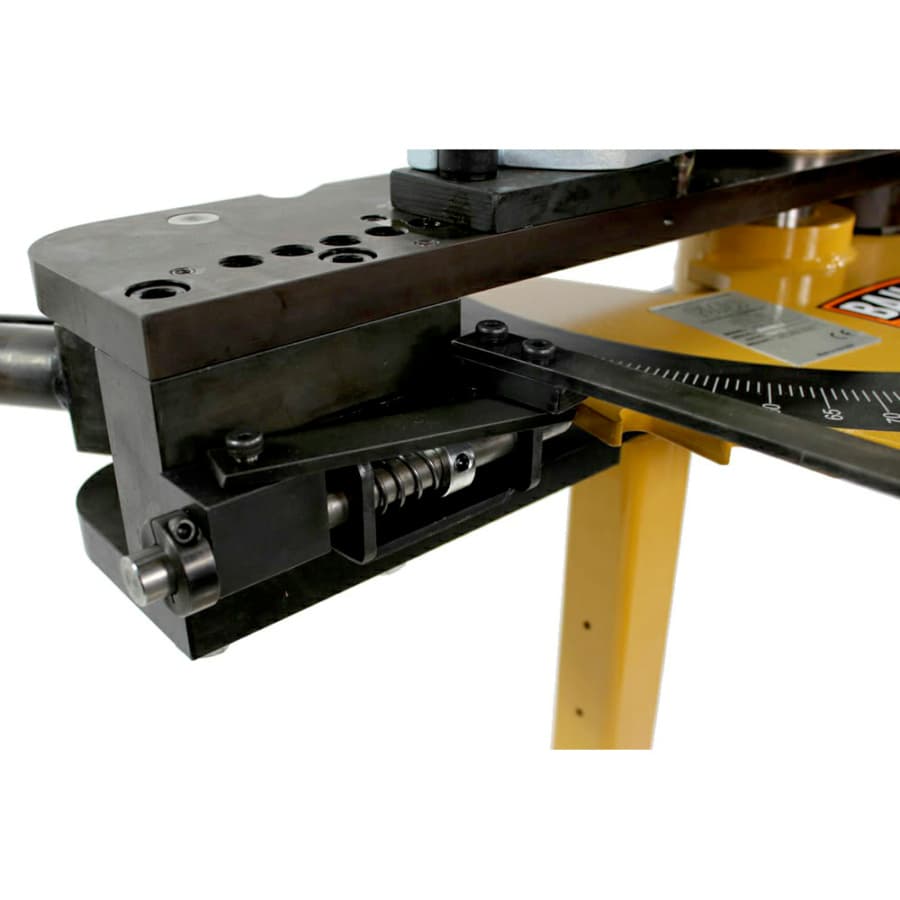

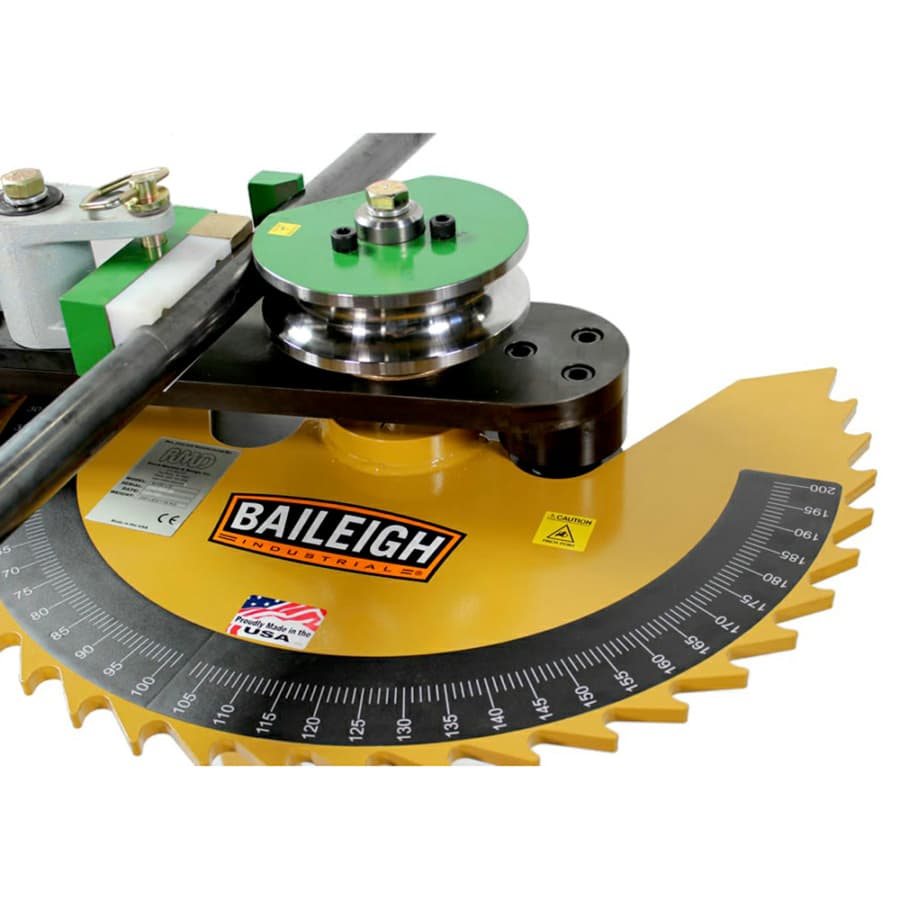

• Components from some of the industry's top manufacturers, including Rexroth and Schneider Electric ensure that the machine delivers precise results you can depend on • Interchangeable bottom rolls prevent material deformation or wrinkling and solve tricky extrusion problems • You won't find many roll benders on the market with the rugged steel construction of the R-CNC45 • Bend pattern storage saves time on multiple production runs. We can even customize the memory to hold even more information • You can count on Baileigh's team of experienced reps for troubleshooting and application tips-always just a call away Features: • Bends up to 1.75" OD tubing with a maximum wall thickness of .095" and 1" schedule 40 pipe • Large-diameter indexing allows you to bend up to 206° (180° plus spring-back) without having to re-index and re-pin-unlike most other manual tube benders on the market • Quick-release counter die system lets you easily load and unload the material • Tension spring back mechanism holds position as the bend mechanism grabs the next tooth on the index wheel • Degree scale displays your bend angle for fast reference • All tooling has a start-of-bend indicator line so you can make complex bends with accuracy and confidence • Ratcheting bend system lets you conveniently shift to manual override for lighter-gauge materials • Accepts hundreds of round and square tubing die sets as well as round pipe die sets • Includes stand, degree dial, and handle • Steel plate construction ensures strength and precisionDownloads
Specifications
| Box Quantity | 1 |
| Aluminum Pipe Schedule 40 | |
| Short Description | *Manual rotary draw tube and pipe bender *1.75" tube capacity *1" schedule 40 mild steel pipe capacity *Maximum 10.5" CLR |
| Round Tube Capacity | 1.75" (0.083) |
| Round Stock Capacity (Max.) | 1" |
| Round Pipe Sch. 40 Capacity | |
| Round Capacity (Mild Steel) | |
| Product Type | Manual Rotary Draw Benders |
| Minimum OD | 0.25 |
| Mild Steel Pipe Schedule 80 | |
| Max Bend (Degrees) | |
| Input Power | Manual |
| Chromoly Round Tube Wall | 1.5" (0.083) |
| Bend Direction | |
| Square Tube Capacity | 1" (0.125) |
