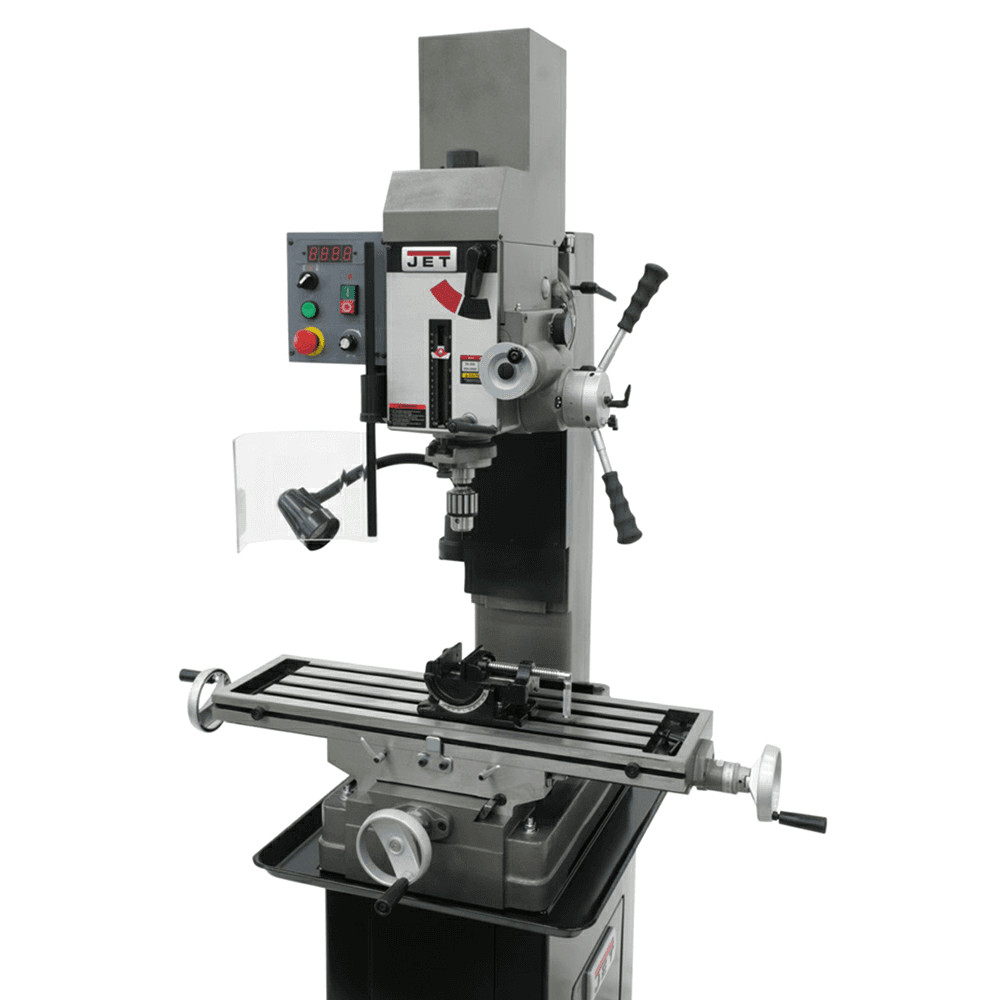

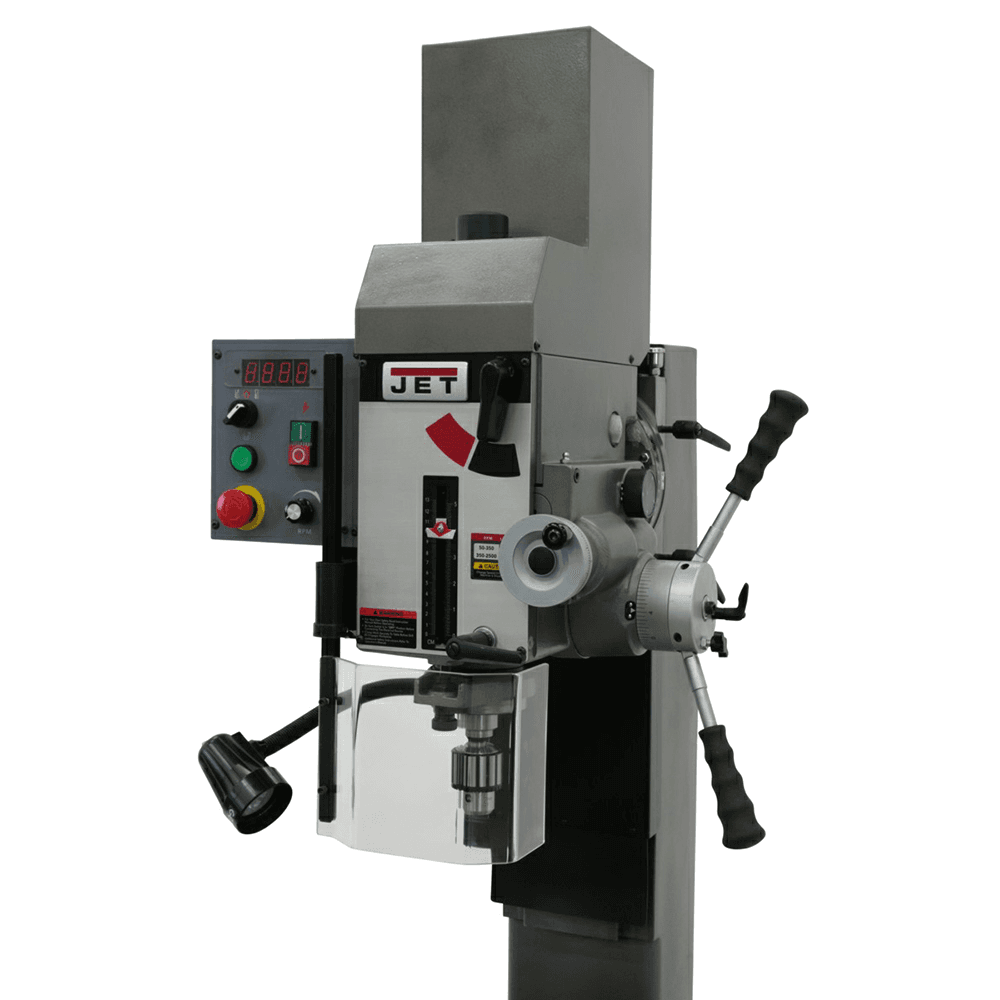

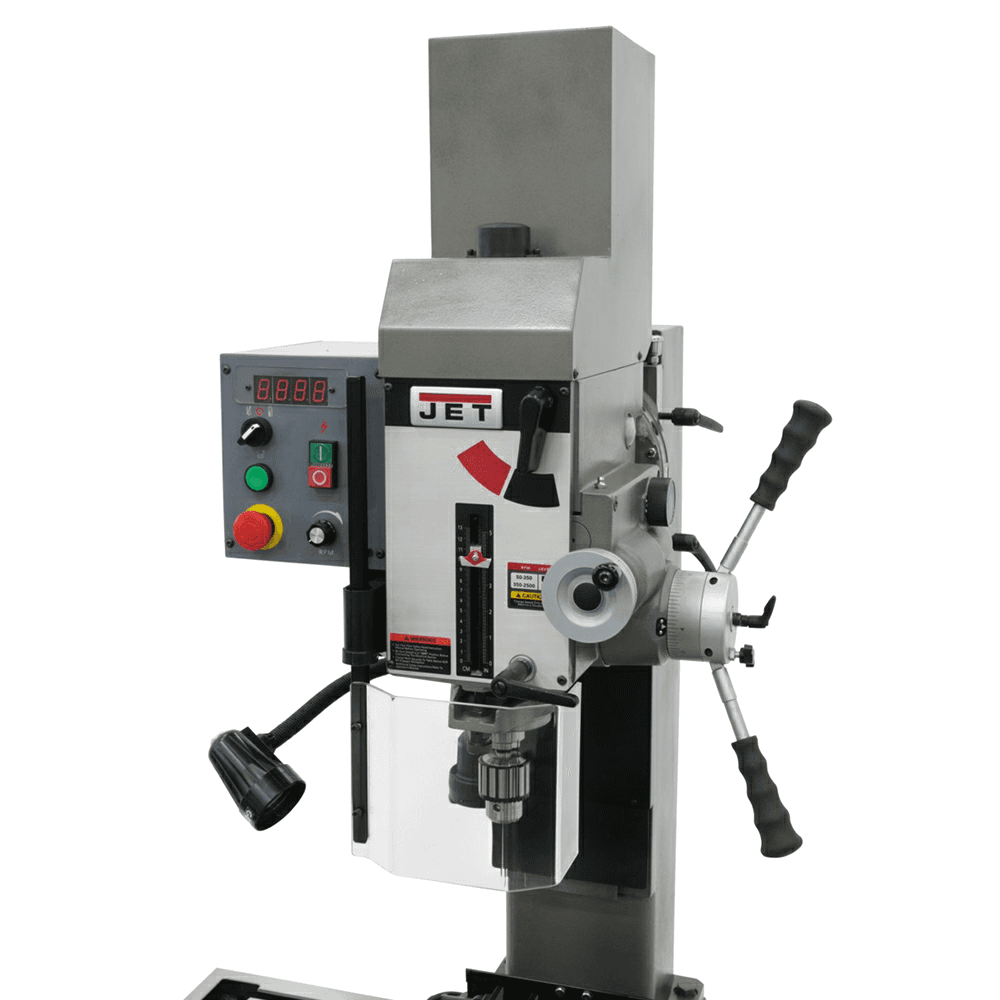

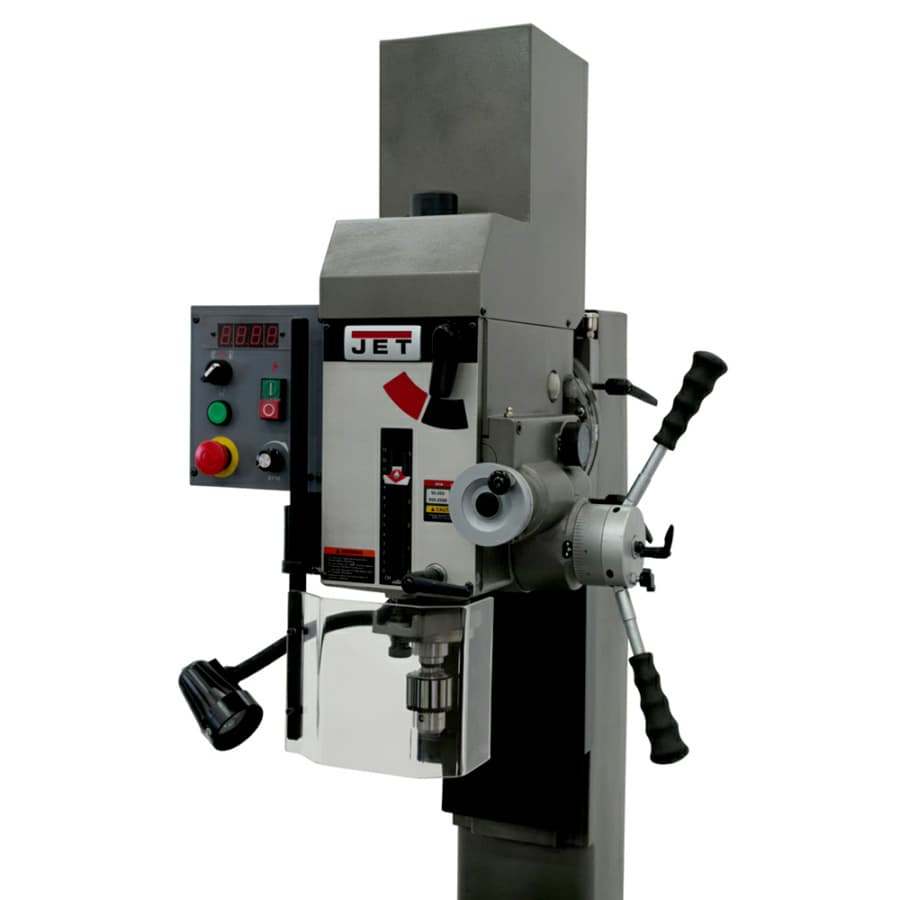

Jet Tools JMD-45VSPFT Variable Speed Geared Head Square Column Mill/Drill with Power Downfeed, 1 Phase/115/230V
This item may incur additional shipping costs and lead times.
Product Details

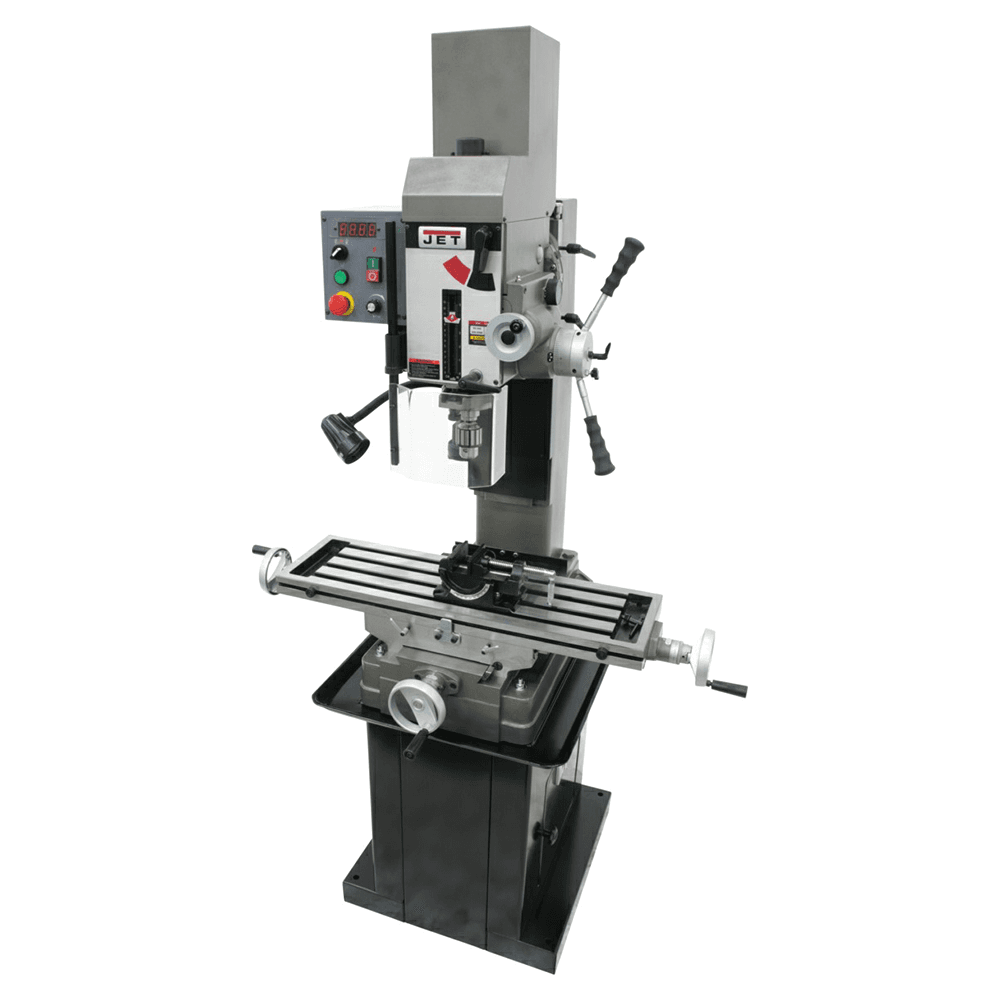

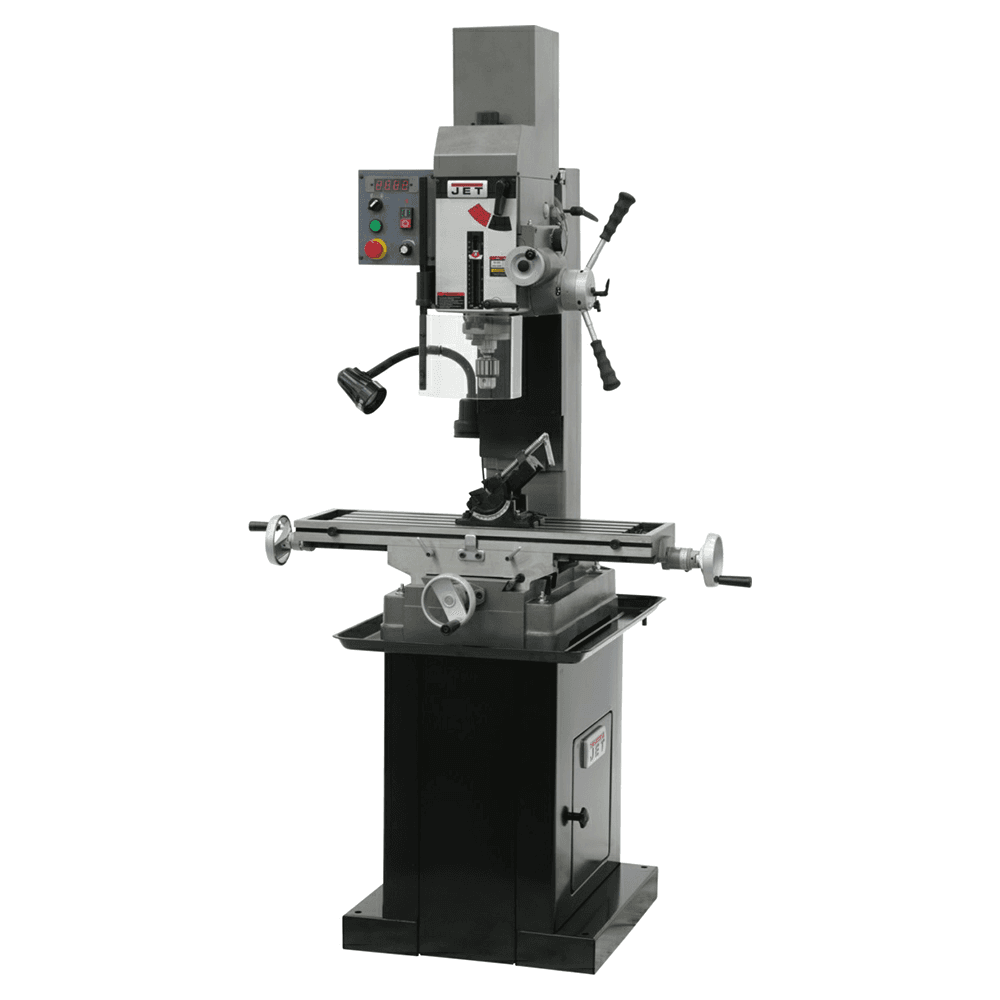

Engineered to maximize production, the heavy-duty JMD-45VSPFT variable speed square column geared head mill drill with power downfeed and tapping capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments. CSA/CUS Certified. Features: • Easy to read internal depth gauge • Full power to the cutting tools through variable speed geared head • Heavy-duty design allows for a variety of precision drilling applications • Mill drill stand, p/n 350045, shown in some images, is optional • Milling table allows for movement • R8 spindle allows use of all mill tooling • Rapid spindle speed changes through quick-select gear shift levers • Square column with dovetail ways
Specifications
| Box Quantity | 1 |
| Base Dimensions | 26-11/16" x 15-15/16" |
| Quill Diameter | 3" |
| Quill Down Feed Rates (IPR) | |
| Range of Spindle Speeds (RPM) | 50 - 2500 RPM |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel | 5" |
| Spindle Travel Auto | 4-1/4" |
| Swing | 19-11/16" |
| Table Longitudinal Travel | 20-1/2" |
| Table Size (L x W) | 9-1/2" x 32-1/4" |
| T-Slot Centers | |
| T-Slots Number and Size | |
| Product Type | Mill Drills |
| Powerfeed | |
| Overall Dimensions (L x W x H) | 29" x 36" x 50" |
| Column Diameter | |
| Configurable Base Item | Yes |
| Configurator Option Type | Base Machine |
| Drilling Capacity | |
| Face Mill Capacity | 4" |
| Max Distance Spindle to Table | 18-1/8" |
| Motor Pahse | |
| Motor Phase | 1 |
| Motor Power (HP) | 1-1/2 HP |
| Motor Voltage (V.) | 115/230V |
| Number of Spindle Speeds | |
| Work Table Weight Capacity (Lbs.) |
