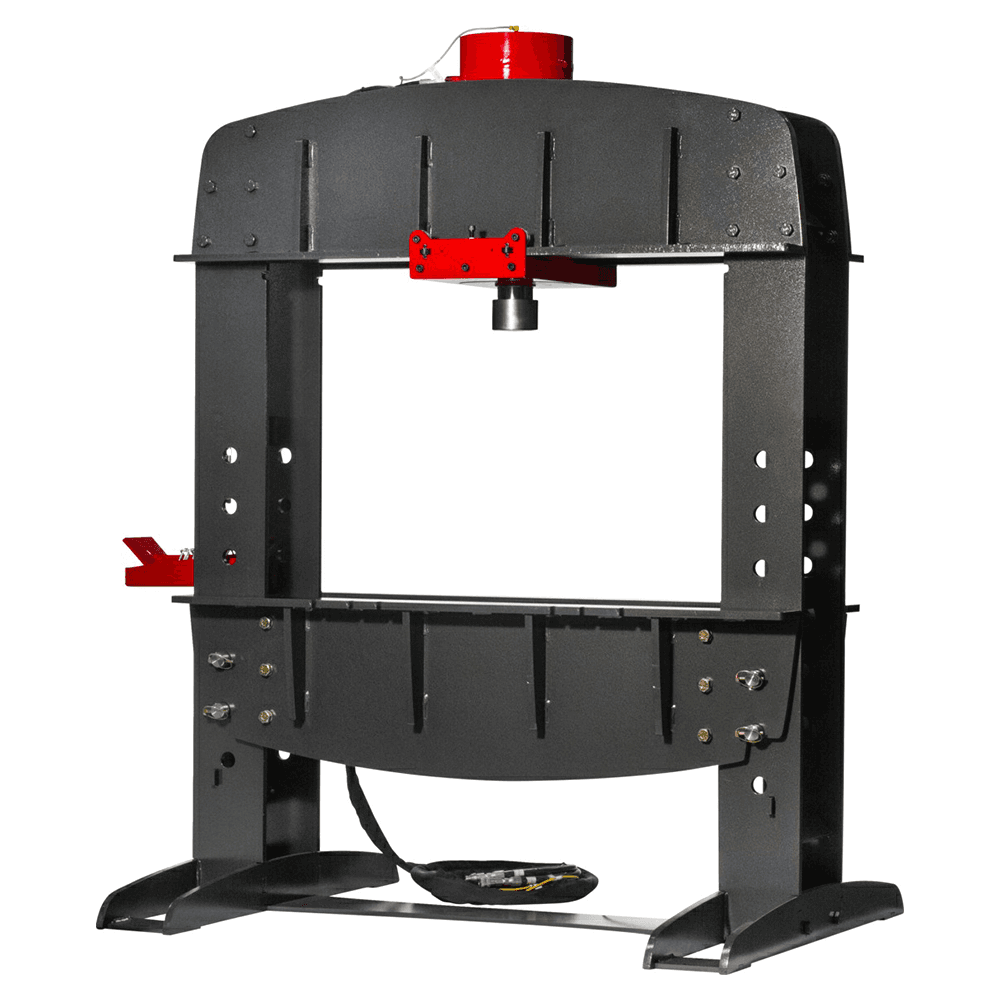

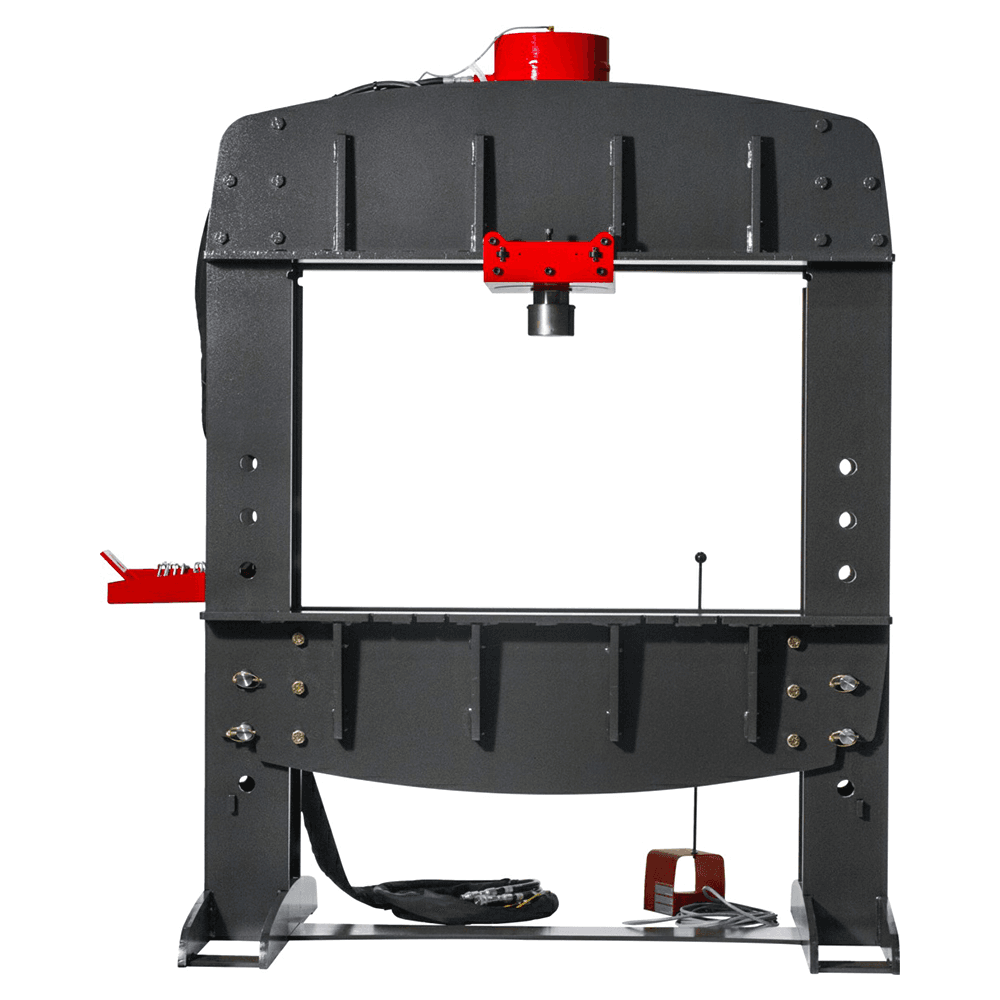

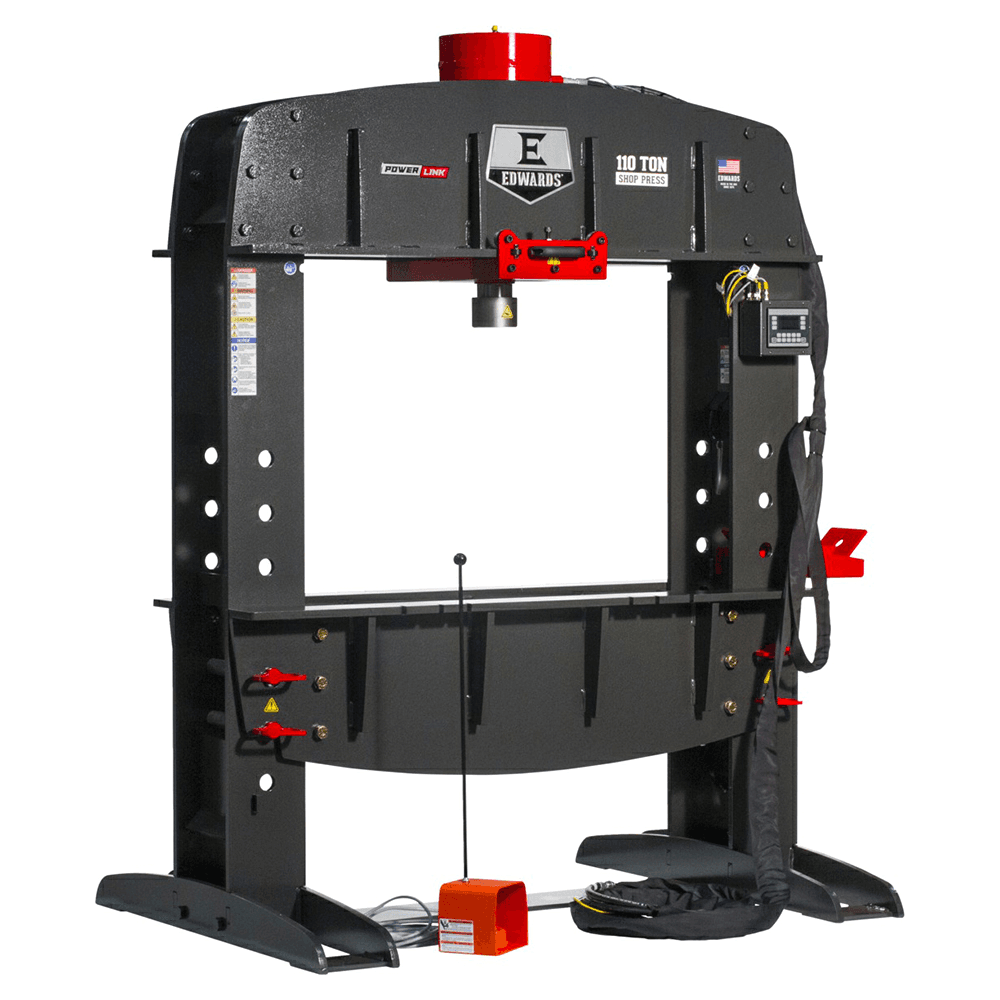

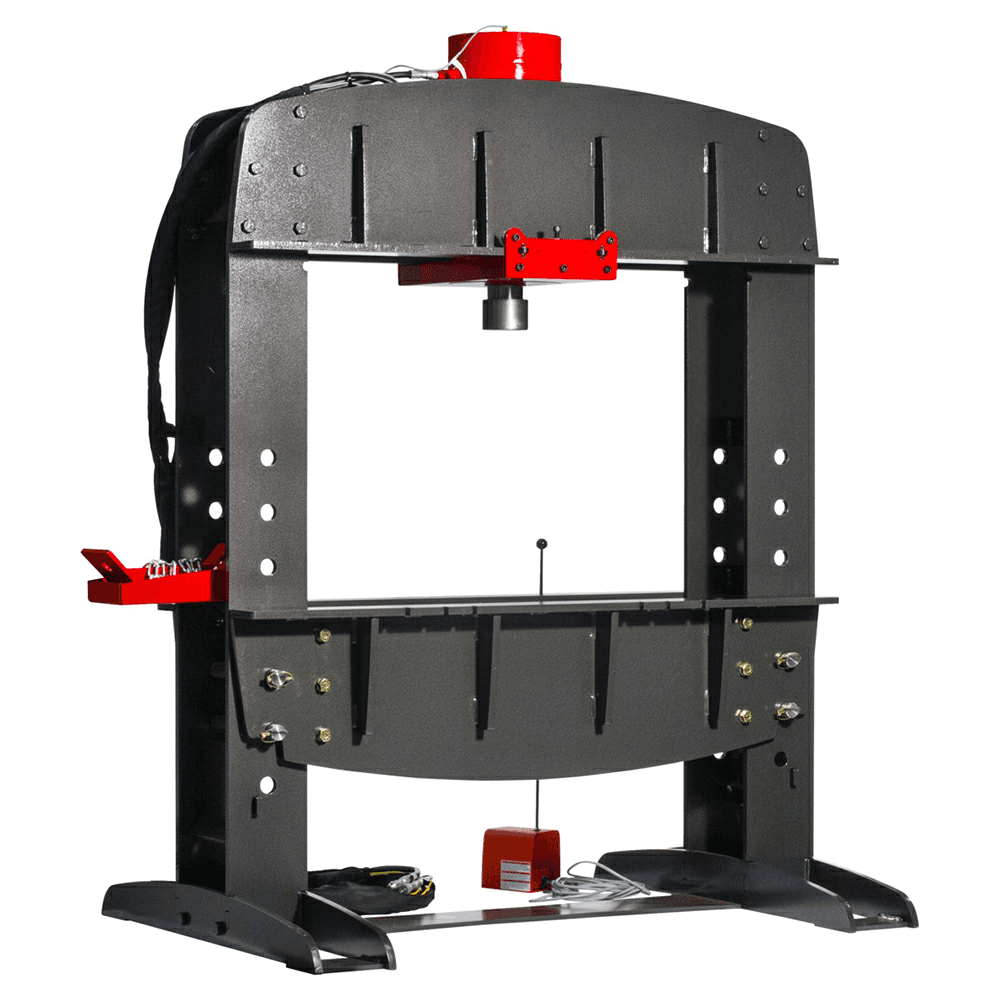

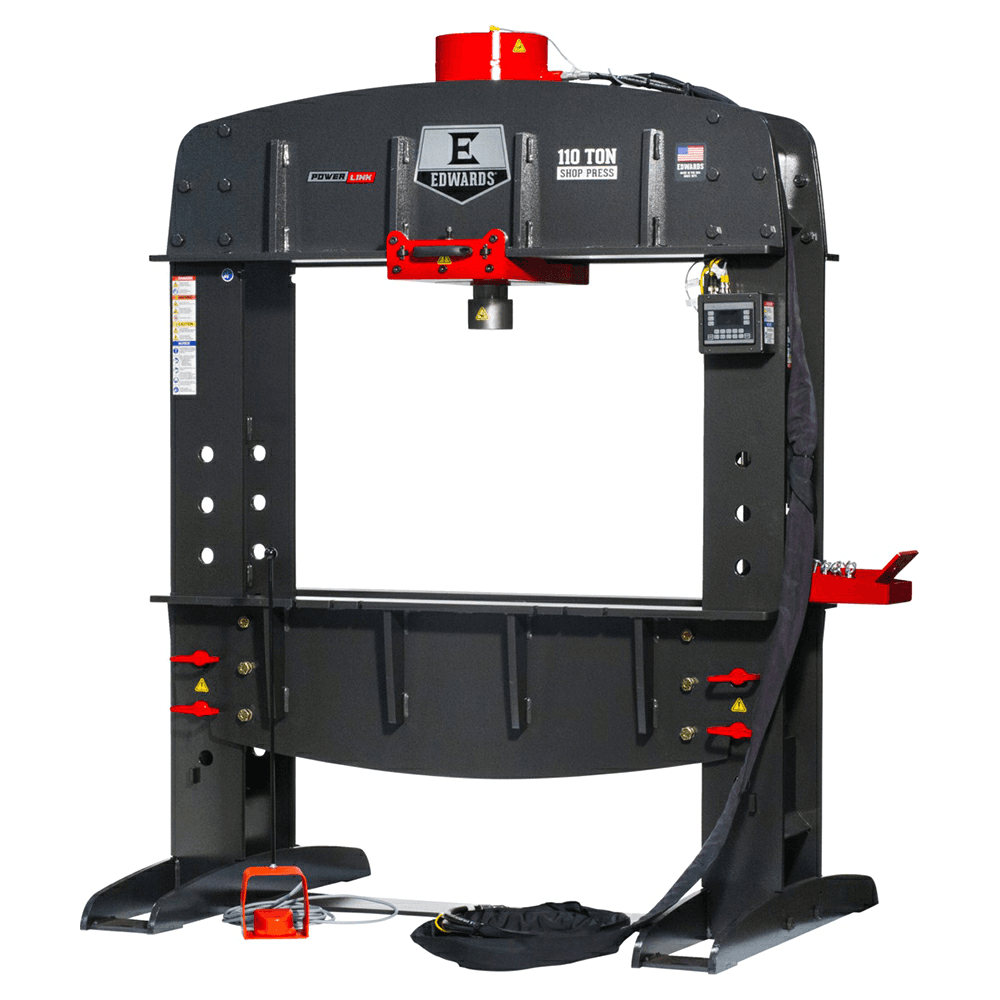

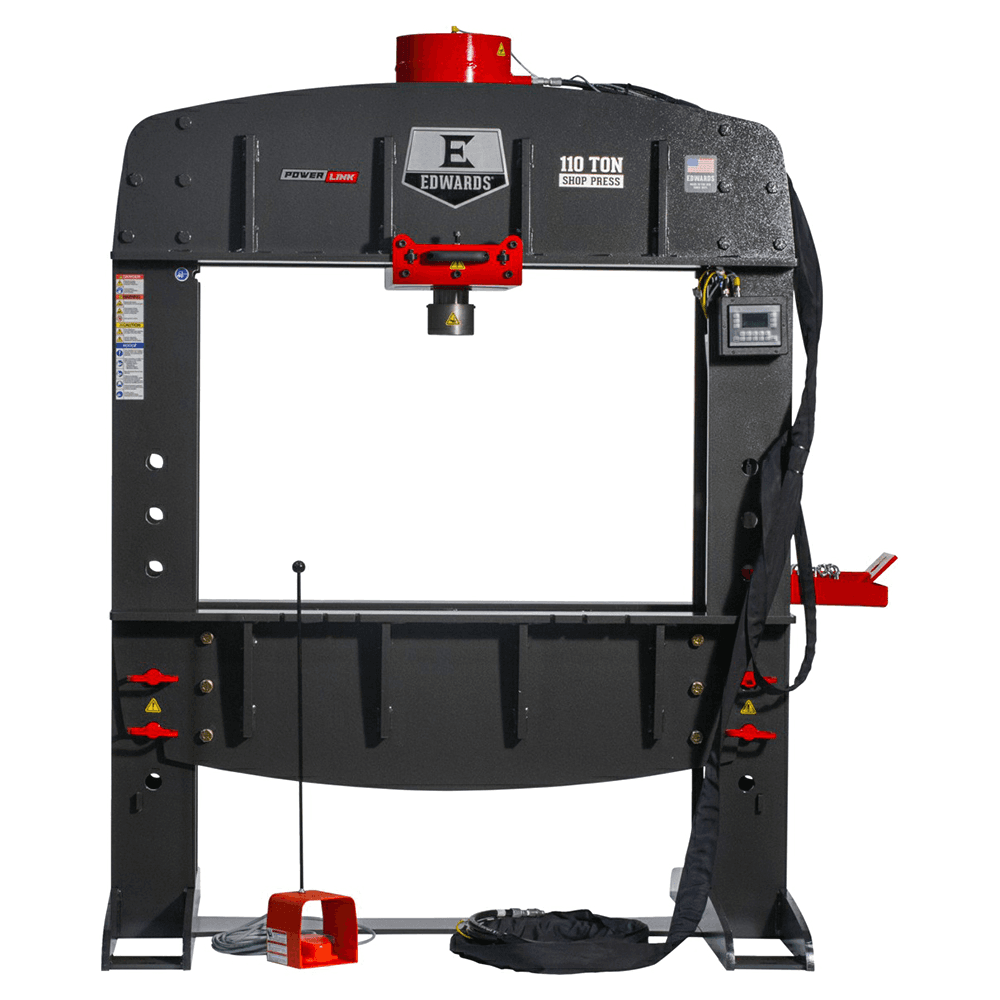

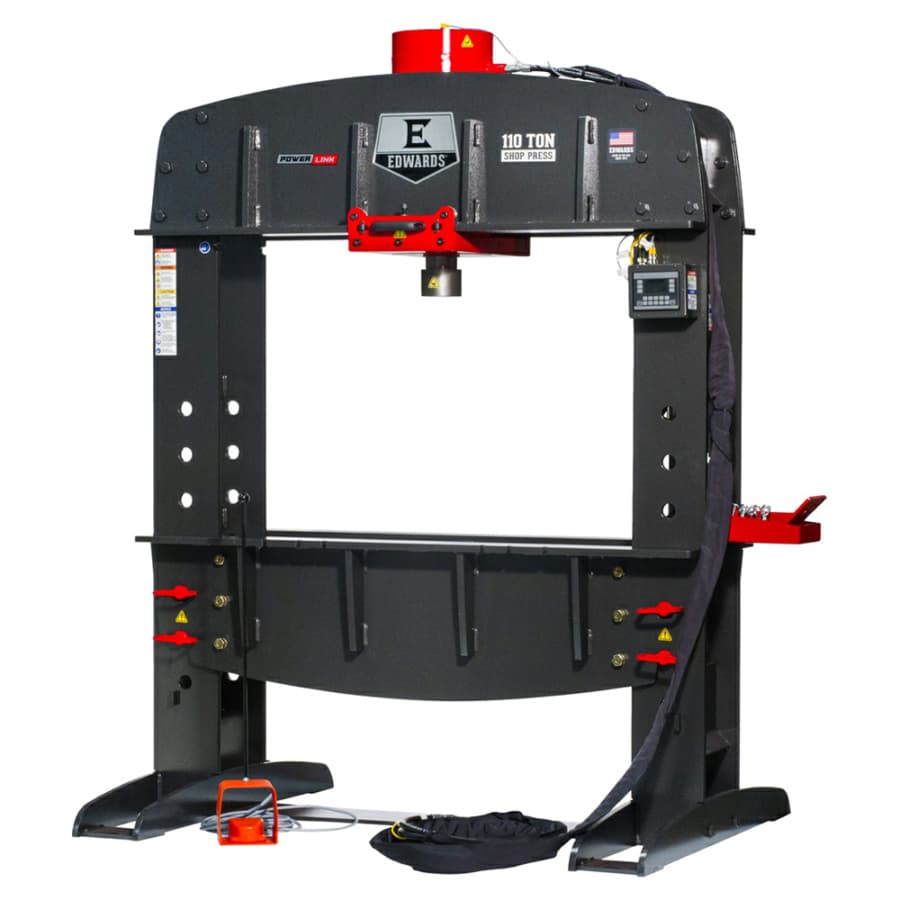

Edwards HAT9050 110 Ton Shop Press with PLC
This item may incur additional shipping costs and lead times.
Product Details
Our most powerful Shop Press, this 110 Ton Shop Press includes a Programmable Logic Control (PLC) to maximize your efficiency with shorter cycle times - over a 50% time savings. With the greatest capacity this Shop Press is able to accept all of our standard tooling along with custom tooling in its large work table area, the 110 Ton can press bearings, bend metal or straighten your parts. The rolling cylinder, open-sided design, and electric foot pedal make this machine simple to use. Must be run off an Edwards Ironworker with PowerLink ™ System or Portable Power Unit. Features: • 20' quick-connect hoses for simple ”plug and play“ operation • Accepts a variety of standard and custom tooling • Electric foot pedal with integrated jog control • Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket • Magnetic PLC control box mounts anywhere on the shop press for user performance and comfort • Open-sided design allows longer material to pass through the frame • Programmable Logic Control (PLC) allows operators to create repeatable actions, improving efficiency • Rolling cylinder provides maximum adaptability • The PLC delivers adjustable PSI allows the user to set the desired pressure accurately • The PLC offers adjustable up/down stroke control providing up to 50% time savings
Specifications
| Box Quantity | 1 |
| Configurable Base Item | No |
| Configurator Option Type | |
| Minimum Ram Speed (In./Sec) | 0.186" |
| Minimum Return Speed (In./Sec) | 0.22" |
| Product Type | Shop Presses |
| Rating (Tons) | 110 |
| Steel Frame Thickness | 3/4" |
| Stroke | 12-1/4" |
| Work Table | 37-7/16" x 48" |
