Baileigh SR-5016 1 HP Slip Roll, 1 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

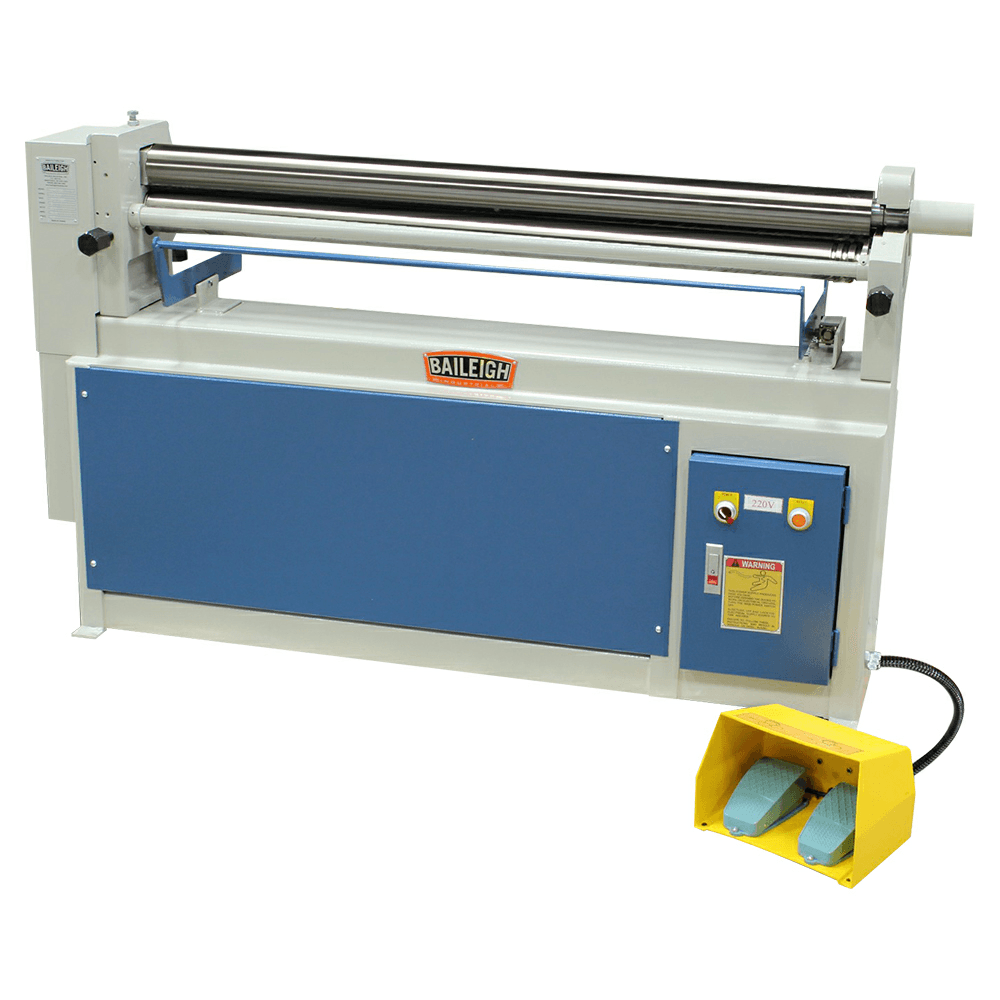

This electric slip roll can save time and effort in any HVAC shop or general fabrication shop. Its solid plate steel upper main frame is precisely machined to keep all 3 rolls in alignment. Features: • 50" working width • Can roll 16-gauge mild steel with ease • 1 hp motor runs on 220-volt single-phase power • Motor controls the movement of 2 driven rolls, so the SR-5016 has enough power for almost any job, anywhere • Includes foot pedal for both left and right rolling applications • All-steel lower base is fully welded and integrated with the uprights for rigidity • Comes with 3 grooves for rolling wire or rod • Integrated emergency stops to help maintain a safe workplace
Specifications
| Box Quantity | 1 |
| Configurable Base Item | |
| Product Type | Slip Rolls |
| Overall Dimensions (L x W x H) | |
| Number and Diameter of Rolls | |
| Motor Voltage (V.) | 220V |
| Motor Phase | |
| Motor (HP) | 1 HP |
| Minimum Forming Radius | |
| Mild Steel Capacity (Gauge) | 16 |
| Mild Steel Capacity | 16 ga. (0.060") |
| Maximum Forming Length | 50" |
| Wire Grooves | Yes |
