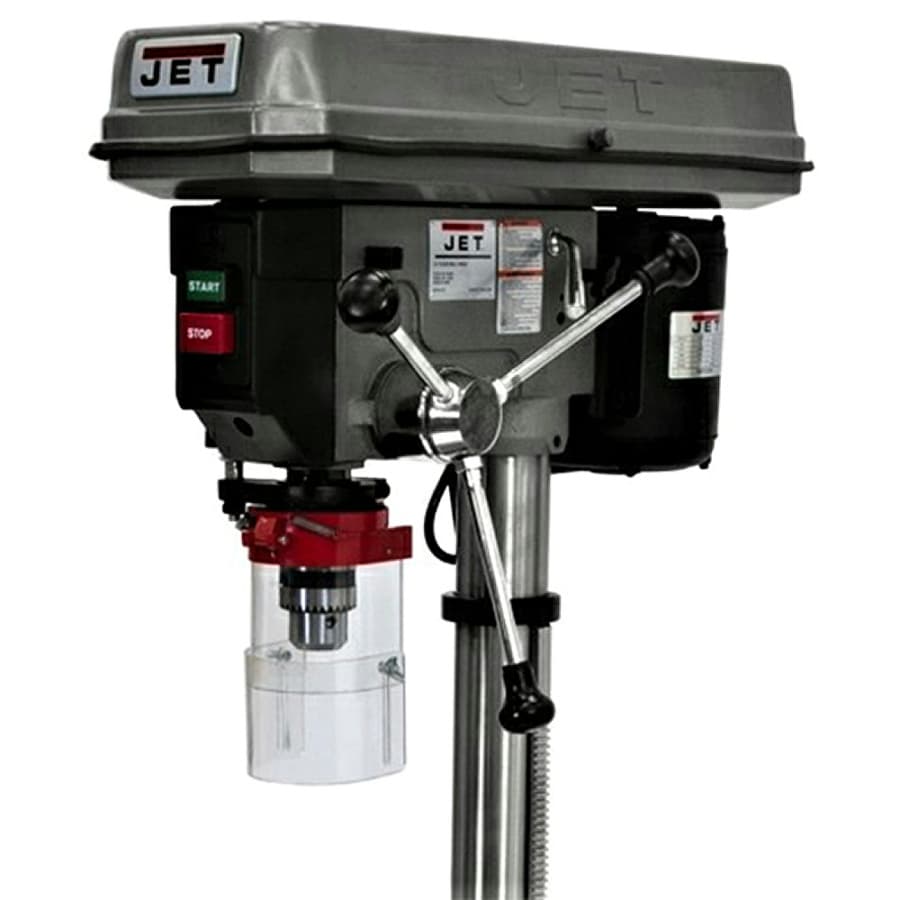

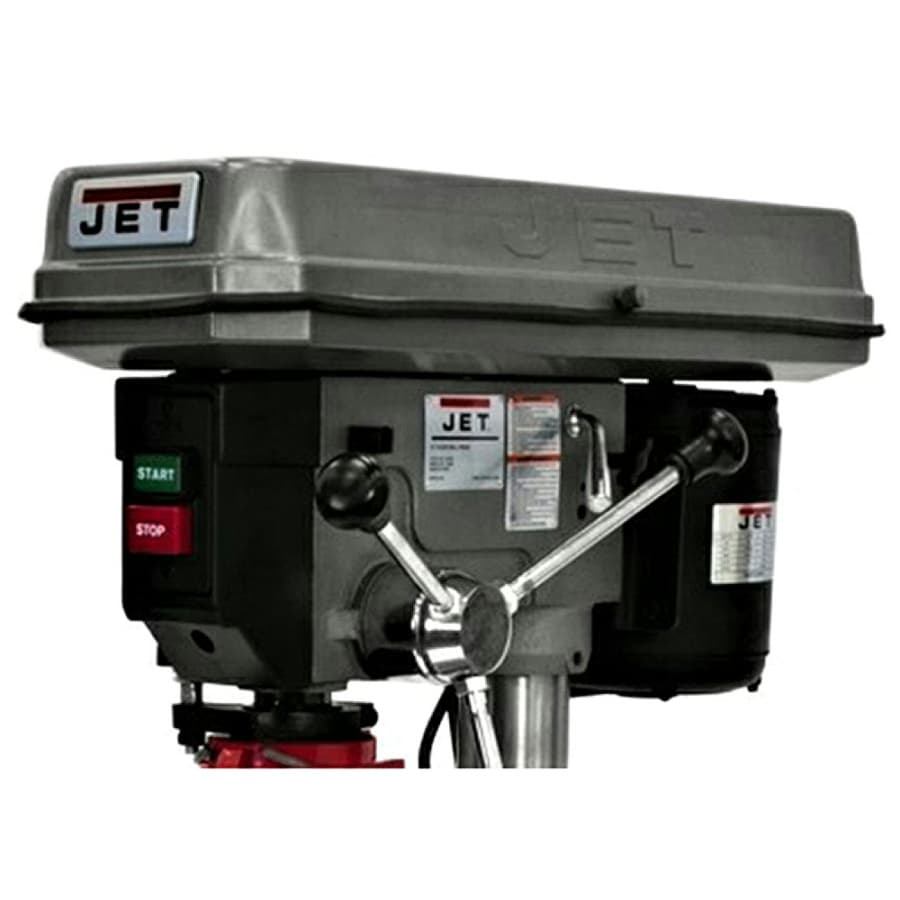

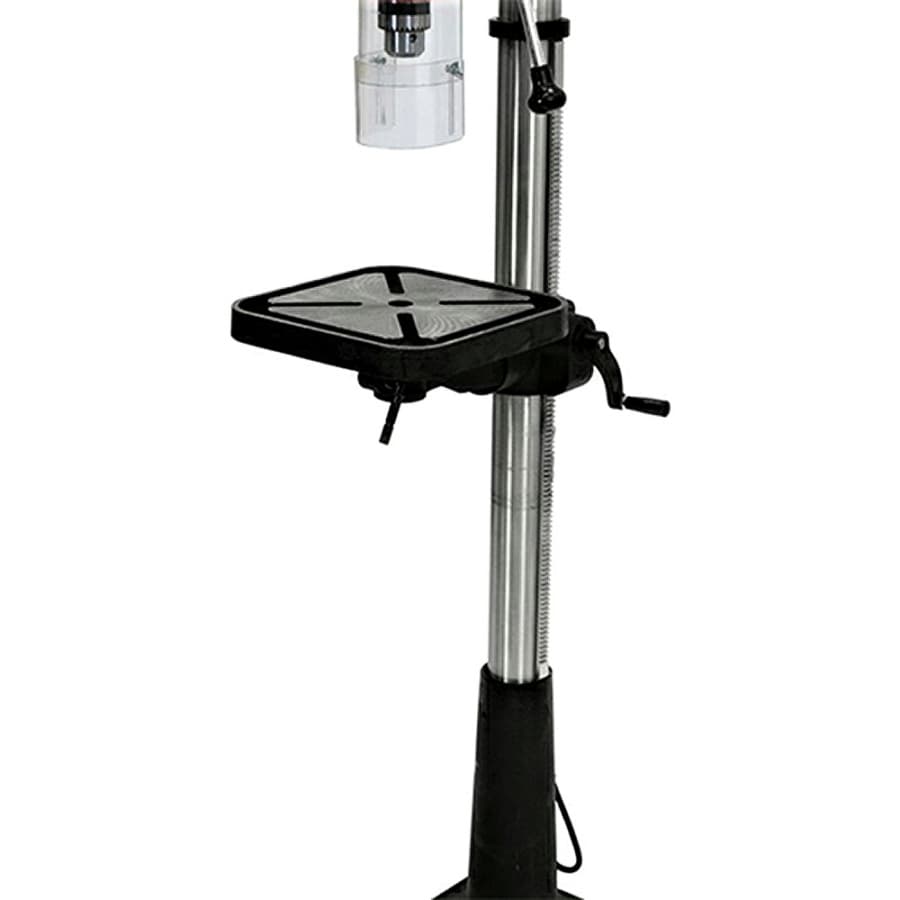

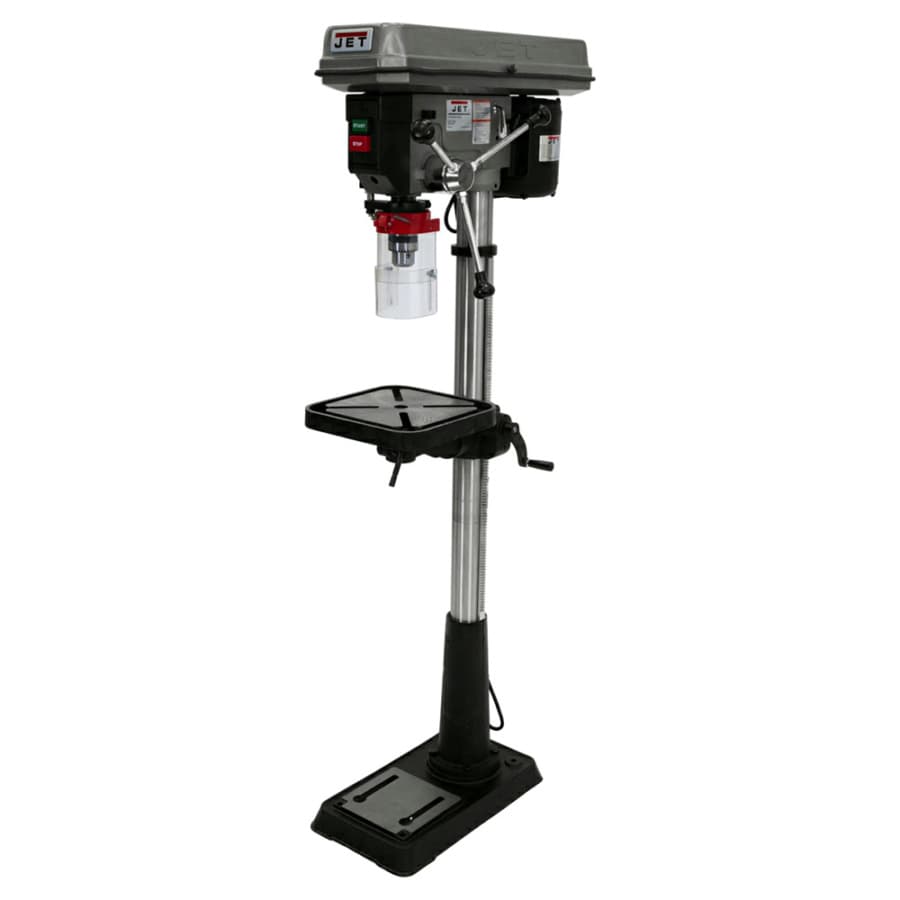

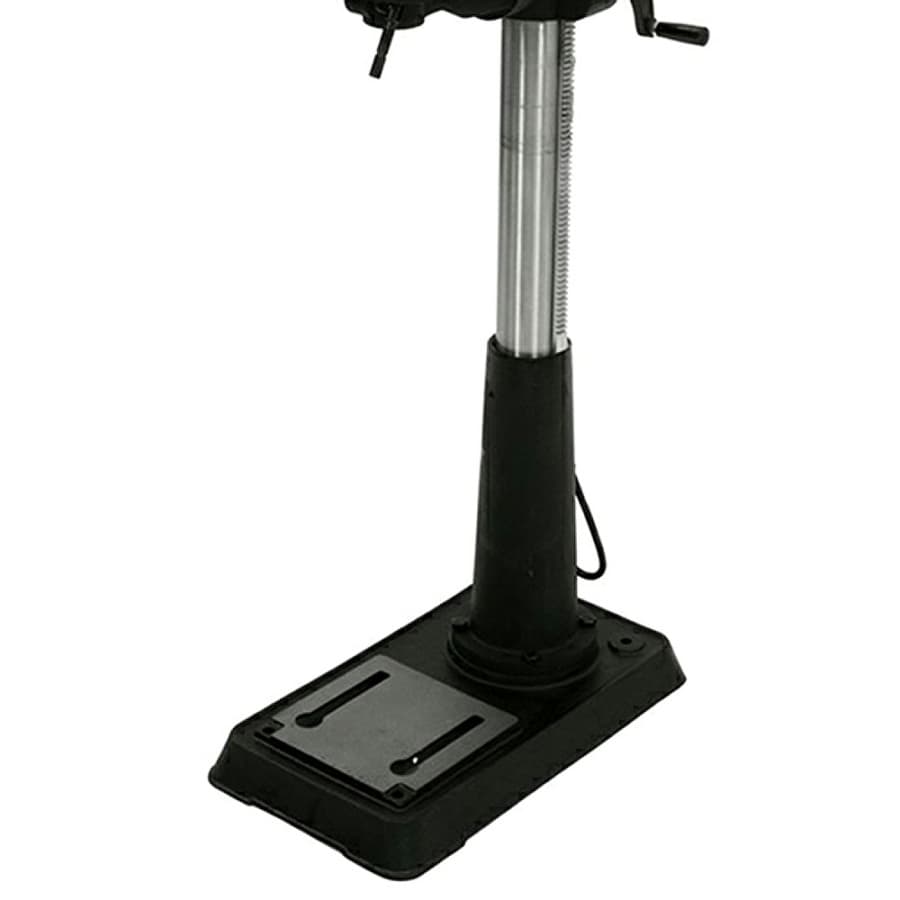

Jet Tools J-2500 15" Floor Model Drill Press, 1 Phase/115V
This item may incur additional shipping costs and lead times.
Product Details
Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" drill presses. This high quality line of JET drill presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty. Features: • 3-1/8" stroke for deep hole applications • Cast iron head • Constructed to provide a solid base for drilling • Large ground steel column for maximum head and table support • Large quill allows greater accuracy • Telescoping safety spindle guard • The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
Specifications
| Box Quantity | 1 |
| Work Table Weight Capacity (Lbs.) | 44lbs |
| Quill Feed | |
| Quill Diameter | |
| Product Type | Step Pulley/Variable Speed Drill Presses |
| Prewired Voltage | |
| Overall Dimensions (L x W x H) | 31" x 13" x 63" |
| Motor Amps | |
| Inverter Type / Power Source | |
| Inverter Type | |
| Quill Travel with Powerfeed Engaged | |
| Range of Spindle Speeds (RPM) | 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630 RPM |
| Spindle Speed Range (RPM) | |
| T-Slots Number and Size | 3" - 5/8" |
| T-Slot Centers | |
| Tapping Capacity Mild Steel | |
| Tapping Capacity Cast Iron | |
| Table Travel | 24" |
| Spindle Travel, Manual | |
| Spindle Travel Auto | |
| Spindle Taper (In. x TPI) | MT-2 |
| Drills to Center of Circle | 15" |
| Drilling Capacity Mild Steel | 1/2" |
| Drilling Capacity Cast Iron | 5/8" |
| Motor Power (HP) | 3/4 HP |
| Column Diameter | 2-7/8" |
| Spindle Travel | 3-3/8" |
| Motor Phase | 1 |
| Base Size | |
| Motor Voltage (V.) | 115/230V |
| Spindle Taper | |
| Table Size (L x W) | 11-1/2" x 11-1/2" |
| Spindle Distance to Base | 48" |
| Spindle Distance to Table (Max.) | 24" |
| Number of Spindle Speeds | 16 |
| Distance Column to Spindle | 7-1/2" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Base Work Table | |
| Base Slots Number & Size | |
| Base Dimensions | 11" x 19-1/2" |
| Spindle Speed (RPM) | |
| Swing | |
| Chuck Size | |
| Chuck Distance to Base | |
| Prewired Voltage (V.) | |
| Wiring Remarks | |
| Quick Change Collet Size (Mm.) | |
| Fence Size (L x H) | |
| Motor Current (Amps) | |
| Table Size Fully Extended (L x W) | |
| Style (Type) | |
| Table Tilt (Deg.) | |
| Chuck Distance to Table | |
| Recommended Circuit Size (Amps.) | |
| Warranty | |
| Horsepower | |
| Phase |
