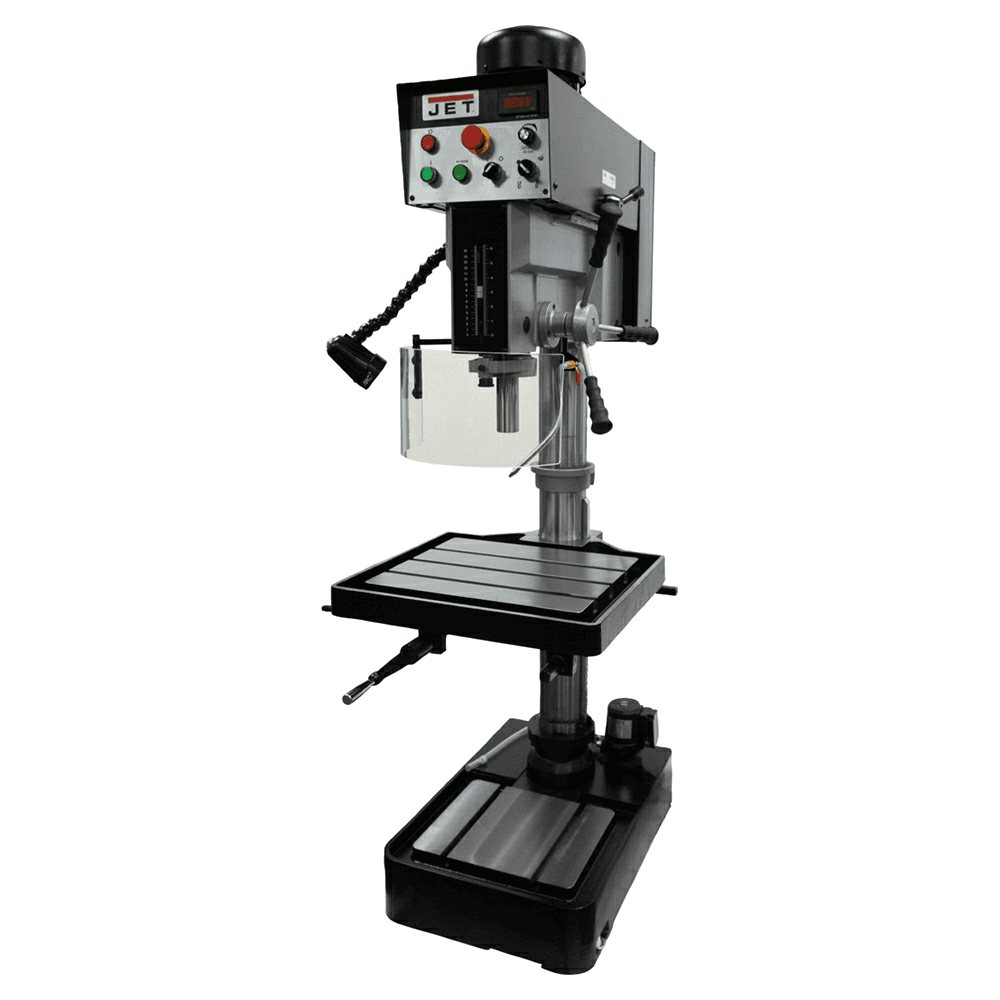

Jet Tools JDP-20EVS-110 1-1/2" 2 HP Drilling Capacity, 1 Phase/115V
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
JET Electronic variable speed drill presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment - even during operation. Emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy. Features: • Coolant system is optional #5512104 • CSA/CUS Certified • Front mounted LED spindle RPM readout • Front mounted positive control depth stop • Heavy-duty steel column for increased precision and rigidity • High torque at all speeds both forward and reverse • Large hand grips designed with the users comfort in mind • Large precision ground T-Slot production table for easy set ups • Latest AC Inverter variable speed Technology • Spindle is supported by high quality ball bearings
Specifications
| Box Quantity | 1 |
| Work Table Weight Capacity (Lbs.) | 154lbs |
| Quill Feed | |
| Quill Diameter | |
| Product Type | Step Pulley/Variable Speed Drill Presses |
| Prewired Voltage | |
| Overall Dimensions (L x W x H) | 38.18" x 27.16" x 79.52" |
| Motor Amps | |
| Inverter Type / Power Source | |
| Inverter Type | 115V, Single Phase |
| Quill Travel with Powerfeed Engaged | |
| Range of Spindle Speeds (RPM) | 65-540 /245- 2,000 RPM |
| Spindle Speed Range (RPM) | |
| T-Slots Number and Size | |
| T-Slot Centers | 7-7/16" |
| Tapping Capacity Mild Steel | |
| Tapping Capacity Cast Iron | |
| Table Travel | 20" |
| Spindle Travel, Manual | |
| Spindle Travel Auto | |
| Spindle Taper (In. x TPI) | MT-3 |
| Drills to Center of Circle | 20" |
| Drilling Capacity Mild Steel | 1-3/8" |
| Drilling Capacity Cast Iron | 1-1/2" |
| Motor Power (HP) | 2 HP |
| Column Diameter | 4-1/2" |
| Spindle Travel | 6" |
| Motor Phase | 1 |
| Base Size | |
| Motor Voltage (V.) | 115V |
| Spindle Taper | |
| Table Size (L x W) | 22" x 18-3/4" |
| Spindle Distance to Base | 44-1/2" |
| Spindle Distance to Table (Max.) | 30-1/4" |
| Number of Spindle Speeds | |
| Distance Column to Spindle | 10-7/16" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Base Work Table | |
| Base Slots Number & Size | |
| Base Dimensions | 27" x 19" |
| Spindle Speed (RPM) | |
| Swing | |
| Chuck Size | |
| Chuck Distance to Base | |
| Prewired Voltage (V.) | |
| Wiring Remarks | |
| Quick Change Collet Size (Mm.) | |
| Fence Size (L x H) | |
| Motor Current (Amps) | |
| Table Size Fully Extended (L x W) | |
| Style (Type) | |
| Table Tilt (Deg.) | |
| Chuck Distance to Table | |
| Recommended Circuit Size (Amps.) | |
| Warranty | |
| Horsepower | |
| Phase |
