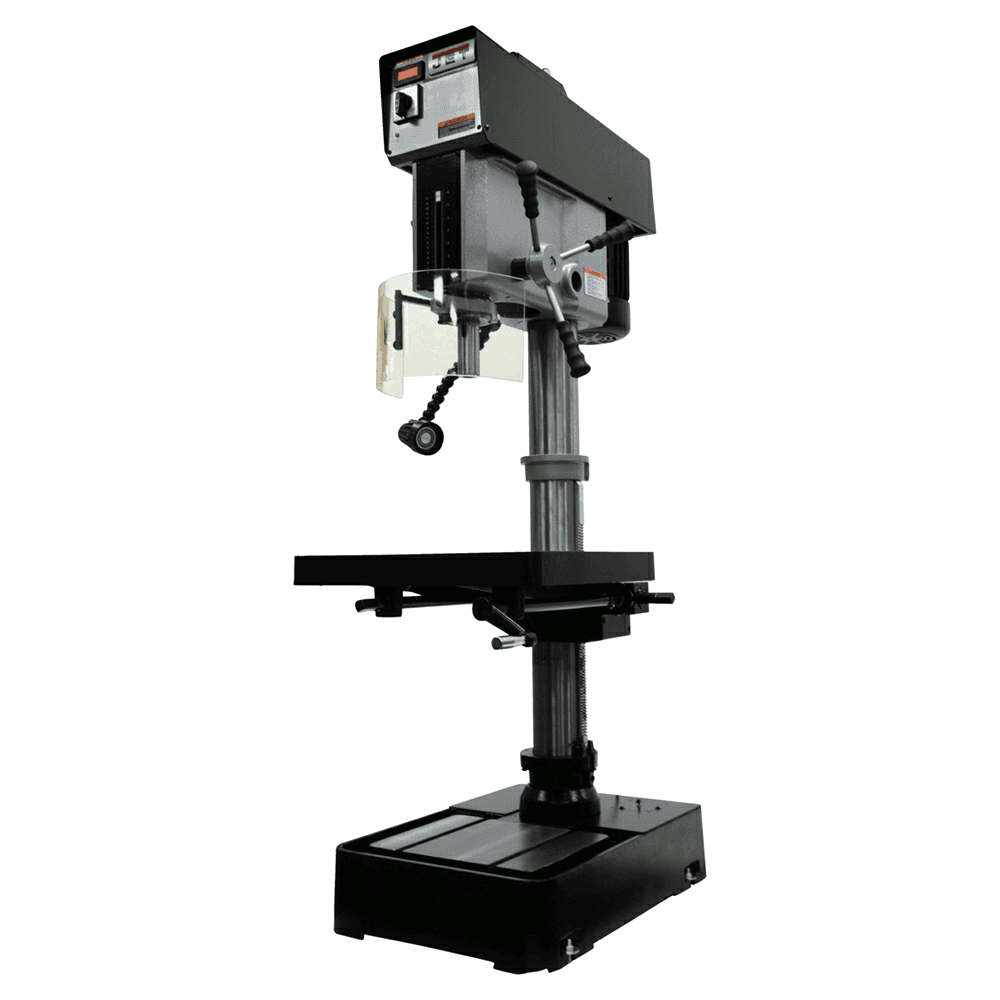

Jet Tools JDP-20VS-1 1-1/4" 2 HP Drilling Capacity, 1 Phase/115/230V
This item may incur additional shipping costs and lead times.
Product Details
Solid design and construction deliver precision operation and control. JET 20" variable speed drill presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That“s all on top of a steel column and a heavy-duty cast iron base. Features: • CSA/CUS Certified • Front mounted LED spindle RPM readout • Front mounted positive control depth stop • Head is massively constructed for more accuracy and rigidity and heavy duty cast iron design • Massive 3" quill diameter • Large hand grips designed with the users comfort in mind • Large precision ground T-Slot production table for easy set ups • Drill chuck is not included • Table rotates 360° around the column • Variable spindle speeds
Specifications
| Box Quantity | 1 |
| Work Table Weight Capacity (Lbs.) | 154lbs |
| Quill Feed | |
| Quill Diameter | |
| Product Type | Step Pulley/Variable Speed Drill Presses |
| Prewired Voltage | 115V |
| Overall Dimensions (L x W x H) | 38.18" x 27.16" x 79.52" |
| Motor Amps | |
| Inverter Type / Power Source | |
| Inverter Type | |
| Quill Travel with Powerfeed Engaged | |
| Range of Spindle Speeds (RPM) | 300 - 2,000 RPM |
| Spindle Speed Range (RPM) | 300 - 2000 RPM |
| T-Slots Number and Size | 3, 5/8" |
| T-Slot Centers | 7-7/16" |
| Tapping Capacity Mild Steel | |
| Tapping Capacity Cast Iron | |
| Table Travel | 20" |
| Spindle Travel, Manual | |
| Spindle Travel Auto | |
| Spindle Taper (In. x TPI) | MT-3 |
| Drills to Center of Circle | 20" |
| Drilling Capacity Mild Steel | 1" |
| Drilling Capacity Cast Iron | 1-1/4" |
| Motor Power (HP) | 2 HP |
| Column Diameter | 4-1/2" |
| Spindle Travel | 6" |
| Motor Phase | 1 |
| Base Size | 27" x 19" |
| Motor Voltage (V.) | 115/230V |
| Spindle Taper | MT3 |
| Table Size (L x W) | 22" x 18-3/4" |
| Spindle Distance to Base | 44-1/2" |
| Spindle Distance to Table (Max.) | 30-1/4" |
| Number of Spindle Speeds | Variable |
| Distance Column to Spindle | 10-7/16" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Base Work Table | |
| Base Slots Number & Size | 3", 5/8" |
| Base Dimensions | 27" x 19" |
| Spindle Speed (RPM) | 300 - 2000 RPM |
| Swing | 20" |
| Chuck Size | |
| Chuck Distance to Base | |
| Prewired Voltage (V.) | |
| Wiring Remarks | |
| Quick Change Collet Size (Mm.) | |
| Fence Size (L x H) | |
| Motor Current (Amps) | |
| Table Size Fully Extended (L x W) | |
| Style (Type) | |
| Table Tilt (Deg.) | |
| Chuck Distance to Table | |
| Recommended Circuit Size (Amps.) | |
| Warranty | |
| Horsepower | |
| Phase |
