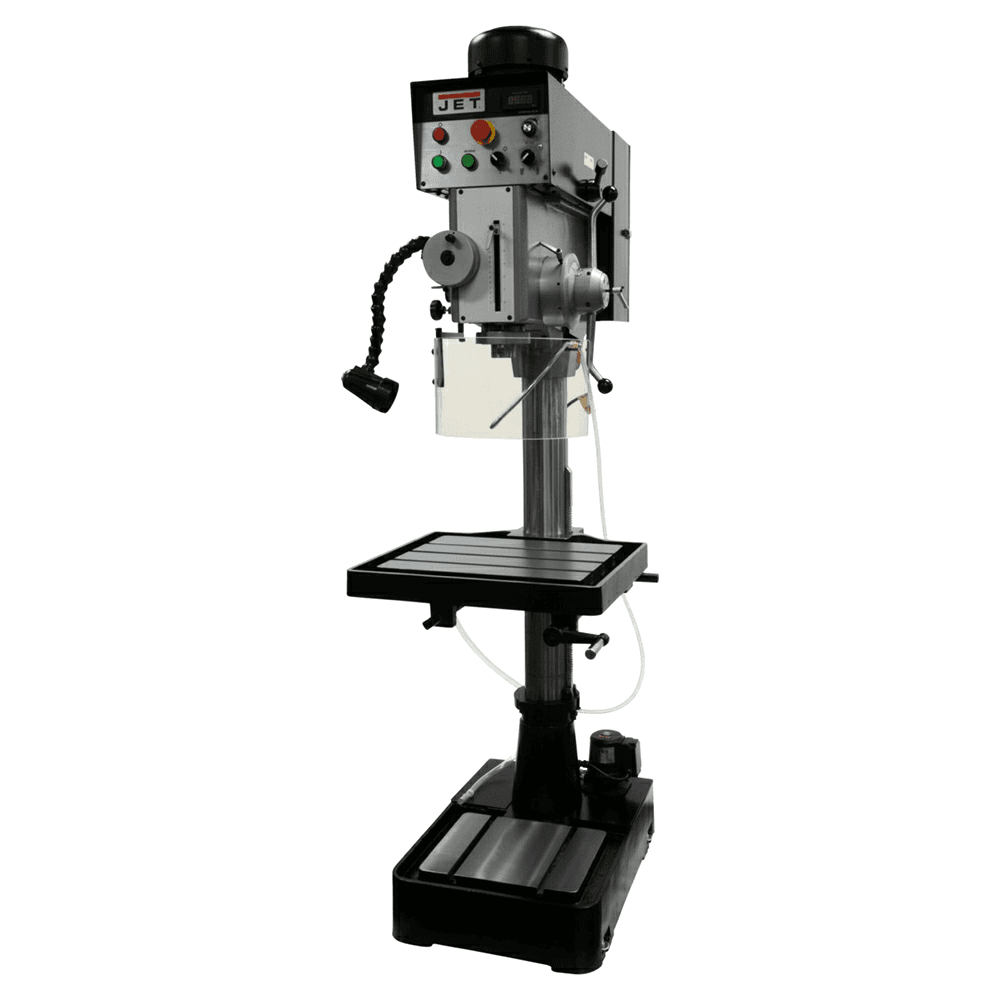

Jet Tools JDP-20EVST-460-PDF 2 HP Drilling Capacity with 3 Phase Power Downfeed, 460V
This item may incur additional shipping costs and lead times.
Product Details
Accuracy, stability and versatility are the benchmark features of the JET 20" drill presses. This high-quality line of JET drill presses offer a greater range in spindle speeds than other machines of this class. The spindle head is supported by high quality ball bearings. Designed to permit continuous speed adjustment - even during operation. Forward and reverse tapping capabilities, an emergency stop, and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy. JET backs their machines with the industry leading Two Year Warranty and are CSA/CUS Certified. Features: • CSA Coolant System • Front mounted LED spindle RPM readout • Front mounted positive control depth stop • Heavy-duty steel column for increased precision and rigidity • High torque at all speeds both forward and reverse • Large hand grips designed with the users comfort in mind • Large precision ground T-Slot production table for easy set ups • Latest AC Inverter variable speed Technology
Specifications
| Box Quantity | 1 |
| Work Table Weight Capacity (Lbs.) | 154lbs |
| Quill Feed | |
| Quill Diameter | |
| Product Type | Step Pulley/Variable Speed Drill Presses |
| Prewired Voltage | 460V |
| Overall Dimensions (L x W x H) | 42.5" x 27.16" x 78.74" |
| Motor Amps | |
| Inverter Type / Power Source | |
| Inverter Type | B Type 230V 3Ph |
| Quill Travel with Powerfeed Engaged | 6" |
| Range of Spindle Speeds (RPM) | 60 - 2,000(60-540/225-2000) RPM |
| Spindle Speed Range (RPM) | |
| T-Slots Number and Size | 3", 5/8" |
| T-Slot Centers | 7-7/16" |
| Tapping Capacity Mild Steel | 1" |
| Tapping Capacity Cast Iron | 1" |
| Table Travel | 20" |
| Spindle Travel, Manual | |
| Spindle Travel Auto | 60-2,000 |
| Spindle Taper (In. x TPI) | MT-4 |
| Drills to Center of Circle | 20" |
| Drilling Capacity Mild Steel | 2" |
| Drilling Capacity Cast Iron | |
| Motor Power (HP) | 2 HP |
| Column Diameter | 4-1/2" |
| Spindle Travel | 6" |
| Motor Phase | 3 |
| Base Size | 27" x 19" |
| Motor Voltage (V.) | 460 |
| Spindle Taper | |
| Table Size (L x W) | 22" x 18-3/4" |
| Spindle Distance to Base | 44.68" |
| Spindle Distance to Table (Max.) | 25.5" |
| Number of Spindle Speeds | |
| Distance Column to Spindle | 10-7/16" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Base Work Table | |
| Base Slots Number & Size | |
| Base Dimensions | 27" x 19" |
| Spindle Speed (RPM) | |
| Swing | 20" |
| Chuck Size | |
| Chuck Distance to Base | |
| Prewired Voltage (V.) | |
| Wiring Remarks | |
| Quick Change Collet Size (Mm.) | |
| Fence Size (L x H) | |
| Motor Current (Amps) | |
| Table Size Fully Extended (L x W) | |
| Style (Type) | |
| Table Tilt (Deg.) | |
| Chuck Distance to Table | |
| Recommended Circuit Size (Amps.) | |
| Warranty | |
| Horsepower | |
| Phase |
