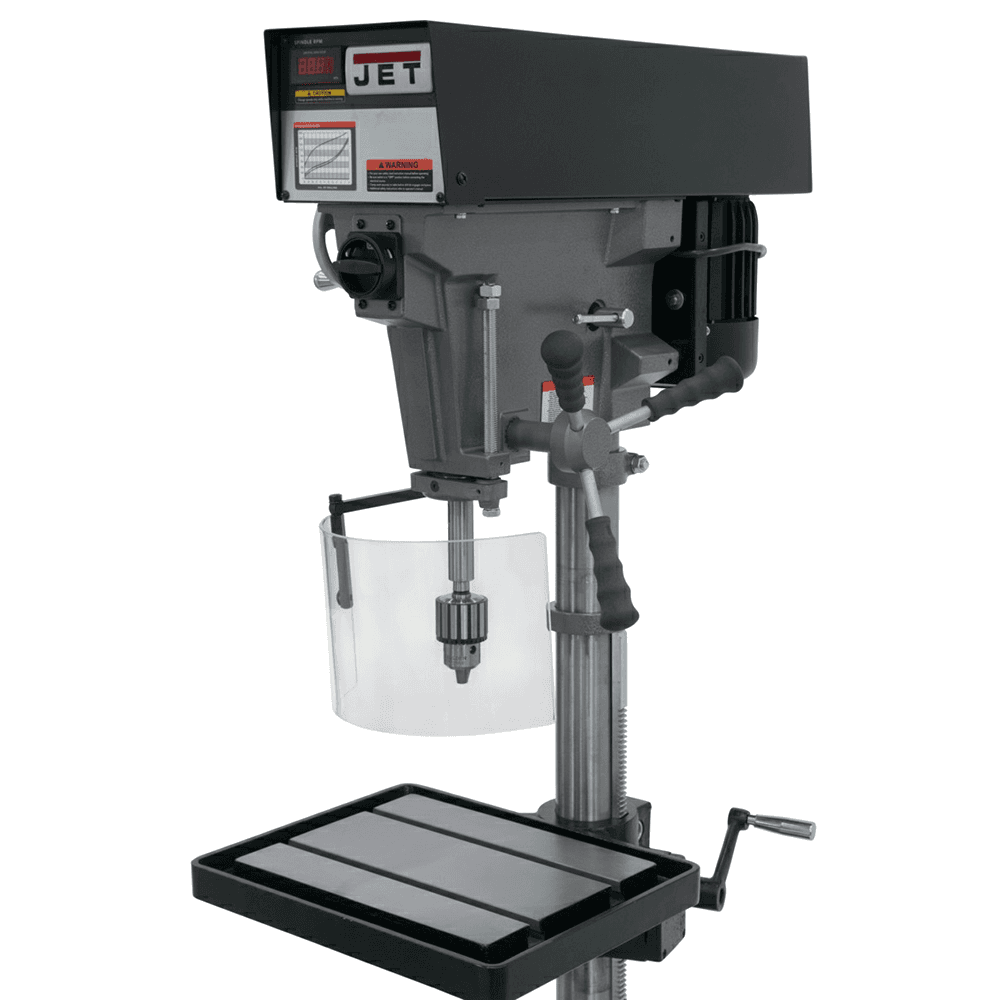

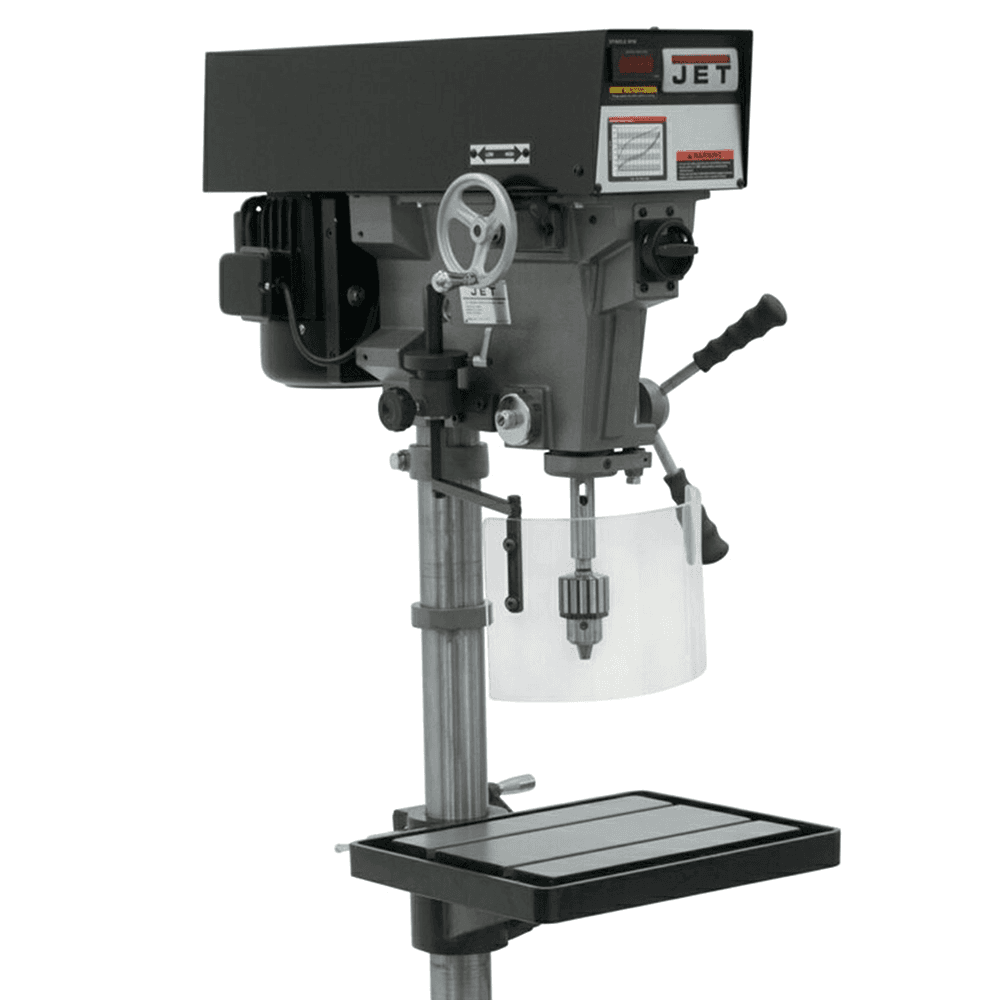

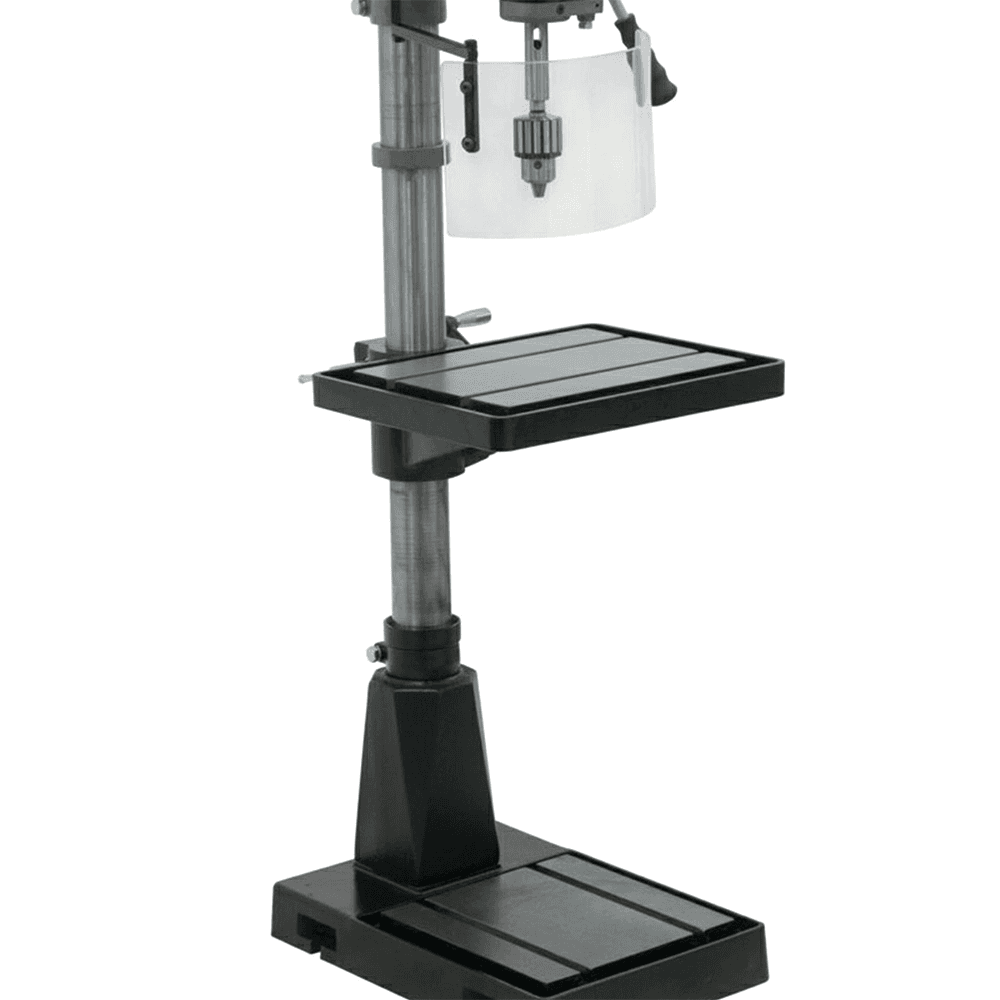

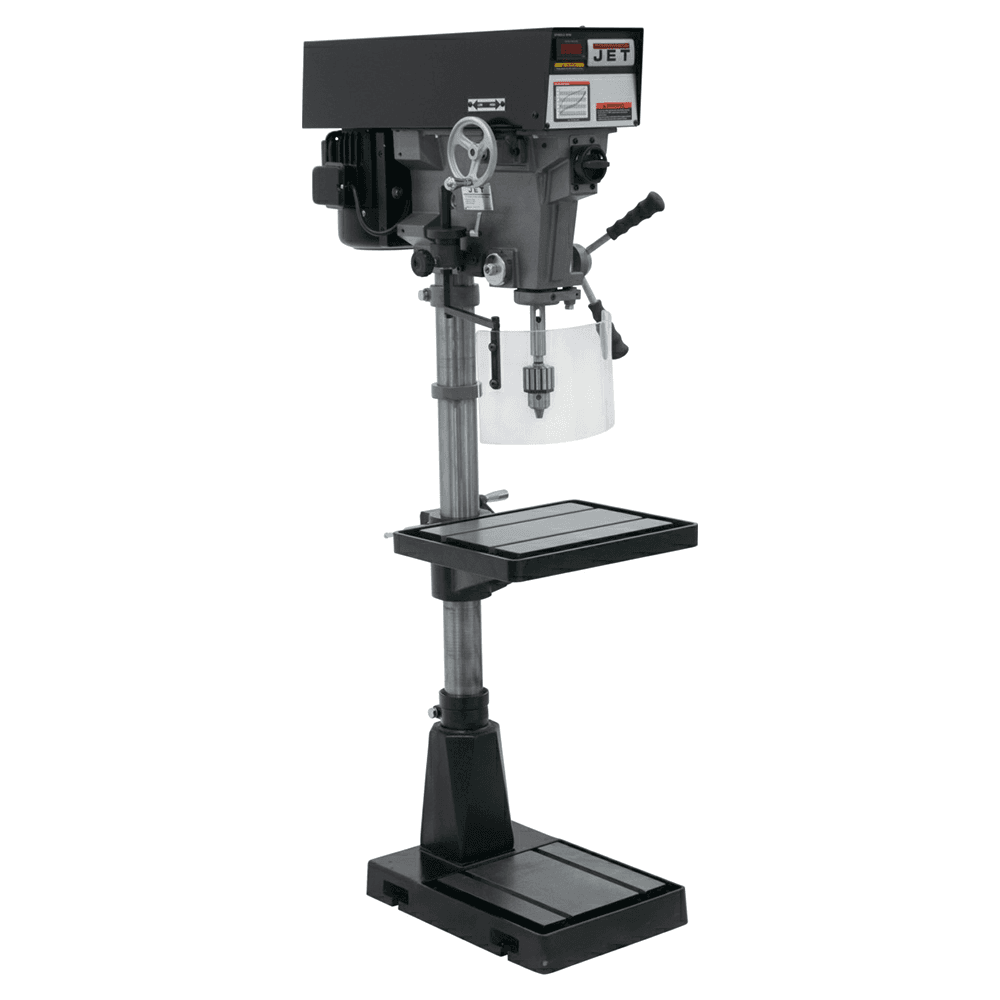

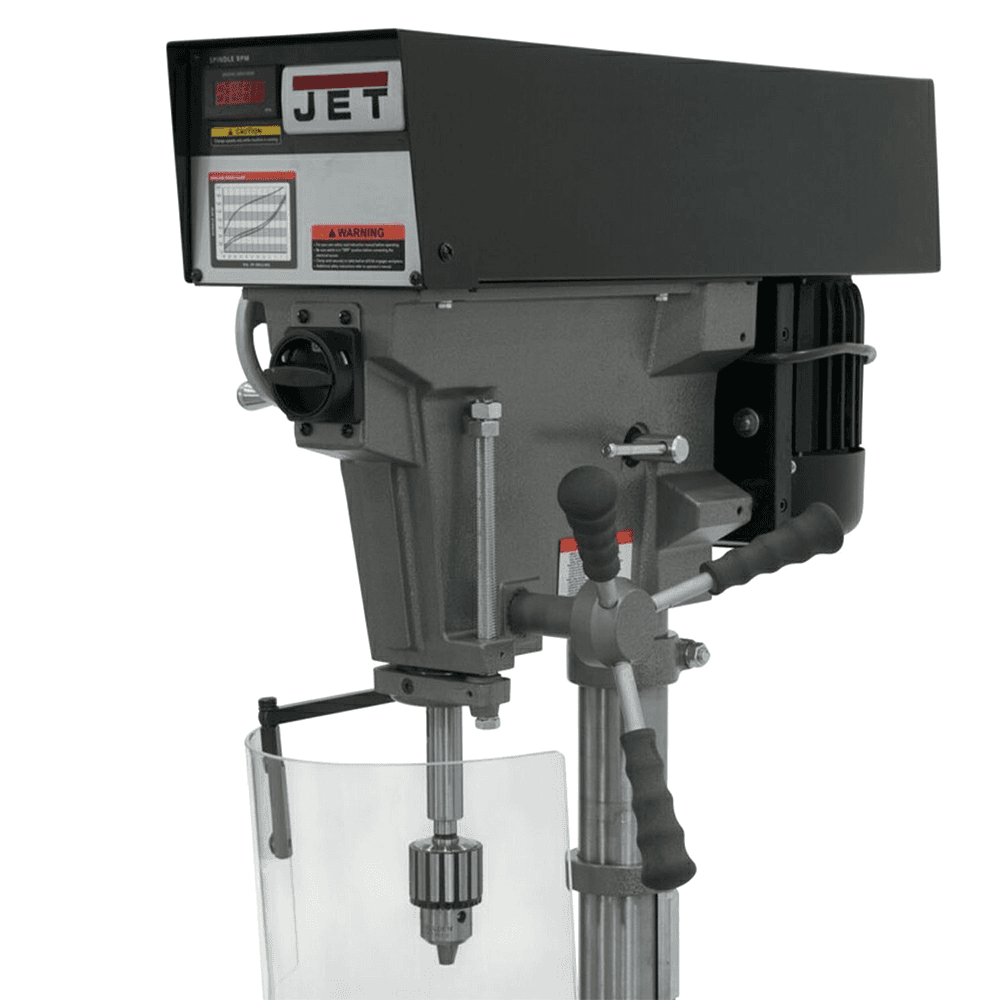

Jet Tools J-A5818 15" Variable Speed Floor Model Drill Press, 230/460V
This item may incur additional shipping costs and lead times.
Product Details
These JET drill presses use a variable-speed motor with the stepped-pulley system, and come equipped with a continuously variable transmission. This enables use at a wide range of speeds, as well as the ability to change speed during operation. A scale-marked hand wheel that matches the desired machine speed is mounted to a reduction gearing system for precise operator control. This adjusts the gearing ratio between the motor“s fixed pulley and the output shaft“s variable pulley, changing the speed of the chuck. A tensioner pulley is implemented in the belt transmission to take up or release the slack in the belt as the speed changes. Features: • 1/2" Drill chuck and arbor included • 3" column diameter for maximum head support • 6" stroke for deep hole application • Full bearing support on quill for maximum spindle stiffness • Handwheel speed adjustment of 400 to 5,000 RPM • Large 2-1/4" quill for greater accuracy
Specifications
| Box Quantity | 1 |
| Work Table Weight Capacity (Lbs.) | 90lbs |
| Quill Feed | |
| Quill Diameter | |
| Product Type | Step Pulley/Variable Speed Drill Presses |
| Prewired Voltage | |
| Overall Dimensions (L x W x H) | 30" x 20" x 71" |
| Motor Amps | |
| Inverter Type / Power Source | |
| Inverter Type | |
| Quill Travel with Powerfeed Engaged | |
| Range of Spindle Speeds (RPM) | 400 - 5,000 RPM |
| Spindle Speed Range (RPM) | |
| T-Slots Number and Size | 2", 1/2" |
| T-Slot Centers | 5-5/16" |
| Tapping Capacity Mild Steel | |
| Tapping Capacity Cast Iron | |
| Table Travel | 16-3/4" |
| Spindle Travel, Manual | |
| Spindle Travel Auto | |
| Spindle Taper (In. x TPI) | MT-2 |
| Drills to Center of Circle | 15" |
| Drilling Capacity Mild Steel | 1/2" |
| Drilling Capacity Cast Iron | 5/8" |
| Motor Power (HP) | 1 HP |
| Column Diameter | 3" |
| Spindle Travel | 6" |
| Motor Phase | 3 |
| Base Size | |
| Motor Voltage (V.) | 230/460V |
| Spindle Taper | |
| Table Size (L x W) | 15" x 18" |
| Spindle Distance to Base | 44-1/2" |
| Spindle Distance to Table (Max.) | 25-3/4" |
| Number of Spindle Speeds | |
| Distance Column to Spindle | 7-1/2" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Base Work Table | 12-1/8" x 11-13/16" |
| Base Slots Number & Size | |
| Base Dimensions | 20-7/16" x 14-3/16" |
| Spindle Speed (RPM) | |
| Swing | |
| Chuck Size | |
| Chuck Distance to Base | |
| Prewired Voltage (V.) | |
| Wiring Remarks | |
| Quick Change Collet Size (Mm.) | |
| Fence Size (L x H) | |
| Motor Current (Amps) | |
| Table Size Fully Extended (L x W) | |
| Style (Type) | |
| Table Tilt (Deg.) | |
| Chuck Distance to Table | |
| Recommended Circuit Size (Amps.) | |
| Warranty | |
| Horsepower | |
| Phase |
