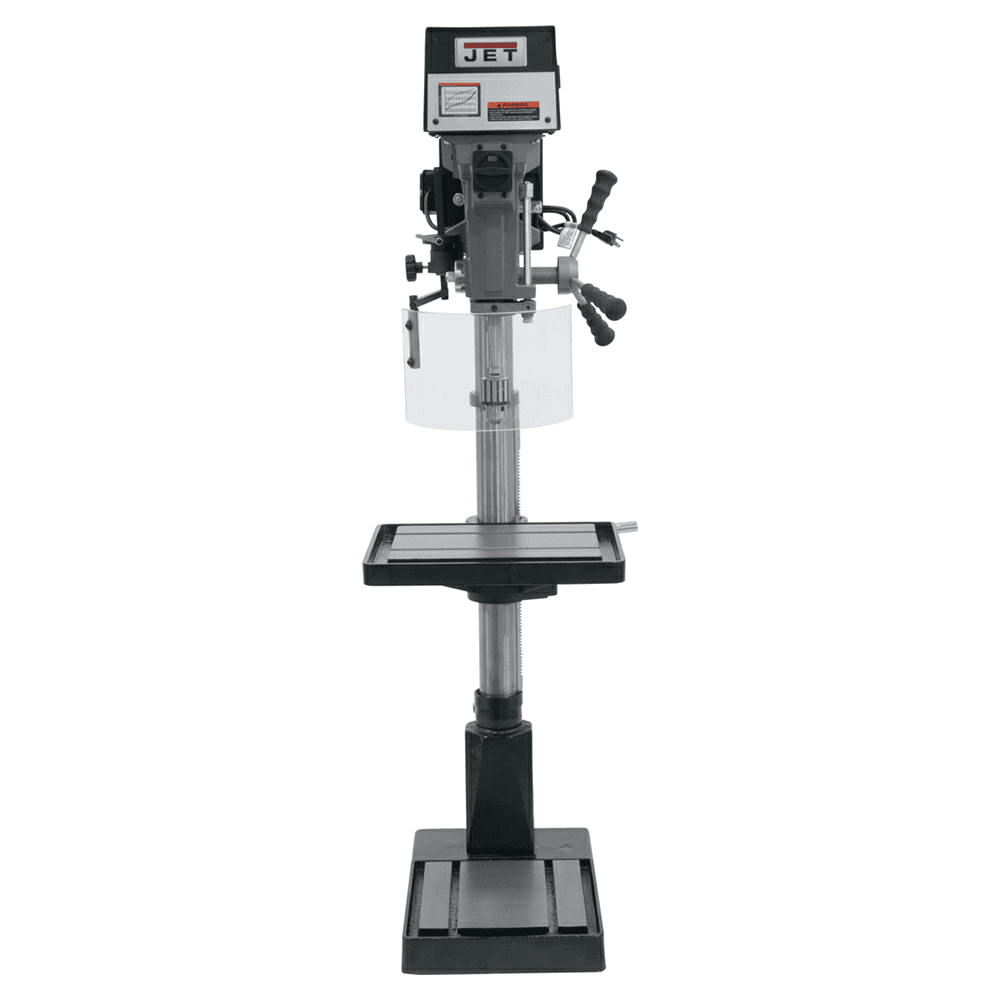

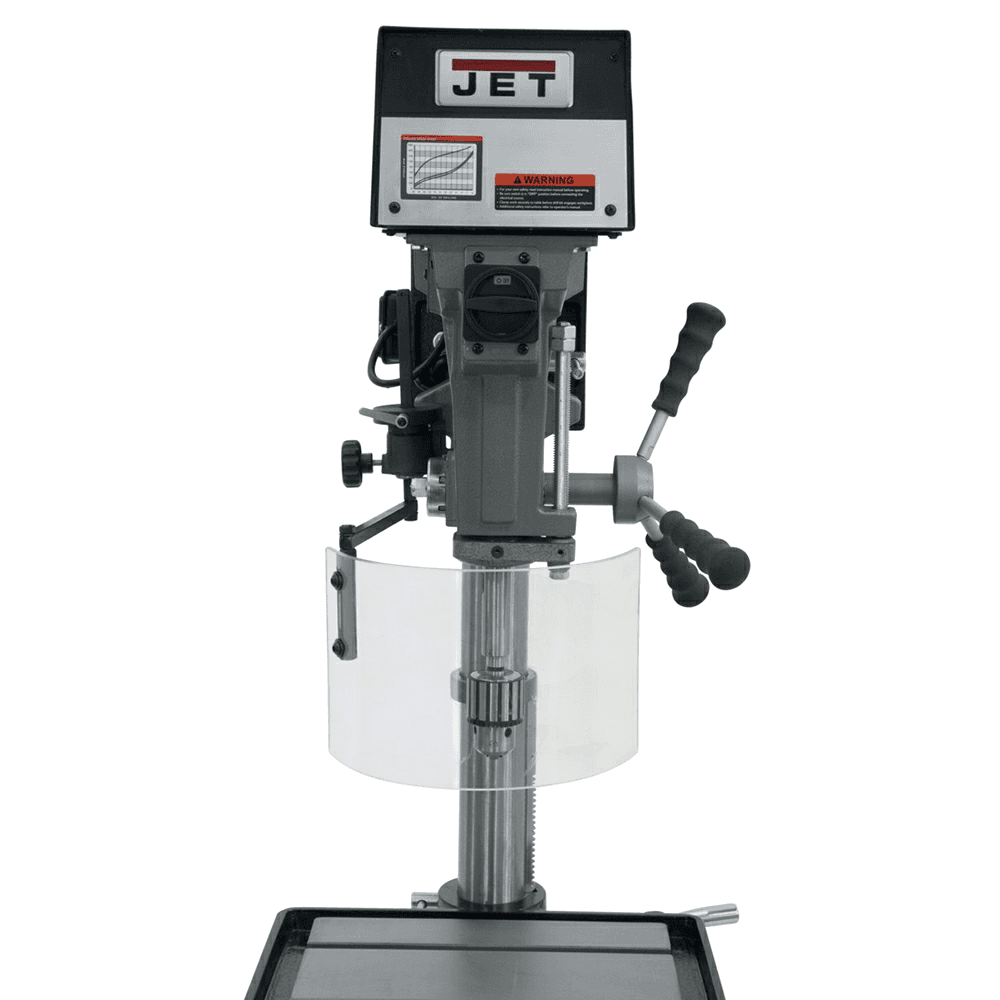

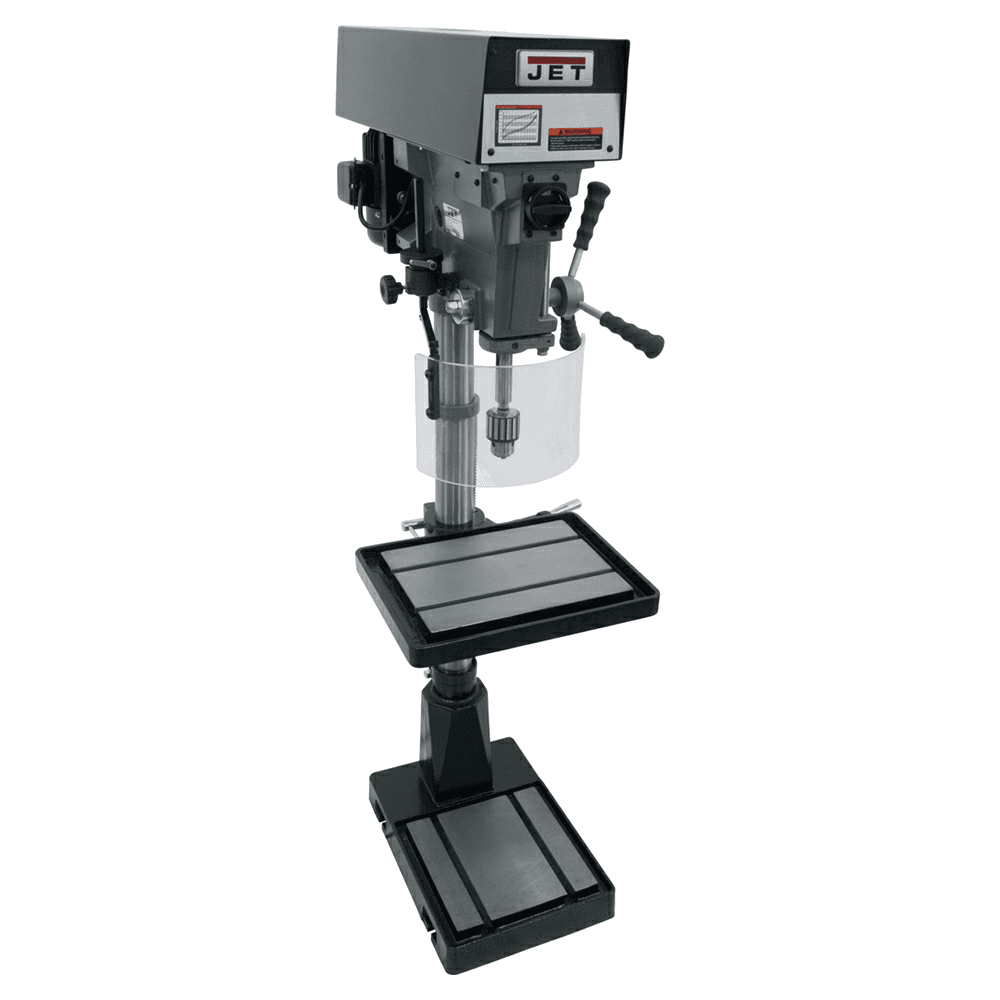

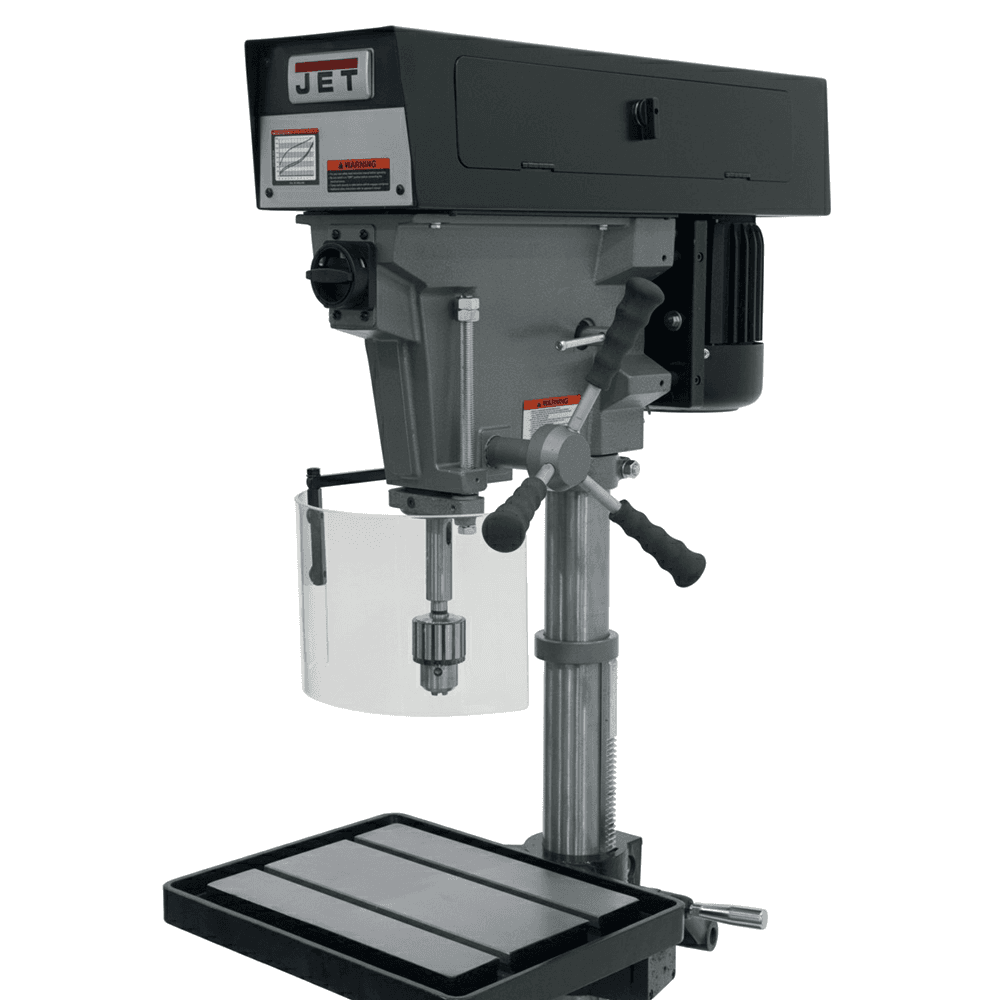

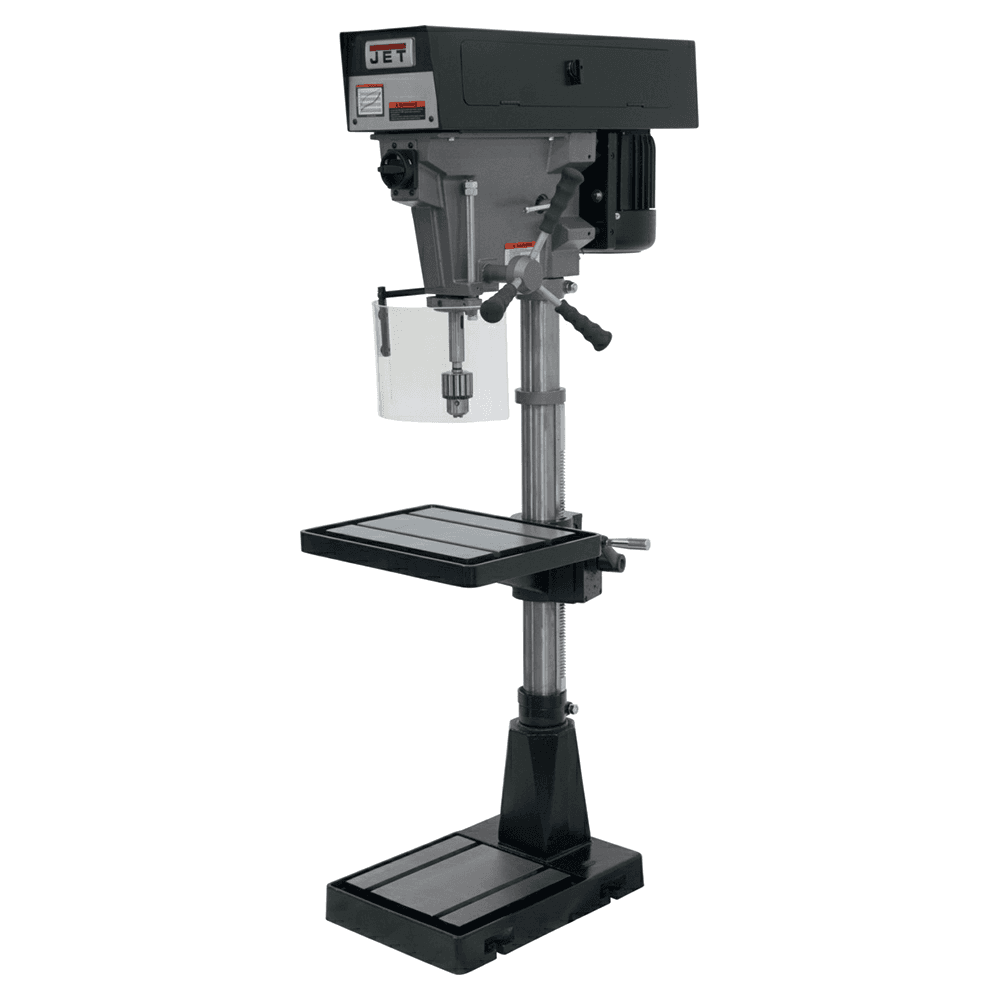

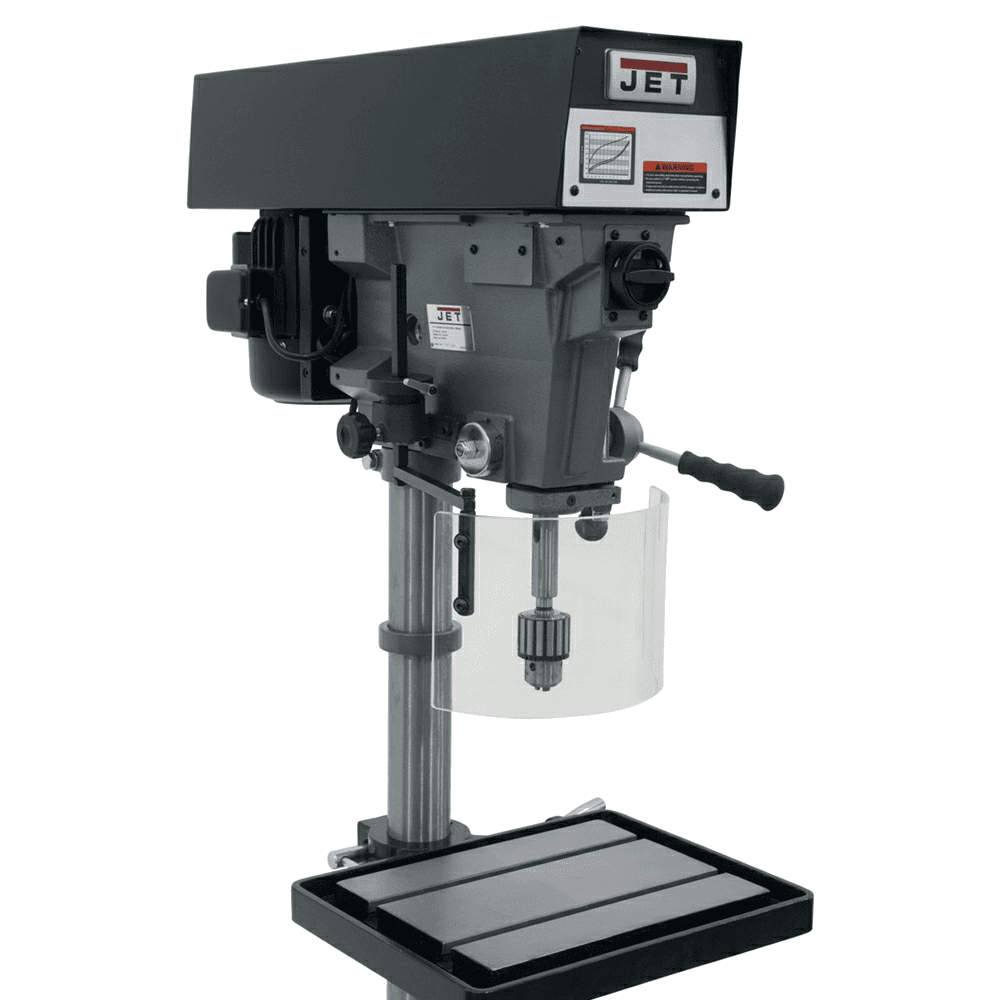

Jet Tools J-A3816 15" 6-Speed Floor Model Drill Press, 1 Phase/115/230V
This item may incur additional shipping costs and lead times.
Product Details
JET“s heavy-duty 6-speed Step Pulley drill press are manufactured with the weight and rigidity to maintain the tight tolerances required of metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces for full quill support throughout its travel. JET included a wider range of operation speeds for drilling both small and larger holes with quick and easy speed changes Features: • 1/2" drill chuck and arbor included • 3" column for maximum head support • 6-Spindle Speeds from 375 to 5,000 RPM • Constructed to provide a solid base for drilling • Larger quill provides greater accuracy
Specifications
| Box Quantity | 1 |
| Work Table Weight Capacity (Lbs.) | 90lbs |
| Quill Feed | |
| Quill Diameter | |
| Product Type | Step Pulley/Variable Speed Drill Presses |
| Prewired Voltage | |
| Overall Dimensions (L x W x H) | 30" x 20" x 71" |
| Motor Amps | |
| Inverter Type / Power Source | |
| Inverter Type | |
| Quill Travel with Powerfeed Engaged | |
| Range of Spindle Speeds (RPM) | 375, 625, 1,125, 1,950, 3,400, 5,000 RPM |
| Spindle Speed Range (RPM) | |
| T-Slots Number and Size | 2", 1/2" |
| T-Slot Centers | 5-5/16" |
| Tapping Capacity Mild Steel | |
| Tapping Capacity Cast Iron | |
| Table Travel | 16-3/4" |
| Spindle Travel, Manual | |
| Spindle Travel Auto | |
| Spindle Taper (In. x TPI) | MT-2 |
| Drills to Center of Circle | 15" |
| Drilling Capacity Mild Steel | 1/2" |
| Drilling Capacity Cast Iron | 5/8" |
| Motor Power (HP) | 1 HP |
| Column Diameter | 3" |
| Spindle Travel | 6" |
| Motor Phase | 1 |
| Base Size | |
| Motor Voltage (V.) | 115/230V |
| Spindle Taper | |
| Table Size (L x W) | 15" x 18" |
| Spindle Distance to Base | 44-1/2" |
| Spindle Distance to Table (Max.) | 25-3/4" |
| Number of Spindle Speeds | 6 |
| Distance Column to Spindle | 15" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Base Work Table | 12-1/8" x 11-13/16" |
| Base Slots Number & Size | |
| Base Dimensions | 20-7/8" x 14-3/16" x 3-1/8" |
| Spindle Speed (RPM) | |
| Swing | |
| Chuck Size | |
| Chuck Distance to Base | |
| Prewired Voltage (V.) | |
| Wiring Remarks | |
| Quick Change Collet Size (Mm.) | |
| Fence Size (L x H) | |
| Motor Current (Amps) | |
| Table Size Fully Extended (L x W) | |
| Style (Type) | |
| Table Tilt (Deg.) | |
| Chuck Distance to Table | |
| Recommended Circuit Size (Amps.) | |
| Warranty | |
| Horsepower | |
| Phase |
