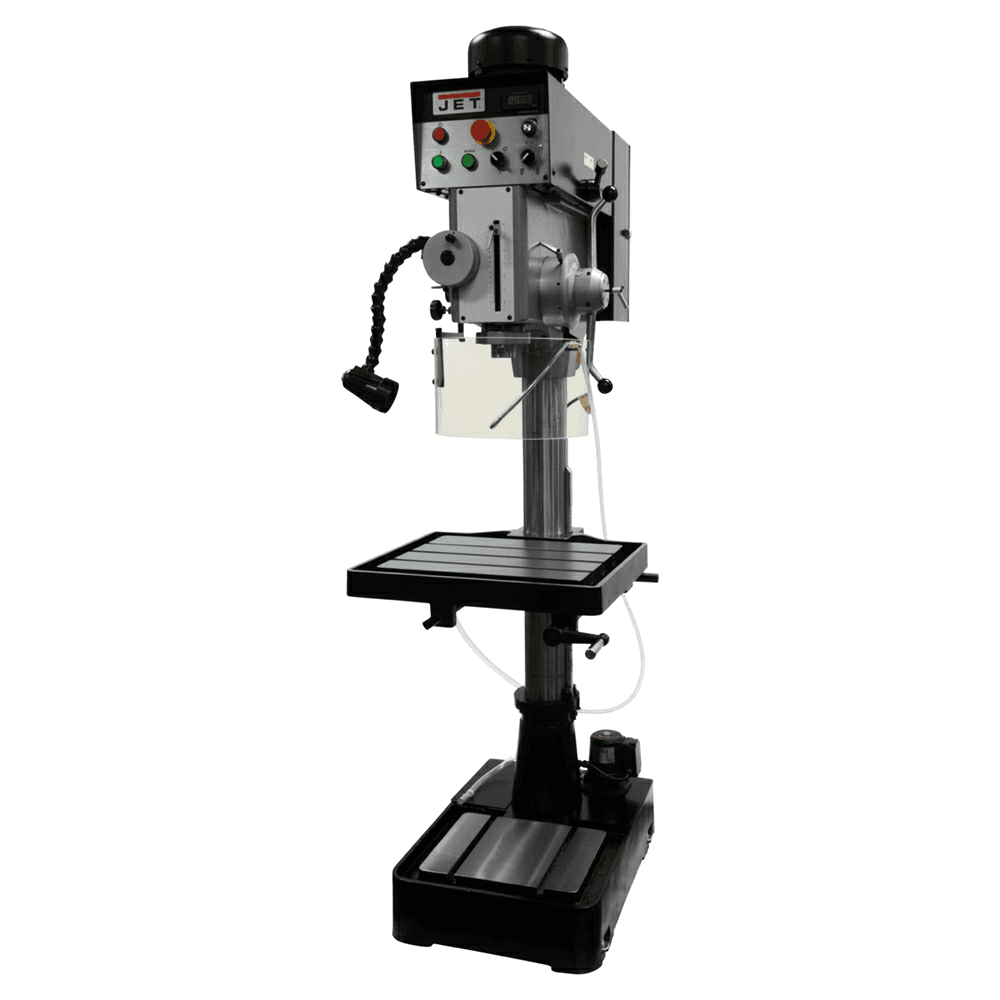

Jet Tools JDP20EVST-230-PDF 2 HP Geared Head Drill Press with Power Downfeed, 3 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details
Accuracy, stability and versatility are the benchmark features of the JET 20" drill presses. This high-quality line of JET drill presses offer a greater range in spindle speeds than other machines of this class. The spindle head is supported by high quality ball bearings. Designed to permit continuous speed adjustment - even during operation. Forward and reverse tapping capabilities, an emergency stop, and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy. JET backs their machines with the industry leading Two Year Warranty and are CSA/CUS Certified. Features: • CSA Coolant System • Front mounted LED spindle RPM readout • Front mounted positive control depth stop • Heavy-duty steel column for increased precision and rigidity • High torque at all speeds both forward and reverse • Large hand grips designed with the users comfort in mind • Large precision ground T-Slot production table for easy set ups • Latest AC inverter variable speed technology
Specifications
| Box Quantity | 1 |
| Work Table Weight Capacity (Lbs.) | 154lbs |
| Quill Feed | |
| Quill Diameter | |
| Product Type | Step Pulley/Variable Speed Drill Presses |
| Prewired Voltage | 230V |
| Overall Dimensions (L x W x H) | 42.5" x 27.16" x 78.74" |
| Motor Amps | |
| Inverter Type / Power Source | |
| Inverter Type | B Type 230V 1/3Ph |
| Quill Travel with Powerfeed Engaged | |
| Range of Spindle Speeds (RPM) | 60 - 2,000(60-540/225-2000) RPM |
| Spindle Speed Range (RPM) | |
| T-Slots Number and Size | |
| T-Slot Centers | 7-7/16" |
| Tapping Capacity Mild Steel | 1" |
| Tapping Capacity Cast Iron | 1" |
| Table Travel | 20" |
| Spindle Travel, Manual | |
| Spindle Travel Auto | 4-1/2" |
| Spindle Taper (In. x TPI) | MT-4 |
| Drills to Center of Circle | 20" |
| Drilling Capacity Mild Steel | 2" |
| Drilling Capacity Cast Iron | |
| Motor Power (HP) | 2 HP |
| Column Diameter | 4-1/2" |
| Spindle Travel | 6" |
| Motor Phase | 3 |
| Base Size | |
| Motor Voltage (V.) | 230V |
| Spindle Taper | |
| Table Size (L x W) | 22" x 18-3/4" |
| Spindle Distance to Base | |
| Spindle Distance to Table (Max.) | |
| Number of Spindle Speeds | |
| Distance Column to Spindle | 10-7/16" |
| Configurator Option Type | |
| Configurable Base Item | No |
| Base Work Table | |
| Base Slots Number & Size | |
| Base Dimensions | 27" x 19" |
| Spindle Speed (RPM) | |
| Swing | 20" |
| Chuck Size | |
| Chuck Distance to Base | |
| Prewired Voltage (V.) | |
| Wiring Remarks | |
| Quick Change Collet Size (Mm.) | |
| Fence Size (L x H) | |
| Motor Current (Amps) | |
| Table Size Fully Extended (L x W) | |
| Style (Type) | |
| Table Tilt (Deg.) | |
| Chuck Distance to Table | |
| Recommended Circuit Size (Amps.) | |
| Warranty | |
| Horsepower | |
| Phase |
