Baileigh BP-3305CNC 1/2 HP CNC Press Brake, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

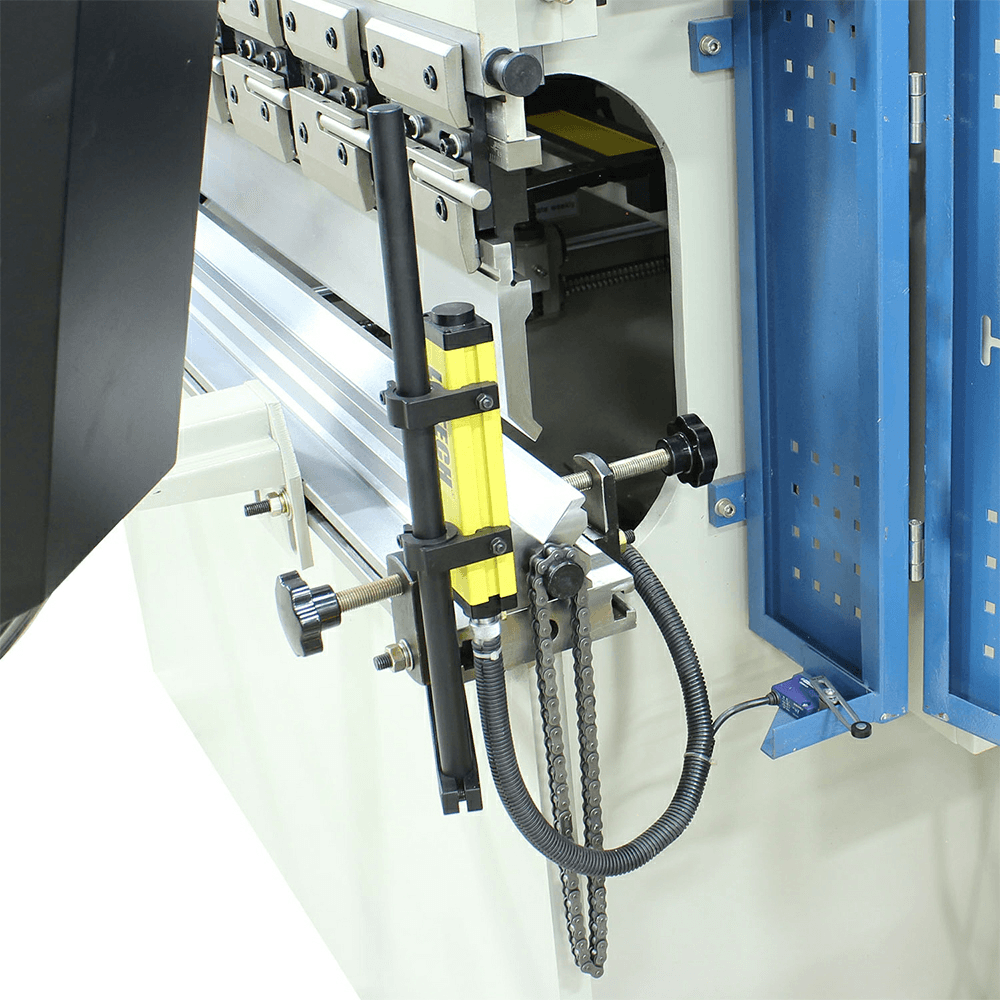

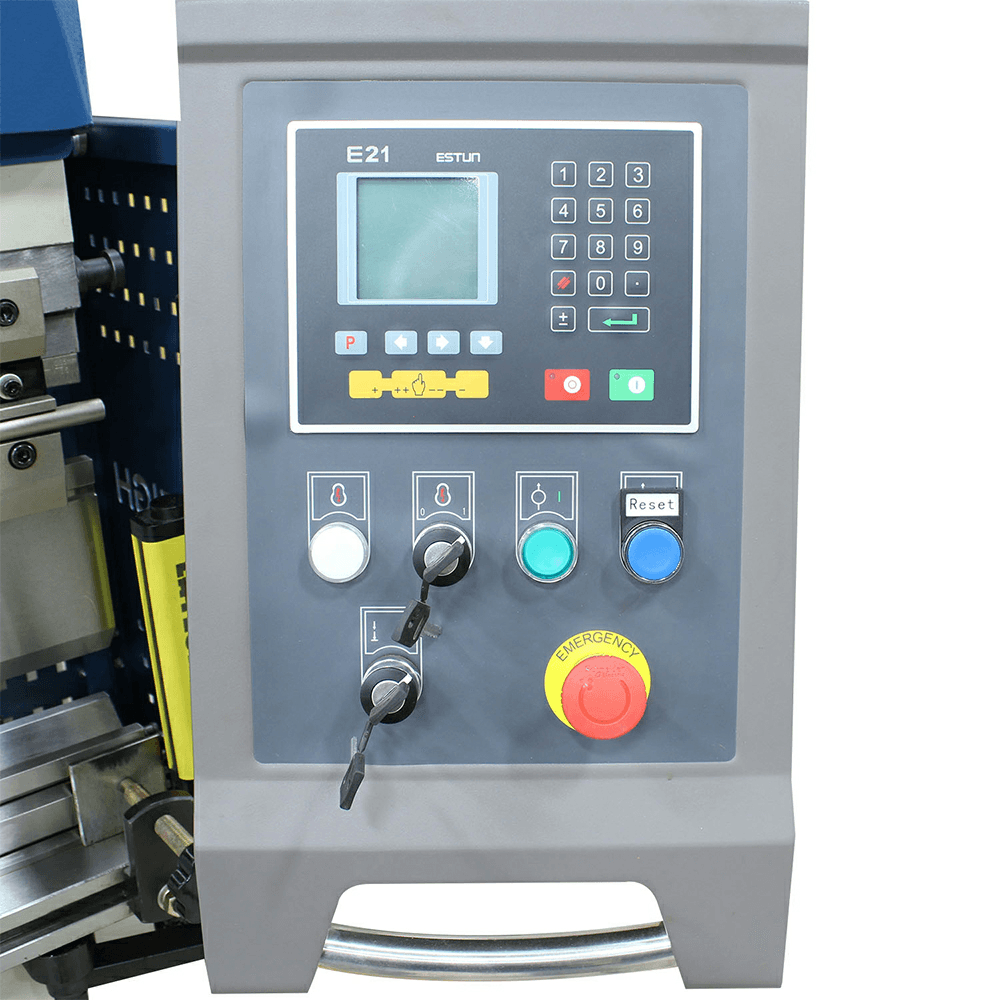

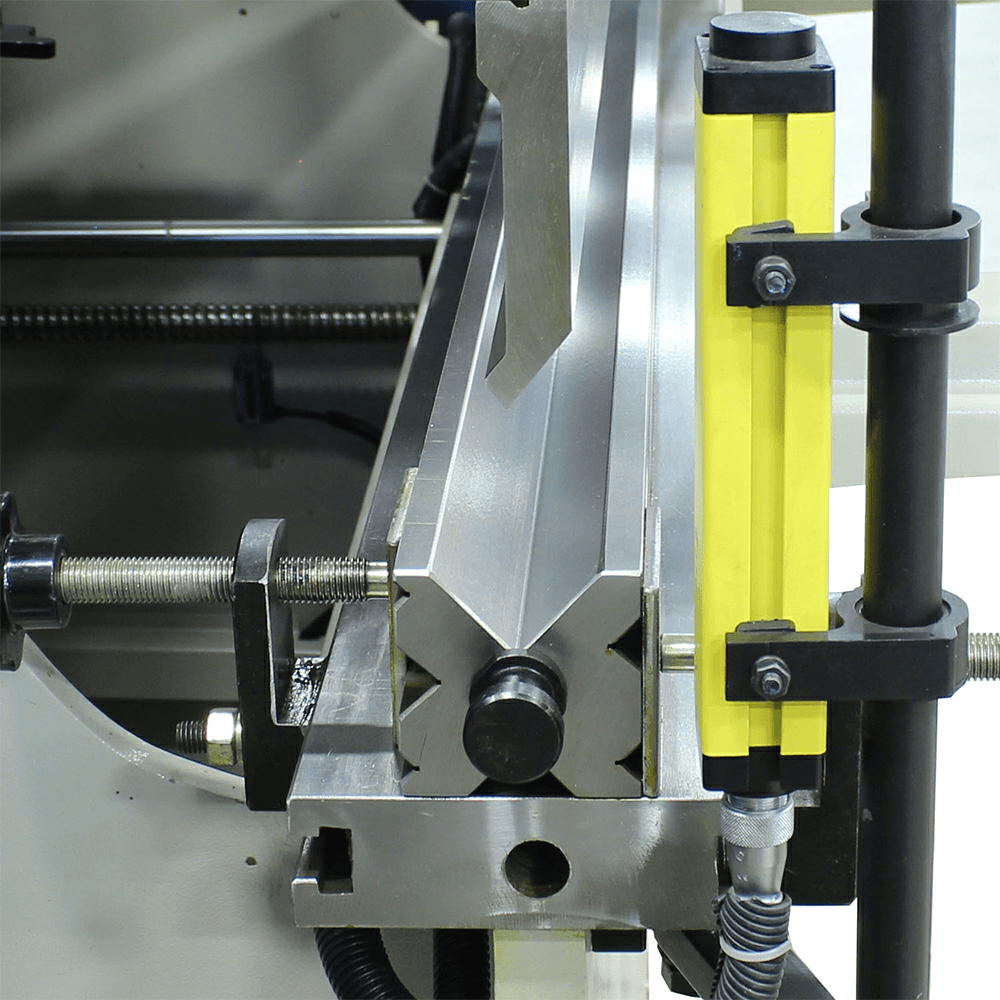

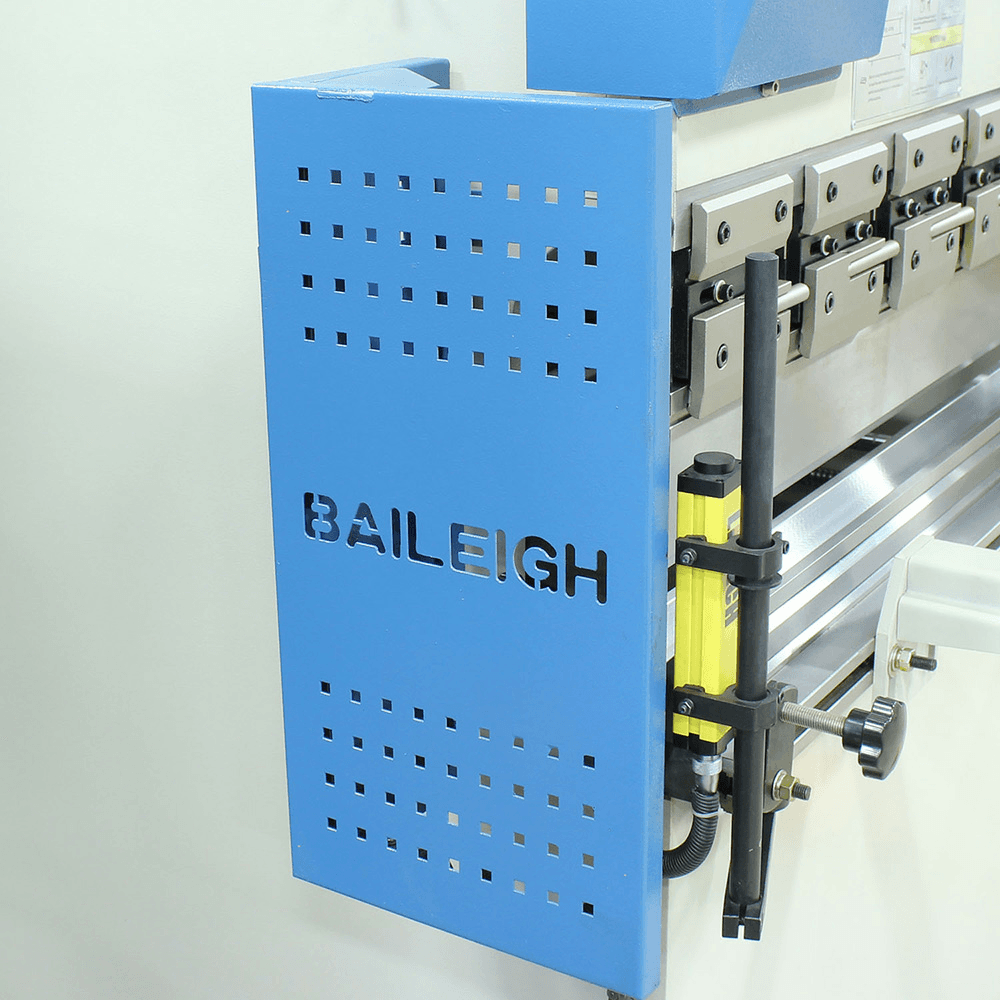

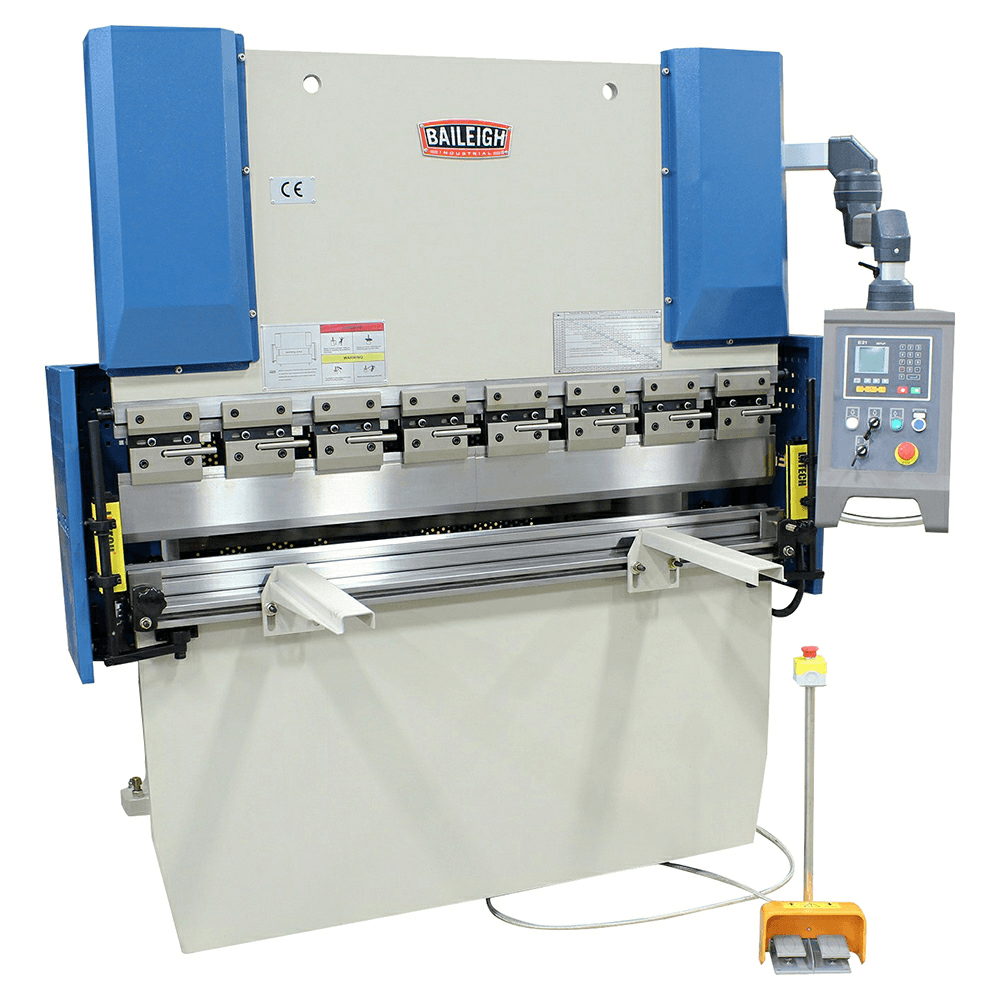

The CNC hydraulic press brake offers programmable controls, top-quality components, and heavy steel construction for an unbeatable price. • BP-3305CNC delivers 33 tons of pressure across its 63" table • Runs on 220-volt 3-phase power • Easy-to-use programmable 2-axis Estun E21 controller is integrated right from the factory • Internal memory can hold 40 programs, each with its own unique number for easy identification • Controller will keep a piece count for large production runs • Made with NOK, Siemens, and Omron components • Foot pedal lets you control all bending functions, whether on full auto or jog mode • Fully welded steel plate frame minimizes deflection and maintains rigidity • Gooseneck punch and a 4 sided multi-V bottom die come standard • Integrated safety light curtains help prevent accidents • We keep parts in stock at our Wisconsin headquarters so we can ship them to you quickly • Covered by a 1-year parts warranty Features: • 33 tons of pressure • 63" table length • 220 volt 3-phase • Perfect for small shops
Specifications
| Box Quantity | 1 |
| Approach Speed | 3.5" per sec |
| Miter Angle Range (Deg.) | |
| Motor (HP) | |
| Motor Amps | |
| Oil Reservoir Capacity (cc) | |
| Overall Length | |
| Product Type | Vertical Press Brakes |
| Punch Work Height | |
| Range of Speeds | |
| Rectangle at 45 Degrees | |
| Rectangle Capacity | |
| Short Description | *33 tons of pressure *63" table length *Perfect for small shops *220 volt 3-phase |
| Speed (rpm) | |
| Stroke Length | |
| Table Height | |
| Throat Depth | 8" |
| Minimum Return Speed (In./Sec) | 3.3" / sec. |
| Maximum Pressure (PSI) | |
| Maximum Notch | |
| Approx. Pressure (Tons) | |
| Assembled Machine Dimensions (L x W x H) | |
| Back Gauge Capacity | |

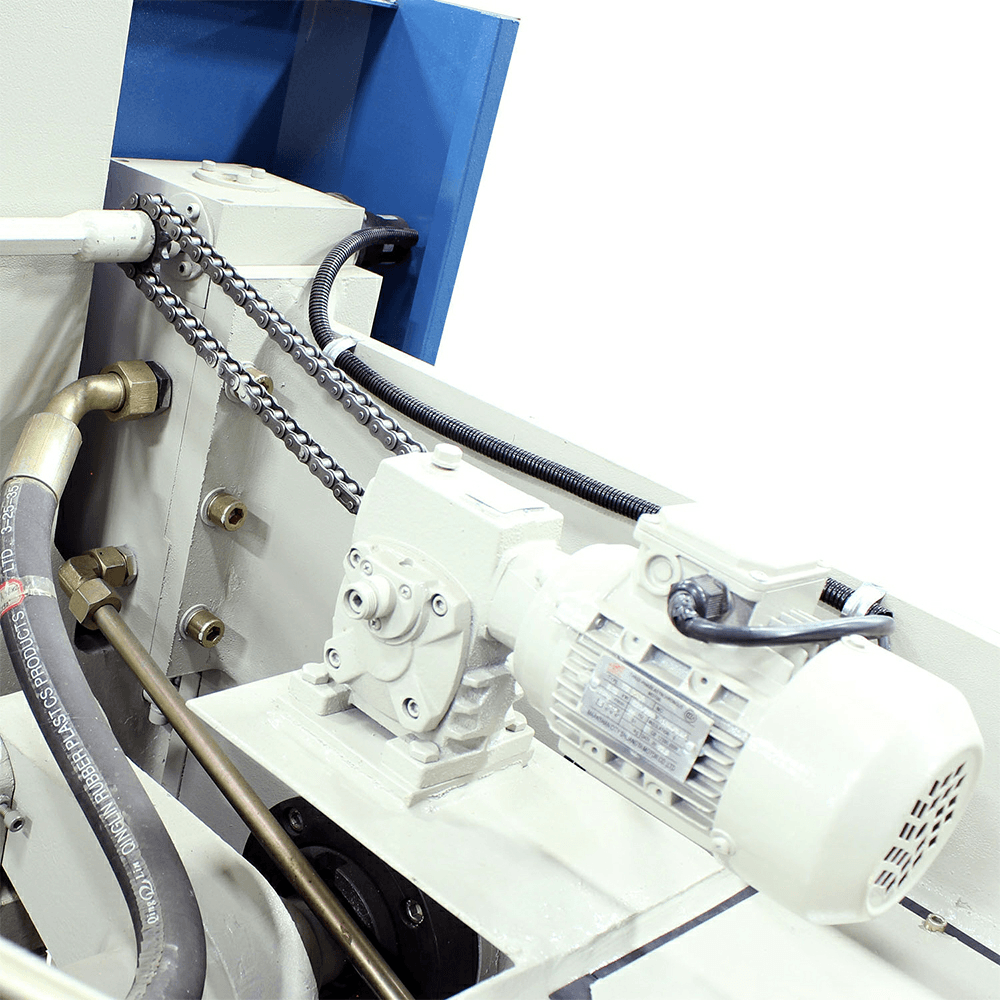

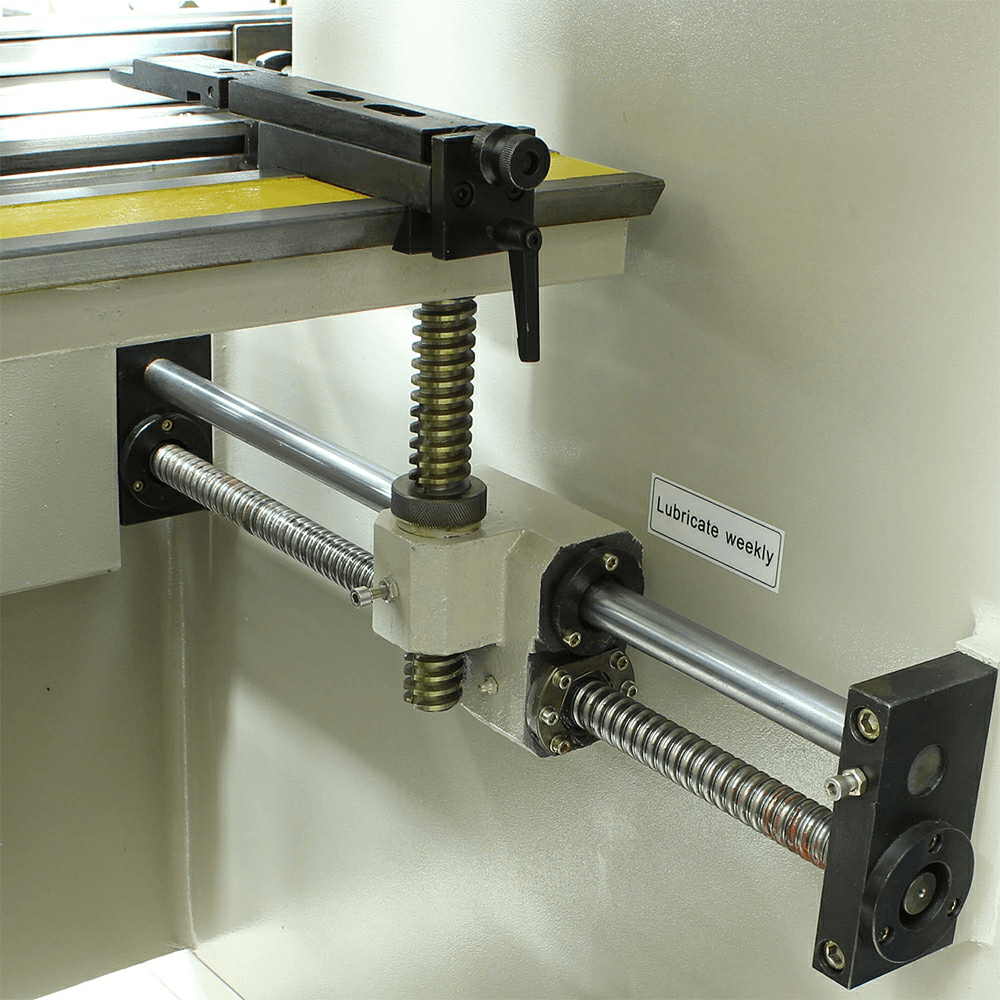

| Back Gauge Motor (hp) | 1/2 HP |
| Bending Capacity Max Length And Thickness | |
| Bending Speed | .394" per sec |
| Configurable Base Item | No |
| Digital Readout | |
| Distance Between Housings | 51.25 |
| Distance From Table To Ram | 13.325" |
| Distance Per Stroke - jpw_distance_per_stroke_in | 3.15" |
| Fixture Holes | |
| Horse Power (HP) | |
| Included Tooling | 78° Gooseneck & Multi-Vee Die (5/16", .39", .47", 5/8", .94", 1-1/4", 2") |
| Input Power | 220V / 3 Phase |
| Volts |
