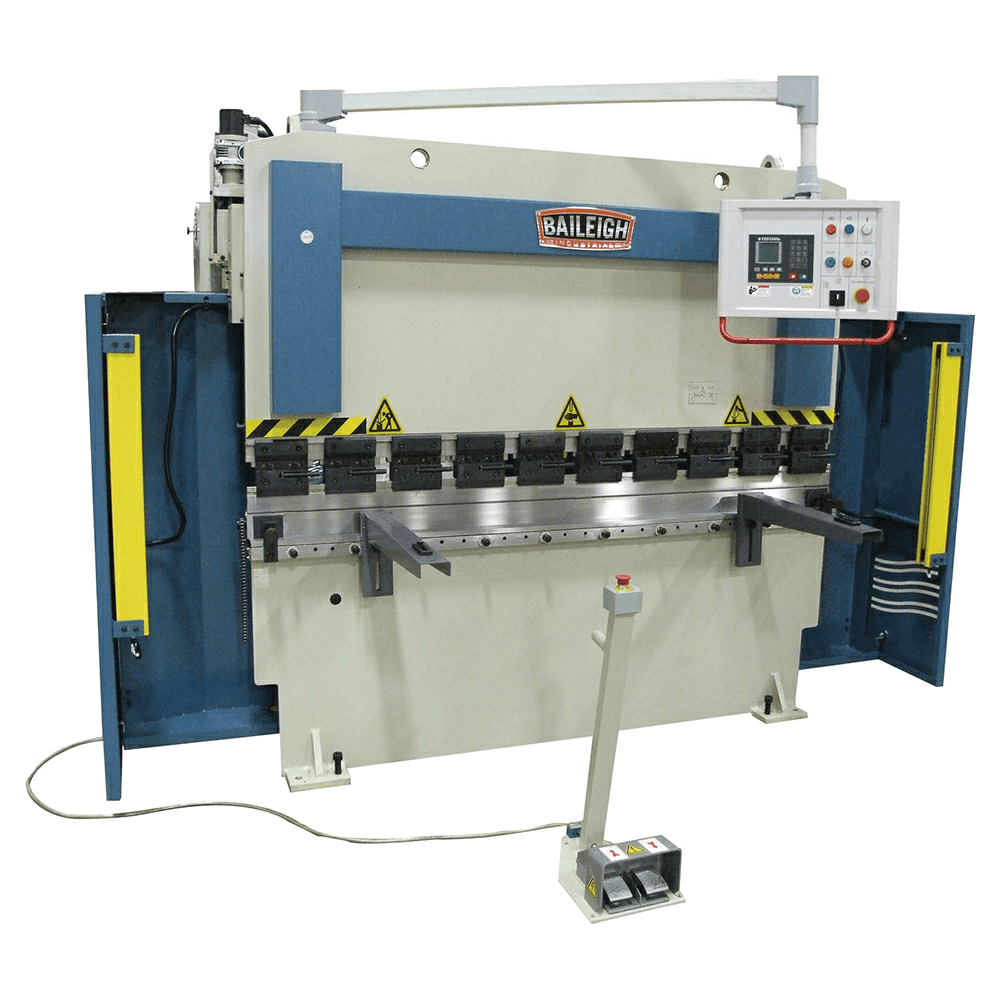

Built from name-brand parts and steel plate, this industrial press brake will stay rigid and accurate. You can program the bend depth and back gauge for efficient production.
Features:
• Delivers 50 tons of pressure over its entire 78" length
• Long enough to bend 6-foot pieces of mild steel
• Runs on 220-volt 3-phase power

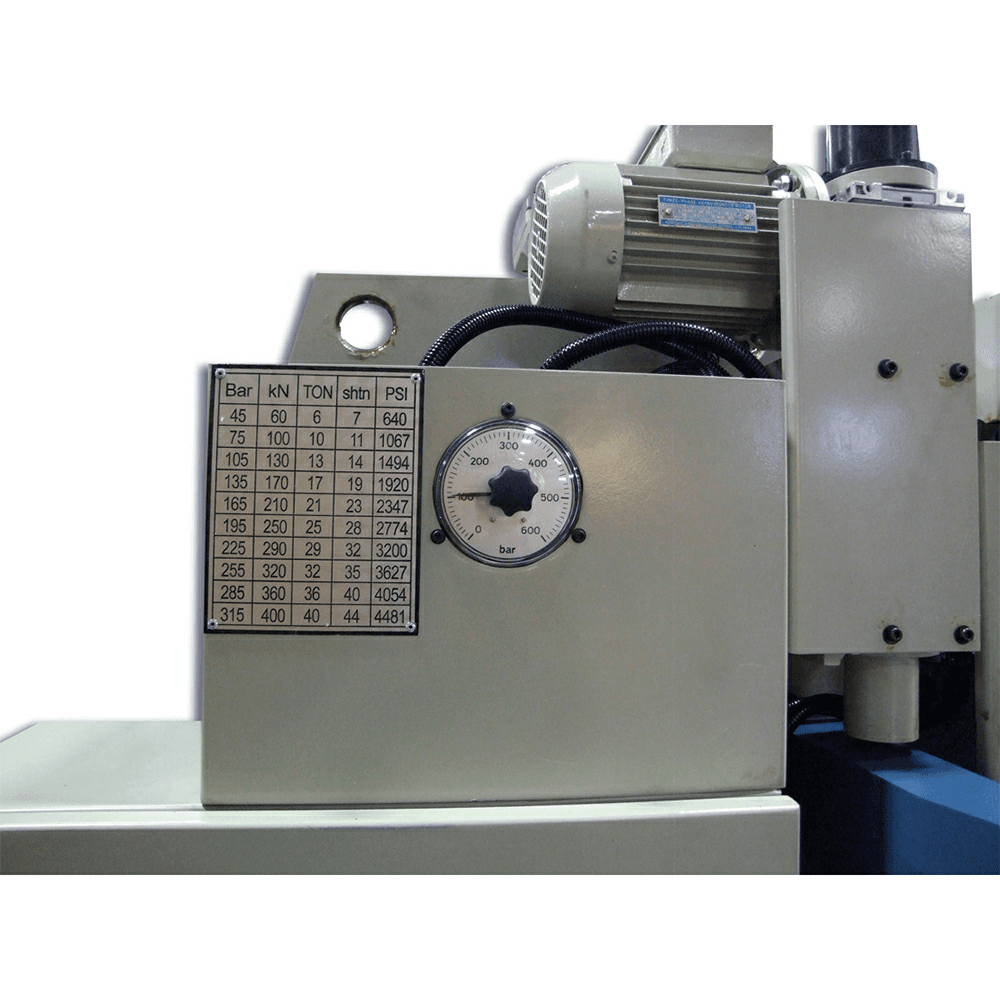

• Industrial-grade hydraulic system with a Vickers/Eaton® pump will last for many years at peak capacity
• NOK® hydraulic seals from Japan are some of the best in the industry. They'll help the hydraulics run smoothly

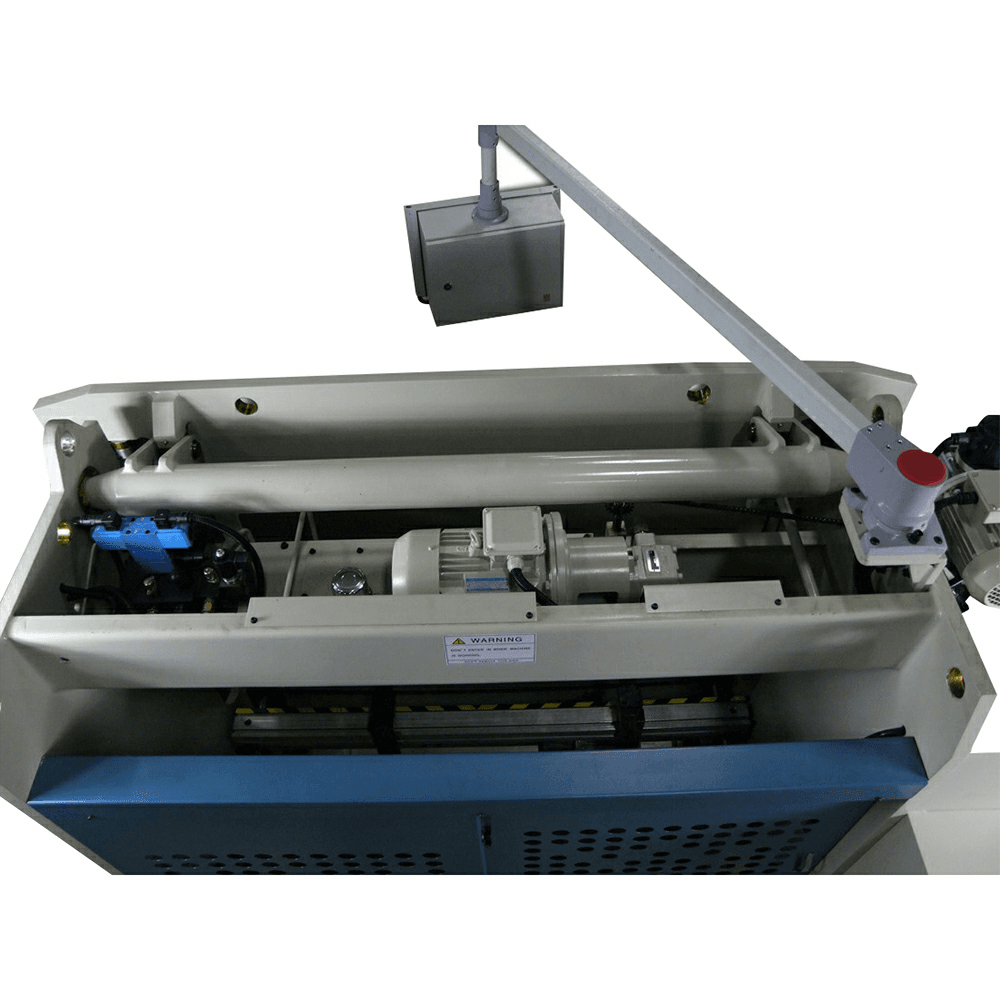

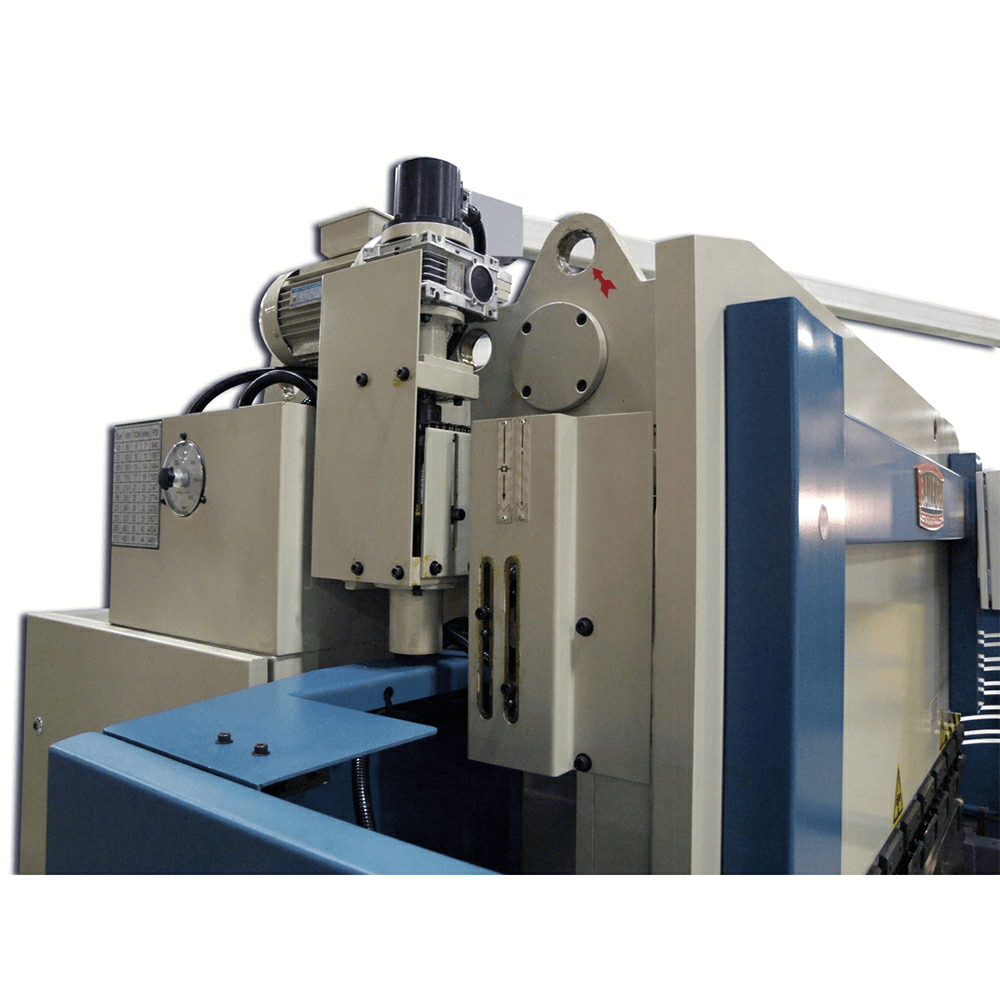

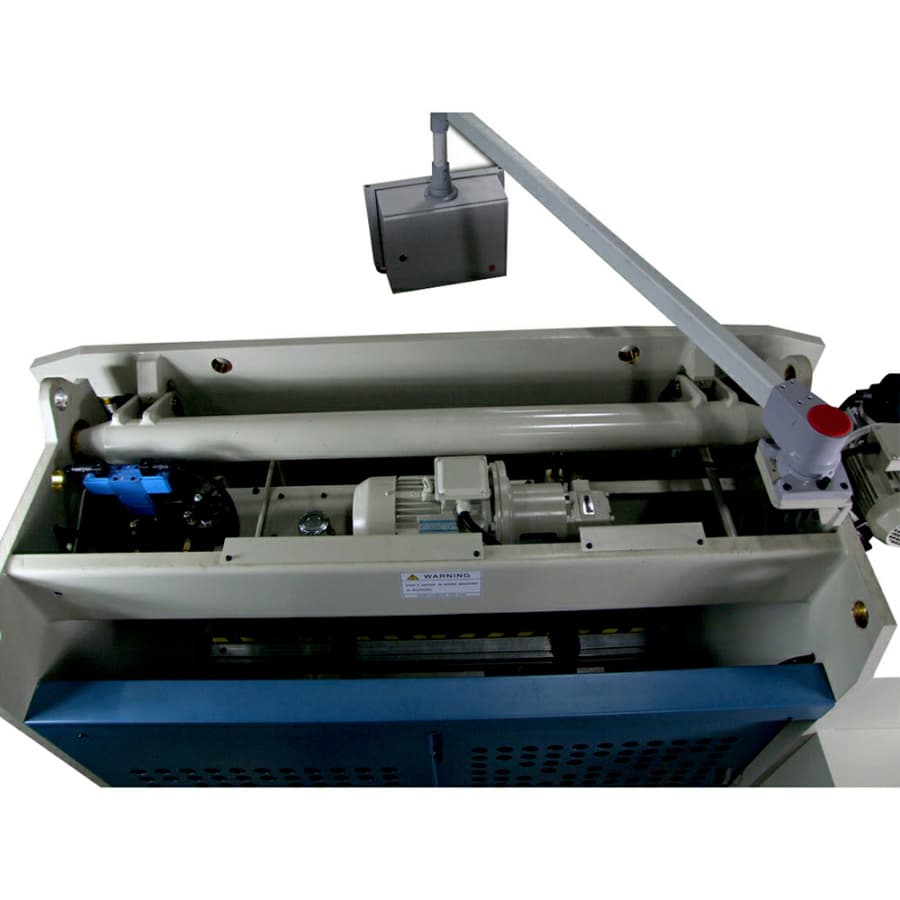

• Torque tube connects the 2 hydraulic cylinders, so they always stay synchronized and parallel to the bending table
• Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine remains balanced and lasts longer

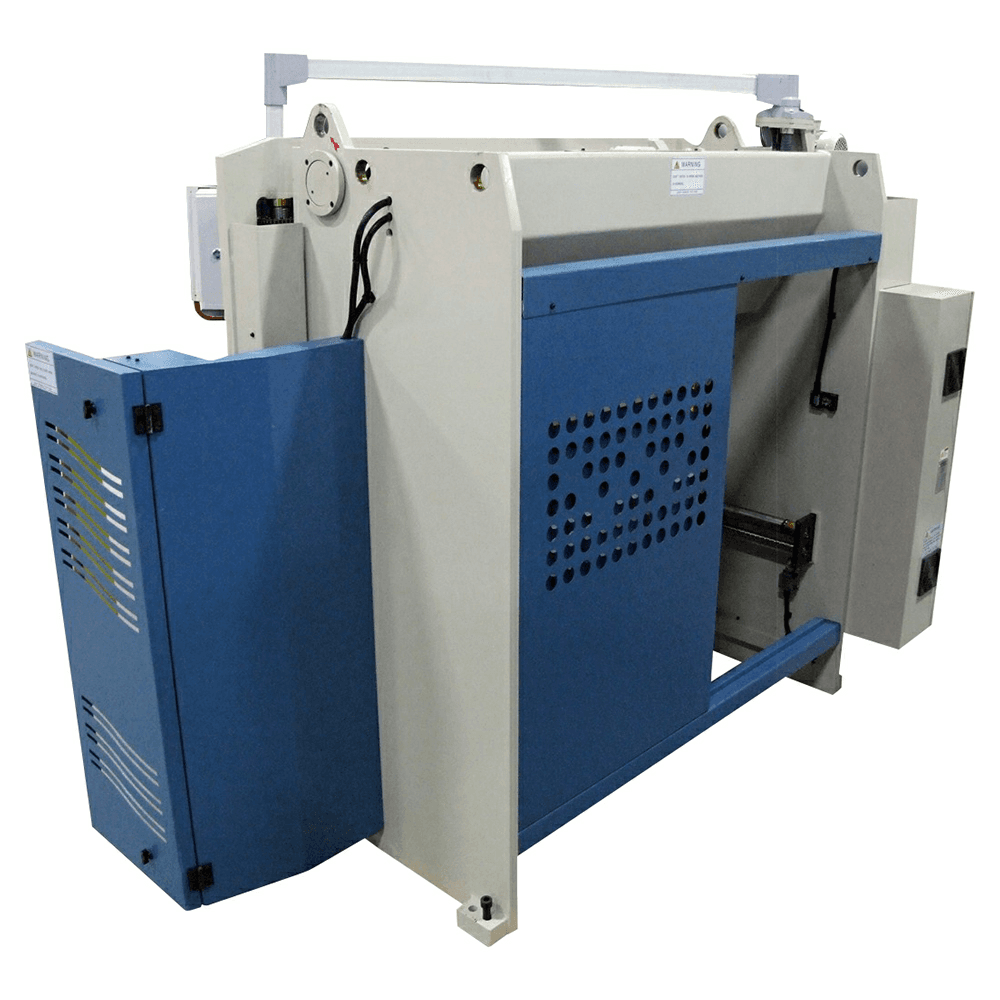

• Hydraulic cylinders are in the back of the machine for convenient fluid changes

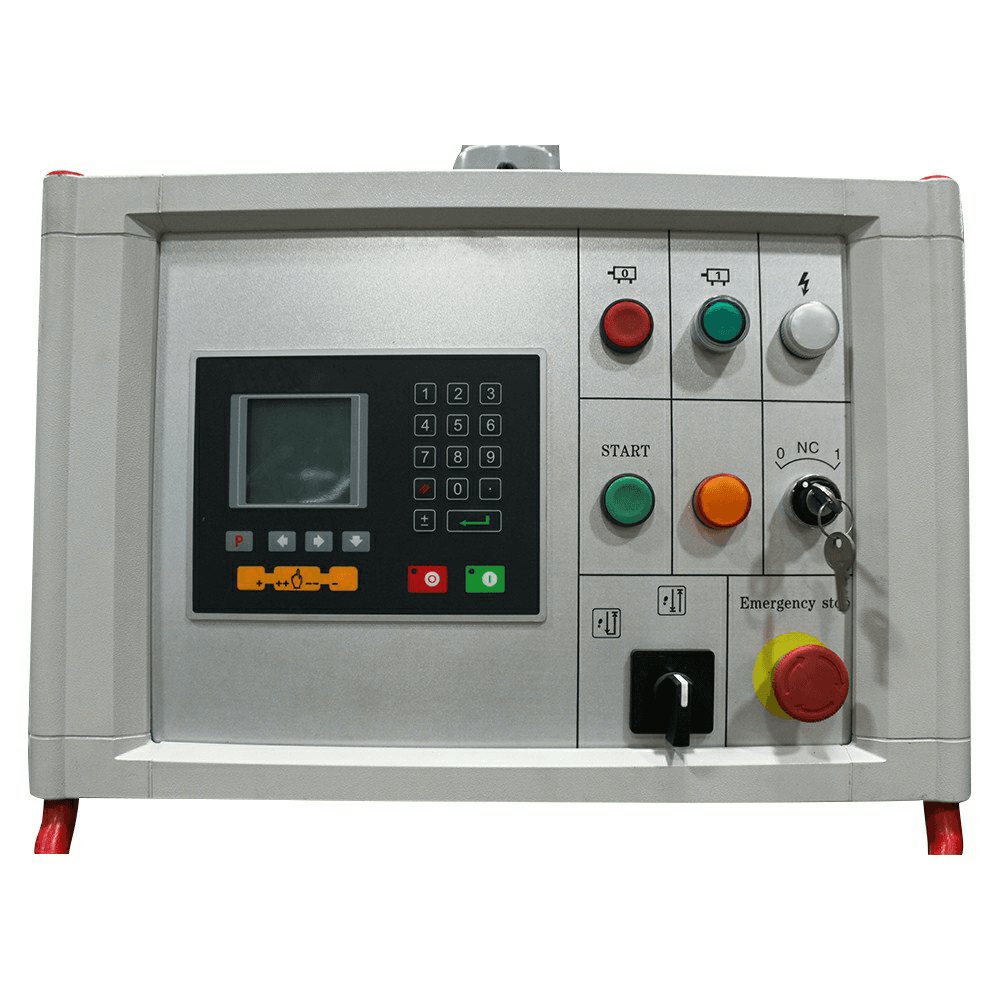

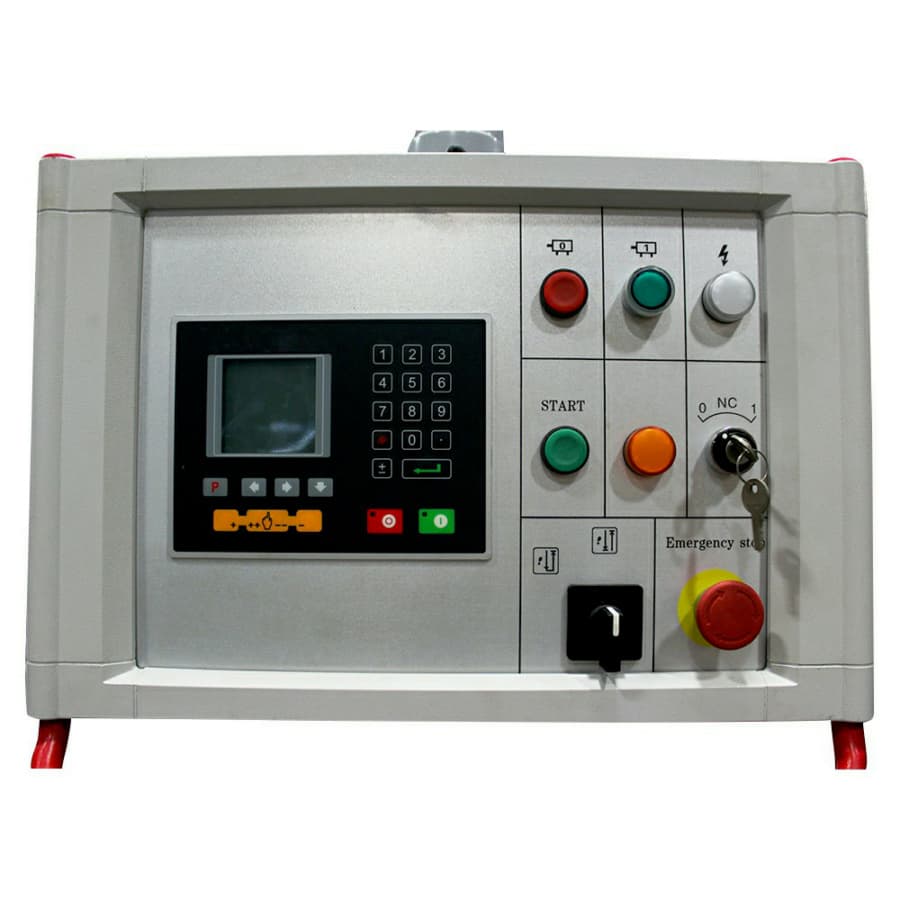

Accurate, User-Friendly Control System:
• Runs in single-bend mode or programmable mode
• Comes standard with 2 axes of control: stroke and back gauge distance
• Simple controller is so intuitive that you could train someone to use it in 5 minutes
• Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production
• Bending is accurate to +/- .01mm, ensuring that parts come out right the first time

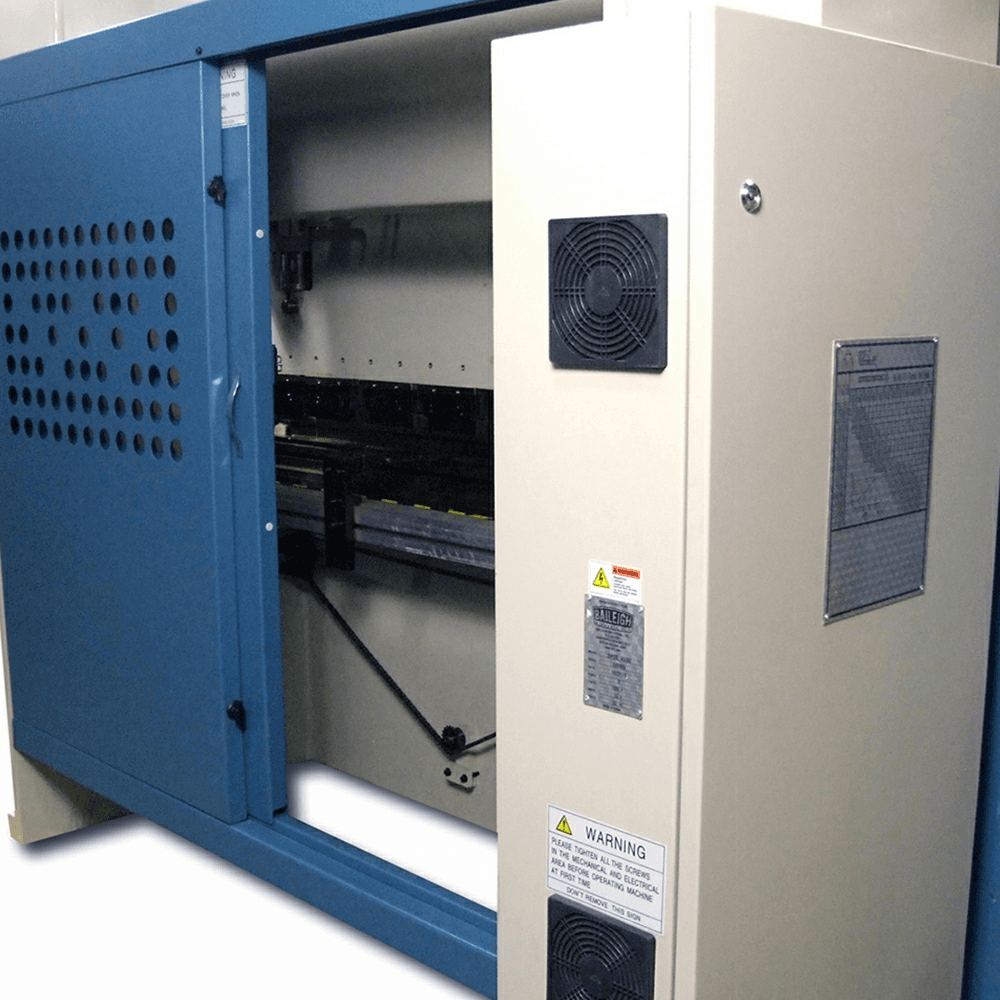

• Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity

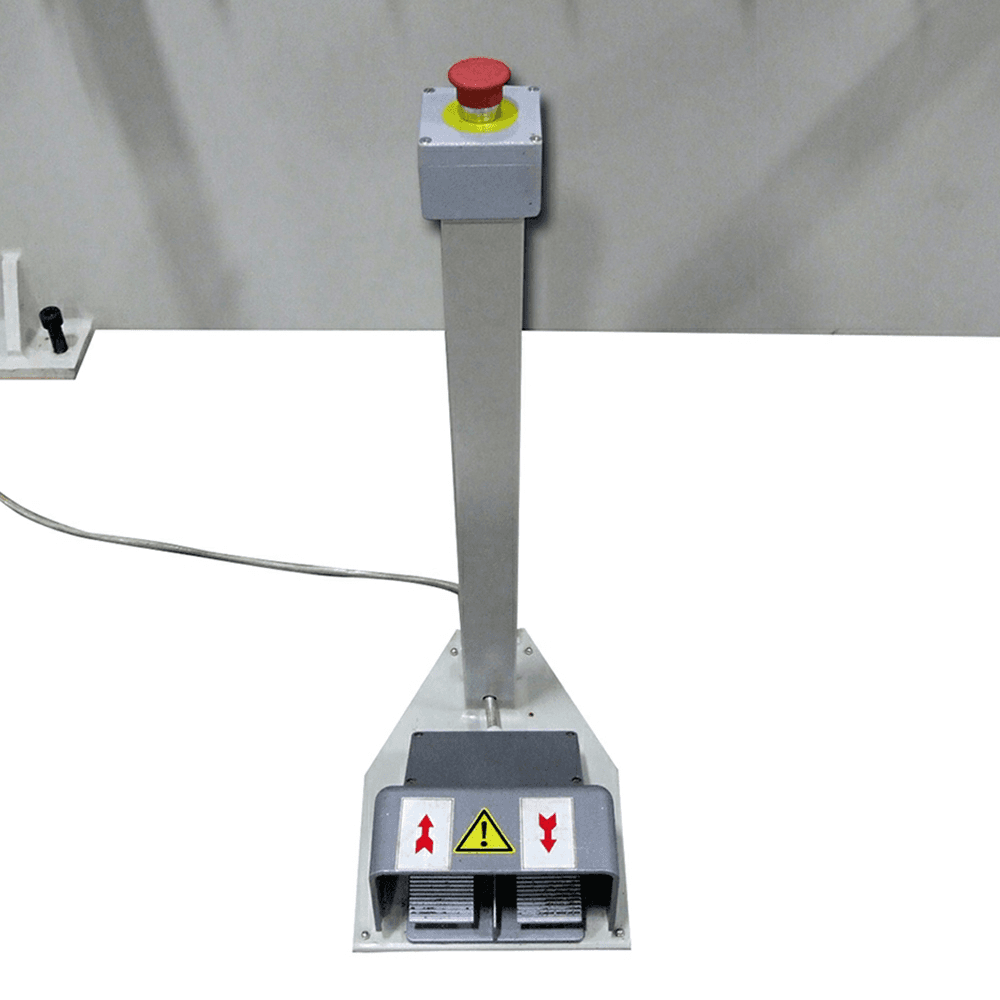

• Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend
• You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal
• Choose between 2 speeds: a rapid approach and retract and a slow bending speed
• Faster speed option lets you reduce cycle times and bend more quickly
• Chain drive back gauge system uses tried-and-true technology that you can easily maintain
• The 23" back gauge can advance or retract according to programmed instructions
Rigid Steel Construction and Included Tooling:
• Fully welded all-steel framework helps prevent deformation and minimize flex during the bending process
• Weighs a robust 6,000 lbs. for massive structural strength that ensures accurate results
• Includes support arms around 2 feet in length

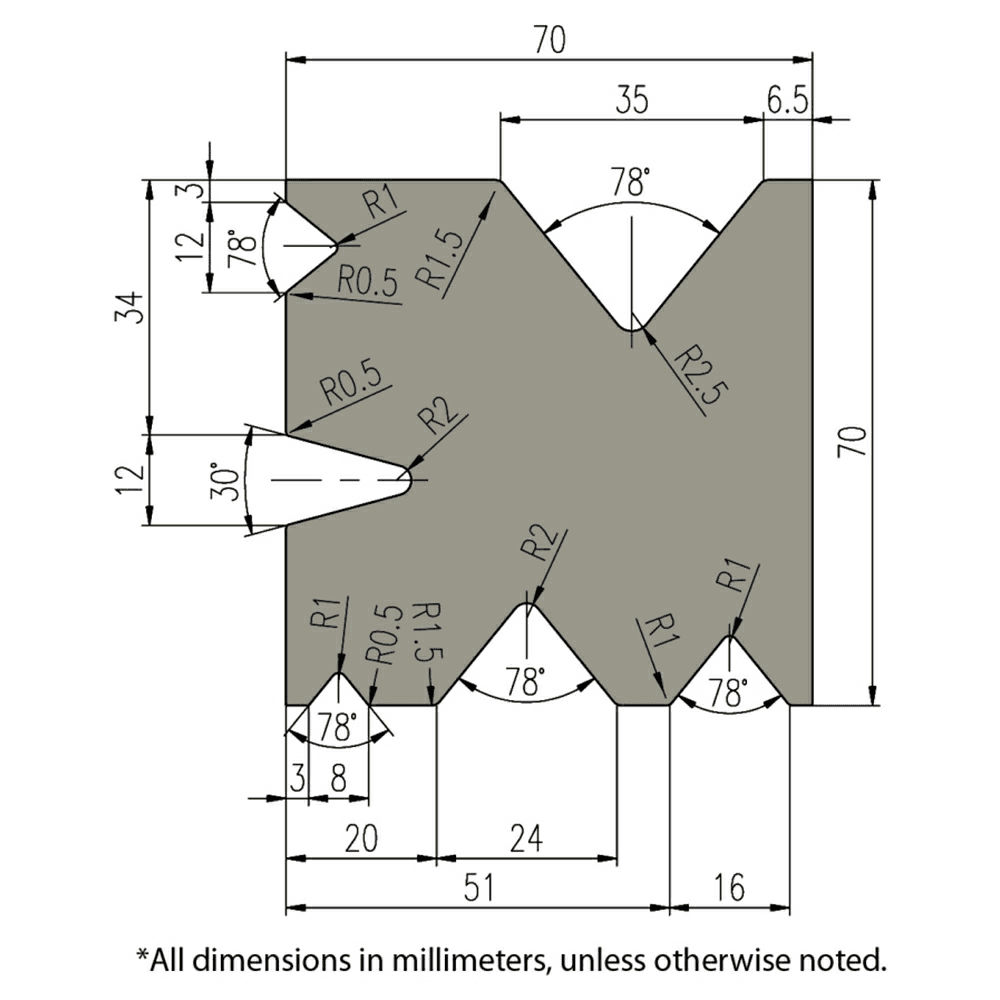

• Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style)

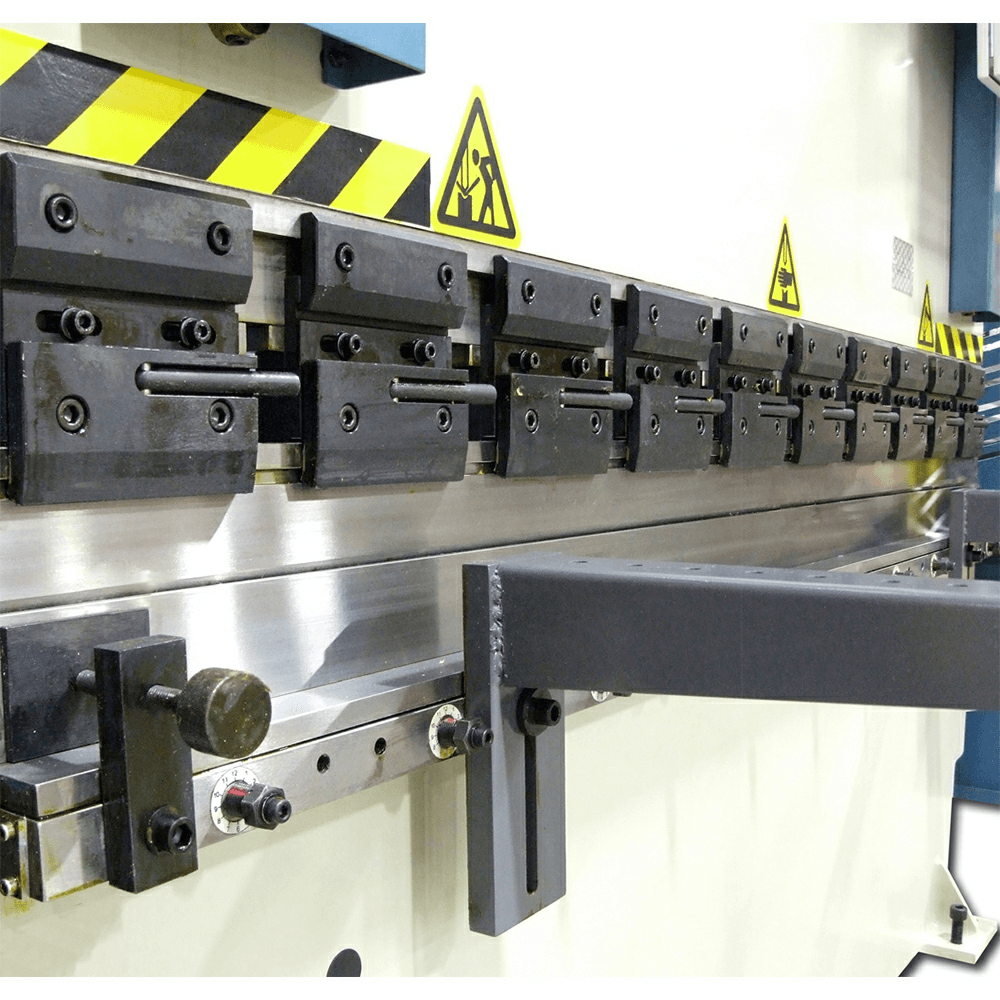

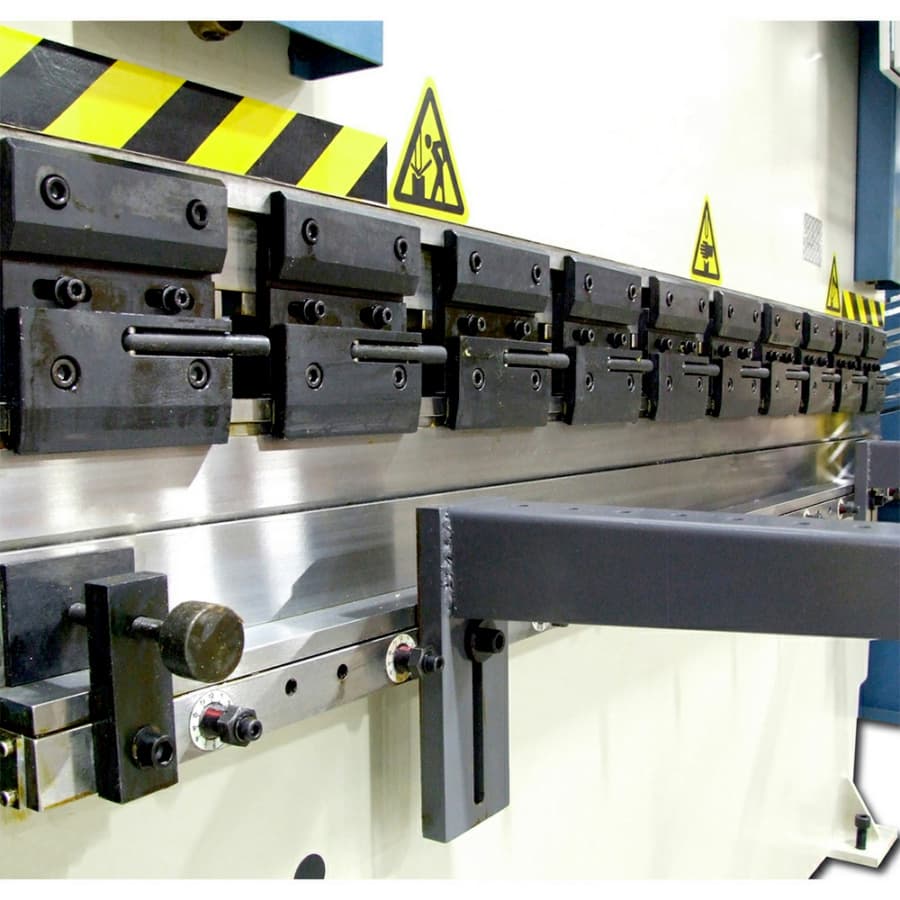

• Quick-release tool holders let you make changes easily. You only have to open a lever and it drops the top die out. No time-consuming cap screws

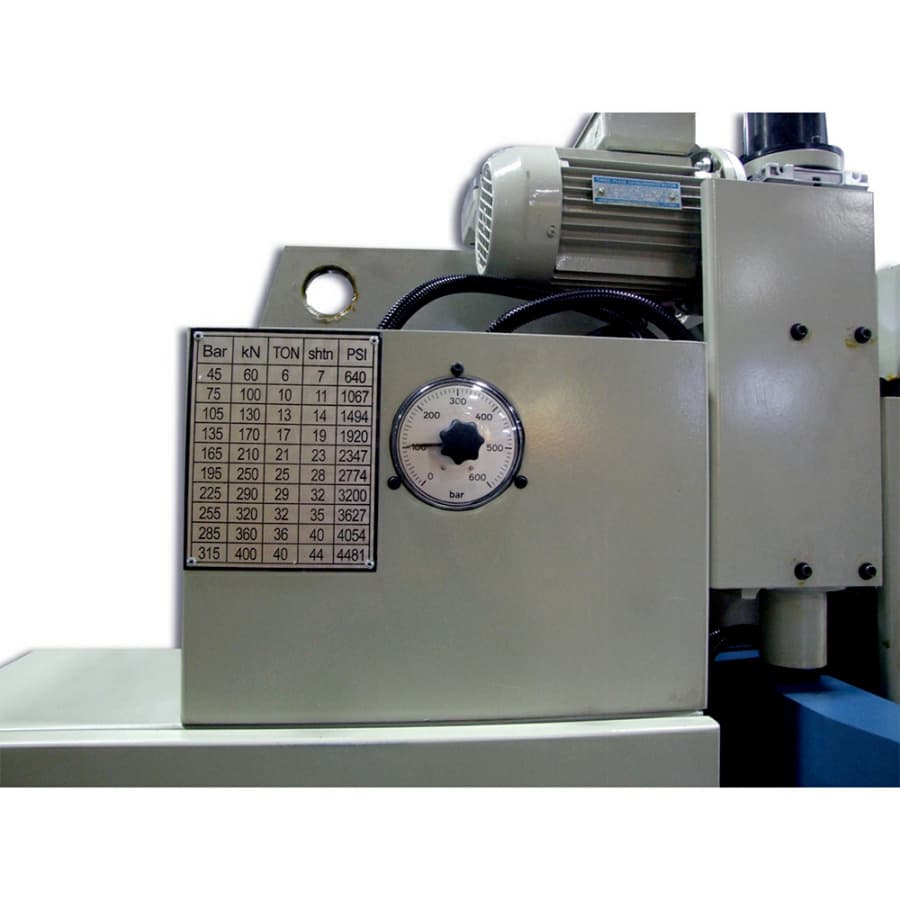

• Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across
• Safety light curtains prevent the machine from bending when someone is too close
• Light curtains will swing open and get out of the way when you're doing a tool change
Fast Shipping and Expert After-Sale Care:
• This hydraulic press brake ships fully assembled. Just uncrate it, plug it in, and get started
• We keep machine handling to a minimum to reduce the risk of damage. The flatbed truck that leaves our facilities is the one that shows up at your door
• Replacement parts are in stock at our Wisconsin headquarters, so we can get them to you quickly
• You can contact us any time to talk with service reps who have years of industrial experience
