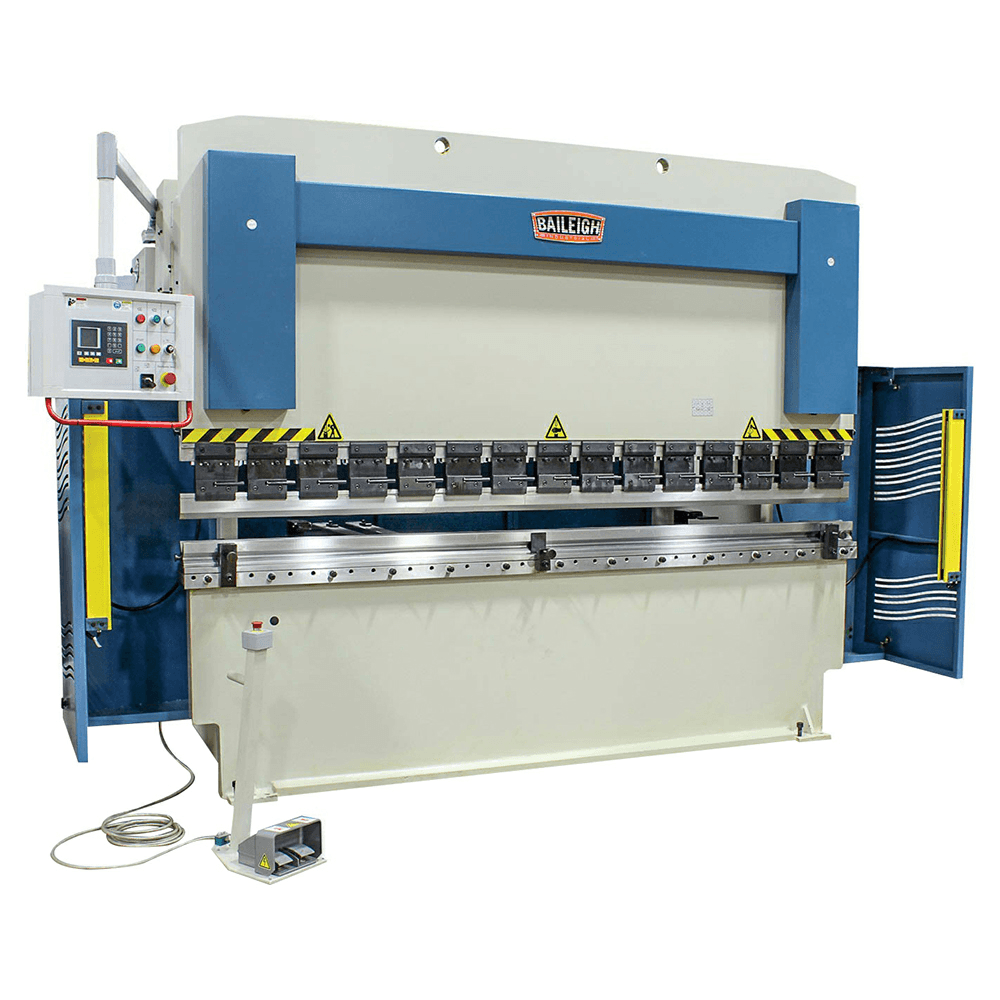

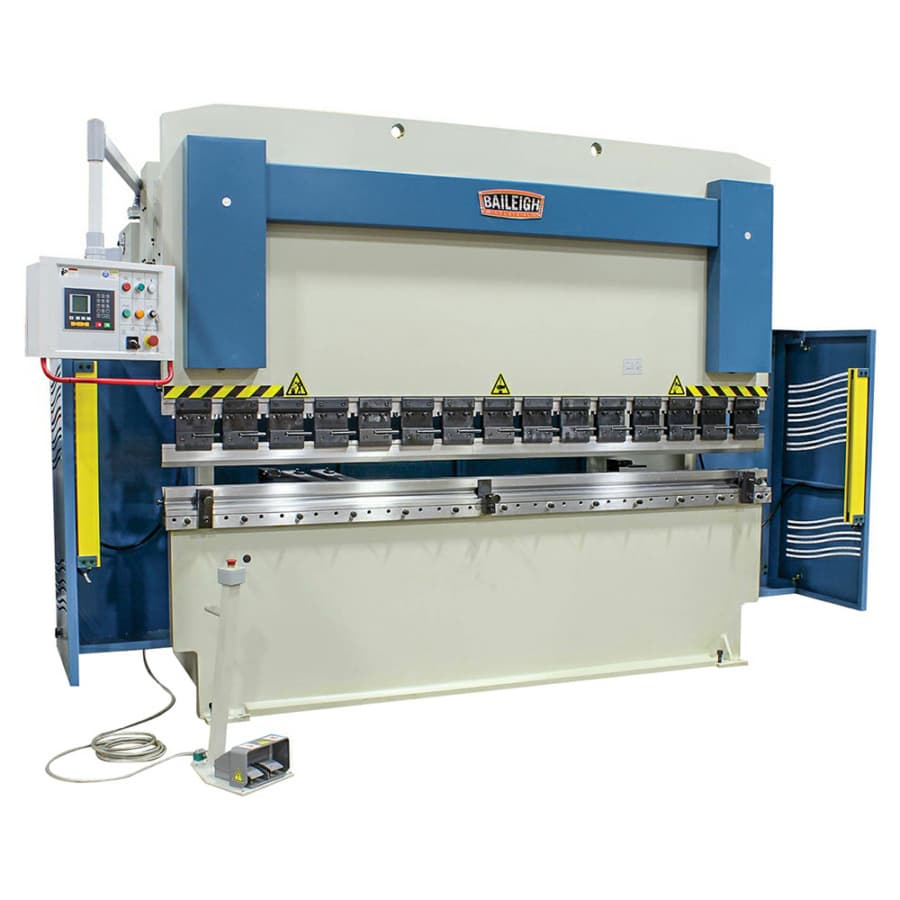

Baileigh BP-22413 CNC 1/2 HP Hydraulic Press Brake, 3 Phase/220V

To bend 10-foot metal sheets, this Industrial Press Brake uses a durable Vickers/Eaton® pump. Anyone can learn to program the controller. The rigid steel frame maintains accuracy.

Features:

• Delivers a whopping 224 tons of pressure
• Offers 13-foot length (157") and 123" of distance between the housings
• This press brake is also available in a 10-foot version
• Runs on 220-volt 3-phase power
• Industrial-grade hydraulic system with a Vickers/Eaton® pump will keep the machine running smoothly and reliably
• Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times
• Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer
• Hydraulic cylinders are near the back of the machine for convenient fluid changes

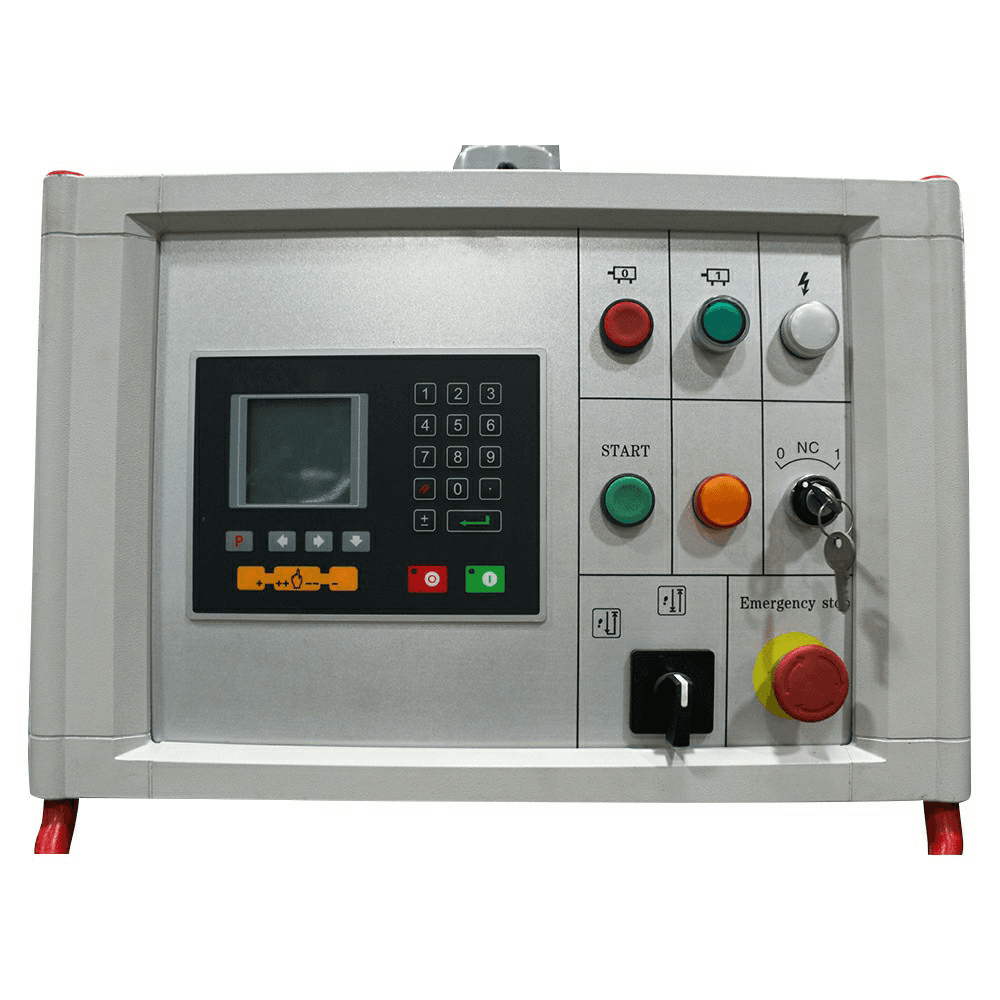

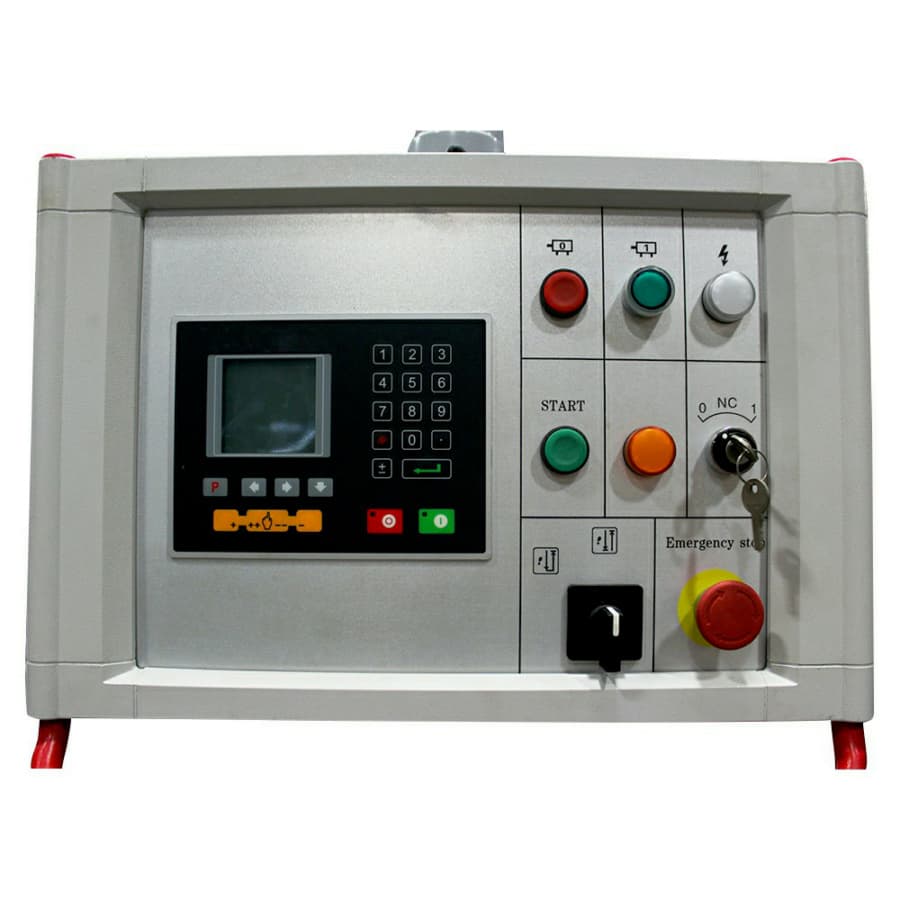

Accurate, User-Friendly Control System:

• Runs in single-bend mode or programmable mode
• Comes standard with 2 axes of control: stroke and back gauge distance
• Controller is so simple that you could train someone to use it in 5 minutes
• Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production
• Bending is accurate to +/- .01mm, ensuring that parts come out right the first time

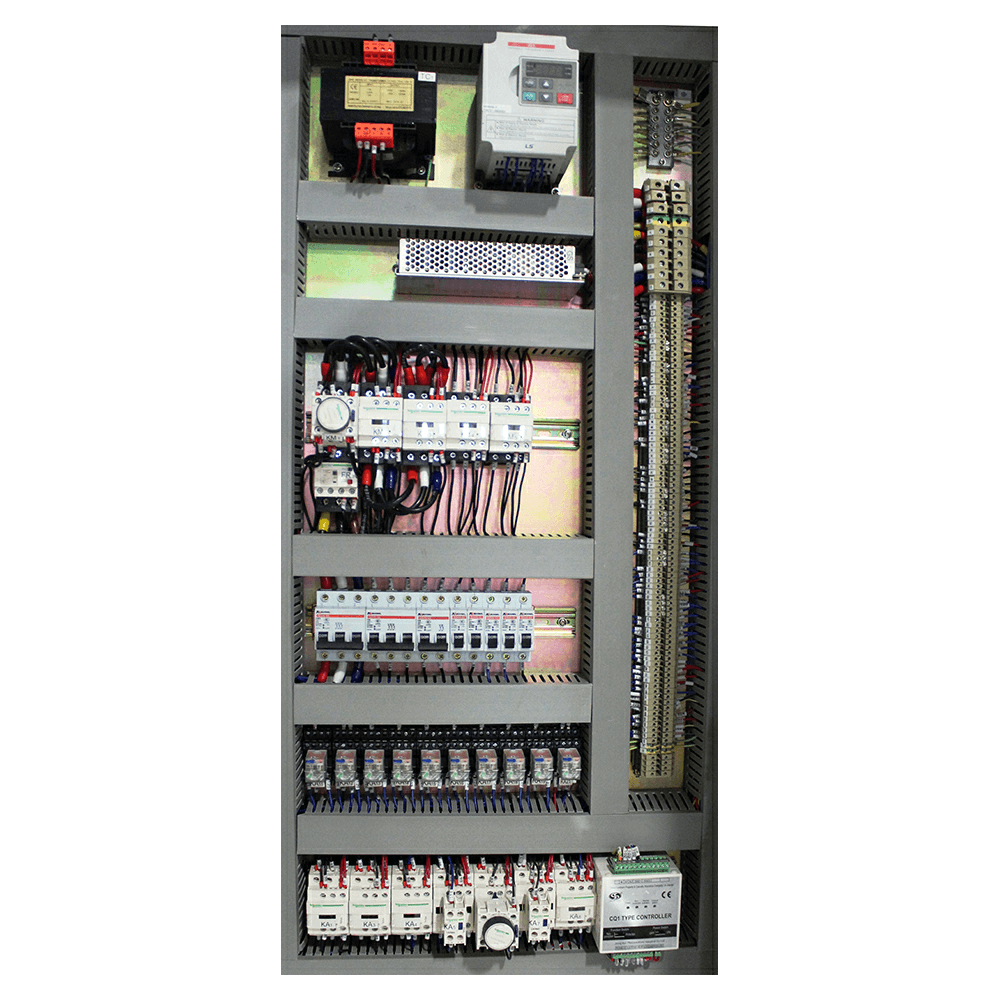

• Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity
• Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend
• You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal
• Choose between 2 speeds: a rapid approach and retract and a slow bending speed
• Speed option lets you reduce cycle time and make your shop more efficient
• Chain drive back gauge system uses tried-and-true technology that you can maintain easily
• The 23.62" back gauge can advance or retract according to programmed instructions

Steel Plate Construction and Included Tooling:

• Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process
• Weighs a whopping 24,640 lbs. for massive structural strength that ensures accurate results
• Includes support arms around 2 feet in length

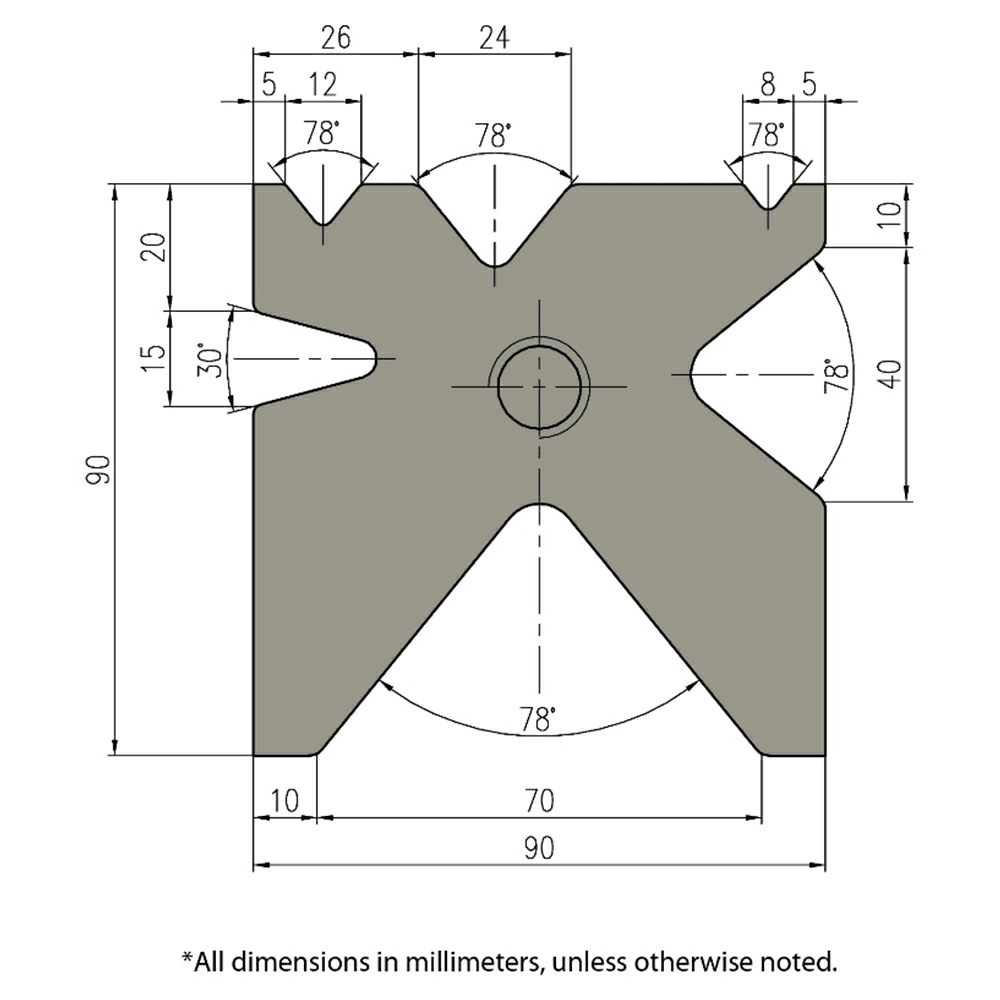

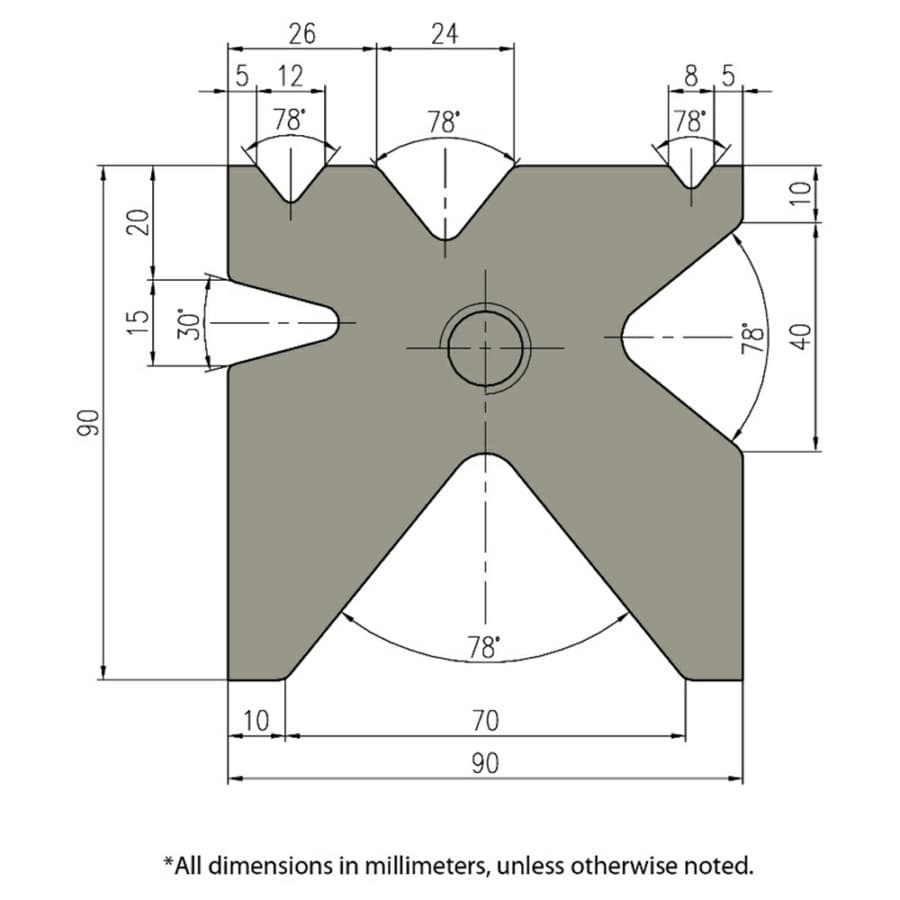

• Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style)
• Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws
• Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across
• Safety light curtains prevent the machine from bending when someone is too close
• Light curtains will swing open and get out of the way when you're doing a tool change

Fast Shipping and Lifetime After-Sale Care:

• This hydraulic press brake ships fully assembled. Just uncrate it, plug it in, and get started
• We keep machine handling to a minimum to reduce the risk of damage. The flatbed truck that leaves our facilities is the one that shows up at your door
• Replacement parts are in stock at our Wisconsin headquarters, so we can get them to you quickly
• We offer a 1-year parts warranty
