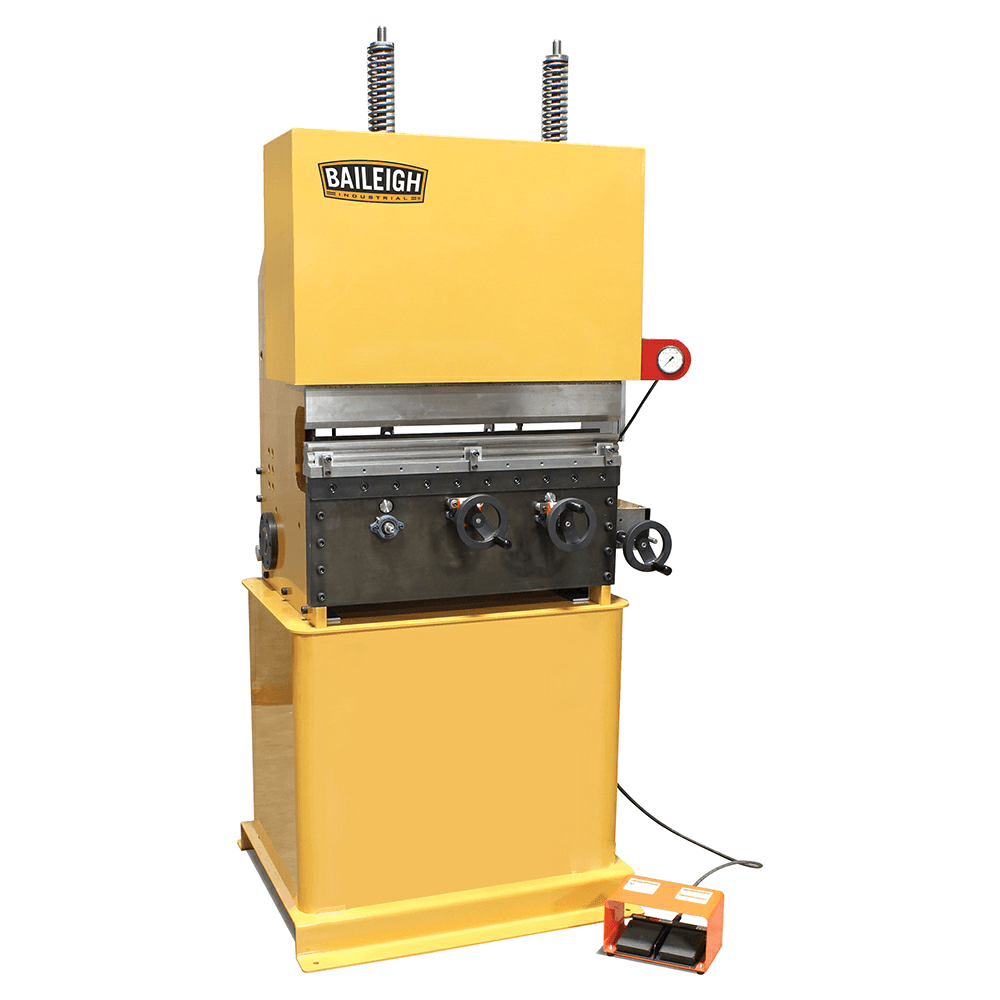

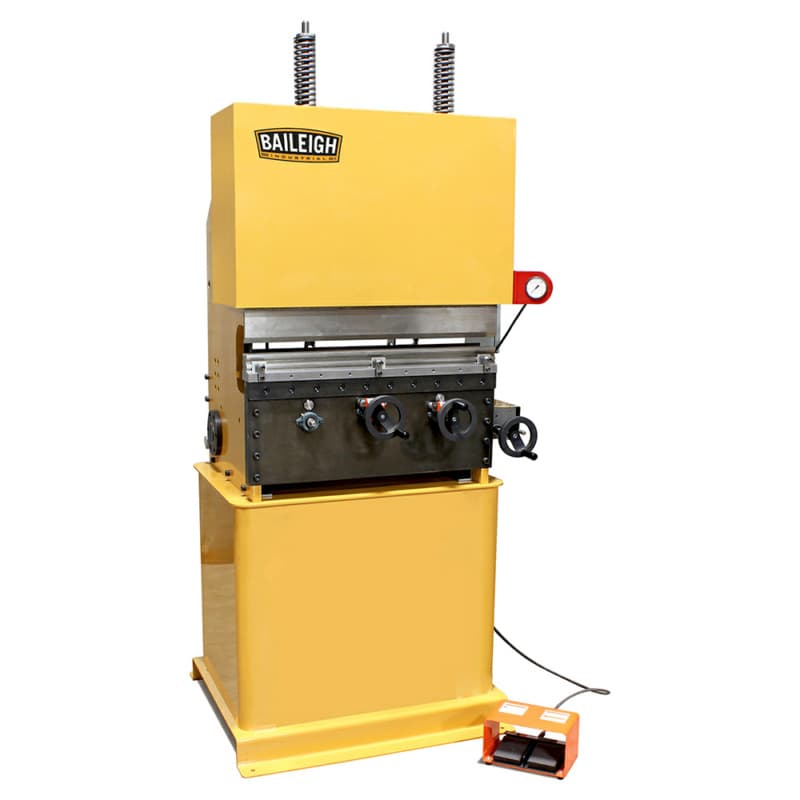

Baileigh BP-3142NC 2 HP Hydraulic Press Brake, 1 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

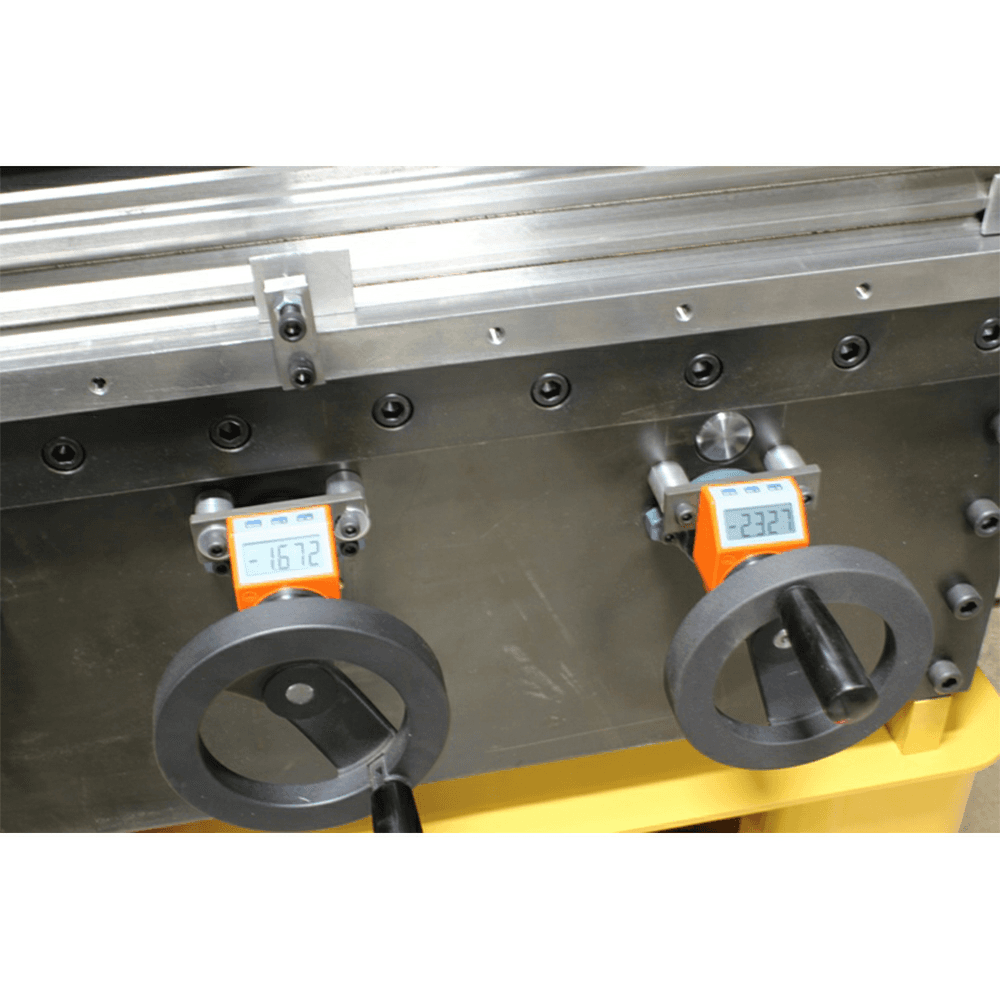

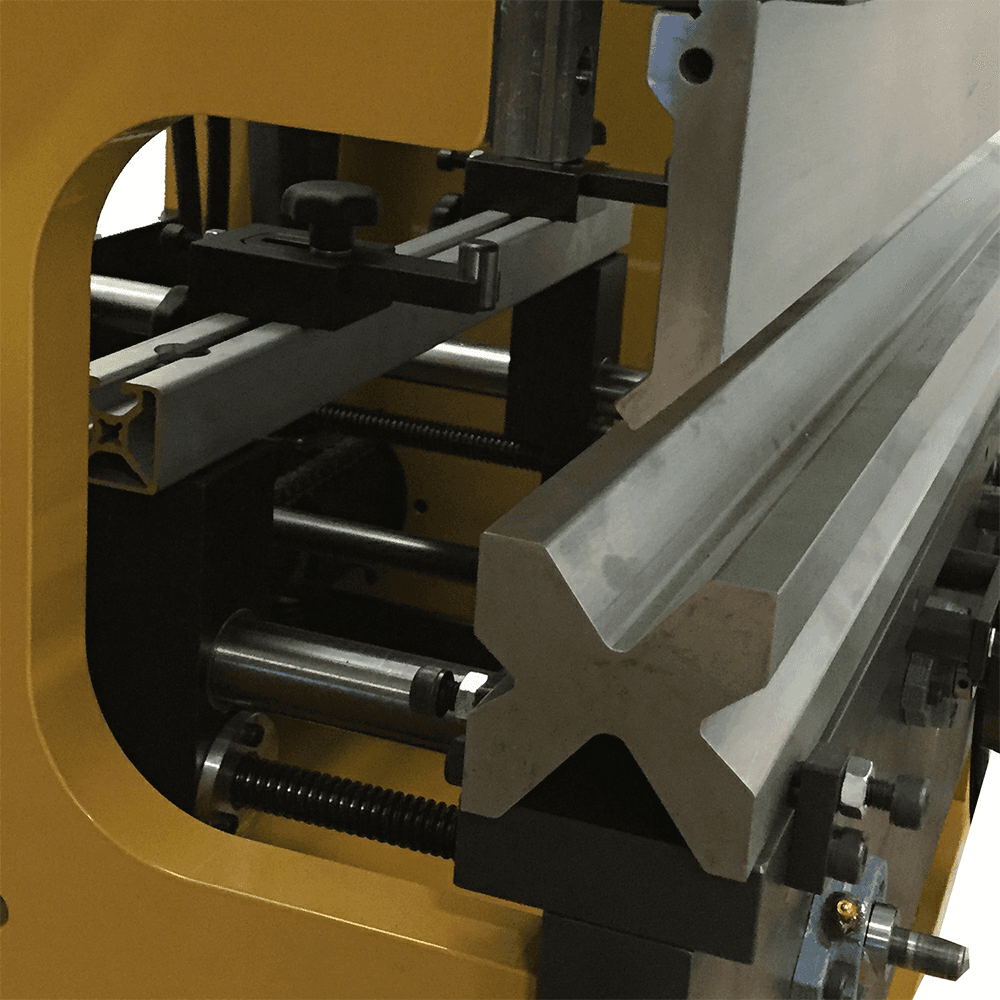

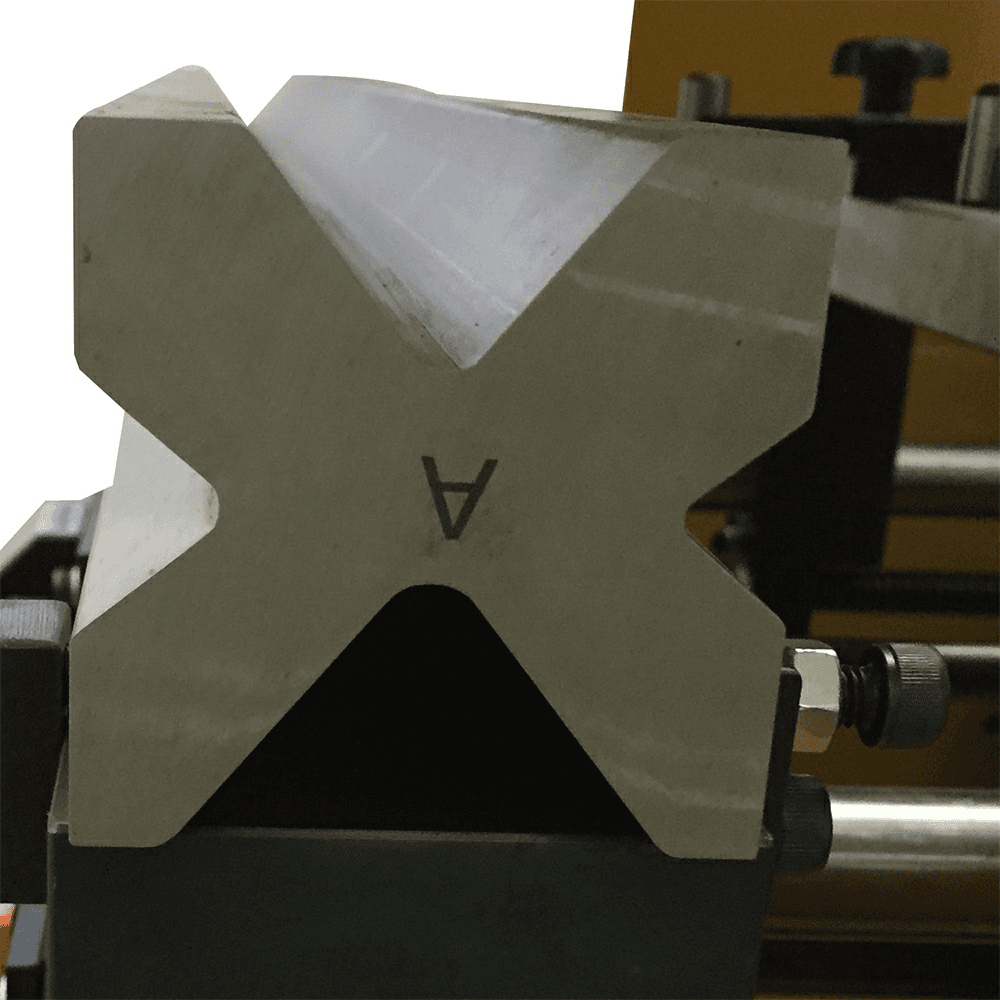

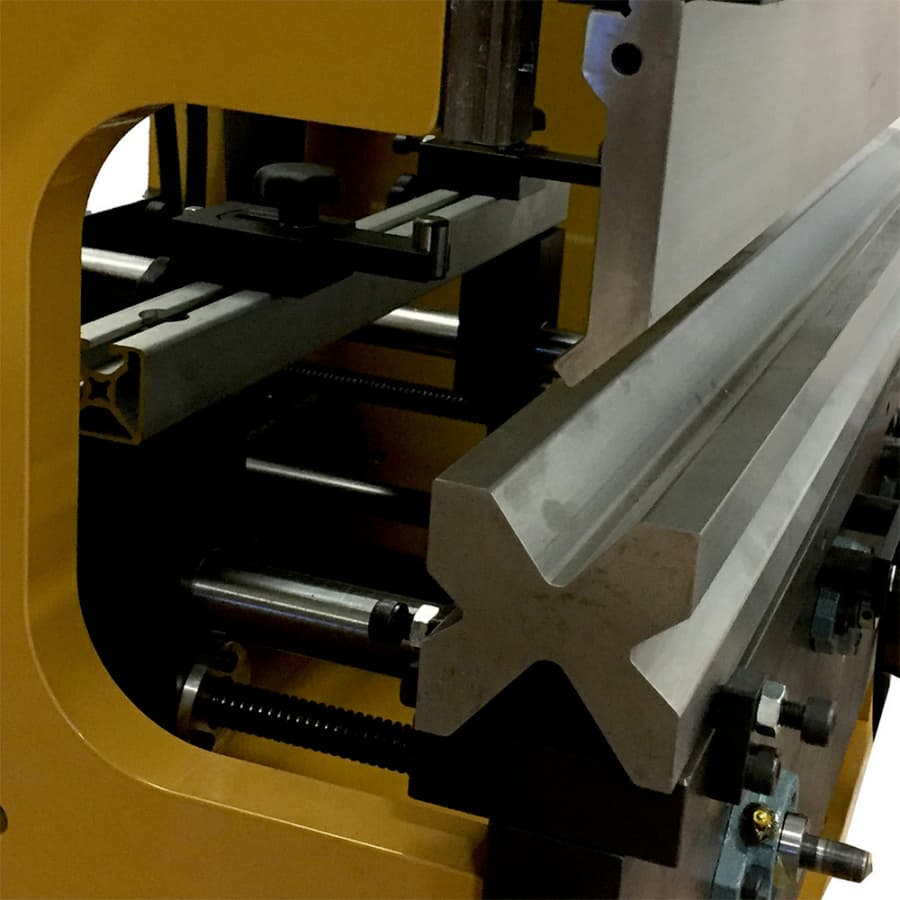

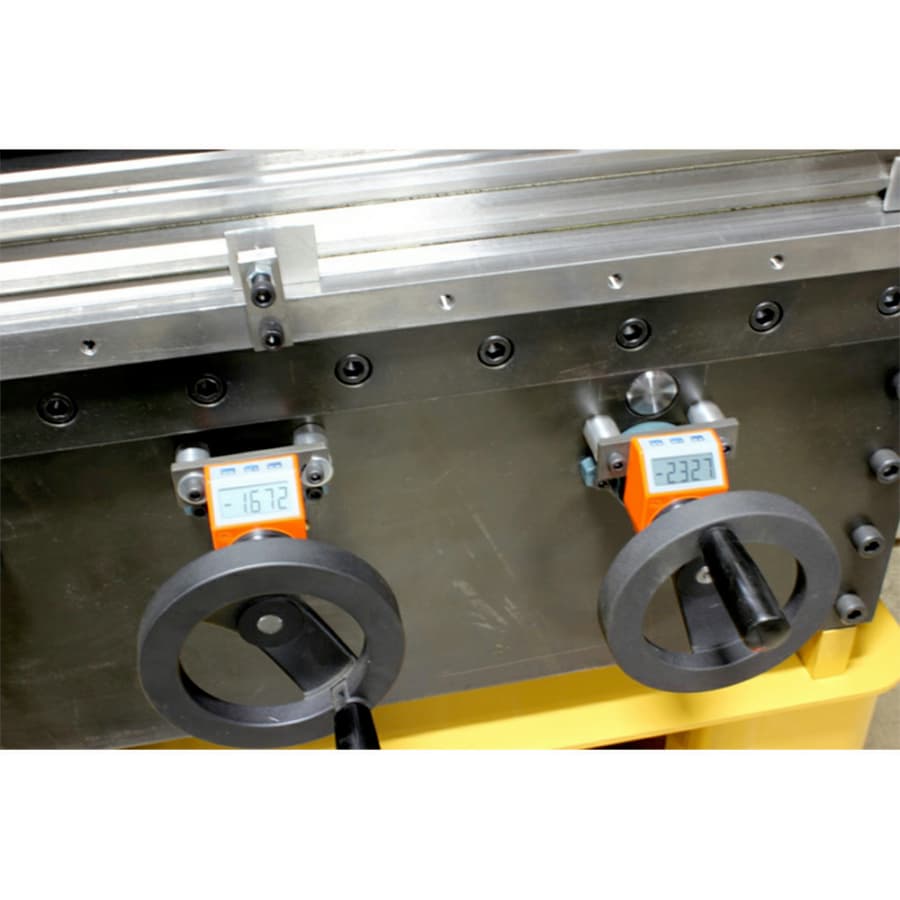

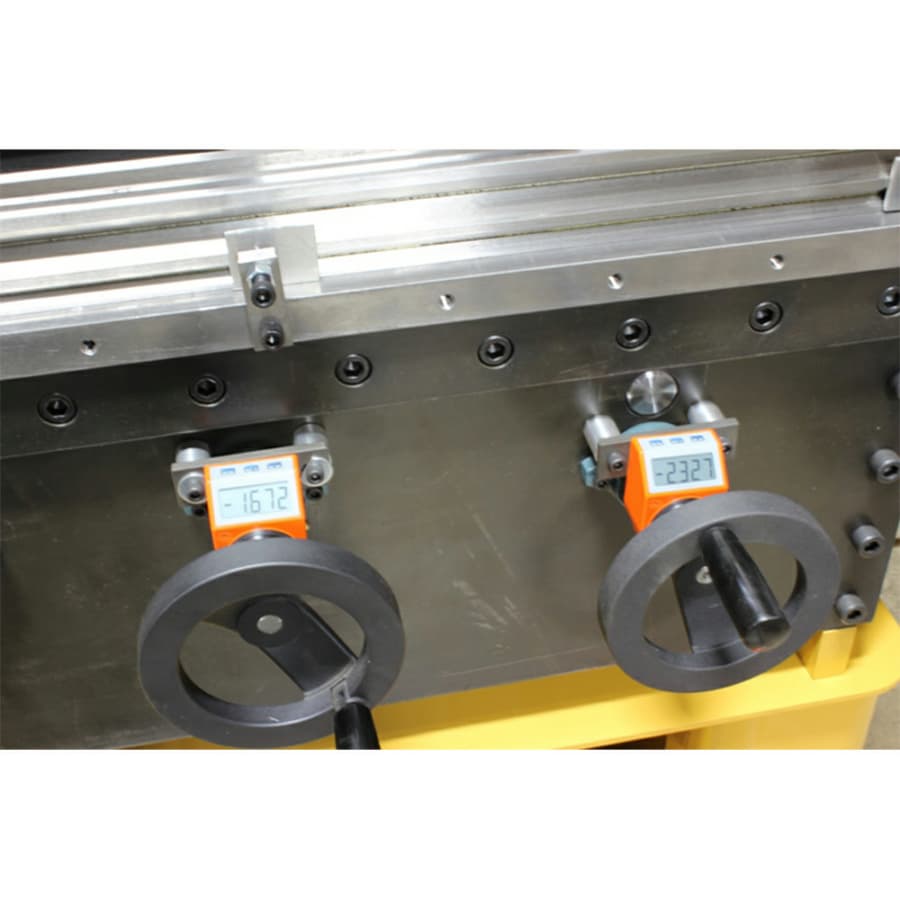

Marketing Banner (English United States, Ecommerce) Features: • Bends a maximum capacity of .25" mild steel and has a 31" width, perfect for smaller projects • Runs on 220-volt single phase power with a 2 hp motor that produces 42 tons of pressure, so it will work in any shop, even when power is limited • Foot pedal controls hydraulic system, leaving your hands free to guide the material • Easy to use. You can train someone to handle this press brake in 5 minutes • Sturdy 19.5"-long manual back gauge makes it simple to create repeat parts • Digital readout (DRO) for back gauge and down position helps you get precise results • Includes a hardened multi-Vee bottom die, unlike some competing machines which don't come with tooling • Universal tooling holder gives you a wide variety of options to fit your applications • Heavy steel plate construction, weighing 2,000 lbs., doesn't flinch under pressure and maintains accuracy over many years of use • Requires little maintenance. Hydraulics are in the upper back of the machine for convenient fluid changes every 6 to 8 months
Specifications
| Box Quantity | 1 |
| Approach Speed | 0.9" per sec |
| Miter Angle Range (Deg.) | 45° - 0° - 45° |
| Motor (HP) | 2 HP |
| Motor Amps | |
| Oil Reservoir Capacity (cc) | |
| Overall Length | |
| Product Type | Vertical Press Brakes |
| Punch Work Height | |
| Range of Speeds | |
| Rectangle at 45 Degrees | 13-57/64" x16-l/4" - Right / 13-19/32"xl6-l/4" - Left |
| Rectangle Capacity | 20" x 16-1/4" |
| Short Description | *42 tons of pressure *31" wide *220V 1-phase power *Foot pedal-controlled stroke |
| Speed (rpm) | |
| Stroke Length | |
| Table Height | |
| Throat Depth | |
| Minimum Return Speed (In./Sec) | |
| Maximum Pressure (PSI) | |
| Maximum Notch | |
| Approx. Pressure (Tons) | 42 Tons |
| Assembled Machine Dimensions (L x W x H) | |
| Back Gauge Capacity | |
| Back Gauge Motor (hp) | |
| Bending Capacity Max Length And Thickness | |
| Bending Speed | 0.4" / sec |
| Configurable Base Item | |
| Digital Readout | |
| Distance Between Housings | 28 |
| Distance From Table To Ram | 8.5" |
| Distance Per Stroke - jpw_distance_per_stroke_in | |
| Fixture Holes | |
| Horse Power (HP) | |
| Included Tooling | |
| Input Power | 220V Single Phase |
| Volts | 220V |
