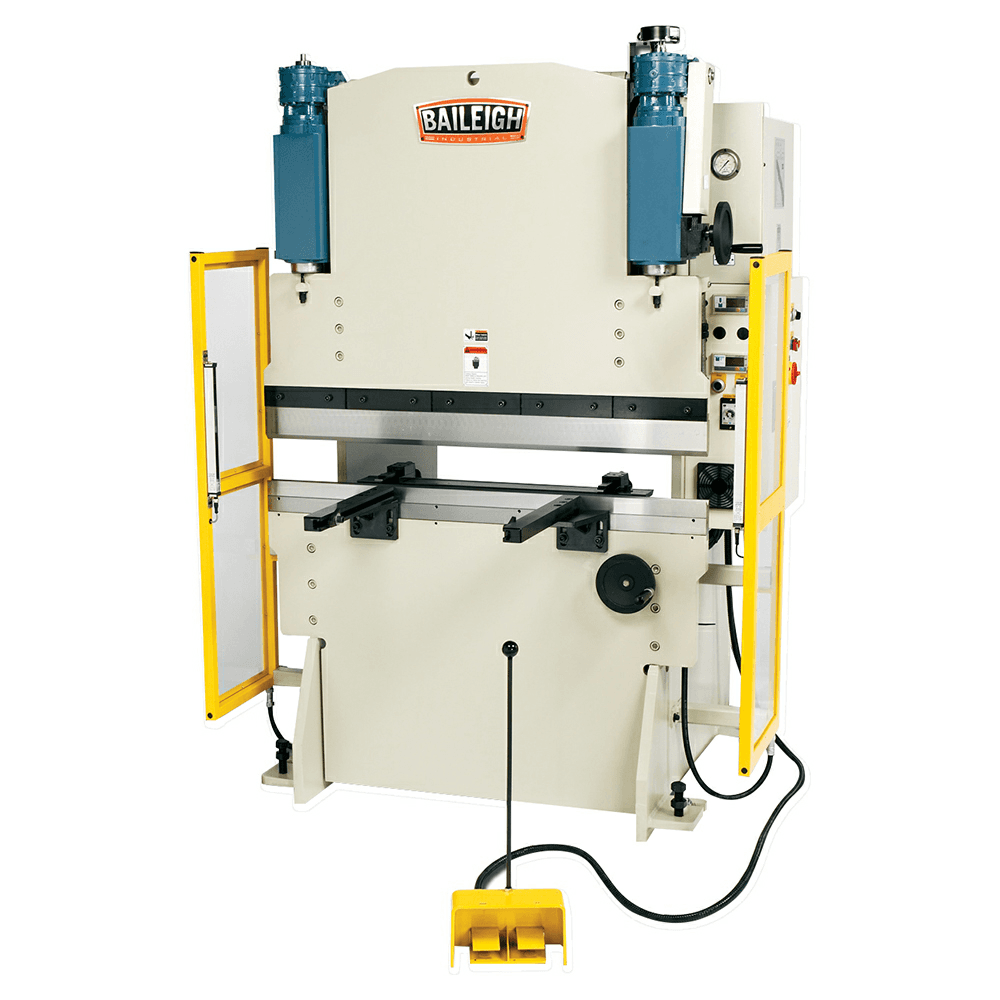

Simple to use, this hydraulic press brake shows the encoder-controlled bend depth and back gauge positions on separate DROs. A heavy steel frame ensures reliable production.
Powerful, Easy-to-Learn Hydraulic System:
• Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production
• 2 encoder-controlled hydraulic cylinders move the top beam
• Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time
• It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel)
• You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape
• 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam
• Foot pedal brings the stroke up and down, leaving your hands free to position the material
• Motorized back gauge rides on a solid ball screw trolley mechanism
• Back gauge encoder shows its position on its own DRO
• Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine
• You can train your staff to use this press brake in 5 minutes
Rigid Structure and Low Maintenance:
• Heavy electro welded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years
• Robust 2,640-pound construction supports the hydraulic pressure, so the machine won't buckle at full capacity
• Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke
• Includes a set of hardened single-Vee American tooling
• Accepts standard press brake tooling, giving you a wide variety of options
• Comes with front material rests (or support arms), which some competing machines do not include
• 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam
• 4 grease zerks let you add oil every few months
• Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months
Features:
• Produces up to 33 tons of pressure
• Bends sheet metal up to 50" wide
• Maximum capacity of .098" thick sheet metal across the machine's full width
• Requires 220-volt 3-phase power
• Recommended for: Small industrial shops, maintenance and R and D shops, and potentially larger industrial shops, if they need to make a specific part that fits this press brake's width.
