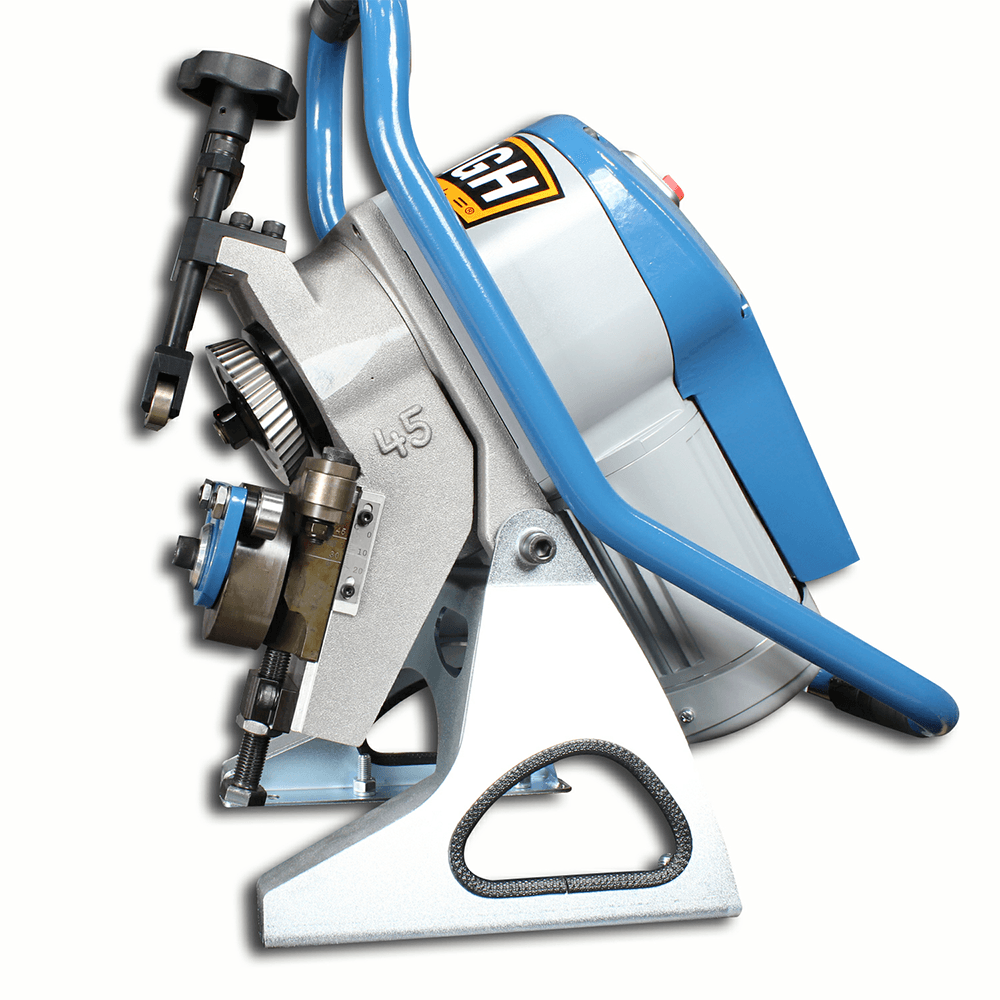

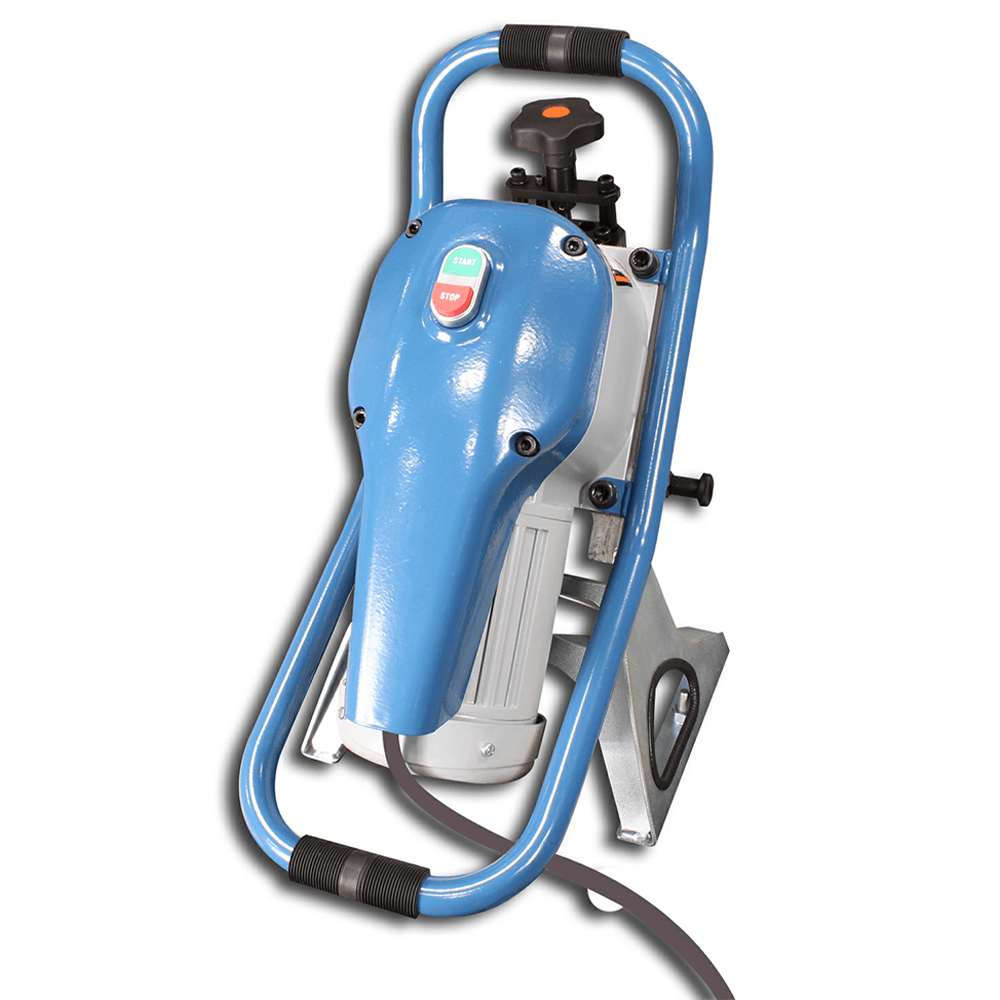

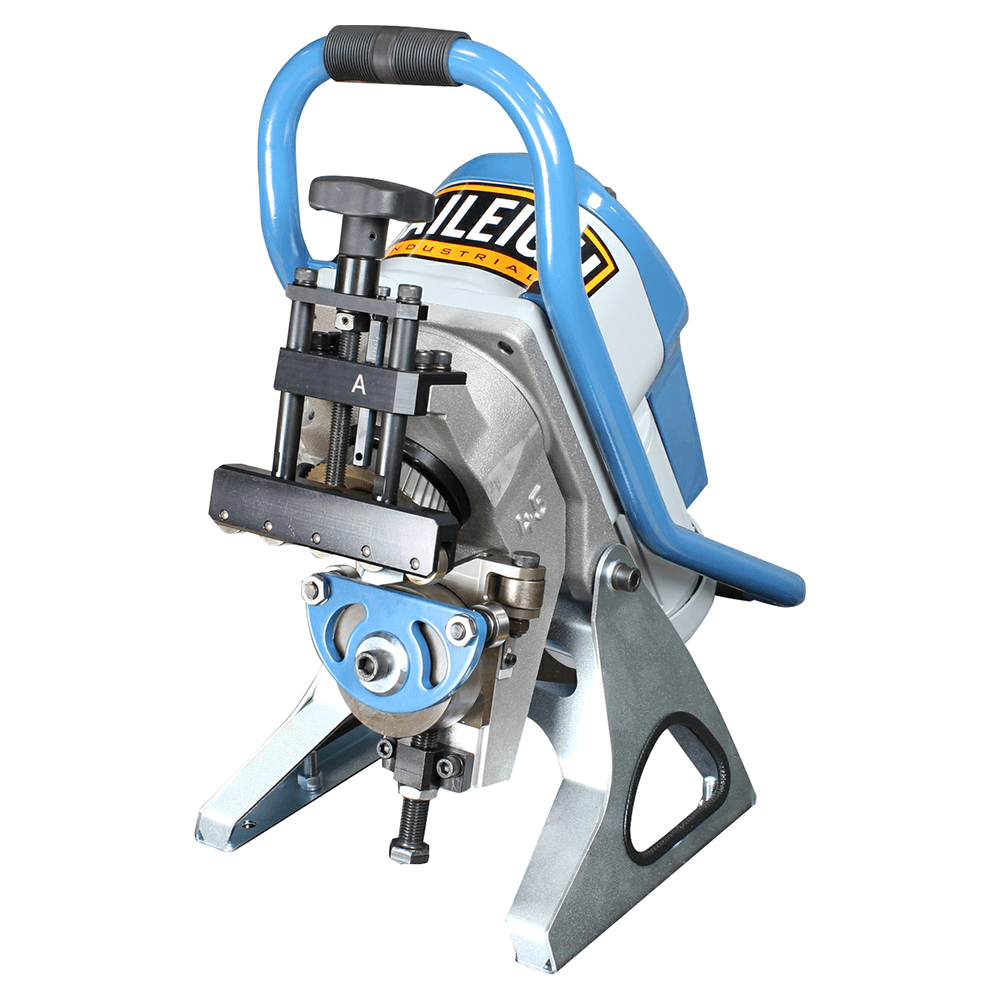

Baileigh CM-12 Plate Beveler, 3 Phase/220V

Baileigh Industrial is getting known for having some of the best plate beveling machines on the planet and the CM-12 is no exception. The unique "can opener" style CM-12 uses a shear blade that rotate, like a can opener to create welding-ready bevels on linear plates of any shear able material, including iron, steel (up to 85,000lbs/in² or 60kg/mm2), brass, copper and aluminum. It cuts bevels from 1/8" to 1-3/8" (3 to 30 mm) in thickness, with a minimum plate width of 2-3/8" (60 mm) and minimum plate length of 2-3/8" (60 mm). .

Features:

• Incredibly silent running of the machine

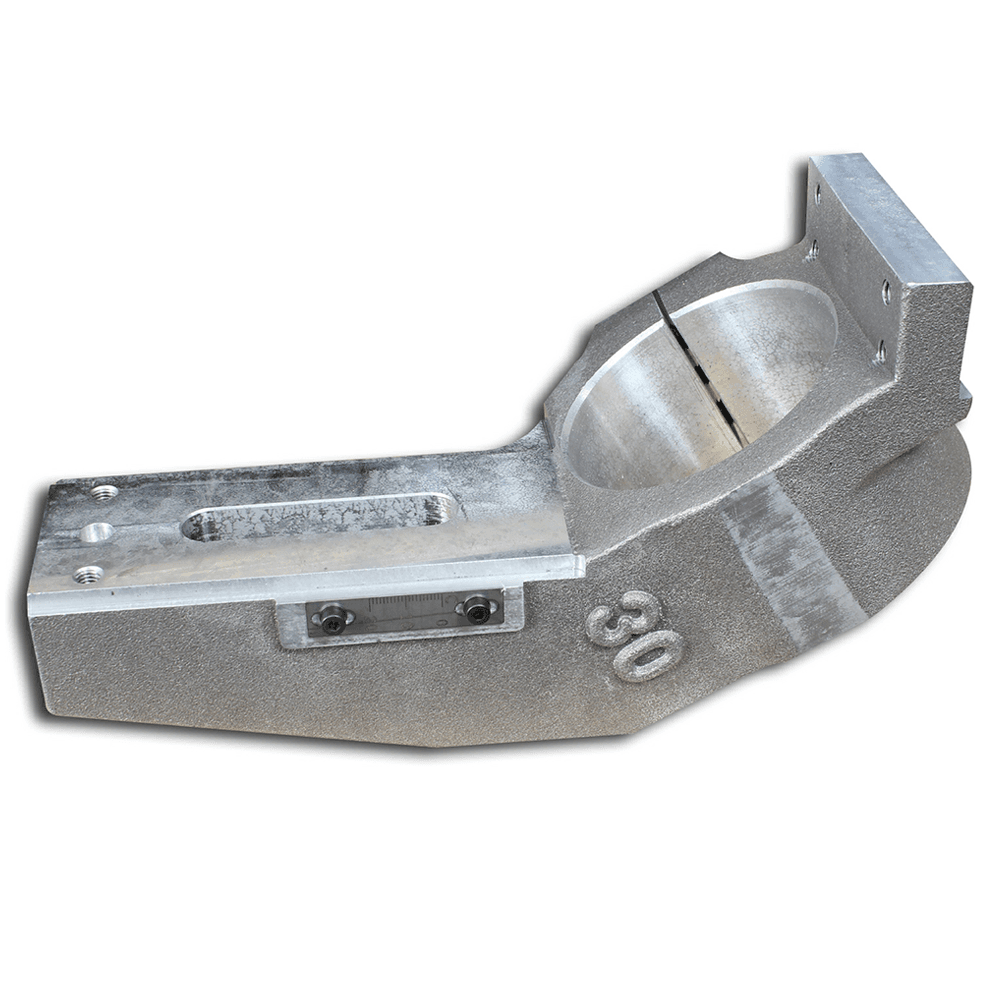

• The beveling angle adjustable by the help of the kit for needed angle
• Available are kits for 30, 45,37.5, 22.5 and 50 degrees. 30 and 45 degrees are included

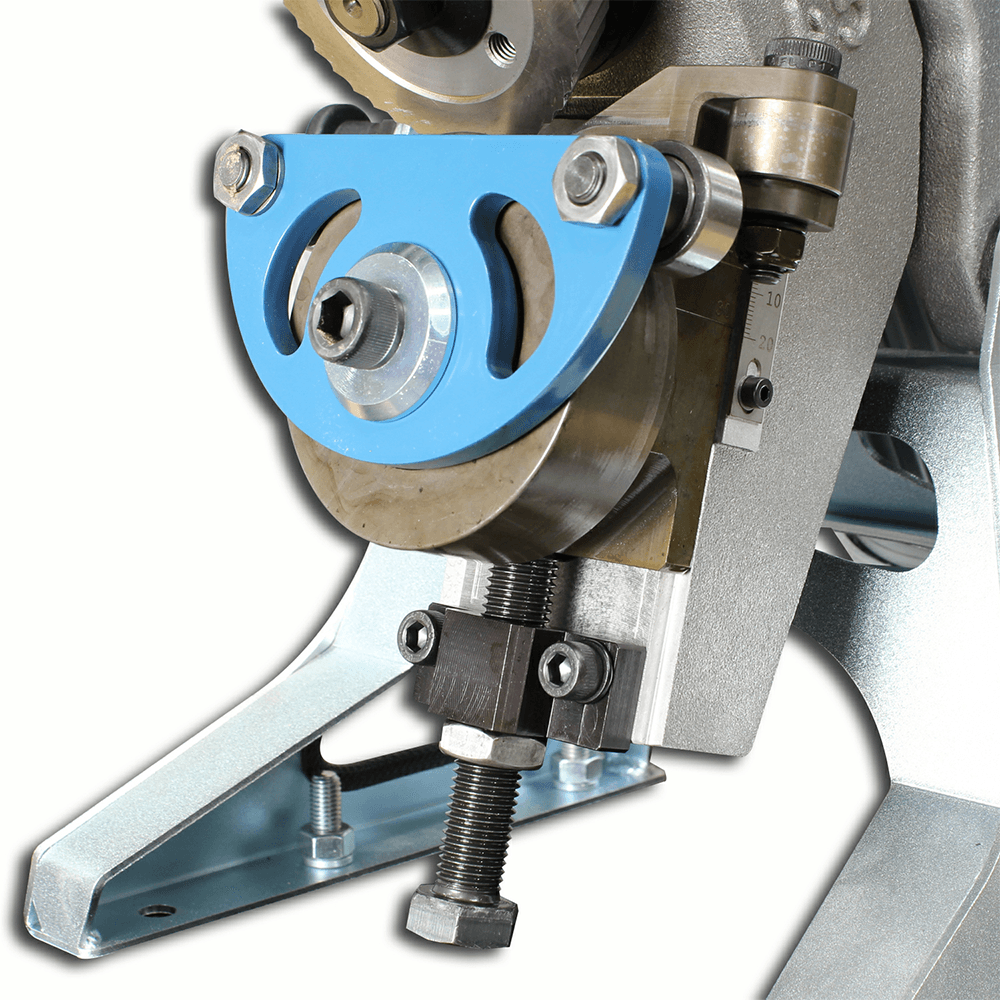

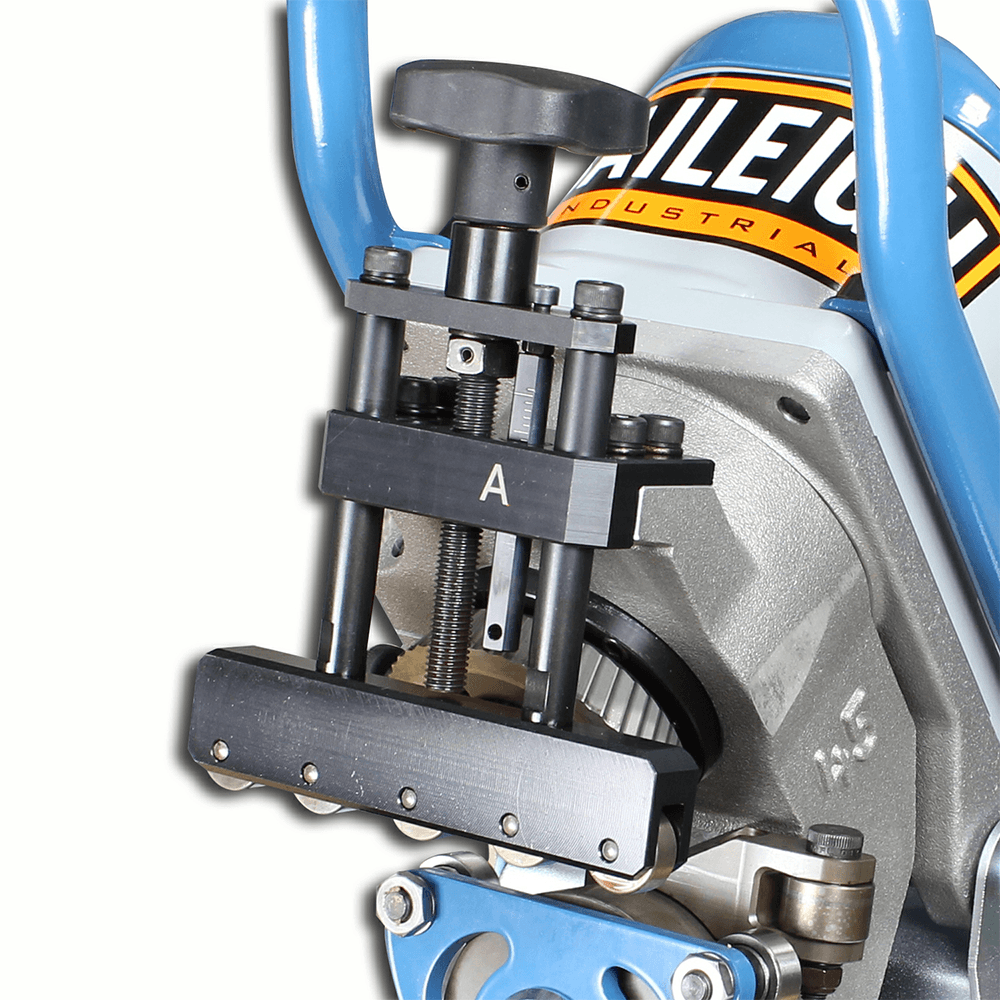

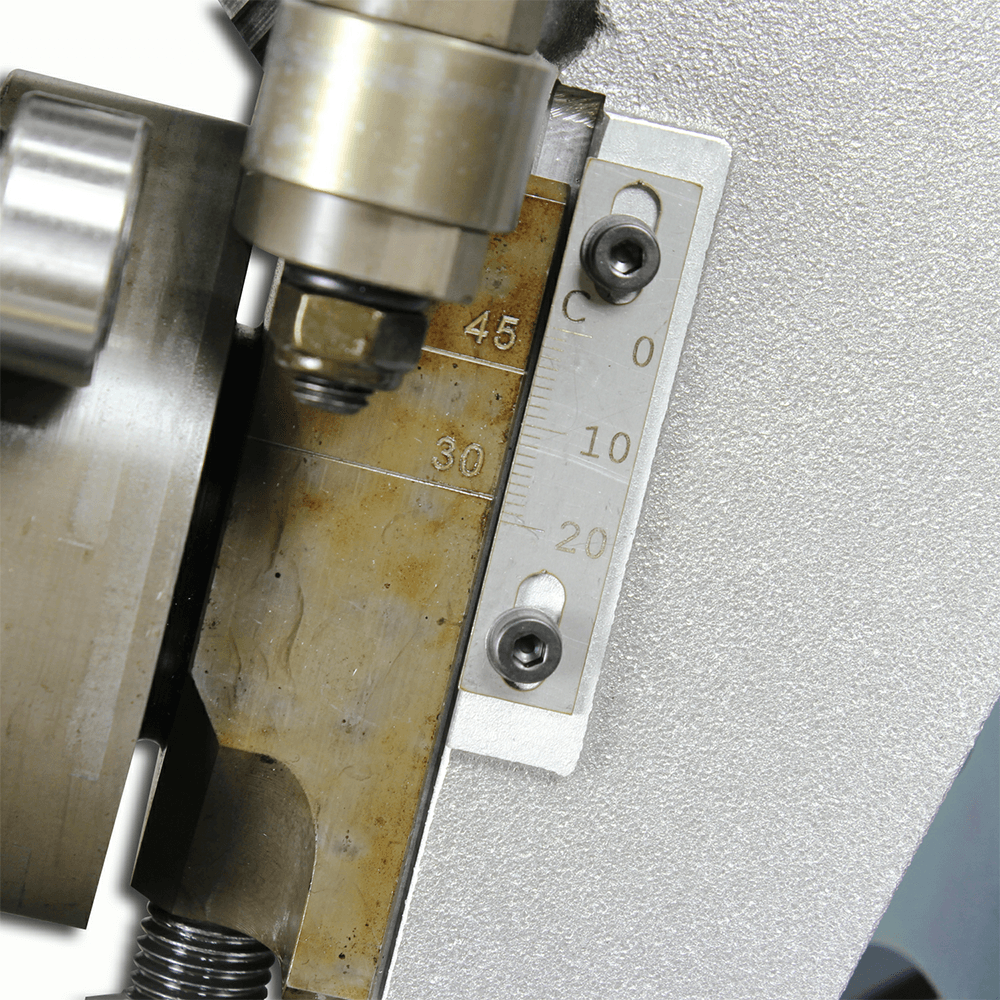

• The pressure bar unit and the piece supporting unit can be adjusted in height and are supplied with visible graduated scale
• It can be hooked to the plate that is to be machined in either a horizontal or vertical position
• The machine can be inverted to bevel the bottom side of the plate. Both X and K bevels are possible
• Light weight design dictates that only one person is necessary for operation
• Functions as a stationary or a moveable station
