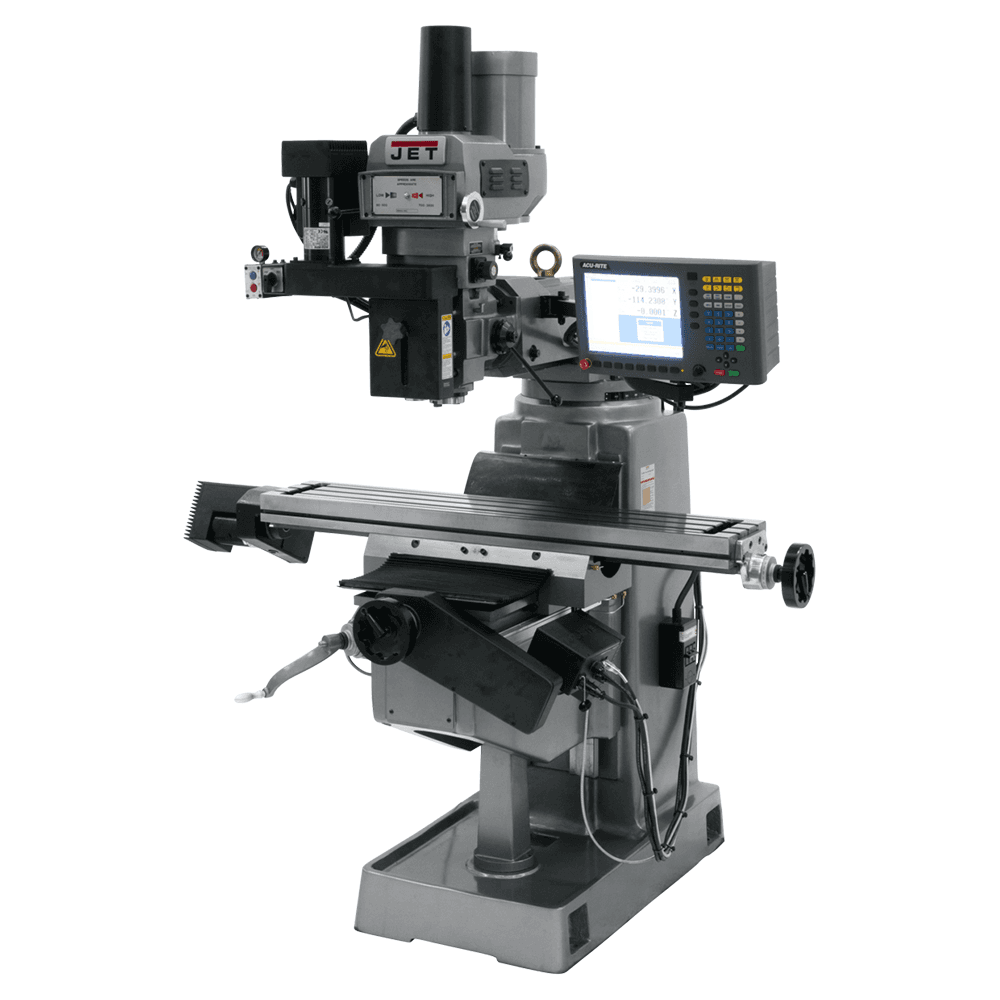

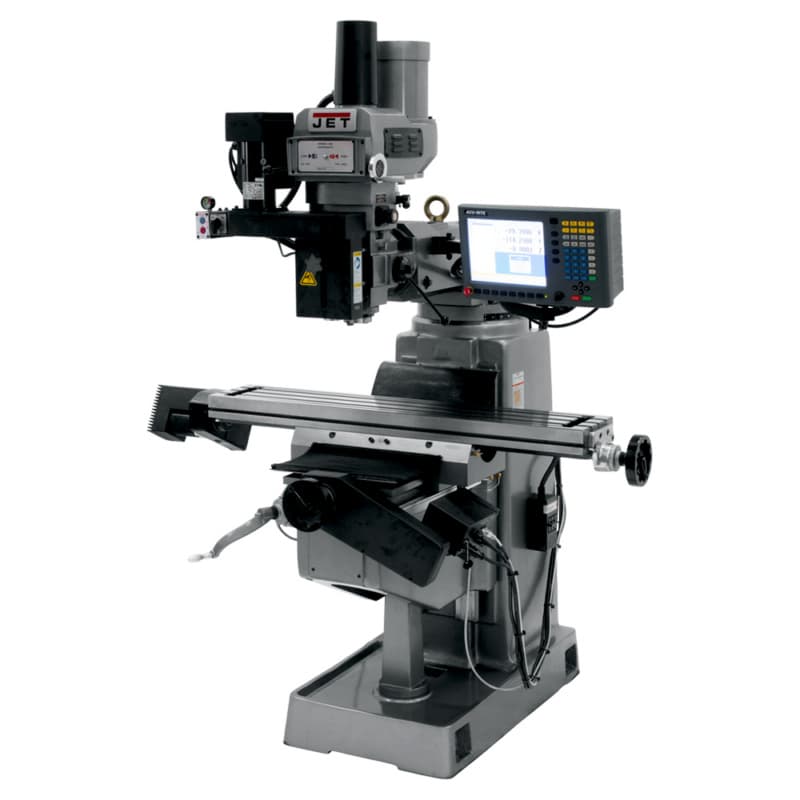

Jet Tools JTM-4VS-1 2 HP Mill with 3-Axis ACU-RITE G-2 Millpower CNC, 1 Phase/115V/230V
This item may incur additional shipping costs and lead times.
Product Details
Jet offers complete, factory-installed CNC packages with your choice of 2- or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted Jet Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation. All the features you've come to expect backed by the industry-leading Jet Two Year Warranty. Features: • 12.1" High resolution display (1024 x 768) with 3D graphics • Available offline software • Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs • Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution • CNC electronic variable speed vertical milling machine package for JTM-1050EVS • Estimated run time feature • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously • Powerful DC Servo motor assemblies that include mounting castings and hardware • Precision ground ball screws eliminate backlash for precise lateral movements • USB + Ethernet compatible
Specifications
| Box Quantity | 1 |
| Amperage Draw @ 230V 3Ph | |
| Product Type | CNC Mills |
| Quill Diameter | 3-3/8" |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 60 - 4,200 |
| Saddle Width | |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel | 5" |
| Table Cross Travel | 12" |
| Table Longitudinal Travel | 34" |
| Table Longitudinal Travel With Powerfeed | |
| Table Size (L x W) | 9" x 49" |
| Travel of Knee | 14-1/2" |
| Travel of Ram | 13-3/8" |
| T-Slot Centers | 2-1/2" |
| T-Slots Number and Size | 3" - 5/8" |
| Powerfeed | |
| Power Draw Bar | |
| CNC Package | ACU-RITE MILLPWR® G2 |
| Collet Capacity | 1/8 - 7/8 |
| Column Width | |
| Configurable Base Item | No |
| Configurator Option Type | |
| Distance Spindle to Column (Max.) | 19" |
| Head Movement (Deg.) | 90° R & L 45° F & B |
| Inverter Type | |
| Max Distance Spindle to Table | 17-1/2" |
| Motor Phase | 1Ph |
| Motor Power (HP) | 2 Hp |
| Motor Voltage (V.) | 115/230V |
| Number of Axis | 3 |
| Number of Spindle Speeds | Variable |
| Overall Dimensions (L x W x H) | 66" x 63" x 85" |
| Work Table Weight Capacity (Lbs.) | 660 lbs |
