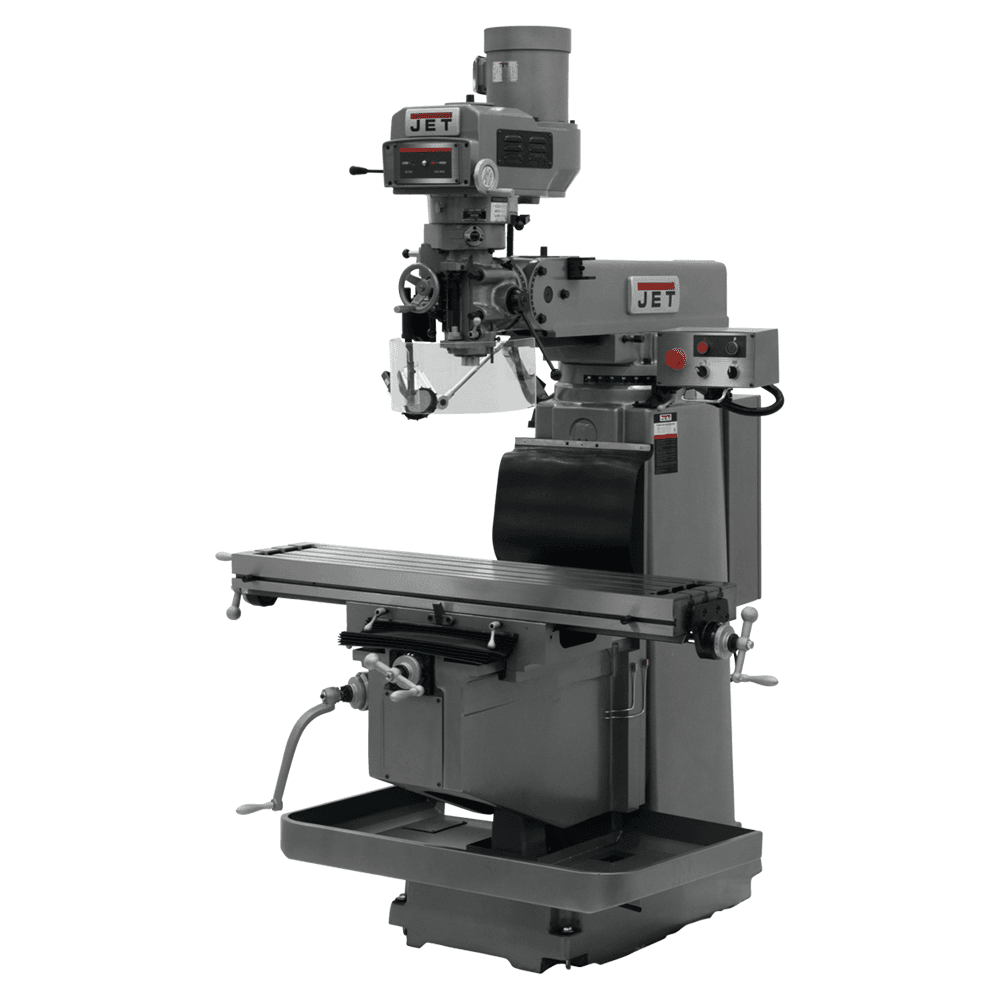

Jet Tools JTM-1254RVS 5 HP Vertical Mill with 2-Axis ACU-RITE G-2 Millpower CNC, 3 Phase/230V/460V
This item may incur additional shipping costs and lead times.
Product Details
Jet offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted Jet Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. CSA/CUS Certified. All the features you've come to expect backed by the industry-leading Jet Two Year Warranty Features: • 12.1" High resolution display (1024 x 768) with 3D graphics • 3-D Contouring, ability to import and run G-code files from CAD/CAM programs • Adjustable gibs throughout • Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance • Available offline software • Estimated run time feature • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously • Three Precision ground t-slots • Two 115V outlets on electrical box for Powerfeeds only • USB + Ethernet compatible
Specifications
| Box Quantity | 1 |
| Amperage Draw @ 230V 3Ph | |
| Product Type | CNC Mills |
| Quill Diameter | 4-1/8" |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 80 - 3,800 |
| Saddle Width | 25-5/8" |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel | 5" |
| Table Cross Travel | 15-1/3" |
| Table Longitudinal Travel | 33-7/8" |
| Table Longitudinal Travel With Powerfeed | |
| Table Size (L x W) | 12 x 54" |
| Travel of Knee | 19-1/4" |
| Travel of Ram | 25" |
| T-Slot Centers | 2-1/2" |
| T-Slots Number and Size | |
| Powerfeed | |
| Power Draw Bar | |
| CNC Package | |
| Collet Capacity | |
| Column Width | 14-1/4" |
| Configurable Base Item | No |
| Configurator Option Type | |
| Distance Spindle to Column (Max.) | 27-3/4" |
| Head Movement (Deg.) | 90° R & L 45° F & B |
| Inverter Type | |
| Max Distance Spindle to Table | 23" |
| Motor Phase | 3Ph |
| Motor Power (HP) | 5 HP |
| Motor Voltage (V.) | 230/460V |
| Number of Axis | |
| Number of Spindle Speeds | |
| Overall Dimensions (L x W x H) | 26.75" x 16.625" x 58.625" |
| Work Table Weight Capacity (Lbs.) | 925 lbs |
