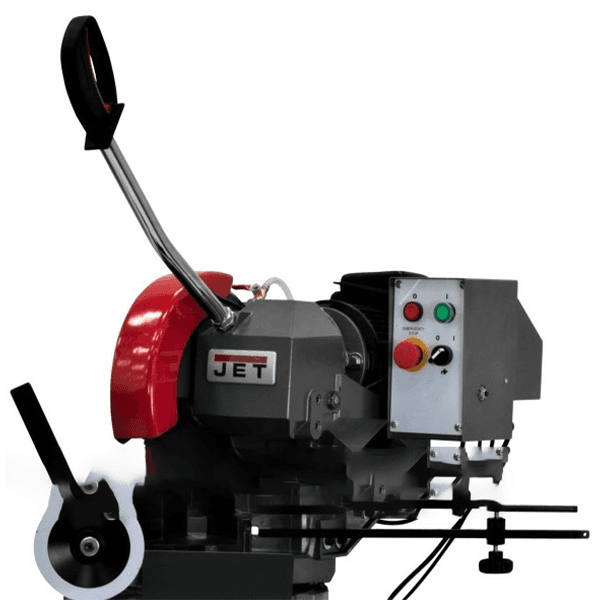

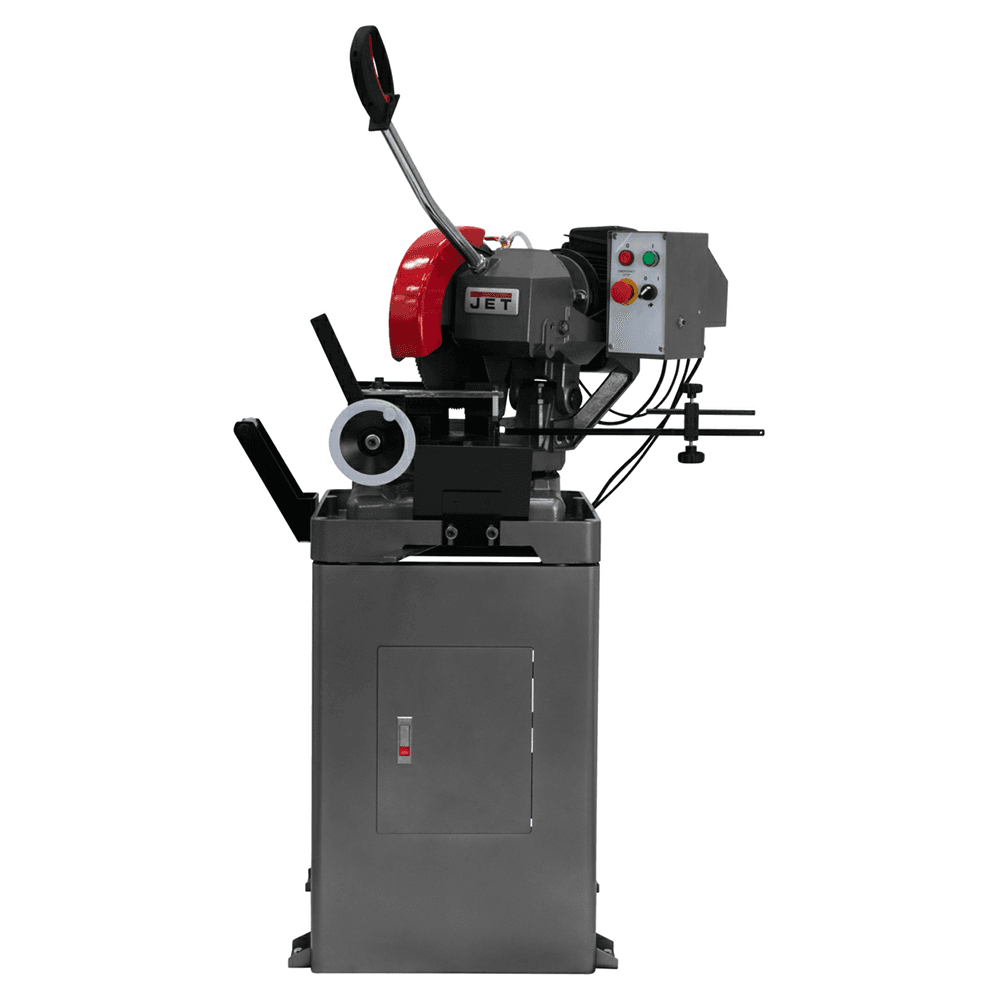

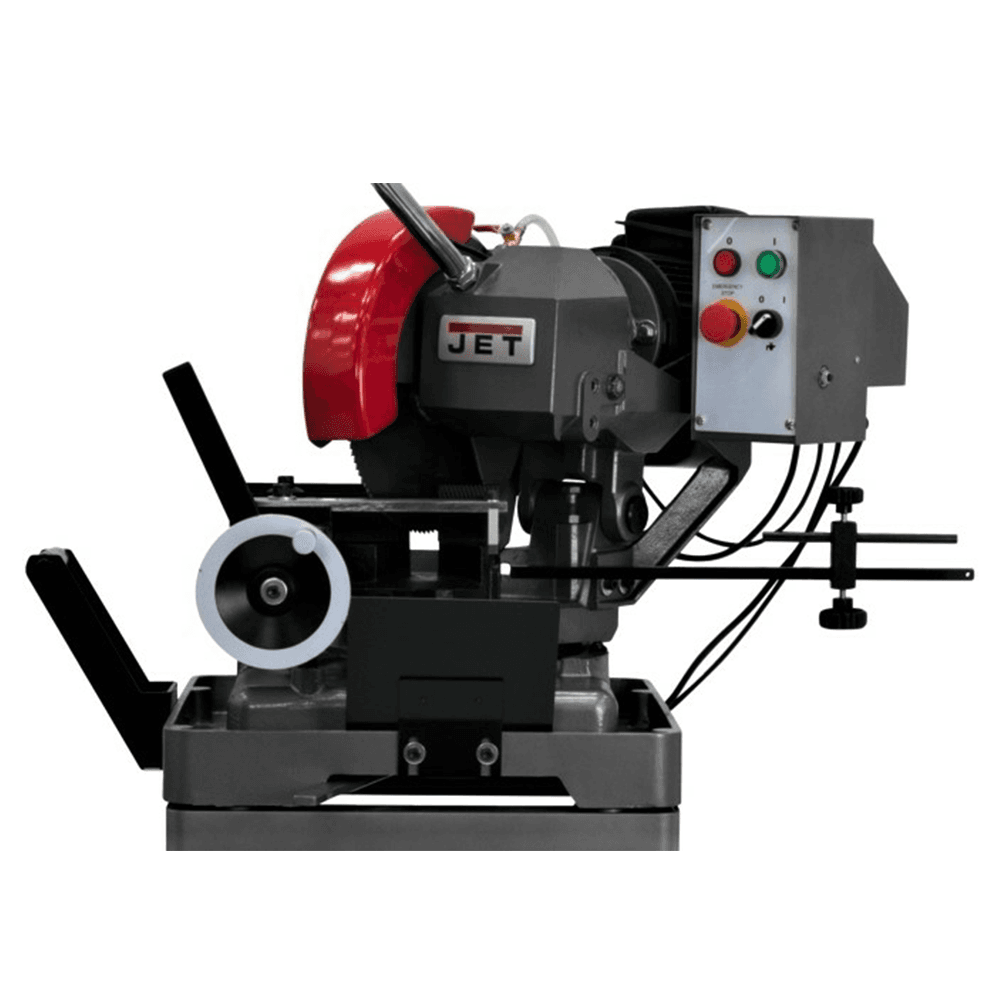

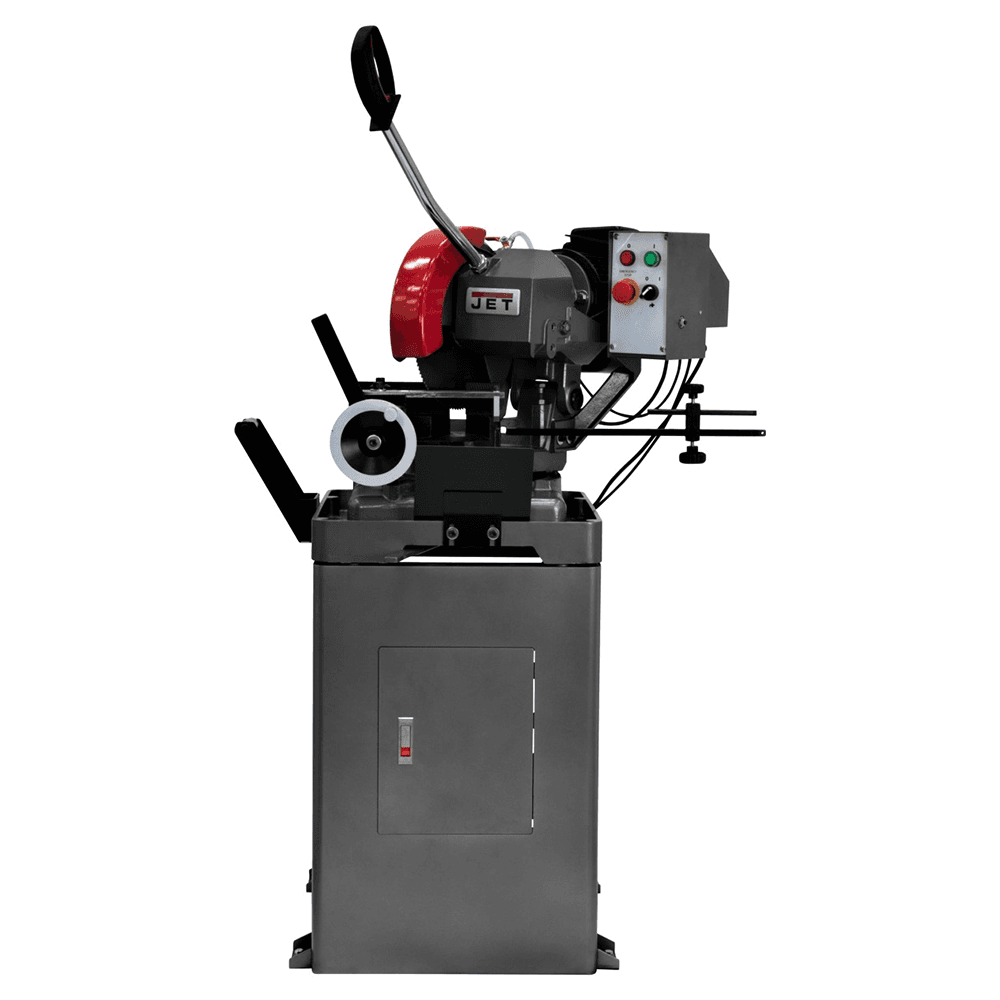

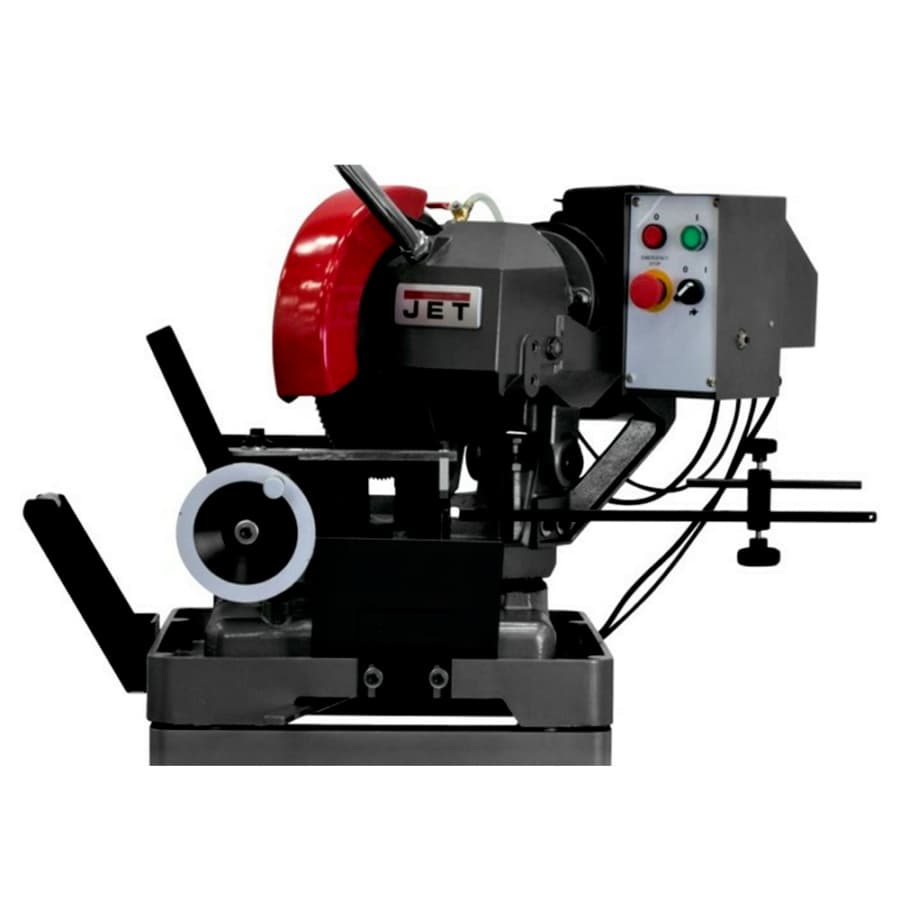

Jet Tools CS-315 315mm x 2 HP Ferrous Manual Cold Saw, 3 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details

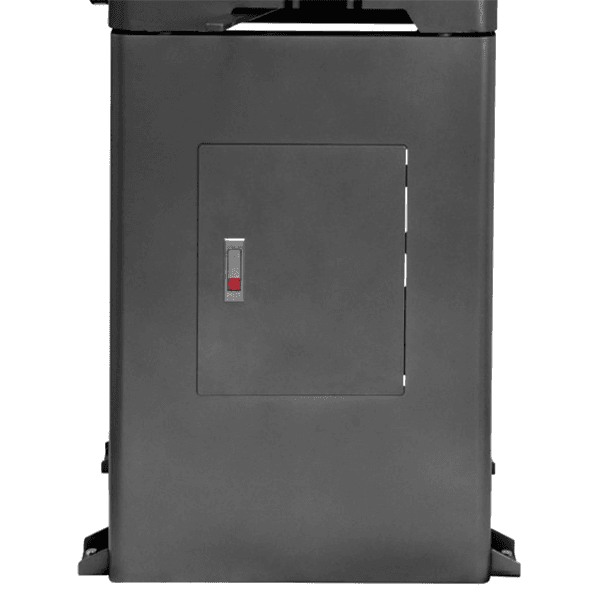

Jet Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you've come to expect from Jet. All backed by the industry leading full service Two Year Warranty. Features: • Blade drive reduction gearbox operates in an oil bath for increased durability • Cast iron frame • Flood coolant system • Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life • Fully adjustable material depth stop for sawing Repeatability and increased production • Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade • Heavy-Duty cast iron frame base with easy access storage provides a stable cutting platform • Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations • Quick tension and release mitering capabilities with stops at 45° right, 45° left • Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards • Long Blade Life: Flood coolant system with a 1-1/3 gallon reservoir and pump with flow control system • Repeatability: Fully-adjustable material depth stop for sawing Repeatability and increased production • Powerful: Hardened and ground direct-drive worm shaft and bronze worm wheel transmits maximum torque to saw blade • Solid: Heavy-Duty cast iron frame base with easy access storage, provides a stable cutting platform • Safety: Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
Specifications
| Box Quantity | 1 |
| Blade Speeds (RPM) | 52, 104 RPM |
| Solid Round at 90 Degrees | 3-1/2" |
| Solid Square at 45 Degrees | 2-19/32" x 2-19/32" |
| Solid Square at 90 Degrees | 3-1/8" x 3-1/8" |
| Tubing Rectangle at 45 Degrees | 2-1/5" x 2-3/5" |
| Tubing Rectangle at 90 Degrees | 4" x 3-3/16" |
| Tubing Round at 45 Degrees | 3-1/2" |
| Tubing Round at 90 Degrees | 3-1/2" |
| Tubing Square at 45 Degrees | 2-3/5" x 2-3/5" |
| Solid Round at 45 Degrees | 3-1/2" |
| Solid Rectangle at 90 Degrees | 3-3/16" x 3-3/16" |
| Solid Rectangle at 45 Degrees | 3-3/16" x 2-19/32" |
| Configurable Base Item | No |
| Enhanced Description | JET coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you've come to expect from JET. All backed by the industry-leading full-service Two-Year Warranty. |
| Maximum Vise Opening | 4-11/16" |
| Motor Amps | 7/5.8 Amps |
| Motor Phase | 3 |
| Motor Power (HP) | 2 HP |
| Motor Voltage (V.) | 230V |
| Product Type | Cold Saws |
| Tubing Square at 90 Degrees | 3-1/5" x 3-1/5" |
