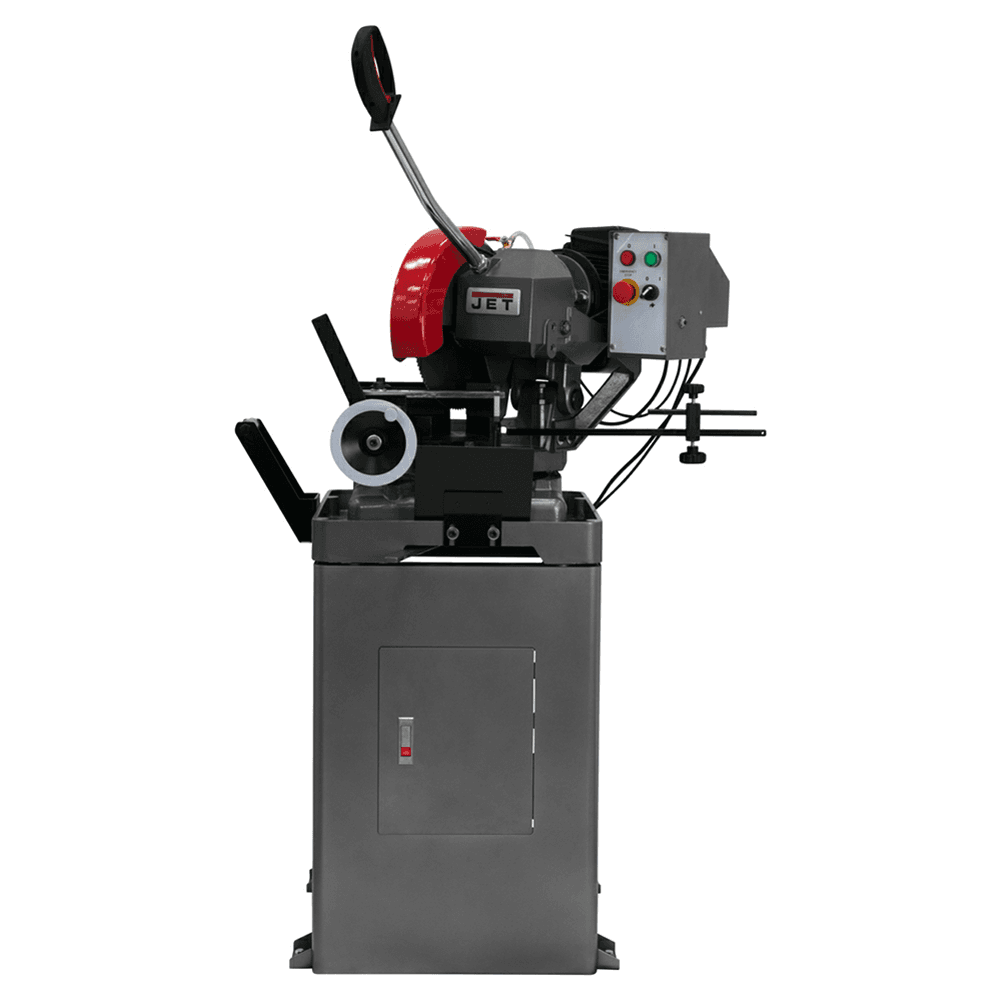

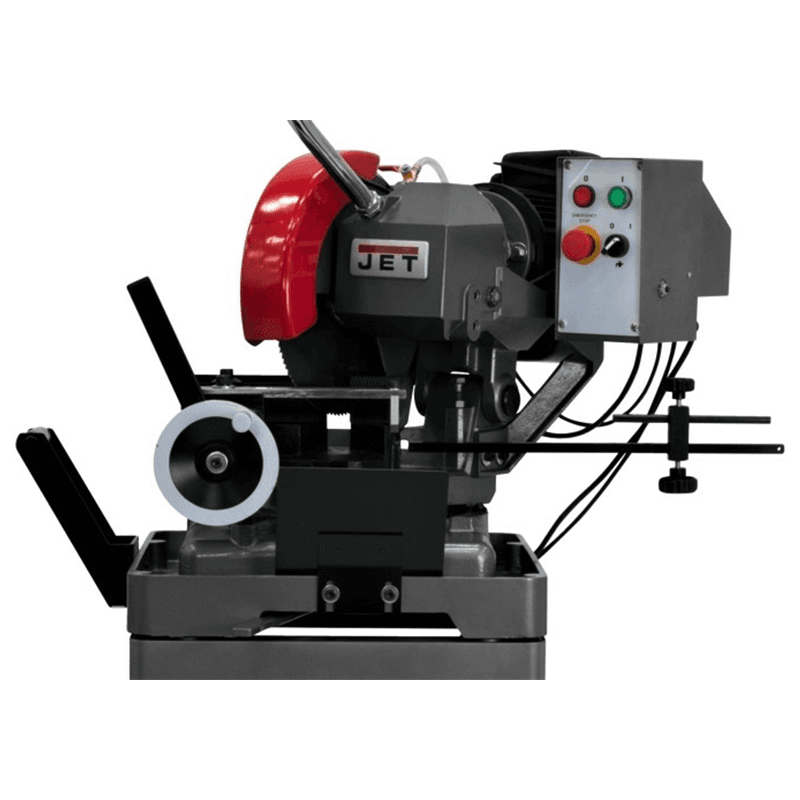

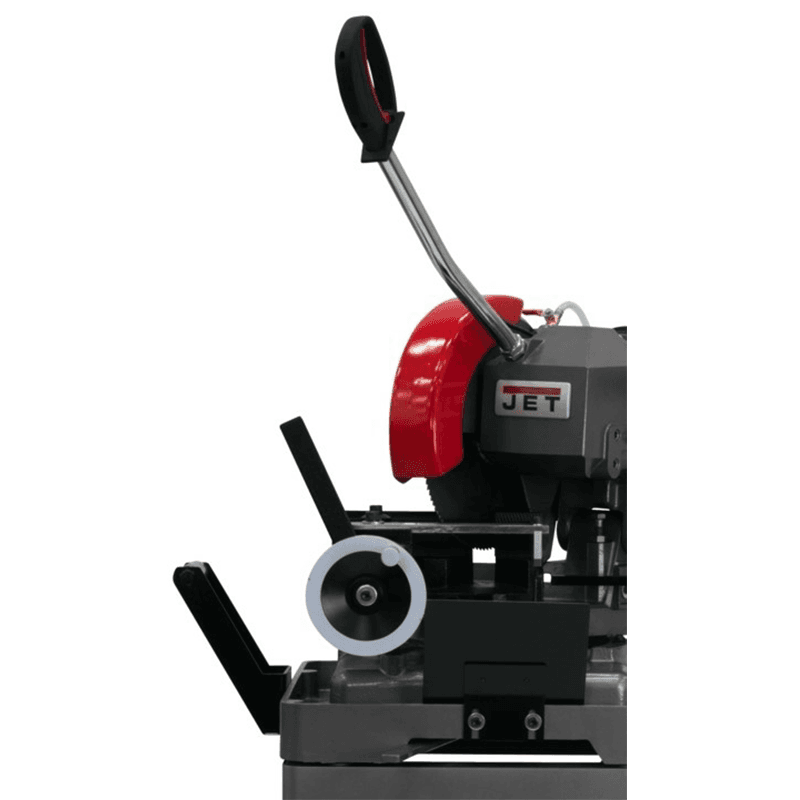

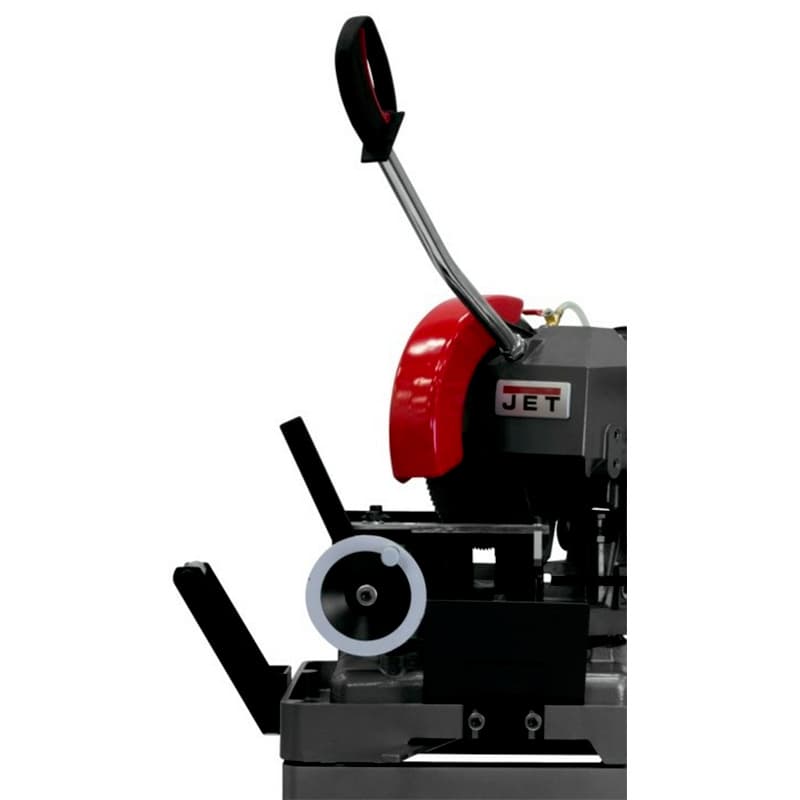

Jet Tools CS-315-1 315mm x 2 HP Ferrous Manual Cold Saw, 1 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details

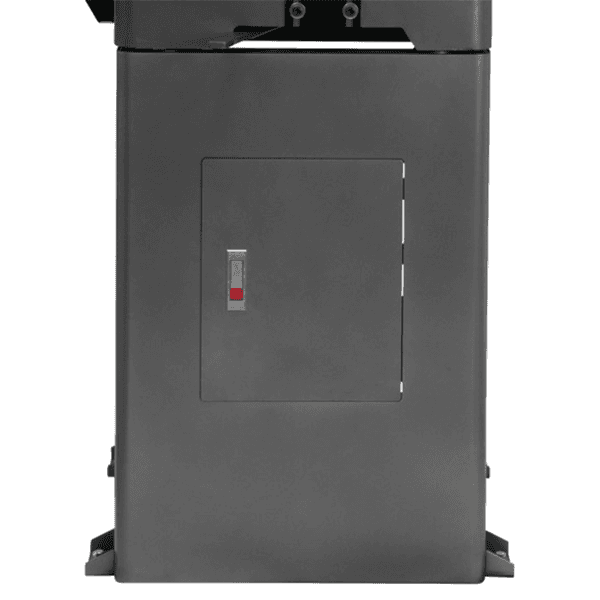

Jet Cold Saws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you've come to expect from Jet. Designed with Heavy-Duty cast iron frame base which offers easy access storage and provides a stable cutting platform. All backed by the industry leading full service Two Year Warranty. Features: • 315mm (12") Ferrous Cold Saw for steel, stainless and tough to cut alloys • Blade drive reduction gearbox operates in an oil bath for increased durability • Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life • Fully adjustable material depth stop for sawing Repeatability and increased production • Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade • Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations • Quick tension and release mitering capabilities with stops at 45° right, 45° left • Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user Safety • Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards • Durability: Blade drive reduction gearbox operates in an oil bath • Flood Coolant System: 1-1/3 gallon coolant reservoir and pump with flow control system extends blade life • Repeat Cuts: Fully-adjustable material depth stop for sawing Repeatability and increased production • Maximum Torque: Hardened and ground direct-drive worm shaft, and bronze worm wheel, transmits maximum torque to the saw blade • Burr-Free Cutting: Quick-clamping cam-action vise with adjustable gib and material support bar
Specifications
| Box Quantity | 1 |
| Blade Speeds (RPM) | 54 RPM |
| Solid Round at 90 Degrees | 3-1/2" |
| Solid Square at 45 Degrees | 2-19/32" x 2-19/32" |
| Solid Square at 90 Degrees | 3-3/16" x 3-3/16" |
| Tubing Rectangle at 45 Degrees | 2-1/5" x 2-3/5" |
| Tubing Rectangle at 90 Degrees | 4" x 3-3/16" |
| Tubing Round at 45 Degrees | 3-1/2" |
| Tubing Round at 90 Degrees | 3-1/2" |
| Tubing Square at 45 Degrees | 2-3/5" x 2-3/5" |
| Solid Round at 45 Degrees | 3-1/2" |
| Solid Rectangle at 90 Degrees | 4" x 3-3/16" |
| Solid Rectangle at 45 Degrees | 3-3/16" x 2-19/32" |
| Configurable Base Item | No |
| Enhanced Description | JET coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. All backed by the industry-leading full service Two-Year Warranty. |
| Maximum Vise Opening | 4-11/16" |
| Motor Amps | 13.2Amps |
| Motor Phase | 1 |
| Motor Power (HP) | 2 HP |
| Motor Voltage (V.) | 230V |
| Product Type | Cold Saws |
| Tubing Square at 90 Degrees | 3-1/5" x 3-1/5" |
