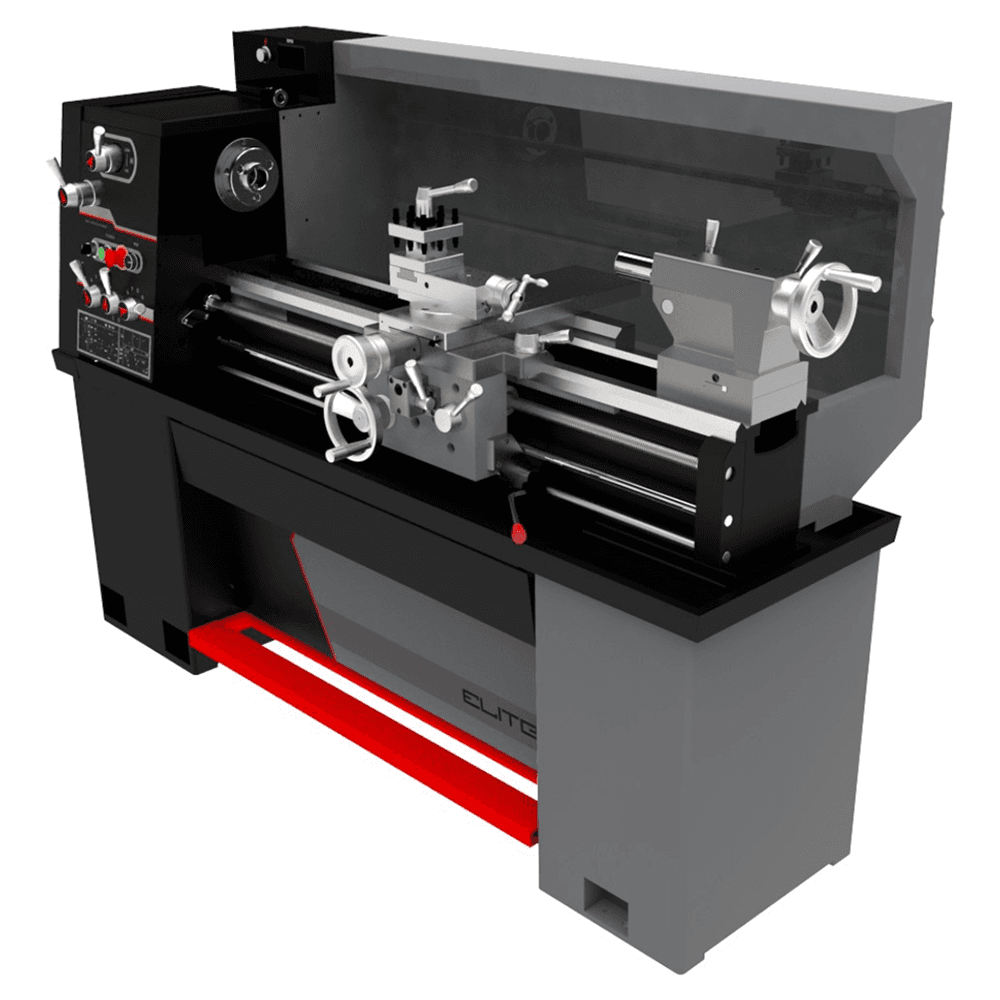

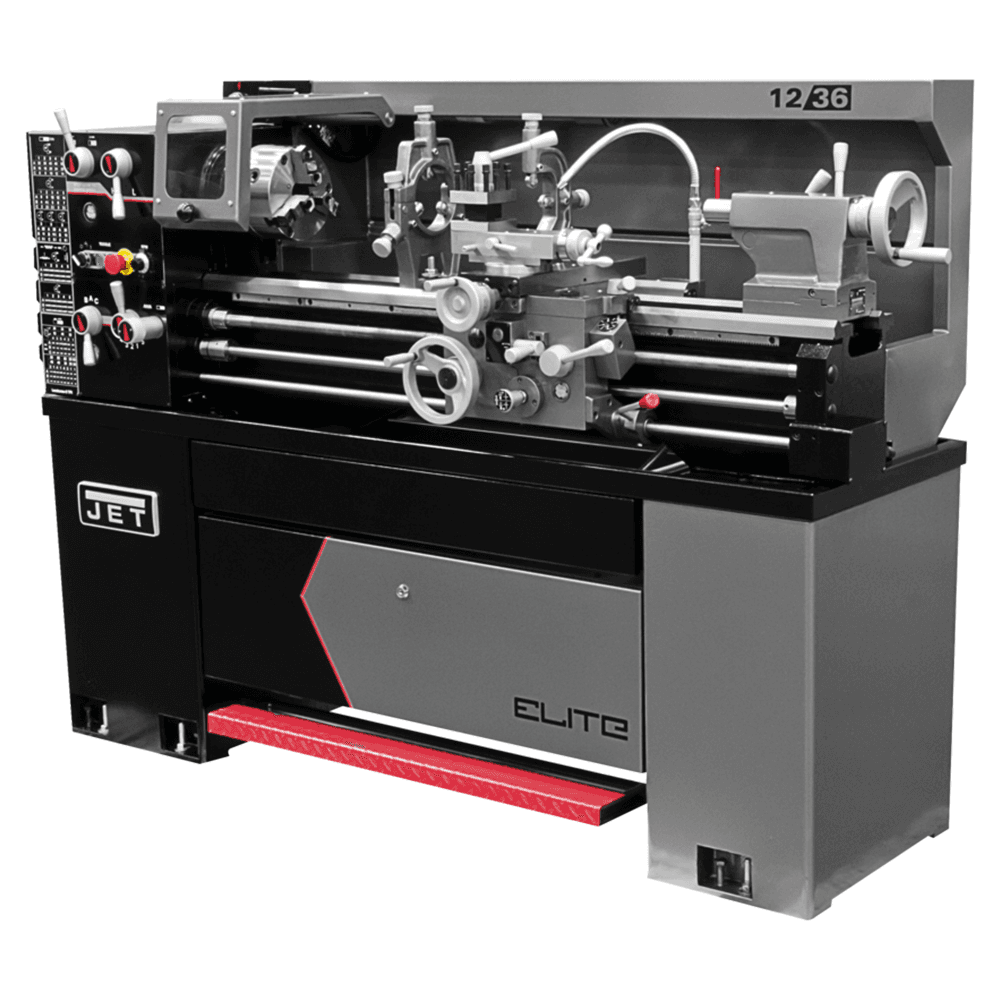

Jet Tools E-1236VS 12"x36" Elite EVS Lathe, 3 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details

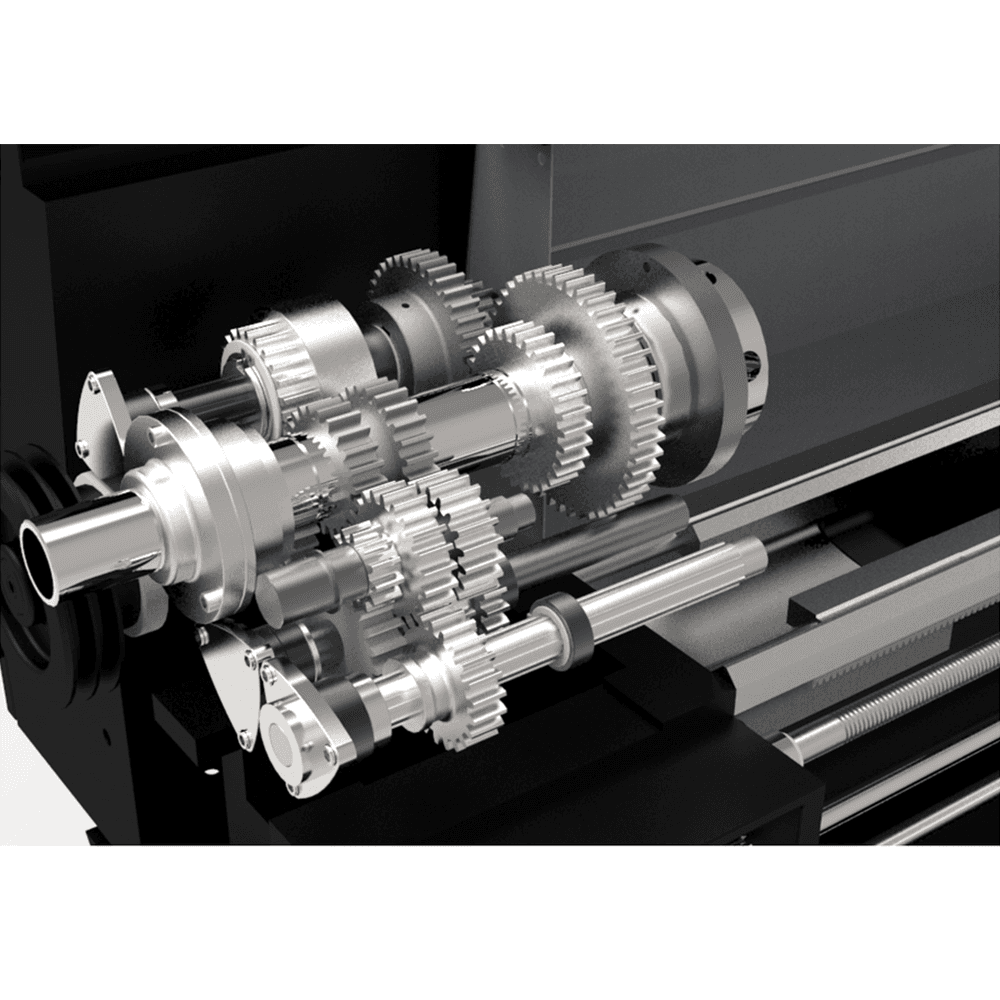

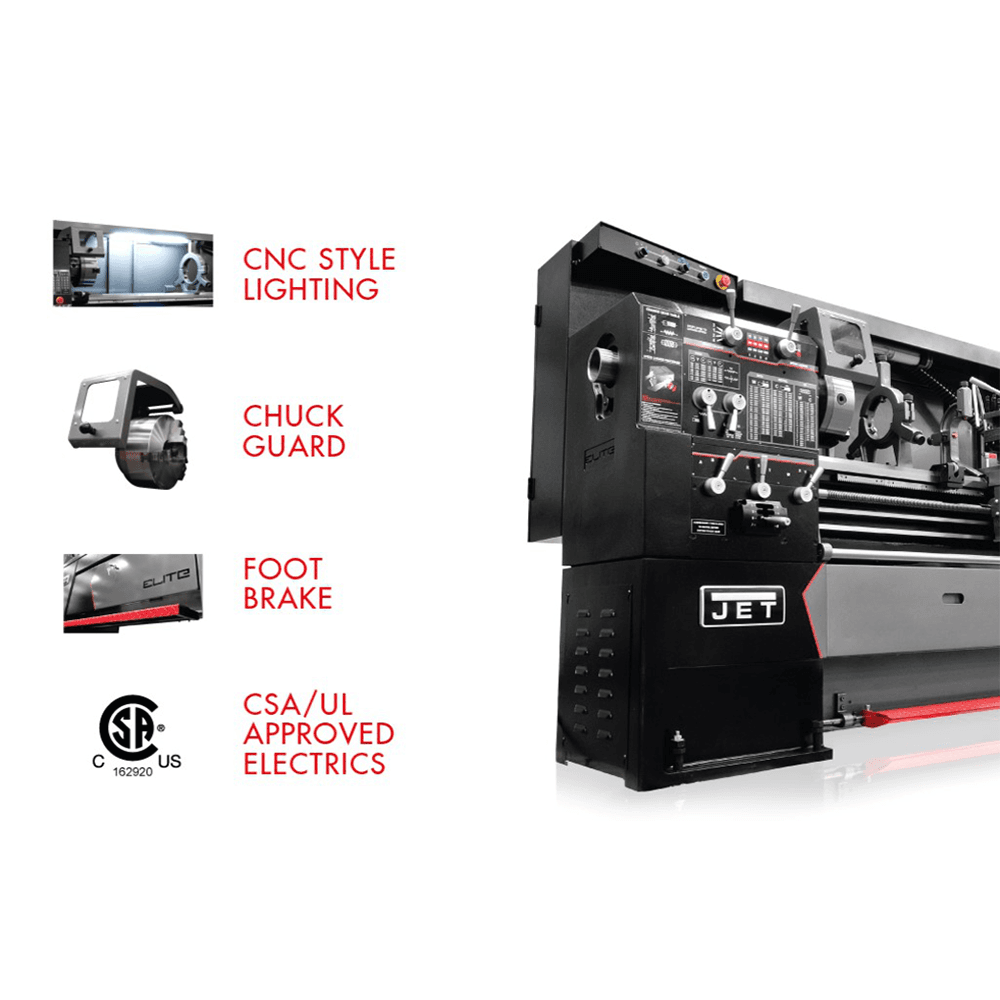

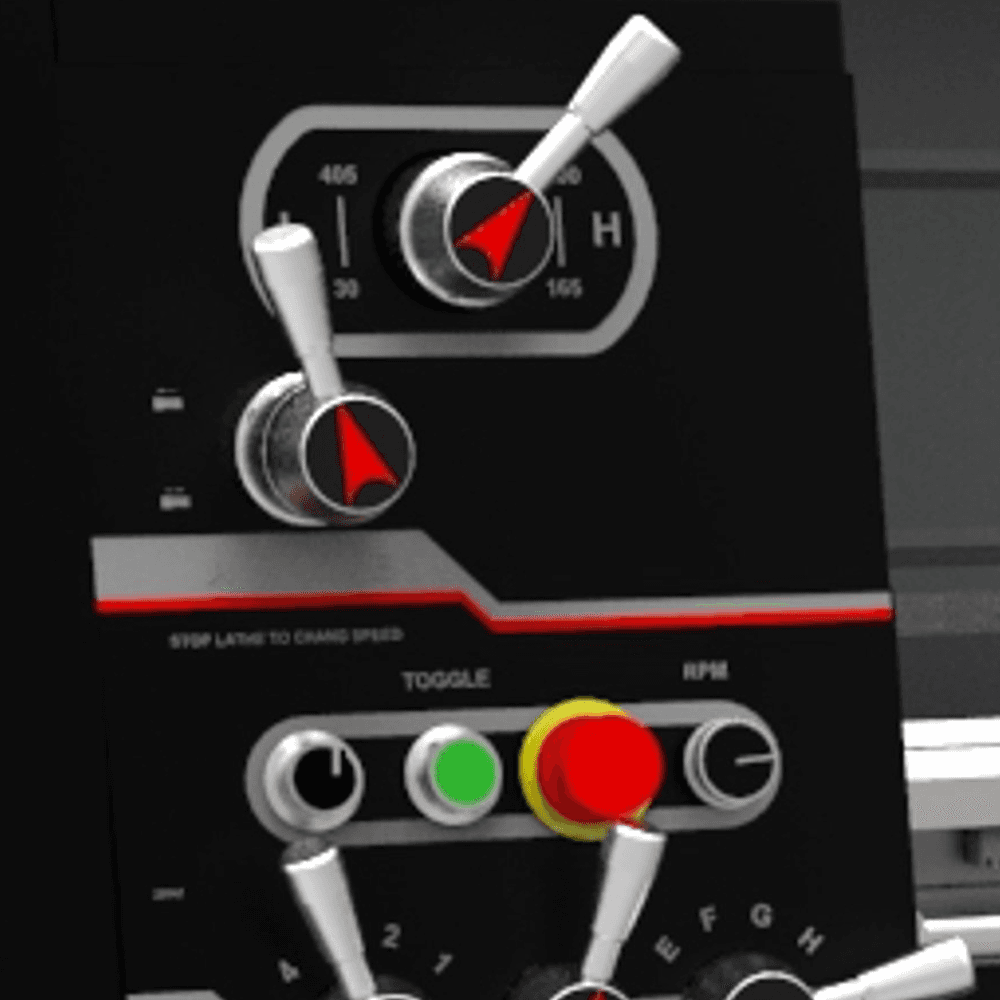

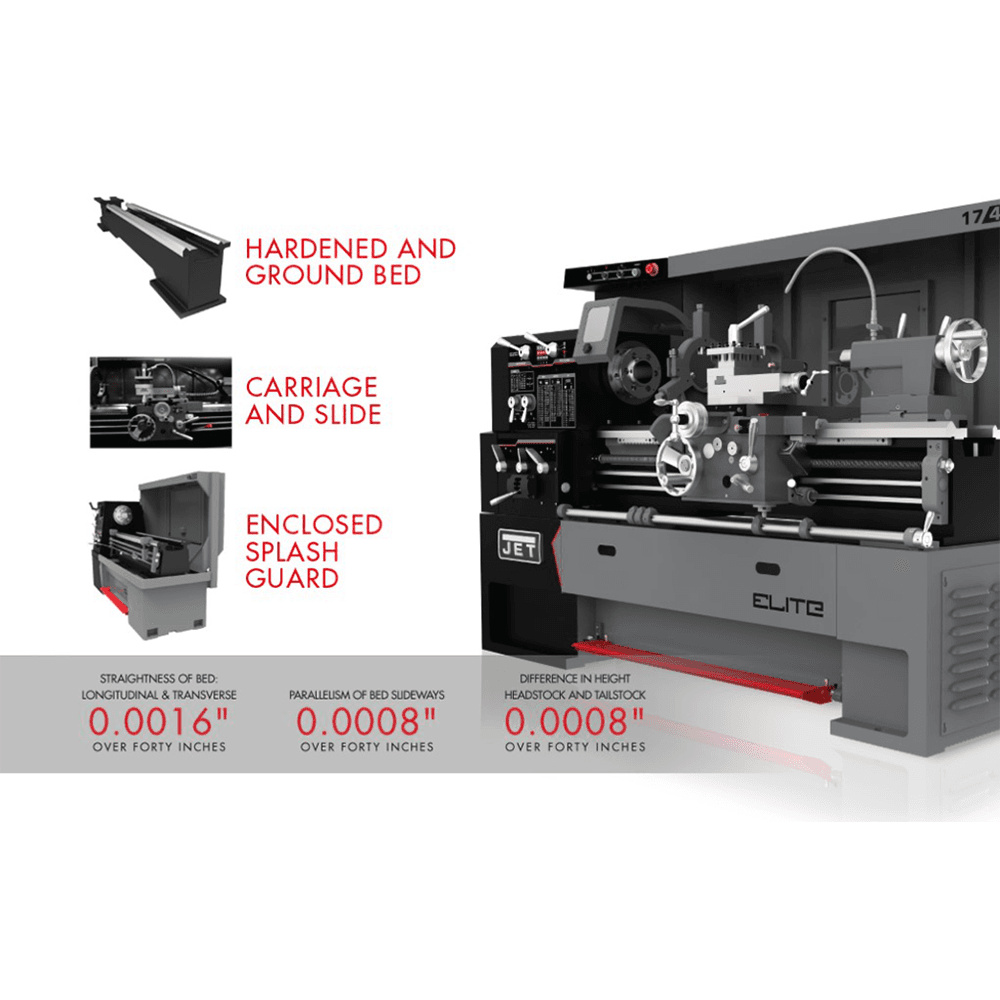

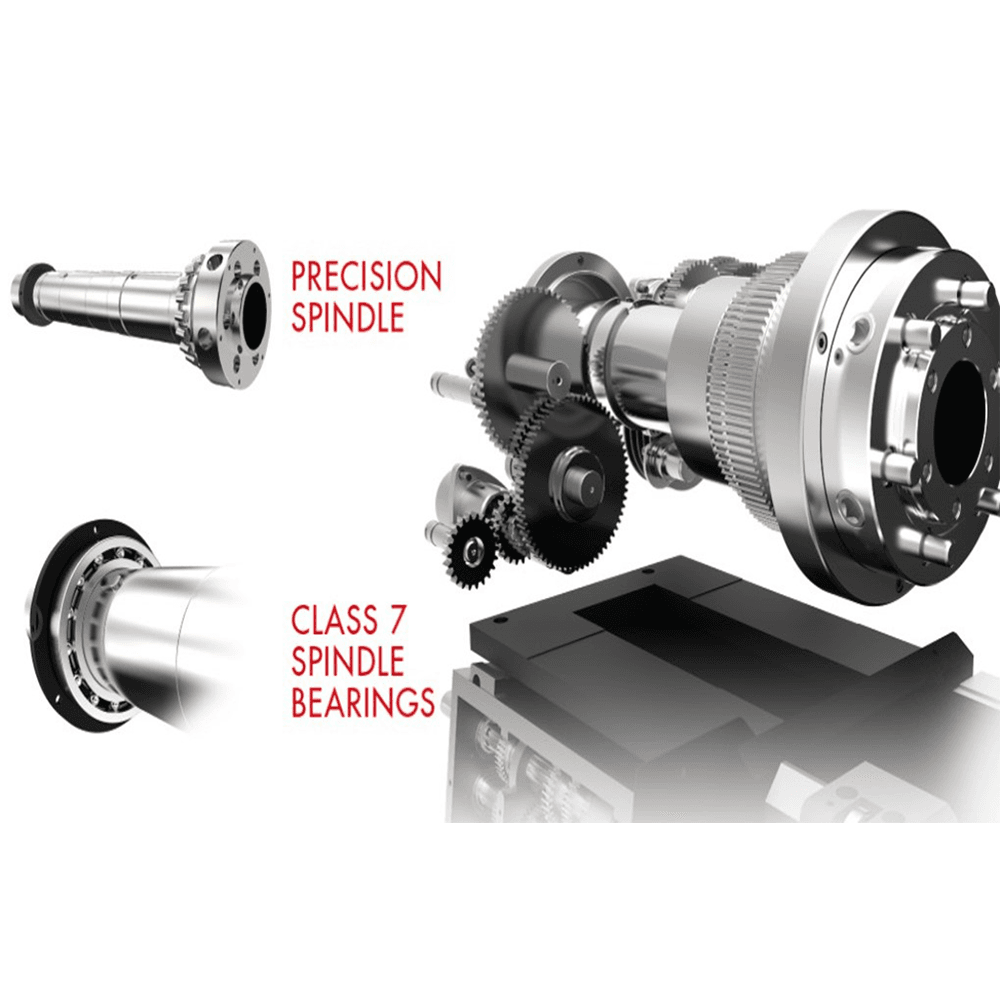

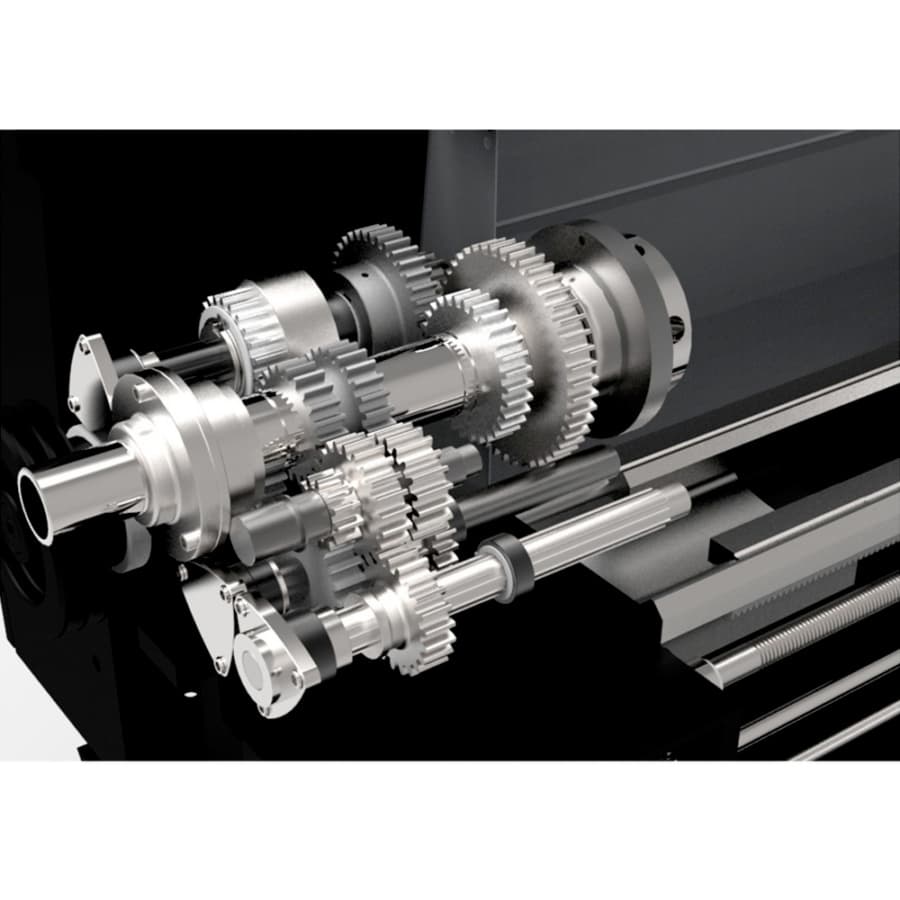

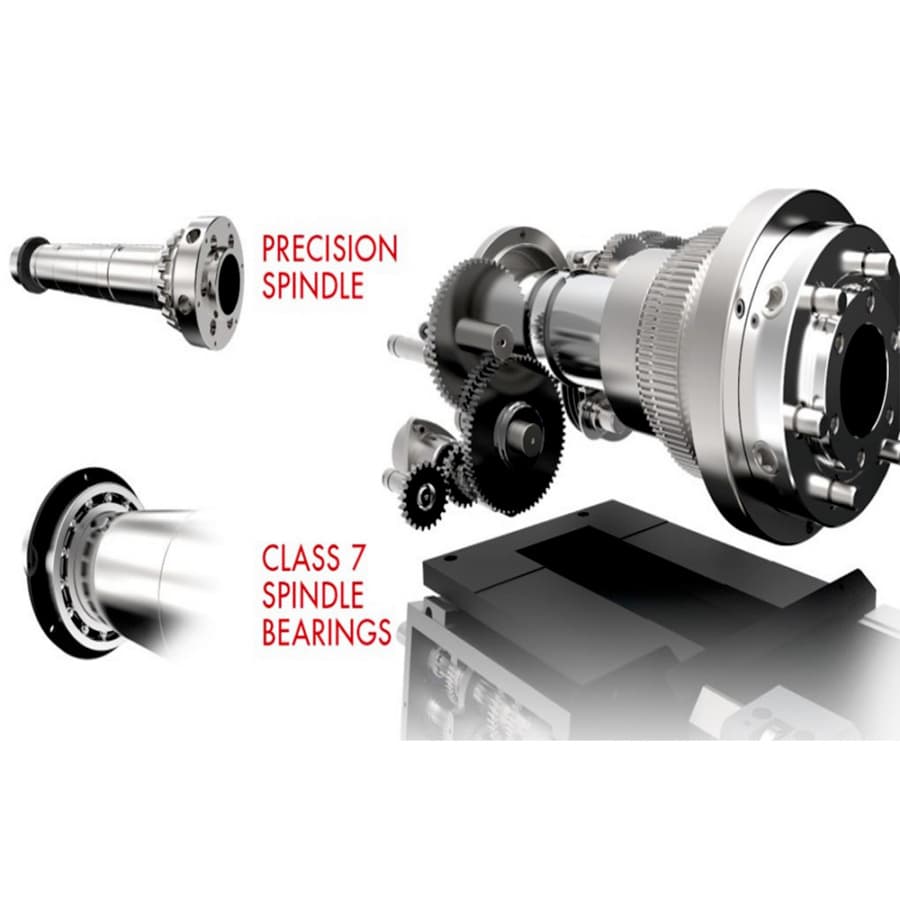

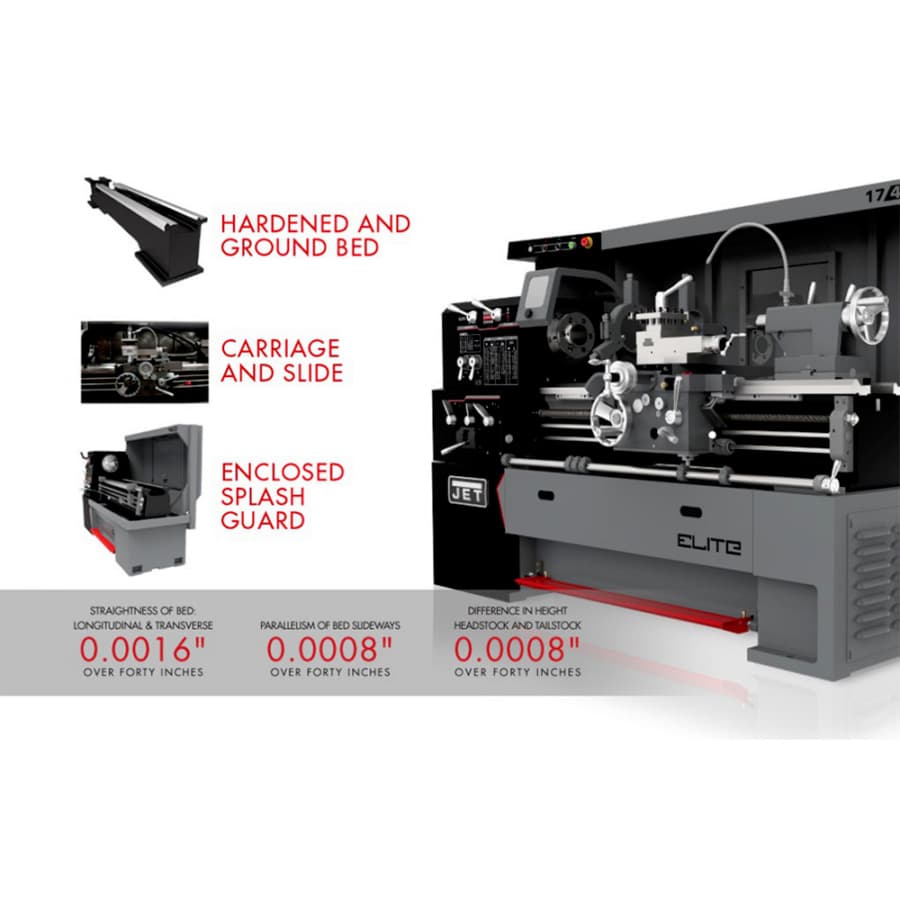

Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified. Features: • 4-Position Carriage Stop • Chuck guards are standard equipment on all ELITE lathes for increased safety • Front facing chip pan allows easy chip removal from the front of the machine • Hardened and ground gears in headstock reduce vibration and deflection • Integrated locking tool cabinet in stand on 12" Lathe • Inverter drive system provides infinitely variable spindle speeds • LED RPM readout allows for precise turning speeds • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
Specifications
| Box Quantity | 1 |
| Width of Bed | 7-1/2" |
| Range of Cross Feeds (IPR) | 0.0005 - 0.015 |
| Product Type | EVS |
| Overall Height | 60" |

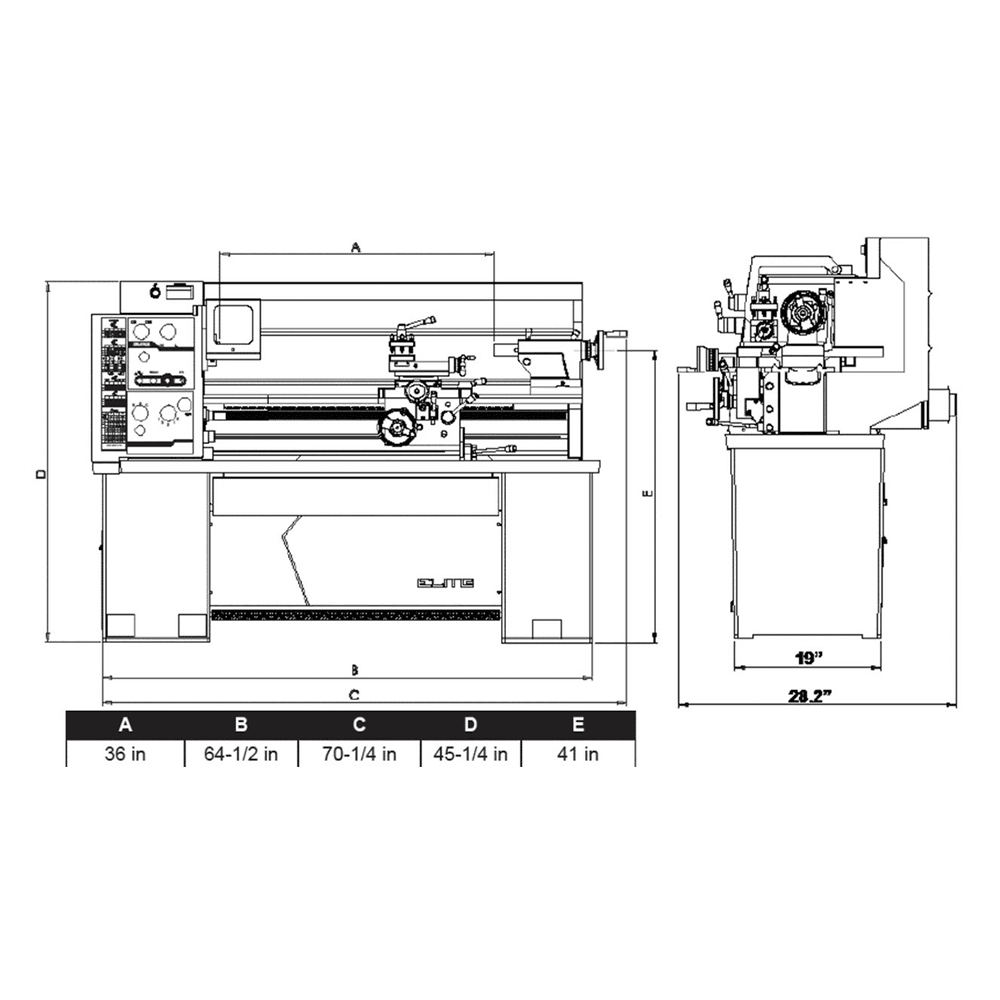

| Overall Dimensions (L x W x H) | 71" x 30" x 60" |
| Number of Spindle Speeds | |
| Number of Metric Threads | 34 |
| Number of Longitudinal and Cross Feed Rates | 50 |
| Number of Inch Threads | 34 |
| Range of Inch Threads (TPI) | 2 - 56 TPI |
| Range of Longitudinal Feeds (IPR) | 0.0016 - 0.046 |
| Range of Metric Threads | 0.5 - 12 |
| Taper in Tailstock Spindle | MT3 |
| Tailstock Spindle Travel | 4" |
| Swing Through Gap | 17-1/2" |
| Swing Over Cross Slide | 7-5/16" |

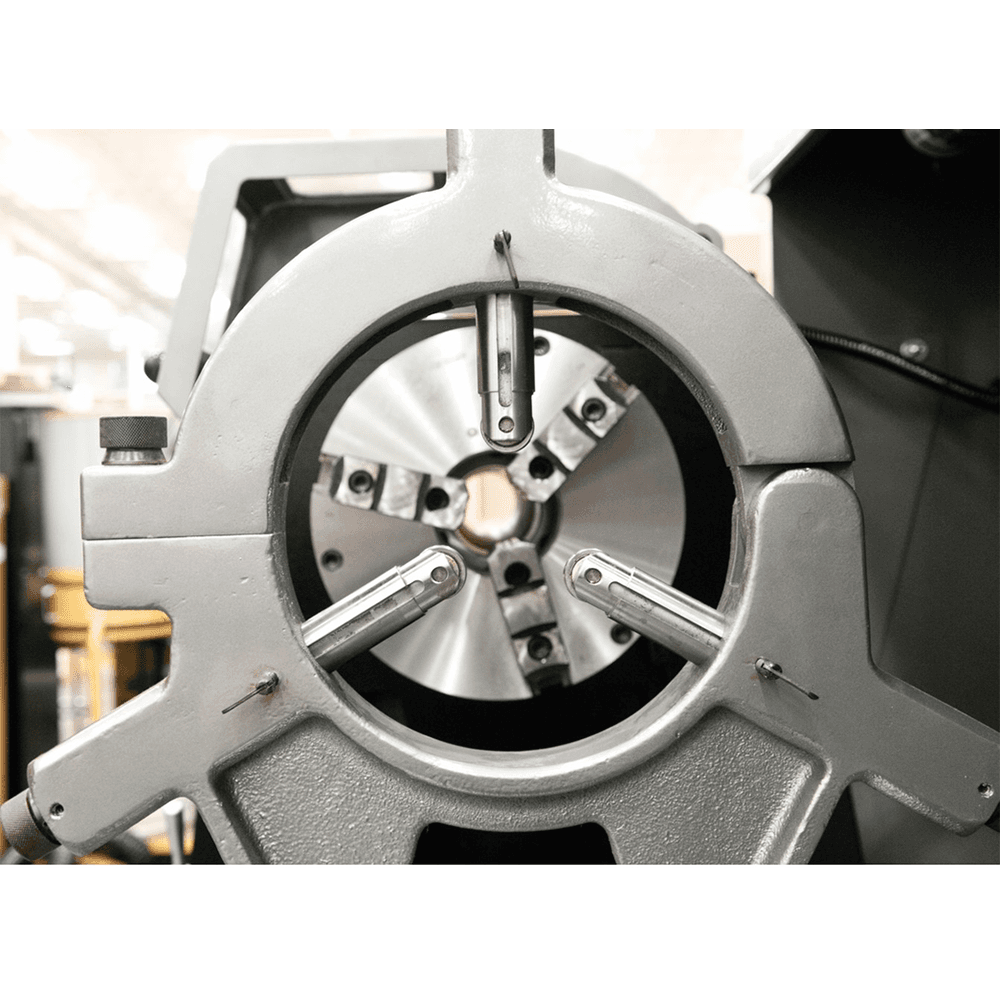

| Steady Rest Capacity | 1/4" - 2-1/2" |
| Spindle Taper with Sleeve | MT5 |
| Spindle Mount | D1-4 |
| Range of Spindle Speeds (RPM) | 0 - 2000 RPM |
| Modular Pitch Threads Range | |
| Modular Pitch Threads Number | |
| Max Tool Size | 1/2" x 1/2" |
| Amperage Draw @ 460V 3Ph | |
| Amperage Draw @ 230V 3Ph | 19 |
| Bed Gap | |
| Swing Over Bed | 12" |
| Size | 12" x 36" |
| Motor Amps | |
| Distance Between Centers | 36" |
| Prewired Voltage | |
| Spindle Thread (In./TPI) | |
| Carriage Travel | |
| Compound Slide Travel | 3-1/2" |
| Length of Gap | 9-1/2" |
| Input Power | 230V, 3Ph |
| Follow Rest Capacity | |
| Drive | EVS |
| Diametral Pitch Threads Number | |
| Cross Slide Travel | |
| Coolant Pump Motor | |
| Configurator Option Type | Base Machine |
| Configurable Base Item | Yes |
| Motor Phase | 3 |
| Speed Range | |
| Centerline of Spindle to Floor (In.) | |
| Spindle Bore | 1-9/16" |
| Headstock Movement | |
| Wiring Remarks | |
| Spindle Taper | |
| Number of Indexing Positions | |
| Swing Over Tool Rest Base (In.) | |
| Motor Power (HP) | 2 HP |
| Outboard Turning | |
| Spindle Speeds | |
| Ram Travel Quill Travel | |
| Bed Construction | |
| Recommended Circuit Size (Amps.) | |
| Quill Taper | |
| Style (Type) | |
| Tailstock Bore | |
| Outboard External Threads (In. x TPI) | |
| Motor Voltage (V.) | 230V |
| Horsepower | |
| Warranty | |
| Height | |
| Phase | |
| Length | |
| Width |
