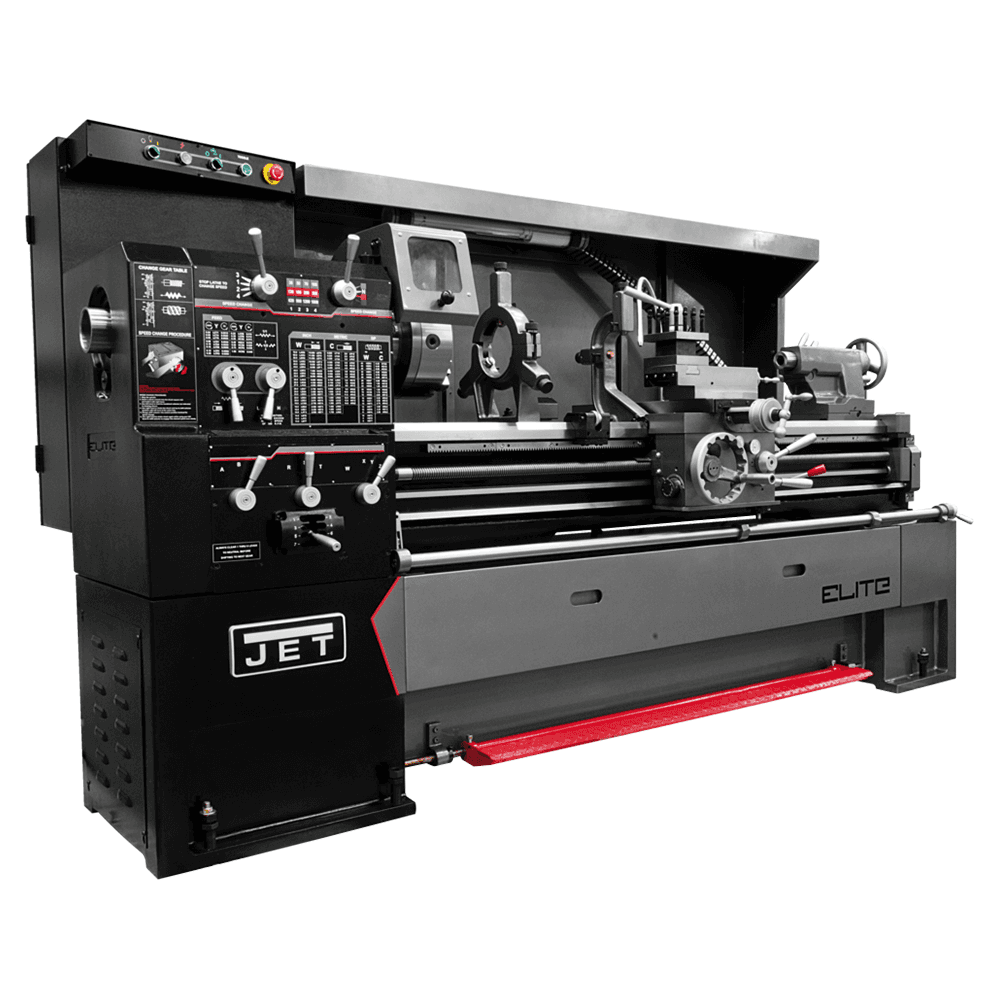

Jet Tools EGH-1740 Elite Geared Head Lathe with ACU-RITE 203 DRO/Taper Attachment
This item may incur additional shipping costs and lead times.
Product Details

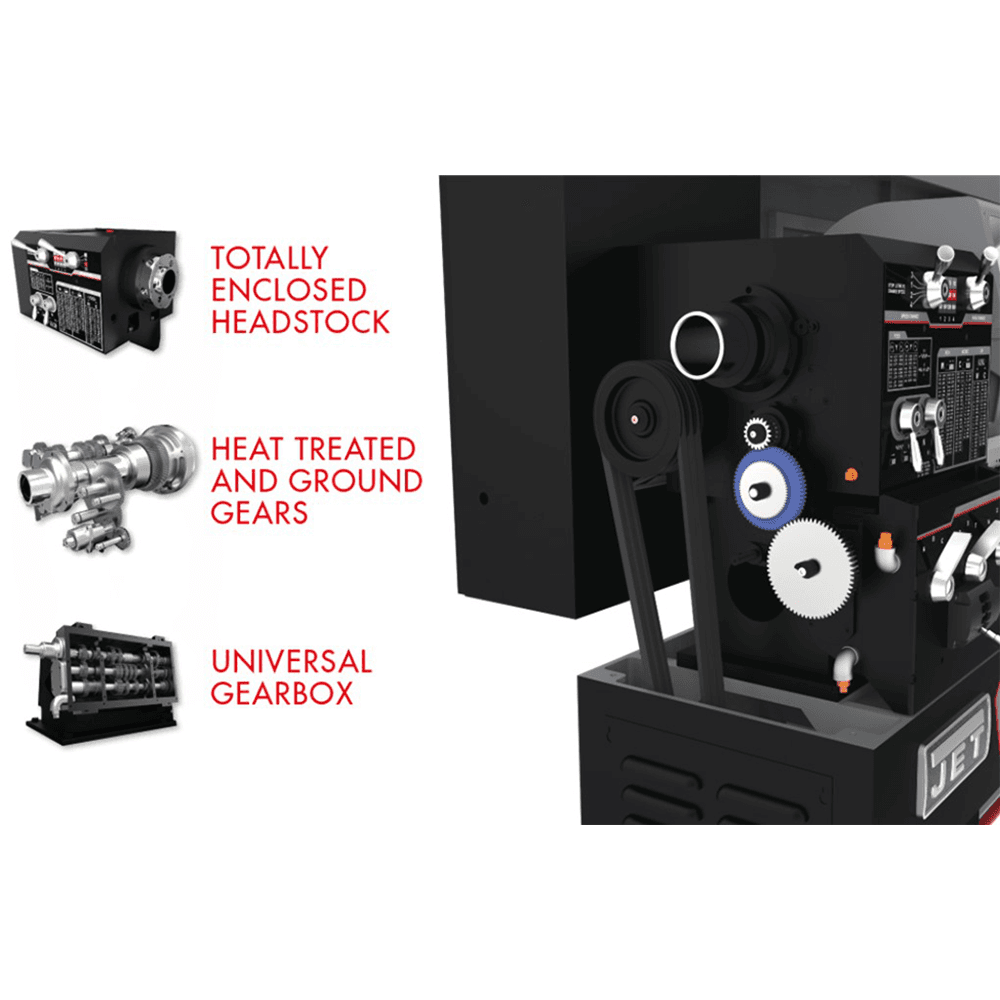

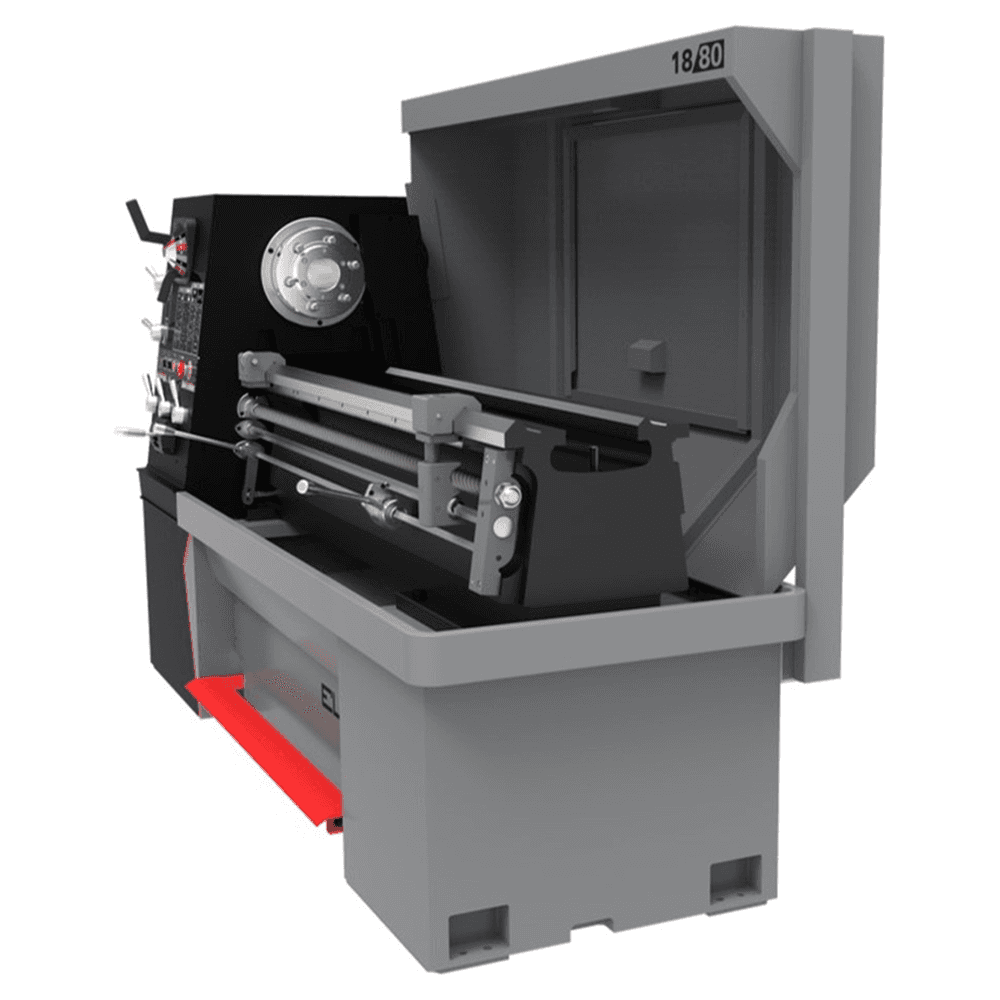

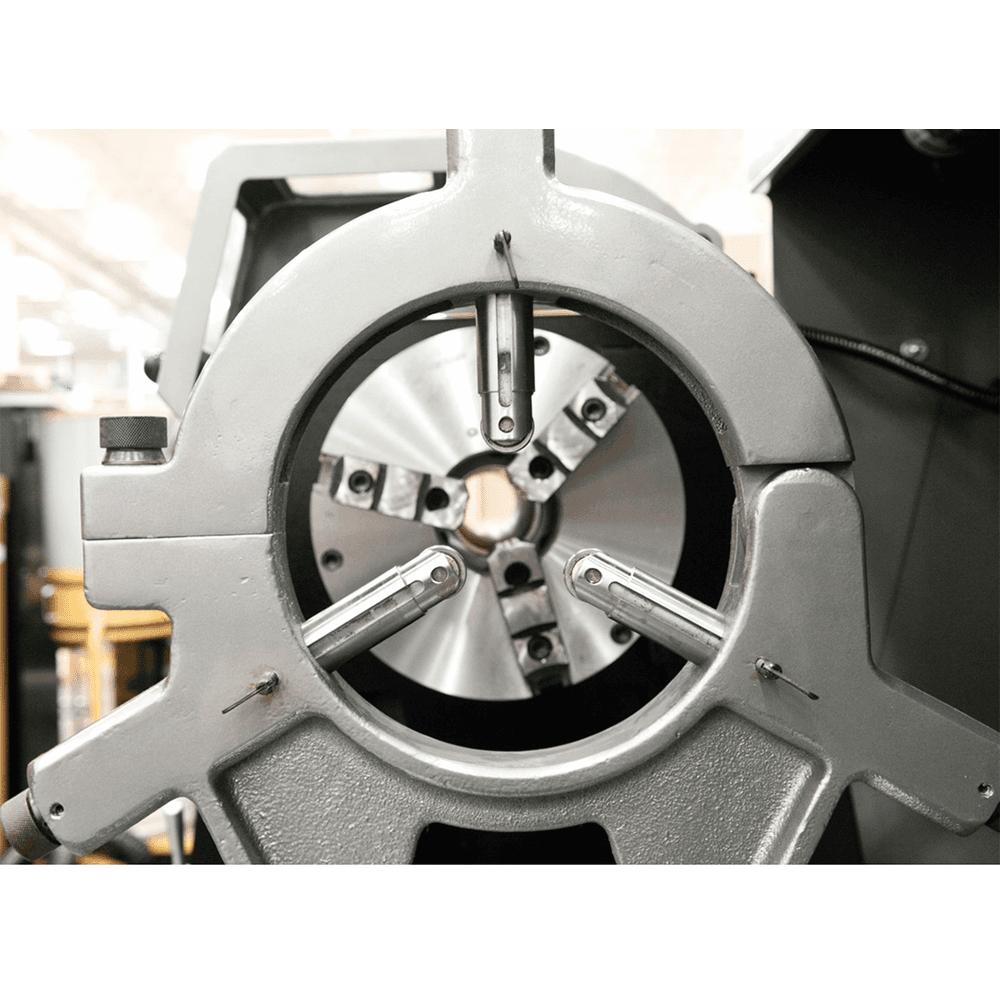

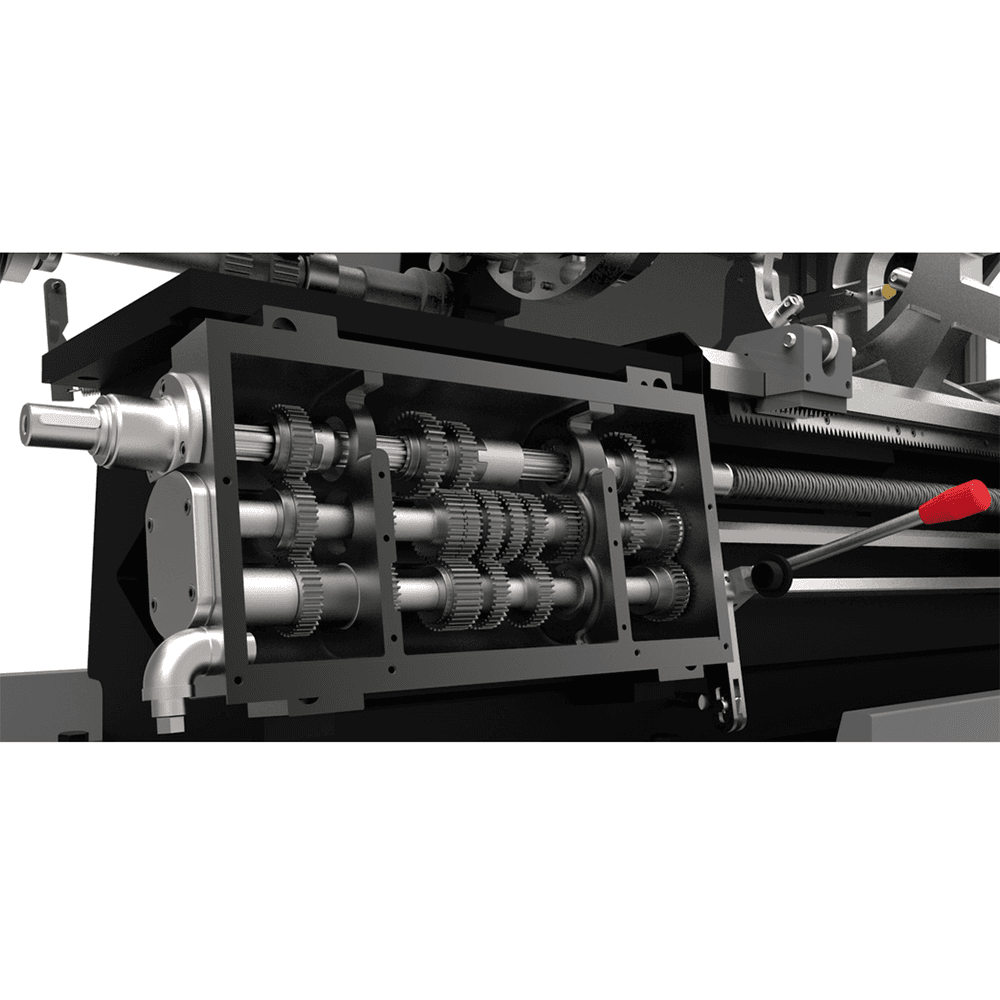

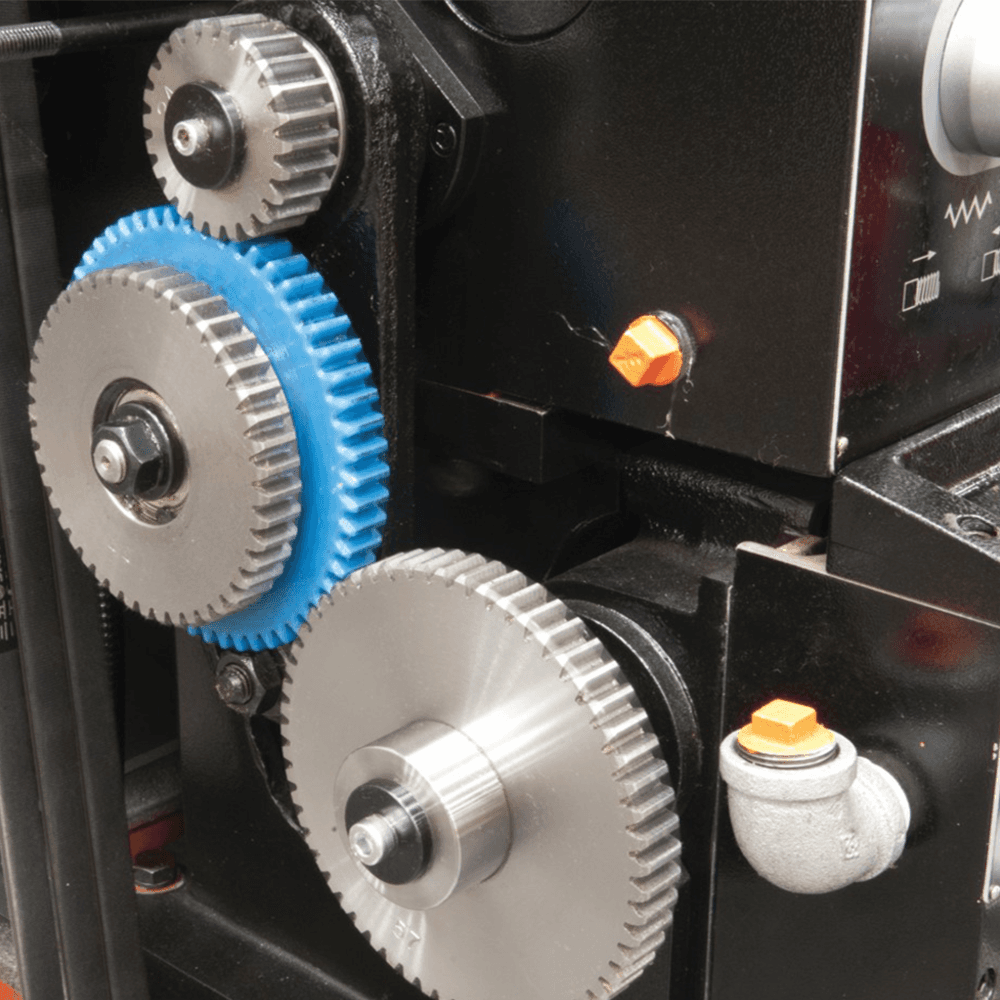

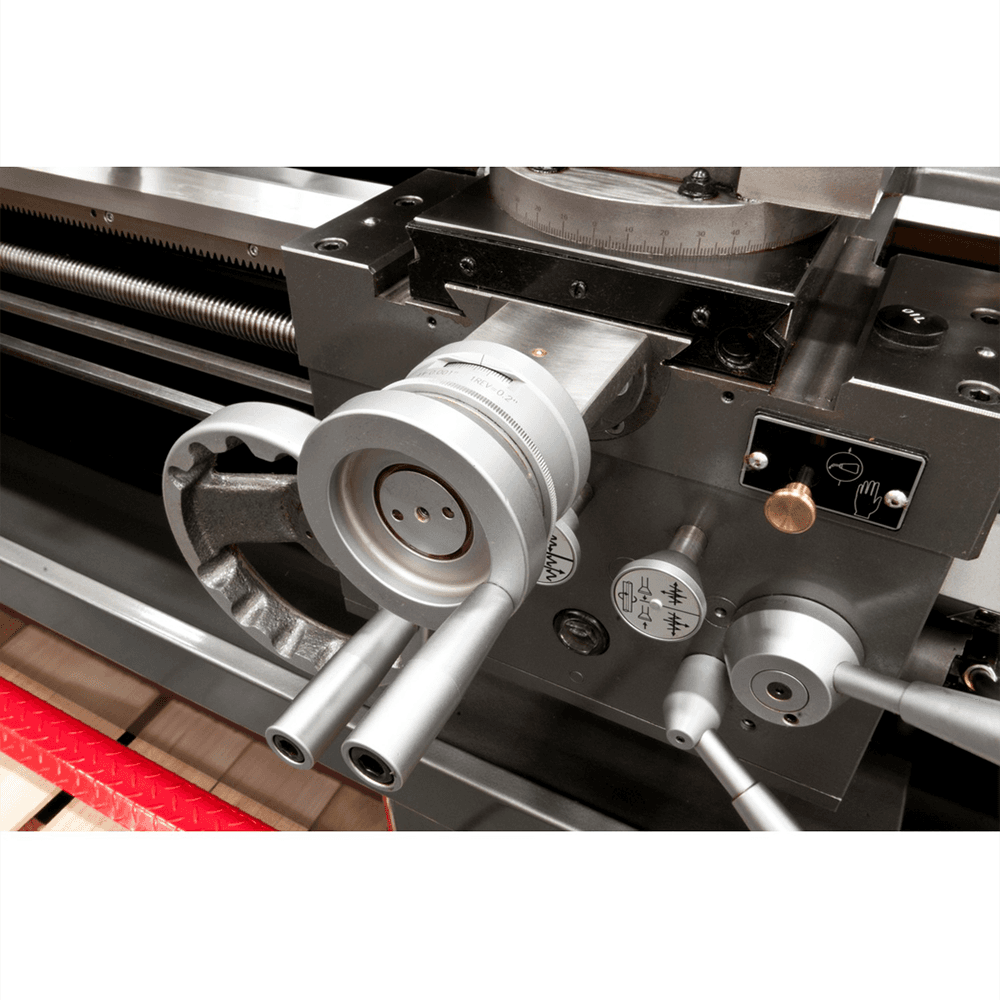

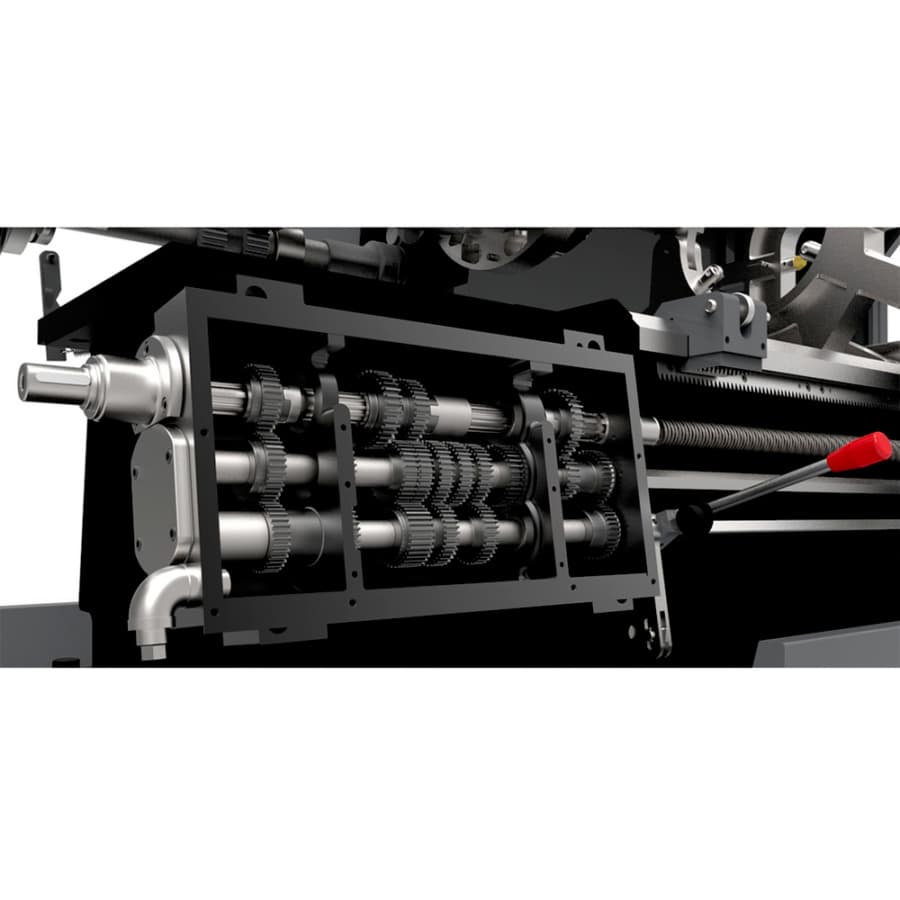

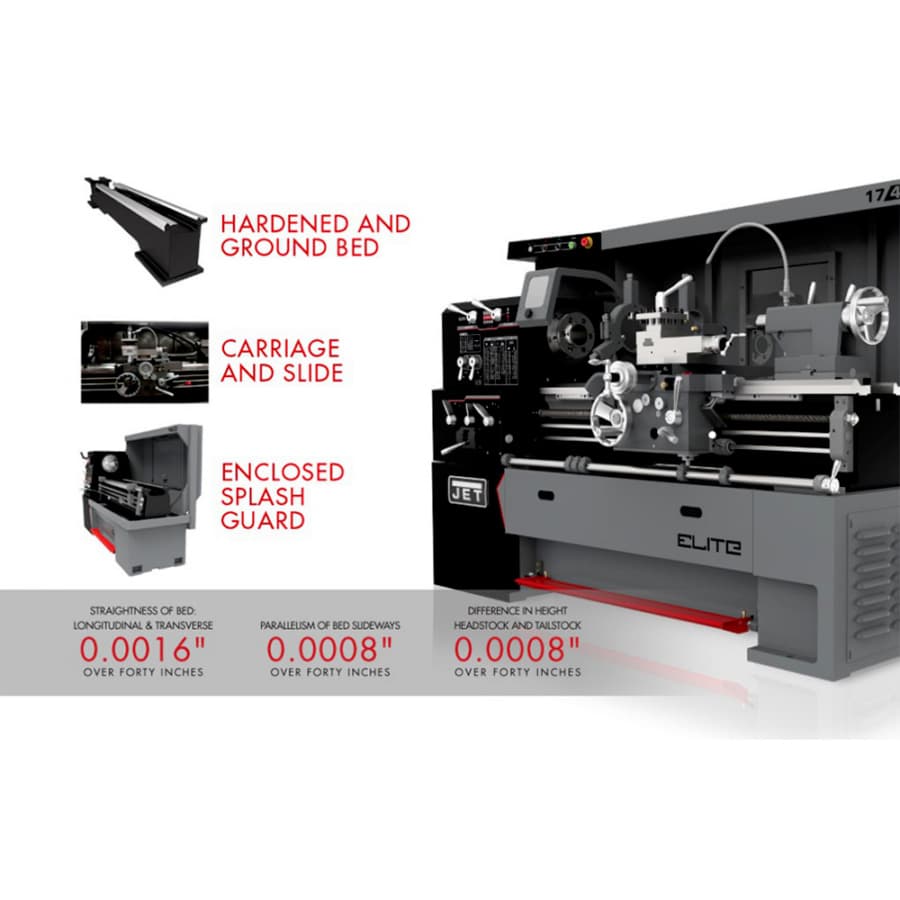

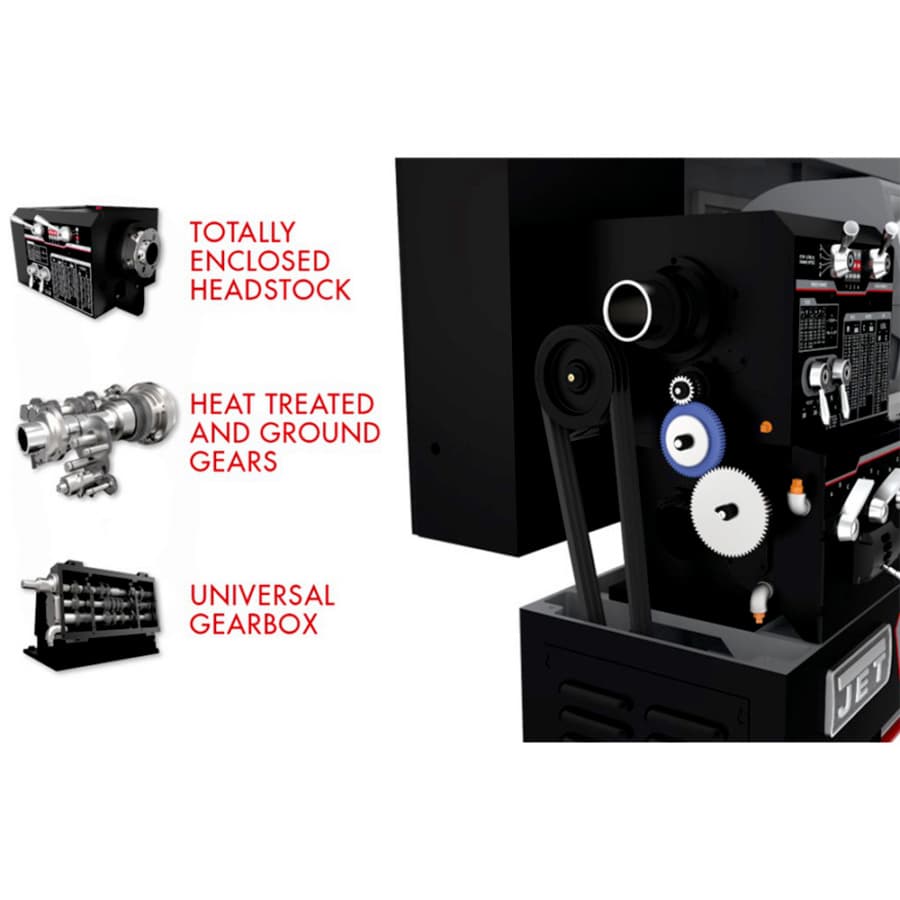

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. This lathe also features a 10" three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you've come to expect in a Jet Lathe that is backed by the industry-leading Jet Two Year Warranty. Features: • 4-Position Carriage Stop • Anti-Float design eliminates backlash in the cross slide • Enclosed coolant system contains excess coolant for increased safety • Front facing chip pan allows easy chip removal from the front of the machine • Full Length Splash Guard • Nylon safety gears in the end train prevent overloading, increasing safety • One-Shot lubrication in the carriage reduces maintenance • Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock • Steady rests feature ball bearing guides for smooth material movements
Specifications
| Box Quantity | 1 |
| Width of Bed | 12" |
| Range of Cross Feeds (IPR) | 0.00075 - 0.02 |
| Product Type | Geared Head Lathes |
| Overall Height | 68" |
| Overall Dimensions (L x W x H) | 94" x 44" x 68" |
| Number of Spindle Speeds | 12 |
| Number of Metric Threads | 39 |
| Number of Longitudinal and Cross Feed Rates | |
| Number of Inch Threads | 45 |
| Range of Inch Threads (TPI) | 2 - 72 TPI |
| Range of Longitudinal Feeds (IPR) | 0.0015 - 0.04 |
| Range of Metric Threads | 0.2 - 14 |
| Taper in Tailstock Spindle | |
| Tailstock Spindle Travel | 5" |
| Swing Through Gap | 24-1/2" |
| Swing Over Cross Slide | 11" |
| Steady Rest Capacity | 3/8" - 6-3/4" |
| Spindle Taper with Sleeve | MT-5 |
| Spindle Mount | D1-6 |
| Range of Spindle Speeds (RPM) | 36 - 1,800 RPM |
| Modular Pitch Threads Range | |
| Modular Pitch Threads Number | 18 |
| Max Tool Size | 1" x 1" |
| Amperage Draw @ 460V 3Ph | 11 |
| Amperage Draw @ 230V 3Ph | 22 |
| Bed Gap | |
| Swing Over Bed | 17" |
| Size | 17" x 40" |
| Motor Amps | |
| Distance Between Centers | 40" |
| Prewired Voltage | |
| Spindle Thread (In./TPI) | |
| Carriage Travel | |
| Compound Slide Travel | 6-2/7" |
| Length of Gap | 7-2/3" |
| Input Power | |
| Follow Rest Capacity | |
| Drive | Geared Head |
| Diametral Pitch Threads Number | 21 |
| Cross Slide Travel | |
| Coolant Pump Motor | |
| Configurator Option Type | |
| Configurable Base Item | No |
| Motor Phase | |
| Speed Range | |
| Centerline of Spindle to Floor (In.) | |
| Spindle Bore | 3-1/8" |
| Headstock Movement | |
| Wiring Remarks | |
| Spindle Taper | |
| Number of Indexing Positions | |
| Swing Over Tool Rest Base (In.) | |
| Motor Power (HP) | |
| Outboard Turning | |
| Spindle Speeds | |
| Ram Travel Quill Travel | |
| Bed Construction | |
| Recommended Circuit Size (Amps.) | |
| Quill Taper | |
| Style (Type) | |
| Tailstock Bore | |
| Outboard External Threads (In. x TPI) | |
| Motor Voltage (V.) | |
| Horsepower | |
| Warranty | |
| Height | |
| Phase | |
| Length | |
| Width |
