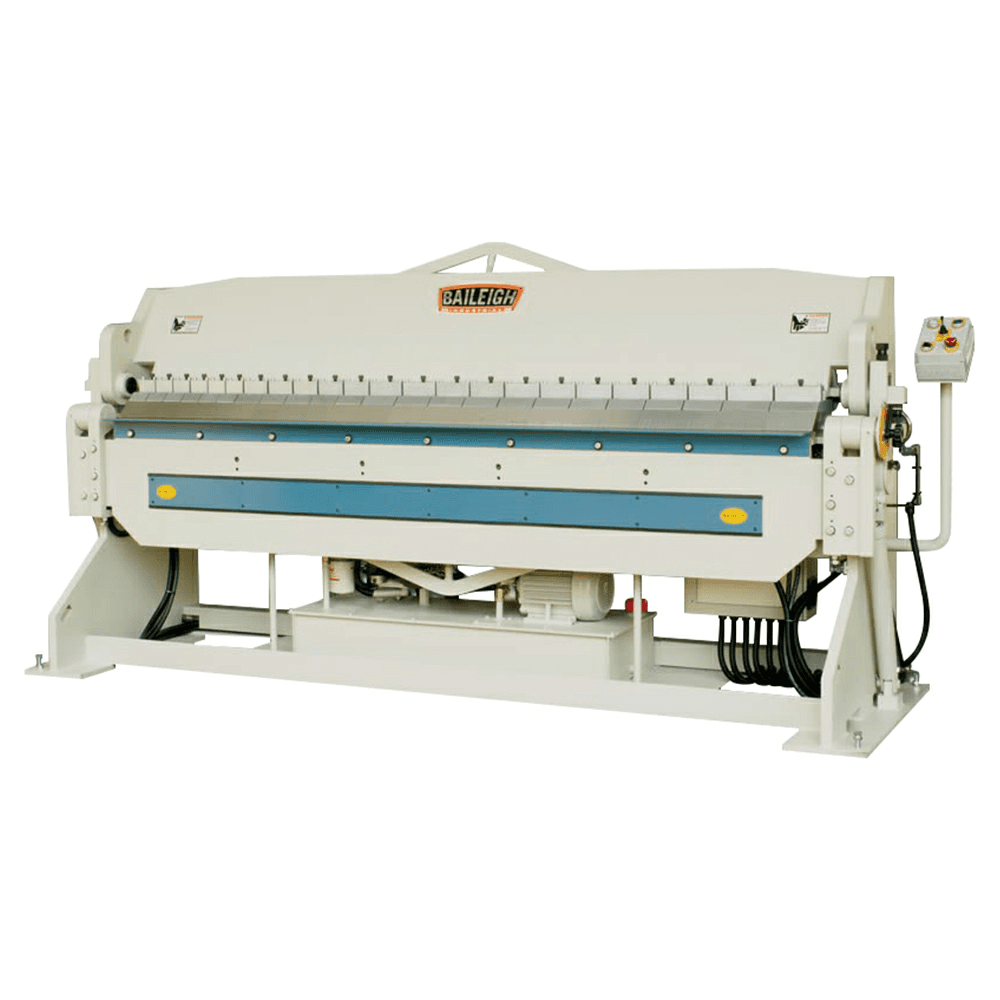

Baileigh BB-9610H Heavy Duty Hydraulic Box/Pan Brake, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details
Designed with crowning compensation, the BB-9610H Hydraulic Sheet Metal Brake adjusts to fit the gauge you're bending and produces uniform bends. Features: • 10-gauge mild steel sheet metal maximum capacity and 1" beam adjustment • Bends across its full 8-foot (96") working width • Maximum bend angle of 135° and maximum 6" box depth • Industrial-grade hydraulics will make precise and efficient bends, day in, day out, for decades • 5 hp motor runs on 220-volt 3 phase power • Hydraulic system clamps the material via dual hydraulic motors, then lifts the bending leaf with industrial hydraulic cylinders • Adjustable bend auto-stop-simplifies production runs - just dial in your desired degree • Foot pedal and toggle joystick controls let you operate this hydraulic sheet metal brake in manual or semi-automatic mode • Includes 22 hardened 3-piece fingers (6 of 3", 4 of 4", 10 of 5" and 2 of 6" ) to create many different size boxes • Fully-welded steel beam and bending leaf, supported with truss rods, prevent twisting and deflection-important when you're bending heavy 10-gauge mild steel
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 10 ga |
| Motor (HP) | 5 HP |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 96" |
| Product Type | Hydraulic Sheet Metal Brakes |
| Short Description | 220V 3-phase hydraulic box brake 10-gauge mild steel capacity 8-foot length Includes 22 fingers, from 3" to 6" |
| Maximum Lift of Beam | |
| Maximum Box Depth | 6" |
| Beam Adjustment (Front to Rear) | 1" |
| Bending Length Capacity | 96" |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | 220V / 3-phase |
| Max. Bend (Deg.) | 0 - 135° |
| Max. Clamping Bar Lift | |
| Table Length |
