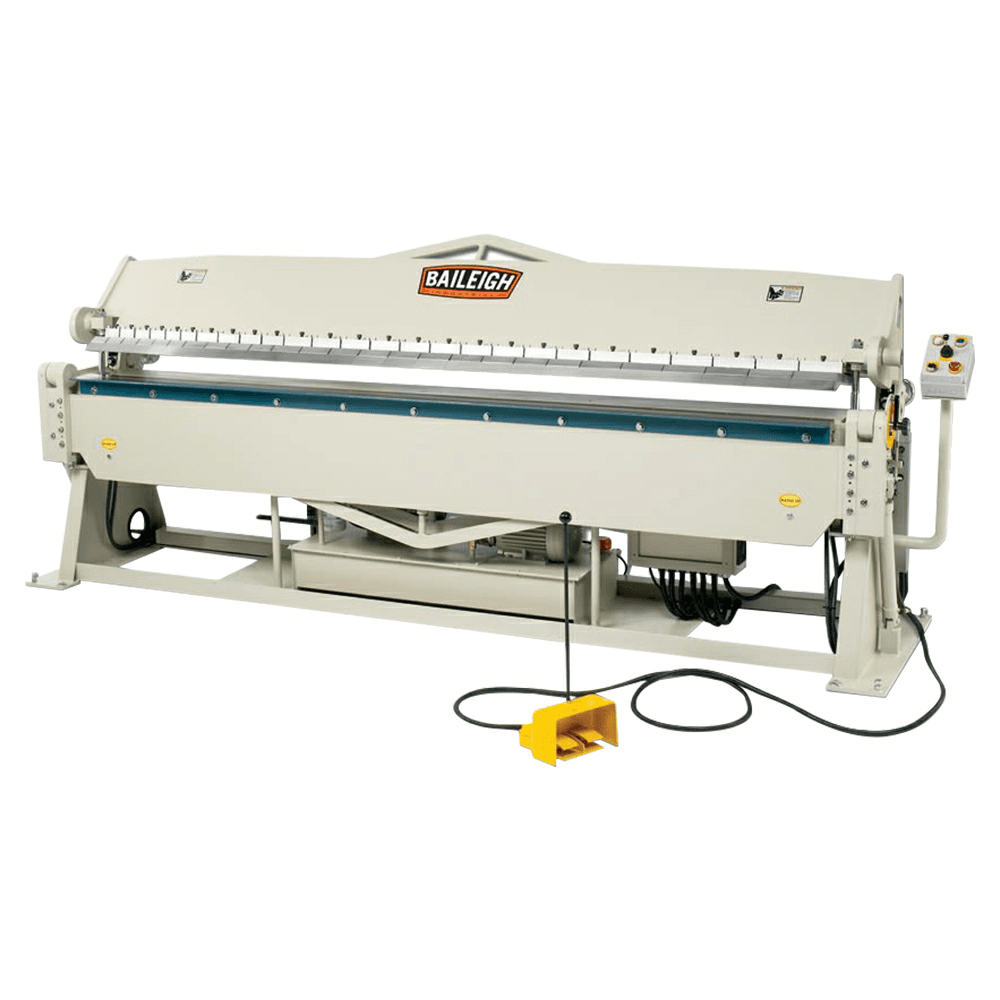

Baileigh BB-12014H Sheet Metal Brake, 3 Phase/220V
Item # JPWBA9-1021000
•Mfr # BA9-1021000
$30,779.00
/Each
Freight: $2,075.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
The Hydraulic box and pan brake improves on our manual BB-12014 with adjustable angle auto-stop bending and more power. A welded steel frame ensures accuracy and prevents twisting.
Simple to operate with adjustable angle auto-stop:
• Dial in the desired bend degree (including spring back) • Load the machine • Begin the cycle by stepping on the foot pedal controls • Machine clamps the material, and the leaf will lift to the desired angle and return • Upper beam unclamps the material, ready for the next bend Features: • Maximum capacity of 14-gauge mild steel or 18-gauge stainless steel • 10-foot (120") working width • Maximum bend angle of 135° • Runs on 220-volt 3-phase power • Industrial-grade hydraulic system cuts down on operator effort for production runs, making your shop more efficient and saving you money • You can operate the machine from the control panel or with the included foot pedal • Includes 26 hardened fingers of various sizes (6 fingers of 3", 4 of 4", 10 of 5", 6 of 6") • Fully welded steel frame and support rods add rigidity to the overall structure to provide years of trouble-free useSpecifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 14 ga |
| Motor (HP) | 3 HP |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 120" |
| Product Type | Hydraulic Sheet Metal Brakes |
| Short Description | 220V 3-phase hydraulic box and pan brake 14-gauge mild steel capacity 10-foot length Includes 26 fingers, from 3" to 6" |
| Maximum Lift of Beam | |
| Maximum Box Depth | 6" |
| Beam Adjustment (Front to Rear) | 1" |
| Bending Length Capacity | |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | 220V / 3-phase |
| Max. Bend (Deg.) | 0 - 135° |
| Max. Clamping Bar Lift | |
| Table Length |
