Jet Tools GHB-1236 2 HP Geared Head Bench Lathe, 1 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details

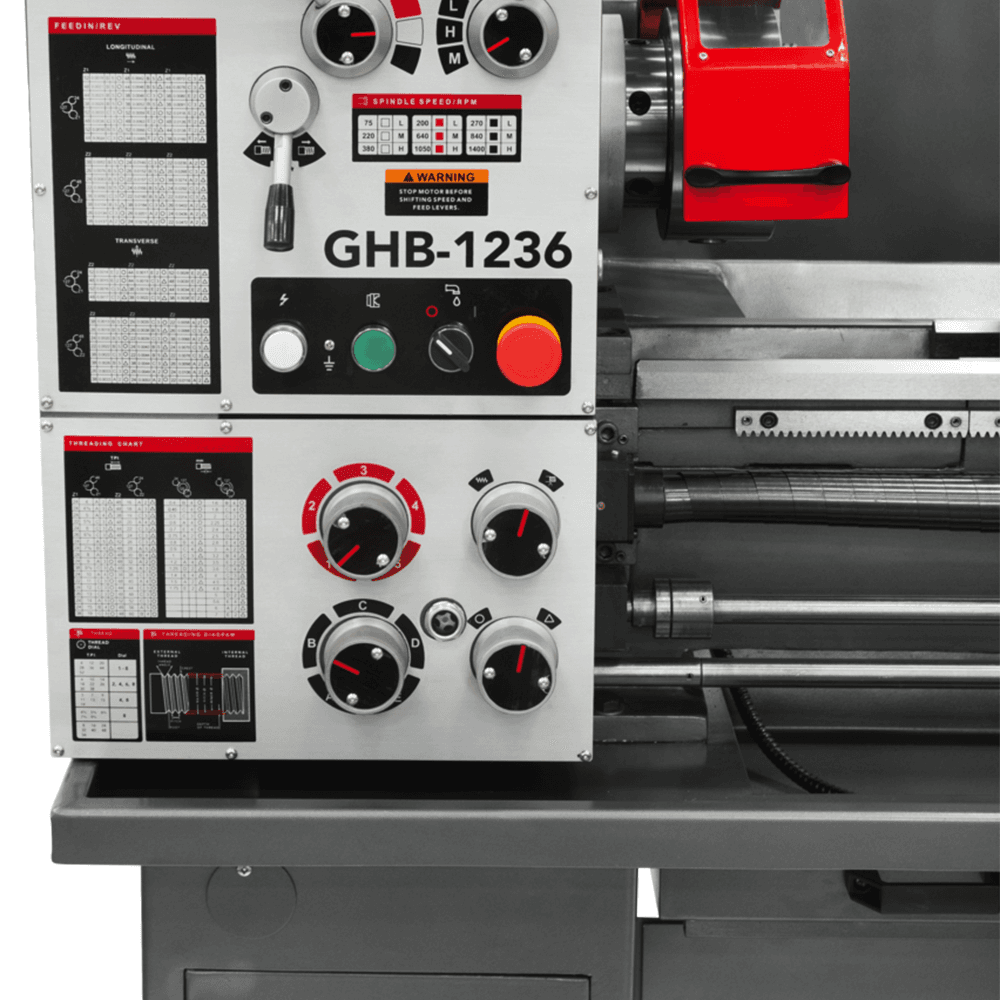

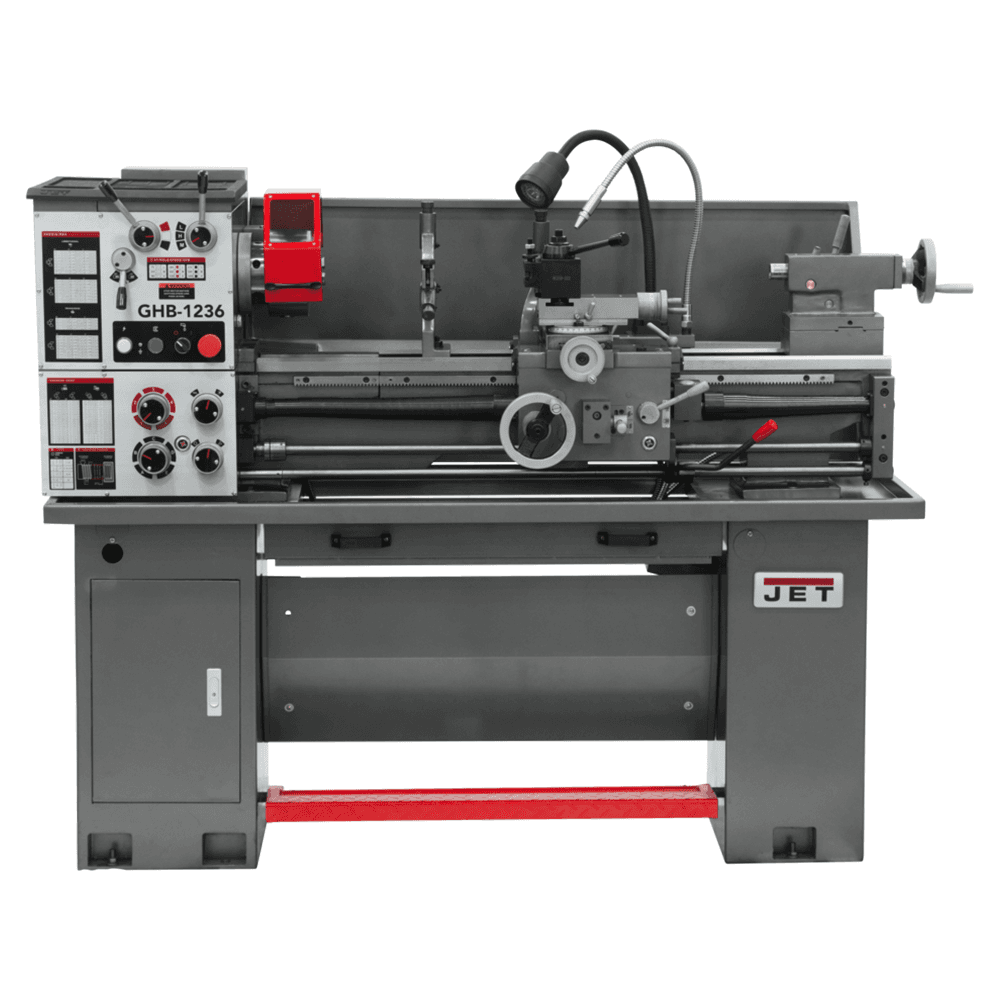

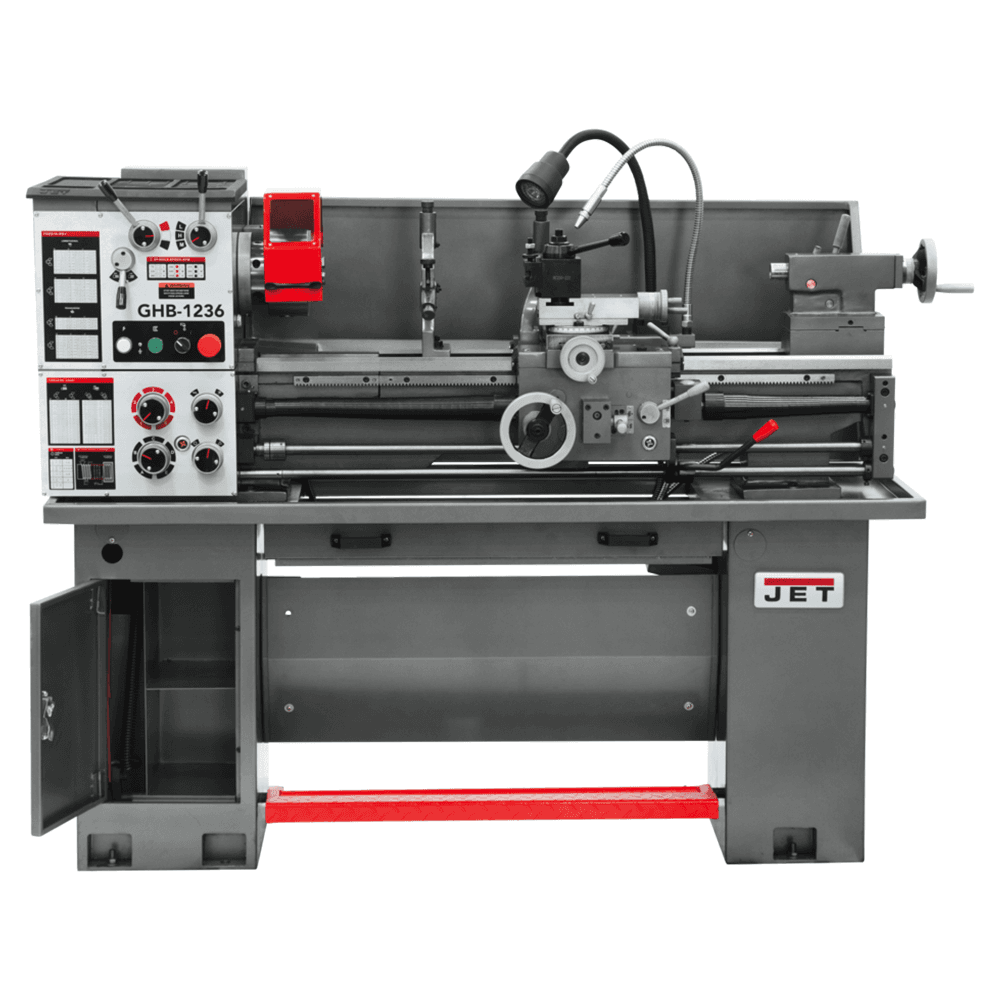

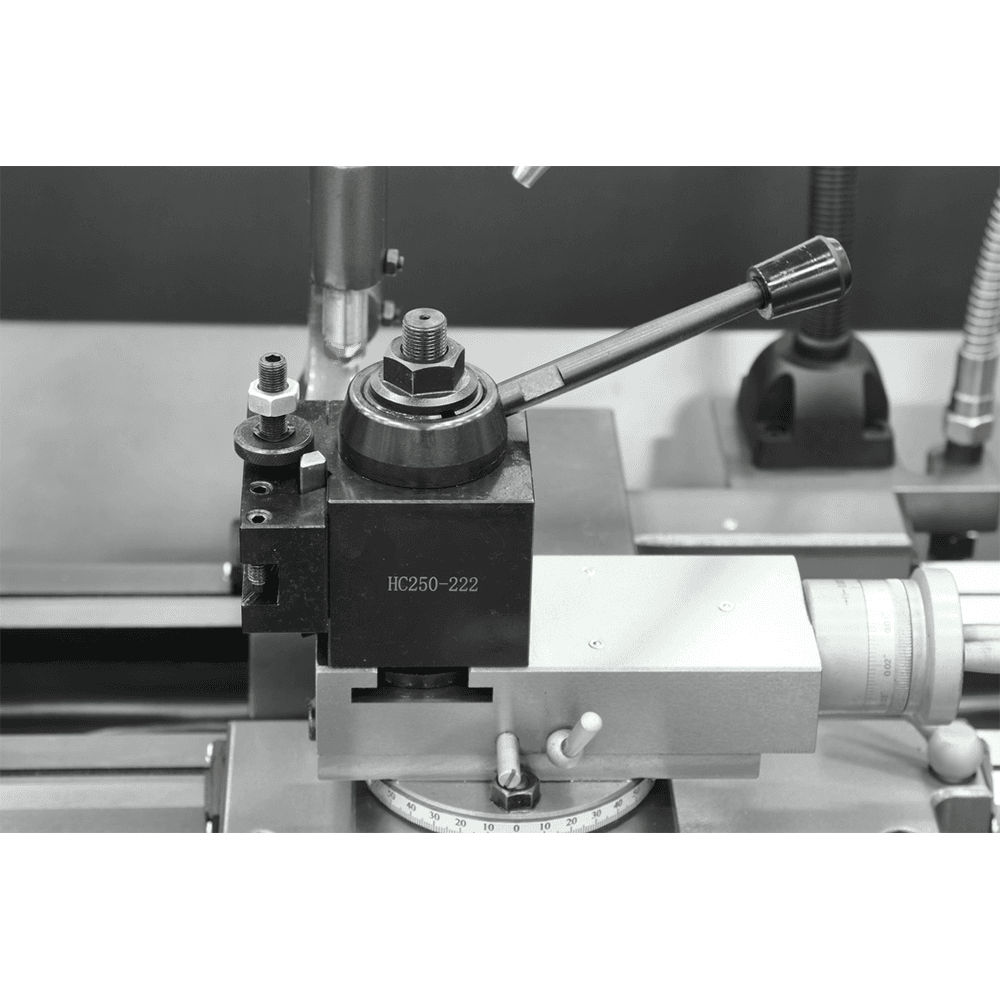

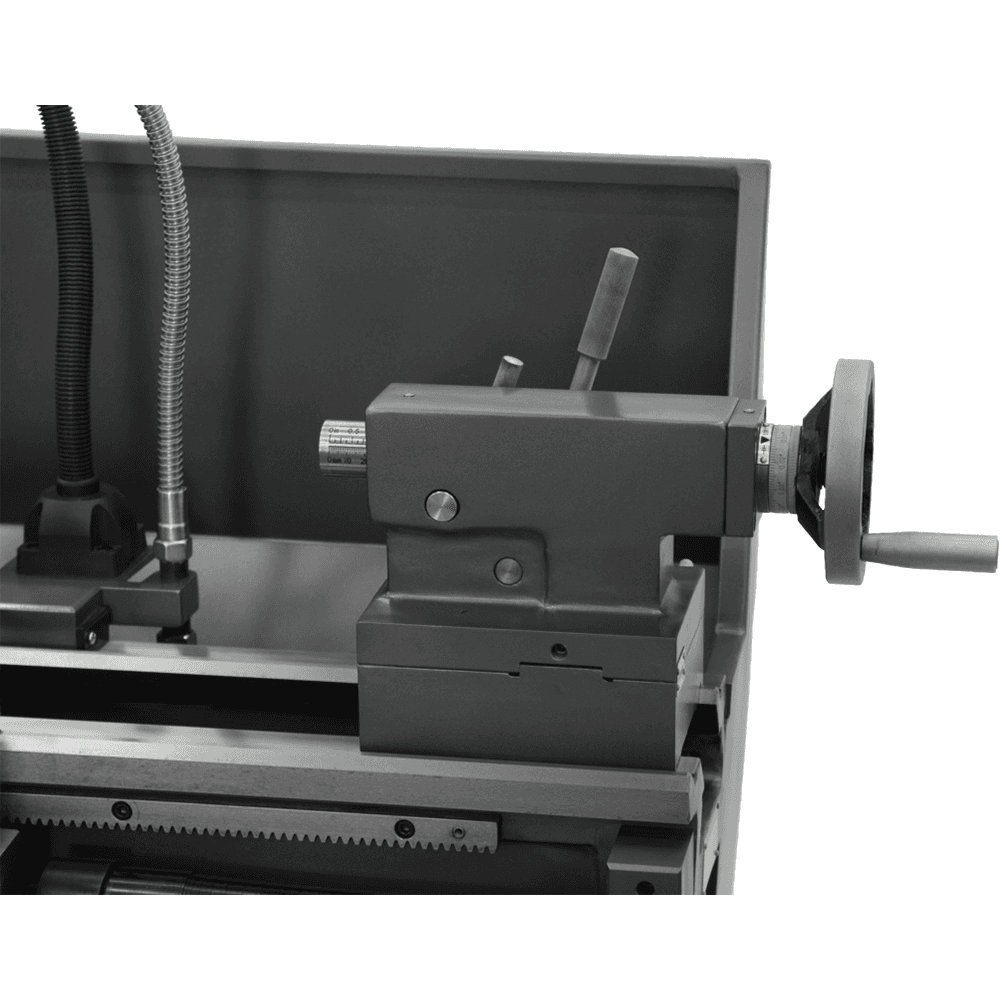

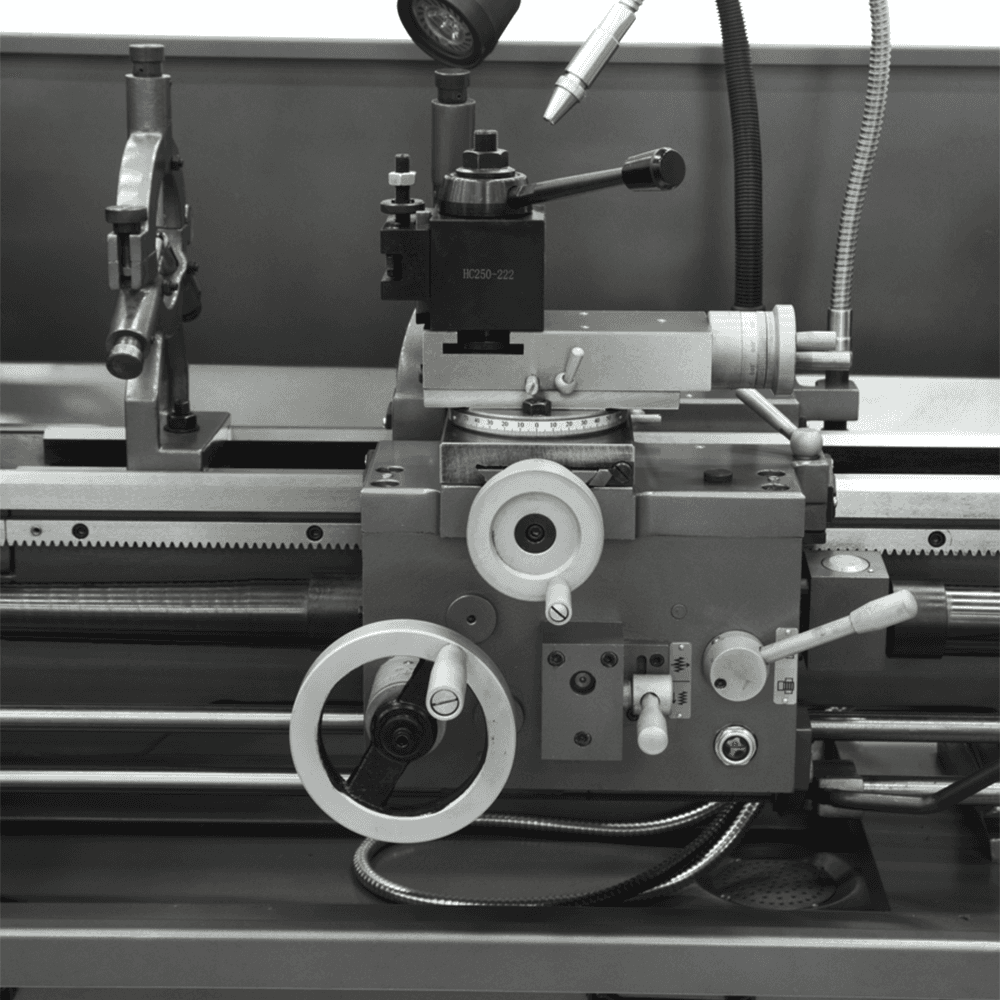

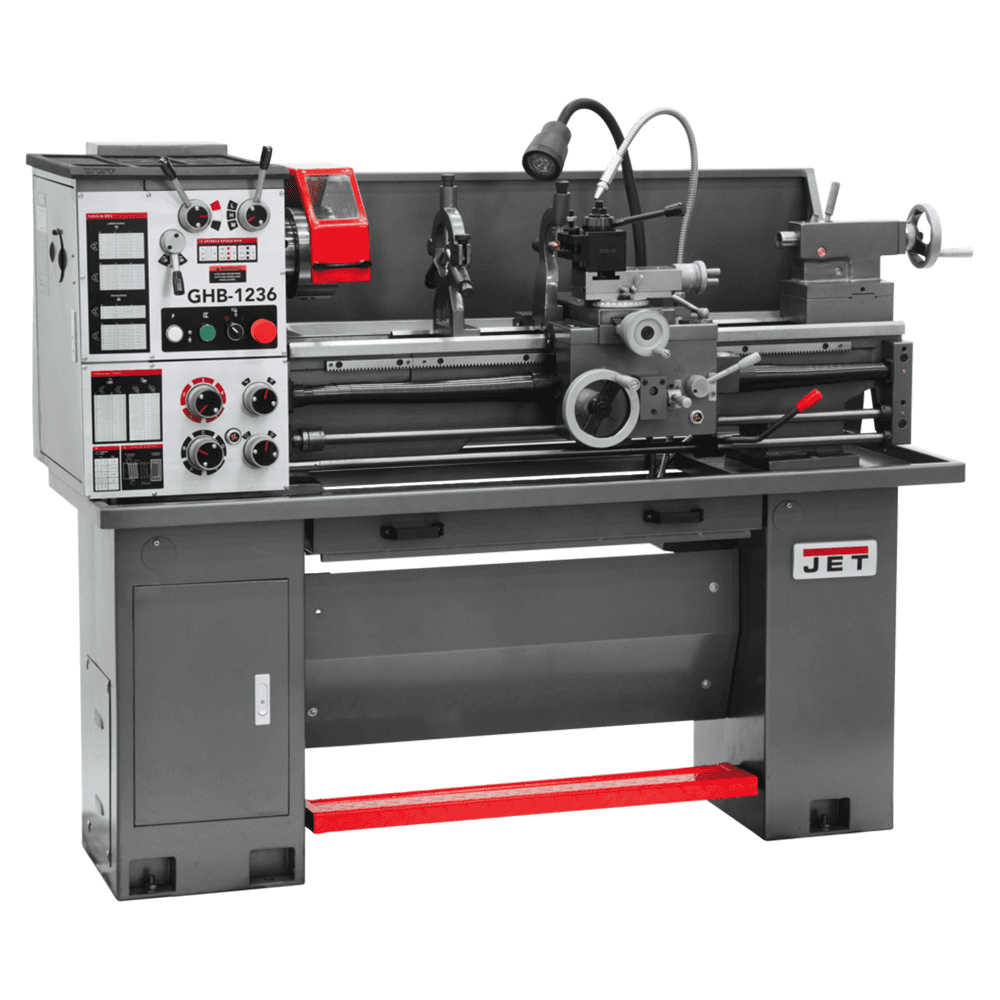

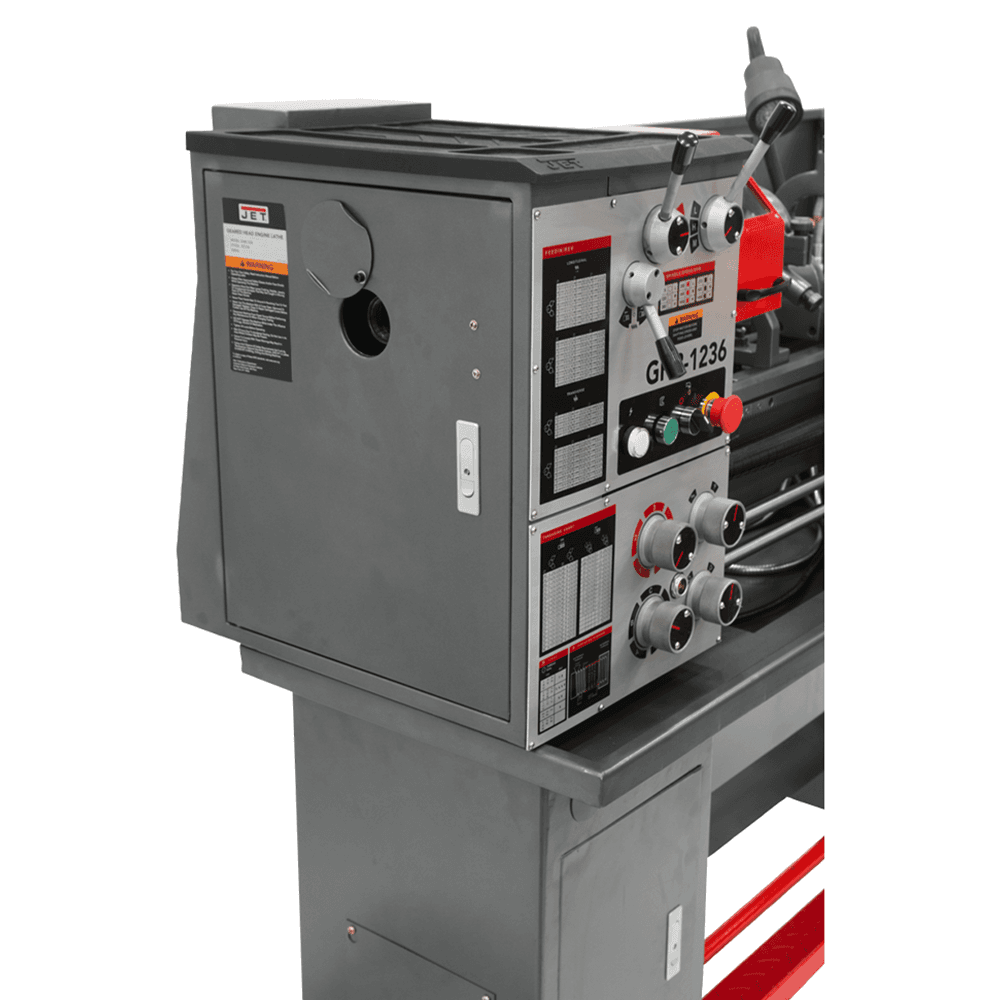

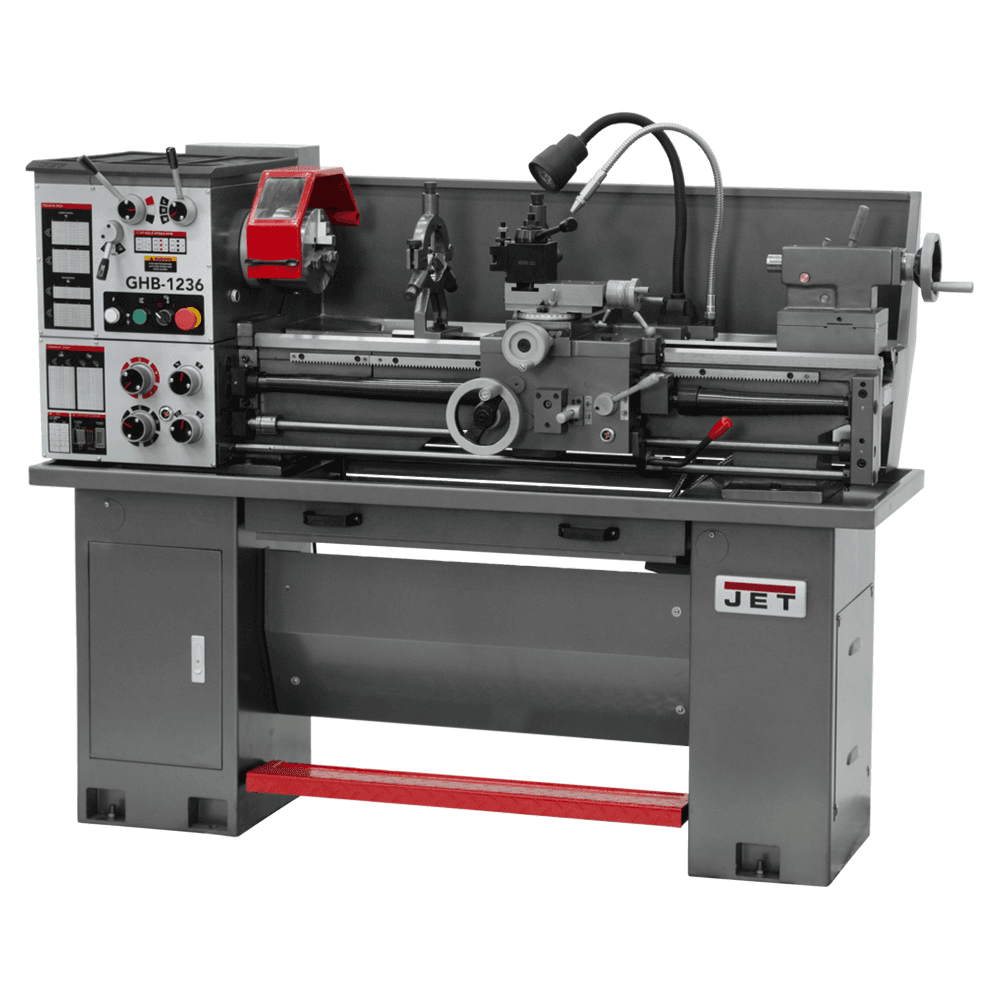

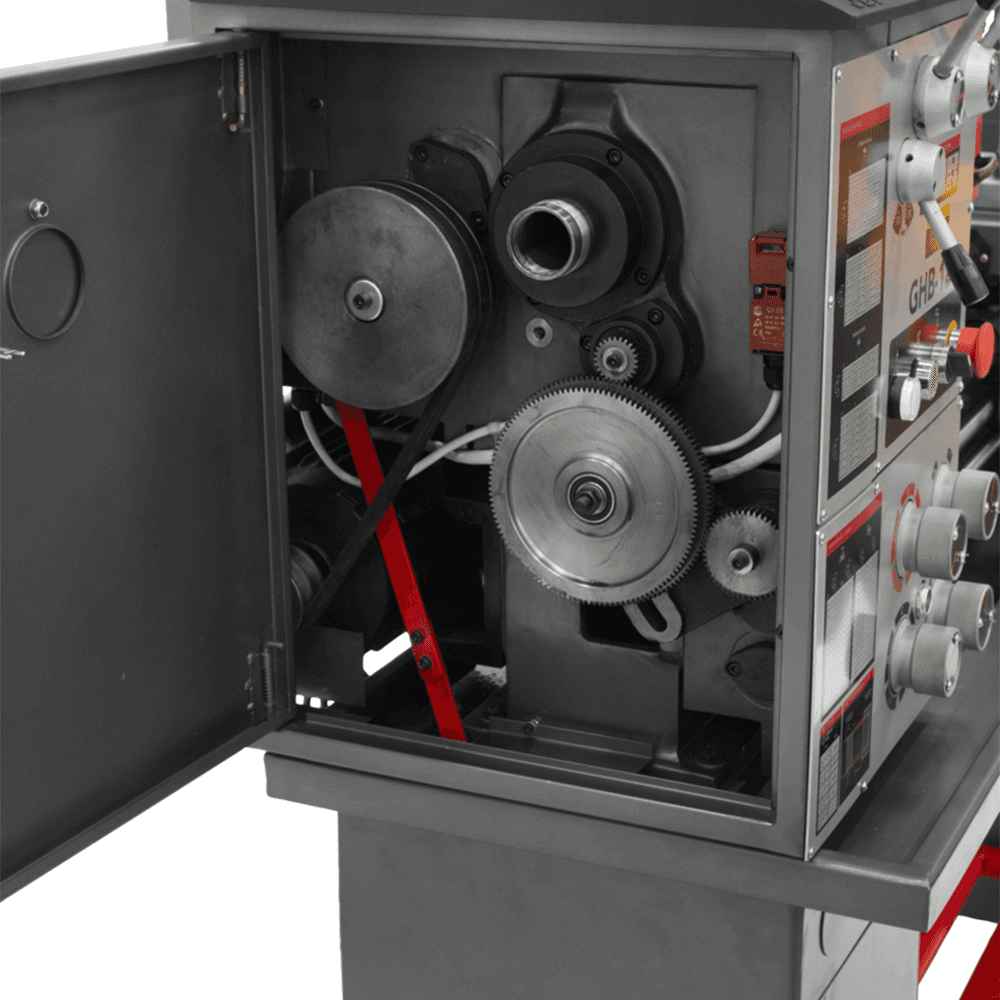

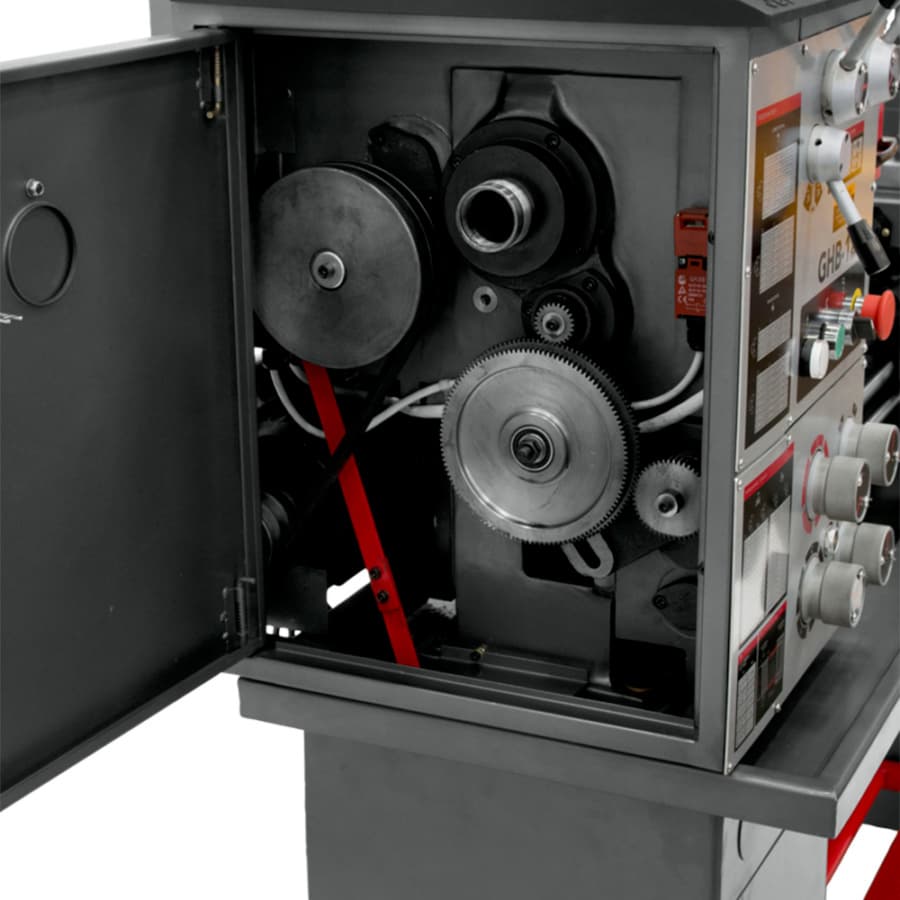

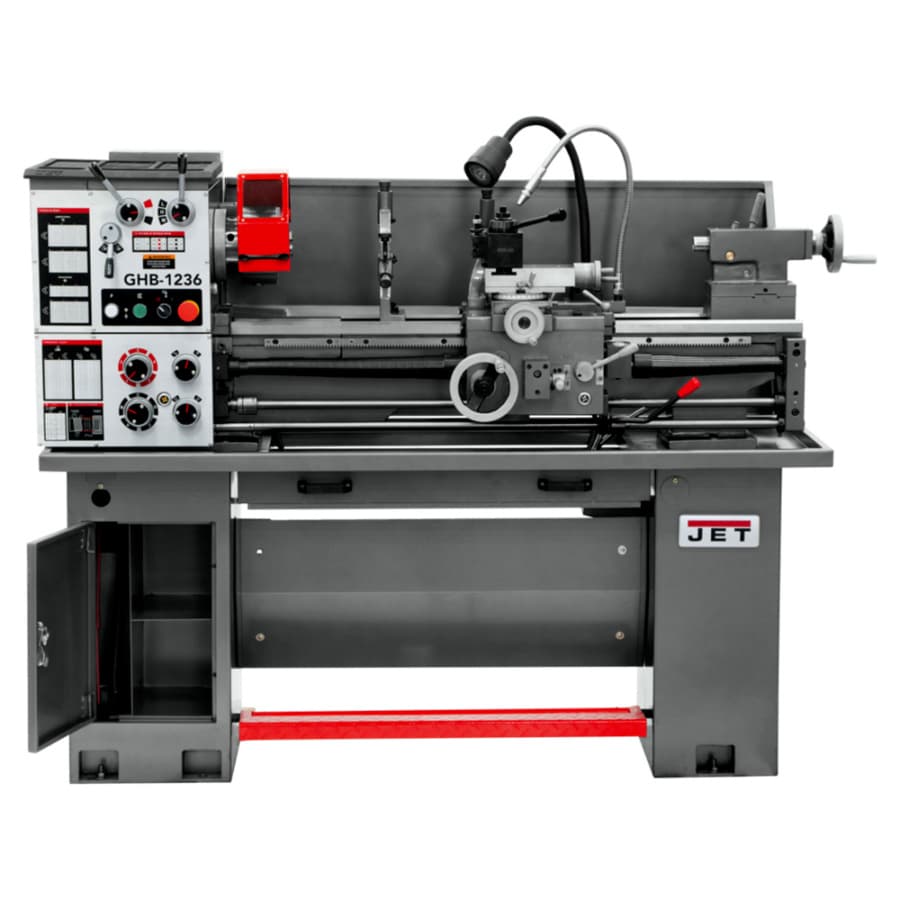

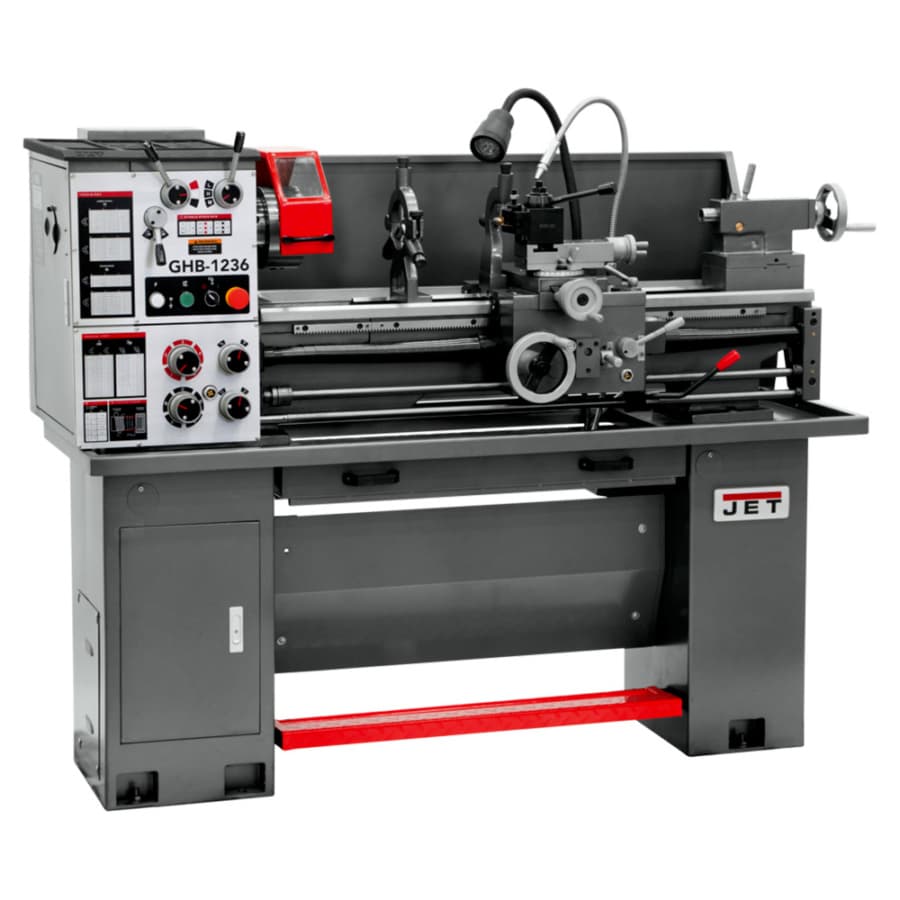

This new Jet GHB-1236 Geared Head Bench Lathe is engineered to cut and taper with exacting accuracy. Positioned on a heavy-duty cast iron stand with a newly added built-in footbrake, the GHB-1236 features precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. Features: • Compound and cross slide have backlash adjustment • Emergency stop within easy reach of the Operator • Enclosed gearbox design provides smooth, quiet operation • Gearbox gives wide range of inch and metric threading and feed capabilities with few gear changes • Induction hardened and ground bedway • Mounted on stand with foot pedal, coolant and ready to use • Spindle Spider available for ease of turning Gun barrels • Steady Rest with Roller Bearings • Tailstock may be offset for turning taper
Specifications
| Box Quantity | 1 |
| Width of Bed | 7.12" |
| Range of Cross Feeds (IPR) | 0.0014 - 0.0116 |
| Product Type | Lathes |
| Overall Height | 59-13/16" |
| Overall Dimensions (L x W x H) | 66-1/64" x 29-1/2" x 59-13/16" |
| Number of Spindle Speeds | 9 |
| Number of Metric Threads | 32 |
| Number of Longitudinal and Cross Feed Rates | 48/36 |
| Number of Inch Threads | 36 |
| Range of Inch Threads (TPI) | 4 - 60 TPI |
| Range of Longitudinal Feeds (IPR) | 0.0019 - 0.0472 |
| Range of Metric Threads | 0.4-7mm |
| Taper in Tailstock Spindle | MT-3 |
| Tailstock Spindle Travel | 3-1/2" |
| Swing Through Gap | 18" |
| Swing Over Cross Slide | 7-1/2" |
| Steady Rest Capacity | 0.31" - 2.95" |
| Spindle Taper with Sleeve | MT-5 |
| Spindle Mount | D1-4 |
| Range of Spindle Speeds (RPM) | 75 - 1400 RPM |
| Modular Pitch Threads Range | |
| Modular Pitch Threads Number | |
| Max Tool Size | 3/4" x 3/4" |
| Amperage Draw @ 460V 3Ph | |
| Amperage Draw @ 230V 3Ph | |
| Bed Gap | |
| Swing Over Bed | 12" |
| Size | |
| Motor Amps | |
| Distance Between Centers | 33" |
| Prewired Voltage | |
| Spindle Thread (In./TPI) | |
| Carriage Travel | 27-3/8" |
| Compound Slide Travel | 3" |
| Length of Gap | 8-3/4" |
| Input Power | 230V, 1Ph |
| Follow Rest Capacity | 0.31" - 2.16" |
| Drive | |
| Diametral Pitch Threads Number | |
| Cross Slide Travel | 5-1/2" |
| Coolant Pump Motor | |
| Configurator Option Type | Base Machine |
| Configurable Base Item | Yes |
| Motor Phase | 1 |
| Speed Range | |
| Centerline of Spindle to Floor (In.) | |
| Spindle Bore | 1.575" |
| Headstock Movement | |
| Wiring Remarks | |
| Spindle Taper | |
| Number of Indexing Positions | |
| Swing Over Tool Rest Base (In.) | |
| Motor Power (HP) | 2 HP |
| Outboard Turning | |
| Spindle Speeds | |
| Ram Travel Quill Travel | |
| Bed Construction | |
| Recommended Circuit Size (Amps.) | |
| Quill Taper | |
| Style (Type) | |
| Tailstock Bore | |
| Outboard External Threads (In. x TPI) | |
| Motor Voltage (V.) | 230V |
| Horsepower | |
| Warranty | |
| Height | |
| Phase | |
| Length | |
| Width |
