Jet Tools GHB-1340A 2 HP Gear Head Bench Lathe, 1 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details

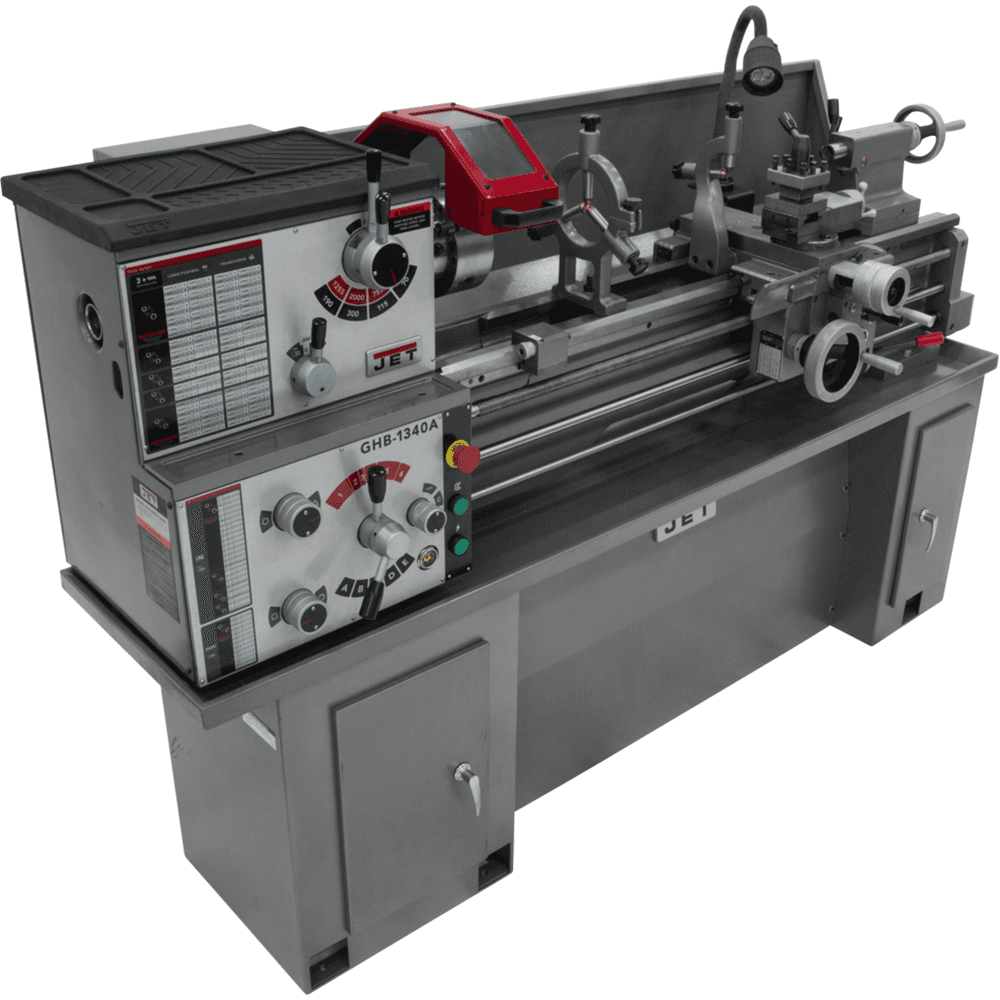

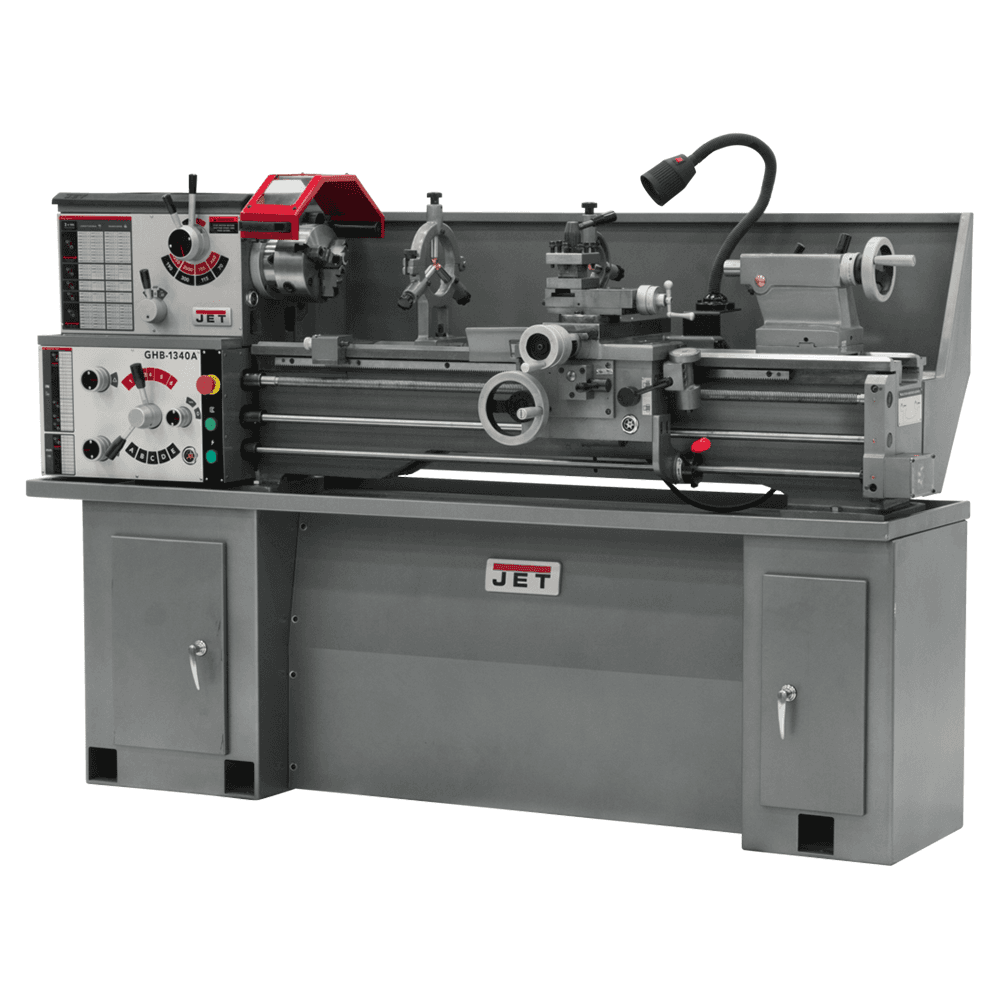

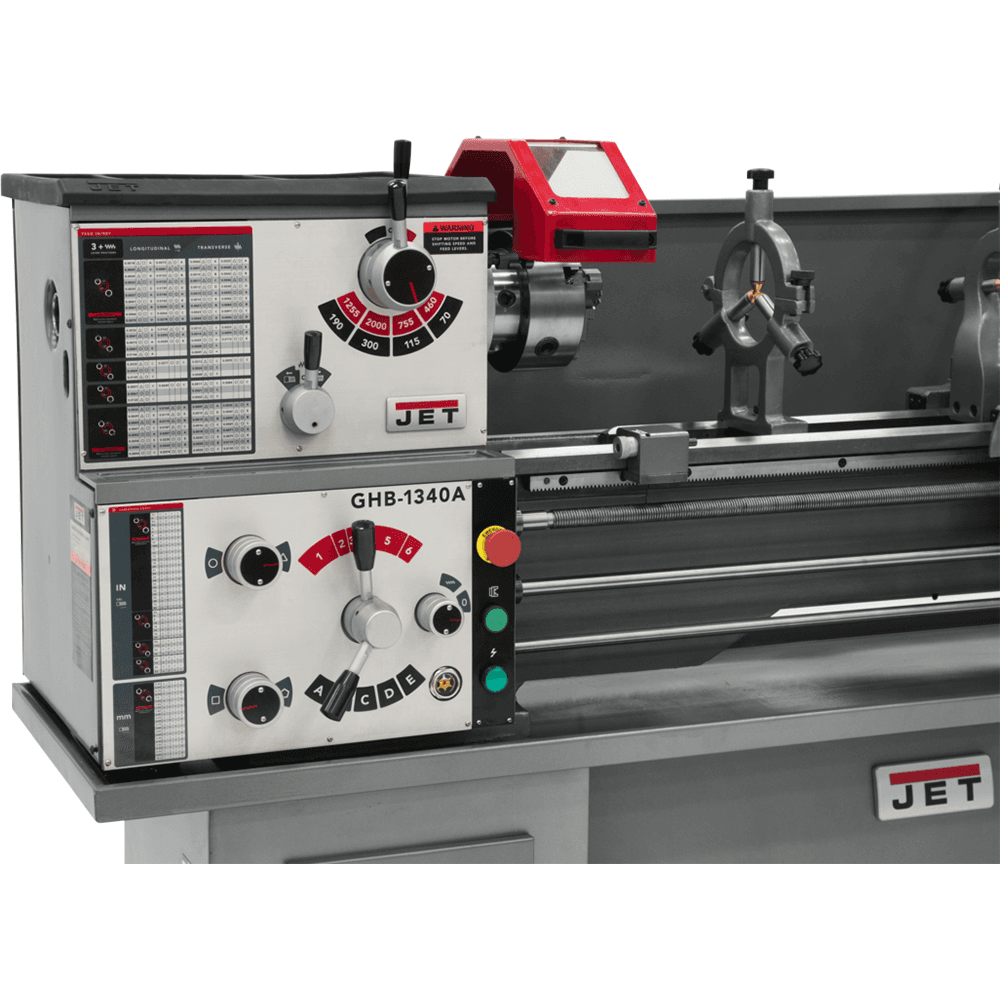

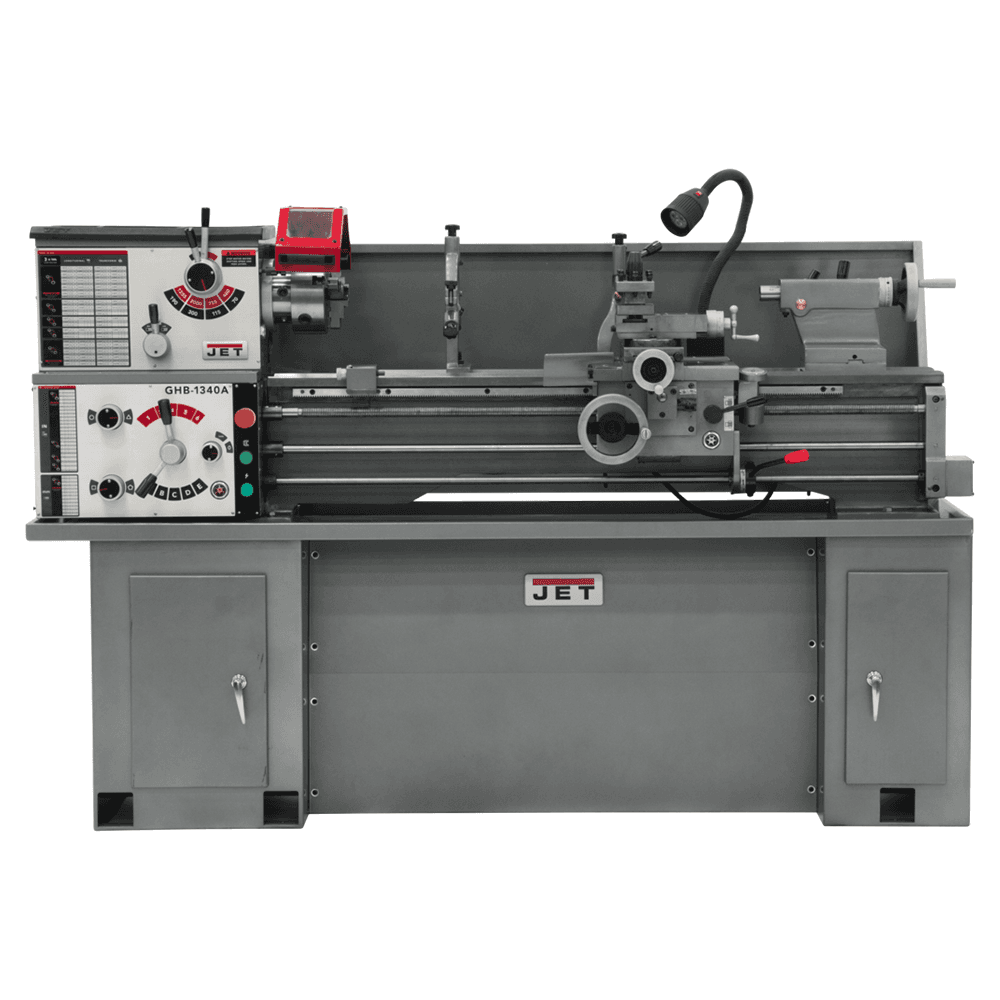

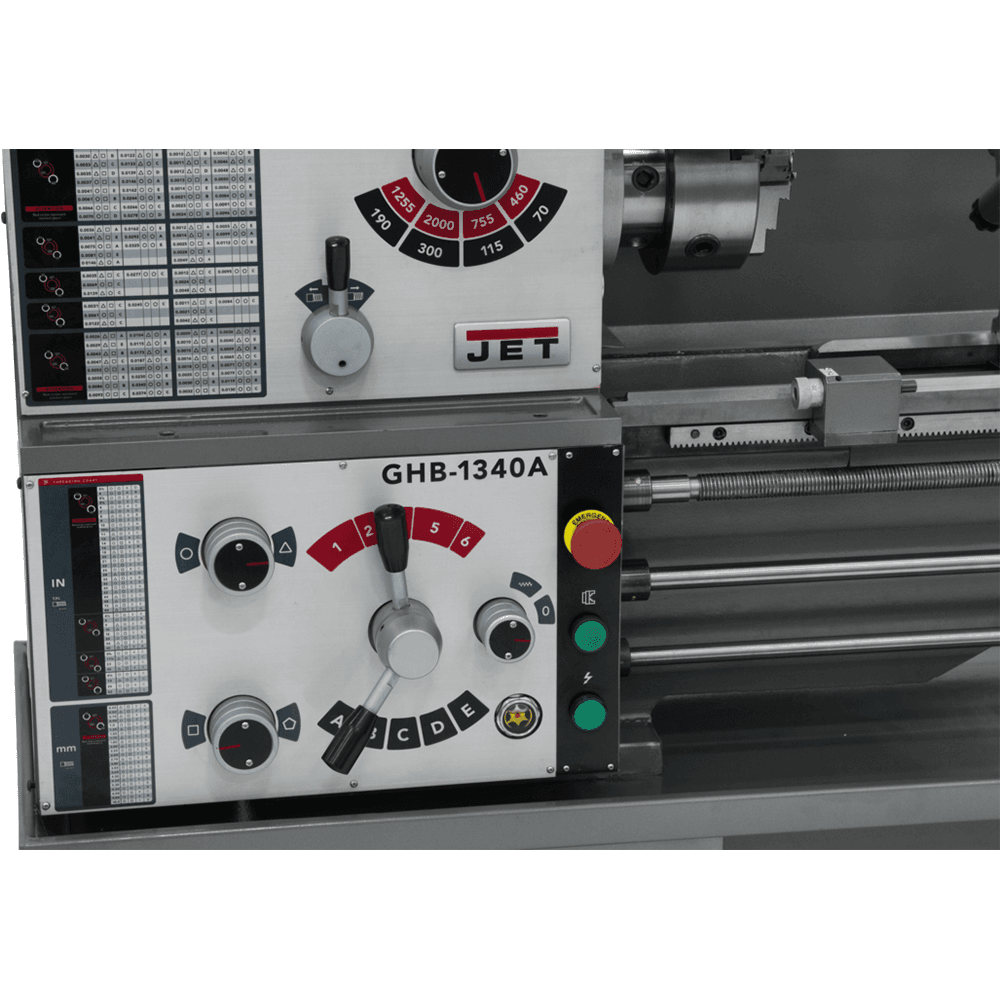

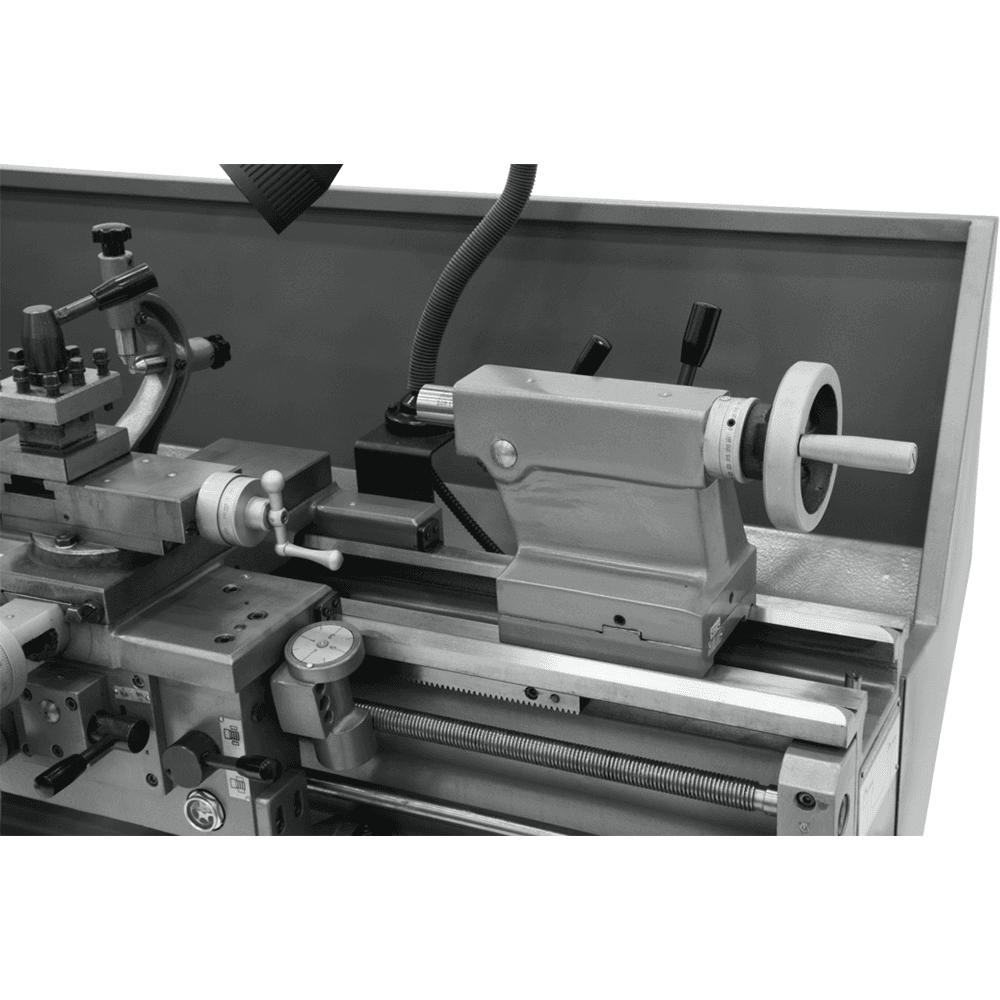

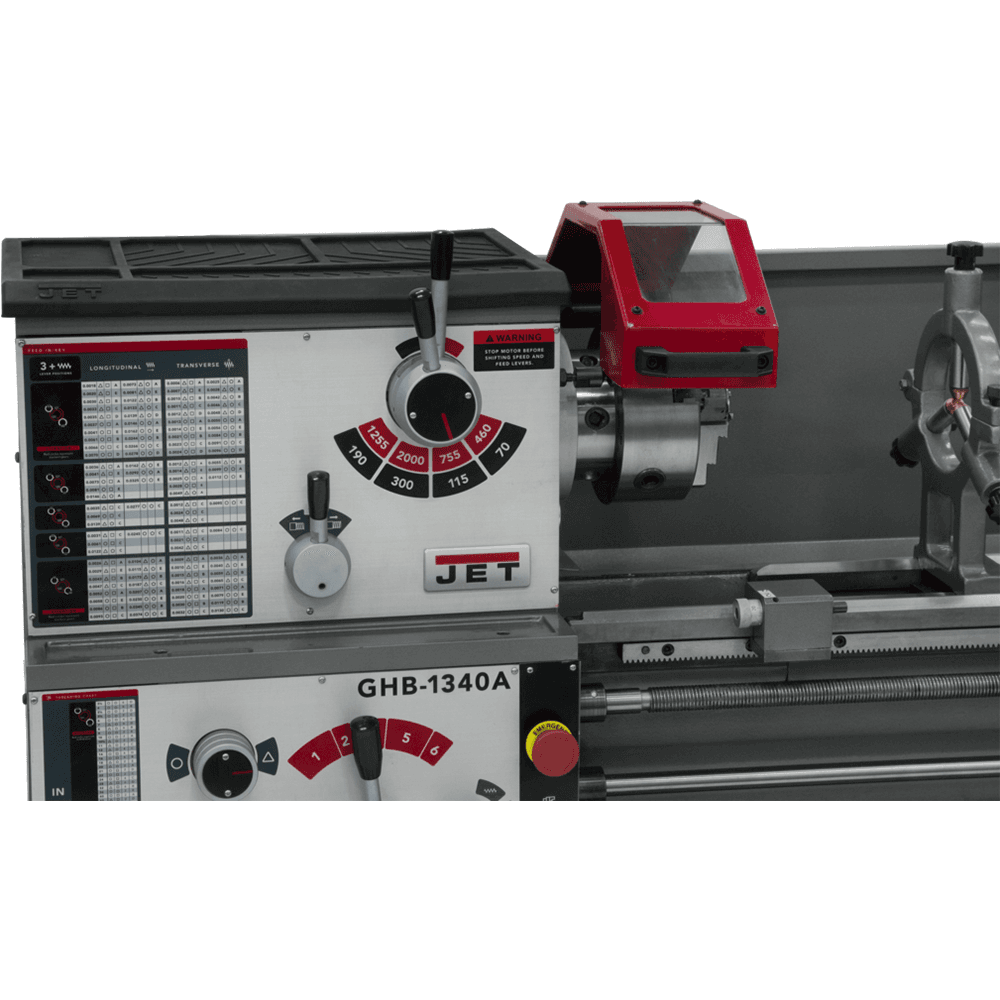

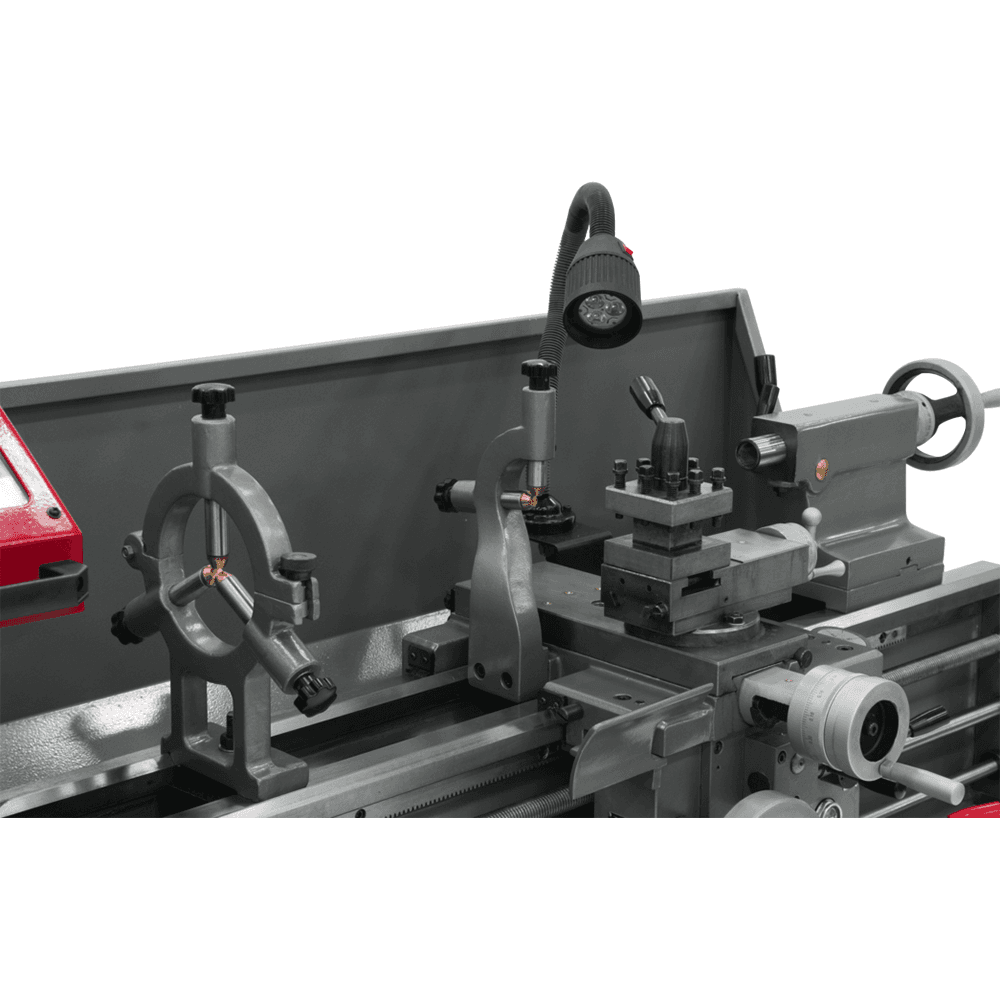

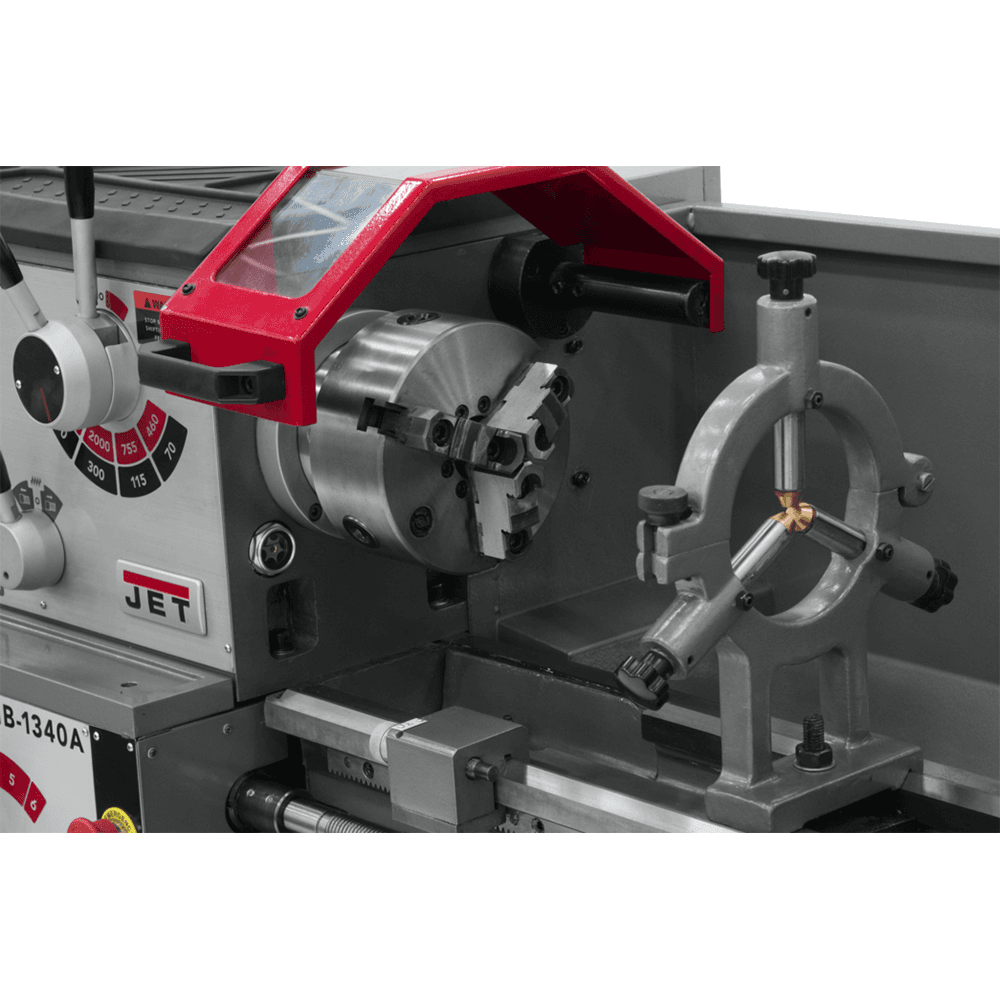

Jet geared head bench lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances as well as fast and easy speed changes. Headstock is constantly oiled during operation which keeps maintenance and repair needs to a minimum. Each Jet Lathe comes loaded with features you've come to expect, all backed by the industry leading Jet Two Year Warranty. Features: • 6" 3-jaw direct mount chuck with top reversing jaw • Compound and cross slide have backlash elimination • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings • Gearbox gives wide inch threading and feed capabiltites with no gear changes • Hardened and ground gears are featured in the headstock and gearbox • Image shown with optional bench, p/n 321443AK • Independent lead screw and feed rod • Spindle actuation control is apron mounted • Tailstock may be offset for turning taper • Tolerance test certificate included
Specifications
| Box Quantity | 1 |
| Width of Bed | 7-3/8" |
| Range of Cross Feeds (IPR) | .0006 - .0130 |
| Product Type | Lathes |
| Overall Height | 30" |
| Overall Dimensions (L x W x H) | 79" x 28-1/2" x 30" |
| Number of Spindle Speeds | 8 |
| Number of Metric Threads | 23 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Number of Inch Threads | 38 |
| Range of Inch Threads (TPI) | 3-1/2 - 80 TPI |
| Range of Longitudinal Feeds (IPR) | .0018 - .0374 |
| Range of Metric Threads | .45 - 10 |
| Taper in Tailstock Spindle | MT-3 |
| Tailstock Spindle Travel | 3-3/4" |
| Swing Through Gap | 18-3/4" |
| Swing Over Cross Slide | 7-25/32" |
| Steady Rest Capacity | 2-3/4" |
| Spindle Taper with Sleeve | MT-5 (MT-3) |
| Spindle Mount | D1-4 |
| Range of Spindle Speeds (RPM) | 70 - 2,000 RPM |
| Modular Pitch Threads Range | |
| Modular Pitch Threads Number | |
| Max Tool Size | 5/8" x 5/8" |
| Amperage Draw @ 460V 3Ph | |
| Amperage Draw @ 230V 3Ph | |
| Bed Gap | |
| Swing Over Bed | 13" |
| Size | 13" x 40" |
| Motor Amps | |
| Distance Between Centers | |
| Prewired Voltage | |
| Spindle Thread (In./TPI) | |
| Carriage Travel | 35" |
| Compound Slide Travel | 2-11/16" |
| Length of Gap | 8" |
| Input Power | 230V, 1Ph |
| Follow Rest Capacity | |
| Drive | Geared Head |
| Diametral Pitch Threads Number | |
| Cross Slide Travel | |
| Coolant Pump Motor | |
| Configurator Option Type | Base Machine |
| Configurable Base Item | Yes |
| Motor Phase | 1 |
| Speed Range | |
| Centerline of Spindle to Floor (In.) | |
| Spindle Bore | 1-3/8" |
| Headstock Movement | |
| Wiring Remarks | |
| Spindle Taper | |
| Number of Indexing Positions | |
| Swing Over Tool Rest Base (In.) | |
| Motor Power (HP) | 2 HP |
| Outboard Turning | |
| Spindle Speeds | |
| Ram Travel Quill Travel | |
| Bed Construction | |
| Recommended Circuit Size (Amps.) | |
| Quill Taper | |
| Style (Type) | |
| Tailstock Bore | |
| Outboard External Threads (In. x TPI) | |
| Motor Voltage (V.) | 230V |
| Horsepower | |
| Warranty | |
| Height | |
| Phase | |
| Length | |
| Width |
