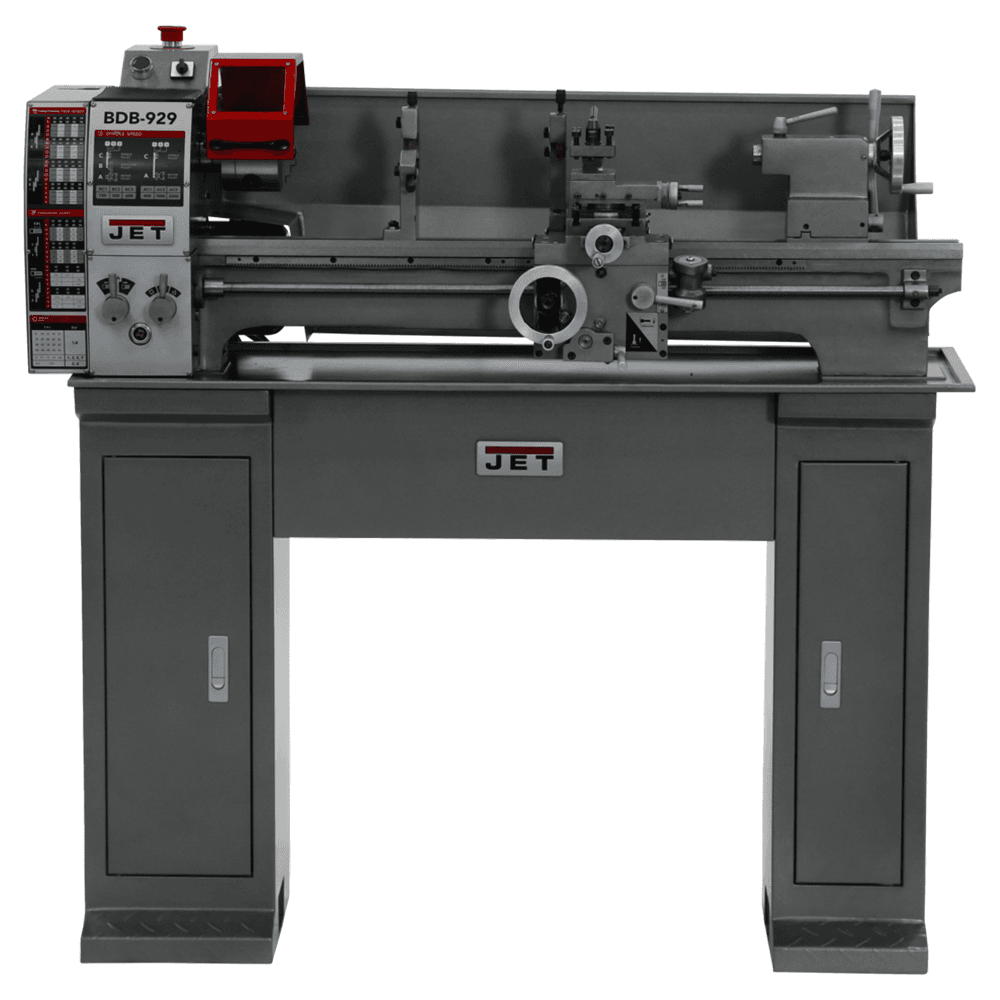

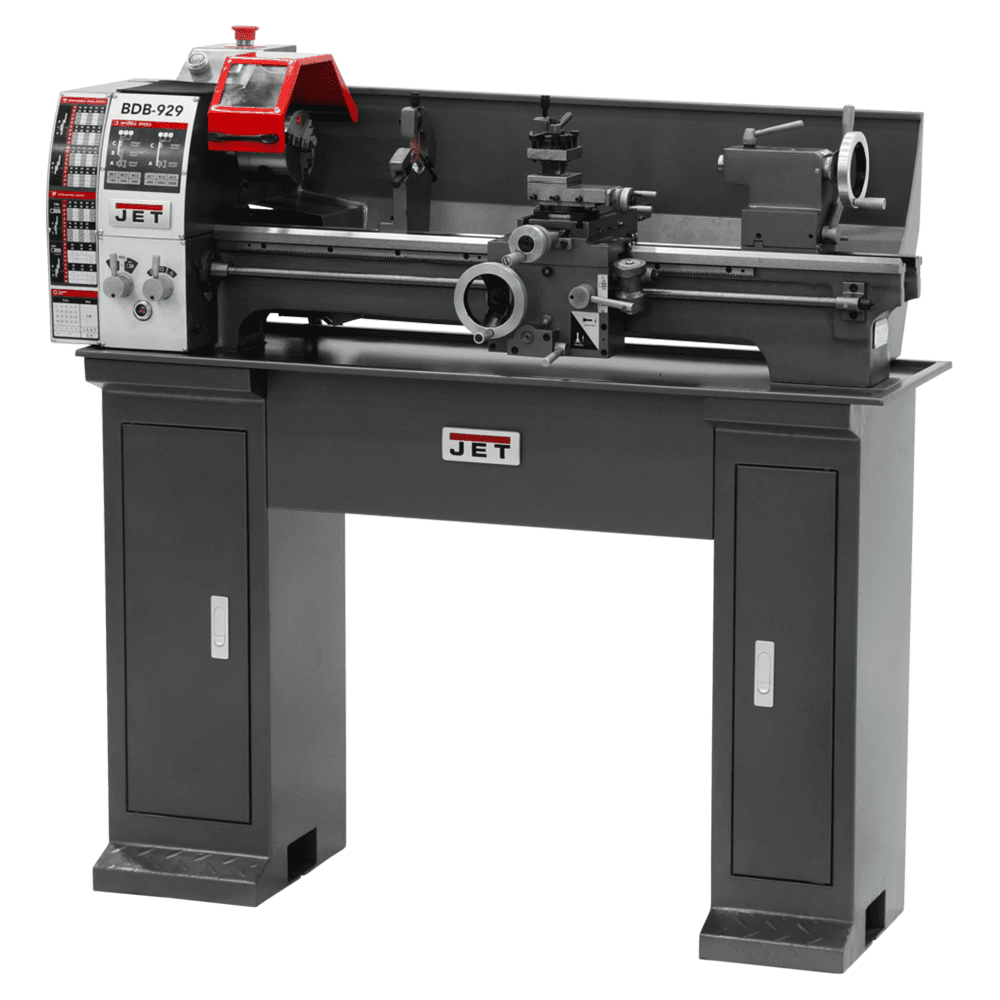

Jet Tools BDB-929 3/4 HP Belt Drive Bench Lathe with stand, 1 Phase/115V
This item may incur additional shipping costs and lead times.
Product Details

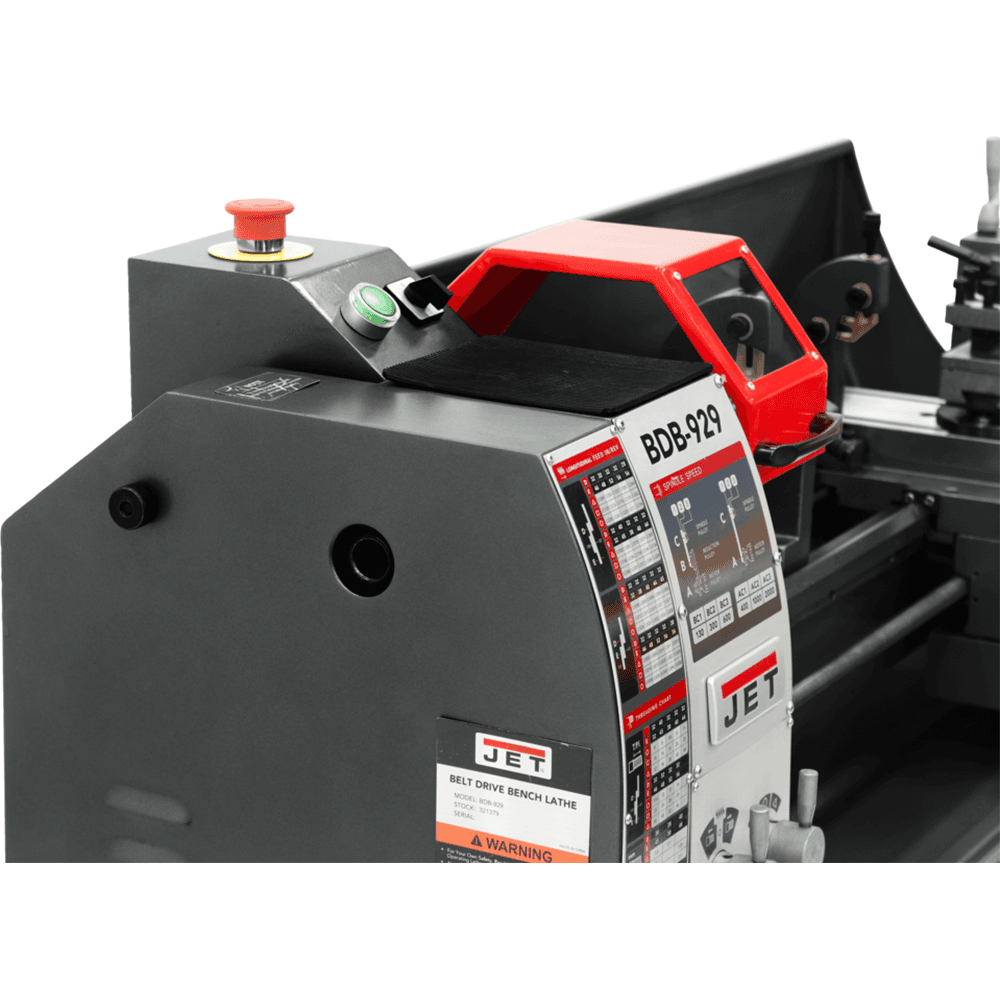

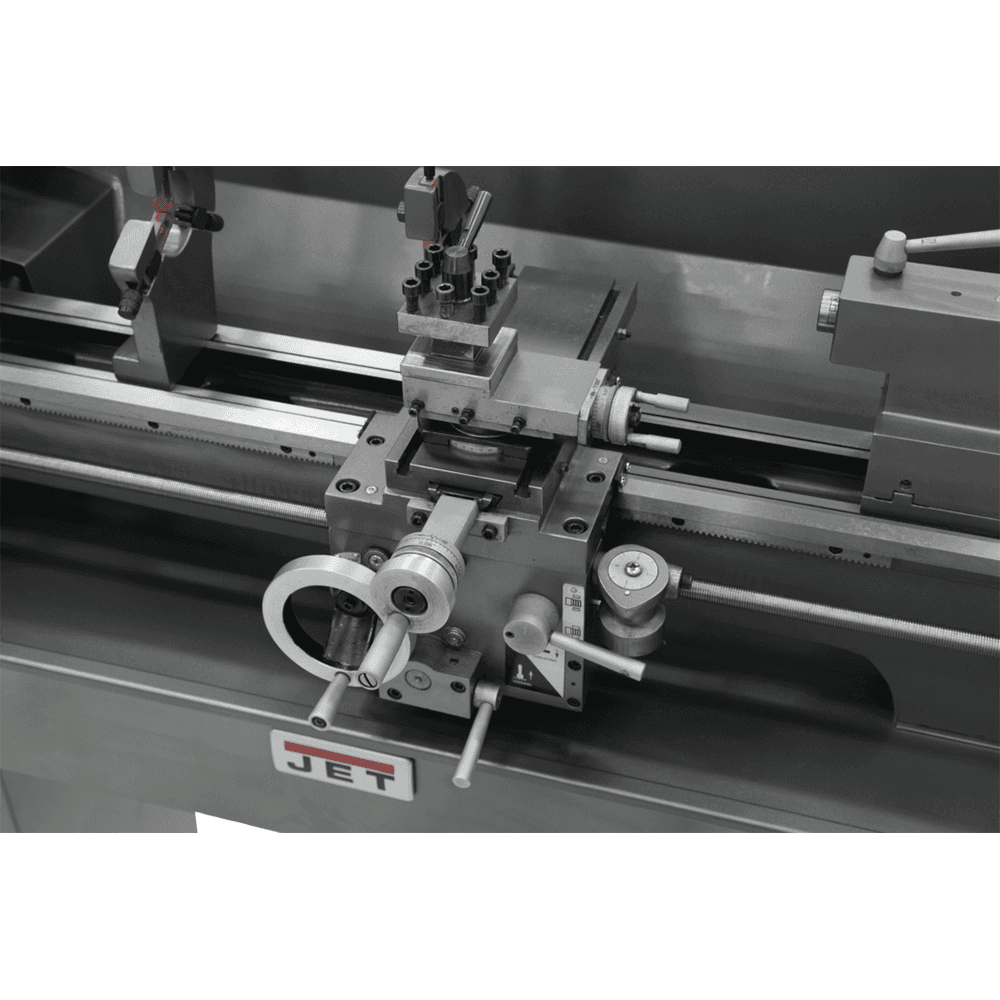

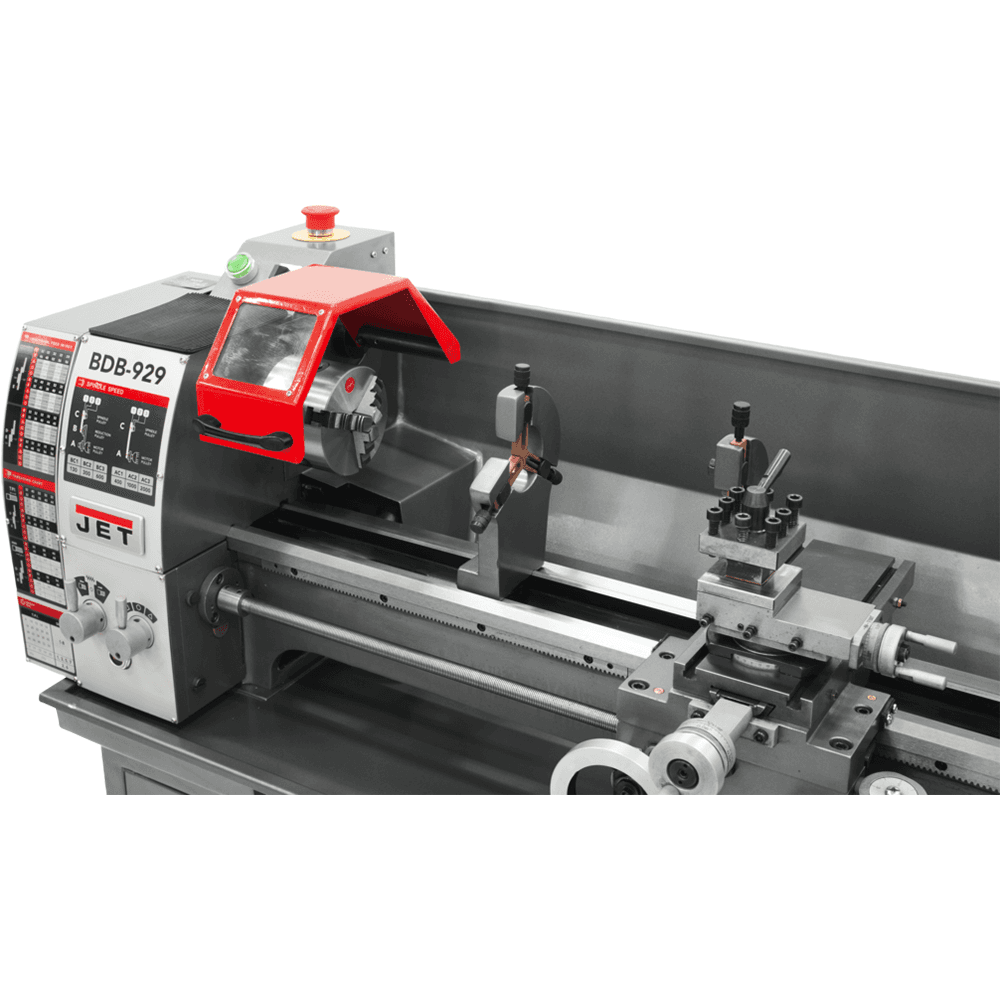

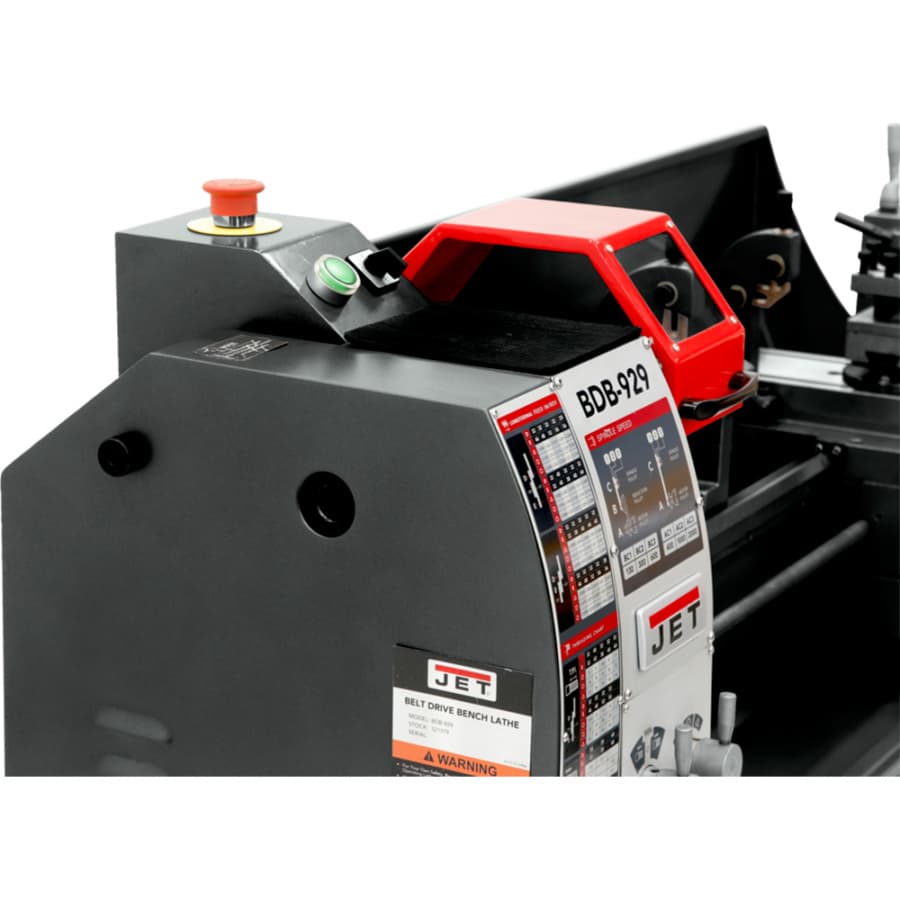

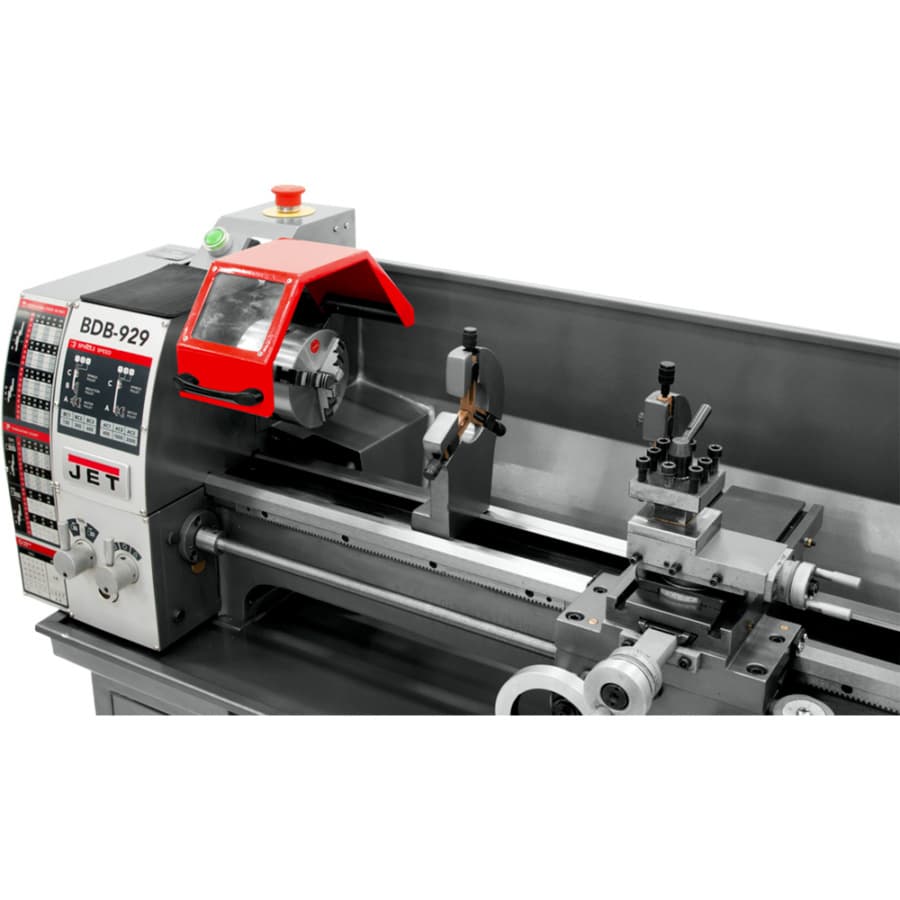

The BDB-929 benchtop lathe is the essential step to improving your shop's capabilities. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings the BDB-929 delivers the smooth operation and rigidity needed to craft professional pieces. Features: • Backlash adjustments provided throughout the carriage • Emergency stop within easy reach of the Operator • Full Length Splash Guard • Induction hardened and ground bedway • Power longitudinal feed allows threading and reverse threading • Quick change gearbox provides wide range of inch and metric threads • Reversing switch for added versatility • Safety on/off switch • Spindle supported by precision tapered roller bearings • Standard Accessories
Specifications
| Box Quantity | 1 |
| Width of Bed | 4-1/2" |
| Range of Cross Feeds (IPR) | |
| Product Type | Lathes |
| Overall Height | 20" |
| Overall Dimensions (L x W x H) | 51" x 22" x 20" |
| Number of Spindle Speeds | 6 |
| Number of Metric Threads | 12 |
| Number of Longitudinal and Cross Feed Rates | 60 |
| Number of Inch Threads | 27 |
| Range of Inch Threads (TPI) | 8 - 56 TPI |
| Range of Longitudinal Feeds (IPR) | 0.0006-0.0368 |
| Range of Metric Threads | 0.5 - 3.5 |
| Taper in Tailstock Spindle | MT-2 |
| Tailstock Spindle Travel | 1-9/16" |
| Swing Through Gap | |
| Swing Over Cross Slide | 5" |
| Steady Rest Capacity | 1-3/4" |
| Spindle Taper with Sleeve | MT-3 |
| Spindle Mount | 1-1/2" x 8TPI |
| Range of Spindle Speeds (RPM) | 130 - 2000 RPM |
| Modular Pitch Threads Range | |
| Modular Pitch Threads Number | |
| Max Tool Size | 1/2" |
| Amperage Draw @ 460V 3Ph | |
| Amperage Draw @ 230V 3Ph | |
| Bed Gap | |
| Swing Over Bed | 8-3/4" |
| Size | |
| Motor Amps | |
| Distance Between Centers | 27.5" |
| Prewired Voltage | |
| Spindle Thread (In./TPI) | |
| Carriage Travel | 26.5" |
| Compound Slide Travel | 1-7/8" |
| Length of Gap | |
| Input Power | 110V, 1Ph |
| Follow Rest Capacity | |
| Drive | |
| Diametral Pitch Threads Number | |
| Cross Slide Travel | 4-1/4" |
| Coolant Pump Motor | |
| Configurator Option Type | |
| Configurable Base Item | No |
| Motor Phase | 1 |
| Speed Range | |
| Centerline of Spindle to Floor (In.) | |
| Spindle Bore | 3/4" |
| Headstock Movement | |
| Wiring Remarks | |
| Spindle Taper | |
| Number of Indexing Positions | |
| Swing Over Tool Rest Base (In.) | |
| Motor Power (HP) | 3/4 HP |
| Outboard Turning | |
| Spindle Speeds | |
| Ram Travel Quill Travel | |
| Bed Construction | |
| Recommended Circuit Size (Amps.) | |
| Quill Taper | |
| Style (Type) | |
| Tailstock Bore | |
| Outboard External Threads (In. x TPI) | |
| Motor Voltage (V.) | 115V |
| Horsepower | |
| Warranty | |
| Height | |
| Phase | |
| Length | |
| Width |
