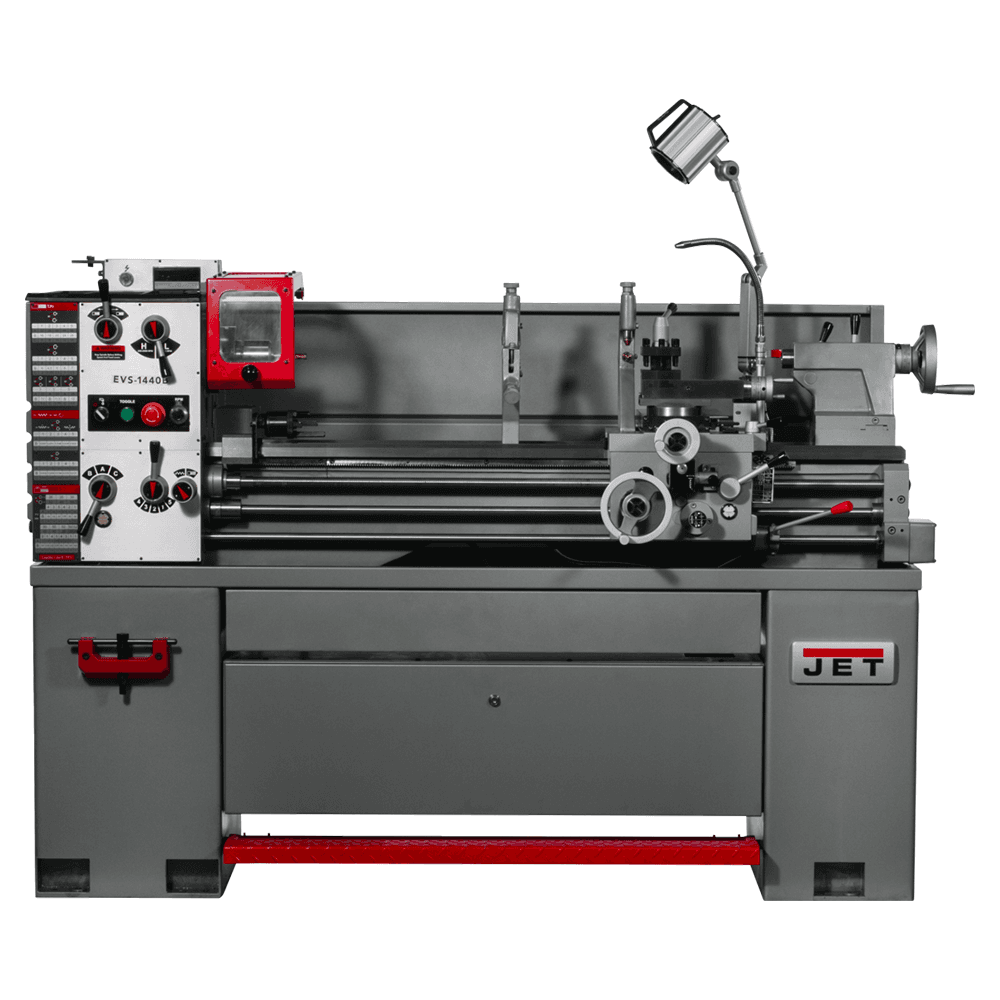

Jet Tools EVS-1440B 3 HP Electronic Variable Speed Bench Lathe, 3 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details

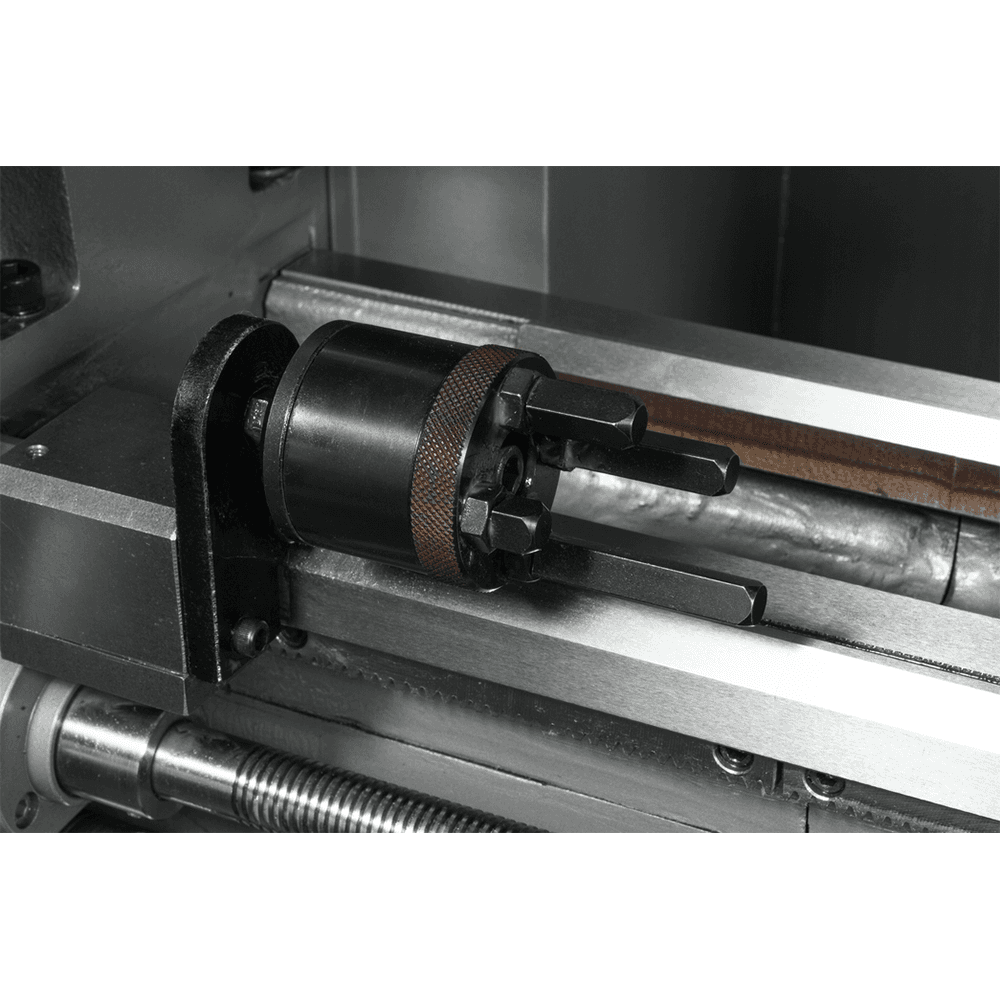

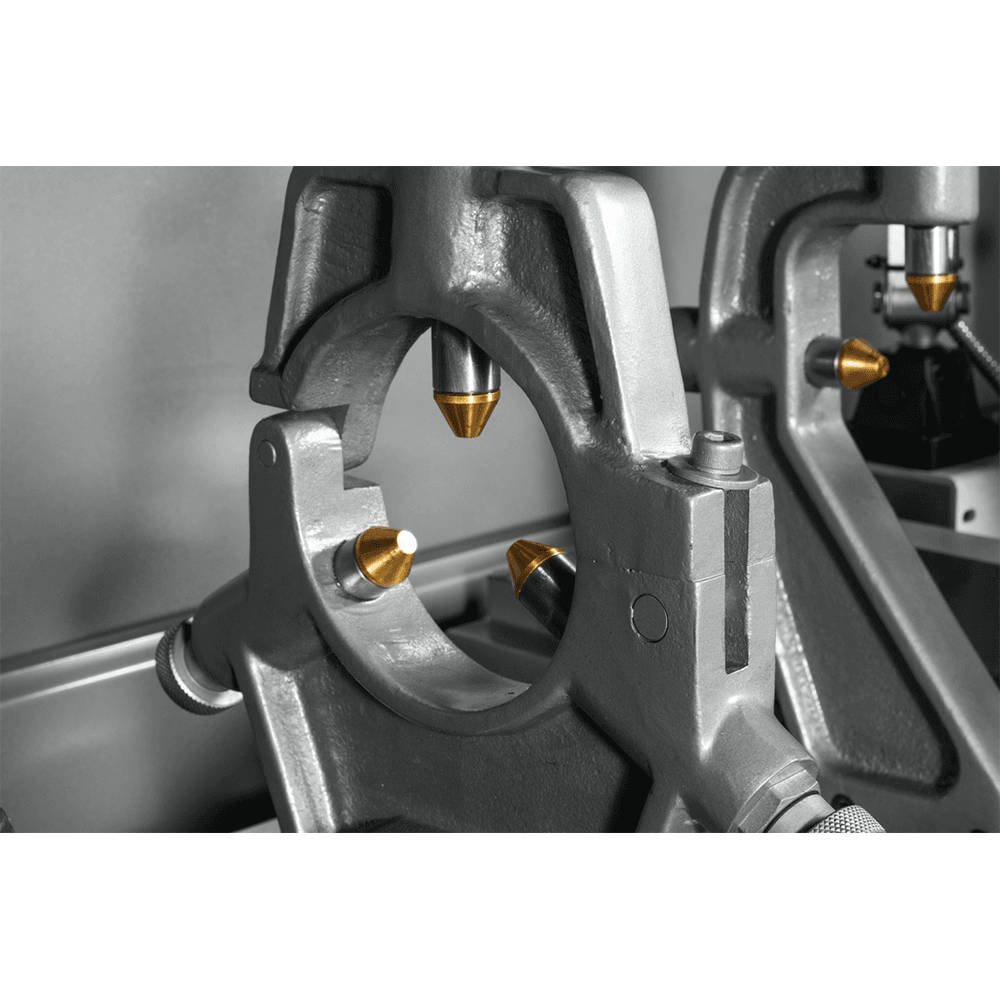

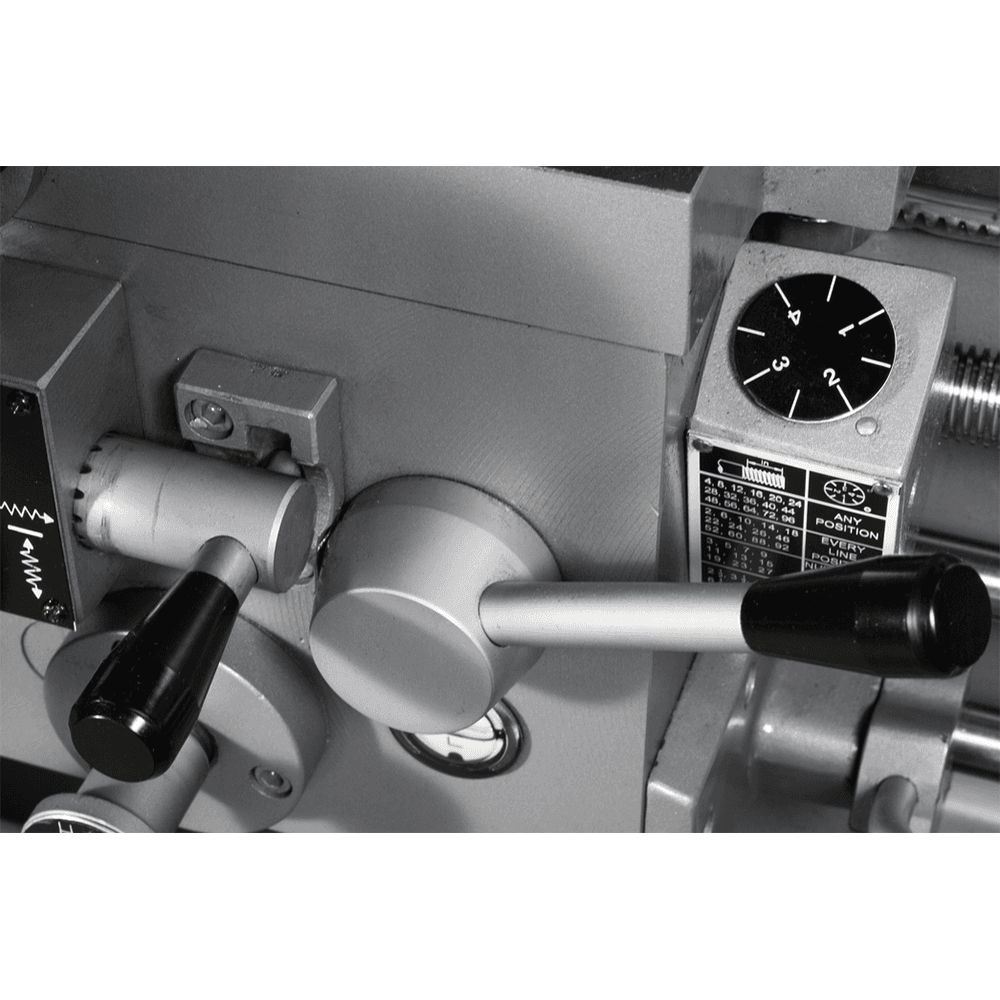

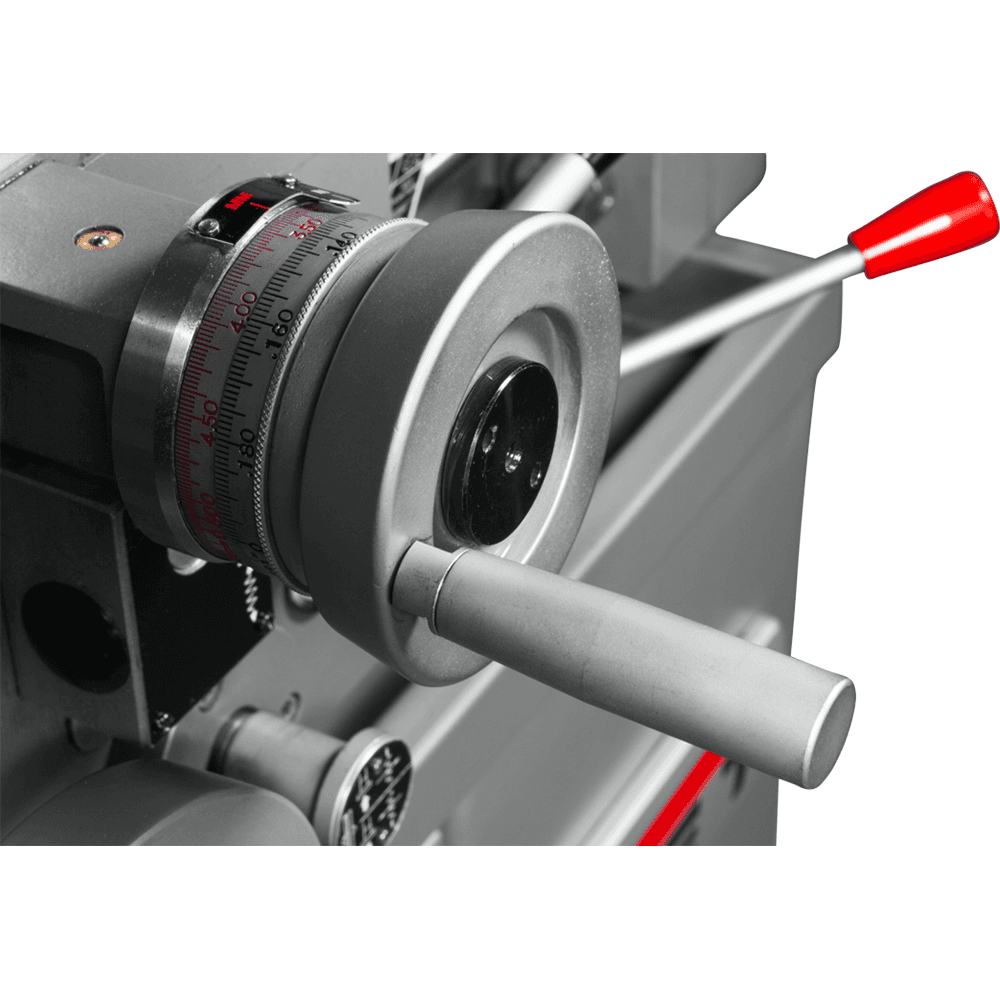

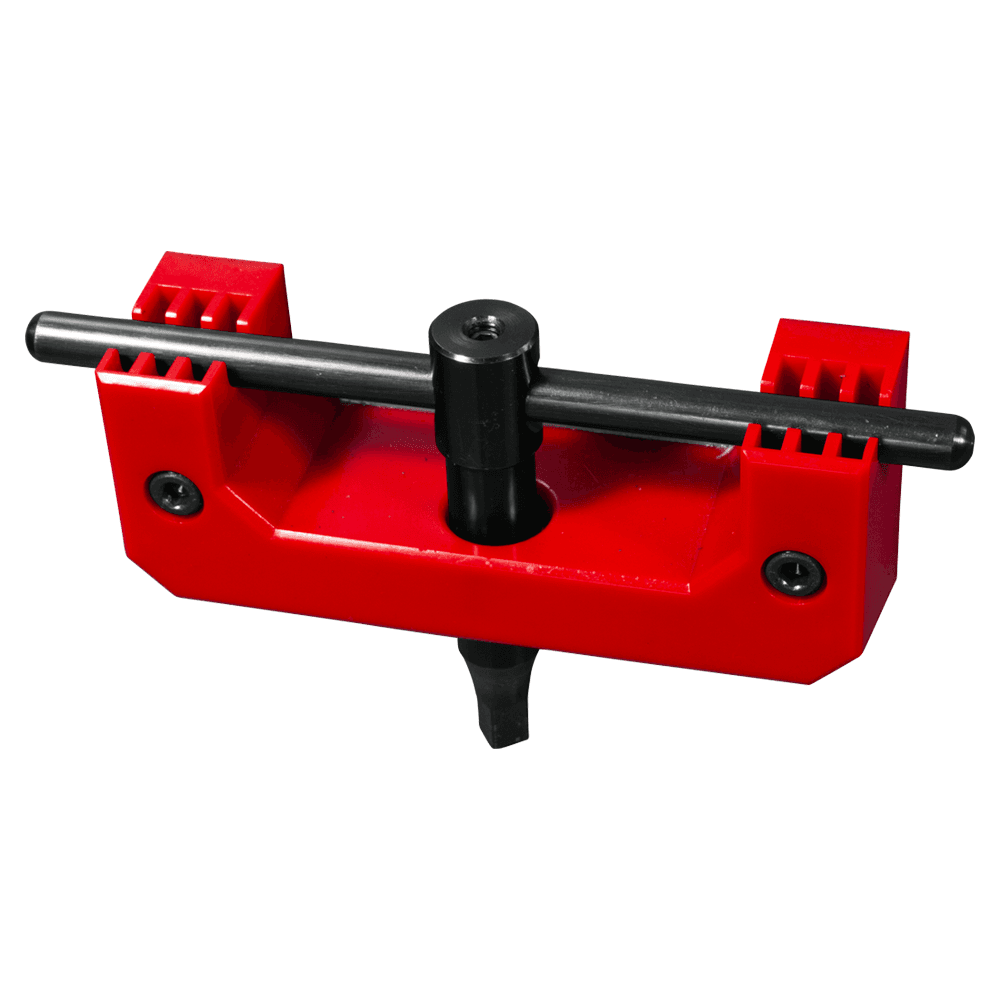

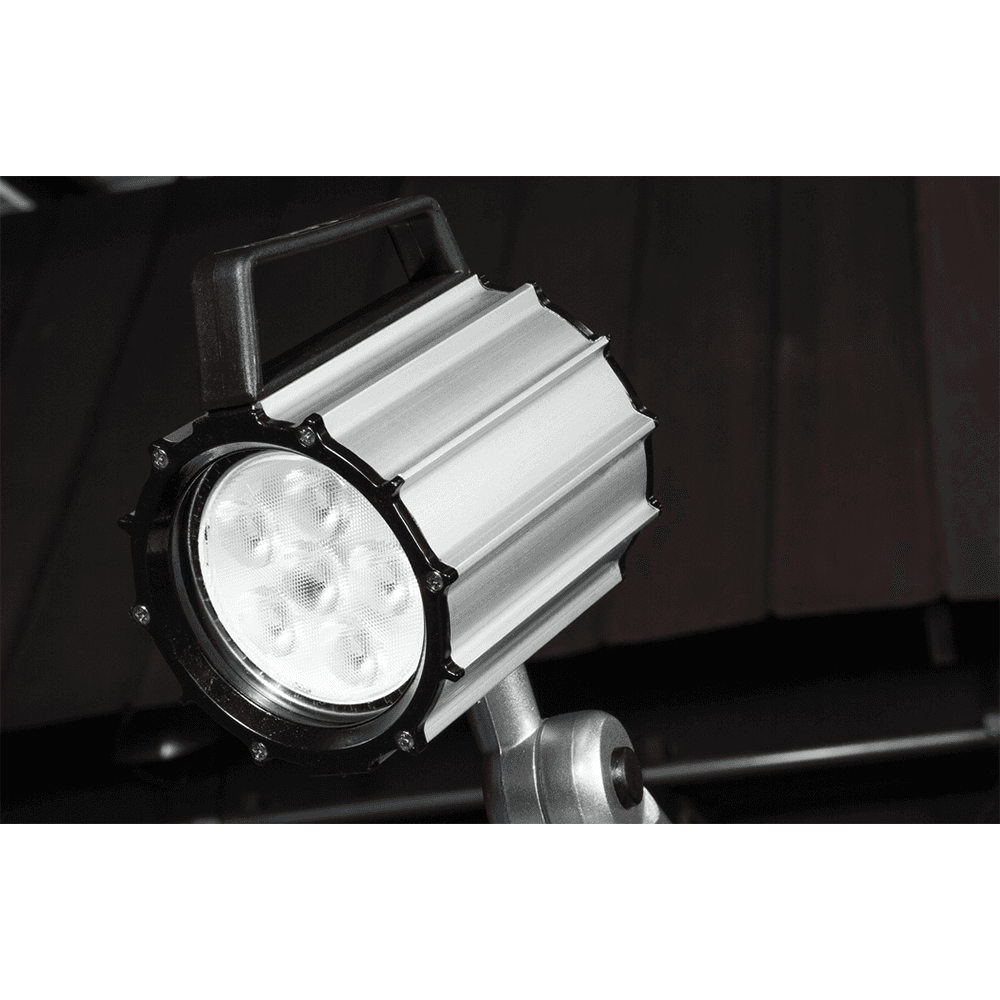

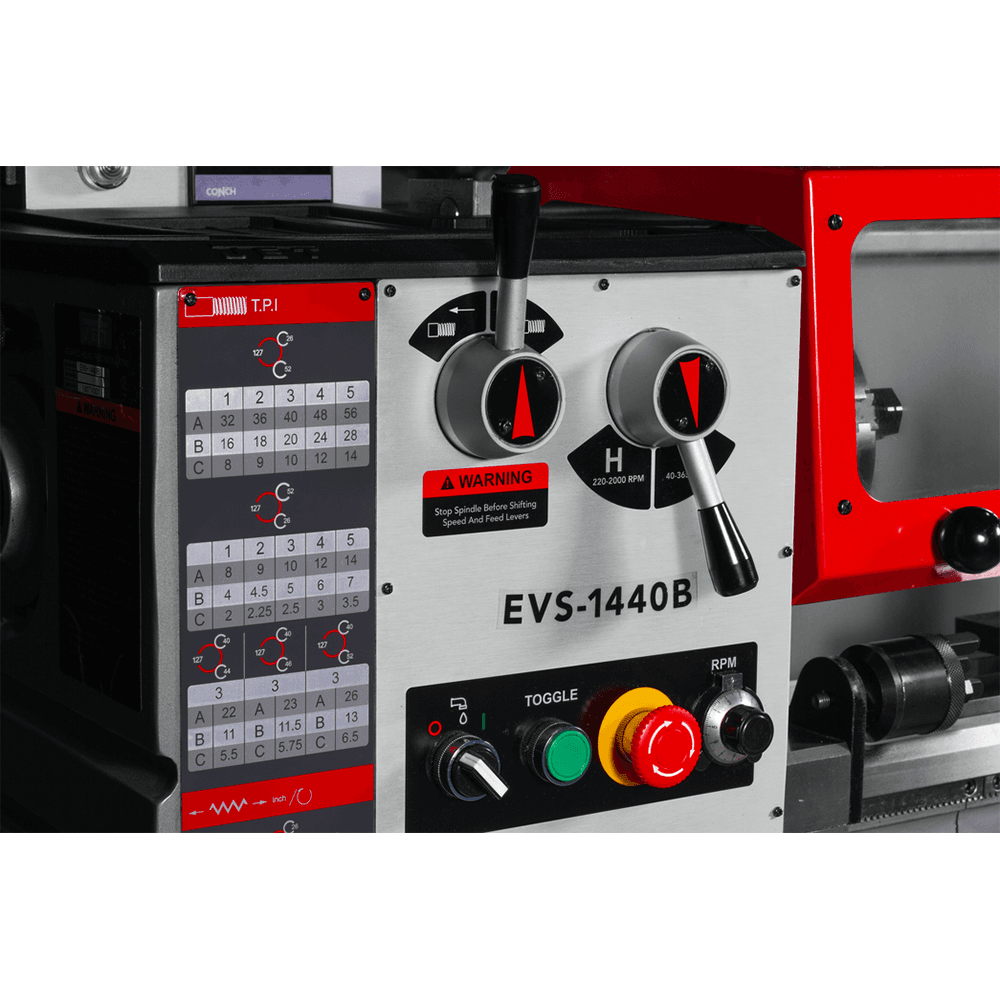

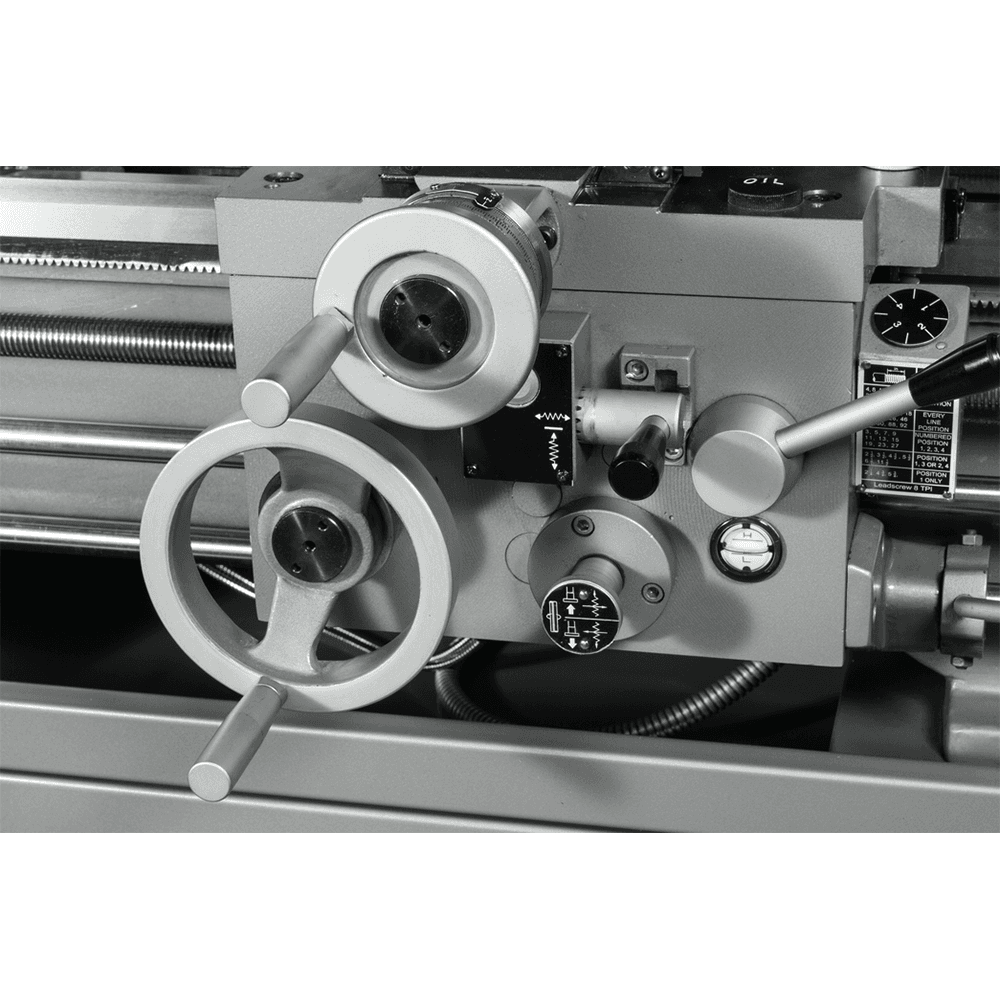

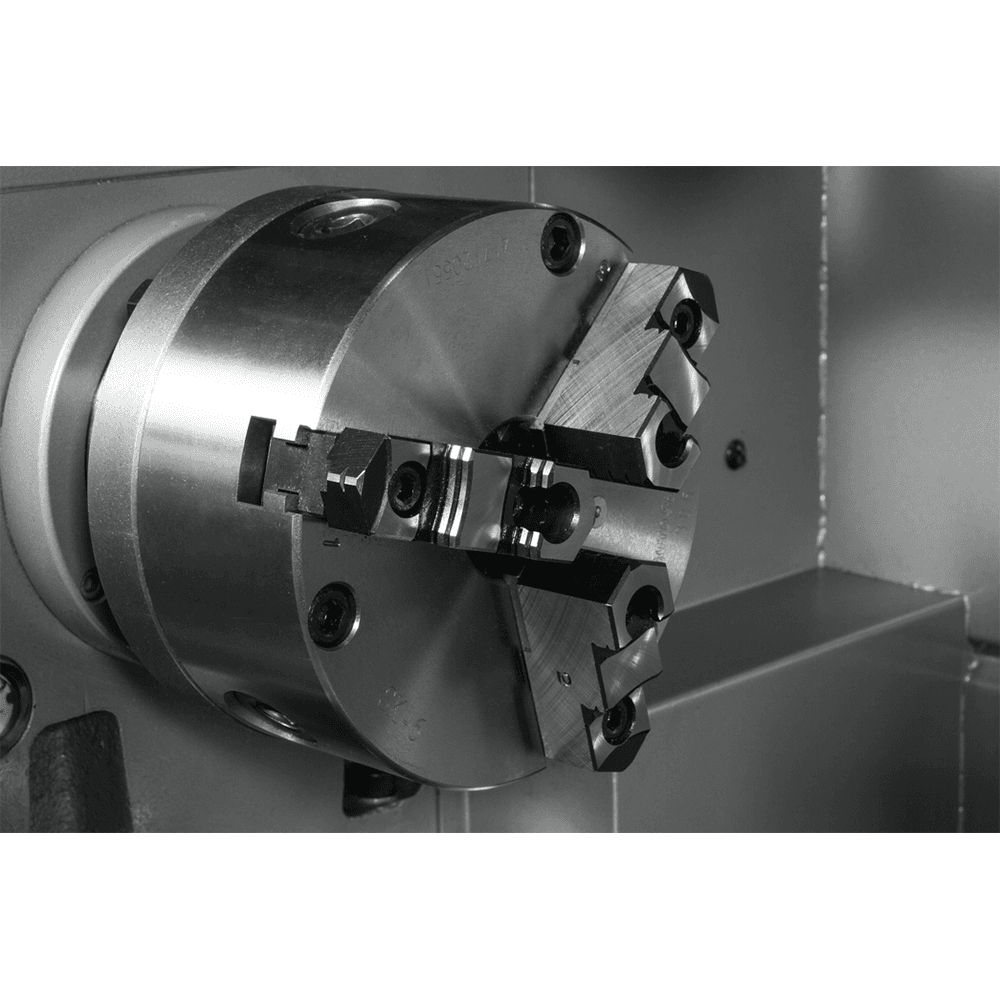

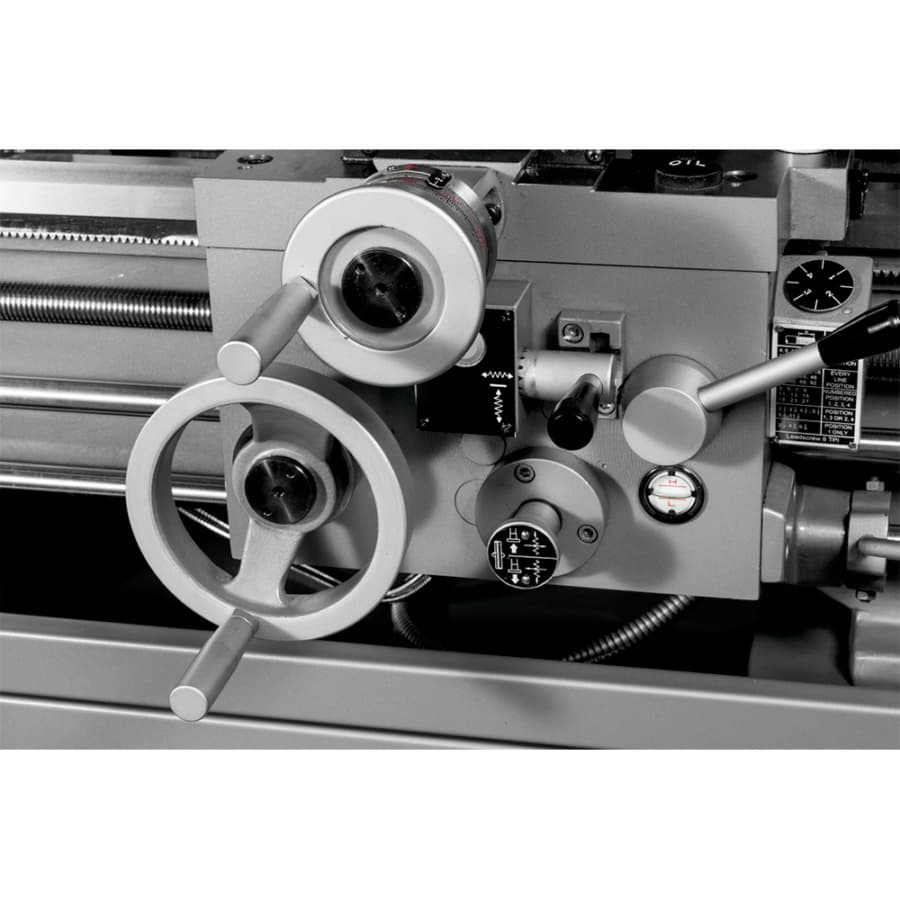

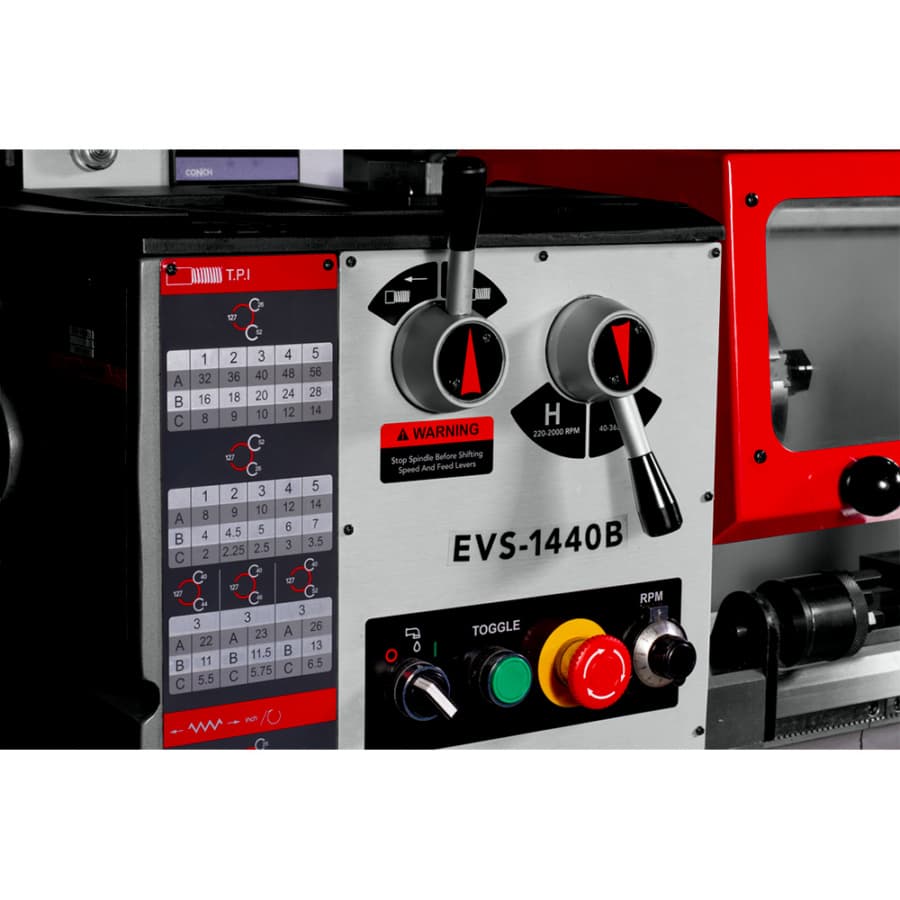

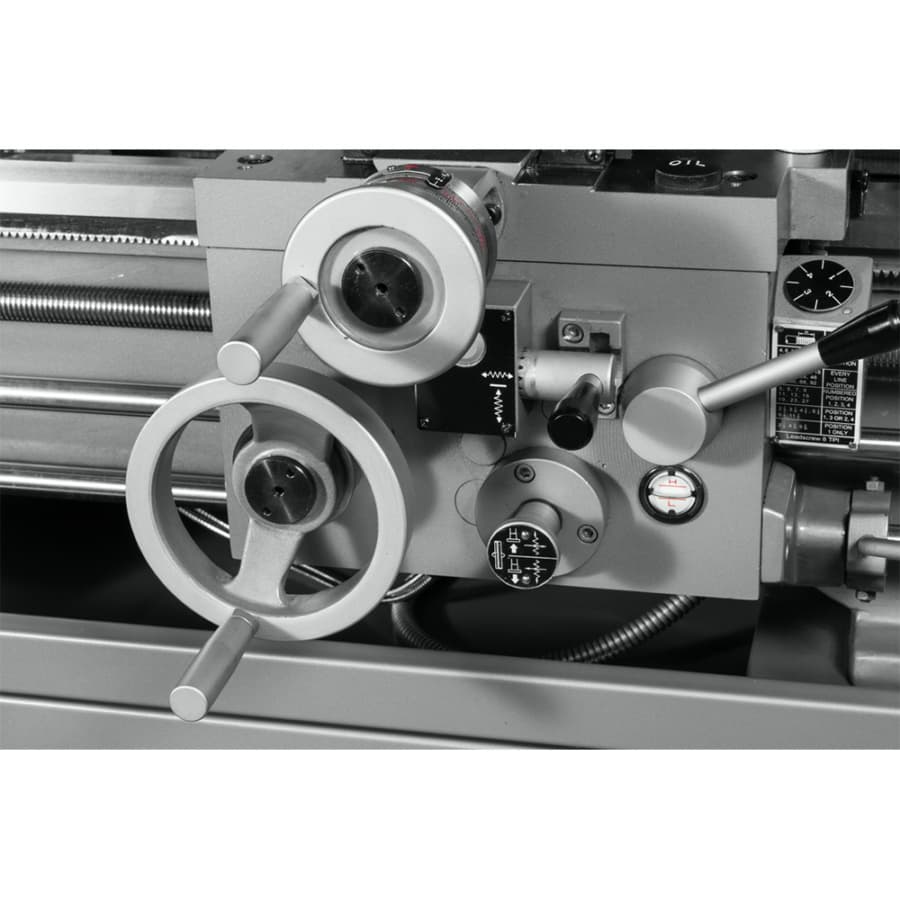

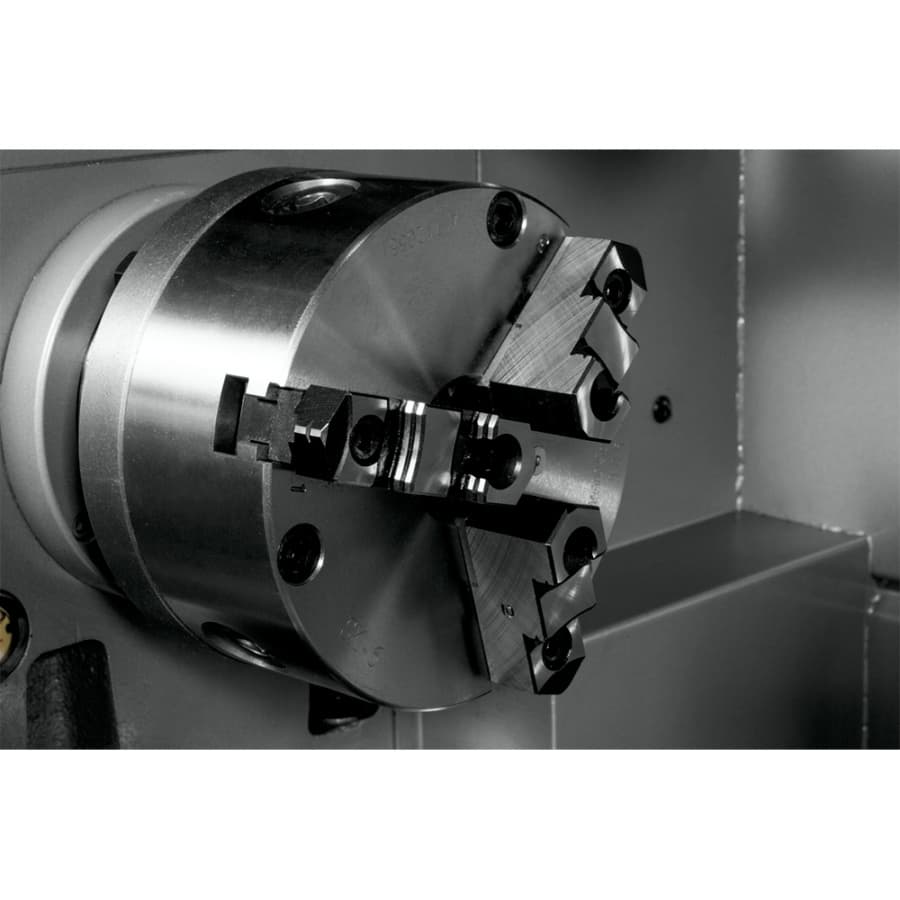

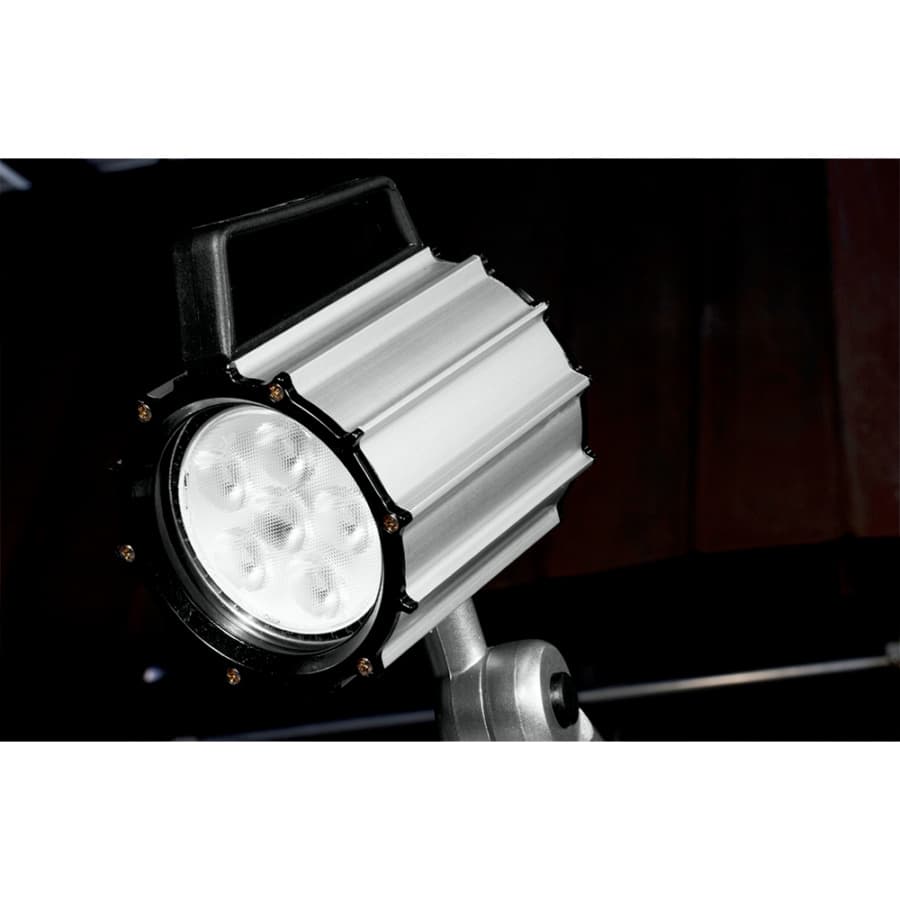

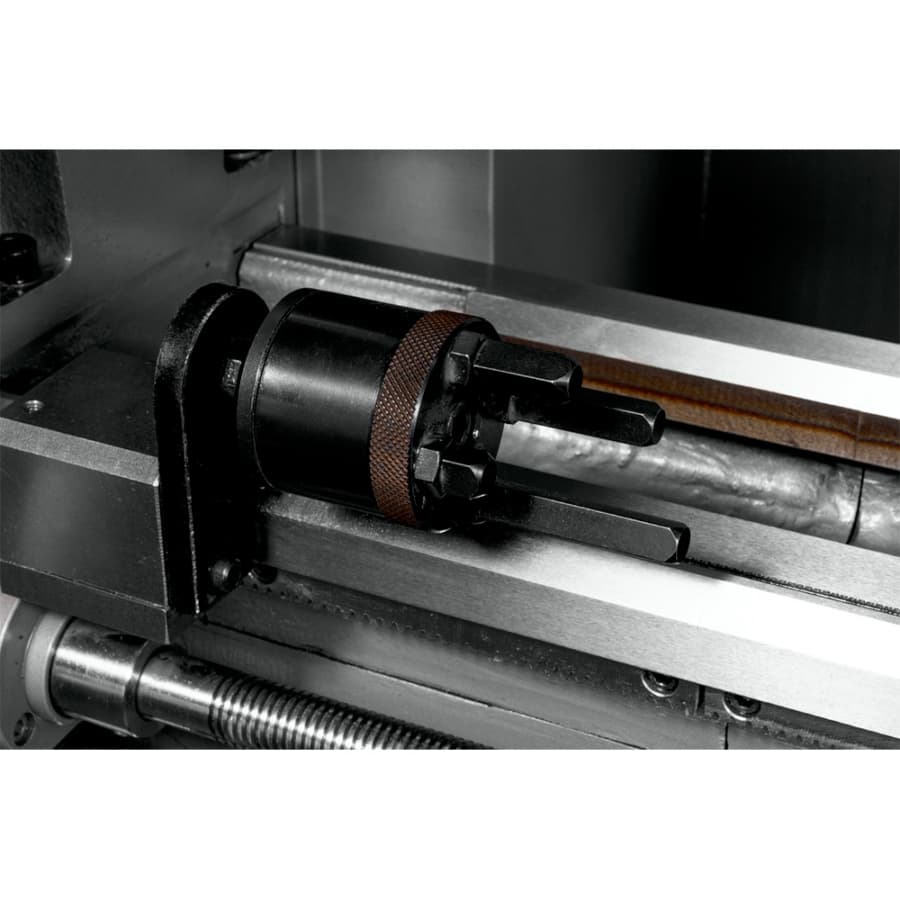

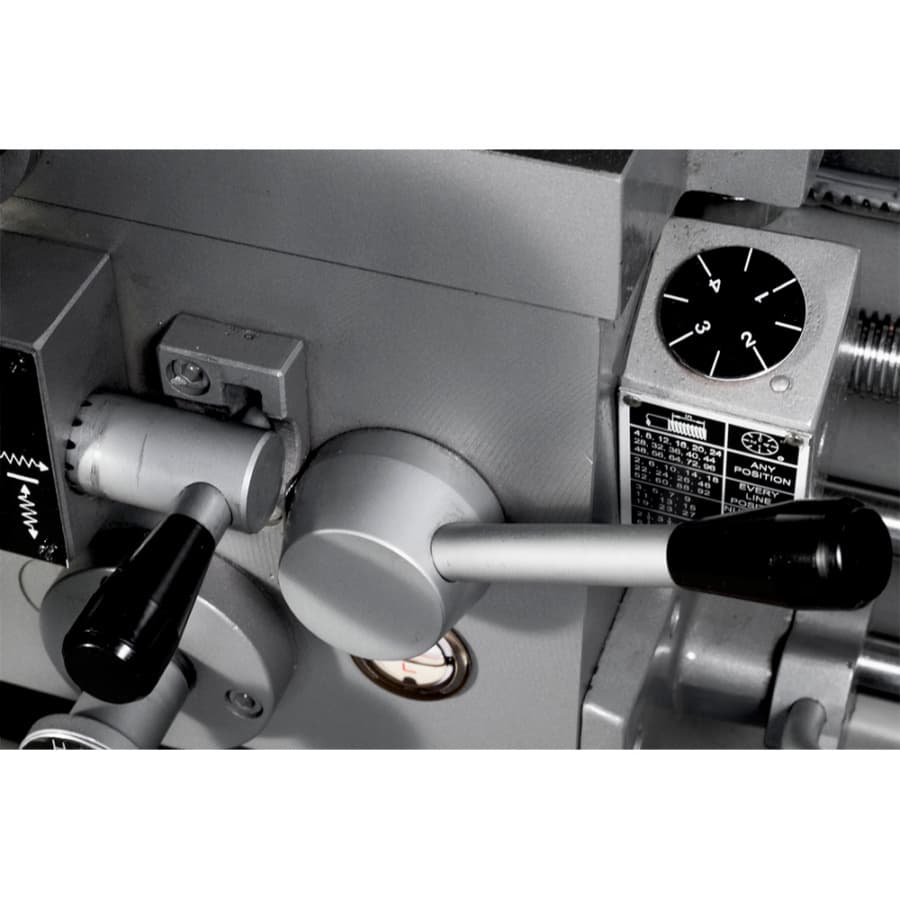

The EVS-1440B is engineered to maximize your shop's output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004". The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Mechanize castings retain their tolerance and remain rigid over many years of machining. Features: • Standard Equipment • 6" 3-Jaw Chuck • Threading Dial Indictor • Steady and Follow Rest • LED Work Lamp • 4-Position Carriage stop • Chuck Guard • Threading Dial Indicator • Compound and cross slide have backlash elimination • Electronic Chuck Key Docking Station
Specifications
| Box Quantity | 1 |
| Width of Bed | 7.48" |
| Range of Cross Feeds (IPR) | 25" |
| Product Type | Lathes |
| Overall Height | |
| Overall Dimensions (L x W x H) | 68.5" x 28.3" x 50" |
| Number of Spindle Speeds | Variable |
| Number of Metric Threads | 34 |
| Number of Longitudinal and Cross Feed Rates | 25 |
| Number of Inch Threads | 34 |
| Range of Inch Threads (TPI) | 2-56 T.P.I. |
| Range of Longitudinal Feeds (IPR) | 0.0016-0.0460 |
| Range of Metric Threads | 0.5-12 |
| Taper in Tailstock Spindle | MT-3 |
| Tailstock Spindle Travel | 6-1/8" |
| Swing Through Gap | |
| Swing Over Cross Slide | 9-1/16" |
| Steady Rest Capacity | 0.23" - 0.61" Copper Shaft ( Standard) 0.20" - 2.36" Bearing Roller(OP) |
| Spindle Taper with Sleeve | MT-5 |
| Spindle Mount | D1-4 |
| Range of Spindle Speeds (RPM) | 40-2000 RPM |
| Modular Pitch Threads Range | |
| Modular Pitch Threads Number | |
| Max Tool Size | 3/4" x 3/4" |
| Amperage Draw @ 460V 3Ph | |
| Amperage Draw @ 230V 3Ph | |
| Bed Gap | |
| Swing Over Bed | 14" |
| Size | |
| Motor Amps | |
| Distance Between Centers | 40" |
| Prewired Voltage | 230V |
| Spindle Thread (In./TPI) | 20486 |
| Carriage Travel | |
| Compound Slide Travel | 3-1/2" |
| Length of Gap | 9-1/2" |
| Input Power | 230V 3ph |
| Follow Rest Capacity | |
| Drive | EVS |
| Diametral Pitch Threads Number | |
| Cross Slide Travel | 7" |
| Coolant Pump Motor | |
| Configurator Option Type | Base Machine |
| Configurable Base Item | Yes |
| Motor Phase | 3 |
| Speed Range | |
| Centerline of Spindle to Floor (In.) | |
| Spindle Bore | 1-1/2" |
| Headstock Movement | |
| Wiring Remarks | |
| Spindle Taper | Morse #5 |
| Number of Indexing Positions | |
| Swing Over Tool Rest Base (In.) | |
| Motor Power (HP) | 3 HP |
| Outboard Turning | |
| Spindle Speeds | |
| Ram Travel Quill Travel | |
| Bed Construction | |
| Recommended Circuit Size (Amps.) | |
| Quill Taper | |
| Style (Type) | |
| Tailstock Bore | |
| Outboard External Threads (In. x TPI) | |
| Motor Voltage (V.) | 230V |
| Horsepower | |
| Warranty | |
| Height | |
| Phase | |
| Length | |
| Width |
