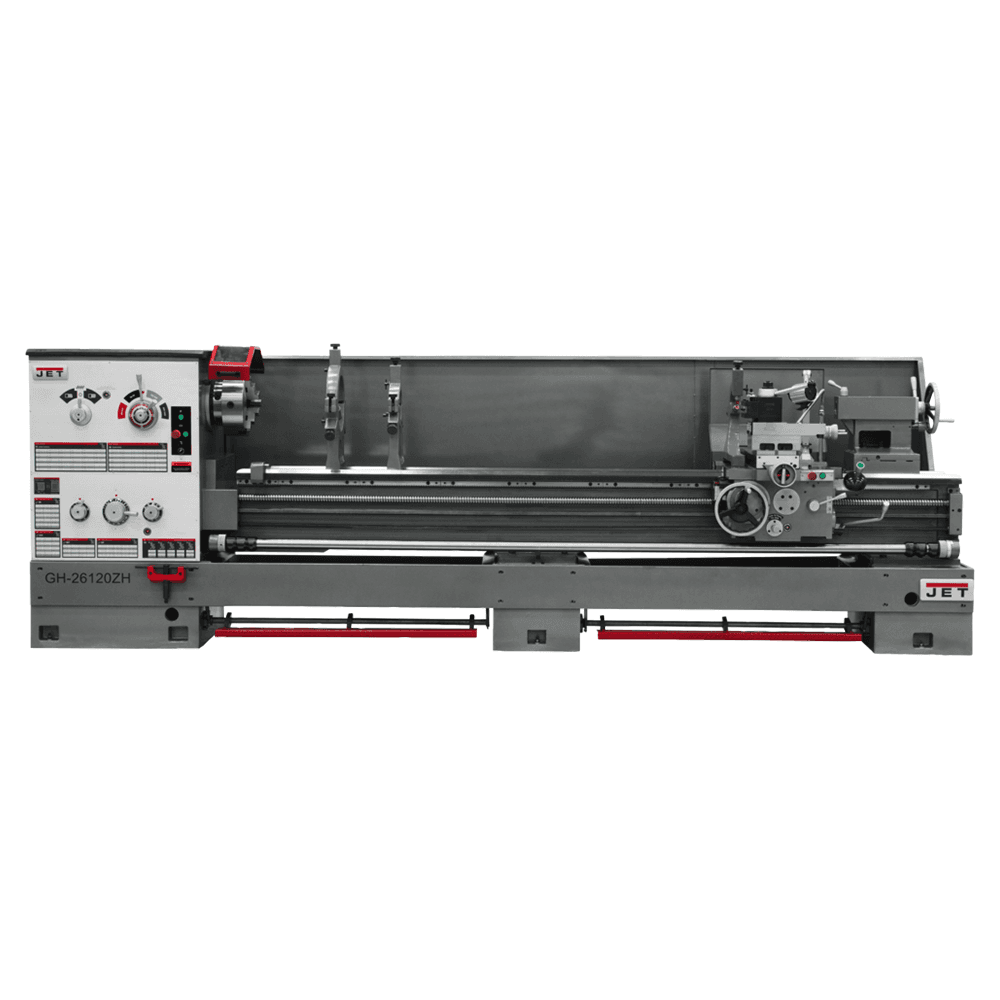

Jet Tools GH-26120ZH 4-1/8" x 10 HP Spindle Bore Geared Head Lathe, 3 Phase/230V/460V
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details

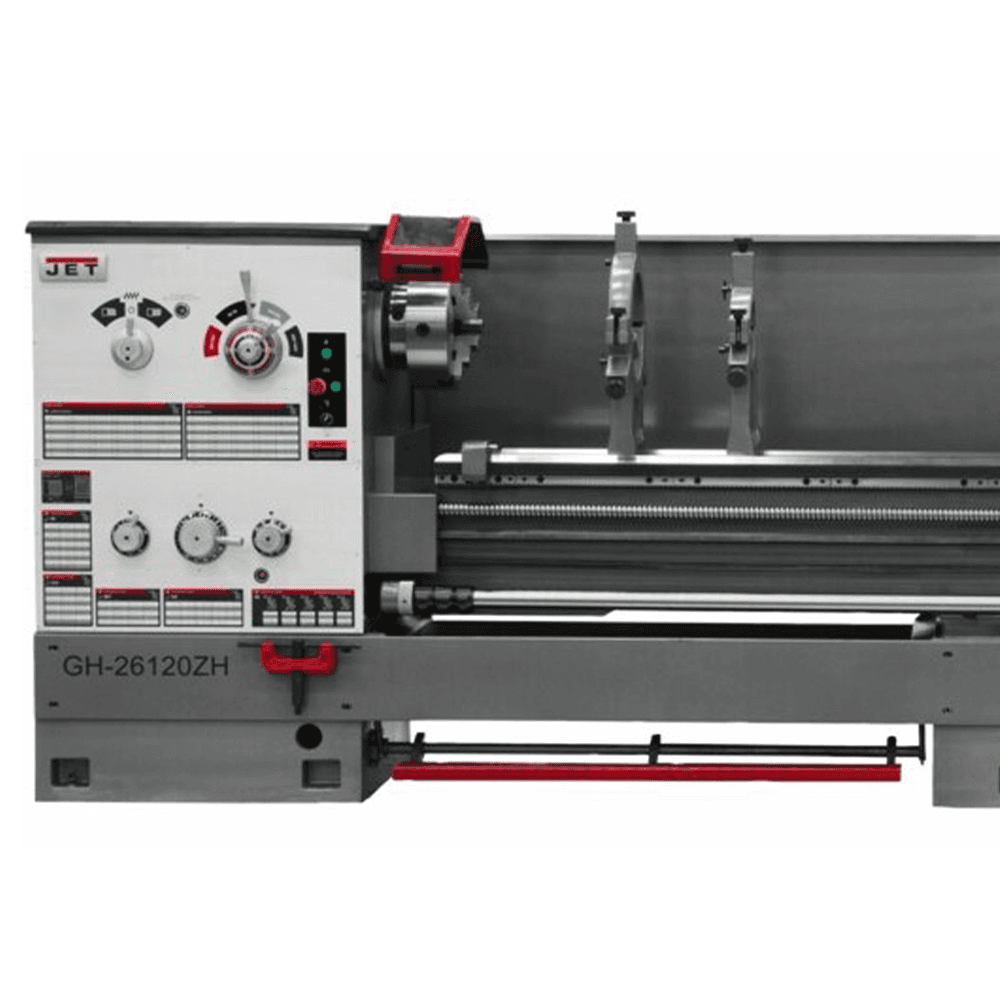

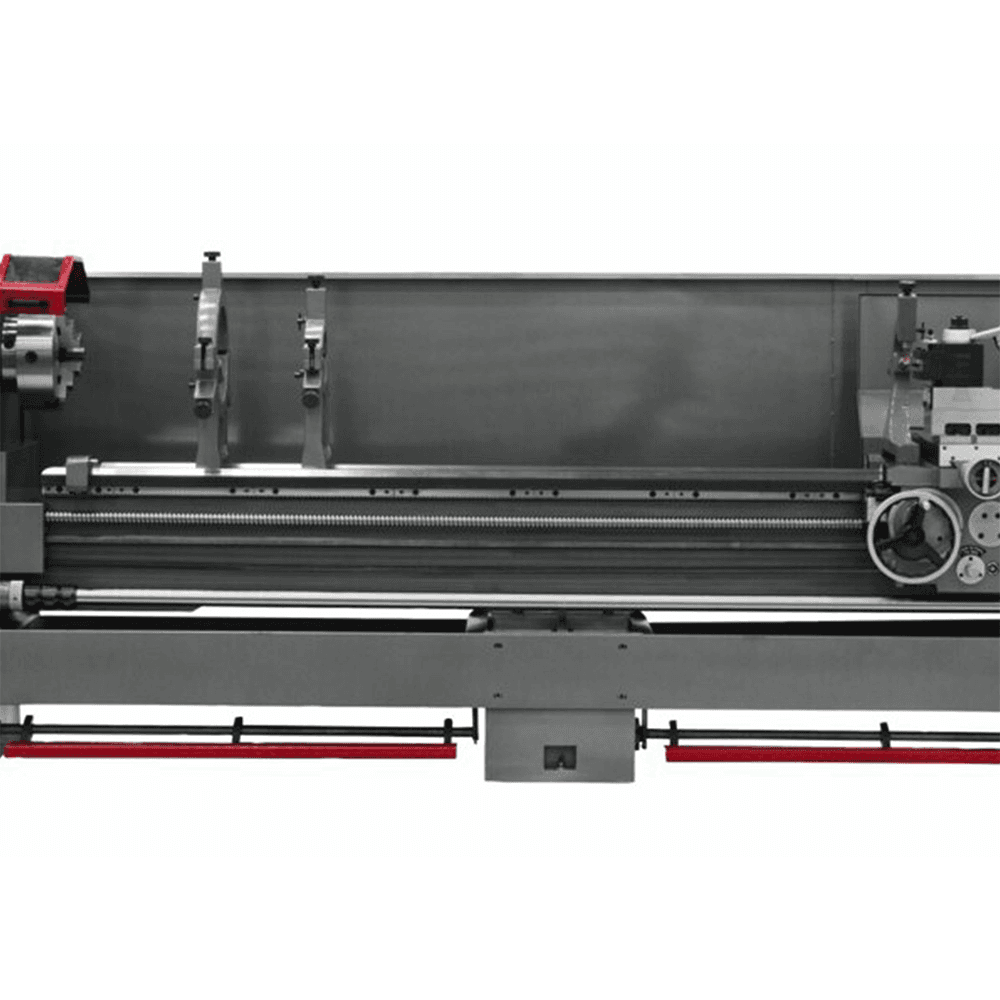

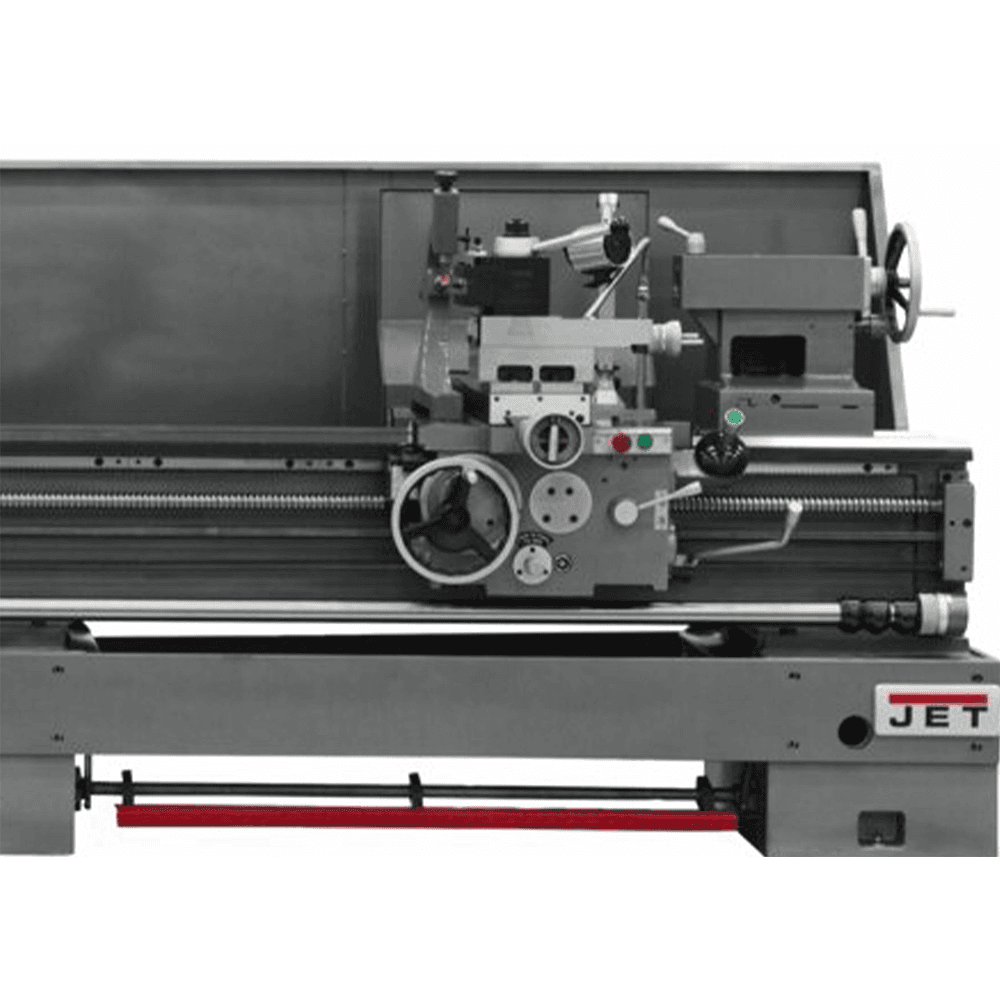

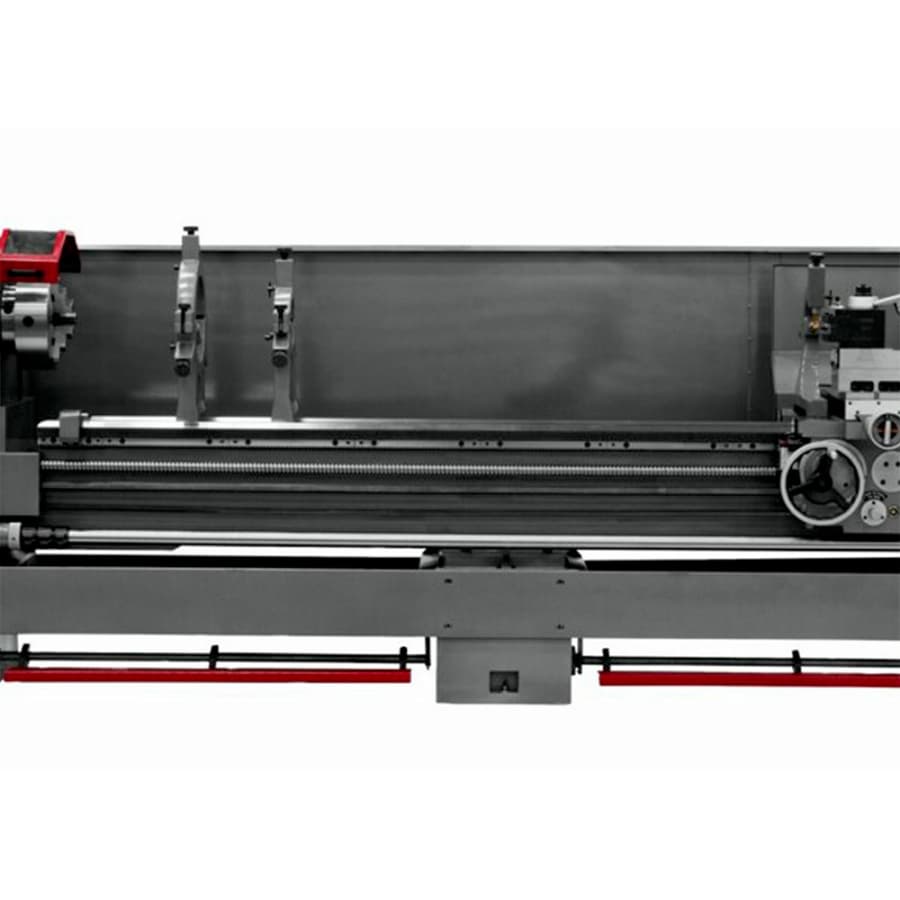

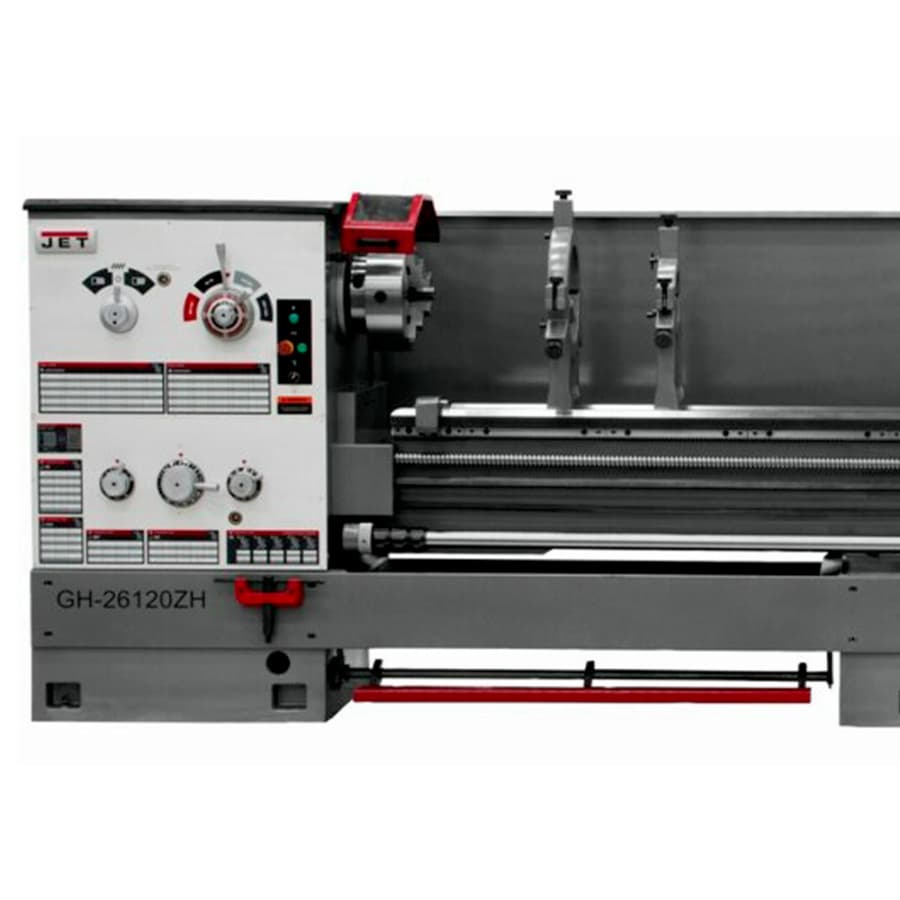

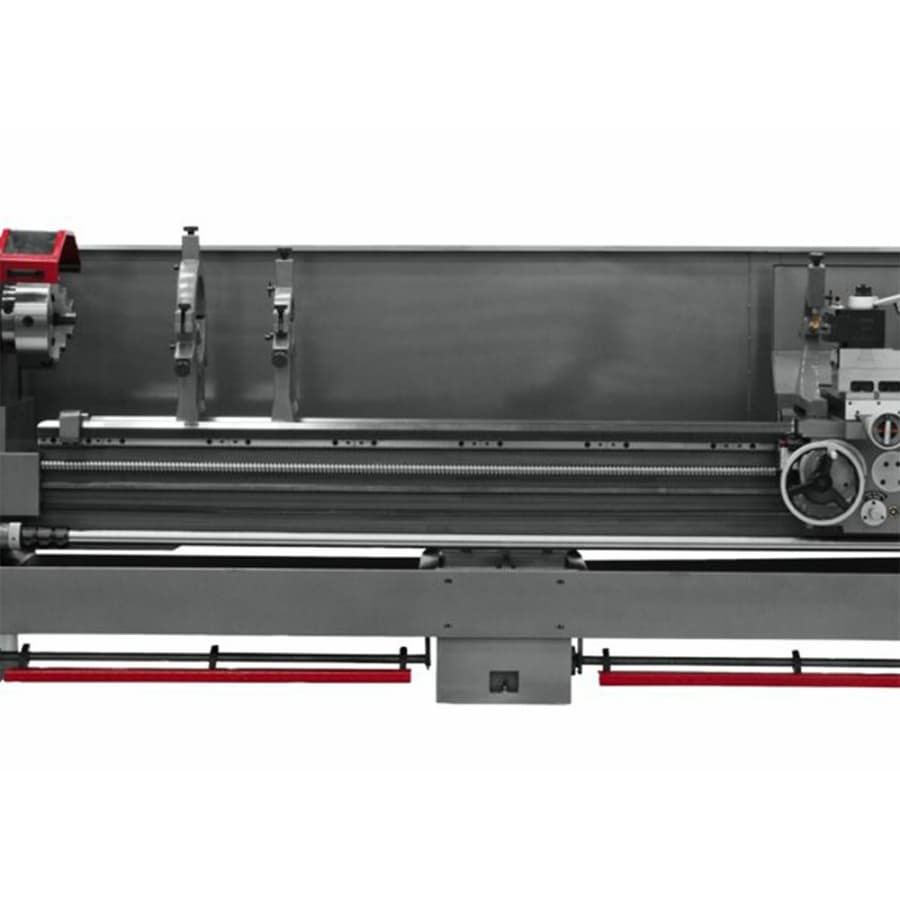

Constructed using the Certified Meehanite® casting process for added durability, the Jet ZH-Series 4-1/8" Spindle Bore Lathes provide consistent and reliable operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a Jet Lathe that is backed by the industry-leading Jet Two Year Warranty. Features: • 12" 3 Jaw scroll chuck with top reversing jaws • 2 Steady rests with roller bearings • Bed ways are induction hardened and ground for durability • E-Stop on Carriage for added safety • Electronic Chuck Key Holder • Fitted top mats to hold tooling • Full Length Splash Guard • Heavy-duty tailstock and quill • Large easy to use foot brake • Rapid power traverse to cross slide and carriage
Specifications
| Box Quantity | 1 |
| Width of Bed | 16" |
| Range of Cross Feeds (IPR) | 0.0040" - 0.0404" |
| Product Type | Lathes |
| Overall Height | 57" |
| Overall Dimensions (L x W x H) | 178" x 43" x 57" |
| Number of Spindle Speeds | 12 |
| Number of Metric Threads | 22 |
| Number of Longitudinal and Cross Feed Rates | 65 |
| Number of Inch Threads | 48 |
| Range of Inch Threads (TPI) | 2 - 30 T.P.I. |
| Range of Longitudinal Feeds (IPR) | 0.0023 - 0.0937 |
| Range of Metric Threads | 14-Jan |
| Taper in Tailstock Spindle | MT-5 |
| Tailstock Spindle Travel | 6" |
| Swing Through Gap | 34" |
| Swing Over Cross Slide | 16-1/2" |
| Steady Rest Capacity | Small 25/32" - 4-29/32", Large 3-15/16" - 9-7/16" |
| Spindle Taper with Sleeve | MT-5 |
| Spindle Mount | D1-8 |
| Range of Spindle Speeds (RPM) | 36 - 1600 RPM |
| Modular Pitch Threads Range | 0.5-7 |
| Modular Pitch Threads Number | 18 |
| Max Tool Size | 1-1/4" x 1-1/4" |
| Amperage Draw @ 460V 3Ph | |
| Amperage Draw @ 230V 3Ph | |
| Bed Gap | 8" |
| Swing Over Bed | 26" |
| Size | 26" x 120" |
| Motor Amps | |
| Distance Between Centers | |
| Prewired Voltage | 176V x 43V x 57V |
| Spindle Thread (In./TPI) | |
| Carriage Travel | 108-1/4" |
| Compound Slide Travel | 5-1/2" |
| Length of Gap | 8" |
| Input Power | |
| Follow Rest Capacity | |
| Drive | Geared Head |
| Diametral Pitch Threads Number | 22 |
| Cross Slide Travel | |
| Coolant Pump Motor | 8-Jan |
| Configurator Option Type | Base Machine |
| Configurable Base Item | Yes |
| Motor Phase | 3 |
| Speed Range | |
| Centerline of Spindle to Floor (In.) | |
| Spindle Bore | 4-1/8" |
| Headstock Movement | |
| Wiring Remarks | Additional Fee required to rewire to 460V |
| Spindle Taper | MT5 |
| Number of Indexing Positions | |
| Swing Over Tool Rest Base (In.) | |
| Motor Power (HP) | 10 HP |
| Outboard Turning | |
| Spindle Speeds | 12 |
| Ram Travel Quill Travel | |
| Bed Construction | |
| Recommended Circuit Size (Amps.) | |
| Quill Taper | |
| Style (Type) | |
| Tailstock Bore | |
| Outboard External Threads (In. x TPI) | |
| Motor Voltage (V.) | 230/460V |
| Horsepower | |
| Warranty | |
| Height | |
| Phase | |
| Length | |
| Width |
