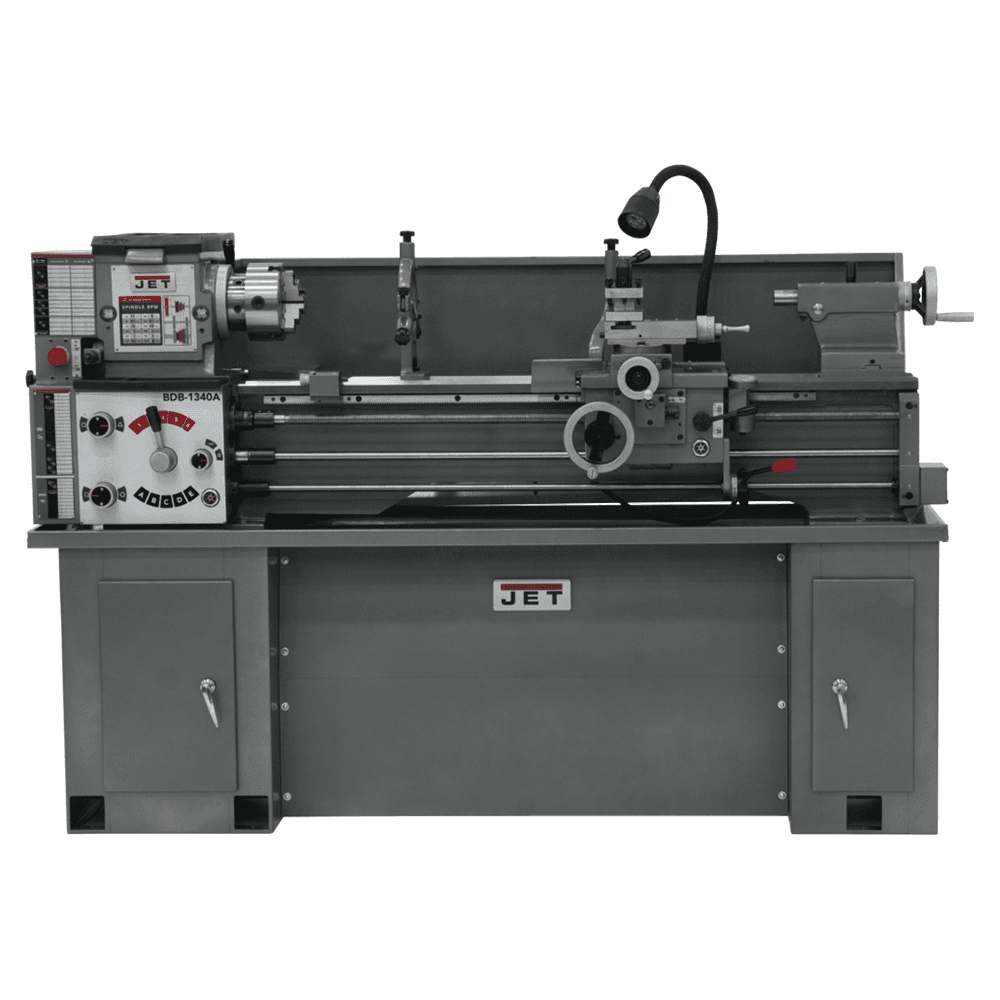

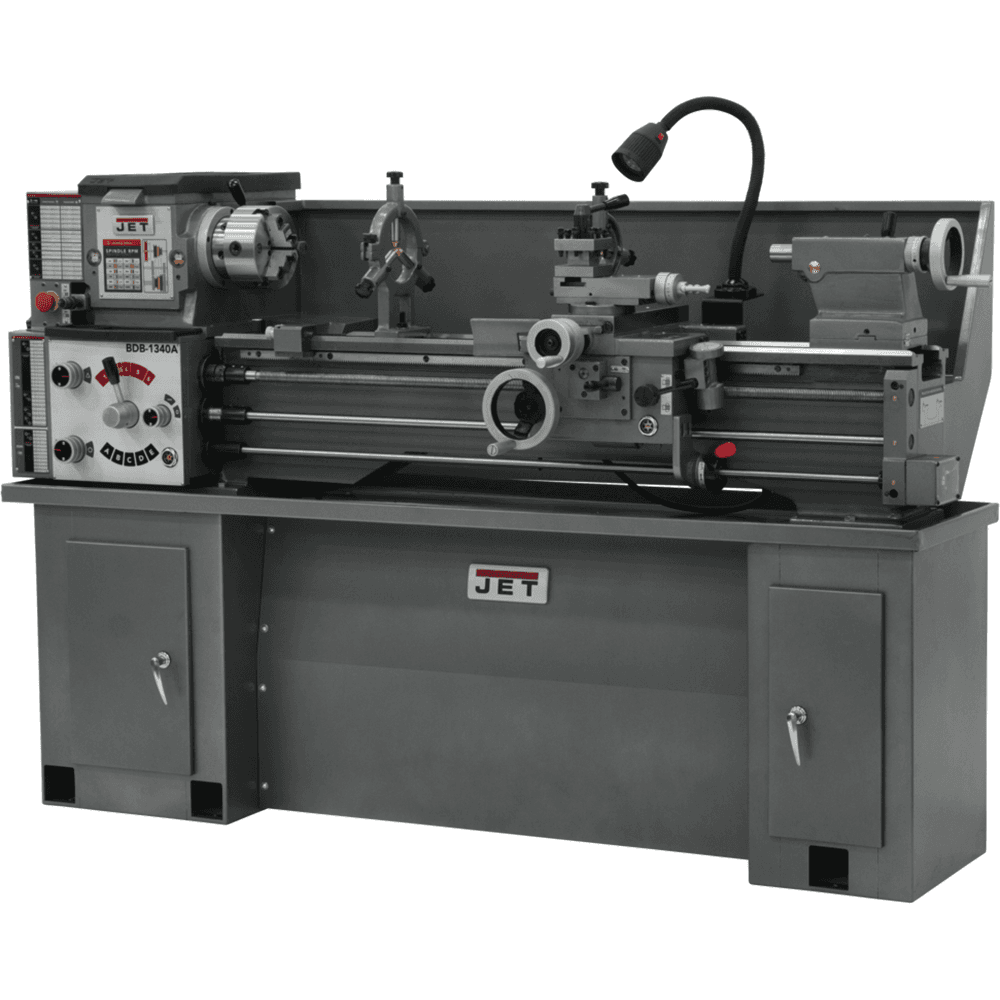

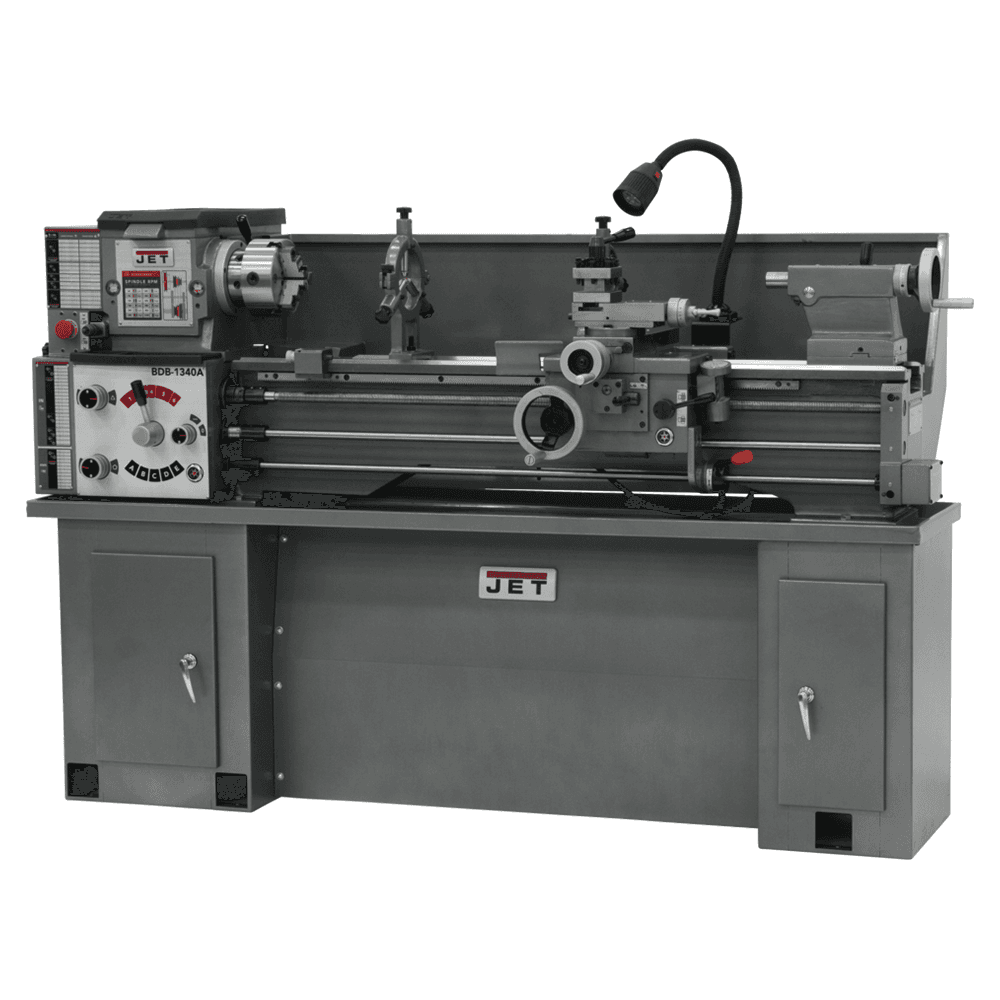

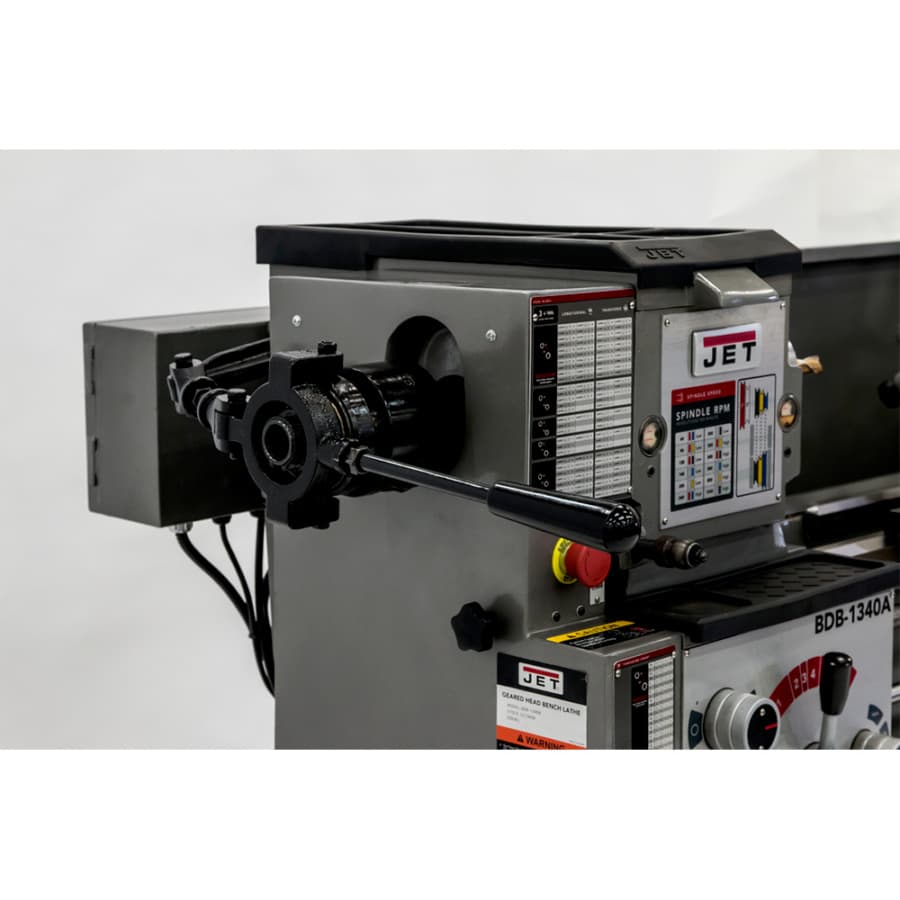

Jet Tools BDB-1340A 2 HP Belt Drive Bench Lathe, 1 Phase/230V
This item may incur additional shipping costs and lead times.
Product Details
Jet Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full-length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick-change gearbox allows for fast and easy gear changes for metric threading. The optional bench shown in the image is compatible with Jet Lathes and is available for purchase. Each Jet Lathe comes loaded with features you've come to expect, all backed by the industry leading Jet Two Year Warranty. Features: • 6" 3-jaw direct mount scroll chuck with top reversing jaws • Automatic feeding and threading are fully interlocked • Carriage mounted spindle control lever • Centers and headstock center sleeves • Feed selectors travel in grooved ways • Independent lead screw and feed rod • Low voltage motor controls • Spindle is supported by precision tapered roller bearings • Tailstock may be offset for turning taper • Tolerance test certificate included
Specifications
| Box Quantity | 1 |
| Width of Bed | 7-3/8" |
| Range of Cross Feeds (IPR) | 0.0006" - 0.013" |
| Product Type | Lathes |
| Overall Height | |
| Overall Dimensions (L x W x H) | 71" x 32" x 45" |
| Number of Spindle Speeds | 12 |
| Number of Metric Threads | 23 |
| Number of Longitudinal and Cross Feed Rates | 38 |
| Number of Inch Threads | 38 |
| Range of Inch Threads (TPI) | 3-1/2 - 80 T.P.I. |
| Range of Longitudinal Feeds (IPR) | 0.0018-0.0374 |
| Range of Metric Threads | 0.45-10 |
| Taper in Tailstock Spindle | MT-3 |
| Tailstock Spindle Travel | 3-3/4" |
| Swing Through Gap | 18-3/4" |
| Swing Over Cross Slide | 7-25/32" |

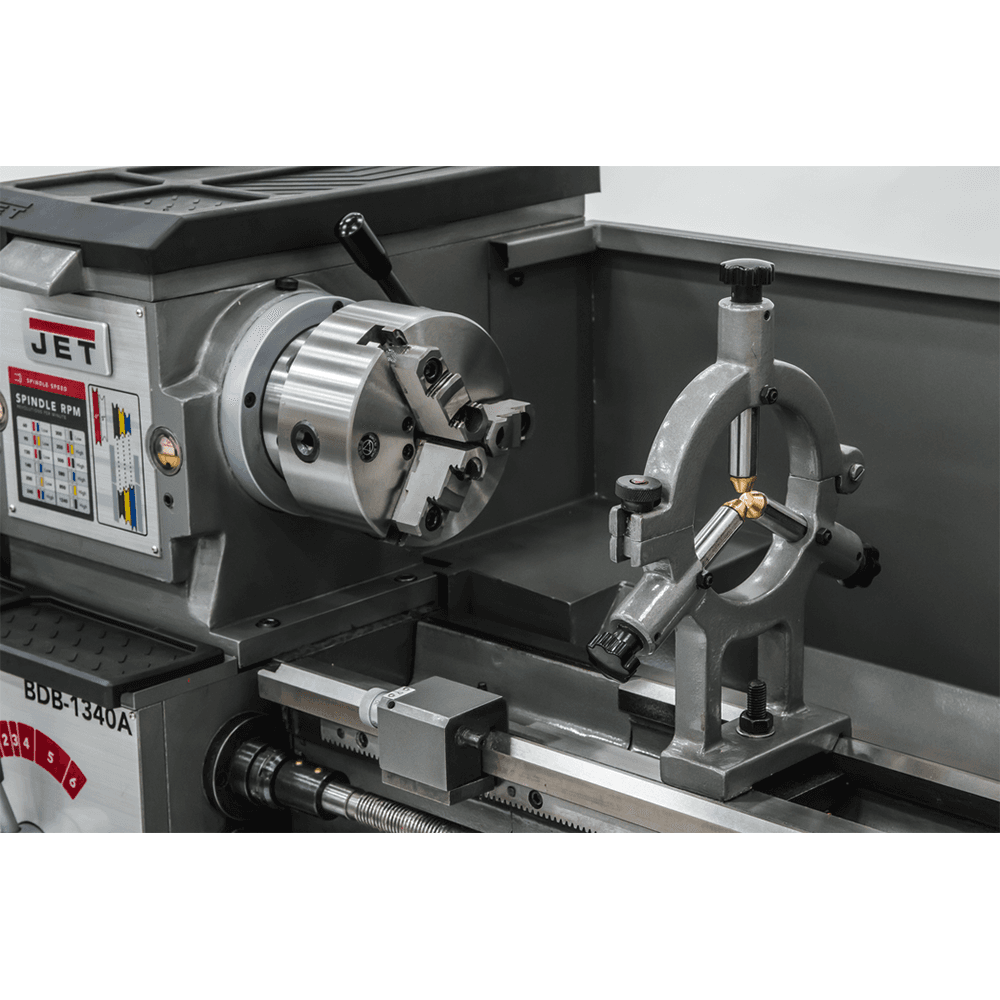

| Steady Rest Capacity | 2-5/8" |
| Spindle Taper with Sleeve | MT-5 (MT-3) |
| Spindle Mount | D1-4 |
| Range of Spindle Speeds (RPM) | 60 - 1240 RPM |
| Modular Pitch Threads Range | |
| Modular Pitch Threads Number | |
| Max Tool Size | 5/8" x 5/8" |
| Amperage Draw @ 460V 3Ph | |
| Amperage Draw @ 230V 3Ph | |
| Bed Gap | |
| Swing Over Bed | 13" |
| Size | 13" x 40" |
| Motor Amps | |
| Distance Between Centers | |
| Prewired Voltage | |
| Spindle Thread (In./TPI) | |
| Carriage Travel | 35" |
| Compound Slide Travel | 2-11/16" |
| Length of Gap | 8" |
| Input Power | |
| Follow Rest Capacity | |
| Drive | Belt |
| Diametral Pitch Threads Number | |
| Cross Slide Travel | |
| Coolant Pump Motor | |
| Configurator Option Type | Base Machine |
| Configurable Base Item | Yes |
| Motor Phase | 1 |
| Speed Range | |
| Centerline of Spindle to Floor (In.) | |
| Spindle Bore | 1-3/8" |
| Headstock Movement | |
| Wiring Remarks | |
| Spindle Taper | |
| Number of Indexing Positions | |
| Swing Over Tool Rest Base (In.) | |
| Motor Power (HP) | 2 HP |
| Outboard Turning | |
| Spindle Speeds | |
| Ram Travel Quill Travel | |
| Bed Construction | |
| Recommended Circuit Size (Amps.) | |
| Quill Taper | |
| Style (Type) | |
| Tailstock Bore | |
| Outboard External Threads (In. x TPI) | |
| Motor Voltage (V.) | 230V |
| Horsepower | |
| Warranty | |
| Height | |
| Phase | |
| Length | |
| Width |
