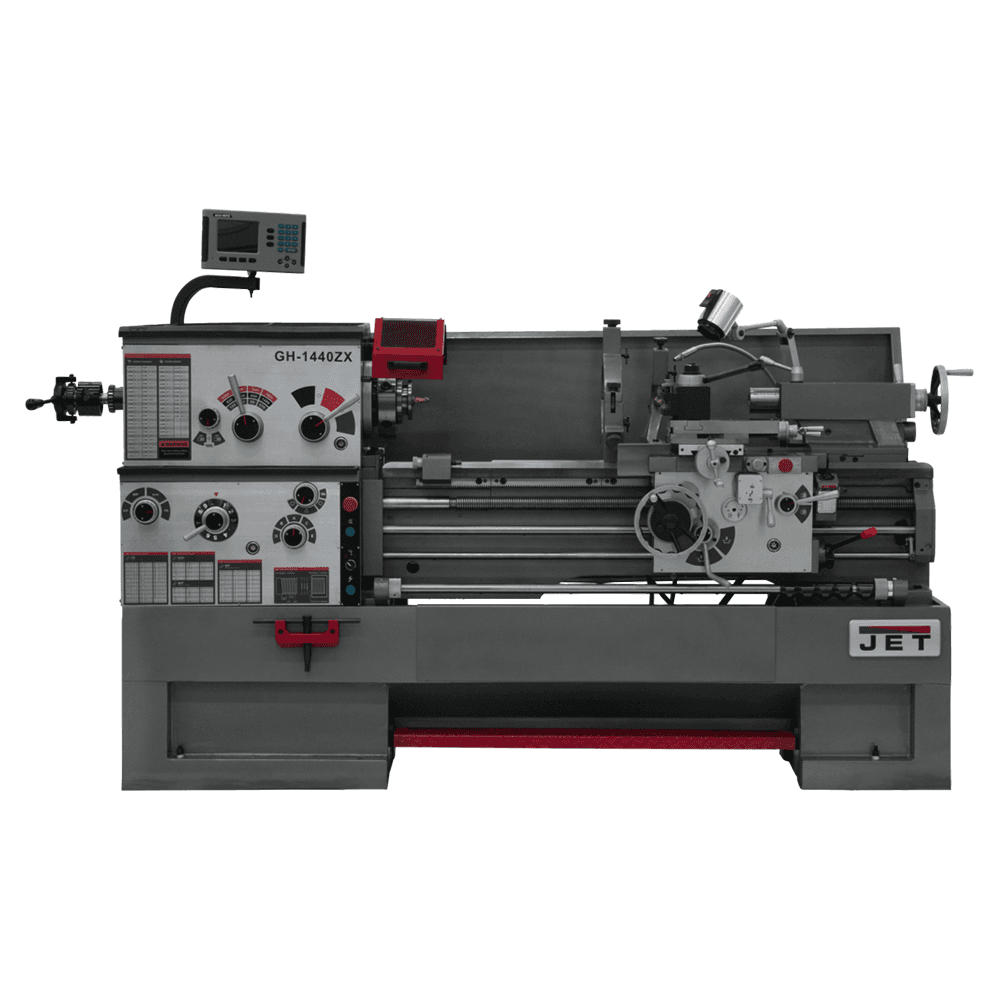

Jet Tools GH-1440ZX 7-1/2 HP Large Spindle Bore Lathe with ACU-RITE 203 DRO/Taper Attachment/Collet Closer, 3 Phase/230V/460V
This item may incur additional shipping costs and lead times.
Product Details

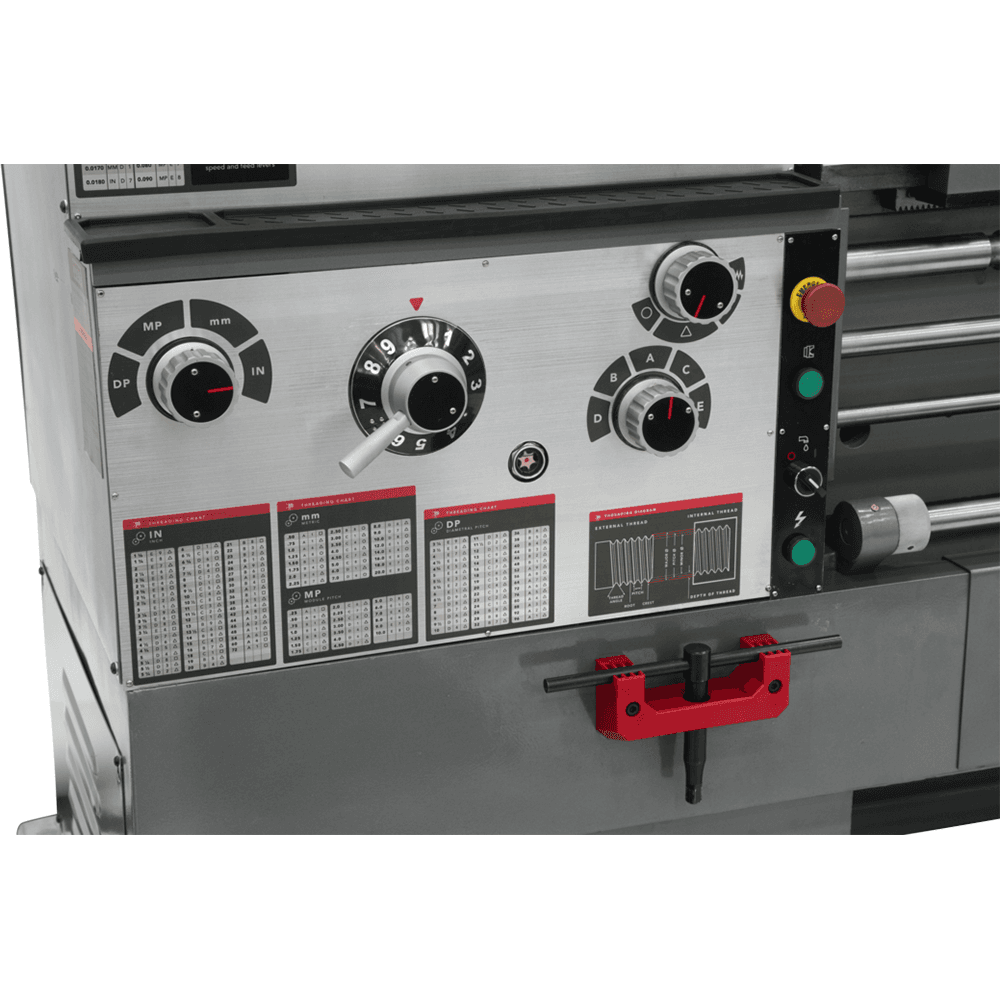

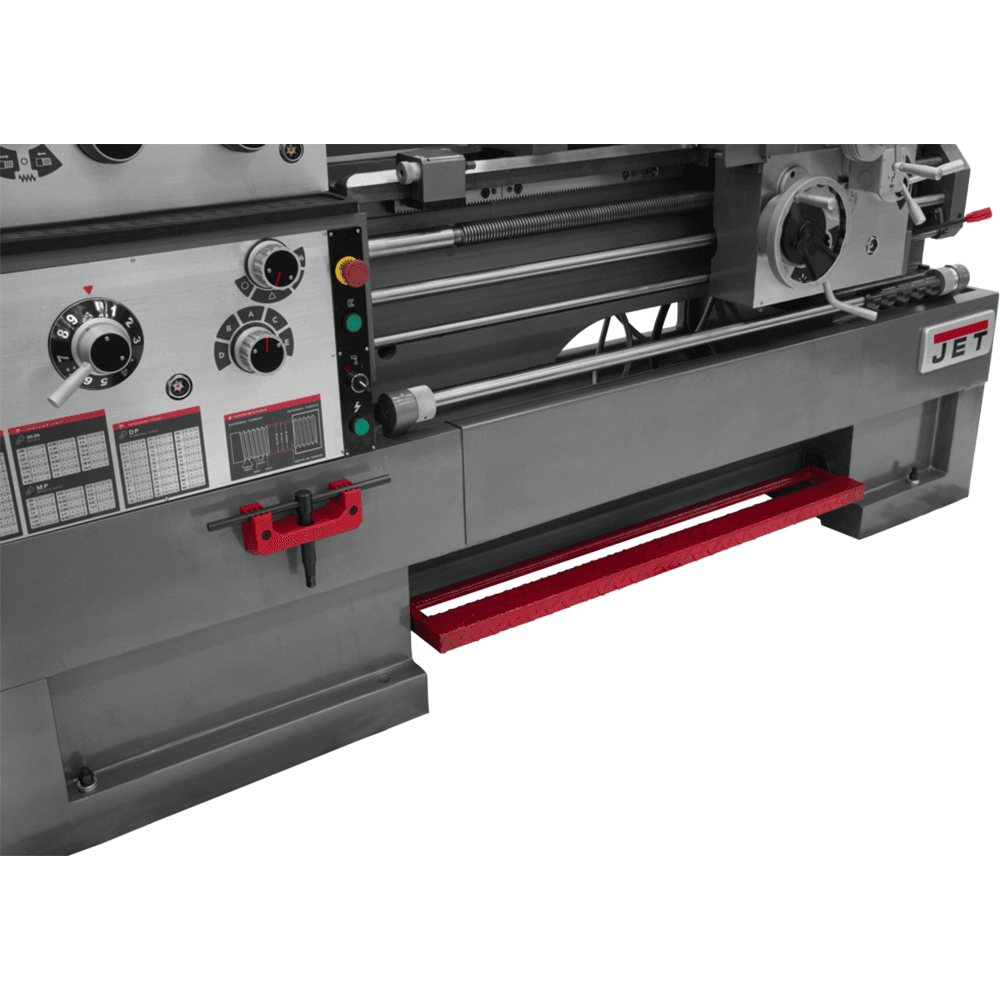

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. This lathe also features a 10" three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you've come to expect in a Jet Lathe that is backed by the industry-leading Jet Two Year Warranty. Features: • Articulating LED work lamp • Centrally located controls with jog button • Electronic Chuck Key Holder • Five position automatic carriage stop increases productivity • Full length splash guard and coolant return • Large capacity steady rest with ball bearing tips • Large easy to use foot brake • Mounting pads and levelers • Removable gap allows large diameter work • Tool box and adjusting tools
Specifications
| Box Quantity | 1 |
| Width of Bed | 13-3/8" |
| Range of Cross Feeds (IPR) | 0.0006" - 0.0360" |
| Product Type | Lathes |
| Overall Dimensions (L x W x H) | 96" x 44" x 66" |
| Number of Spindle Speeds | 12 |
| Number of Metric Threads | 24 |
| Number of Longitudinal and Cross Feed Rates | 46/31 |
| Number of Inch Threads | 61 |
| Range of Inch Threads (TPI) | 1-5/8 - 72 T.P.I. |
| Range of Longitudinal Feeds (IPR) | 0.0015 - 0.0900 |
| Range of Metric Threads | 0.05 - 20 RPM |
| Tailstock Spindle Travel | 6" |
| Swing Through Gap | 23-5/8" |
| Swing Over Cross Slide | 7-5/8" |
| Steady Rest Capacity | 3/8" - 7" |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
| Spindle Mount | D1-8 |
| Range of Spindle Speeds (RPM) | 42 - 1800 |
| Max Tool Size | 1" x 1" |
| Swing Over Bed | 14" |
| Size | 14" x 40" |
| Carriage Travel | 36-9/16" |
| Compound Slide Travel | 5-1/8" |
| Length of Gap | 12" |
| Drive | Geared Head |
| Cross Slide Travel | 9" |
| Configurable Base Item | No |
| Motor Phase | 3 |
| Spindle Bore | 3-1/8" |
| Motor Power (HP) | 7-1/2 HP |
| Motor Voltage (V.) | 230/460V |
