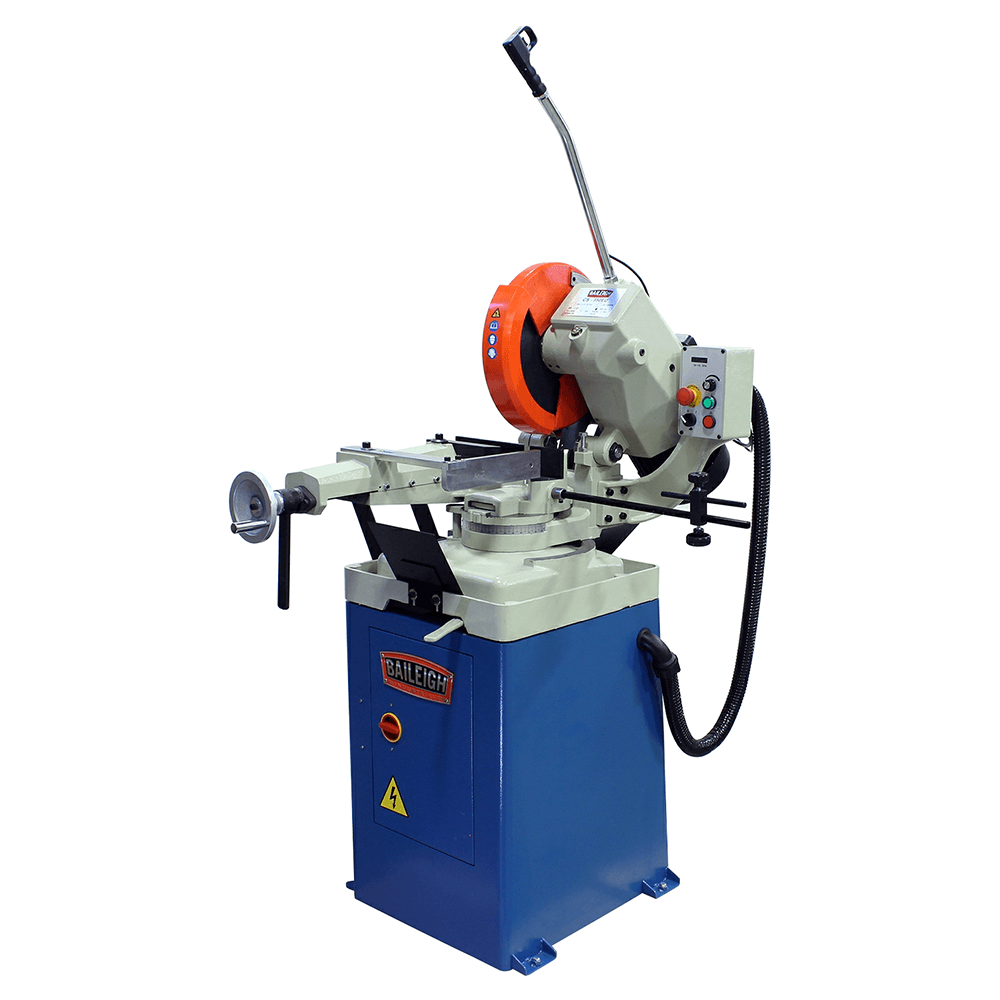

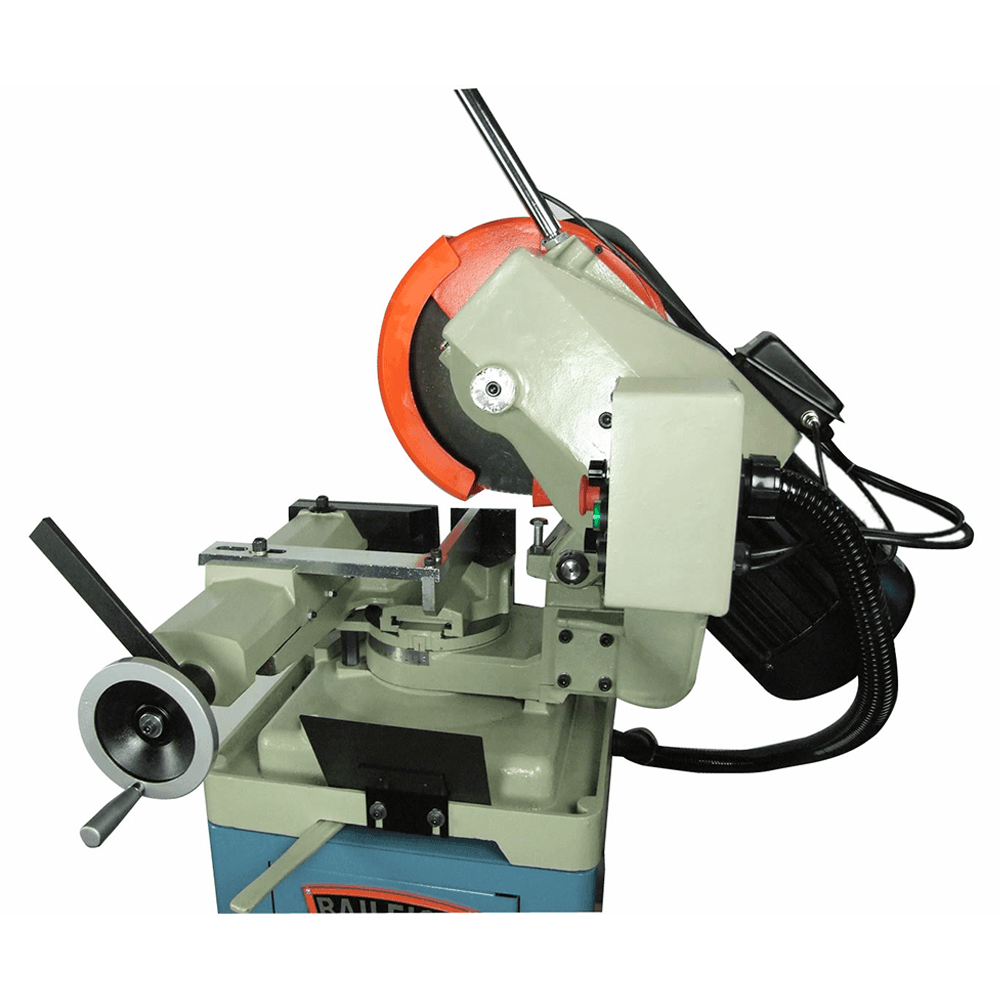

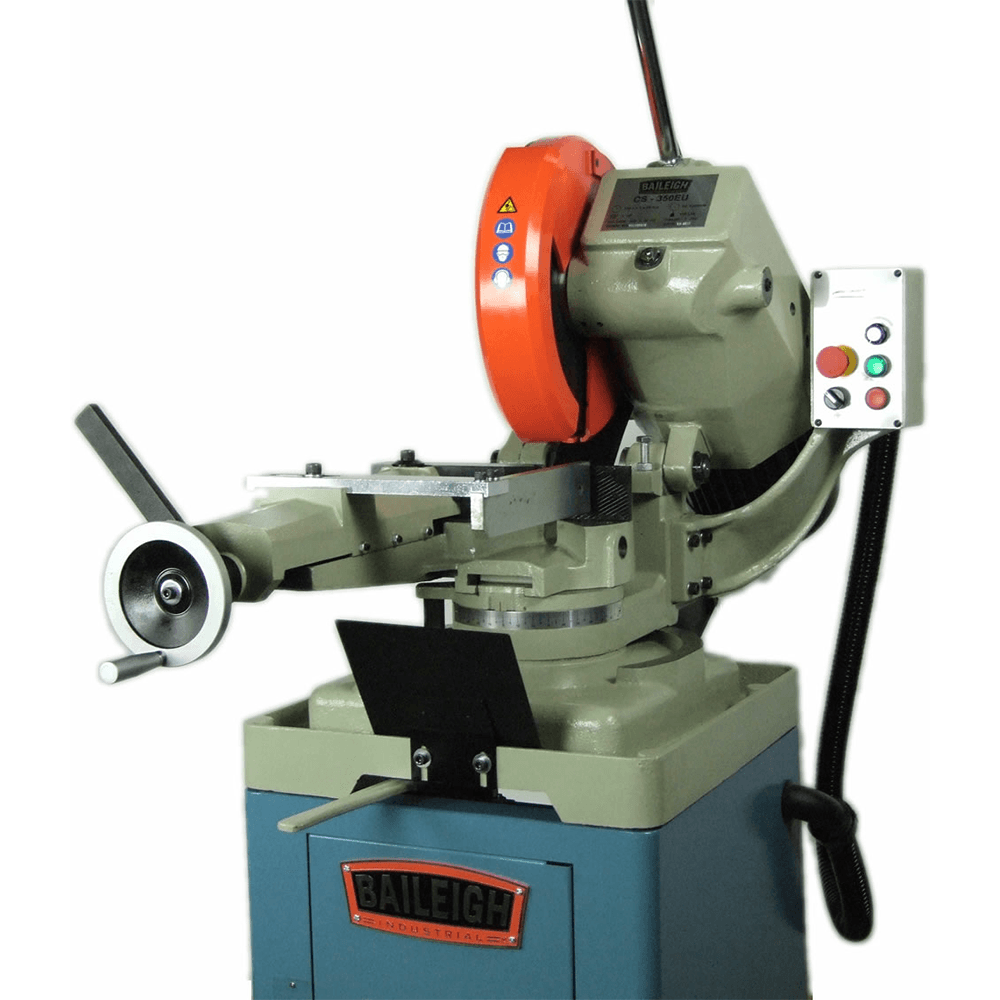

Baileigh CS-350EU 3 HP Variable Speed Circular Cold Saw, 1 Phase/220V
Item # JPWBA9-1002535
•Mfr # BA9-1002535
This item may incur additional shipping costs and lead times.
Product Details
This variable-speed manual cold saw will make burr-free cuts in larger pieces of material. The cast iron base and flood coolant system help the saw stay accurate for many years
Recommended for:

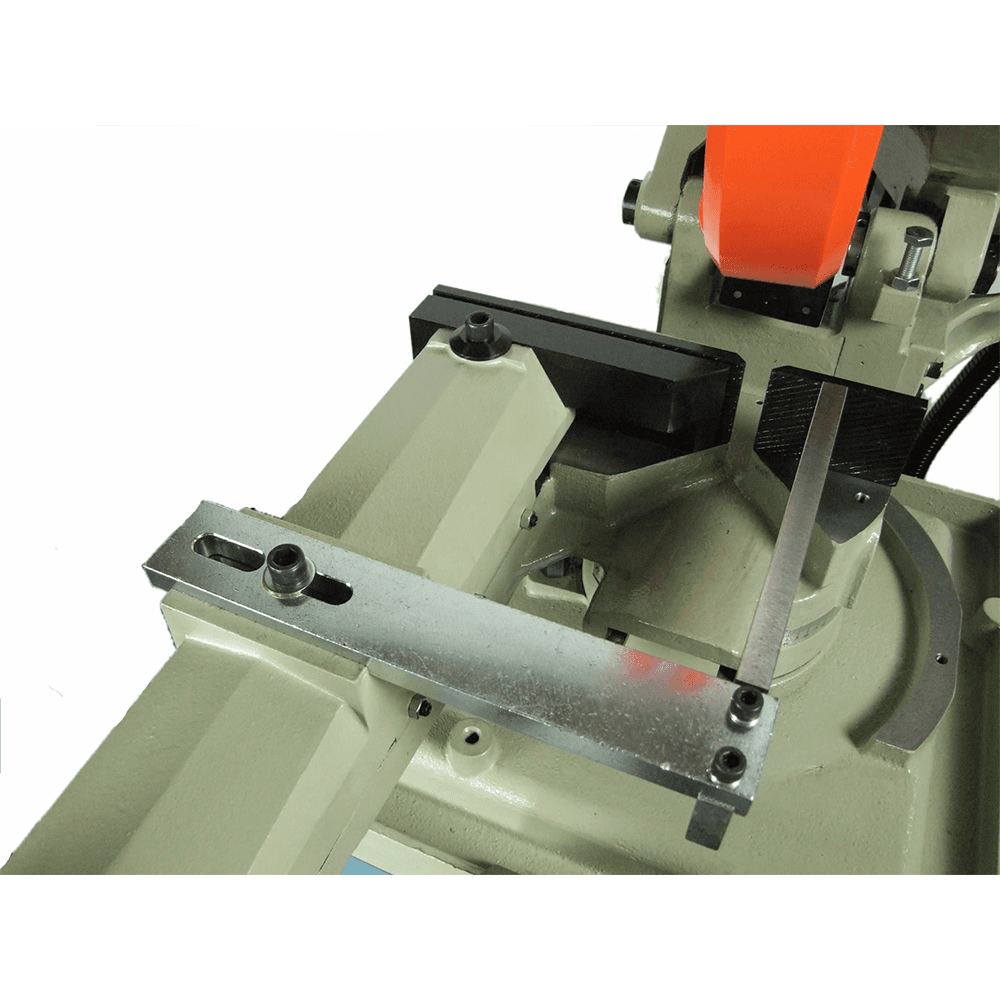

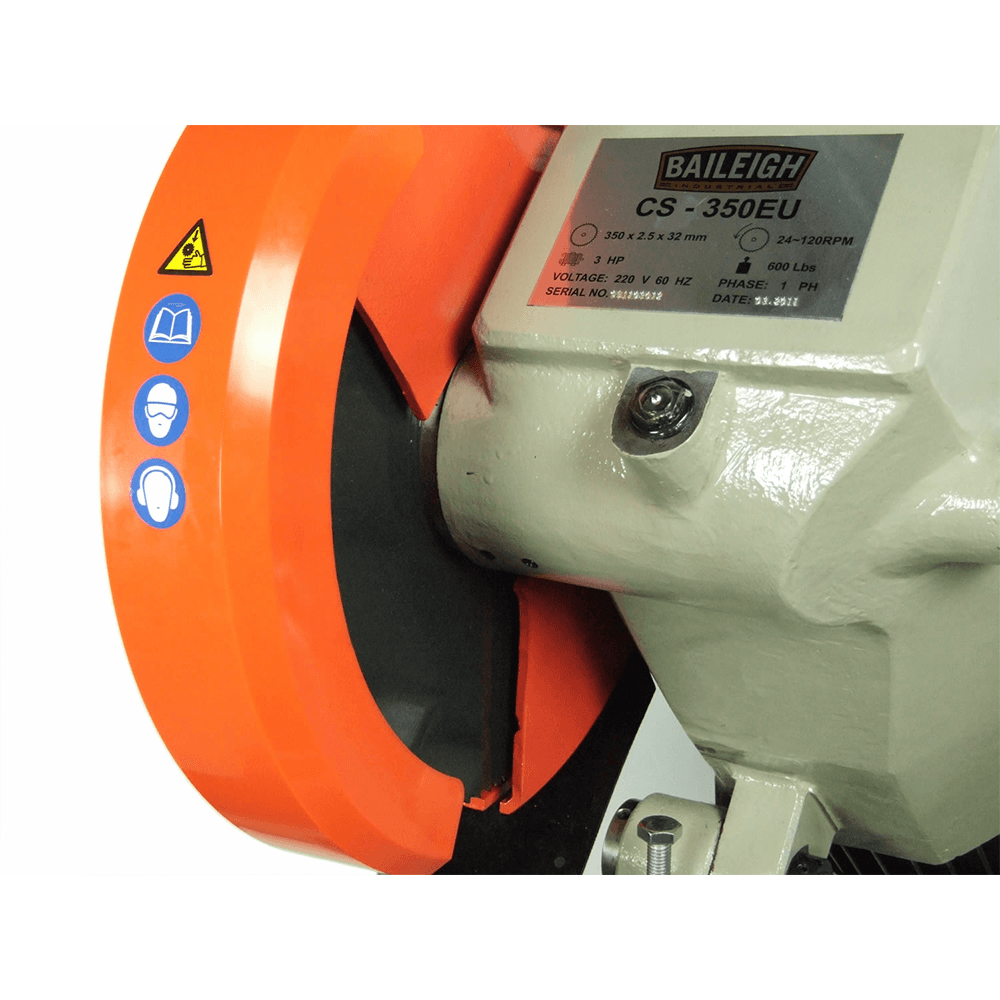

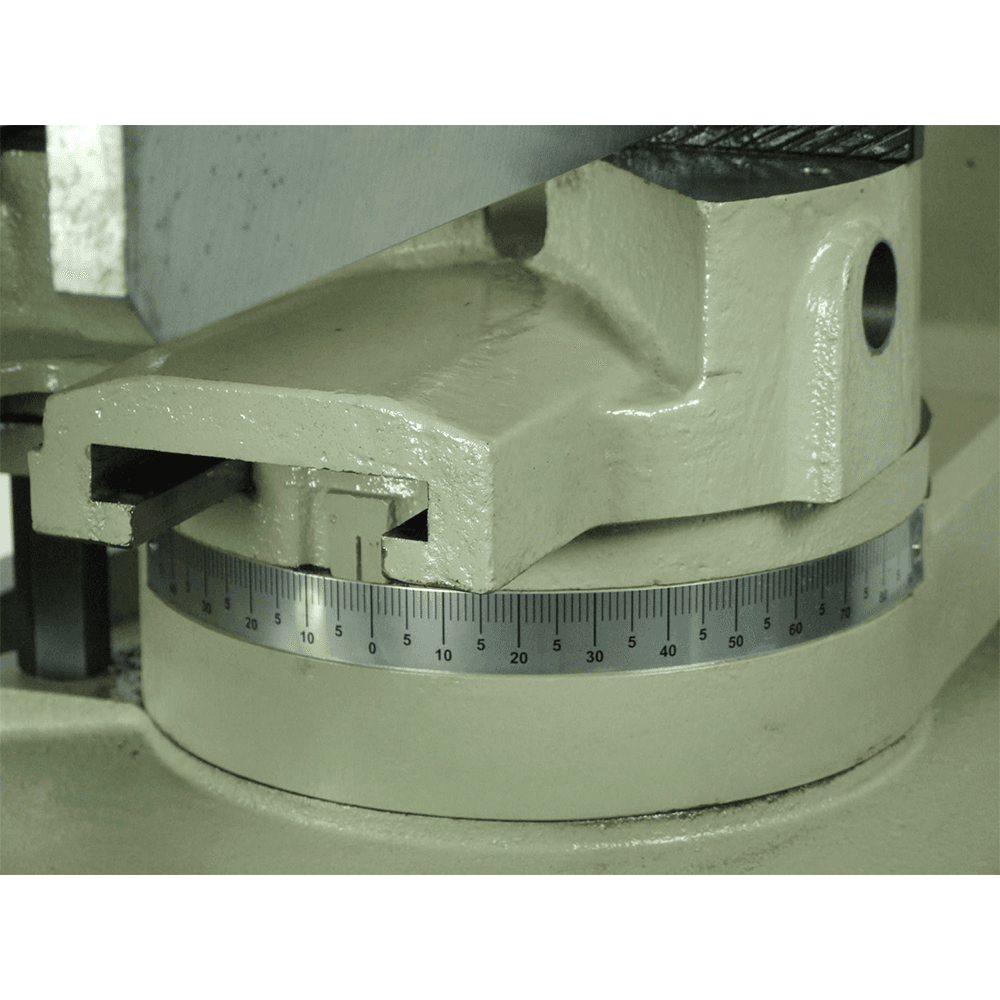

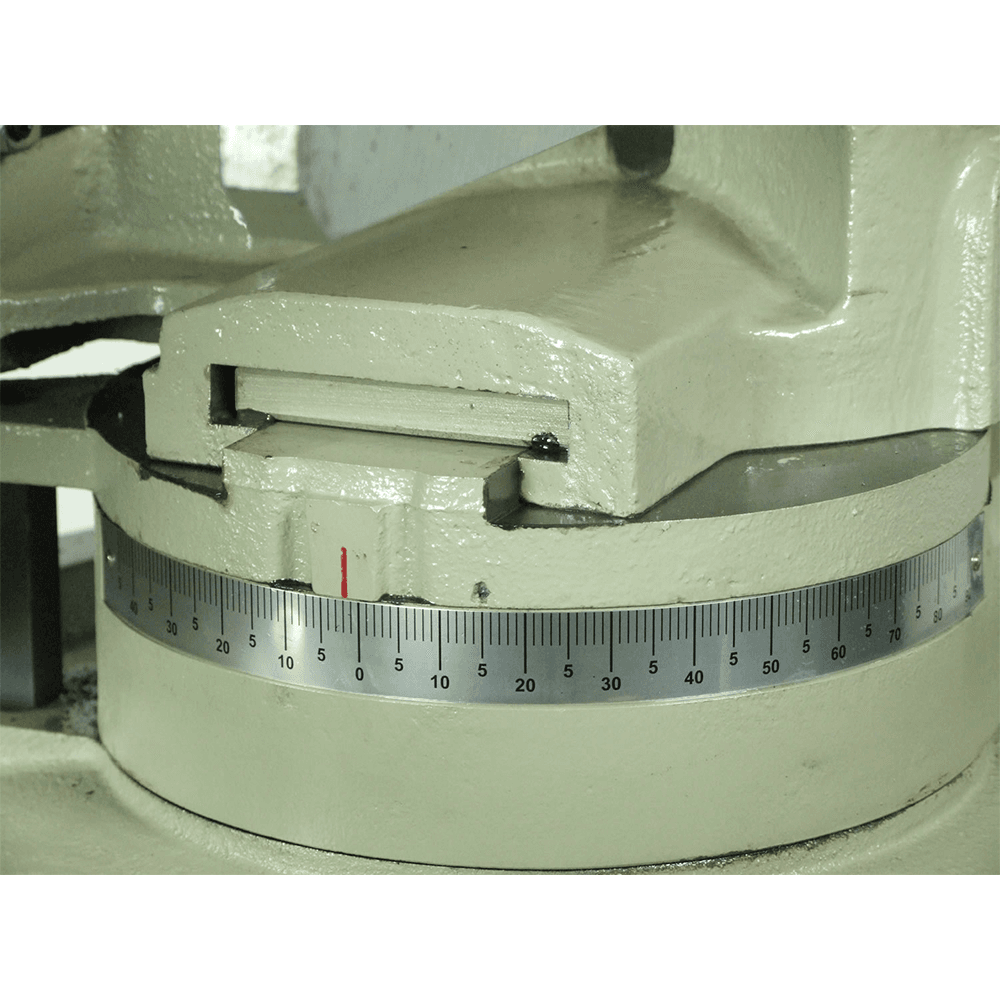

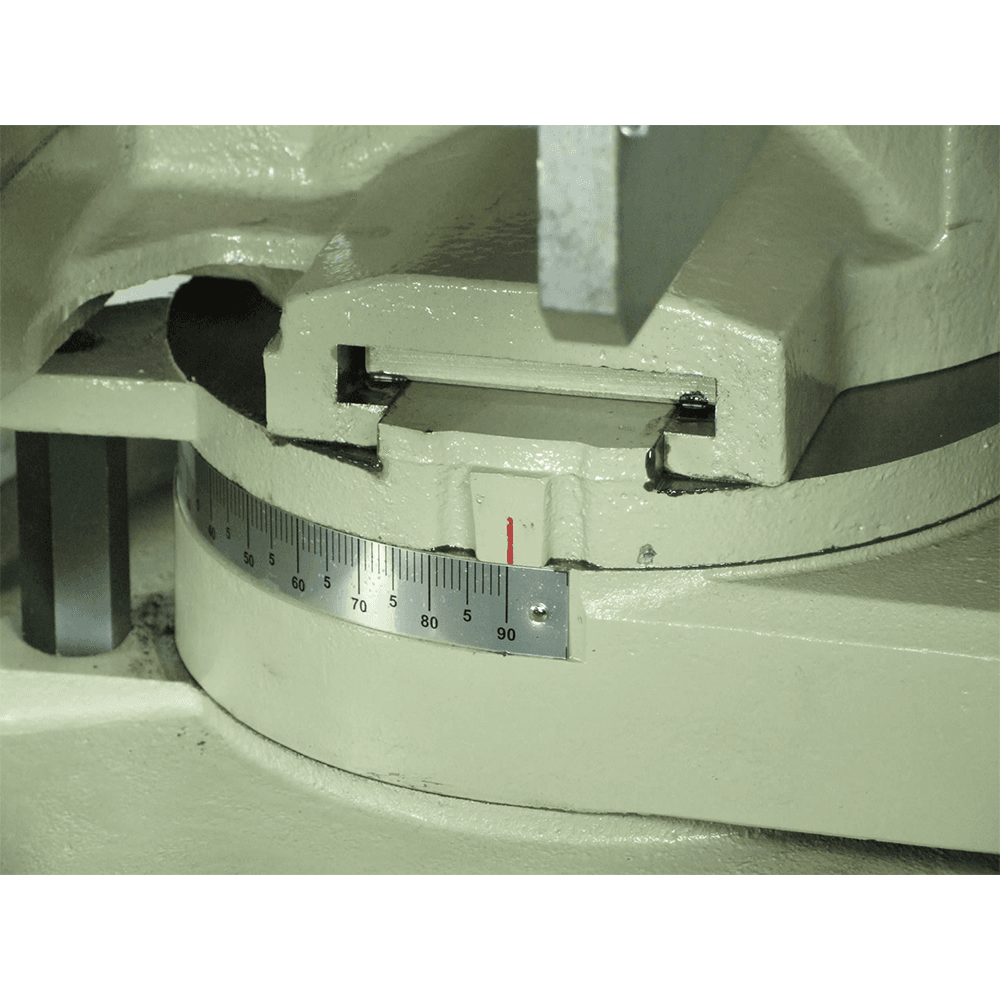

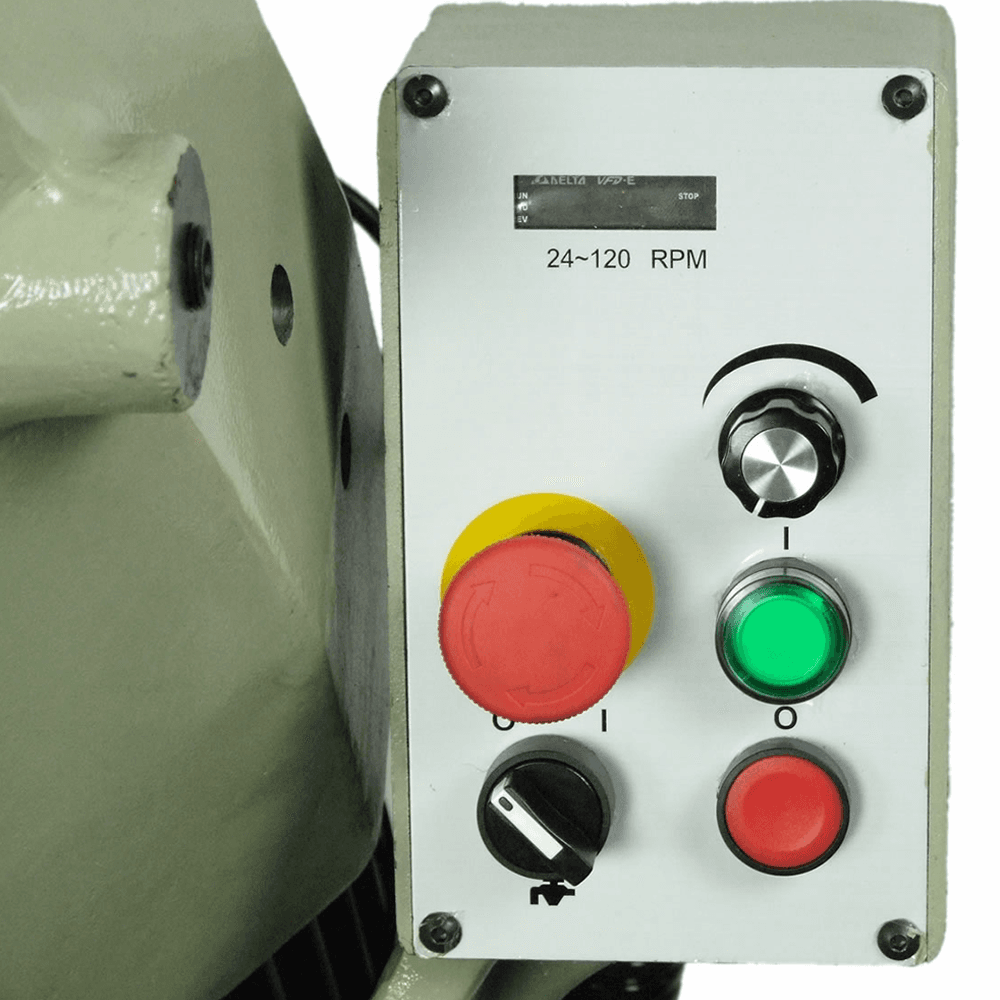

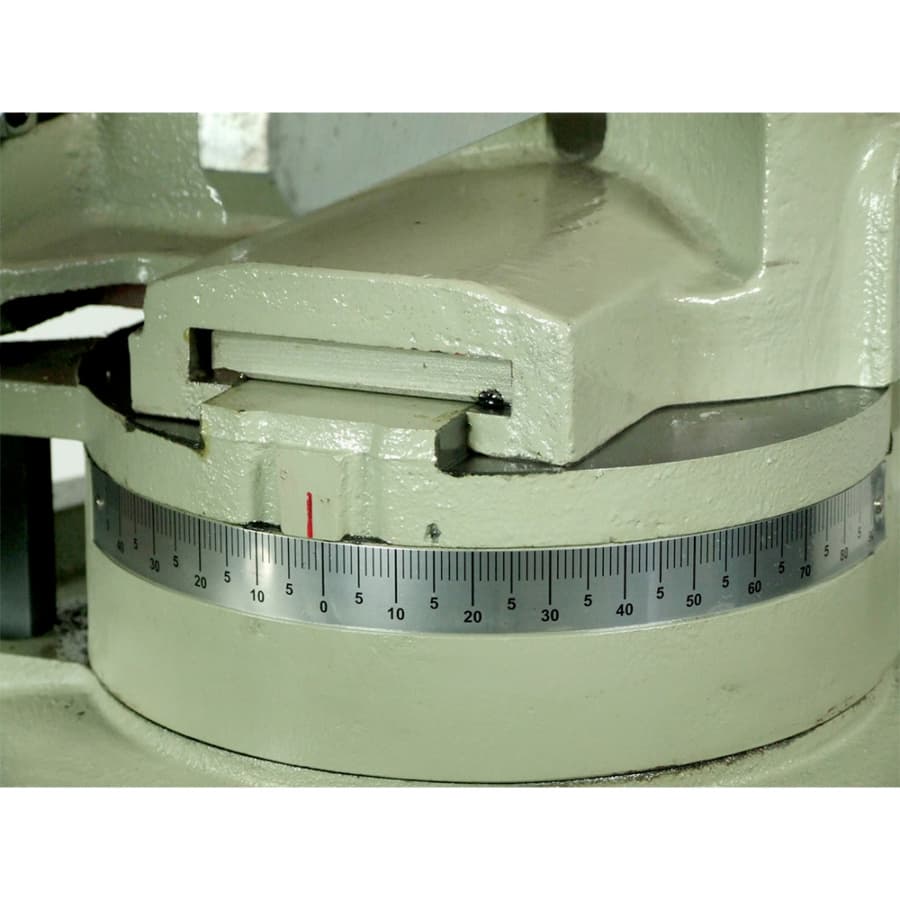

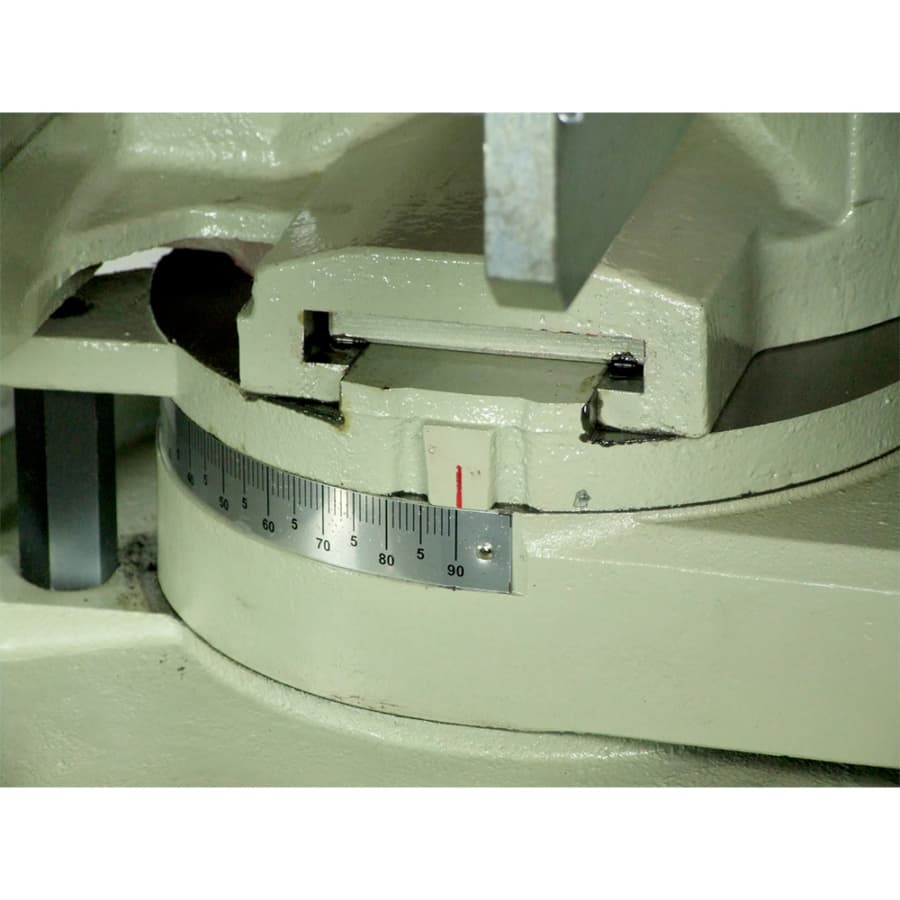

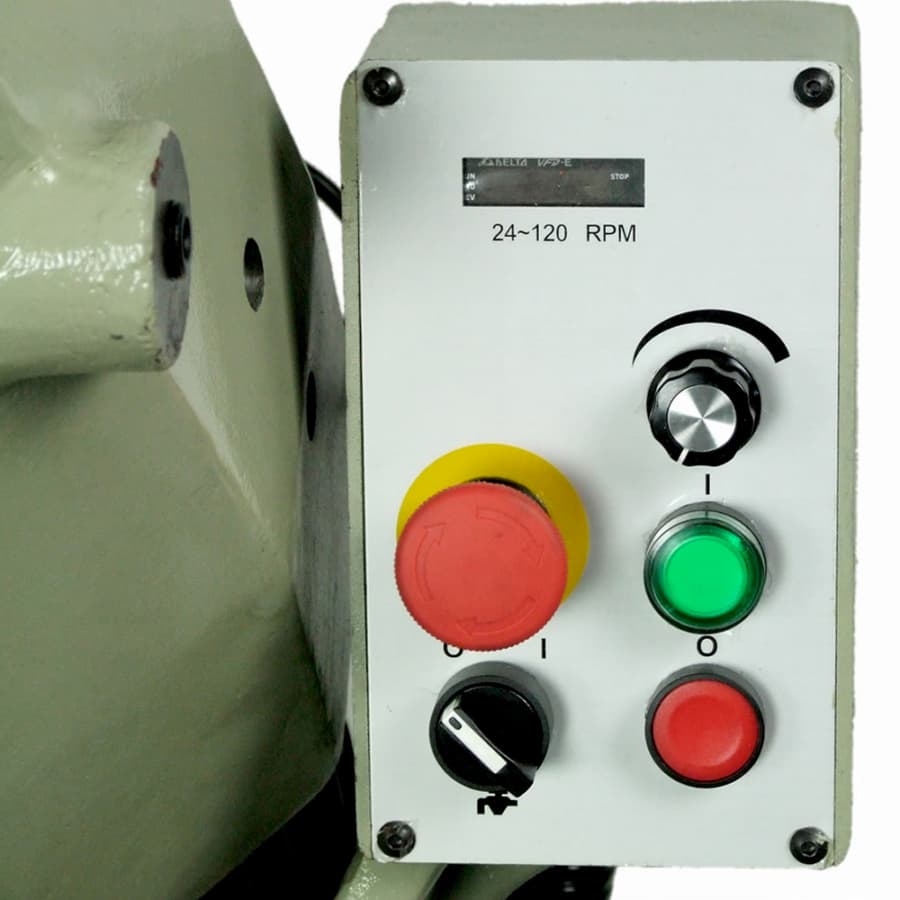

• Marine rails • Playground equipment • Hand railings • Various chassis applications • Other fabrication cutting jobs. Features: • Include: Standard 14" blade (included), 4.7" round tube capacity at 90°, and runs on 220-volt single-phase power which will work in almost any shop • Miters 45° left and right and can slot perpendicular to the material • Cold saw machine cuts through Solids, tubing, and pipe • Fine-tune the variable speed from 24 to 120 rpm to improve cut quality • Inverter-driven motor lets you adjust the blade speed with a digital readout that shows the blade speed to assist with Repeatability • 3 hp motor, coupled to a direct-drive gearbox, allows the blade to cut through the material chatter-free, so that blades last longer • European-style vise helps increase production with a taper lock system that speeds up clamping and unclamping • Vise clamps on both sides of the cut to reduce chatter and increase blade life while the serrated jaws provide maximum hold on the material • Thick cast iron base, mounted on a heavy steel stand, stabilizes the saw to ensure accurate cutting for many years • Flood coolant system allows for mill-like cuts, prolongs blade, and saw lifespan, and reduces operator effort while the Powerful coolant pump lubricates the blade and washes metal chips awaySpecifications
| Box Quantity | 1 |
| Blade Speeds (RPM) | |
| Solid Round at 90 Degrees | 3.5" |
| Solid Square at 45 Degrees | |
| Solid Square at 90 Degrees | |
| Tubing Rectangle at 45 Degrees | 3.5" x 2.8" |
| Tubing Rectangle at 90 Degrees | 6.3" x 3.5" |
| Tubing Round at 45 Degrees | 4" |
| Tubing Round at 90 Degrees | |
| Tubing Square at 45 Degrees | 3.5" 3.5" |
| Solid Round at 45 Degrees | 3" |
| Solid Rectangle at 90 Degrees | |
| Solid Rectangle at 45 Degrees | |
| Configurable Base Item | |
| Enhanced Description | |
| Maximum Vise Opening | |
| Motor Amps | |
| Motor Phase | 1 |
| Motor Power (HP) | 3 HP |
| Motor Voltage (V.) | 220V |
| Product Type | Manual Cold Saws |
| Tubing Square at 90 Degrees | 4.7" |
