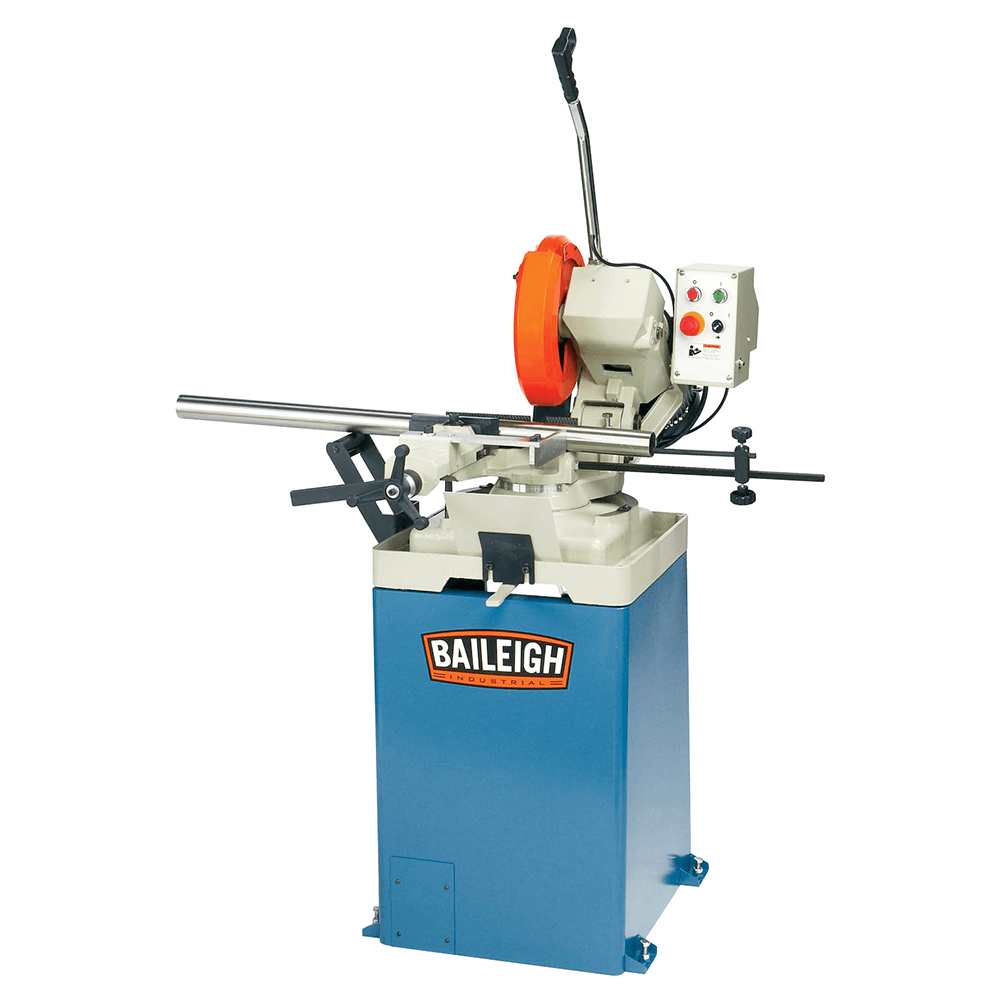

Baileigh CS-315EU 2.5 HP Circular Cold Saw, 1 Phase/220V
Item # JPWBA9-1002450
•Mfr # BA9-1002450
$3,225.00
/Each
Freight: $350.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
The manual CS-315EU our best-selling industrial Cold Saw. Because we designed it to make reliably perfect, mill-like cuts for many years-at a price that won't break the bank.
Recommended for:

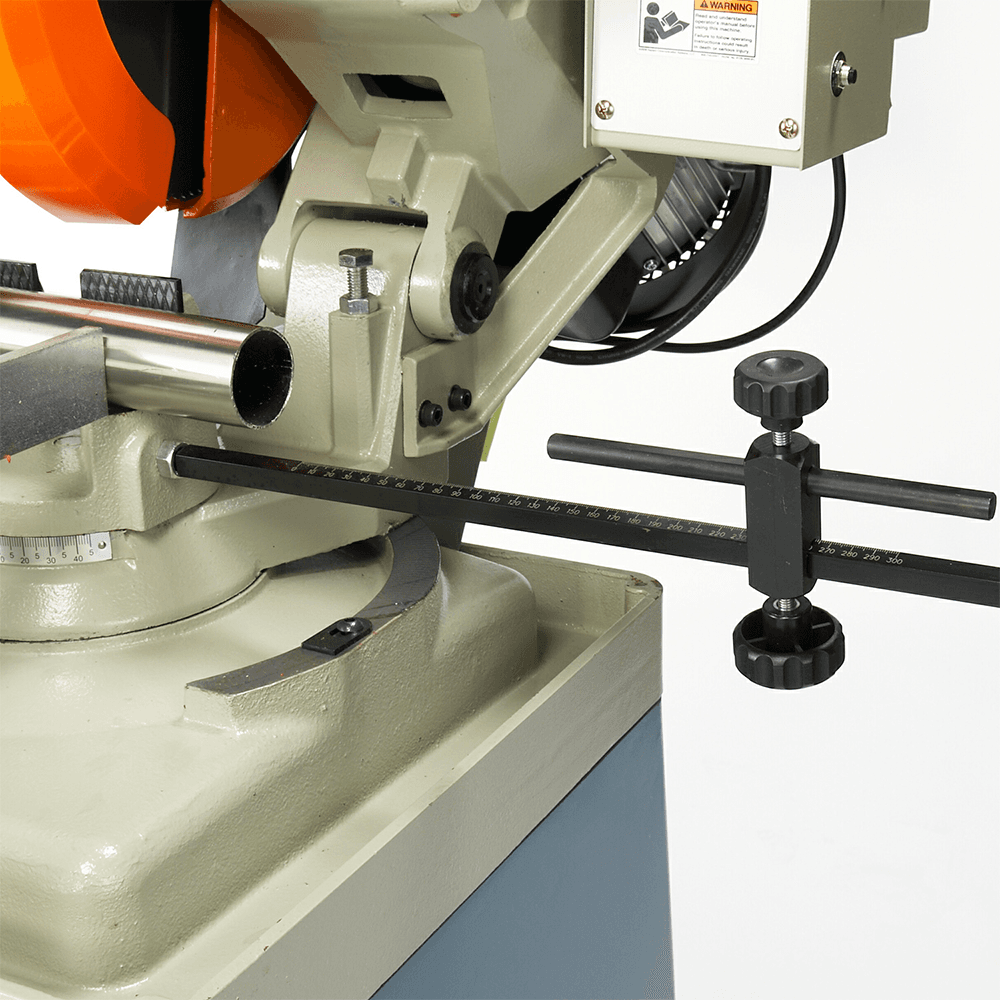

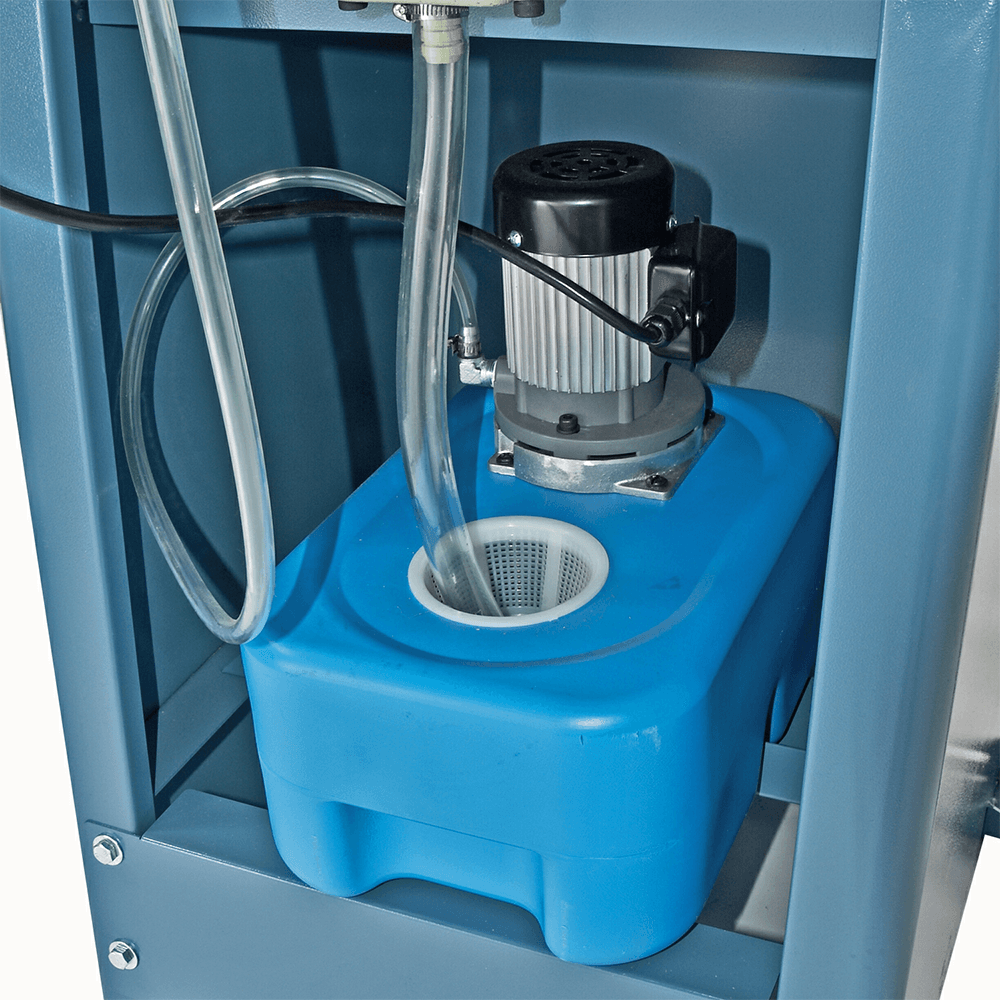

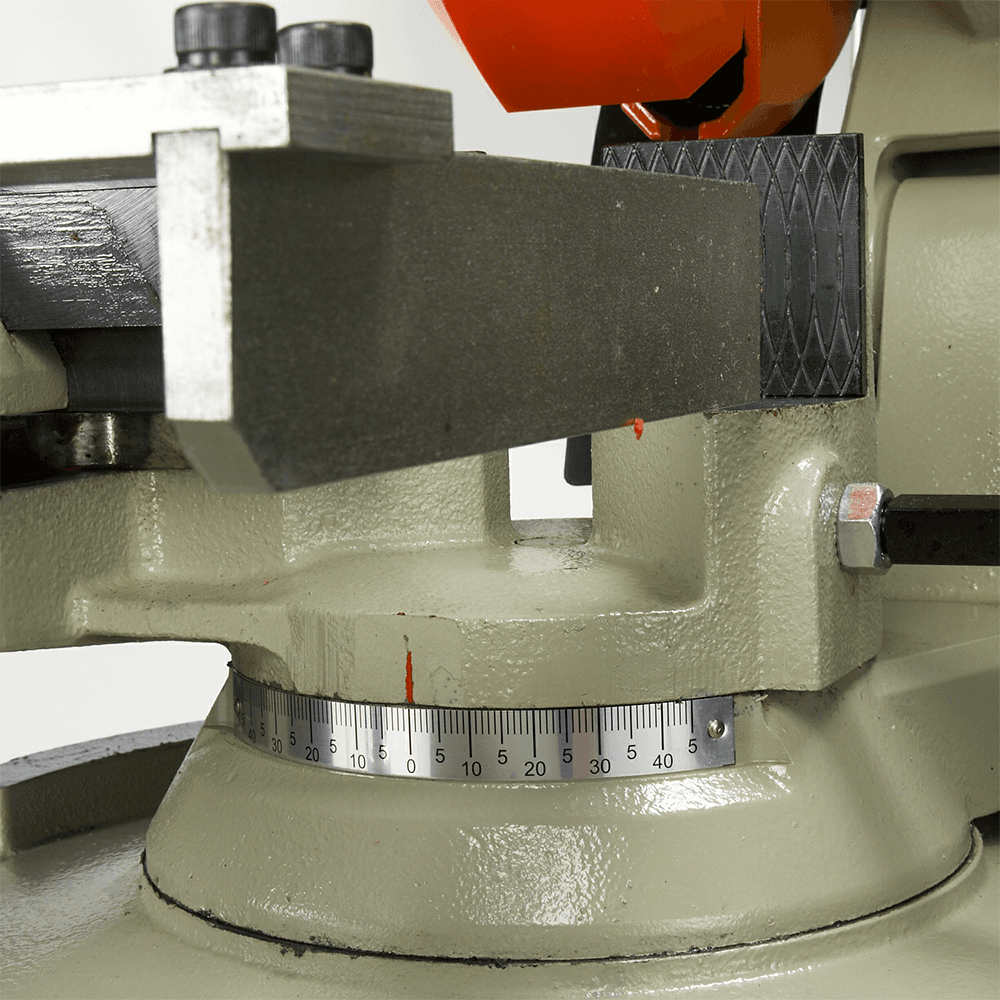

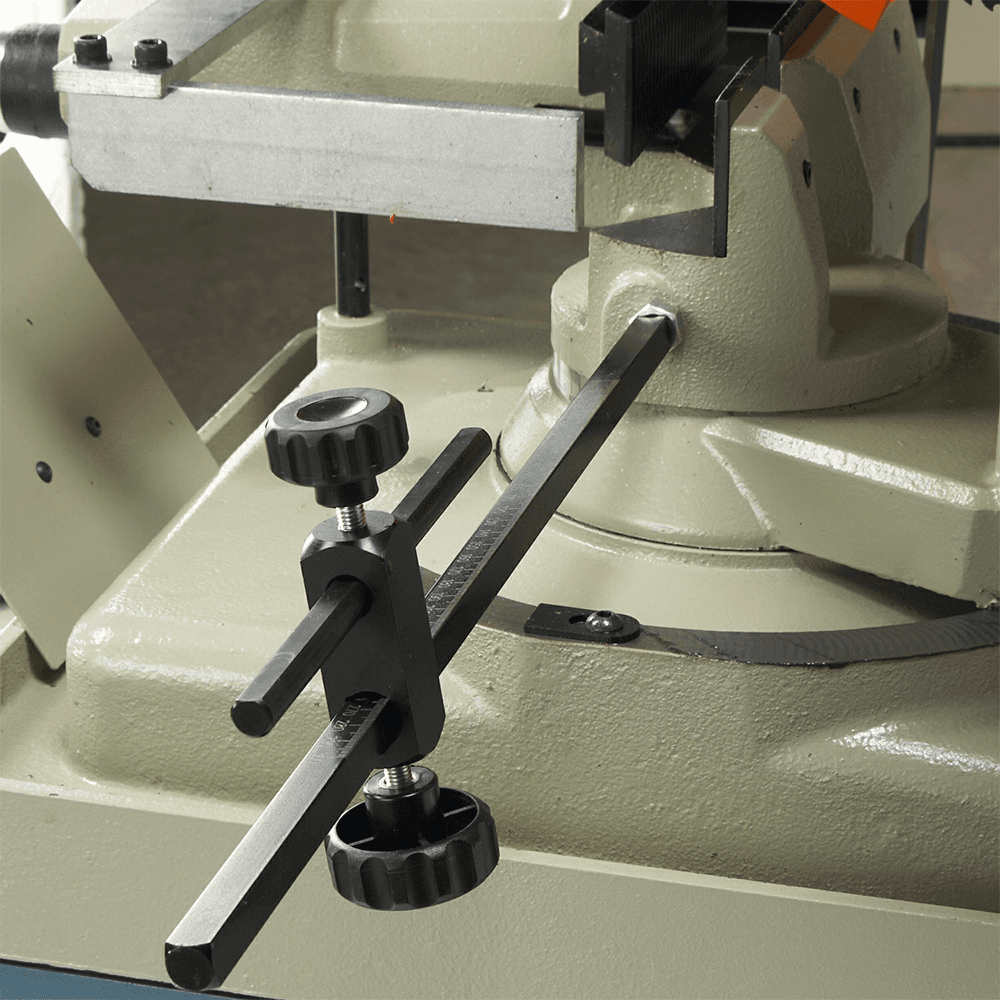

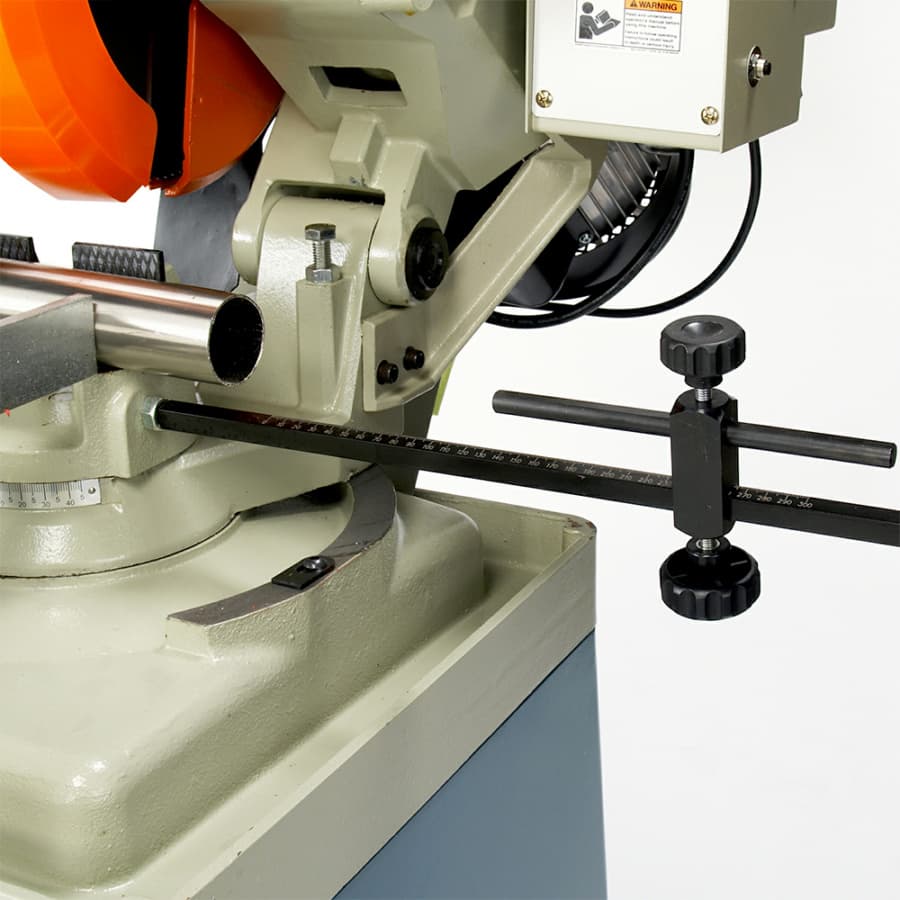

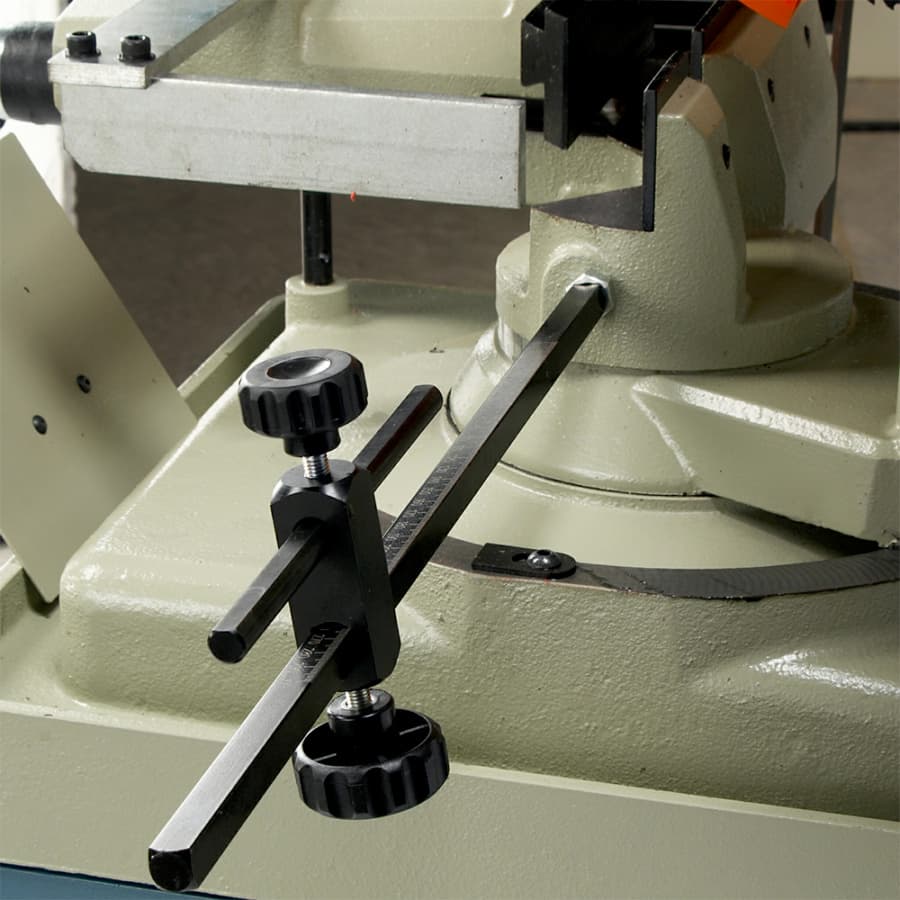

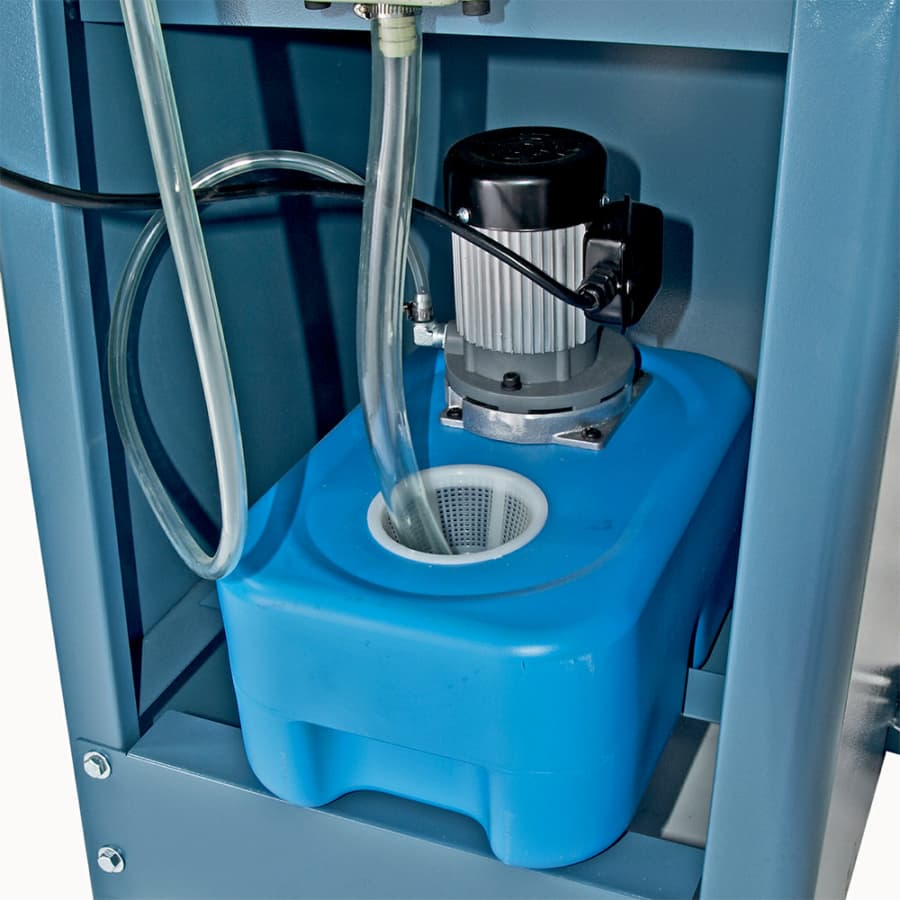

• Small to medium industrial fabrication shops • Hot rod shops. Features: • Runs on 220-volt 1-phase 60Hz power and accepts a 12.5"blade (included) with a 3.5"round tube capacity at 90° • Miters 45° to the left and right and spins at 52 rpm to cut through Solids, tubing, or pipe • Perfect for cutting mild steel but can handle other material with the proper blade • Strong 2.5 hp motor coupled with a direct-drive gearbox, lets the blade cut the material chatter-free, increasing blade life • Operate this manual saw by gradually pulling the blade head into the material and controlling it with your own strength • European-style vise has a taper lock system for fast clamping and unclamping to increase production • Serrated vise jaws grip the material tightly, so it won't budge during cutting and vise clamps on both sides of the cut, reduces blade chatter and prolonging blade life • Stop rod helps you easily cut repeatable lengths for production runs • Rigid cast iron base stabilizes the machine for straight, accurate cuts and Heavy-Duty molded steel stand raises the saw to a convenient cutting height • Powerful integrated coolant pump lubricates the blade and washes chips away and flood coolant system increases cut quality, makes the saw easier to handle, and makes the saw and blades last longerSpecifications
| Box Quantity | 1 |
| Blade Speeds (RPM) | |
| Solid Round at 90 Degrees | 2" |
| Solid Square at 45 Degrees | |
| Solid Square at 90 Degrees | |
| Tubing Rectangle at 45 Degrees | 3.25" x 2.75" |
| Tubing Rectangle at 90 Degrees | 4" x 2.75" |
| Tubing Round at 45 Degrees | 3.5" |
| Tubing Round at 90 Degrees | |
| Tubing Square at 45 Degrees | 3.2" x 3.2" |
| Solid Round at 45 Degrees | 2" |
| Solid Rectangle at 90 Degrees | |
| Solid Rectangle at 45 Degrees | |
| Configurable Base Item | |
| Enhanced Description | |
| Maximum Vise Opening | |
| Motor Amps | |
| Motor Phase | 1 |
| Motor Power (HP) | 2.5 HP |
| Motor Voltage (V.) | 220V |
| Product Type | Manual Cold Saws |
| Tubing Square at 90 Degrees | 3.5" |
