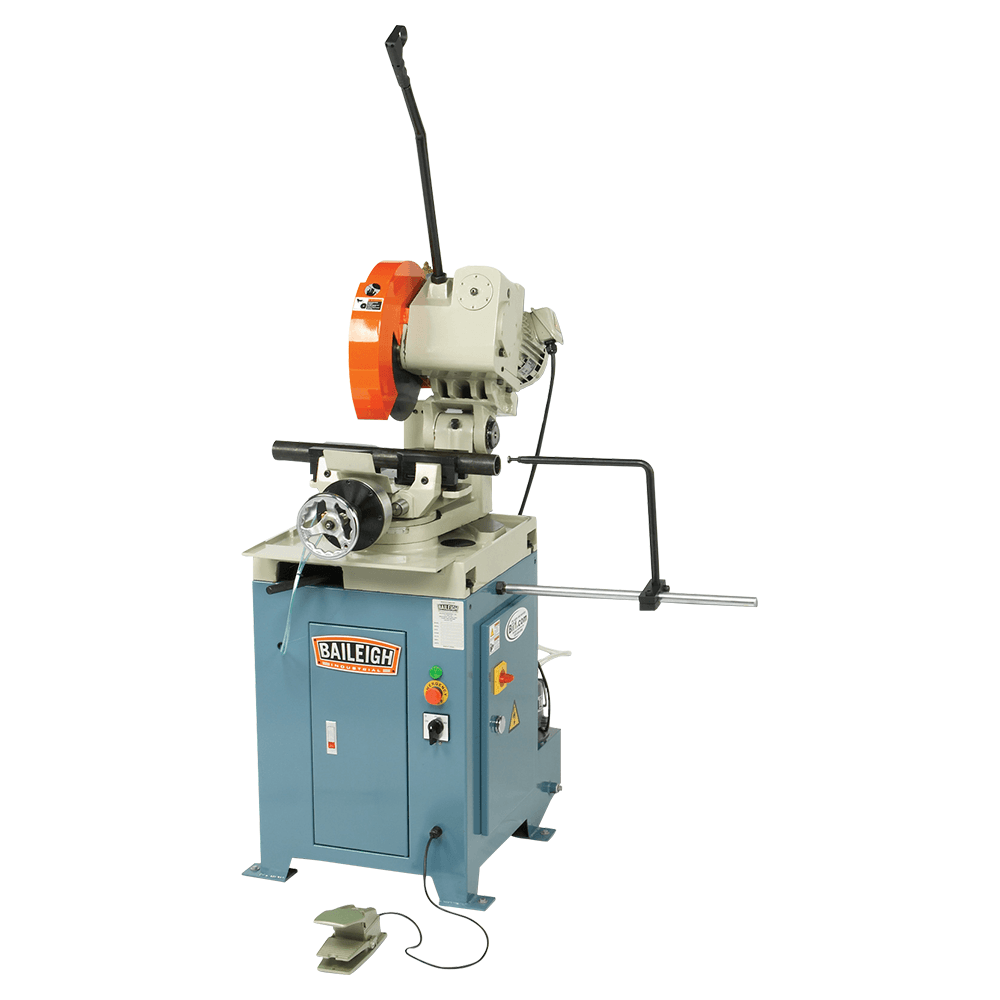

Baileigh CS-350P 4 HP Manual Cold Saw, 3Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

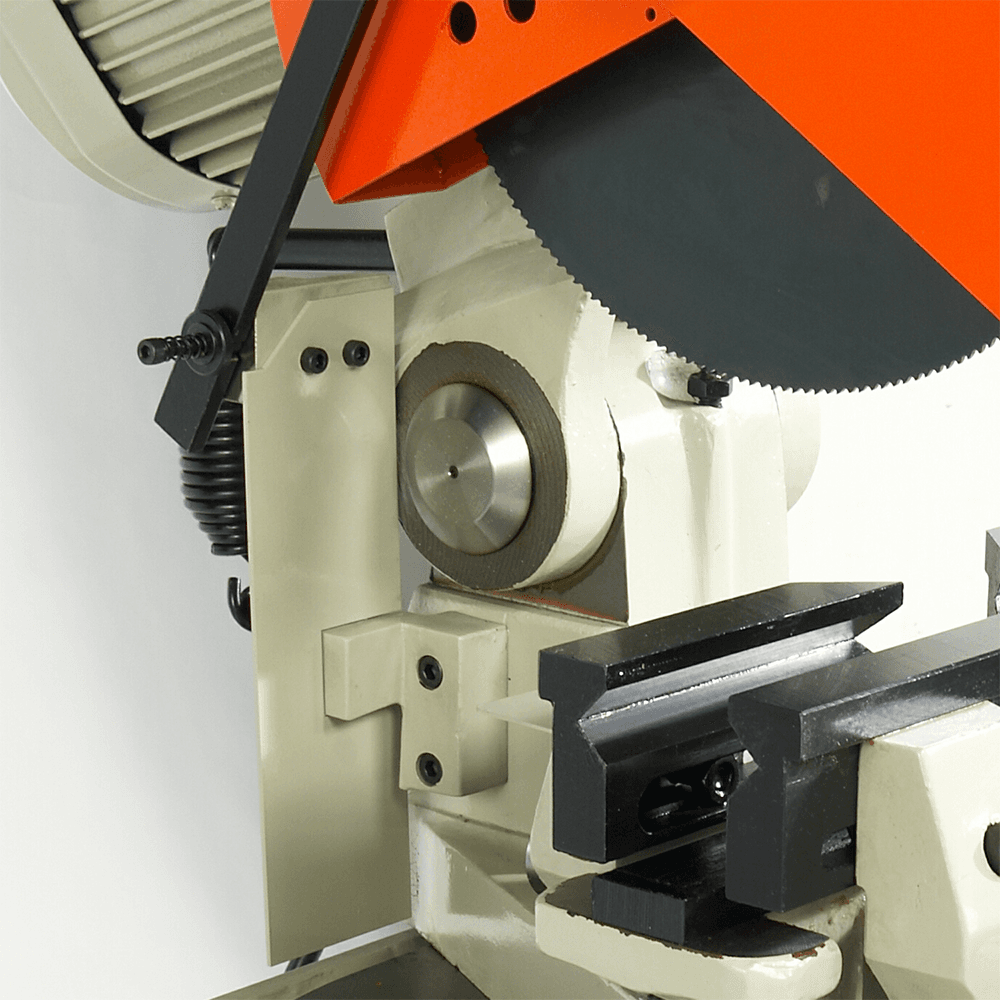

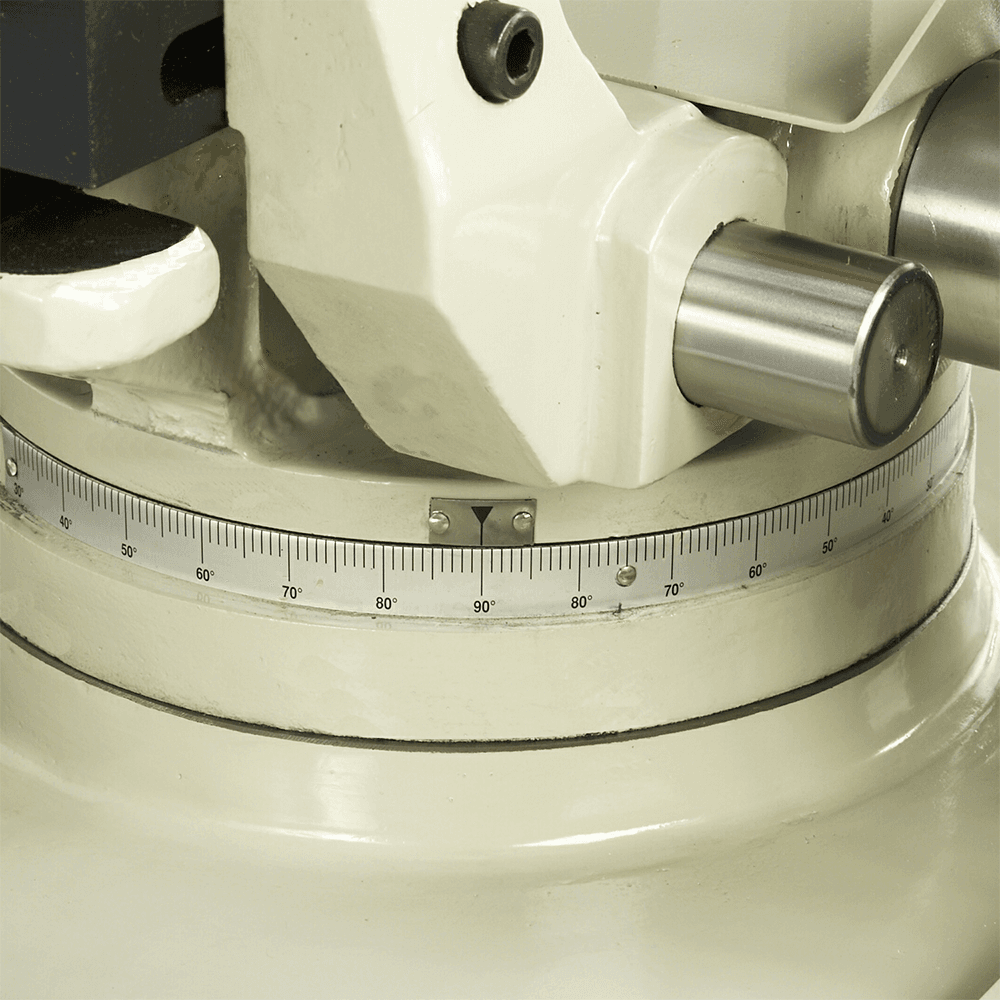

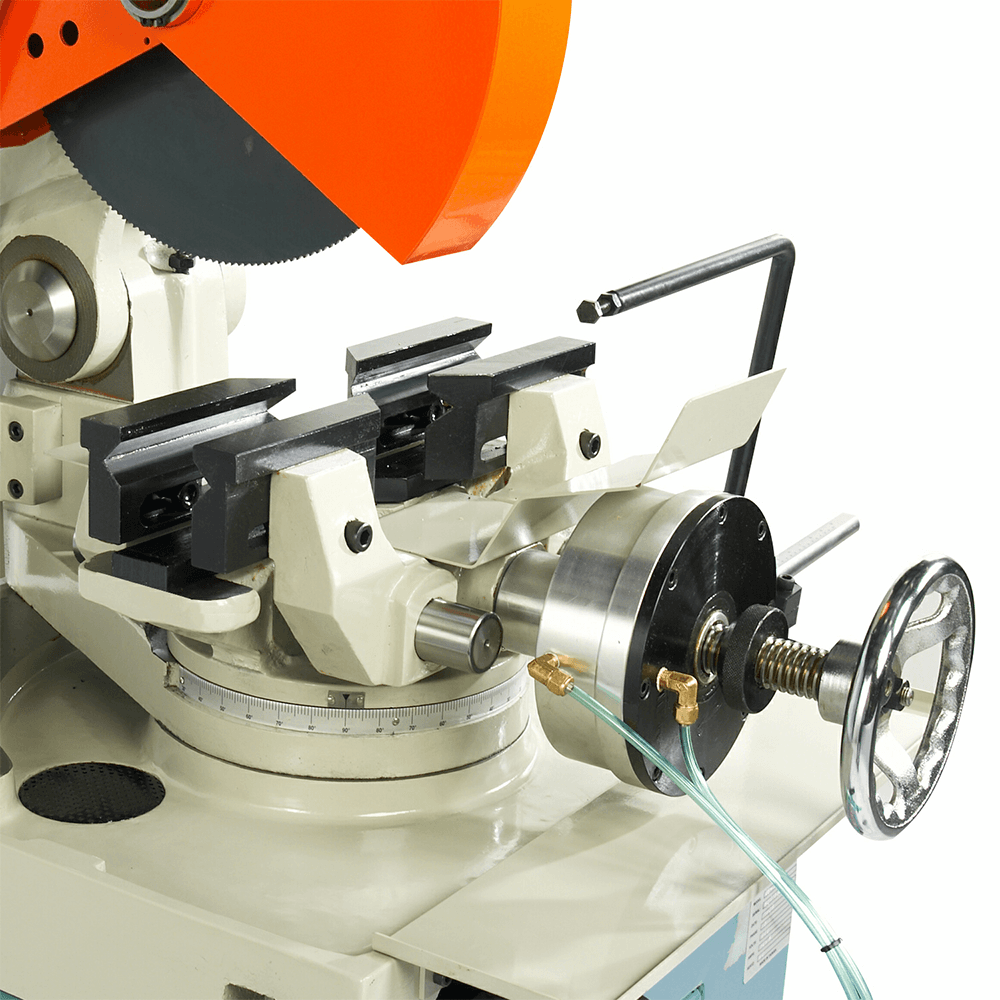

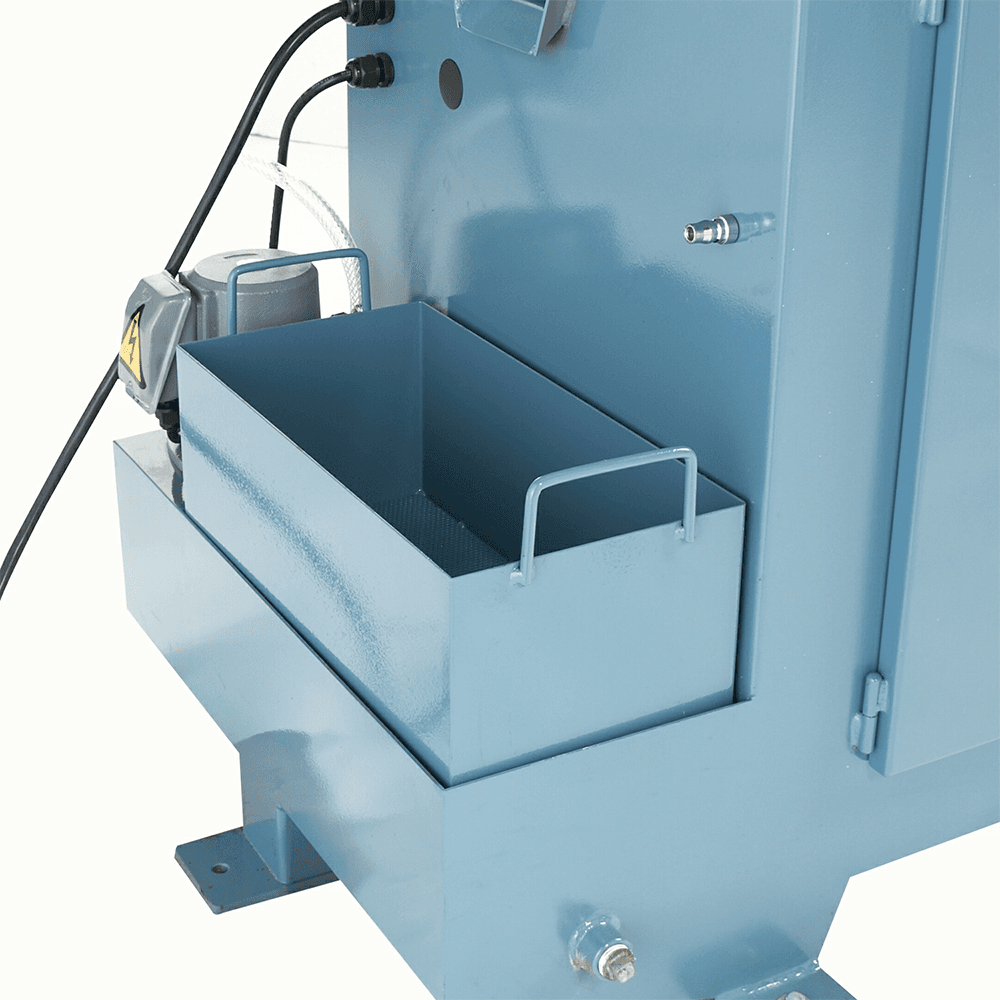

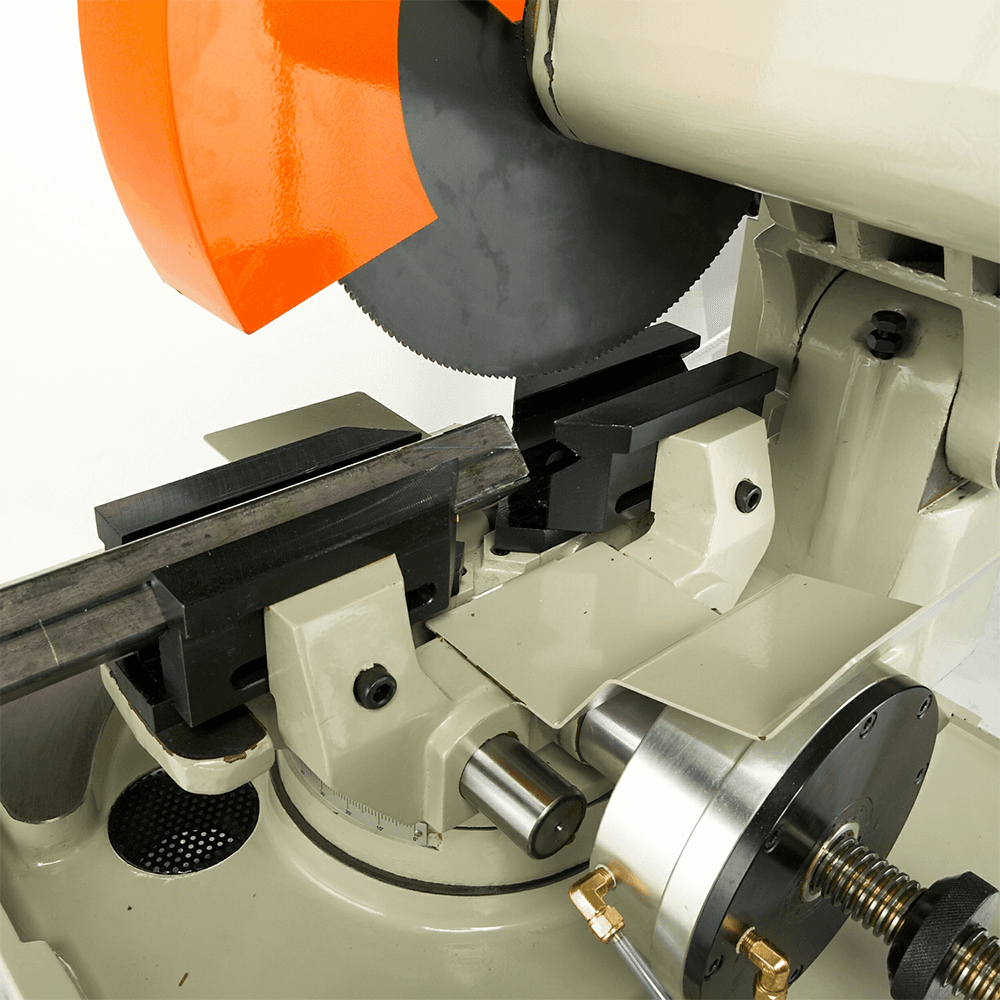

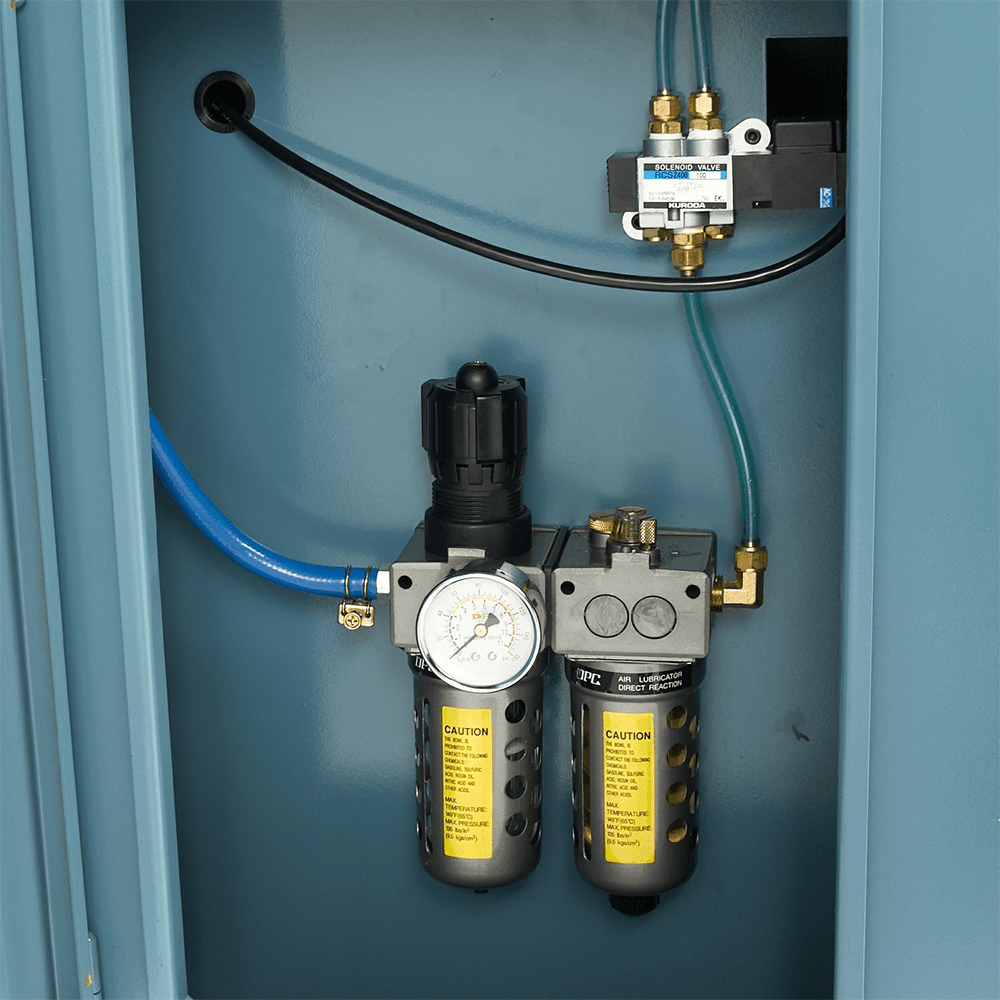

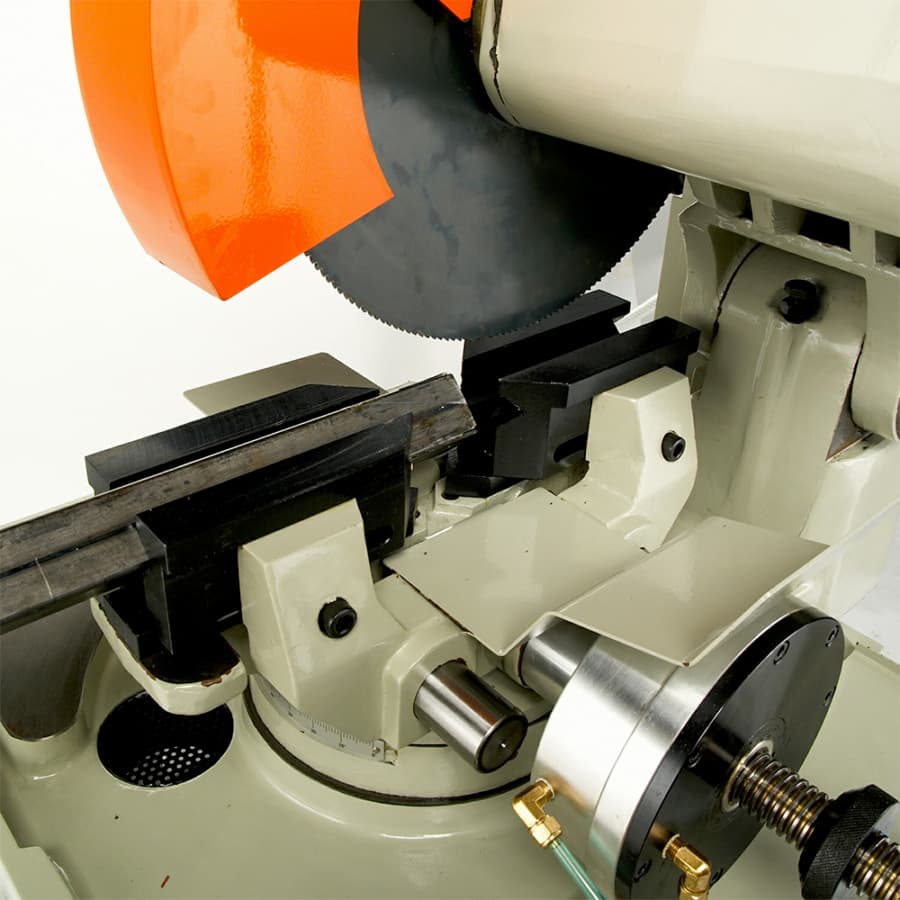

Ever wish you had an extra hand to help clamp material in a vise. This metal cutting cold saw offers a foot pedal-controlled pneumatic vise to solve that problem and speed up production. • Manual cold saw accepts a 14" blade • Maximum capacity of 4.25" round tube at 90° • 2 blade speeds: 26 or 52 rpm • Choice of rpm lets you switch speeds to fit your material and get a better cut • Miters 45° left and 90° right, a total of 135°, great for jobs that involve slotting • 4 hp motor runs on 220-volt 3-phase power • Air-powered vise lets you clamp the material by tapping the included foot pedal • Vise stays under pressure until you tap the foot pedal again. No need to worry whether the material is clamped tight enough • Stop rod ensures that you're cutting a repeatable length each time, perfect for production runs • Movable Safety guard comes standard • Cast iron saw base resists vibrations, so that the saw gives you clean, accurate cuts for many years • Robust folded steel stand stabilizes the machine and keeps the saw at a comfortable cutting height • Flood coolant system helps blades last longer, makes the machine easier to operate, and gives you smooth, burr-free cuts • We keep replacement parts in stock for fast shipping • Covered by a 1-year parts warranty
Recommended for:
• Marine rails • Playground equipment • Hand railing • Chassis applications • Many more fabrication cutting jobs. Features: • 4 hp 220V 3-phase motor • 14" blade • 4.25" round tube capacity • Pneumatic vise with foot pedalSpecifications
| Box Quantity | 1 |
| Blade Speeds (RPM) | 26, 52 RPM |
| Solid Round at 90 Degrees | 2.362" |
| Solid Square at 45 Degrees | |
| Solid Square at 90 Degrees | |
| Tubing Rectangle at 45 Degrees | 2.953" x 2.362" |
| Tubing Rectangle at 90 Degrees | 4.25" x 3.5" |
| Tubing Round at 45 Degrees | 2.953" |
| Tubing Round at 90 Degrees | |
| Tubing Square at 45 Degrees | 2.953" x 2.953" |
| Solid Round at 45 Degrees | 1.575" |
| Solid Rectangle at 90 Degrees | |
| Solid Rectangle at 45 Degrees | |
| Configurable Base Item | |
| Enhanced Description | |
| Maximum Vise Opening | |
| Motor Amps | |
| Motor Phase | 3 |
| Motor Power (HP) | 4 HP / 3 HP |
| Motor Voltage (V.) | 220V |
| Product Type | Manual Cold Saws |
| Tubing Square at 90 Degrees | 4.331" |
