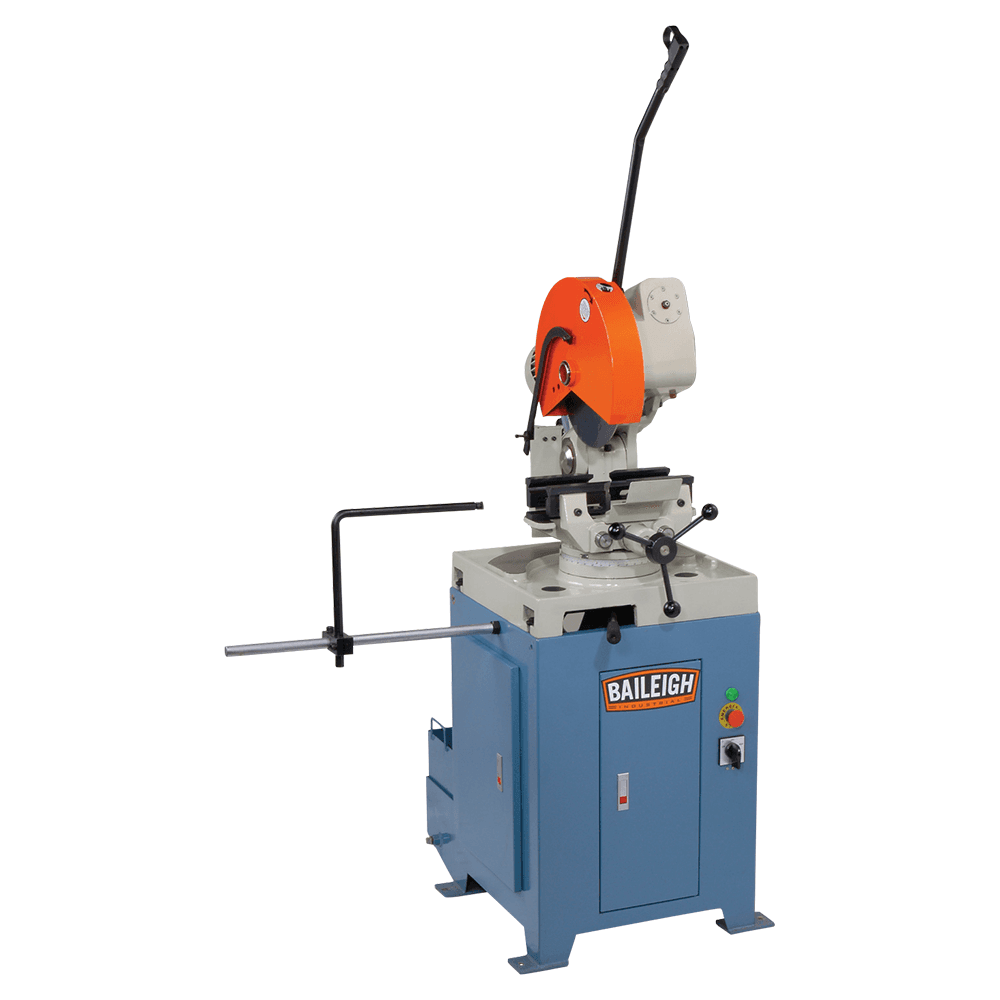

Baileigh CS-350M 4 HP Circular Cold Saw, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

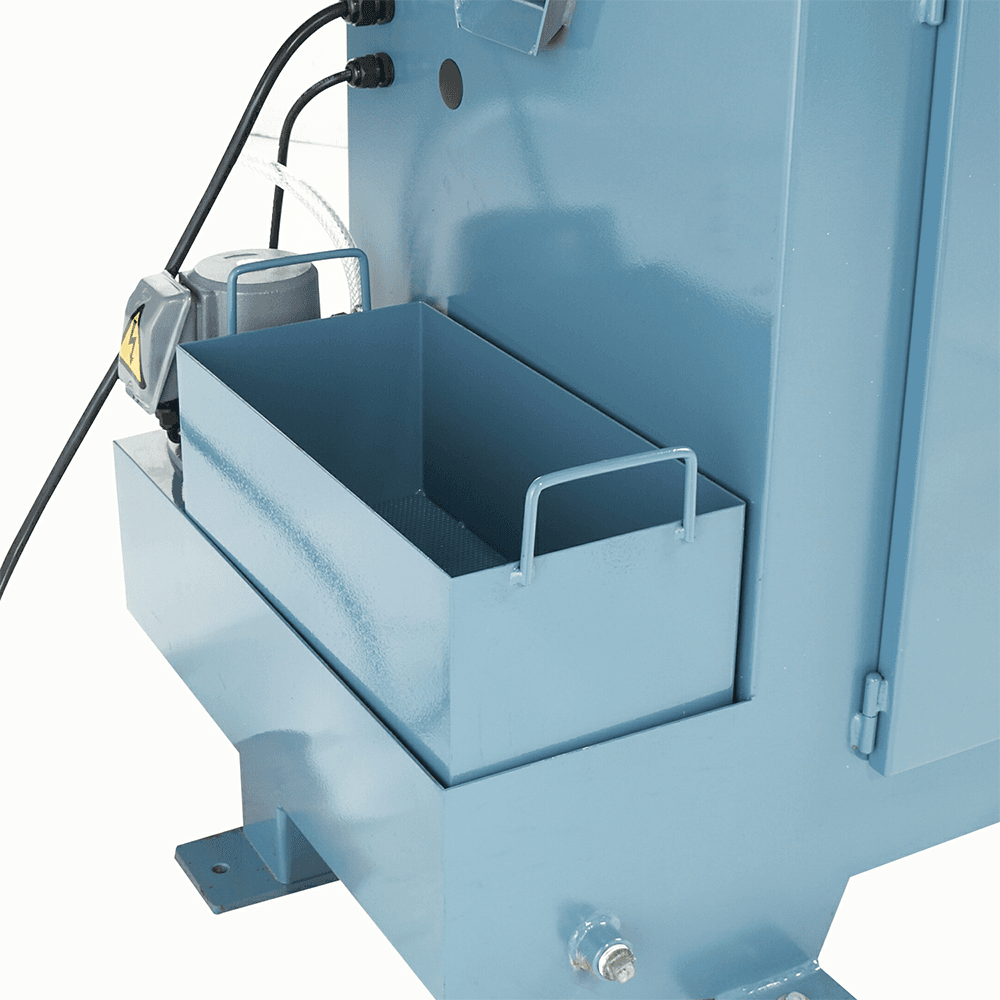

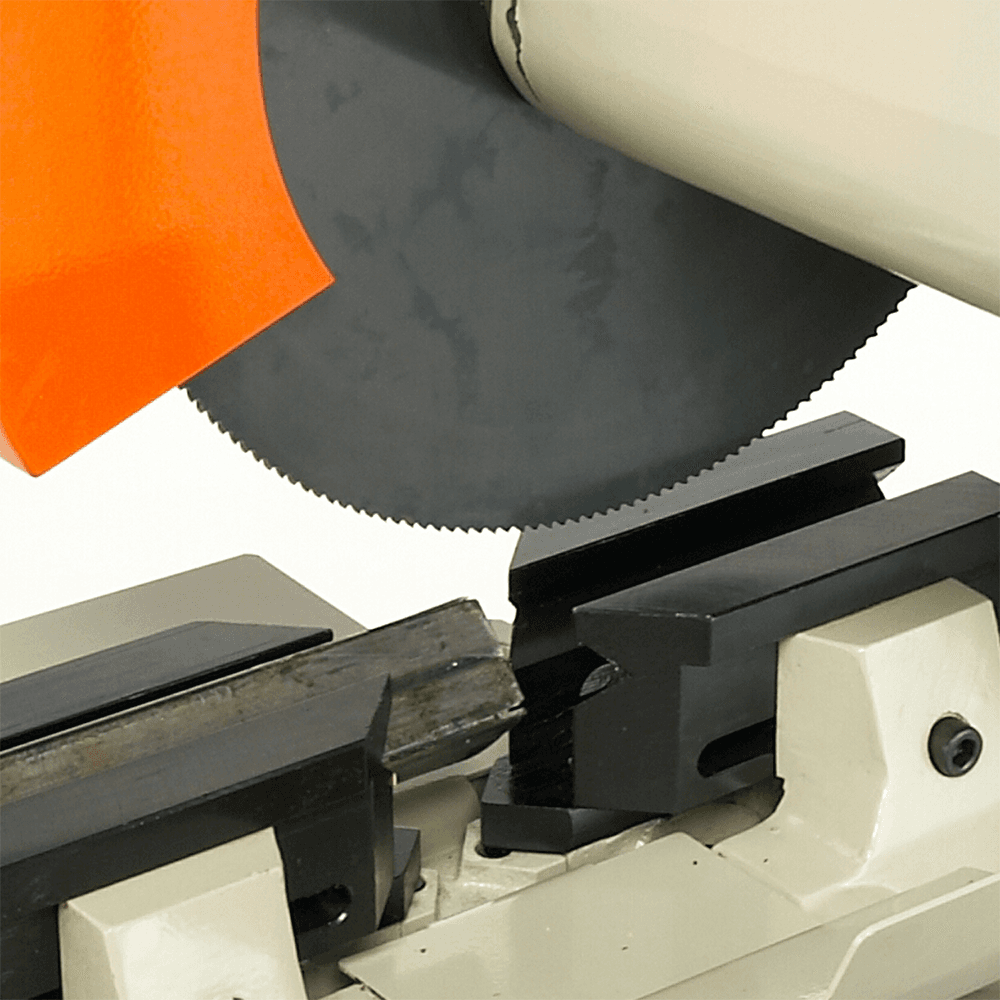

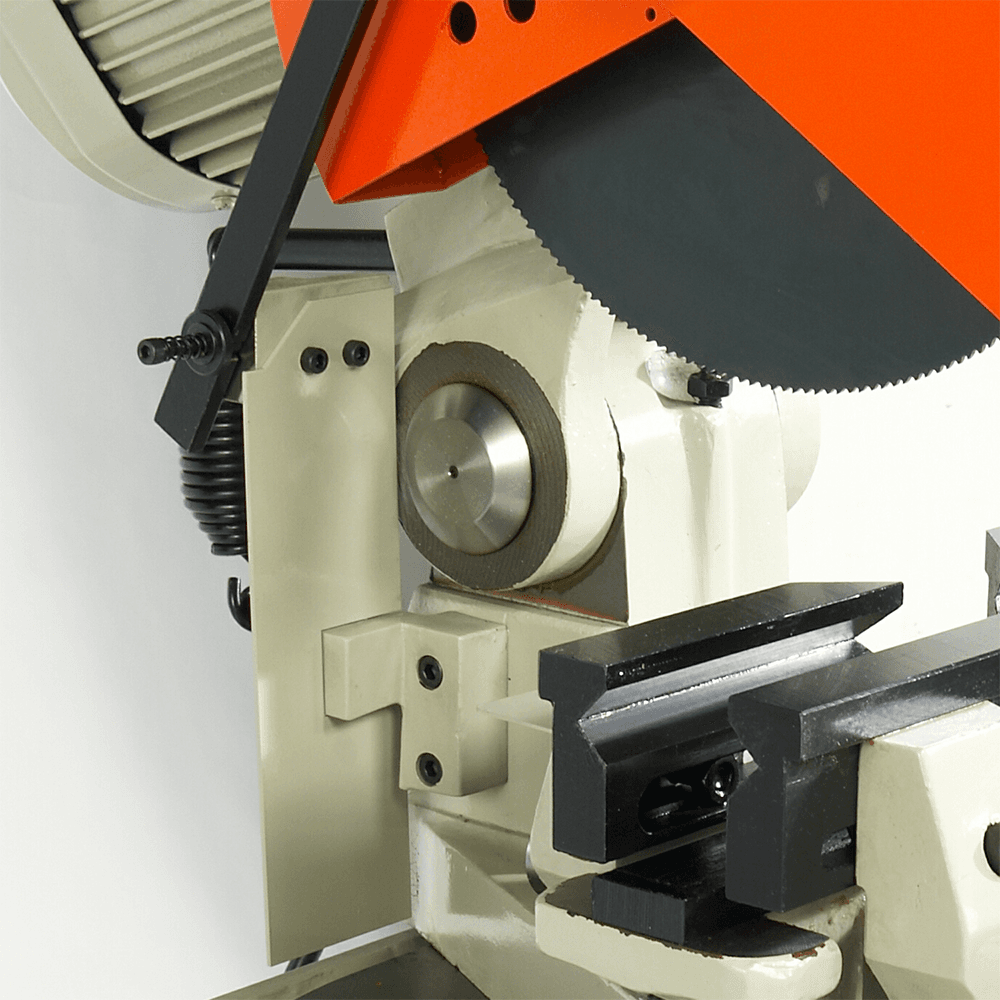

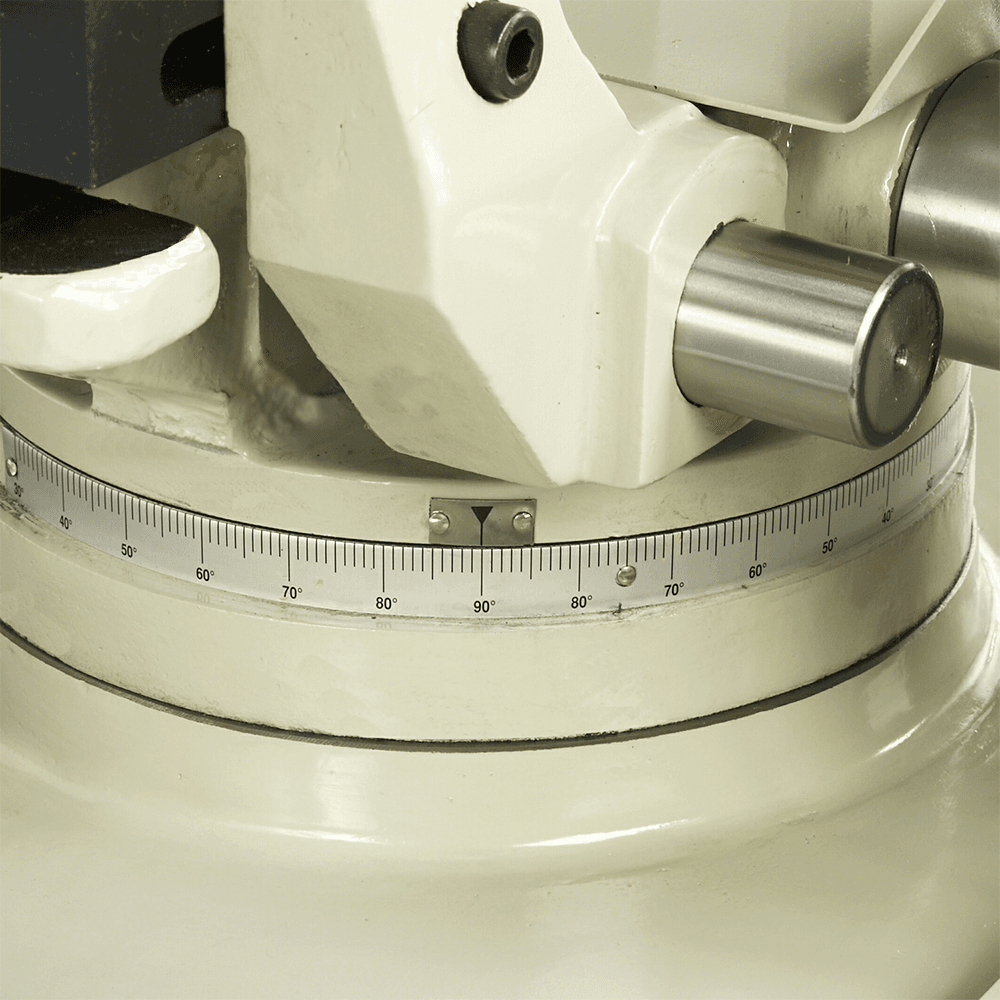

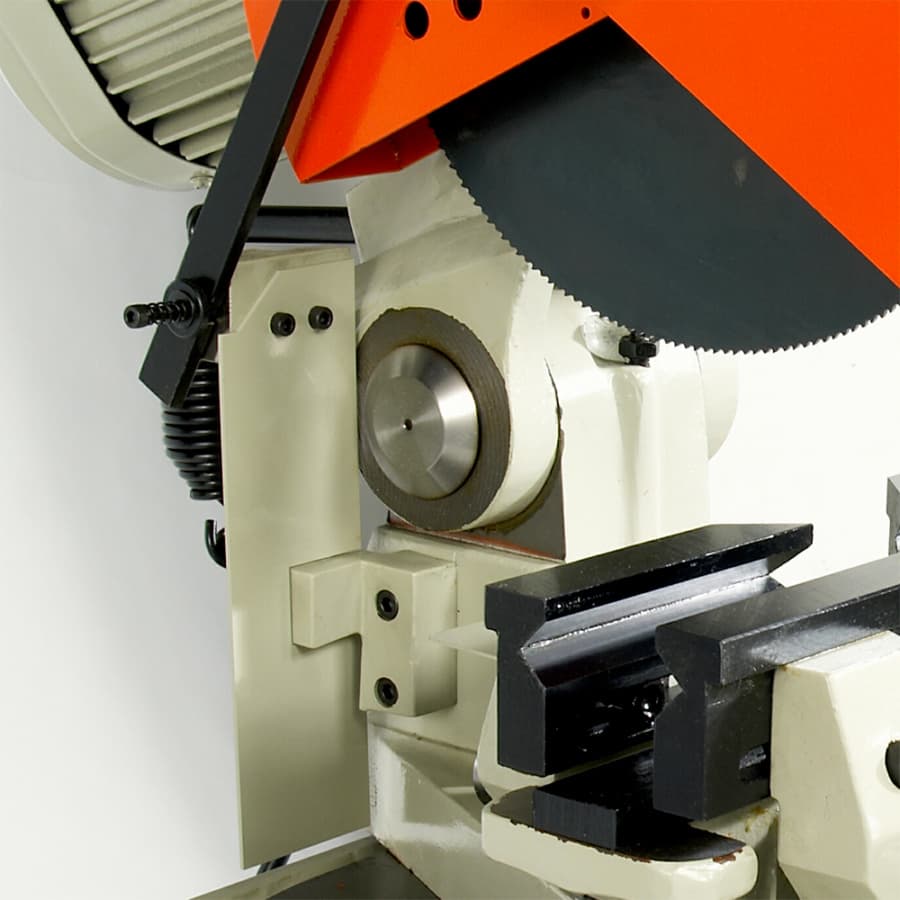

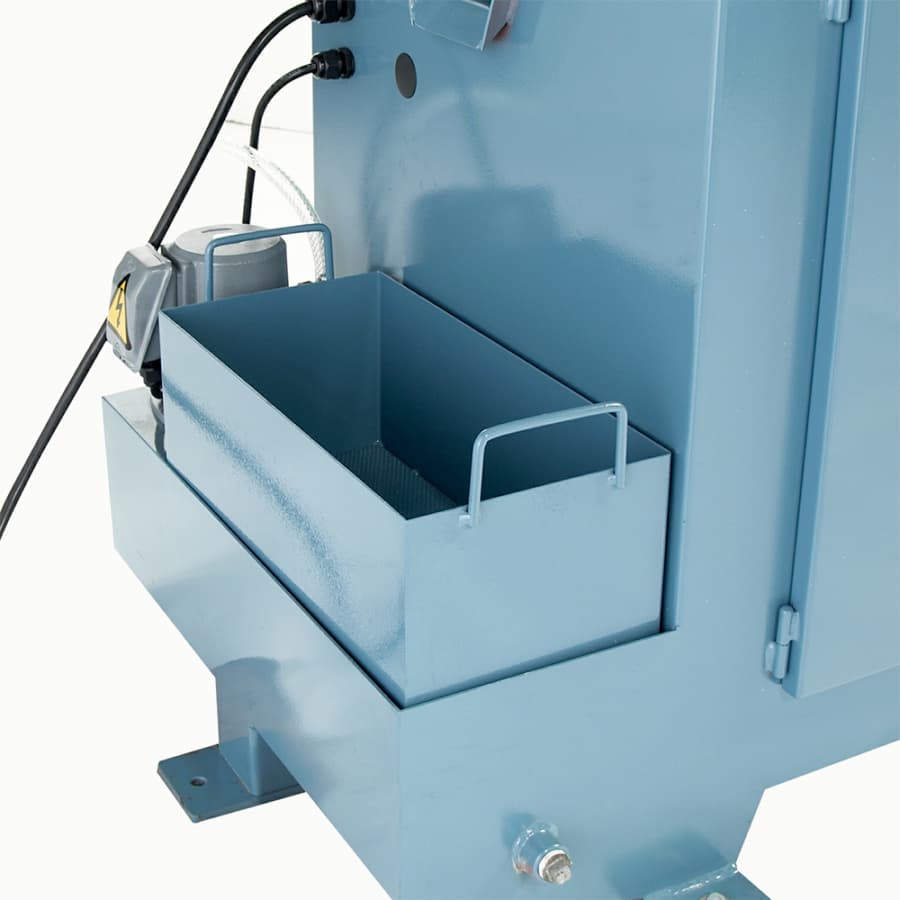

Accepts a 14" blade and has a 4.25" round tube capacity at 90°. Features: • Miters 45° right and 90° left, perfect for slotting applications • 2 blade speeds: 26 and 52 rpm. Switch between them to cut a variety of materials with help from the coolant system that lubricates the blade, reducing strain on the operator • Robust 4 hp motor runs on 220-volt 3-phase power • All-metal gears in direct-drive head are ground and hardened for reliability • American-style vise keeps the material perfectly centered with the blade for clean, correct cuts • Backlash adjustment maintains tight tolerances and keeps "play" in the gearbox to a minimum • Rigid cast iron base keeps vibrations to a minimum so that the saw cuts accurately and reliably • Heavy molded steel stand brings the saw up to a comfortable cutting height • Industrial-grade flood coolant system ensures a long lifespan of use for both blades and saw and ensures high cut quality
Specifications
| Box Quantity | 1 |
| Blade Speeds (RPM) | 26, 52 RPM |
| Solid Round at 90 Degrees | 2.362" |
| Solid Square at 45 Degrees | |
| Solid Square at 90 Degrees | |
| Tubing Rectangle at 45 Degrees | 2.953" x 2.362" |
| Tubing Rectangle at 90 Degrees | 4.25" x 3.5" |
| Tubing Round at 45 Degrees | 2.953" |
| Tubing Round at 90 Degrees | |
| Tubing Square at 45 Degrees | 2.953" x 2.953" |
| Solid Round at 45 Degrees | 1.575" |
| Solid Rectangle at 90 Degrees | |
| Solid Rectangle at 45 Degrees | |
| Configurable Base Item | |
| Enhanced Description | |
| Maximum Vise Opening | |
| Motor Amps | |
| Motor Phase | 3 |
| Motor Power (HP) | 4 HP / 3 HP |
| Motor Voltage (V.) | 220V |
| Product Type | Manual Cold Saws |
| Tubing Square at 90 Degrees | 4.331" |
