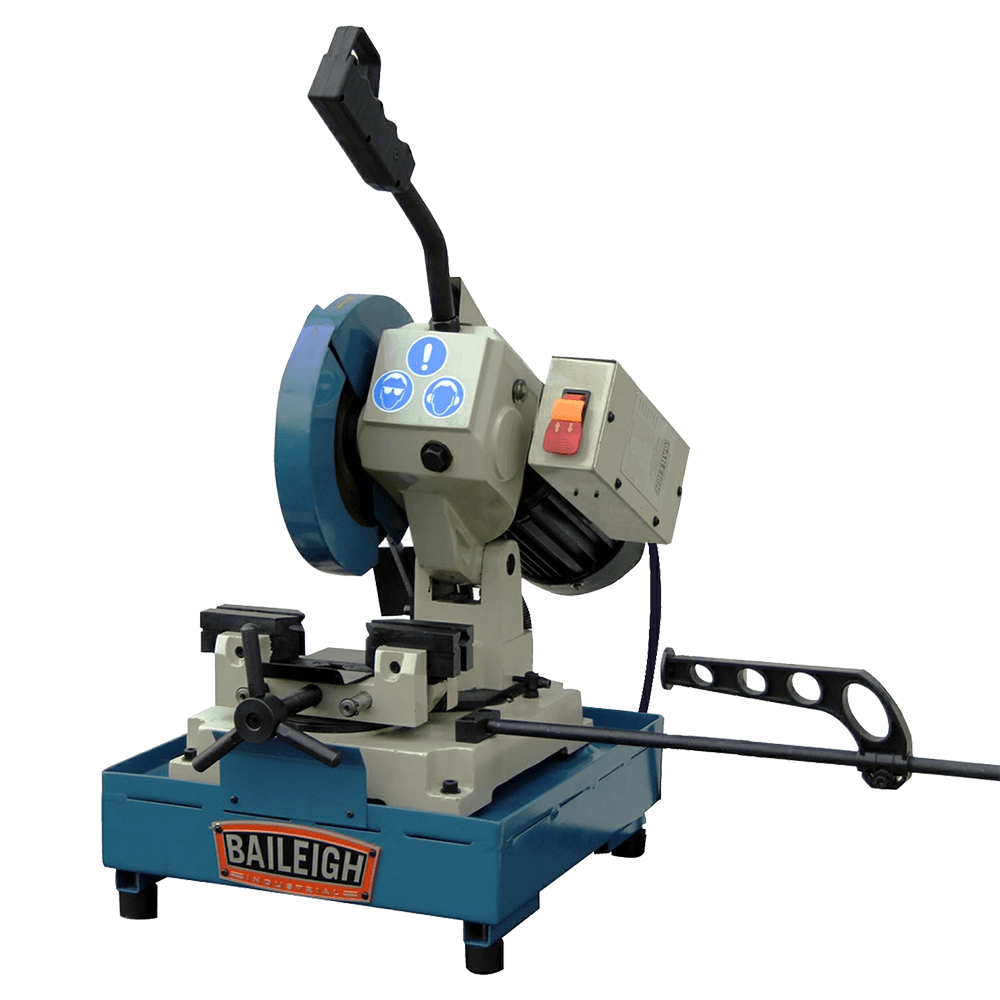

Baileigh CS-225M-V2 1 HP Manually Operated Cold Saw, 110V
This item may incur additional shipping costs and lead times.
Product Details

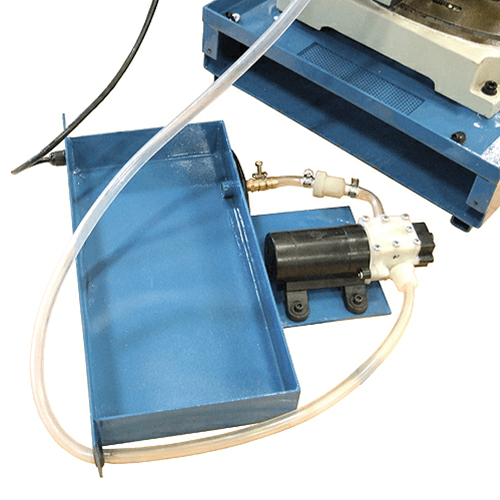

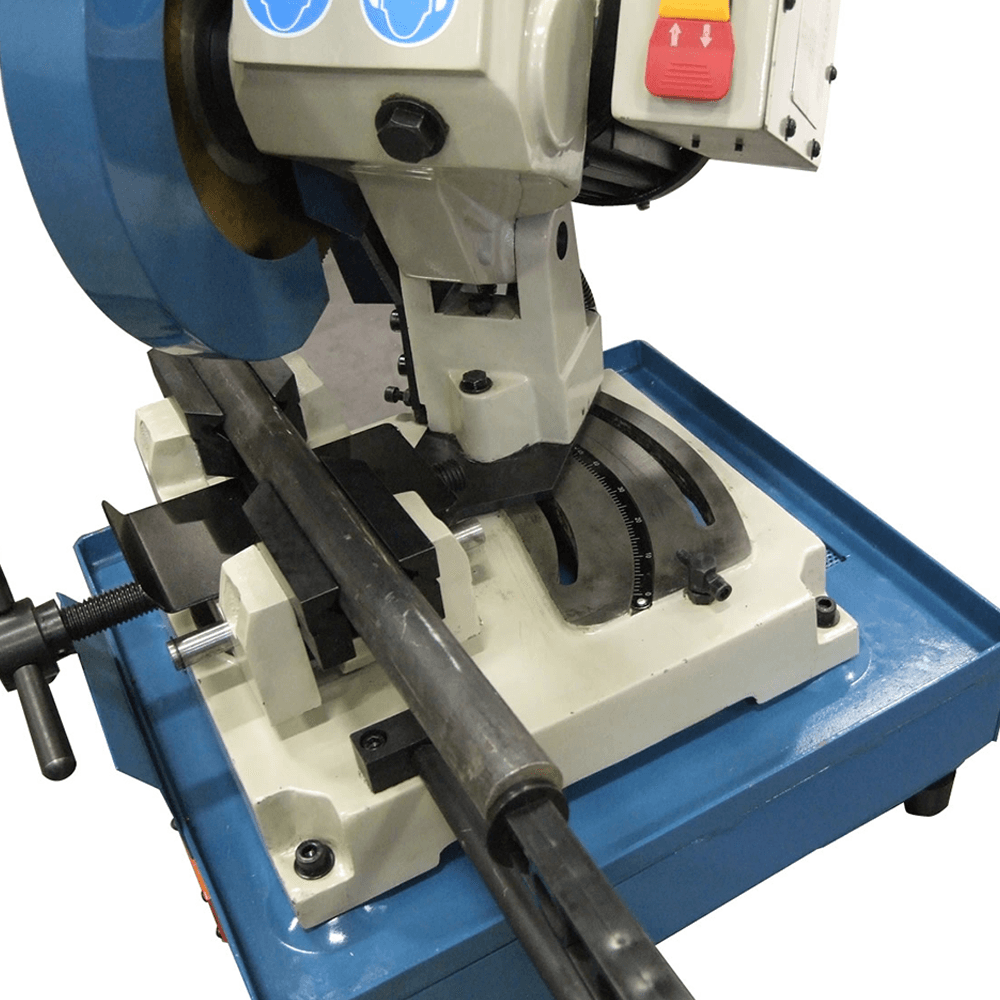

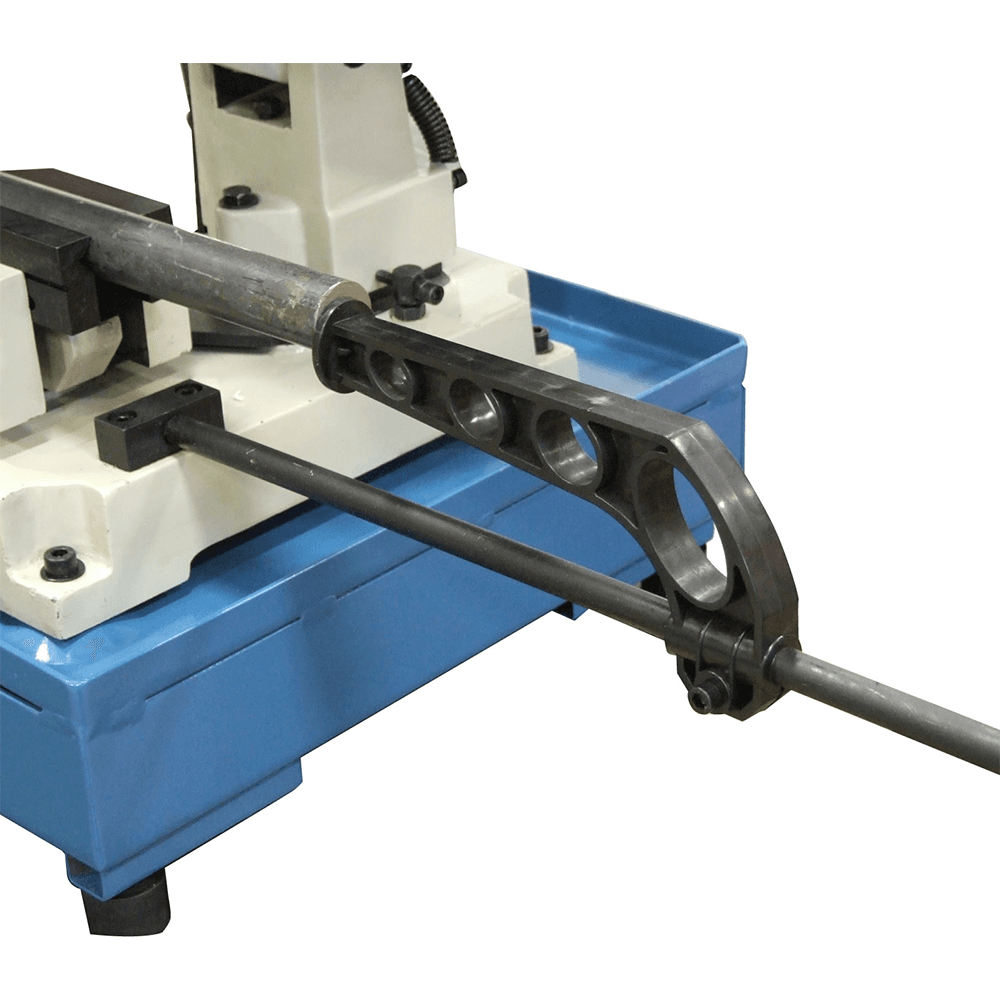

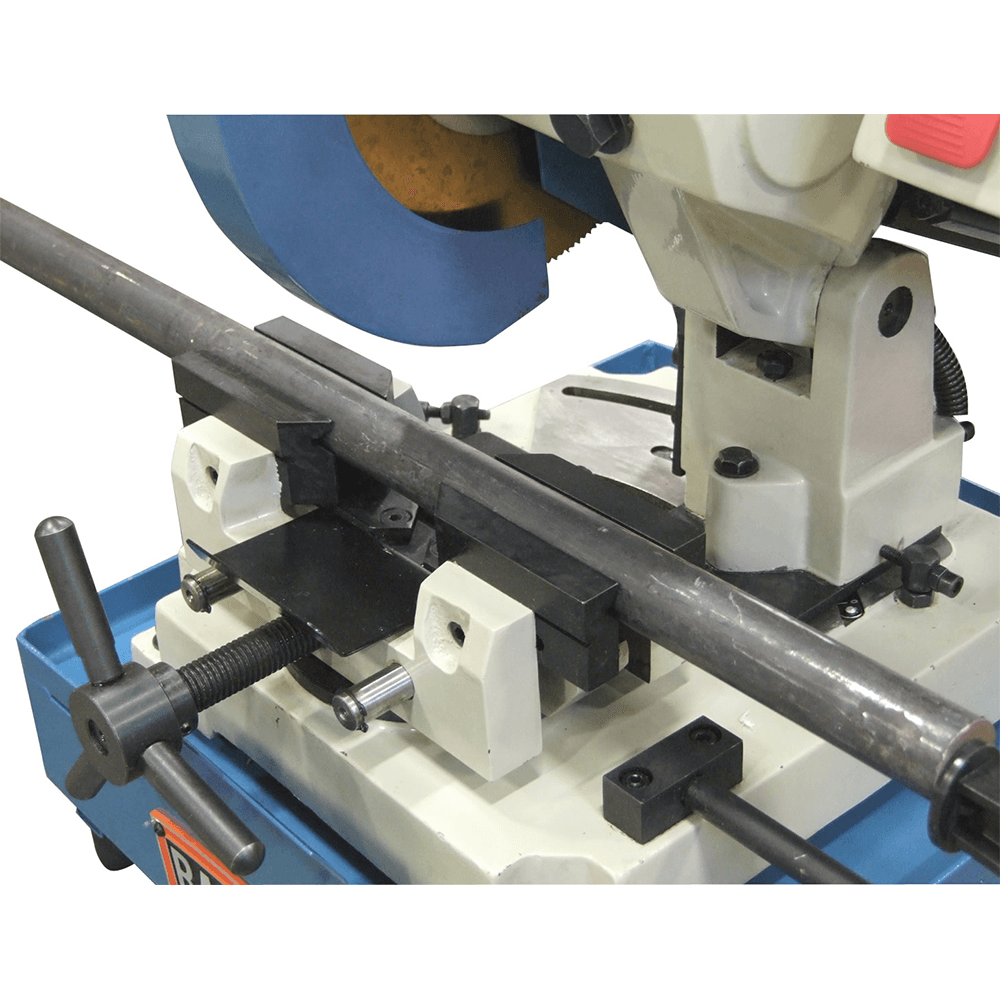

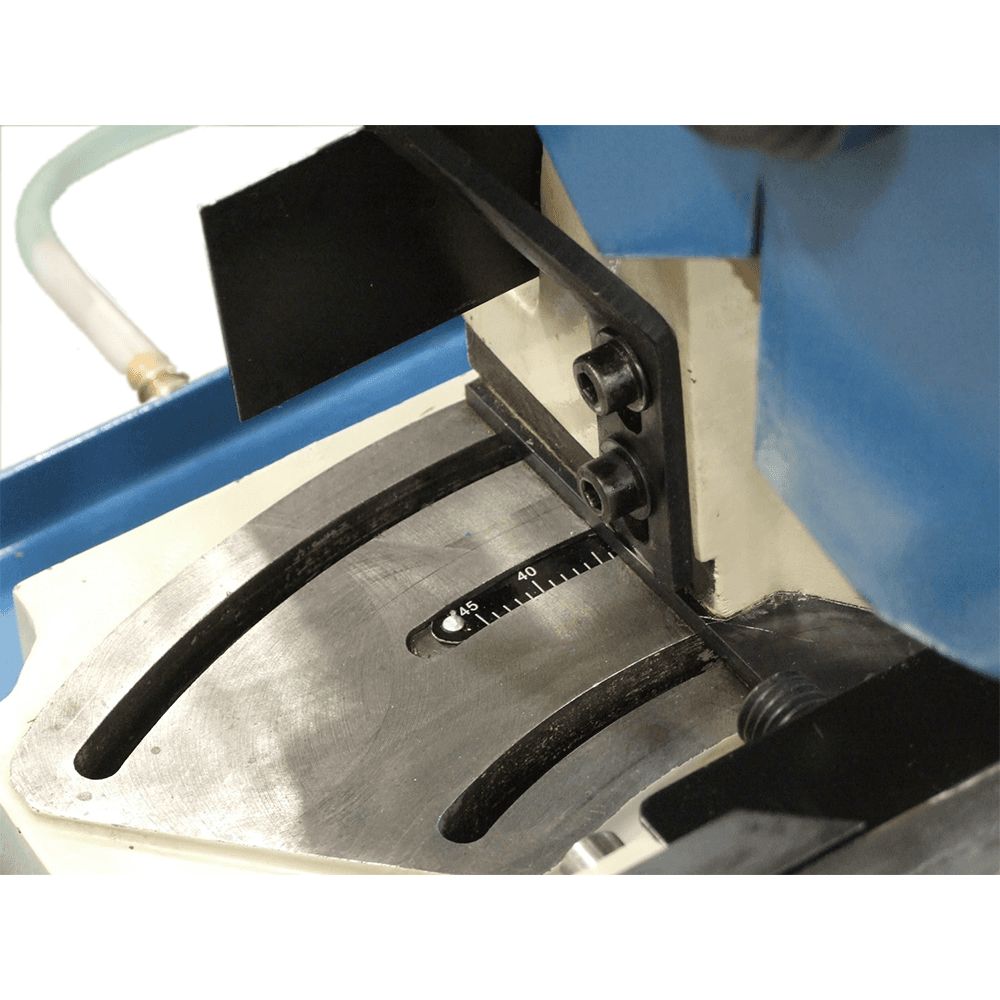

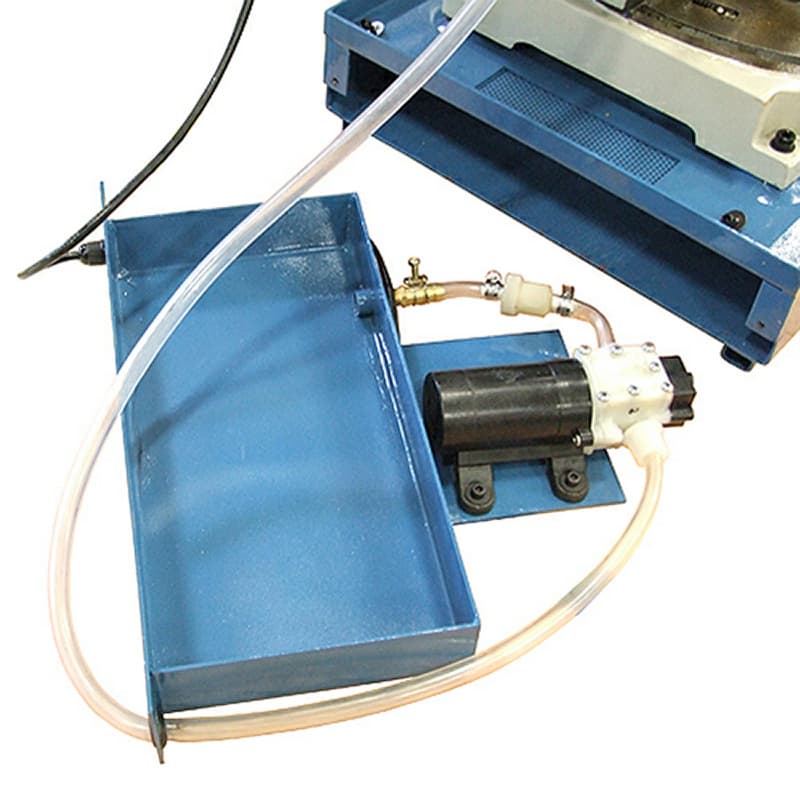

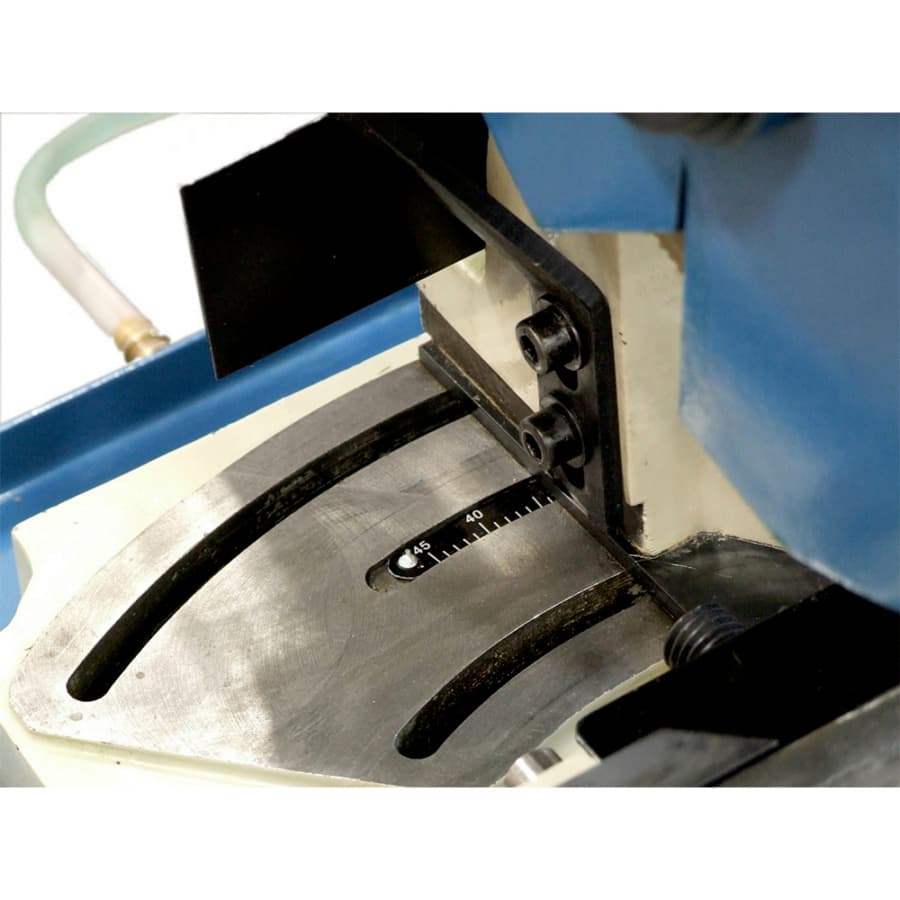

This portable benchtop saw has a cast base and a flood coolant system, often found only on more expensive models. Features: • Accepts a 9" blade (included) • It's our smallest cold saw • 2.5" round tube maximum capacity at 90° • Miters up to 45° to the left • Spins at 50 rpm, optimal for cutting many different kinds of materials • Cuts tubing, pipe, angle iron, Solids, and much more • 1 hp motor runs on 110 volts, so you can plug it in anywhere • Self-centering American-style vise keeps the material in the right position with respect to the blade • Vise grips the material on both sides of the blade for extra support • Direct drive gearbox (encased in a fully machined cast iron housing) ensures proper alignment and a long lifetime of use • Stop rod helps with Repeatability for small production runs • Heavy-Duty cast iron base stabilizes the machine, so that it can deliver accurate cuts for many years • Flood coolant system maintains high cut quality and helps both the saw and its blades last longer • Replacement parts are in stock at our Wisconsin headquarters, so you can get them quickly • Covered by a 1-year warranty
Specifications
| Box Quantity | 1 |
| Blade Speeds (RPM) | |
| Solid Round at 90 Degrees | 1.75" |
| Solid Square at 45 Degrees | |
| Solid Square at 90 Degrees | |
| Tubing Rectangle at 45 Degrees | |
| Tubing Rectangle at 90 Degrees | |
| Tubing Round at 45 Degrees | 2.125" |
| Tubing Round at 90 Degrees | |
| Tubing Square at 45 Degrees | 2" x 2" |
| Solid Round at 45 Degrees | 1.5" |
| Solid Rectangle at 90 Degrees | |
| Solid Rectangle at 45 Degrees | |
| Configurable Base Item | |
| Enhanced Description | |
| Maximum Vise Opening | |
| Motor Amps | |
| Motor Phase | |
| Motor Power (HP) | 1 HP |
| Motor Voltage (V.) | 110V |
| Product Type | Manual Cold Saws |
| Tubing Square at 90 Degrees | 2.5" |
