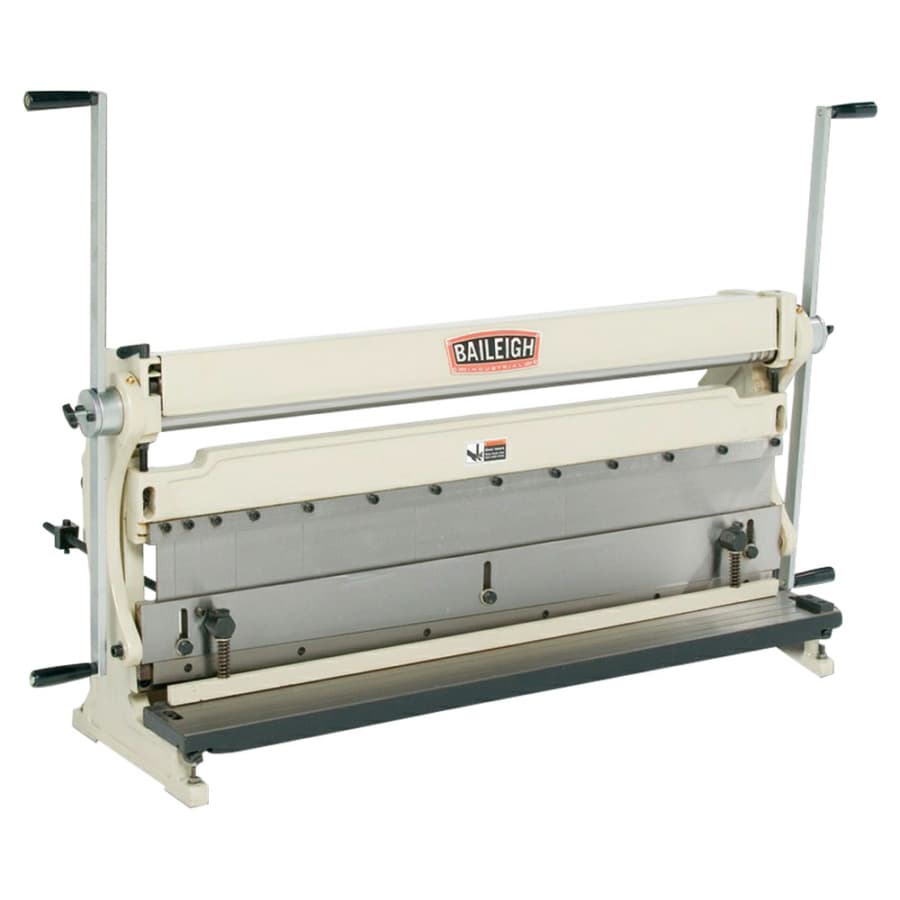

Baileigh SBR-4020 3-In-1 Shear Brake Roll Machine

The SBR-4020 shear brake roll machine has a small floor plan for shops with limited space. You can mount this combination machine to a bench or stand. Get a durable 3 in 1 sheet metal machine for an affordable price.

Features:

• 40" working width for rolling, bending, and shearing
• Maximum capacity of 20 gauge mild steel and 16 gauge aluminum for all functions

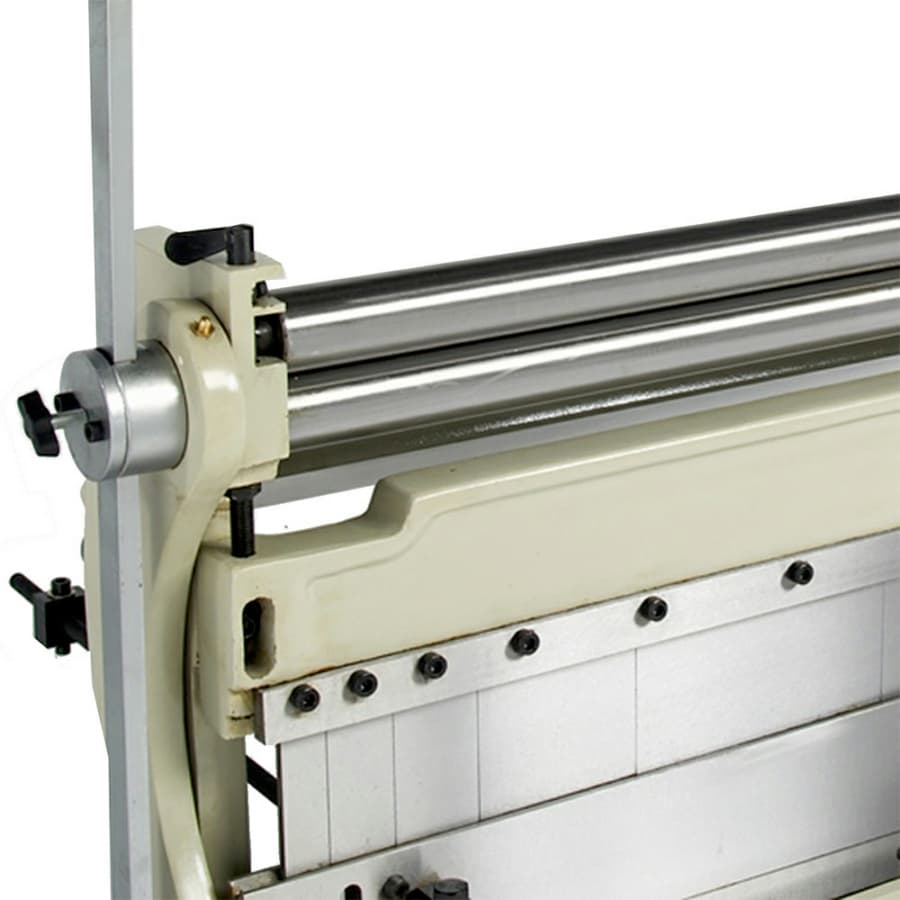

• Manual slip roll on the top portion of the machine can create sheet metal rolls with a 1.70" minimum diameter

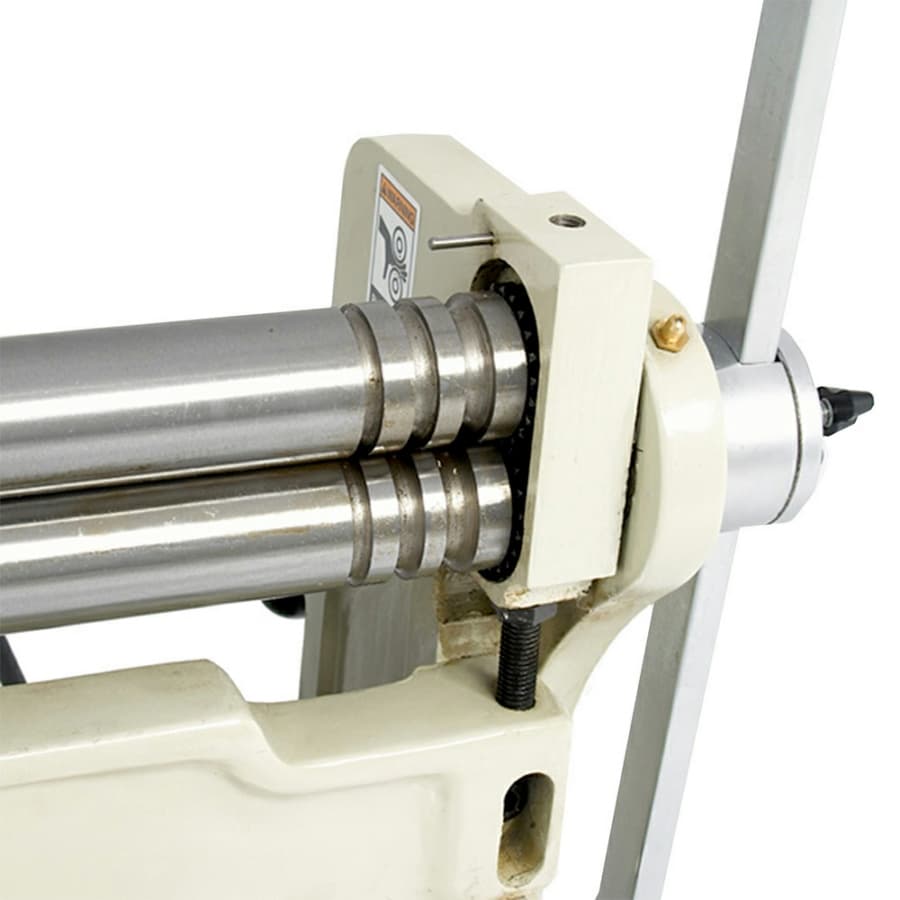

• Hardened rolls with 3 grooves can form wire or small round stock
• Manual press brake bends up to 90° and includes a V die set
• Crowning feature lets you set the camber of the tooling so it bends consistently across the machine's full width
• Hardened adjustable dies (from 1" to 10") on the upper beam of the press brake can make boxes and pans

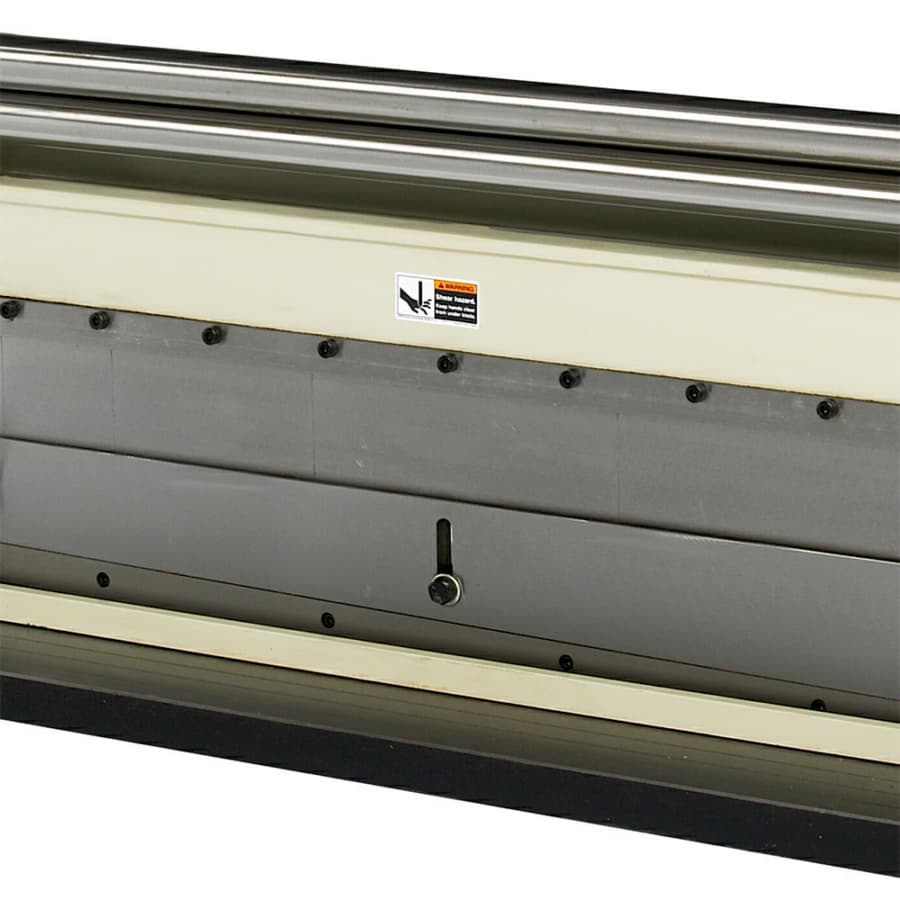

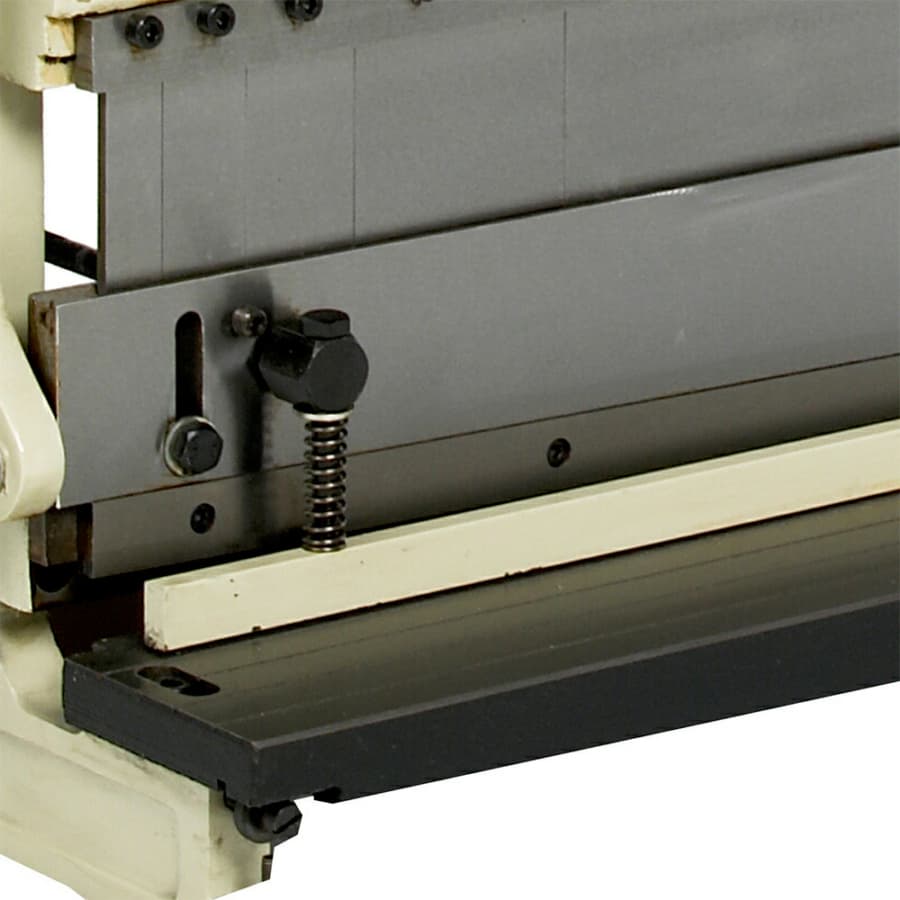

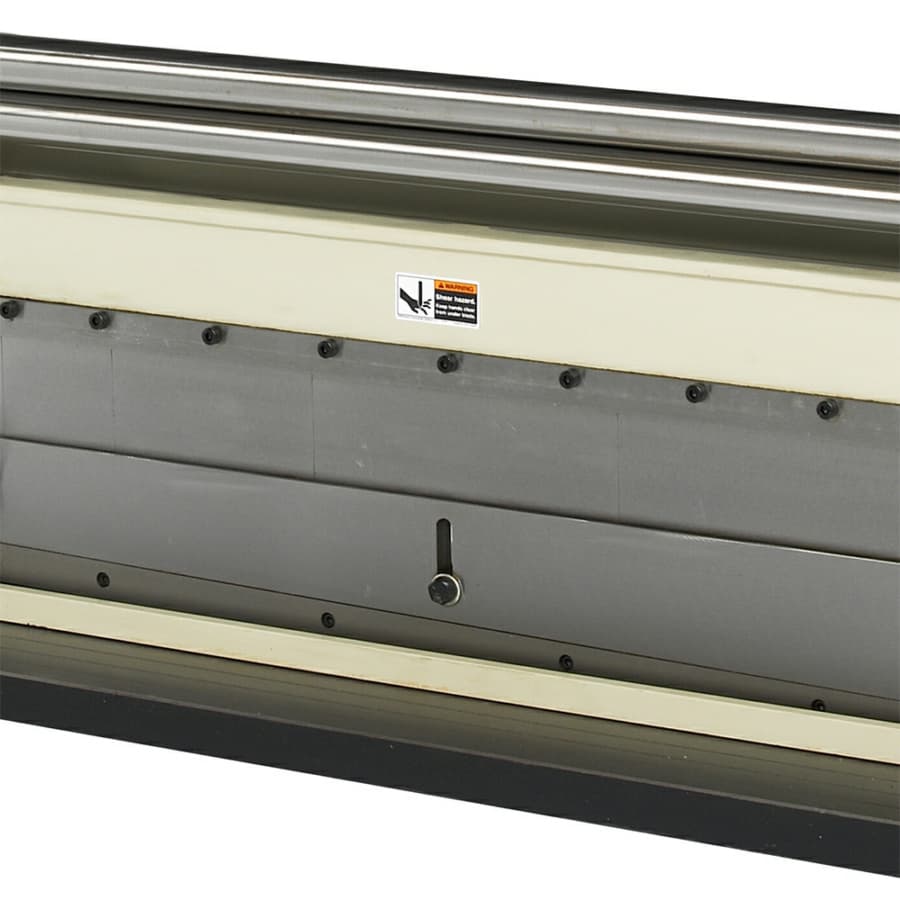

• Metal shear on the bottom uses spring-loaded clamps to hold the material down and produce clean, crisp shearing across the machine
• Shear blades are hardened and reversible, so they stay sharp

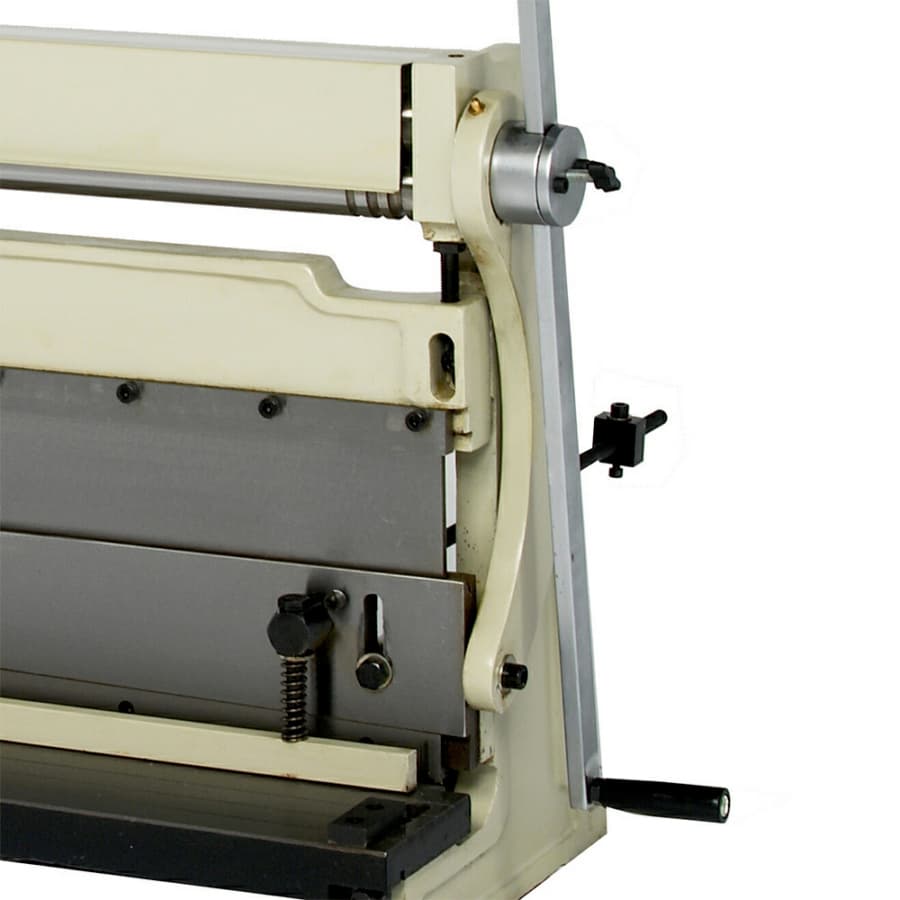

• Large handles with grips on both sides allow 2 operators to combine their force and make the machine easier to use
• Each 360° turn of the handles gives you a full cycle on each of the machines
• Back gauge helps ensure repeatability
• Heavy-duty steel frame adds strength to the 461-pound machine
