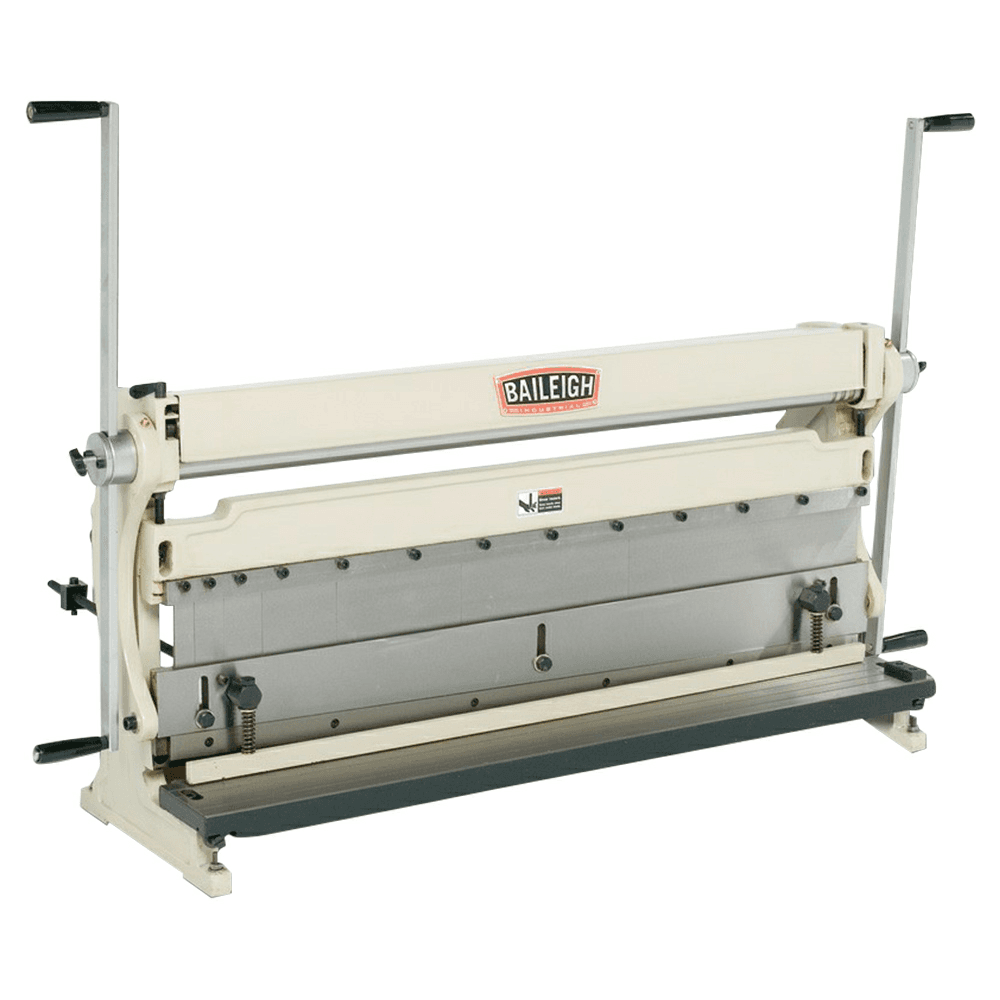

Baileigh SBR-4020 3-In-1 Shear Brake Roll Machine
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details

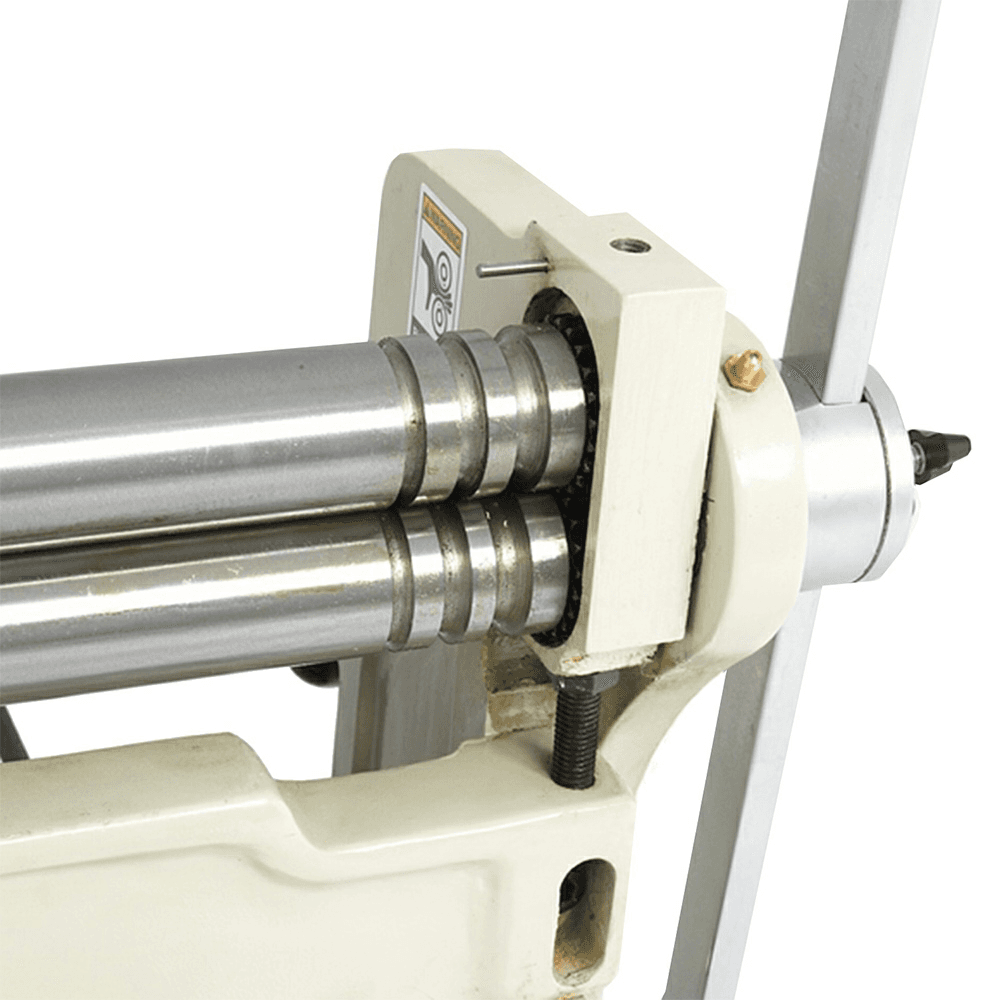

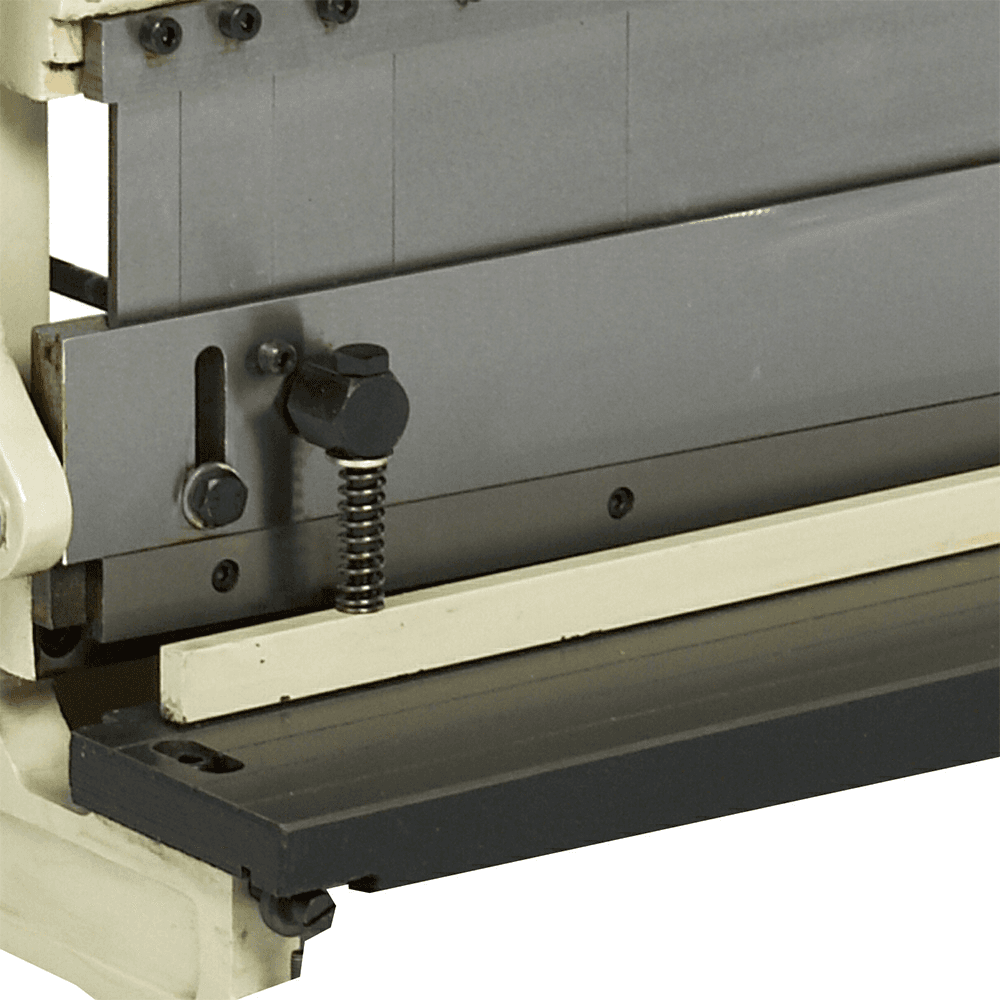

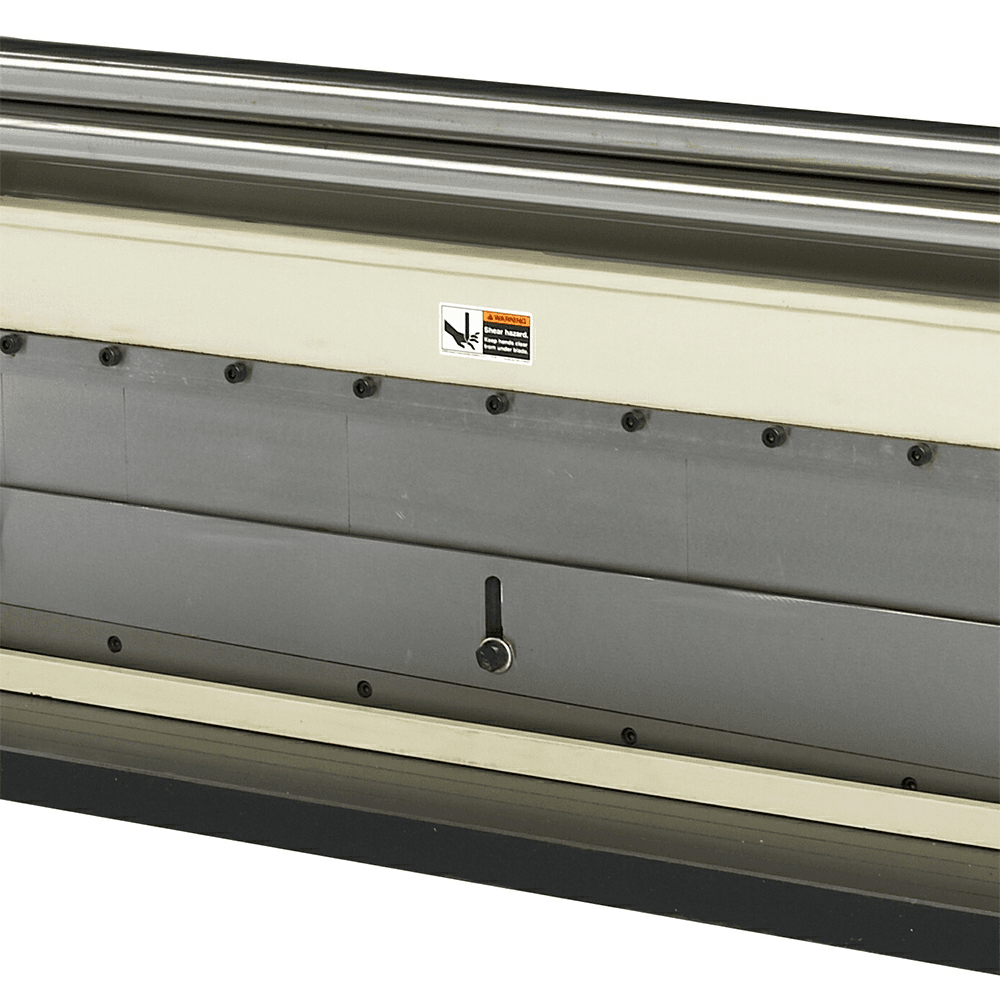

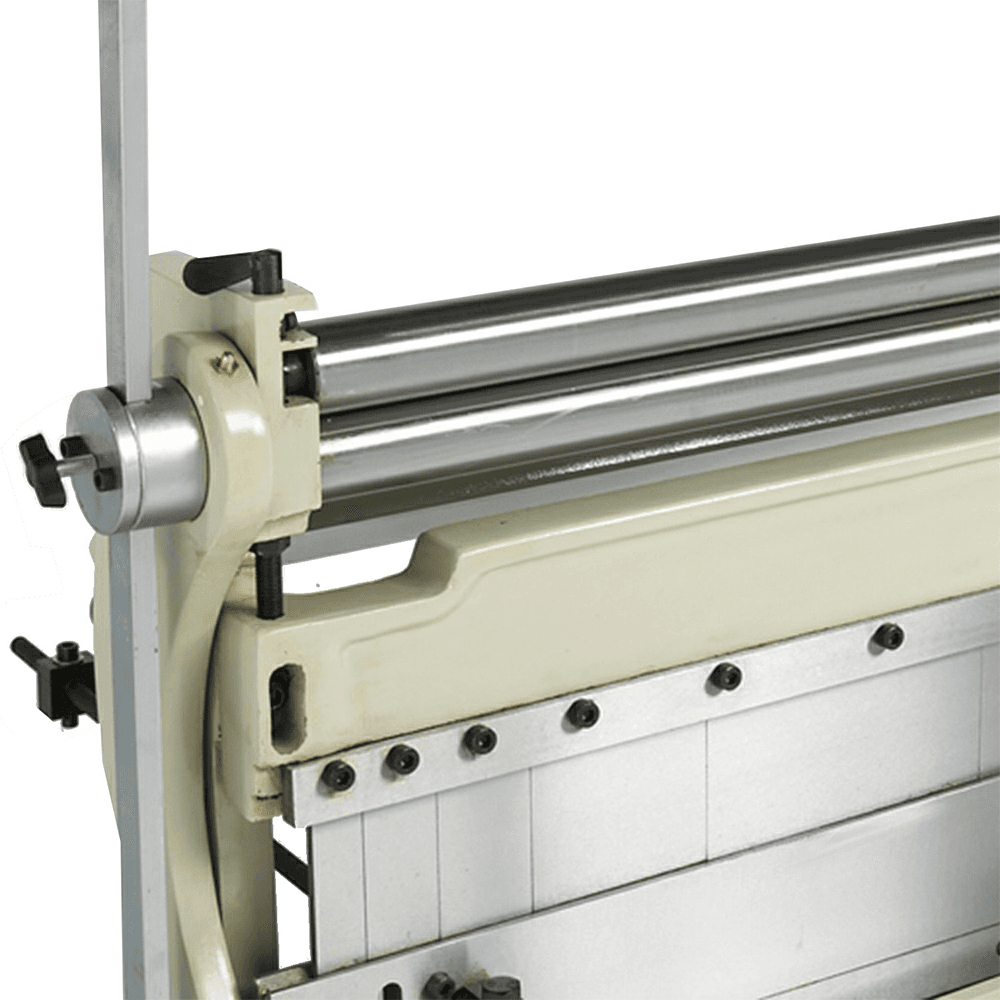

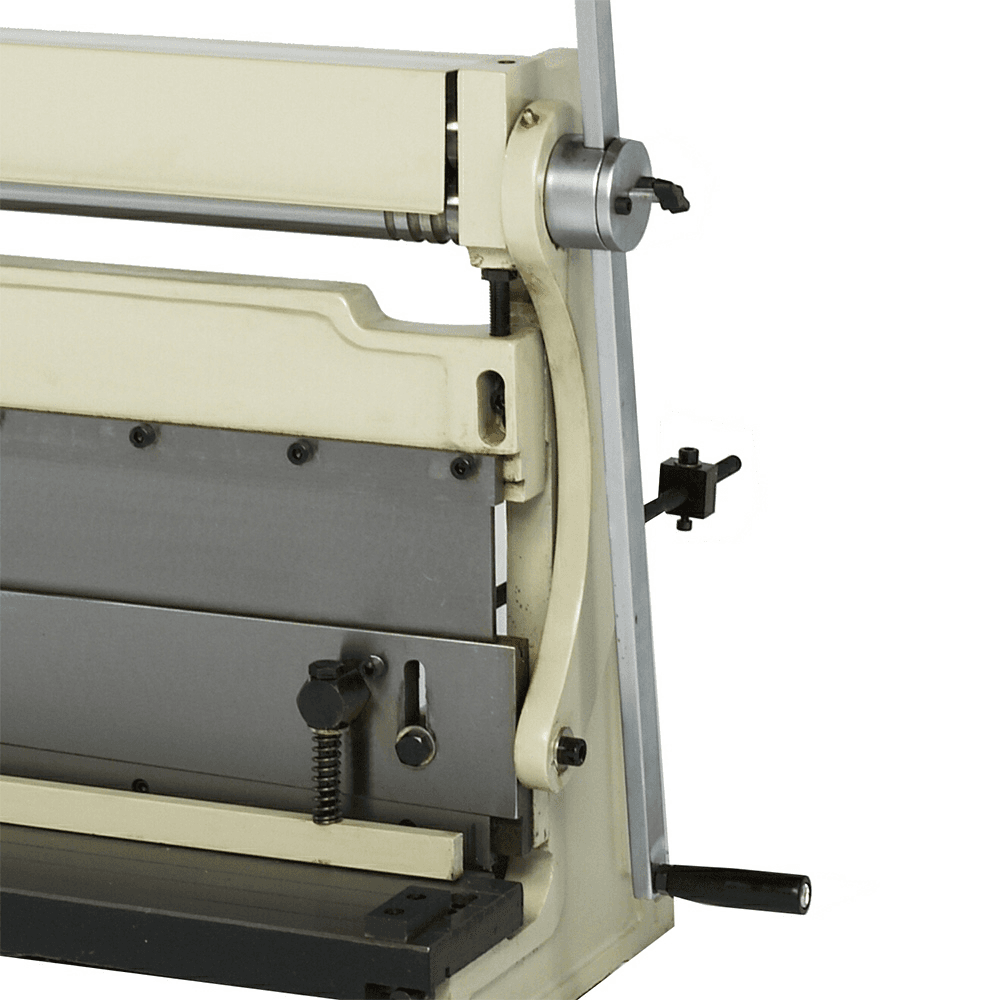

The SBR-4020 shear brake roll machine has a small floor plan for shops with limited space. You can mount this combination machine to a bench or stand. Get a durable 3 in 1 sheet metal machine for an affordable price. Features: • 40" working width for rolling, bending, and shearing • Maximum capacity of 20 gauge mild steel and 16 gauge aluminum for all functions • Manual slip roll on the top portion of the machine can create sheet metal rolls with a 1.70" minimum diameter • Hardened rolls with 3 grooves can form wire or small round stock • Manual press brake bends up to 90° and includes a V die set • Crowning feature lets you set the camber of the tooling so it bends consistently across the machine's full width • Hardened adjustable dies (from 1" to 10-⅛") on the upper beam of the press brake can make boxes and pans • Metal shear on the bottom uses spring-loaded clamps to hold the material down and produce clean, crisp shearing across the machine • Shear blades are hardened and reversible, so they stay sharp • Large handles with grips on both sides allow 2 operators to combine their force and make the machine easier to use • Each 360° turn of the handles gives you a full cycle on each of the machines • Back gauge helps ensure repeatability • Heavy-duty steel frame adds strength to the 461-pound machine
Specifications
| Box Quantity | 1 |
| Base Dimensions (L x W x H) | |
| Size of Slip Roll (L x Dia.) | |
| Shearing Capacity (Gauge) | |
| Shear Capacity (Gauge) | 20 ga. (.036") |
| Rolling Capacity (Gauge) - rolling_capacity | 20 ga. (.036") |
| Rolling Capacity (Gauge) | |
| Product Type | Manual Press Brakes & Combination Machines |
| Overall Dimensions (L x W x H) | |
| Minimum Forming Radius | |
| Mild Steel Capacity (Gauge) | |
| Configurable Base Item | No |
| Bending Capacity (Gauge) | |
| Upper Die Height |
