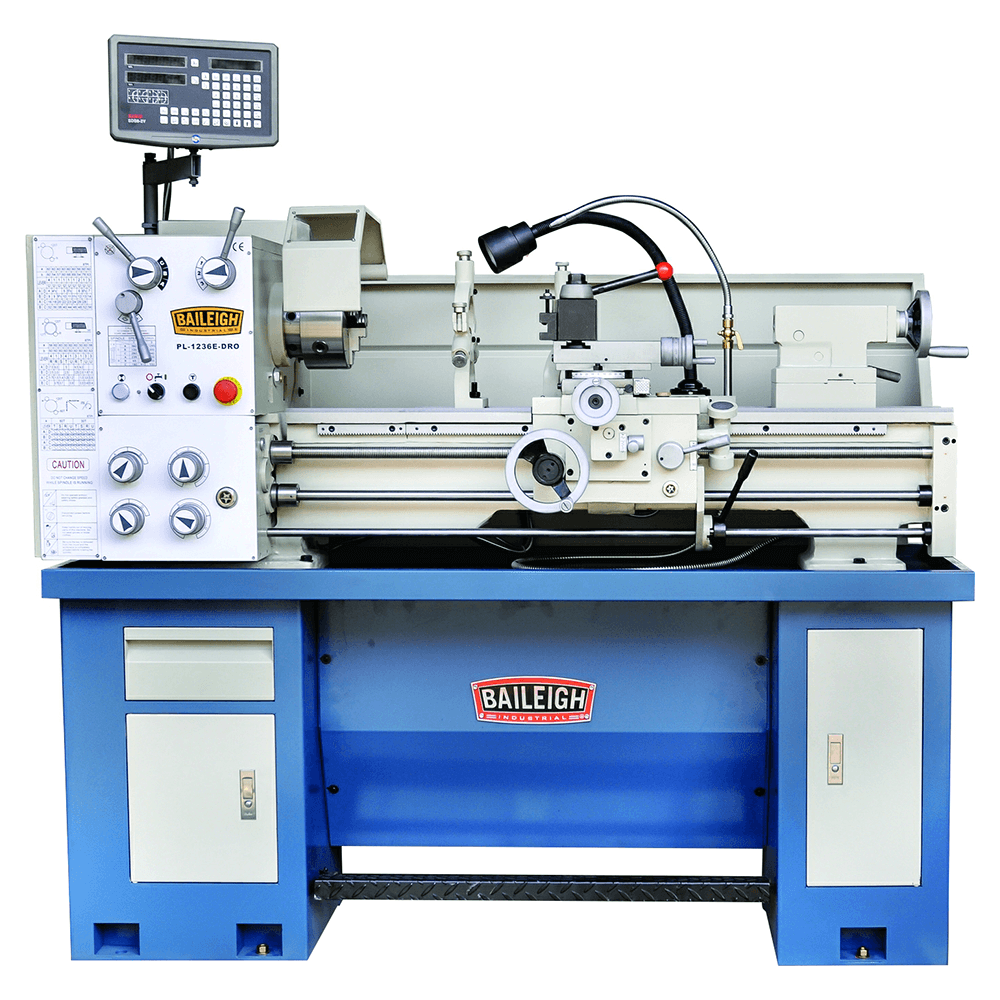

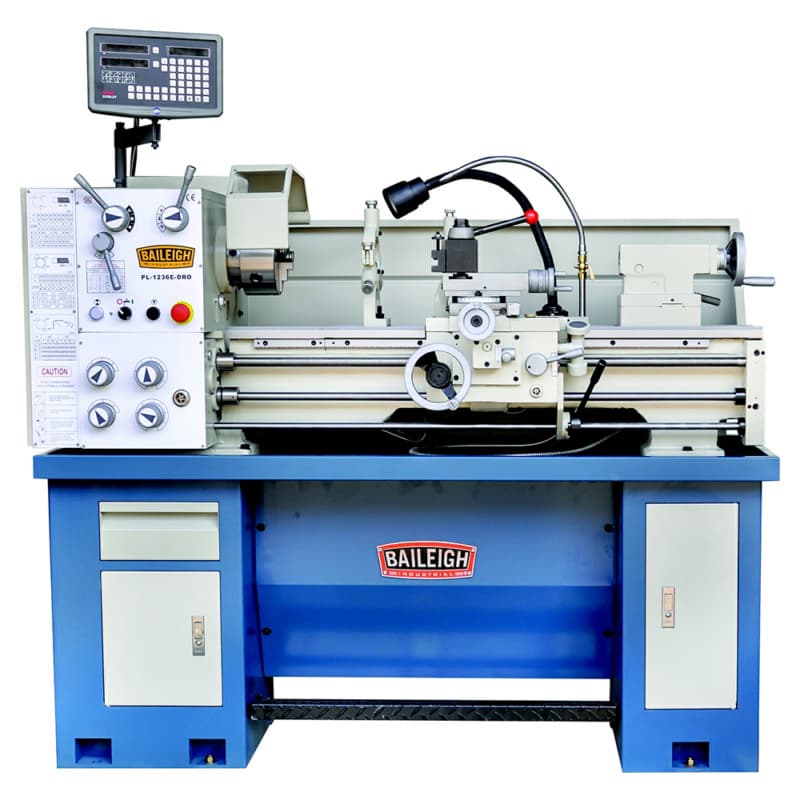

Baileigh PL-1236E-DRO-1.0 Digital Readout Metal Lathe, 1 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

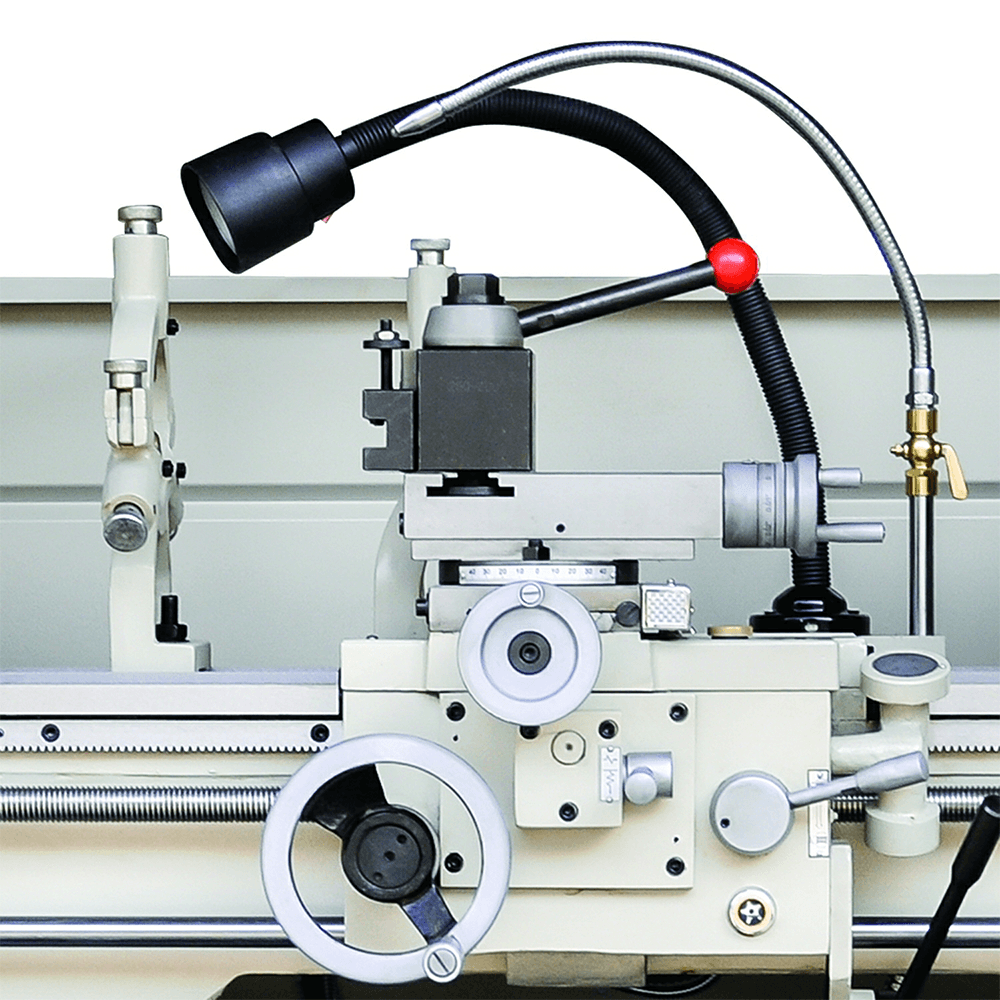

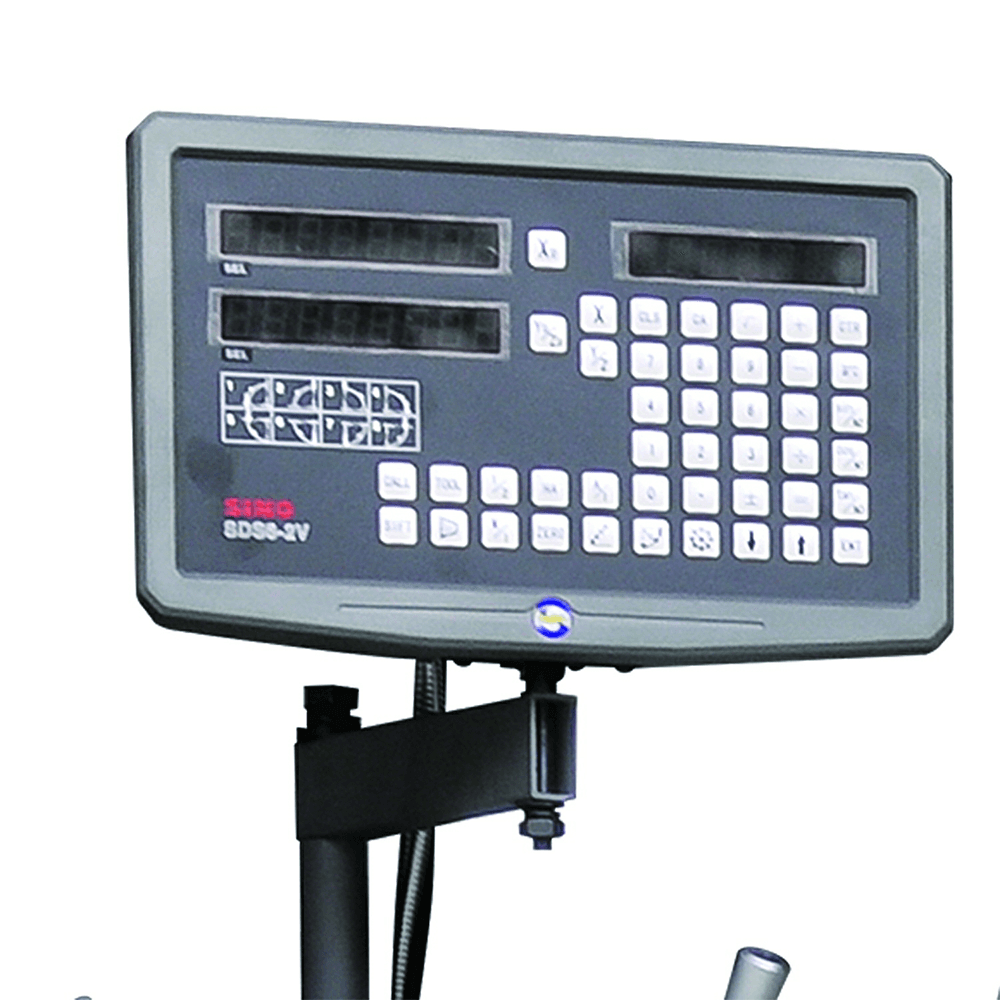

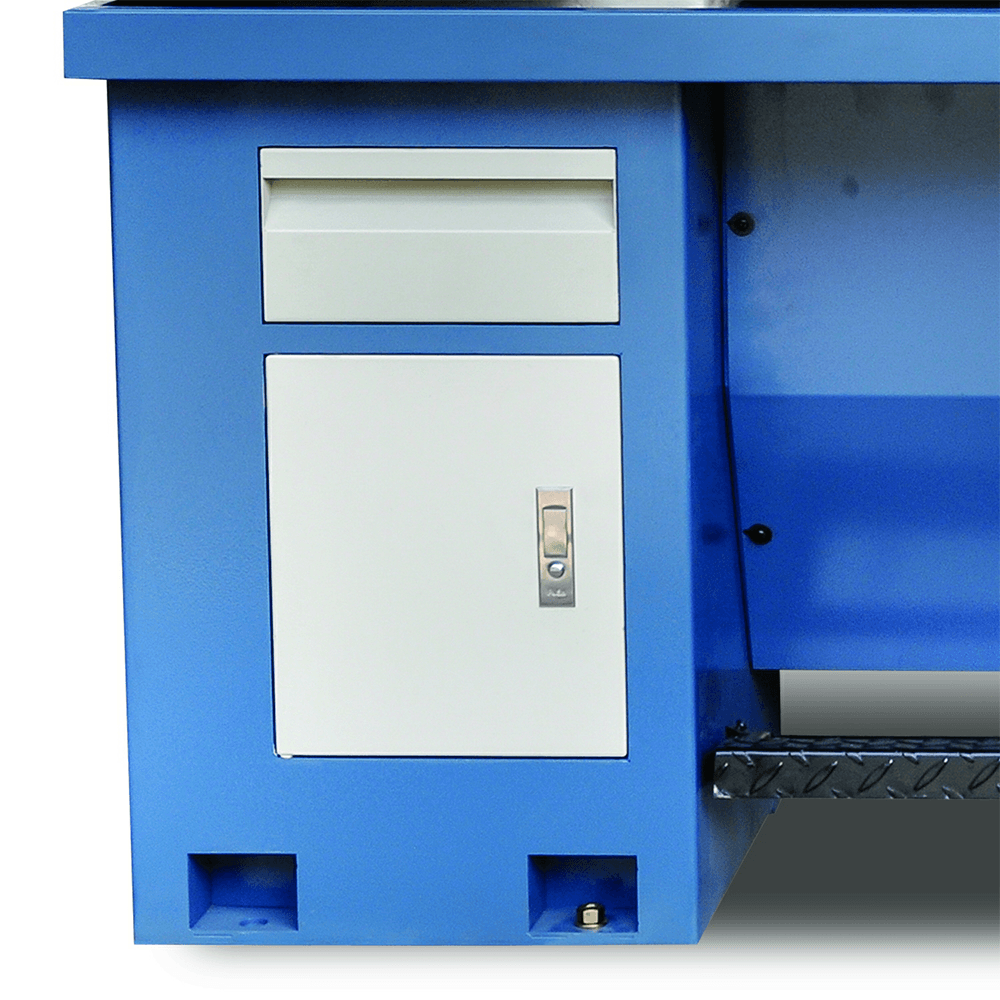

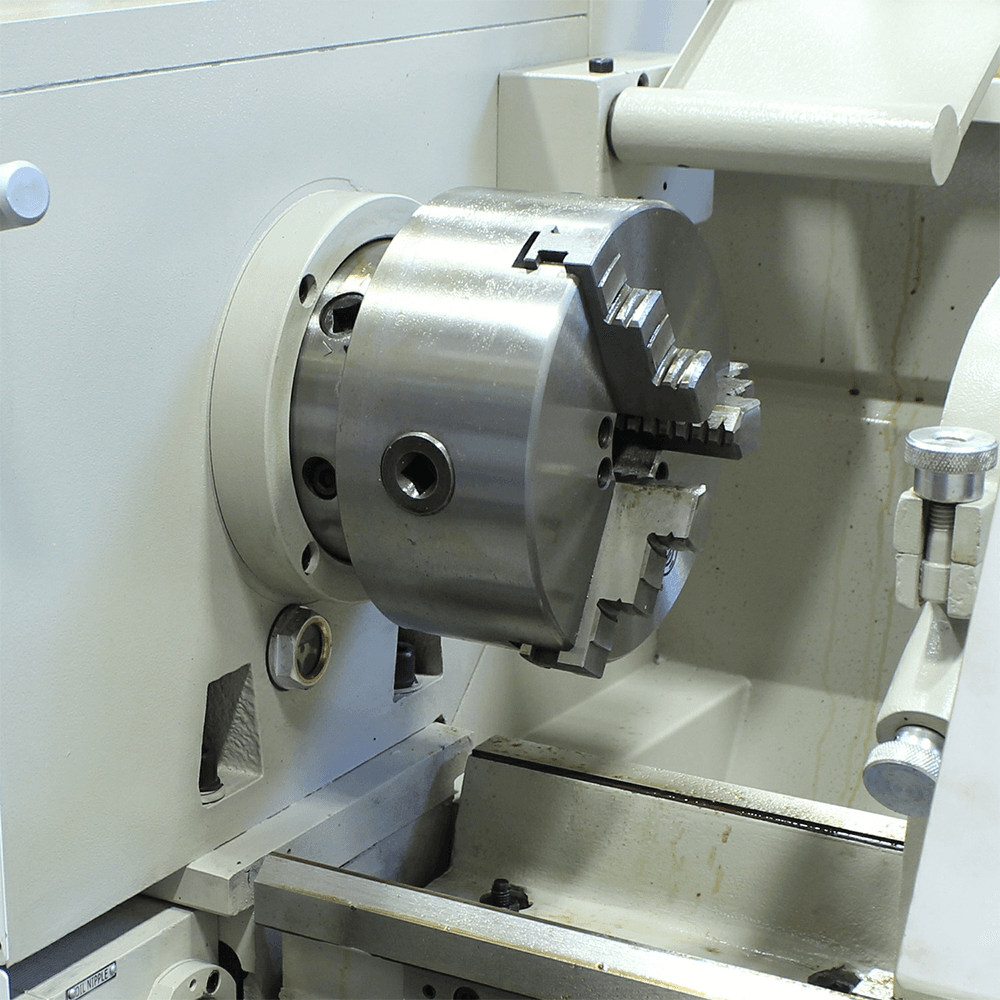

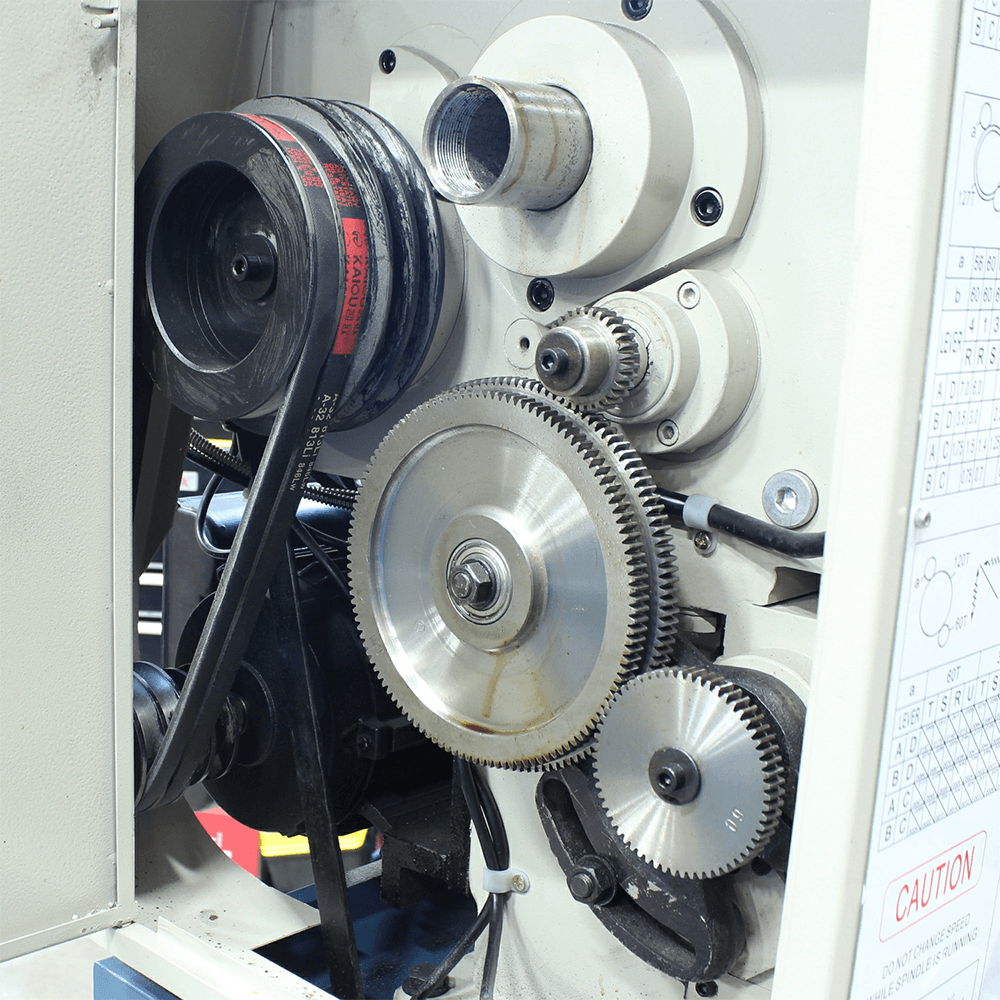

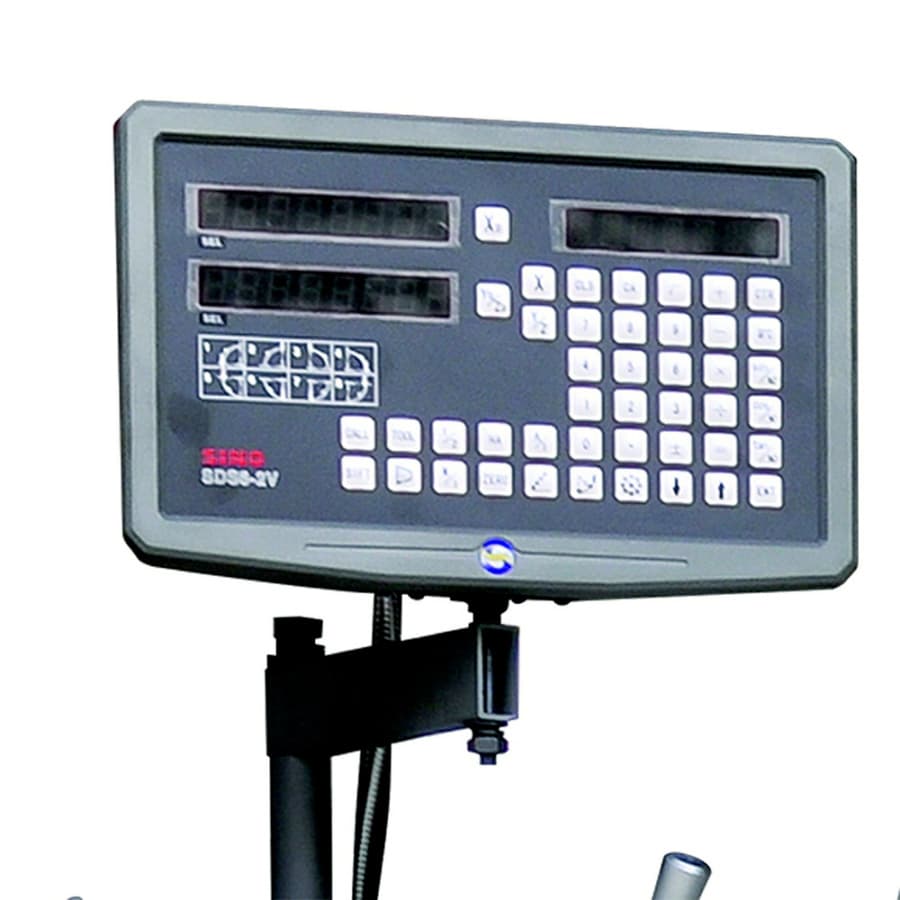

We added a DRO to our popular PL-1236E Metal Lathe, so you can adjust your settings more precisely. This model includes a quick-change tool post and a coolant system. Recommended for small fabricators, schools, or garages. Features: • Integrated digital readout (DRO) helps you get repeatable results • Quick-change tool post makes tooling changes more efficient and helps you save time • Gear system allows for taping, turning, and polishing • All ways are ground and hardened to ensure long life • Runs on 220-volt single-phase power and 70 to 1,400 rpm variable speed - Capable of standard and metric threading • 3-jaw and 4-jaw chucks can hold both square and rounded materials • Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy • Facing plate lets you shape materials that are large but not long - Bolt your metal to the plate to keep it square and symmetrical • Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed • Foot brake helps keep your shop safe and Halogen work light comes standard
Specifications
| Box Quantity | 1 |
| Width of Bed | |
| Spindle Taper with Sleeve | |
| Spindle Taper | Morse #3 |
| Spindle Diameter | 1.250" |
| Spindle Bore | 1.50" |
| Spindle Accuracy | |
| Speed (RPM) | |
| Short Description | Integrated DRO 36" between centers 70 to 1,400 rpm 220V 1-phase motor 12" swing 1.5" spindle bore |
| Range of Metric Threads | 0.4 – 7 mm |
| Range of Longitudinal Feeds (IPR) | 0.002" – 0.0548"/rev |
| Range of Inch Threads (TPI) | 4 - 56 T.P.I. |
| Spindle Travel | 4" |
| Swing Over Bed | |
| Swing Over Cross Slide | |
| Threads Modular Quality Speed (M.P.) | |
| Threads Metric Quality Speed (mm pitch) | |
| Threads Imperial Quality Type (T.P.I.) | |
| Threads Imperial Quality Speed (T.P.I.) | |
| Threads Diametrical Quality Type (D.P.) | |
| Threads Diametrical Quality Speed (D.P.) | |
| Taper in Tailstock Spindle | |
| Tailstock Spindle Travel | |
| Table Length | |
| Swing Through Gap | |
| Range of Cross Feeds (MMPR) | |
| Range of Cross Feeds (IPR) | 0.007" – 0.0187"/rev |
| Quill Taper | |
| Lead Screw Diameter | |
| Input Power | 220V / 1-phase |
| Distance Between Centers | 36" |
| Cutting Tool Max Section | |
| Cross Slide Travel | |
| Compound Slide Travel | |
| Compound Rest Width | |
| Compound Rest Travel | |
| Center Height | |
| Center Distance | |
| Leadscrew Thread Pitch | 8 T.P.I. |
| Length of Gap | 6" |
| Longitudinal Feed Imp Qty Type | |
| Quick Change Collet Size (Mm.) | |
| Quick Change Collet Size (mm) | .625" x .625" |
| Product Type | Metal Lathes |
| Overall Dimensions (L x W x H) | |
| Number of Spindle Speeds | |
| Nose Radius | D1-4" |
| Motor (HP) | |
| Modular Pitch Threads Range | |
| Longitudinal Feeds Metric Qty Speed | |
| Longitudinal Feeds Imperial Qty Speed | |
| Bed Height |
