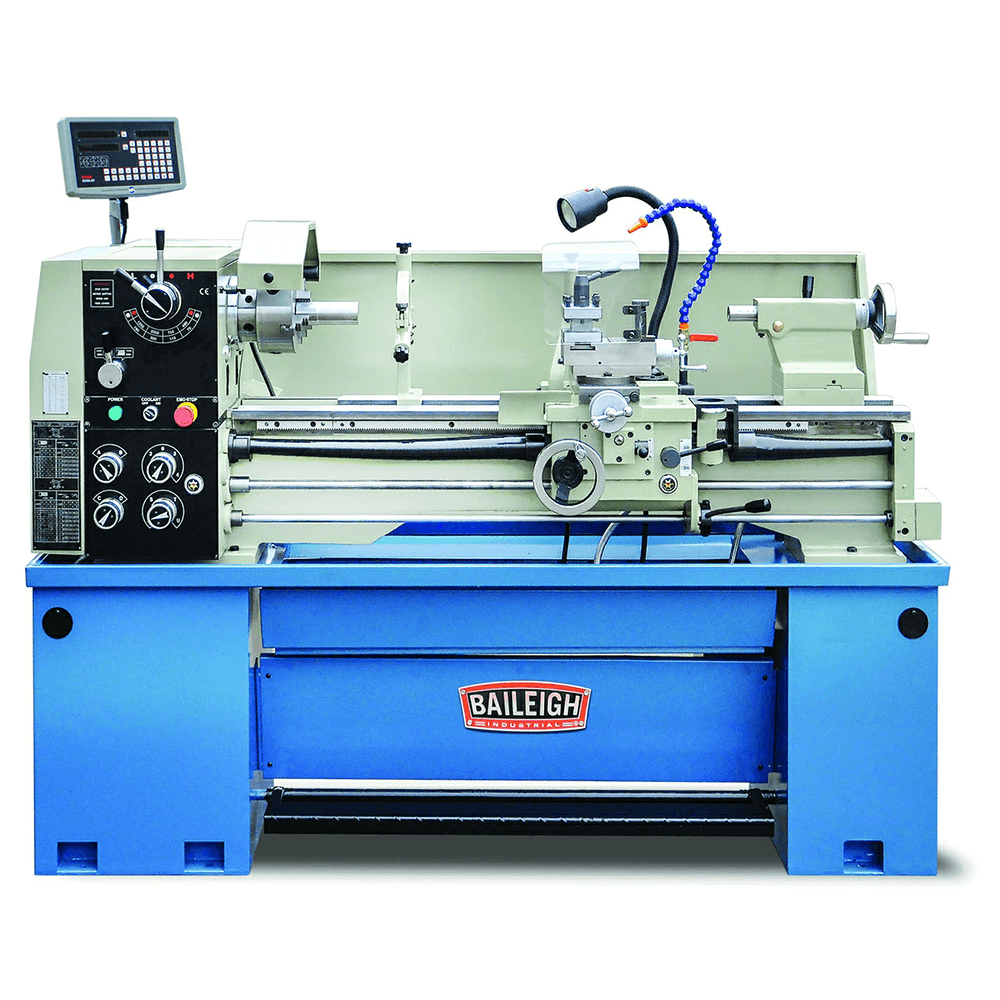

Baileigh PL-1440E-1.0 3 HP Metal Lathe, 1 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

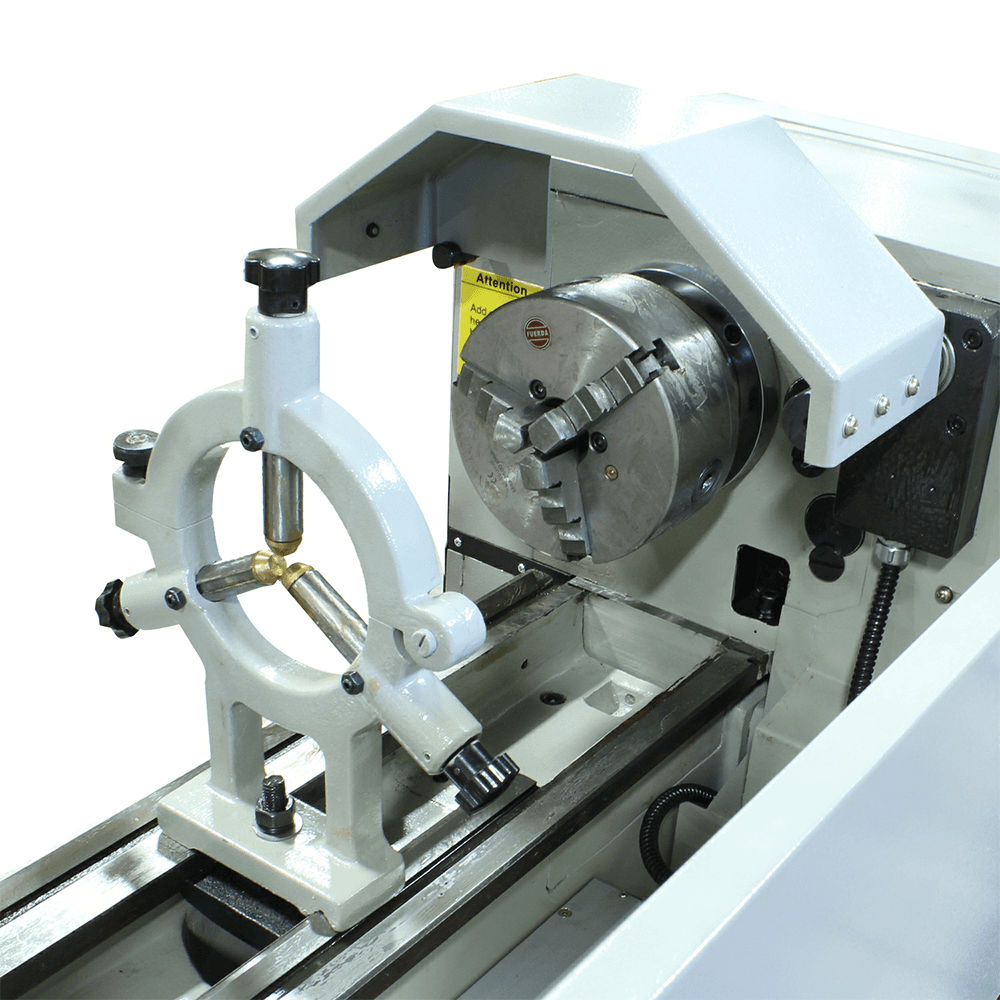

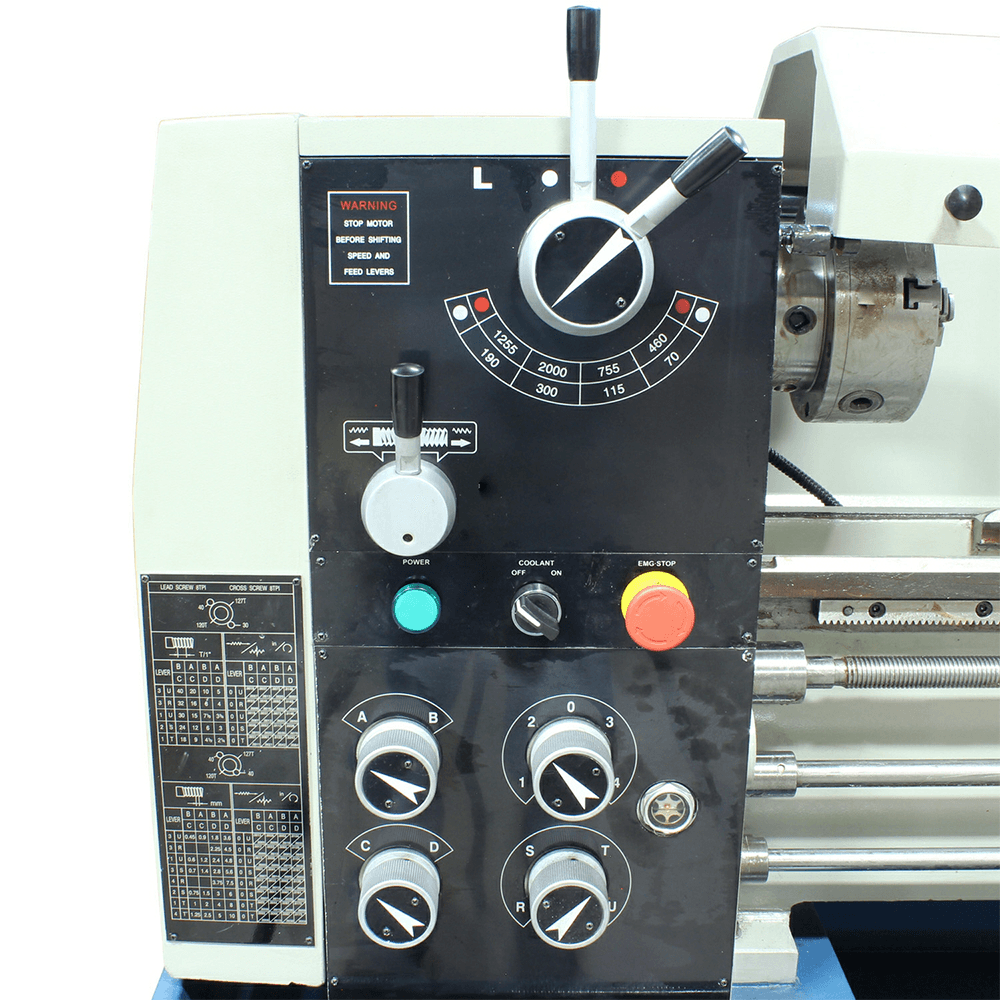

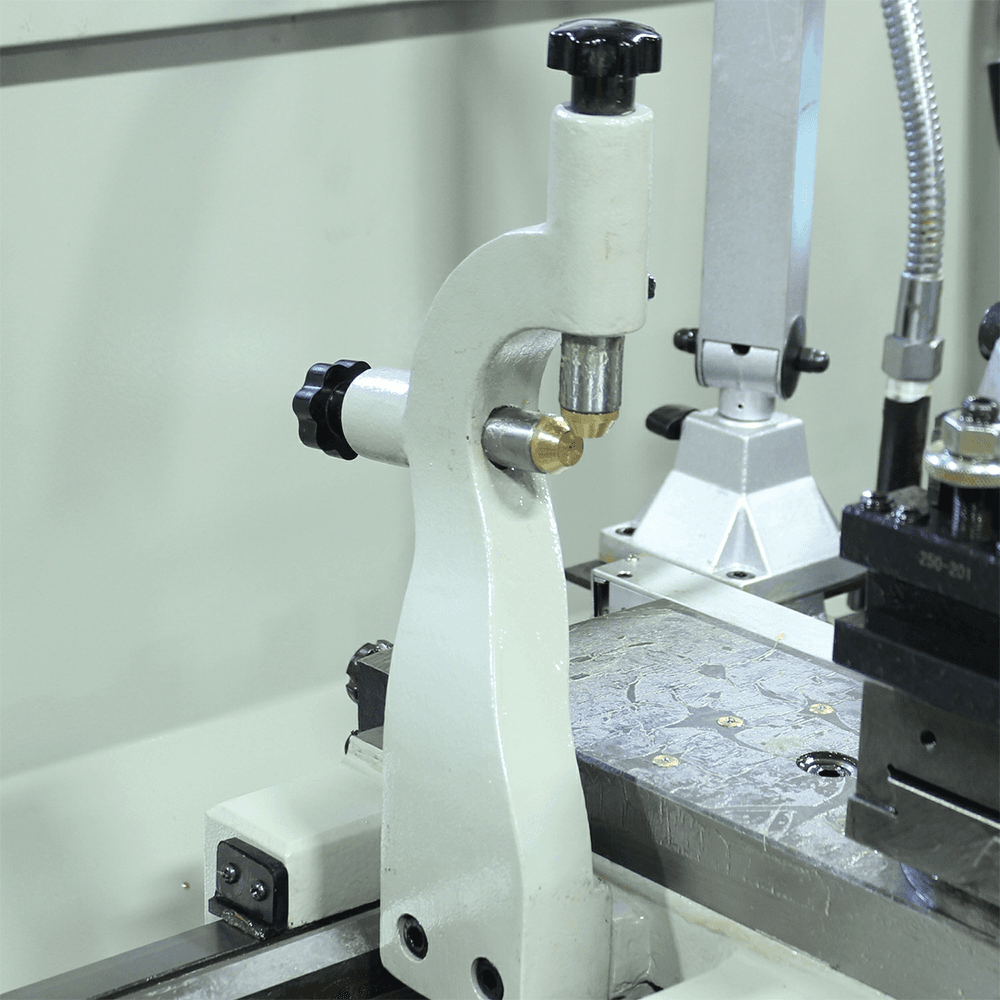

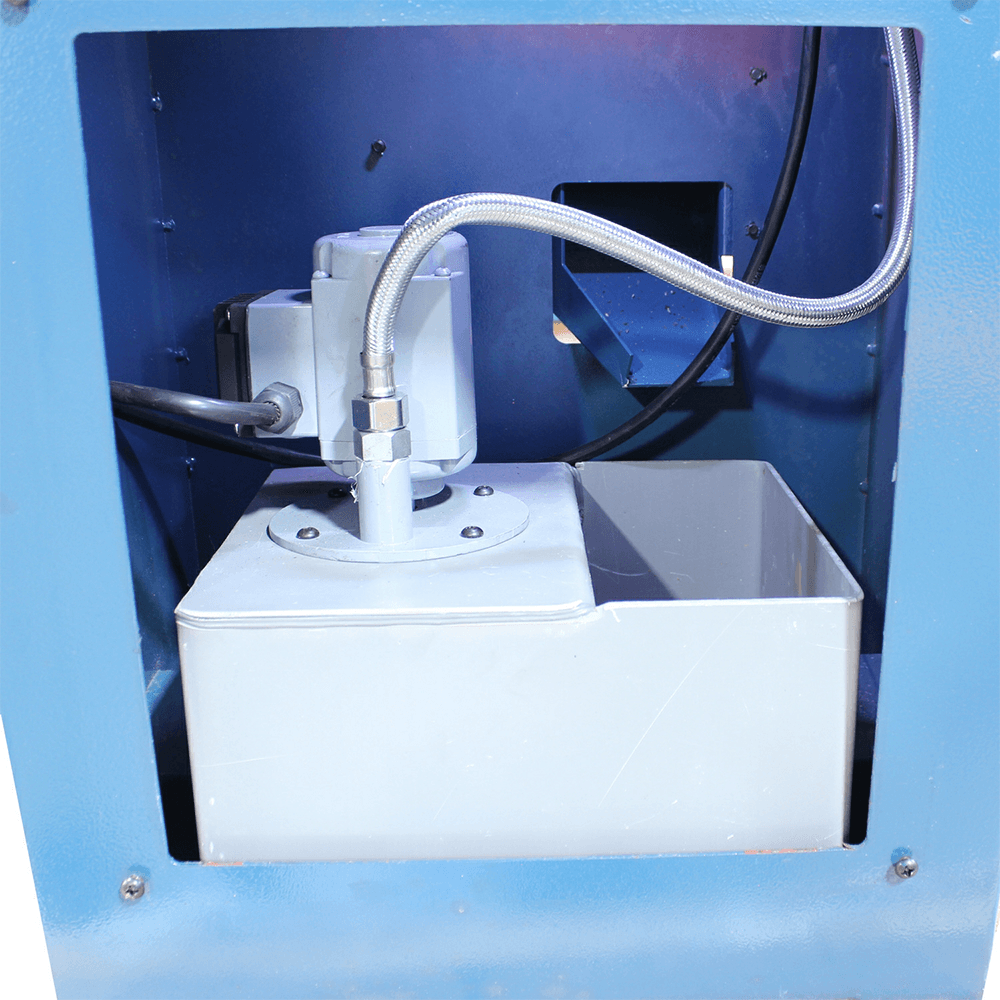

The PL-1440E metal lathe raises the bar for entry-level lathes. Built with ground and hardened slideways and a DRO, this gap lathe is reliable and precise. Features: • 3 hp motor runs on a 220-volt single-phase power with 8 spindle speeds, ranging from 90 to 1,800 rpm • Precision-ground and hardened ways ensure years of tight tolerances • Digital readout (pre-installed) helps you make precise cuts • Capable of making metric and standard threads • Gap lathe design allows you remove a section of the slide to fit a slightly larger diameter • Integrated coolant system, which maintains accuracy and helps the machine last longer • Comes standard with 3-jaw and 4-jaw chucks, headstock chuck guard with automatic safety switch, and steady rest and follow rest • Other features include face plate, safety foot brake, and Halogen work light • Recommended for small to medium shops and schools with no assembly required. Just open the crate and wire it up • Optional taper attachment for making cones is sold separately
Specifications
| Box Quantity | 1 |
| Width of Bed | 7.086" |
| Spindle Taper with Sleeve | Morse #3 |
| Spindle Taper | |
| Spindle Diameter | |
| Spindle Bore | 1.5" |
| Spindle Accuracy | |
| Speed (RPM) | |
| Short Description | 40" between centers 90 to 1,800 RPM 2 hp 220-volt 1-phase motor 14" swing 1.5" spindle bore |
| Range of Metric Threads | |
| Range of Longitudinal Feeds (IPR) | |
| Range of Inch Threads (TPI) | |
| Spindle Travel | |
| Swing Over Bed | 14" |
| Swing Over Cross Slide | 8.6" |
| Threads Modular Quality Speed (M.P.) | |
| Threads Metric Quality Speed (mm pitch) | 22 / .45-7.5 mm |
| Threads Imperial Quality Type (T.P.I.) | |
| Threads Imperial Quality Speed (T.P.I.) | 44 / 4-112 T.P.I. |
| Threads Diametrical Quality Type (D.P.) | |
| Threads Diametrical Quality Speed (D.P.) | |
| Taper in Tailstock Spindle | 1.772" |

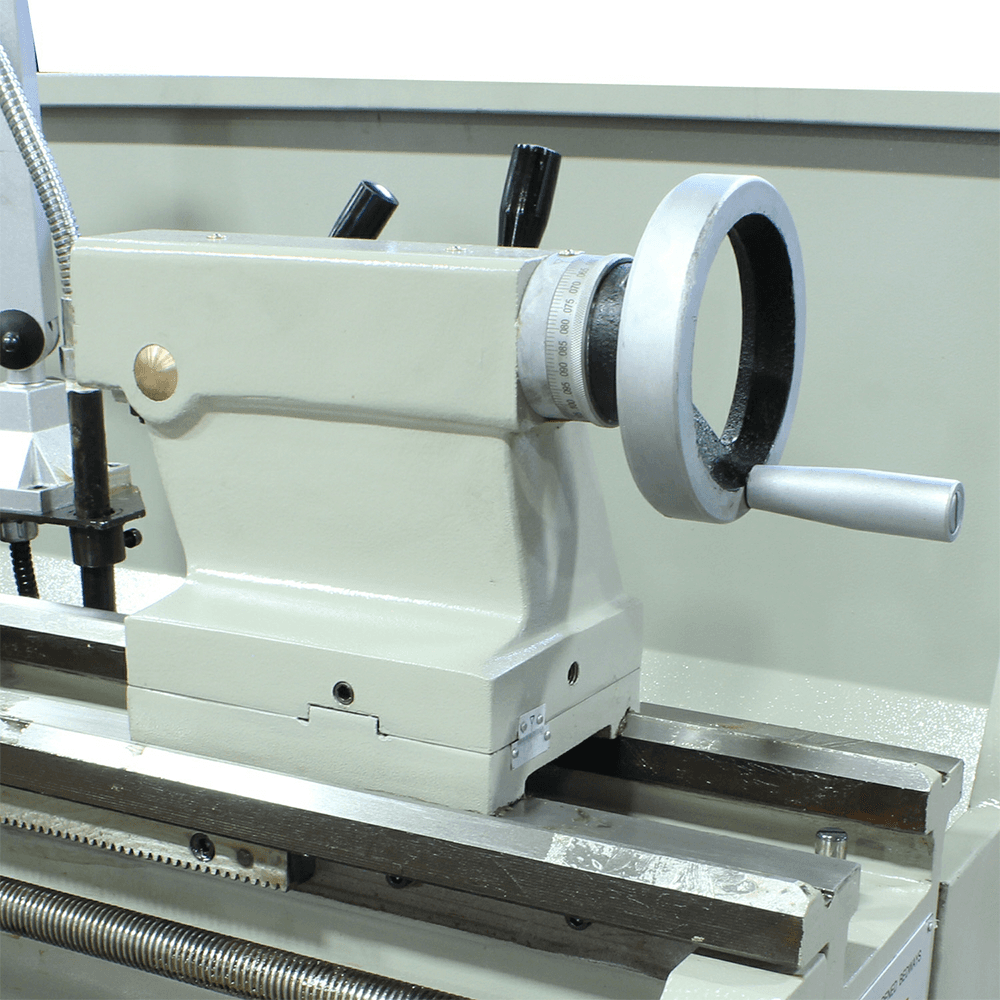

| Tailstock Spindle Travel | 4.72" |
| Table Length | 40" |
| Swing Through Gap | 19.9" |
| Range of Cross Feeds (MMPR) | |
| Range of Cross Feeds (IPR) | |
| Quill Taper | Morse #5 |
| Lead Screw Diameter | 0.866 |
| Input Power | 220V / 1-phase |
| Distance Between Centers | 40" |
| Cutting Tool Max Section | |
| Cross Slide Travel | |
| Compound Slide Travel | |
| Compound Rest Width | |
| Compound Rest Travel | |
| Center Height | |
| Center Distance | |
| Leadscrew Thread Pitch | 4 T.P.I. |
| Length of Gap | |
| Longitudinal Feed Imp Qty Type | |
| Quick Change Collet Size (Mm.) | |
| Quick Change Collet Size (mm) | |
| Product Type | Metal Lathes |
| Overall Dimensions (L x W x H) | 76" x 30" x 61" |
| Number of Spindle Speeds | 90 - 1800 RPM |
| Nose Radius | D1-4" |
| Motor (HP) | |
| Modular Pitch Threads Range | |
| Longitudinal Feeds Metric Qty Speed | |
| Longitudinal Feeds Imperial Qty Speed | .0012" - .0294"/rev. |
| Bed Height |
