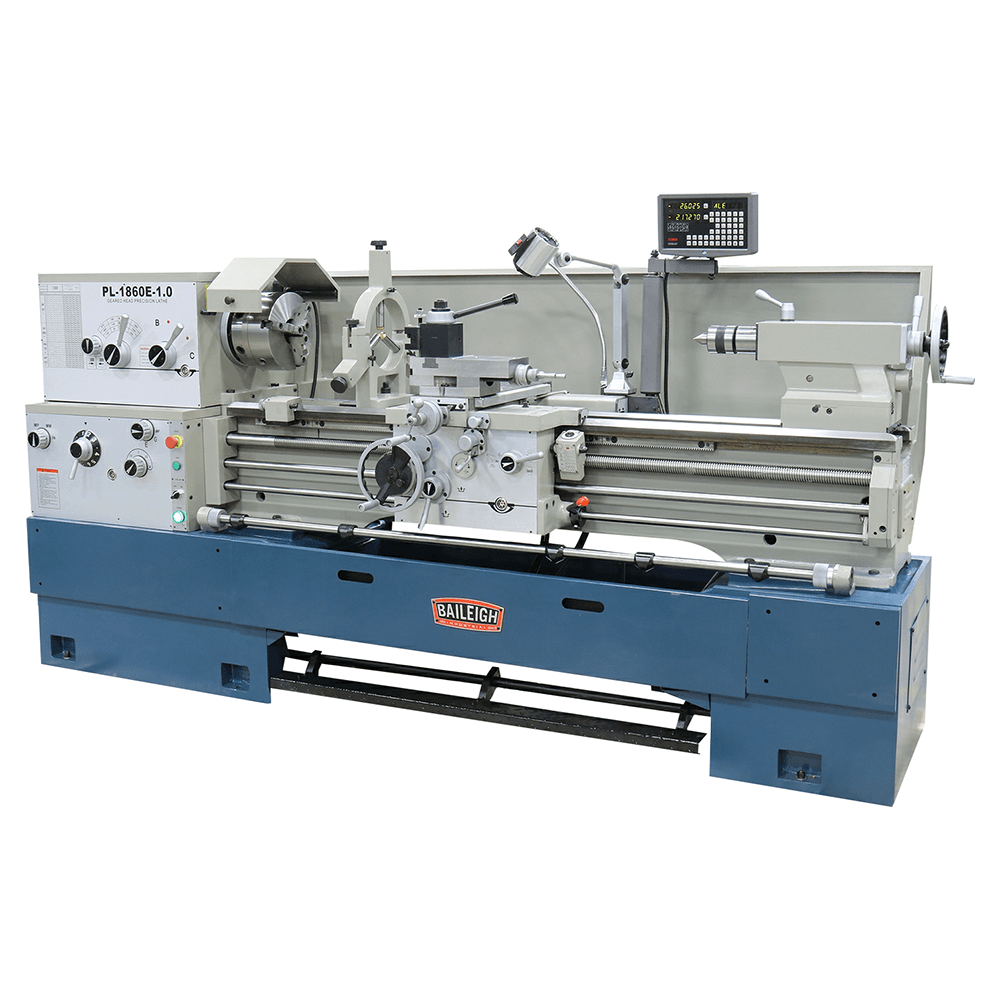

Baileigh PL-1860E-1.0 7.5 HP Metal Lathe, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

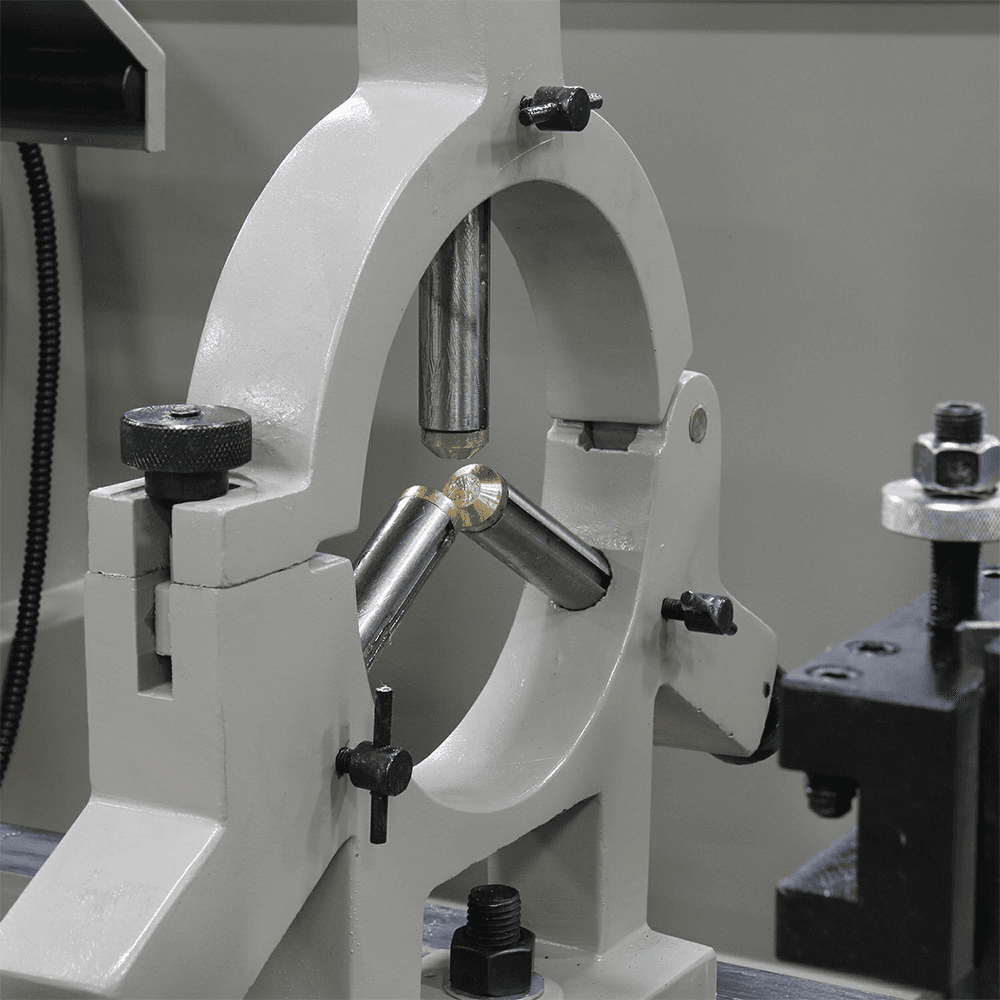

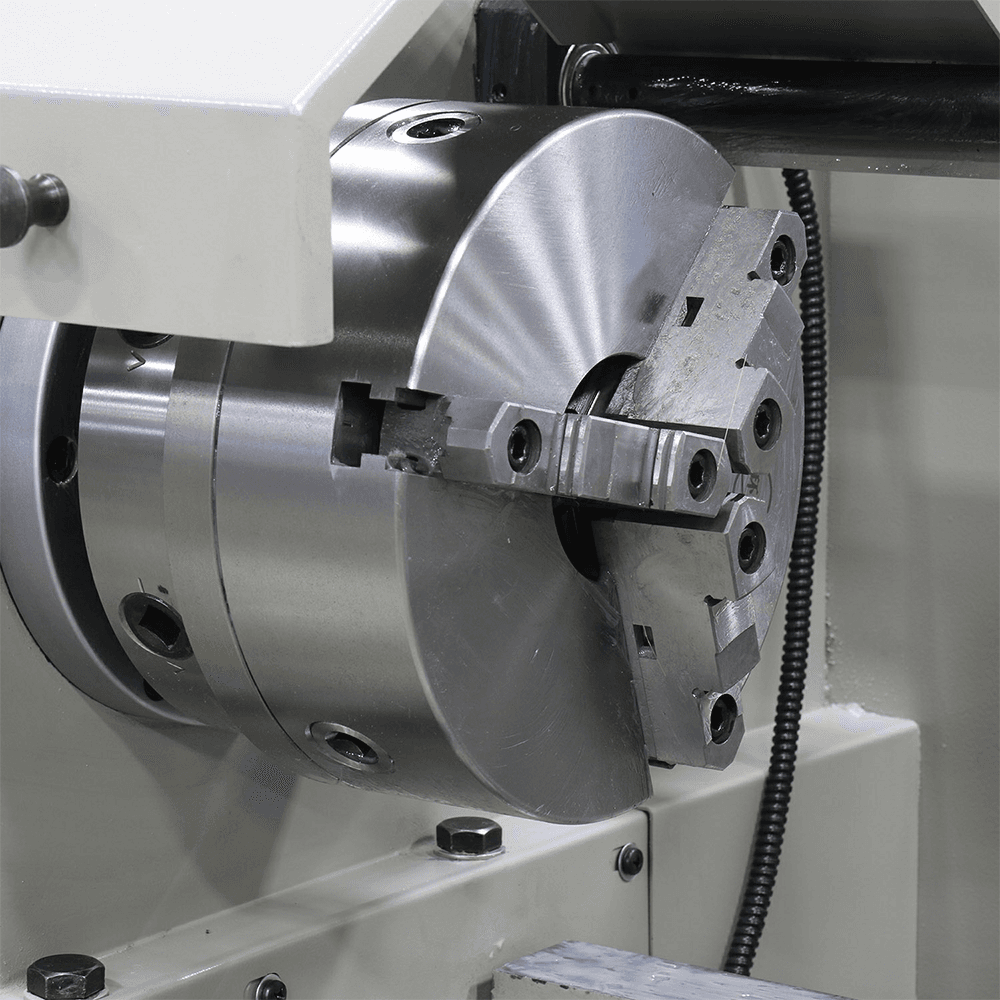

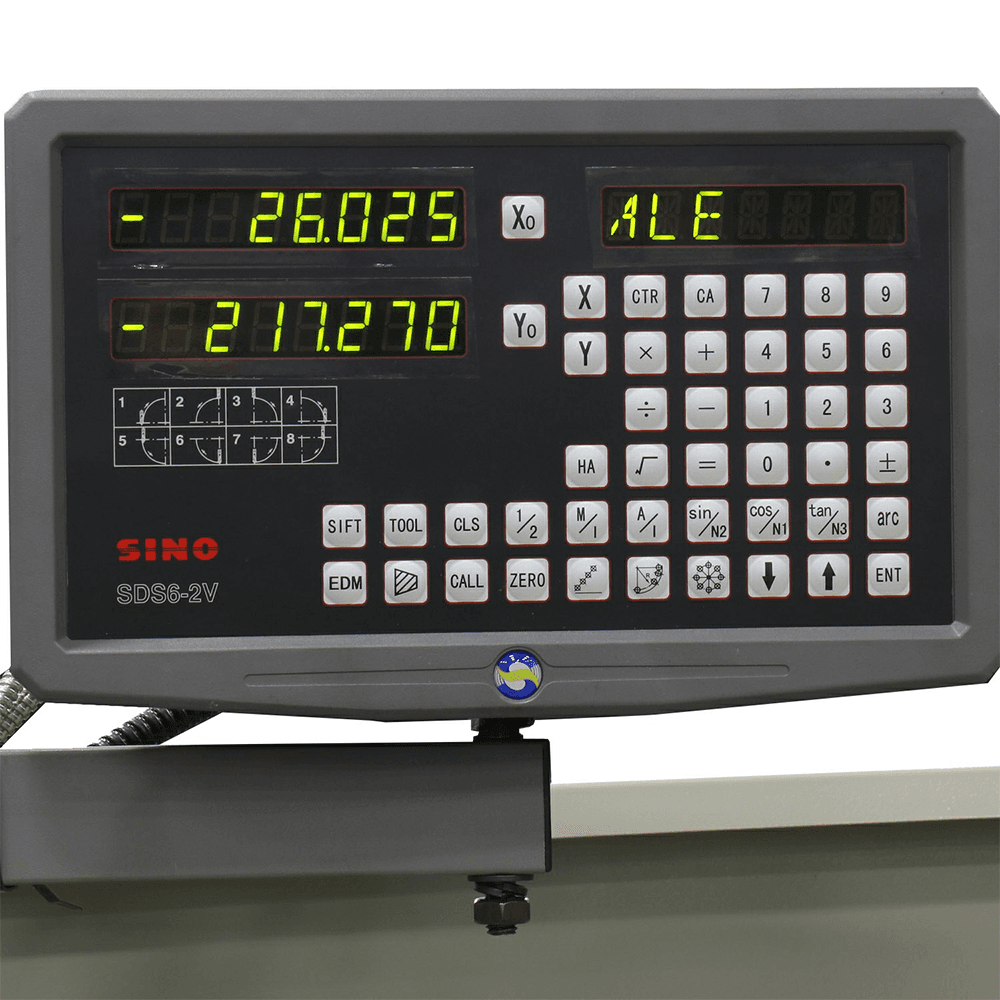

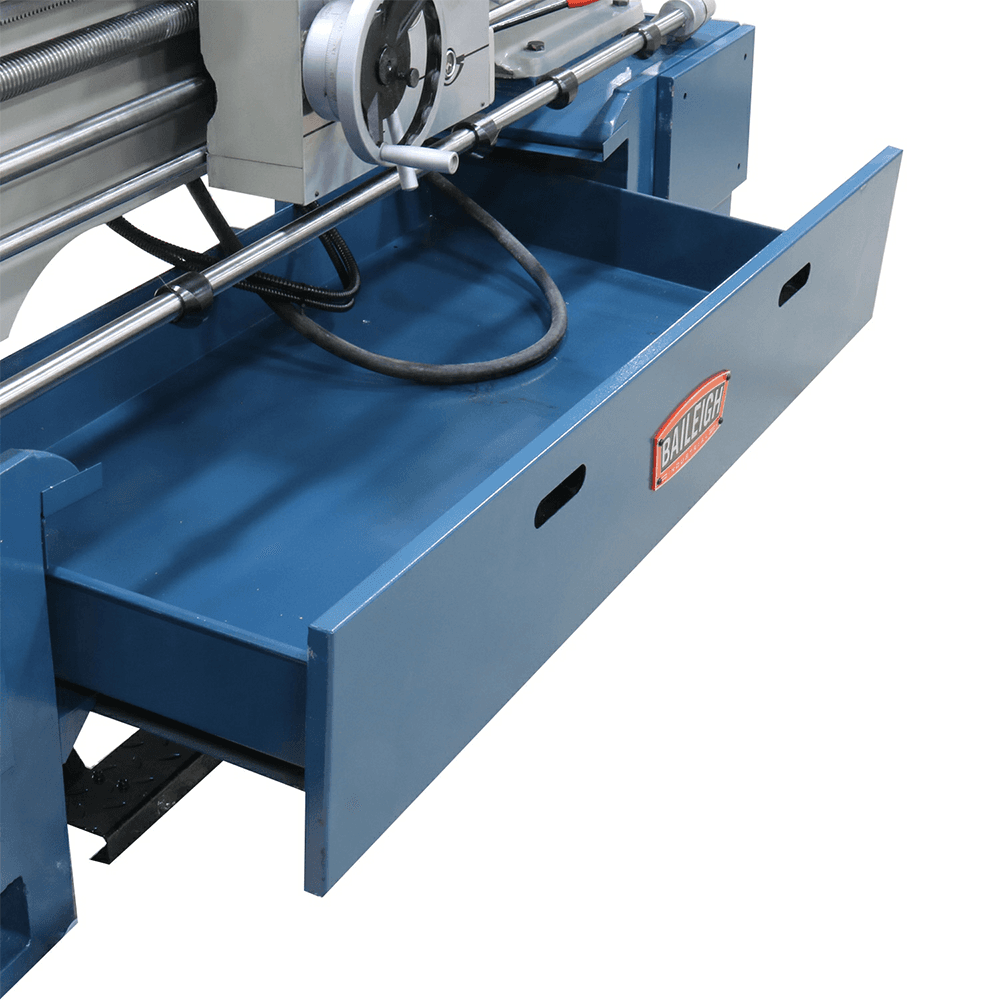

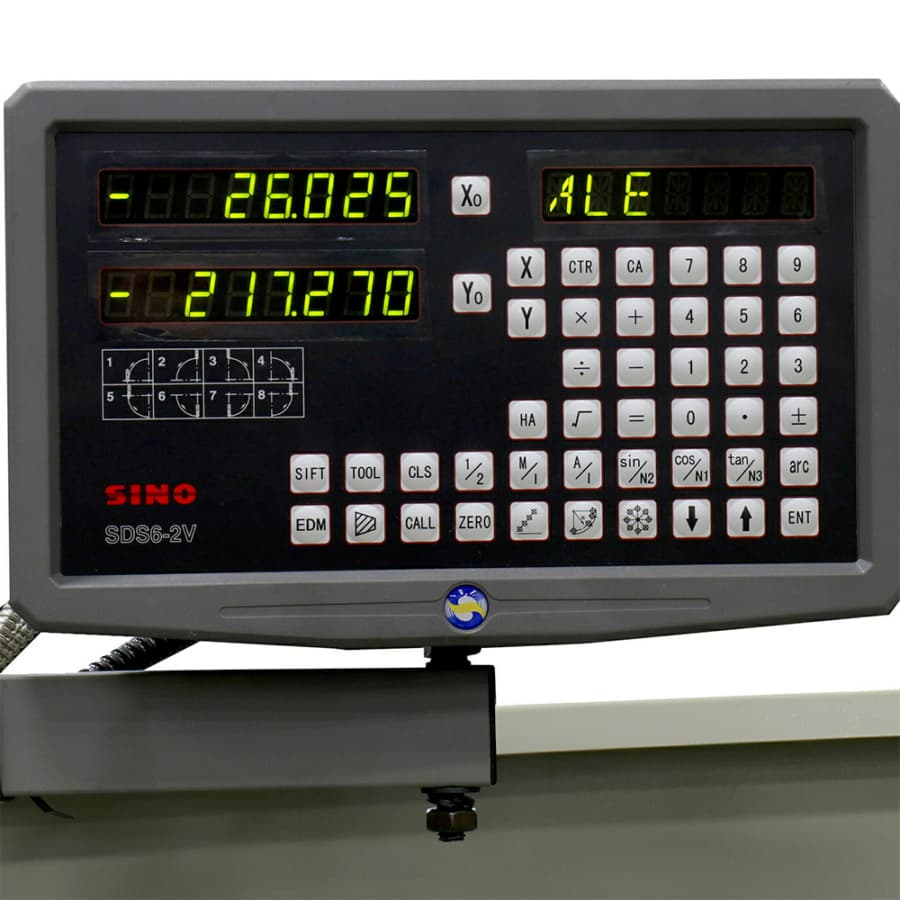

Looking for a large, economical tool room lathe. The PL-1860E includes a DRO, polished slideways, and a cast iron base-features you won't find on many machines in this price range. Features: • 7.5 hp motor runs on 220-volt 3-phase power and 12 spindle speeds from 25 to 1,800 rpm • Perfect for shops or schools that need more capacity on a budget with no assembly required • 2-axis digital readout (DRO) system • Precision ground, hardened, and then polished to ensure smooth movement • Cross-ribbed bed adds strength and stability • Cast iron and sheet steel base supports the main frame and will stand up to years of use • Gap lathe design allows you to remove a section of the slide for slightly more diameter • Comes standard with 3-jaw universal chuck (8") and 4-jaw chuck (13"), Headstock chuck guard with automatic safety switch, and 8" back plate • Other features include steady rest and follow rest, Emergency foot brake, integrated coolant system with rear splash guard, and Halogen work light
Specifications
| Box Quantity | 1 |
| Width of Bed | 13-1/8" |
| Spindle Taper with Sleeve | MT5 |
| Spindle Taper | |
| Spindle Diameter | |
| Spindle Bore | 3.125" |
| Spindle Accuracy | |
| Speed (RPM) | |
| Short Description | 2-axis DRO Sheet steel and cast iron base 60" between centers 25 to 1,800 RPM 7.5 HP 220V 3-phase motor |
| Range of Metric Threads | |
| Range of Longitudinal Feeds (IPR) | |
| Range of Inch Threads (TPI) | |
| Spindle Travel | |
| Swing Over Bed | 18" |
| Swing Over Cross Slide | 10-3/4" |
| Threads Modular Quality Speed (M.P.) | |
| Threads Metric Quality Speed (mm pitch) | |
| Threads Imperial Quality Type (T.P.I.) | 61 / 1-5/8 to 72 T.P.I |
| Threads Imperial Quality Speed (T.P.I.) | |
| Threads Diametrical Quality Type (D.P.) | 45 / 3-1/2 to 96 D.P |
| Threads Diametrical Quality Speed (D.P.) | |
| Taper in Tailstock Spindle | |

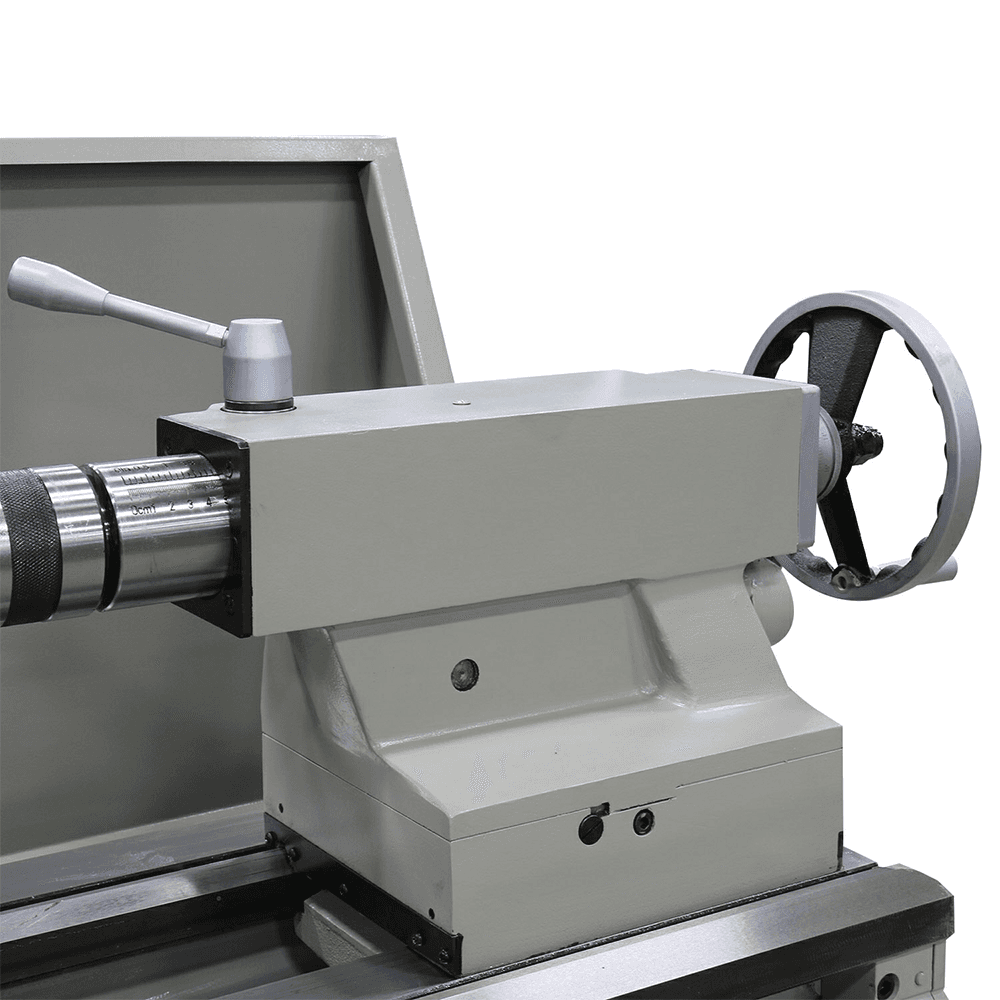

| Tailstock Spindle Travel | 6" |
| Table Length | |
| Swing Through Gap | 27.5" |
| Range of Cross Feeds (MMPR) | |
| Range of Cross Feeds (IPR) | |
| Quill Taper | MT7 |
| Lead Screw Diameter | 1.125 |
| Input Power | 220V / 3-phase |
| Distance Between Centers | |
| Cutting Tool Max Section | |
| Cross Slide Travel | |
| Compound Slide Travel | |
| Compound Rest Width | |
| Compound Rest Travel | |
| Center Height | |
| Center Distance | 60" |
| Leadscrew Thread Pitch | 4 T.P.I. |
| Length of Gap | |
| Longitudinal Feed Imp Qty Type | 122 / .0015"-.0913" / rev. |
| Quick Change Collet Size (Mm.) | |
| Quick Change Collet Size (mm) | |
| Product Type | Metal Lathes |
| Overall Dimensions (L x W x H) | |
| Number of Spindle Speeds | 25-1800 RPM |
| Nose Radius | D1-8 |
| Motor (HP) | 7.5 HP |
| Modular Pitch Threads Range | 21 / .25 to 10 M.P |
| Longitudinal Feeds Metric Qty Speed | |
| Longitudinal Feeds Imperial Qty Speed | |
| Bed Height |
