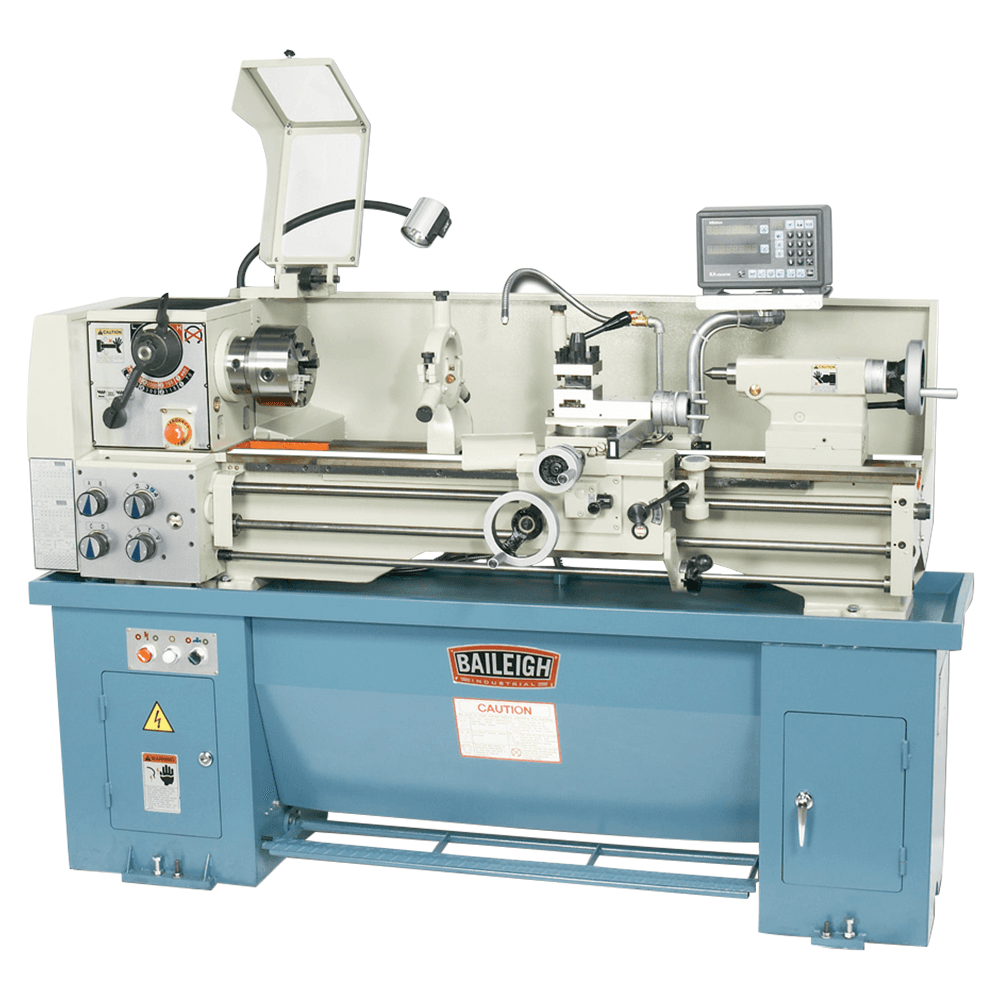

Baileigh PL-1340 2 HP Metal Lathe, 1 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details
Equipped with a Mitutoyo DRO, quick-change tool post, and cast iron base, this compact gear-head metal lathe is one of the most rigid in its class. Features: • 2 hp motor runs on 220-volt single-phase power with 8 speeds from 70 to 2,000 rpm is great for shops with limited power and no assembly required • Comes with a factory installed Mitutoyo DRO (digital readout) for making precise cuts • Capable of making metric and standard threads • Quick-change 4-way tool post saves you time and hassle • All movement of the machining carriage rides on precision ground and hardened slideways • This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter • We use the best iron castings in the industry to support the ways and maintain high accuracy over many years of use • Comes standard with 3-jaw chuck, headstock chuck guard with automatic safety switch, steady rest and follow rest • Other features include an emergency foot brake, Halogen work light, and flood coolant system (with backsplash guard) to prolong machine life
Specifications
| Box Quantity | 1 |
| Width of Bed | 7.375" |
| Spindle Taper with Sleeve | Morse #3 |
| Spindle Taper | |
| Spindle Diameter | |
| Spindle Bore | 1.5" |
| Spindle Accuracy | |
| Speed (RPM) | 70 - 2000 RPM |
| Short Description | Mitutoyo DRO Quick-change tool post 40" between centers 70 to 2,000 RPM 2 hp 220-volt 1-phase motor |
| Range of Metric Threads | |
| Range of Longitudinal Feeds (IPR) | |
| Range of Inch Threads (TPI) | |
| Spindle Travel | |
| Swing Over Bed | 13" |
| Swing Over Cross Slide | 7.79" |
| Threads Modular Quality Speed (M.P.) | |
| Threads Metric Quality Speed (mm pitch) | |
| Threads Imperial Quality Type (T.P.I.) | 31 / 4-56 T.P.I. |
| Threads Imperial Quality Speed (T.P.I.) | |
| Threads Diametrical Quality Type (D.P.) | 32 / 8-120 D.P. |
| Threads Diametrical Quality Speed (D.P.) | |
| Taper in Tailstock Spindle | 1.65" |
| Tailstock Spindle Travel | 4.5" |
| Table Length | 5.125" |
| Swing Through Gap | 18.75" |
| Range of Cross Feeds (MMPR) | |
| Range of Cross Feeds (IPR) | |
| Quill Taper | Morse #5 |
| Lead Screw Diameter | 0.875 |
| Input Power | 220V 1-Phase |
| Distance Between Centers | 40" |
| Cutting Tool Max Section | 0.625" x 0.625" |
| Cross Slide Travel | 6.29" |
| Compound Slide Travel | |
| Compound Rest Width | 3 |
| Compound Rest Travel | 2.68 |
| Center Height | 6.5" |
| Center Distance | |
| Leadscrew Thread Pitch | 8 T.P.I. |
| Length of Gap | |
| Longitudinal Feed Imp Qty Type | |
| Quick Change Collet Size (Mm.) | |
| Quick Change Collet Size (mm) | |
| Product Type | Metal Lathes |
| Overall Dimensions (L x W x H) | |
| Number of Spindle Speeds | |
| Nose Radius | |
| Motor (HP) | |
| Modular Pitch Threads Range | 21 / .2-3 M.P. |
| Longitudinal Feeds Metric Qty Speed | 32 / .052 - 13.92 mm / rev. |
| Longitudinal Feeds Imperial Qty Speed | 32 / .0020" - .5480" / rev. |
| Bed Height |
