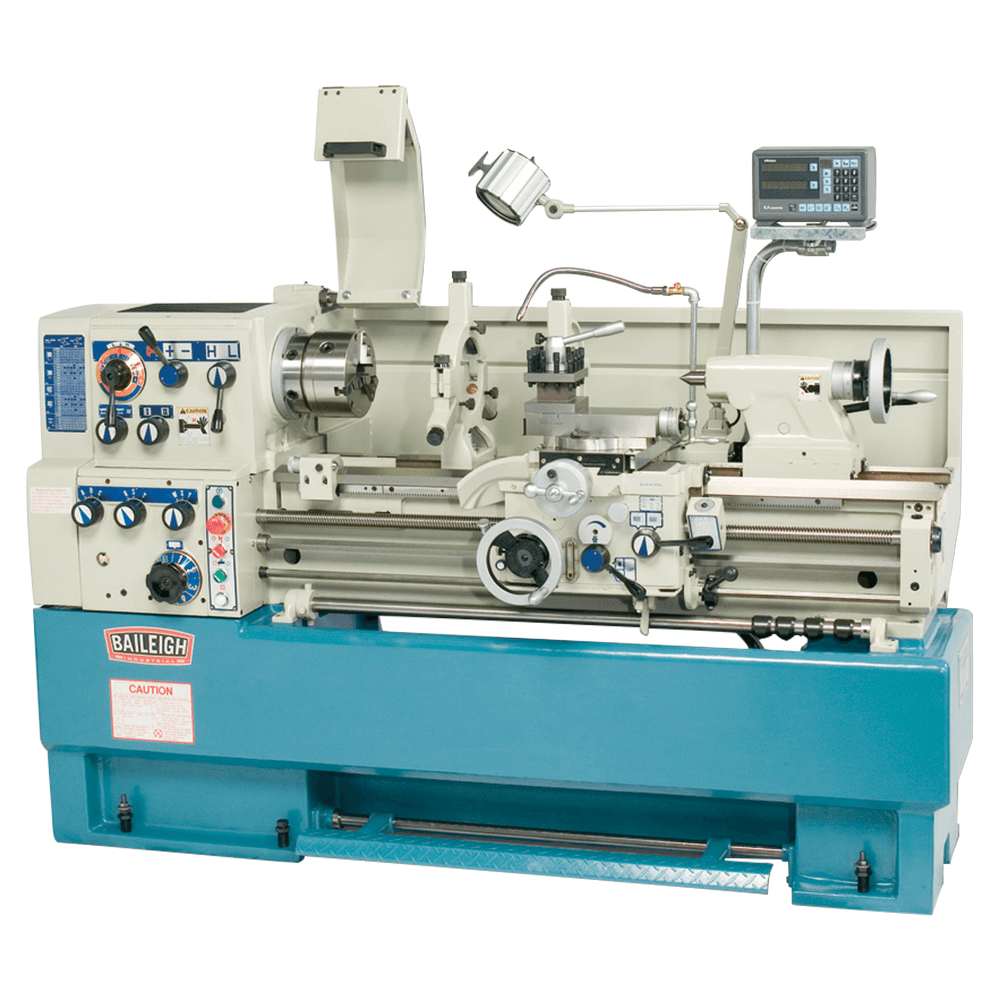

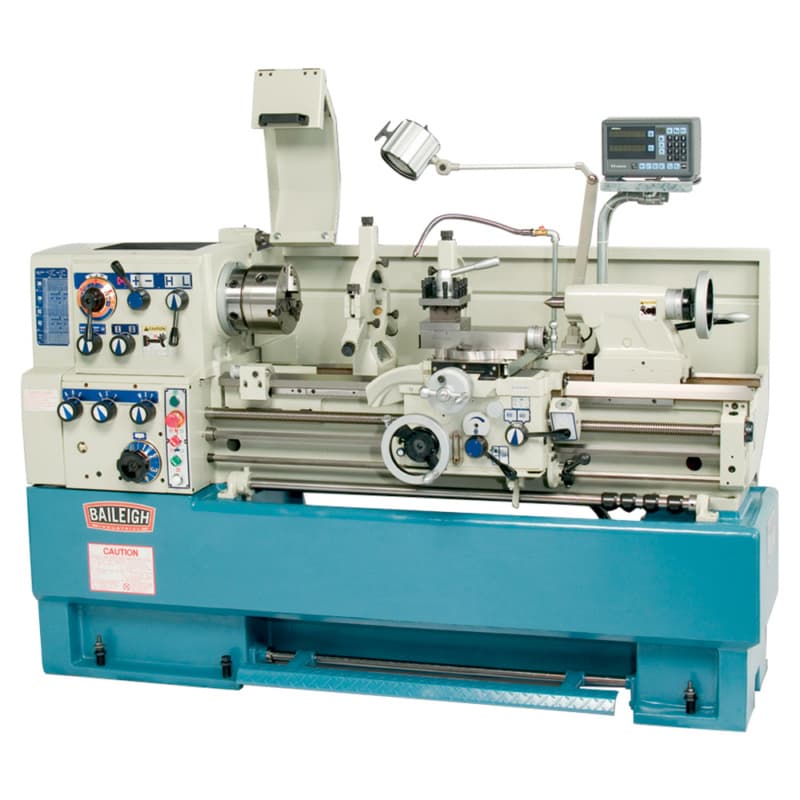

Baileigh PL-1640 7.5 HP Precision Lathe, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details
The perfect combination of size and power, this precision lathe includes a Mitutoyo DRO, a collar stop system, and a heavy cast iron base to ensure accuracy. Features: • 12 speeds from 30 to 2,000 rpm with a 7.5 hp motor which runs on 220-volt 3-phase power • Factory-installed Mitutoyo DRO (digital readout) helps you make precise cuts with no assembly required • Precision ground and hardened ways will withstand years of use in any metalworking shop • ⅝" square indexing tool post with a steady rest and follow rest • Collar system lets you set stops for repeat parts • This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter • Full cast iron base, integrated into the mainframe, makes this one of the most rigid lathes on the market • Comes standard with 3-jaw chuck, emergency foot brake, and Halogen work light • Headstock chuck guard with automatic safety switch and flood coolant system (with backsplash guard) to prolong machine life
Specifications
| Box Quantity | 1 |
| Width of Bed | 11.81" |
| Spindle Taper with Sleeve | Morse #4 |
| Spindle Taper | |
| Spindle Diameter | |
| Spindle Bore | 2.0625" |
| Spindle Accuracy | |
| Speed (RPM) | 30 - 2000 RPM |
| Short Description | Mitutoyo DRO Heavy cast iron base 40" between centers 30 to 2,000 RPM 7.5 hp 220-volt 3-phase motor |
| Range of Metric Threads | |
| Range of Longitudinal Feeds (IPR) | |
| Range of Inch Threads (TPI) | |
| Spindle Travel | |
| Swing Over Bed | 16" |
| Swing Over Cross Slide | 9.45" |
| Threads Modular Quality Speed (M.P.) | 44 / .4-7 M.P. |
| Threads Metric Quality Speed (mm pitch) | 53 / .4-14 mm pitch |
| Threads Imperial Quality Type (T.P.I.) | |
| Threads Imperial Quality Speed (T.P.I.) | 40 / 2-56 T.P.I. |
| Threads Diametrical Quality Type (D.P.) | |
| Threads Diametrical Quality Speed (D.P.) | 32 / 4-32 D.P. |
| Taper in Tailstock Spindle | 2.125" |
| Tailstock Spindle Travel | 4.75" |
| Table Length | 74.75" |
| Swing Through Gap | 23.42" |
| Range of Cross Feeds (MMPR) | 40 / .015 - .320 mm / rev. |
| Range of Cross Feeds (IPR) | |
| Quill Taper | Morse #6 |
| Lead Screw Diameter | 1.25 |
| Input Power | 220V / 3-phase |
| Distance Between Centers | 40" |
| Cutting Tool Max Section | 0.625" x 0.625" |
| Cross Slide Travel | 9" |
| Compound Slide Travel | 4.75" |
| Compound Rest Width | 4.33 |
| Compound Rest Travel | |
| Center Height | 7.086" |
| Center Distance | |
| Leadscrew Thread Pitch | 4 T.P.I. |
| Length of Gap | |
| Longitudinal Feed Imp Qty Type | |
| Quick Change Collet Size (Mm.) | |
| Quick Change Collet Size (mm) | |
| Product Type | Metal Lathes |
| Overall Dimensions (L x W x H) | |
| Number of Spindle Speeds | |
| Nose Radius | |
| Motor (HP) | |
| Modular Pitch Threads Range | |
| Longitudinal Feeds Metric Qty Speed | 40 / .032 - .640 mm / rev. |
| Longitudinal Feeds Imperial Qty Speed | 40 / .0012" - .0252" / rev. |
| Bed Height | 12.20" |
