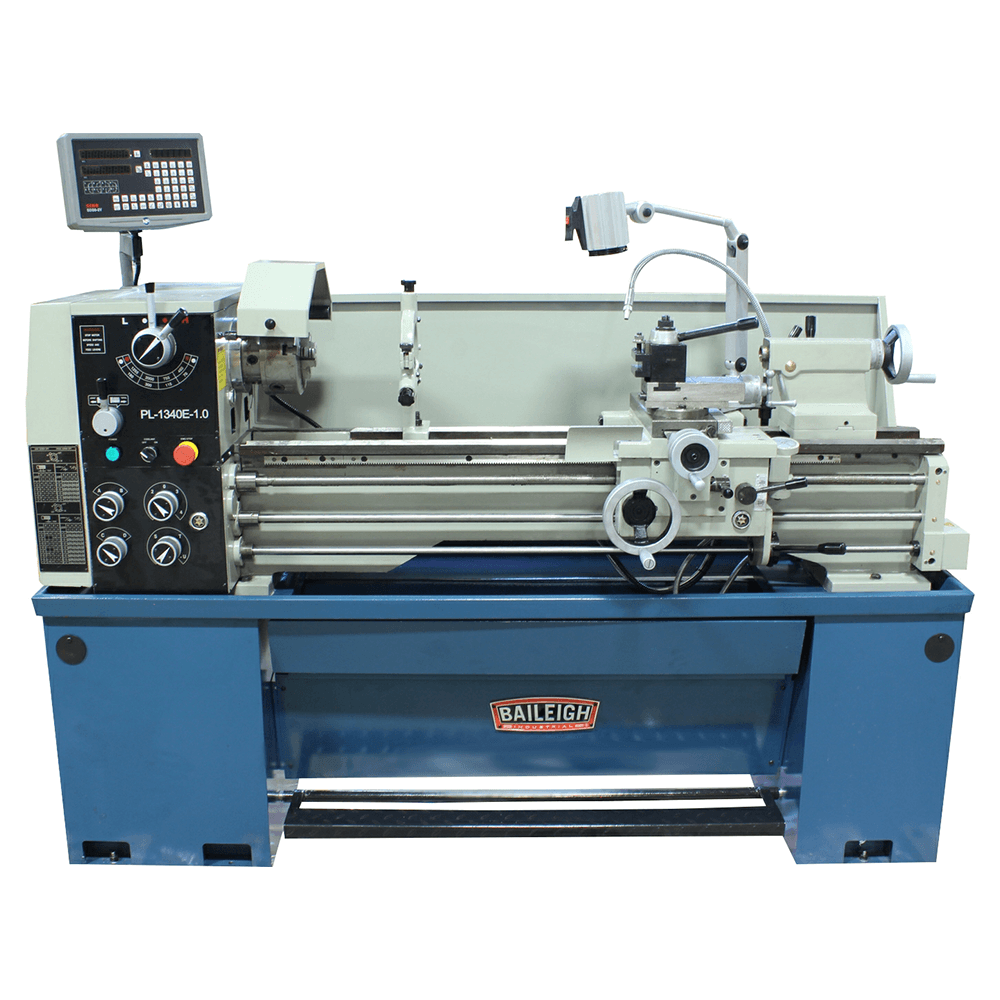

Baileigh PL-1340E-1.0 Metal Lathe, 1 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

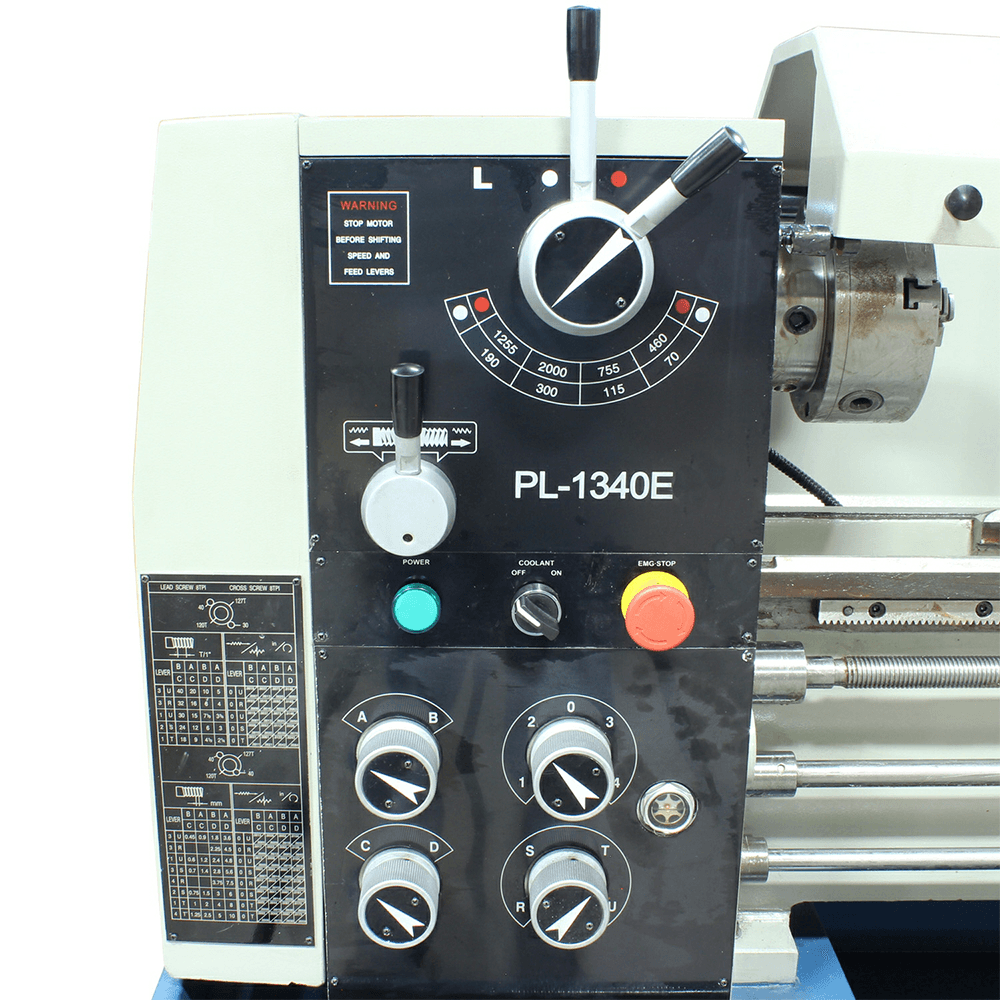

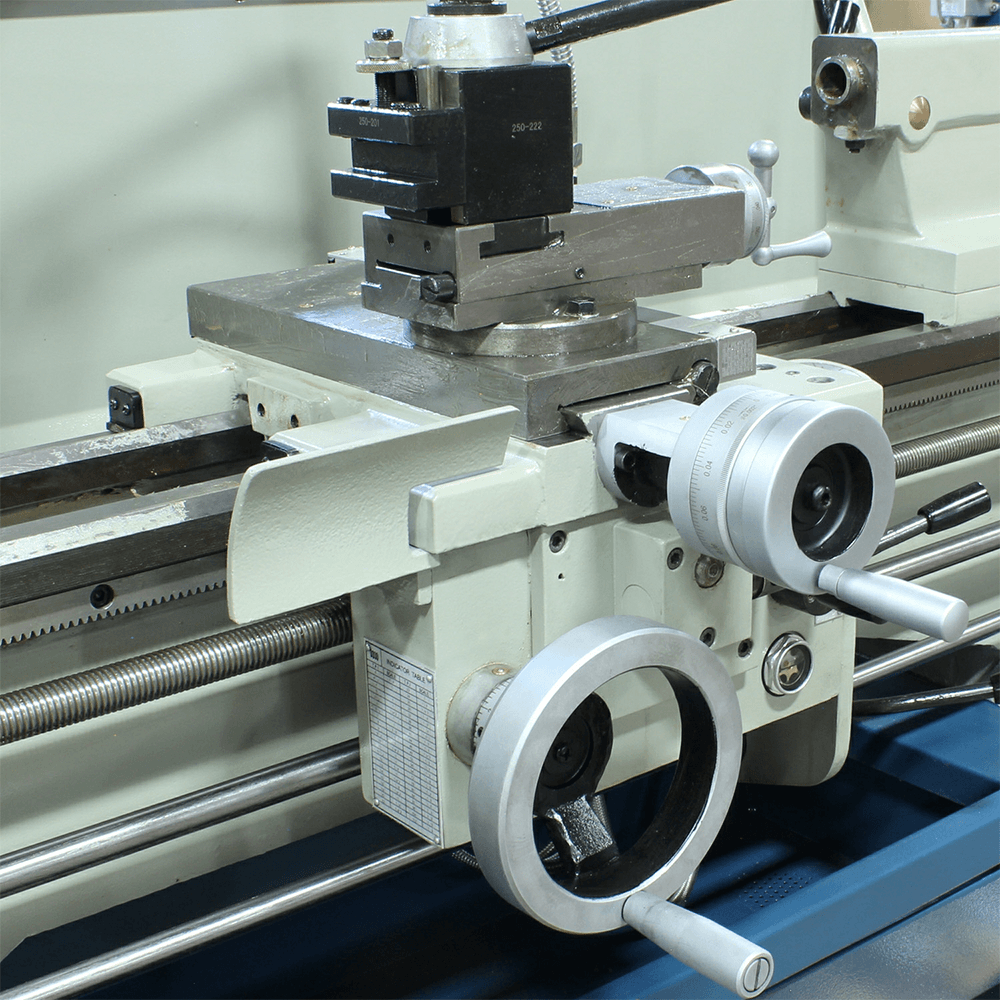

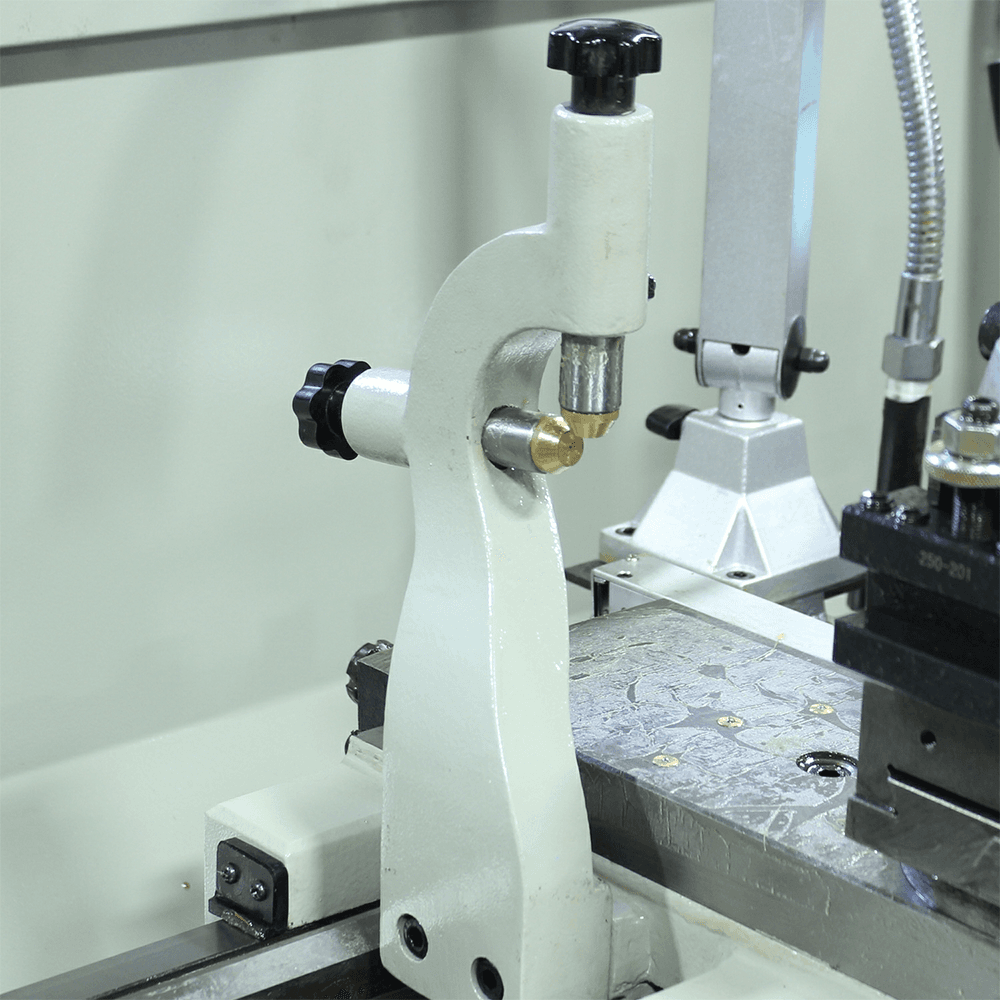

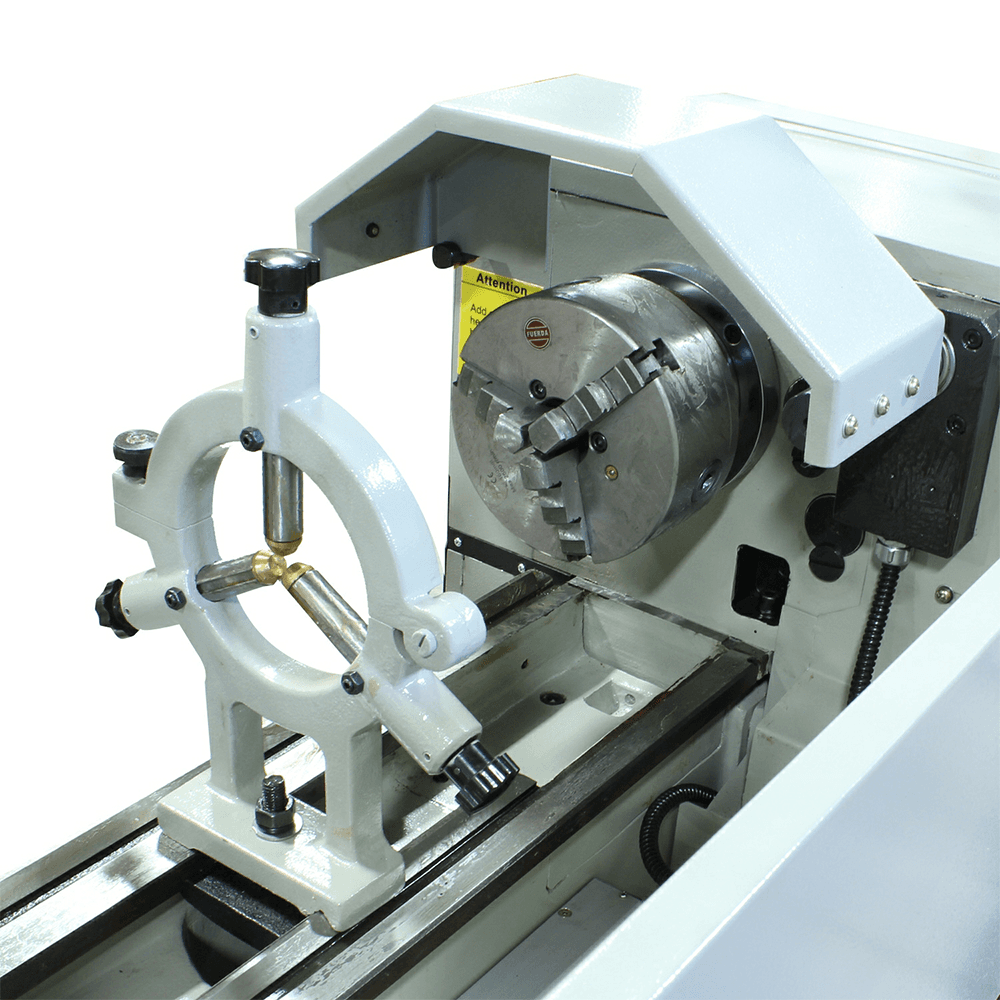

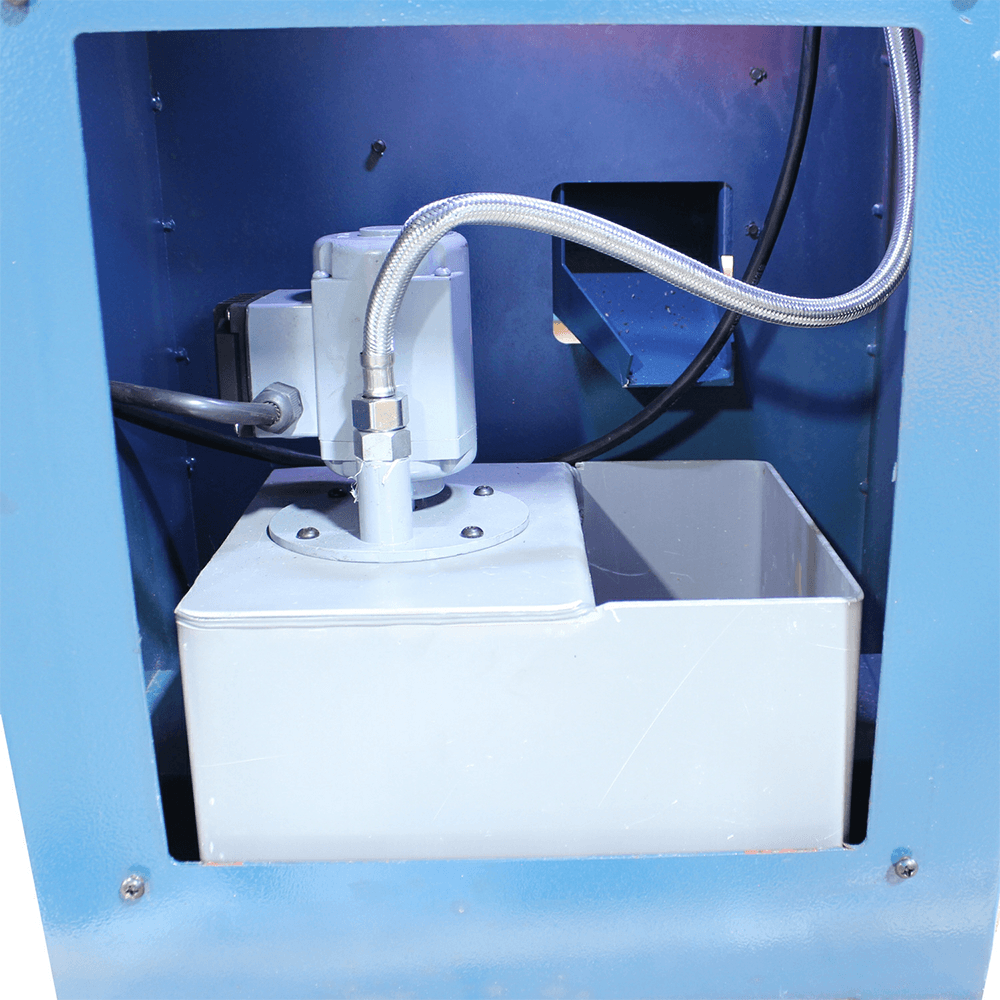

This gear-head Metal Lathe includes many features that competing models don't, like a DRO and quick-change tool post. It's a great value for small- to medium-sized shops. Features: • Runs on 220-volt single-phase power and 8 spindle speeds, from 70 to 2,000 rpm • Digital readout (DRO) comes hooked up and helps with repeatability • Quick-change tool post saves you the trouble of screwing and unscrewing tool sets with a Halogen work light that comes standard • Precision-ground and hardened ways offer years of tight tolerances • Can cut both metric and standard threads • 3-jaw and 4-jaw chucks can hold square and rounded materials • Face plate lets you bolt large but not long pieces in place • Steady rest and follow rest brace the shaft and help prevent wobbling • Foot brake makes it easy to stop the machine in an emergency • Integrated coolant system extends the lathe's lifetime of use and rigid castings ensure smooth chatter-free cuts and prolong tooling life
Specifications
| Box Quantity | 1 |
| Width of Bed | |
| Spindle Taper with Sleeve | |
| Spindle Taper | Morse #3 |
| Spindle Diameter | 1.65" |
| Spindle Bore | 1.50" |
| Spindle Accuracy | |
| Speed (RPM) | |
| Short Description | 39.36" distance between centers 8 speeds: 70 to 2,000 RPM 220V 1-phase motor 13" swing 1.5" spindle bore |
| Range of Metric Threads | 0.4 - 7 mm |
| Range of Longitudinal Feeds (IPR) | 0.002" - 0.0548"/rev |
| Range of Inch Threads (TPI) | 4 - 56 T.P.I. |
| Spindle Travel | 4.5" |
| Swing Over Bed | |
| Swing Over Cross Slide | |
| Threads Modular Quality Speed (M.P.) | |
| Threads Metric Quality Speed (mm pitch) | |
| Threads Imperial Quality Type (T.P.I.) | |
| Threads Imperial Quality Speed (T.P.I.) | |
| Threads Diametrical Quality Type (D.P.) | |
| Threads Diametrical Quality Speed (D.P.) | |
| Taper in Tailstock Spindle | |
| Tailstock Spindle Travel | |
| Table Length | |
| Swing Through Gap | |
| Range of Cross Feeds (MMPR) | |
| Range of Cross Feeds (IPR) | 0.007" - 0.0187"/rev |
| Quill Taper | |
| Lead Screw Diameter | |
| Input Power | 220V Single Phase |
| Distance Between Centers | 40" |
| Cutting Tool Max Section | |
| Cross Slide Travel | |
| Compound Slide Travel | |
| Compound Rest Width | |
| Compound Rest Travel | |
| Center Height | |
| Center Distance | |
| Leadscrew Thread Pitch | 8 T.P.I. |
| Length of Gap | 5" |
| Longitudinal Feed Imp Qty Type | |
| Quick Change Collet Size (Mm.) | |
| Quick Change Collet Size (mm) | .625" x .625" |
| Product Type | Metal Lathes |
| Overall Dimensions (L x W x H) | |
| Number of Spindle Speeds | |
| Nose Radius | D1-4" |
| Motor (HP) | |
| Modular Pitch Threads Range | |
| Longitudinal Feeds Metric Qty Speed | |
| Longitudinal Feeds Imperial Qty Speed | |
| Bed Height |
