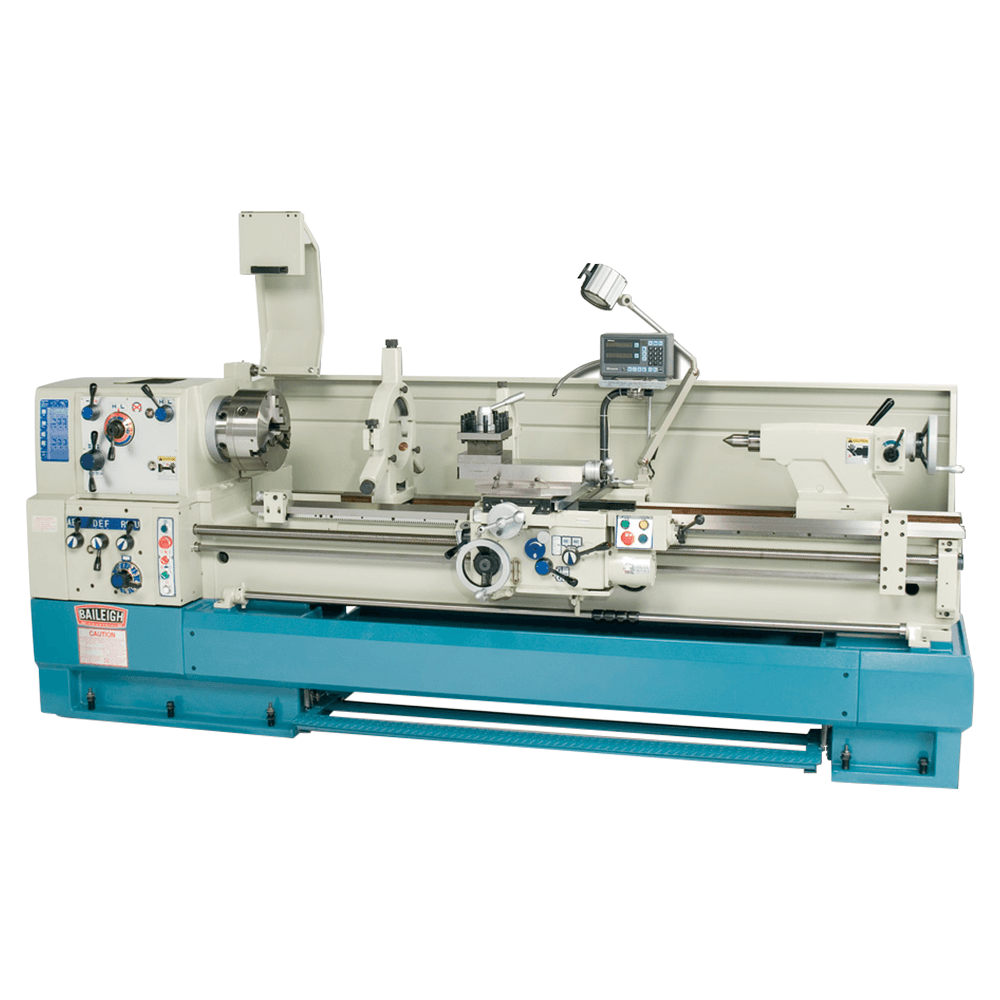

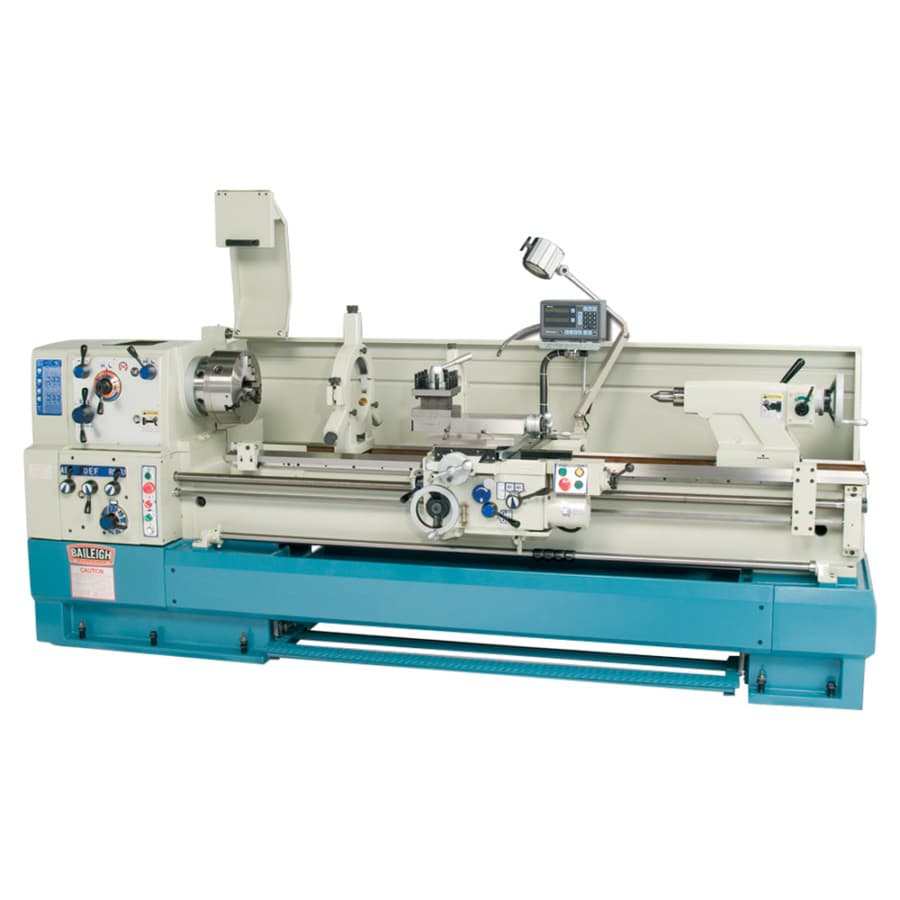

Baileigh PL-2080 15 HP Precision Metal Lathe, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

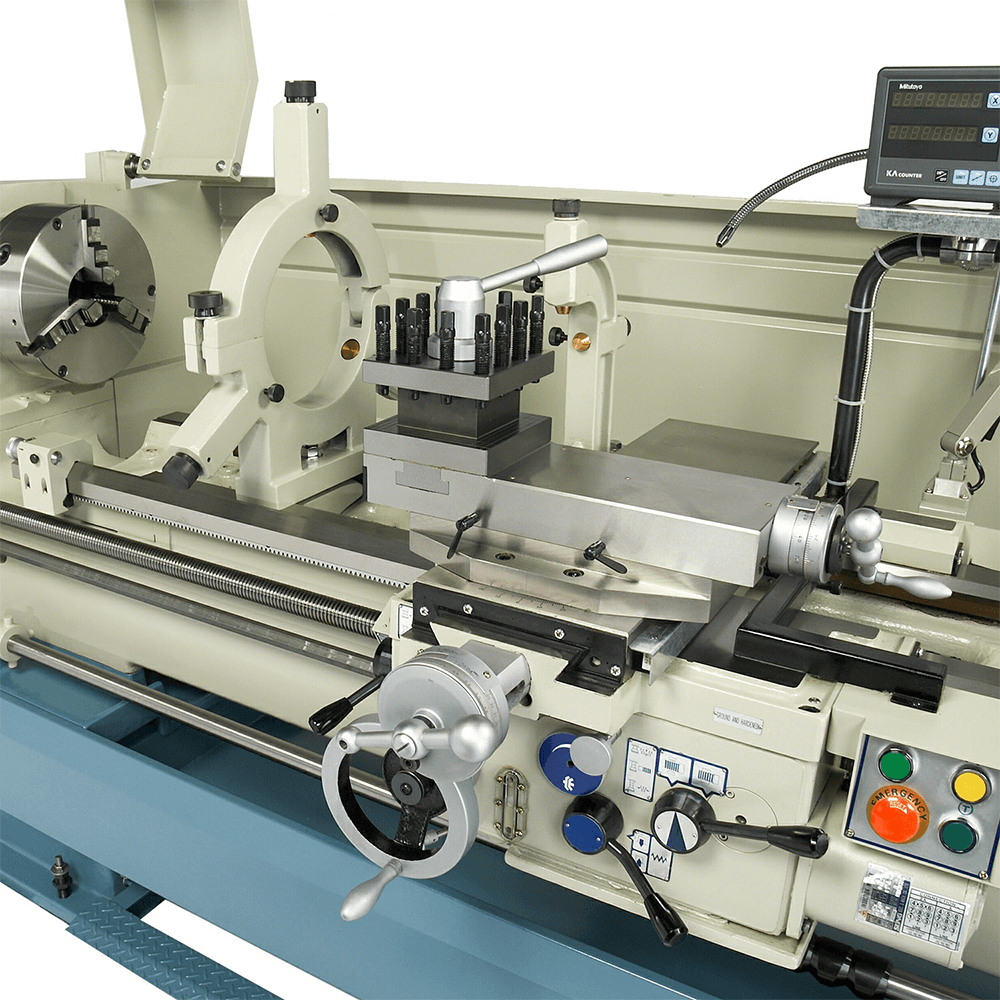

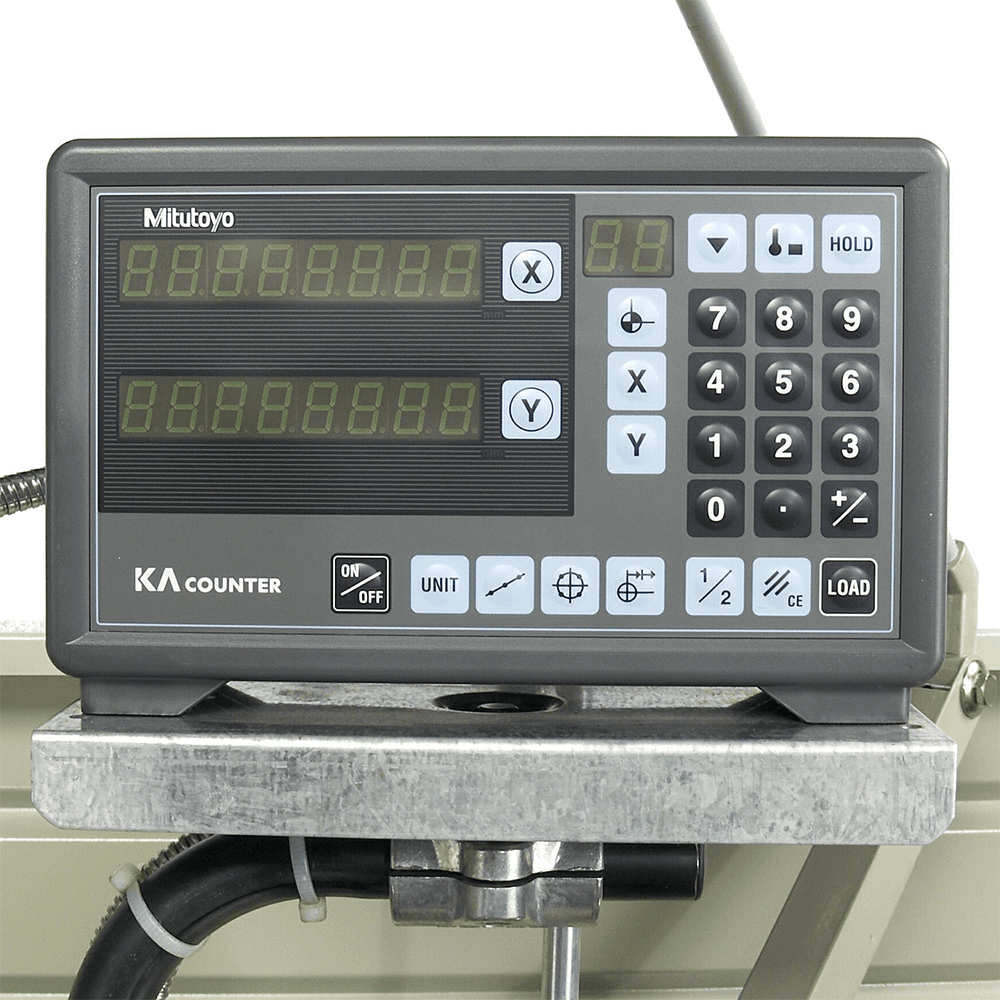

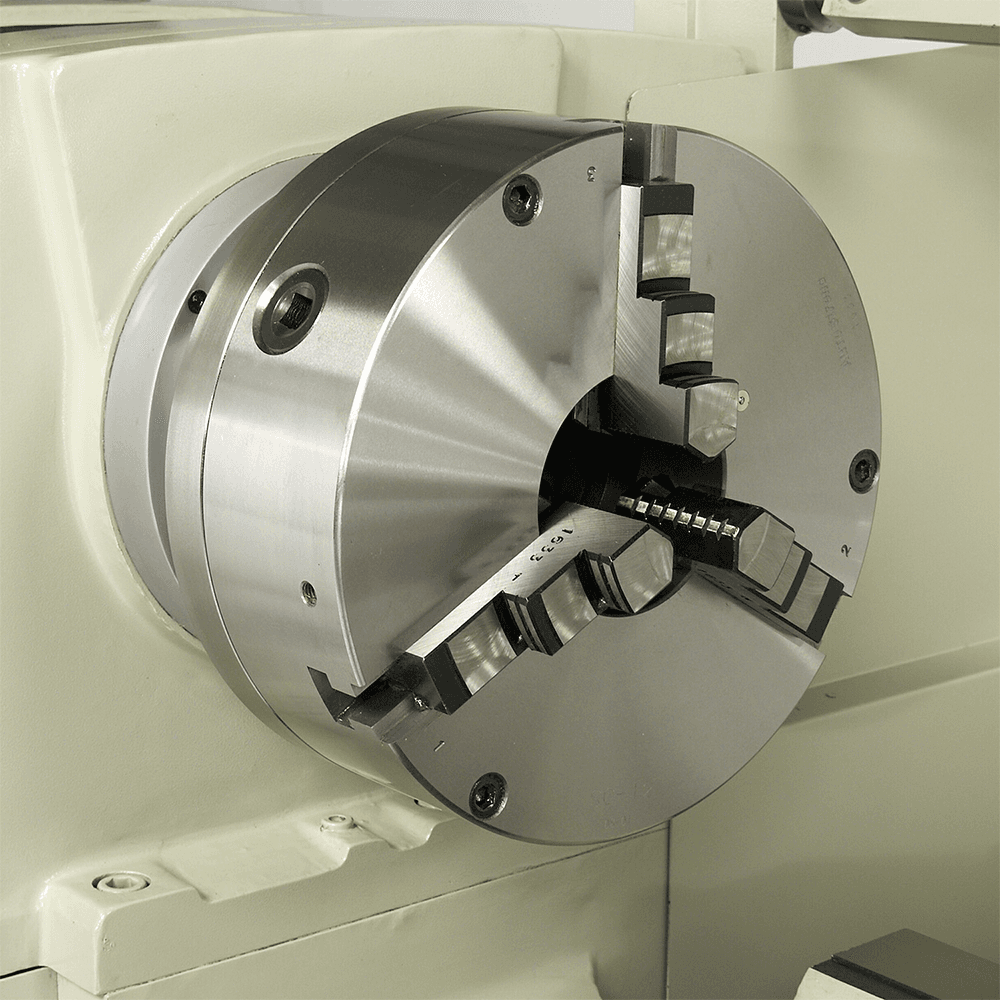

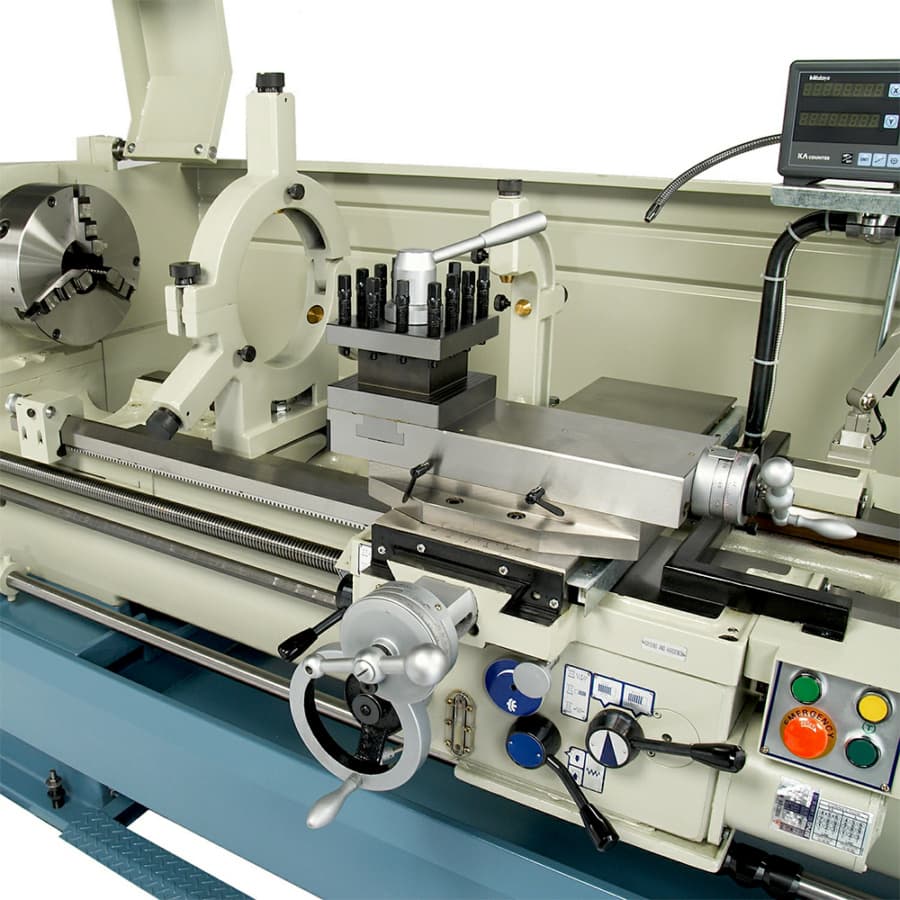

Everything about the PL-2080 industrial lathe is powerful, from its hardened slideways to the cast iron base. This engine lathe also includes a Mitutoyo® DRO. Features: • 15 hp motor runs on 220-volt 3-phase power with 12 speeds from 20 to 1,500 rpm • Capable of making metric or standard threads • Mitutoyo® 2-axis digital readout (DRO) system helps you obtain precise results • Polished ways with integrated wipers move as smoothly as the day they were made for years • Square indexing tool post • Lathe body is made from the best iron castings to ensure a rigid and stable platform • Cast pieces are fully integrated with the head stock, so every joint is tight • No assembly required • Comes standard with 3-jaw universal chuck (12"), 10" back plate, micrometer saddle stop, steady rest and follow rest, and longitudinal rapid traverse • Other features include the headstock chuck guard with automatic safety switch, coolant system with rear splash guard, Halogen work light, and emergency foot brake
Specifications
| Box Quantity | 1 |
| Width of Bed | 16.125" |
| Spindle Taper with Sleeve | Morse #5 |
| Spindle Taper | |
| Spindle Diameter | |
| Spindle Bore | 3.125" |
| Spindle Accuracy | |
| Speed (RPM) | 20 - 1550 RPM |
| Short Description | 2-axis Mitutoyo DRO Heavy cast iron base 80" between centers 20" swing 20 and 1,500 RPM 15 HP 220V 3-phase motor |
| Range of Metric Threads | |
| Range of Longitudinal Feeds (IPR) | |
| Range of Inch Threads (TPI) | |
| Spindle Travel | |
| Swing Over Bed | 20" |
| Swing Over Cross Slide | 13" |
| Threads Modular Quality Speed (M.P.) | 50 / .2-7 M.P. |
| Threads Metric Quality Speed (mm pitch) | 60 / .2-14 mm pitch |
| Threads Imperial Quality Type (T.P.I.) | |
| Threads Imperial Quality Speed (T.P.I.) | 60 / 2-112 T.P.I. |
| Threads Diametrical Quality Type (D.P.) | |
| Threads Diametrical Quality Speed (D.P.) | 50 / 4-112 D.P. |
| Taper in Tailstock Spindle | 2.9375" |
| Tailstock Spindle Travel | 6.3125" |
| Table Length | |
| Swing Through Gap | 26.375" |
| Range of Cross Feeds (MMPR) | 50 / .0185 - .52 mm / rev. |
| Range of Cross Feeds (IPR) | |
| Quill Taper | Morse #7 |
| Lead Screw Diameter | 1.5 |
| Input Power | 220V / 3-phase |
| Distance Between Centers | |
| Cutting Tool Max Section | |
| Cross Slide Travel | 12.5" |
| Compound Slide Travel | |
| Compound Rest Width | |
| Compound Rest Travel | 10 |
| Center Height | 10" |
| Center Distance | 80.313" |
| Leadscrew Thread Pitch | 4 T.P.I. |
| Length of Gap | |
| Longitudinal Feed Imp Qty Type | |
| Quick Change Collet Size (Mm.) | |
| Quick Change Collet Size (mm) | |
| Product Type | Metal Lathes |
| Overall Dimensions (L x W x H) | |
| Number of Spindle Speeds | |
| Nose Radius | D1-8" |
| Motor (HP) | |
| Modular Pitch Threads Range | |
| Longitudinal Feeds Metric Qty Speed | 50 / .037 - .983 mm / rev. |
| Longitudinal Feeds Imperial Qty Speed | 50 / .0014" - .0387" / rev. |
| Bed Height |
