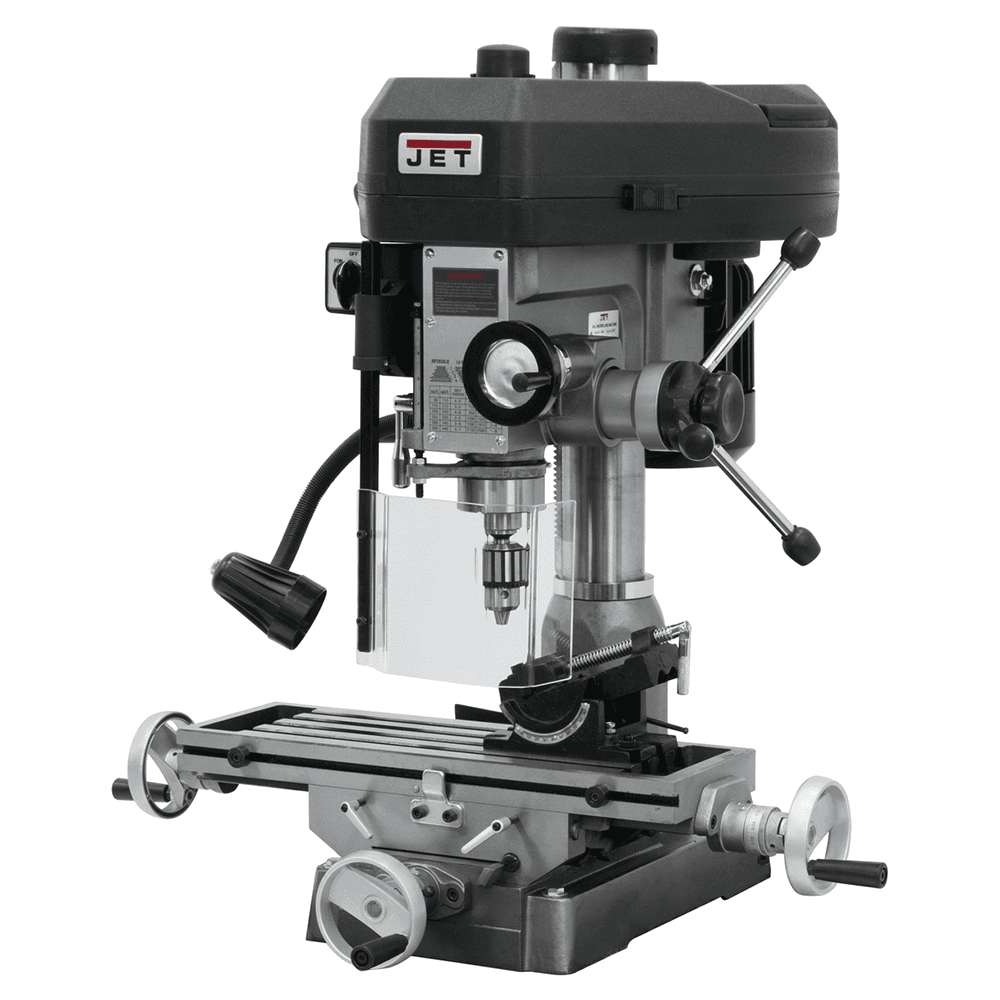

Jet Tools JMD-15 1 HP Mill/Drill with R-8 Taper, 1 Phase/115V/230V
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details

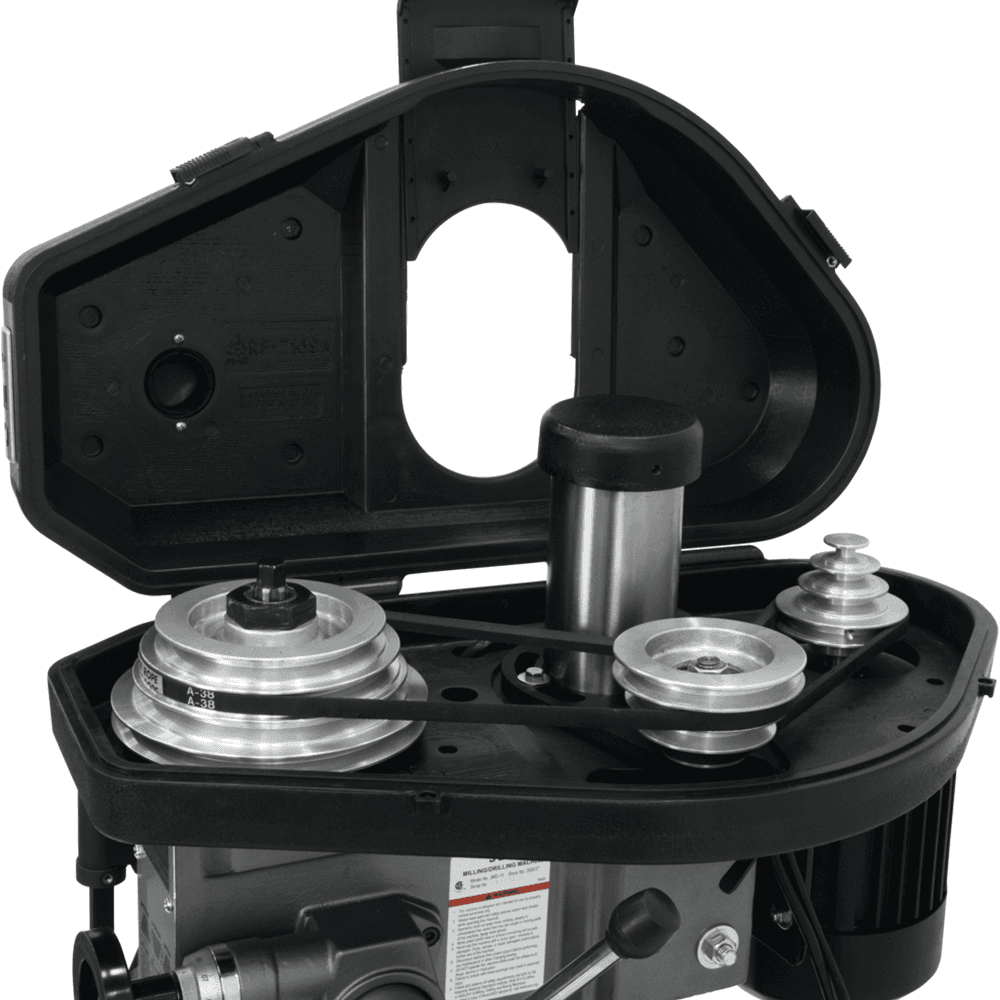

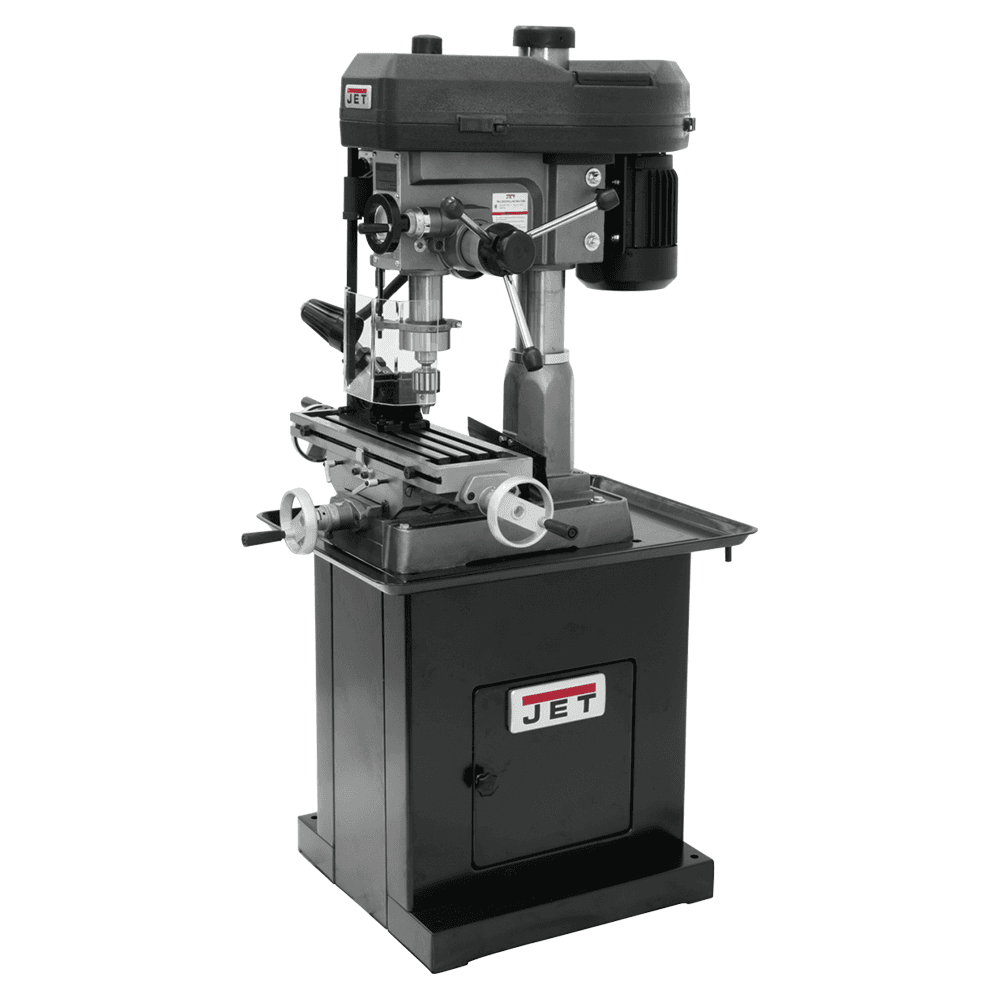

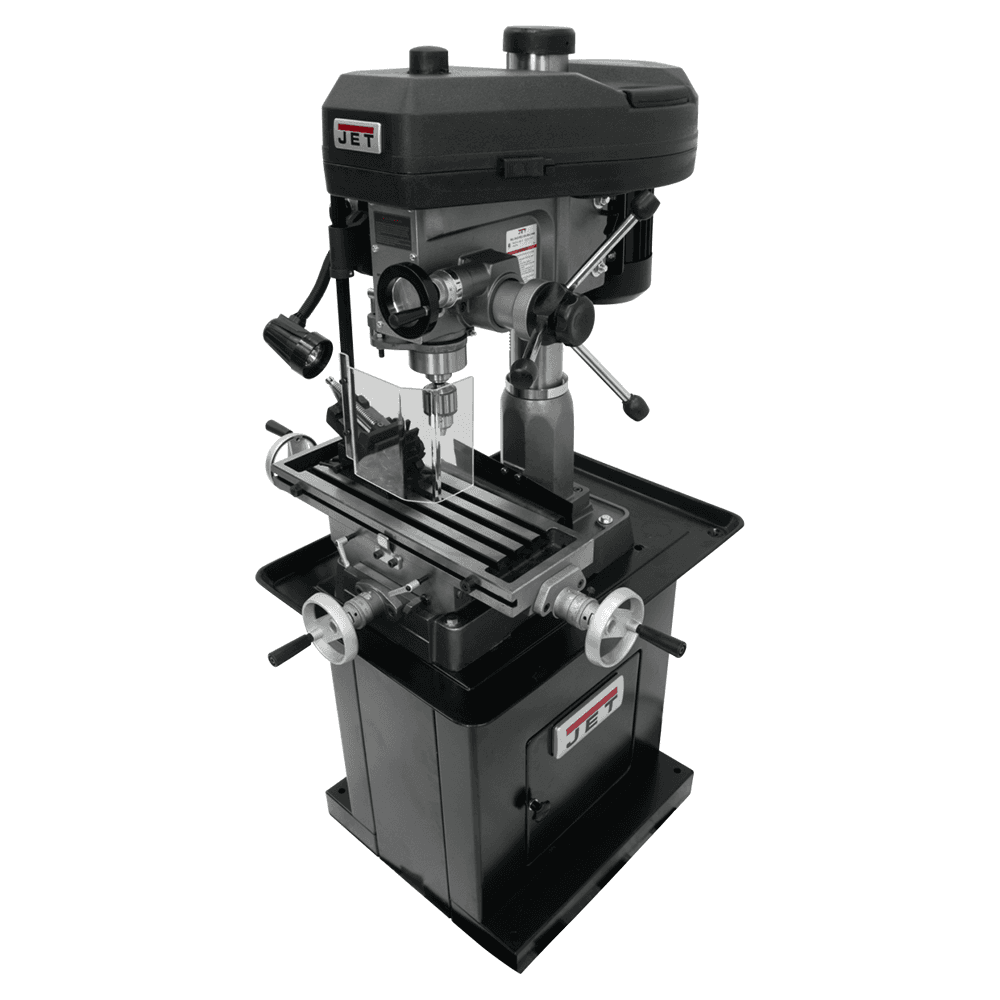

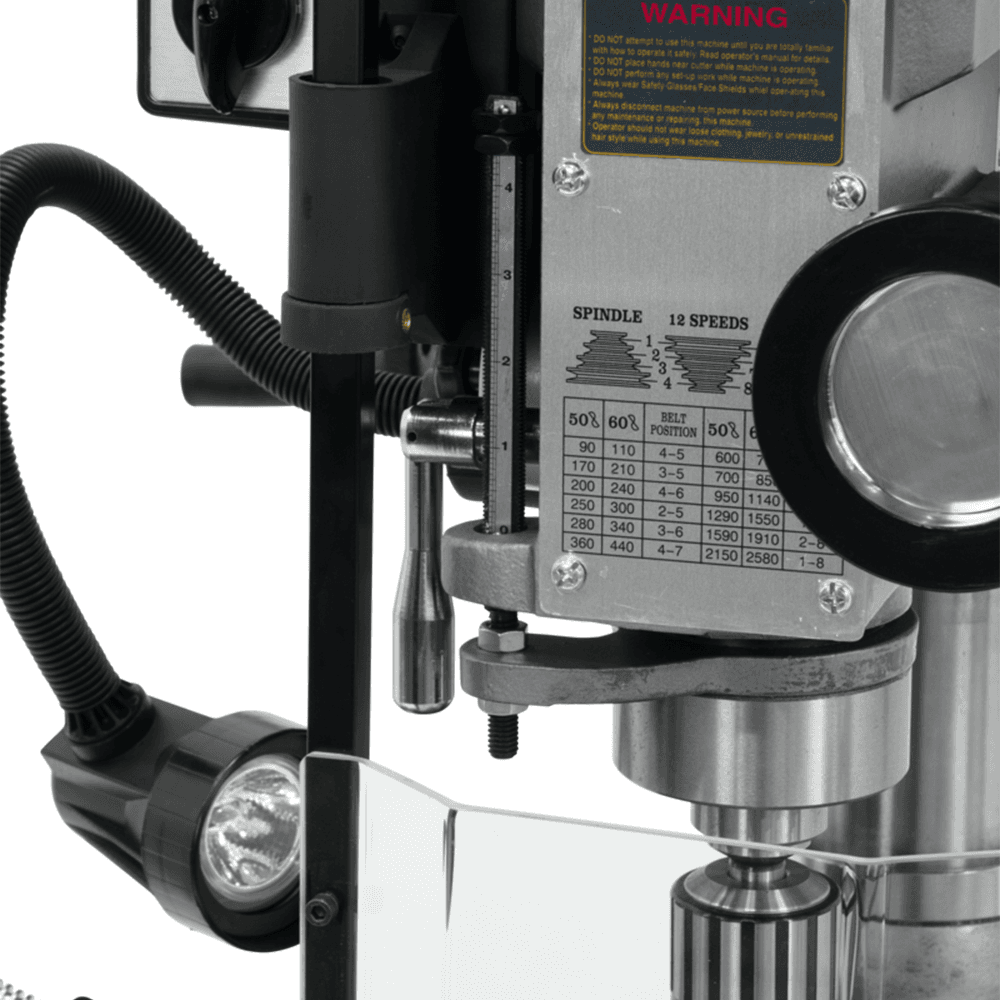

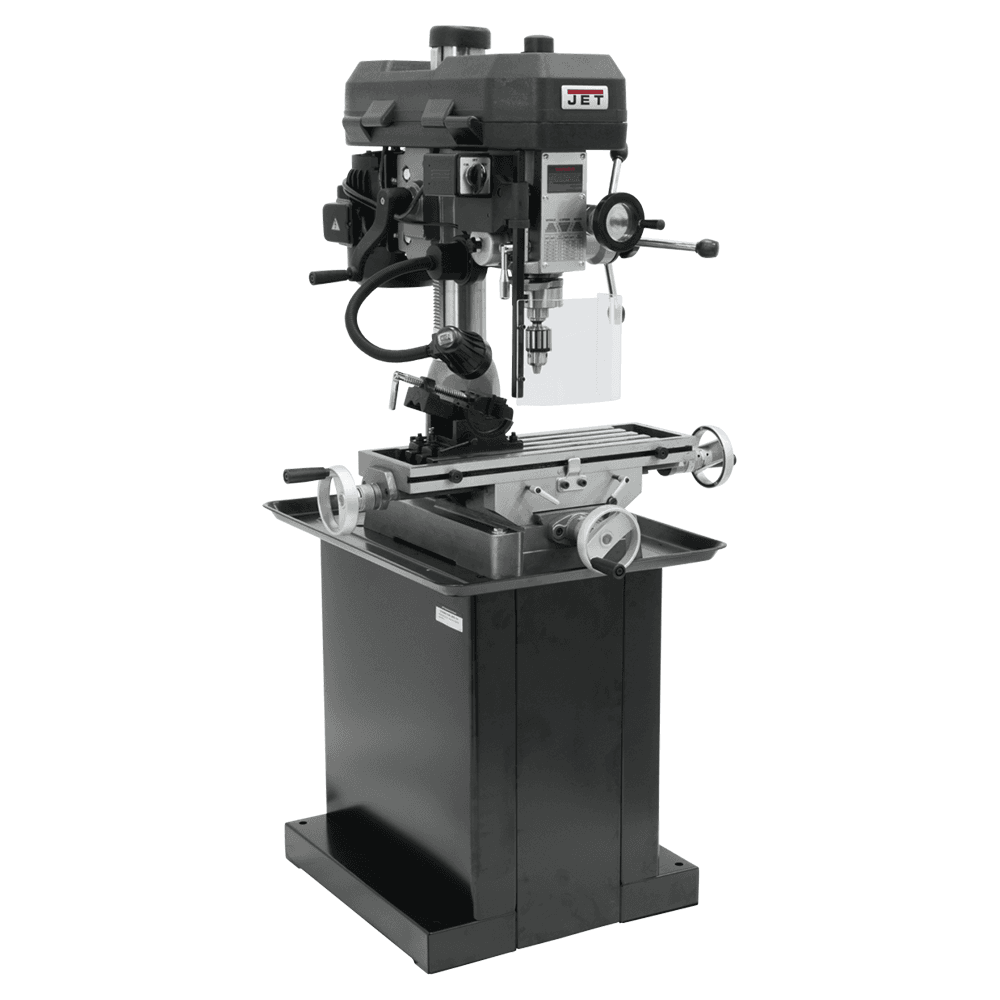

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability. Features: • 1/2" Drill chuck, chuck arbor • 360° head swivel • Adjustable carbide facemill • Base taper allows for easier clean up • Easy to read external depth gauge • Mill Drill Stand, p/n 350045, shown in some images, is optional • One-piece cast iron column for added support • UL Listed
Specifications
| Box Quantity | 1 |
| Base Dimensions | 12-1/2" x 19-3/4" |
| Quill Diameter | 2-7/16" |
| Quill Down Feed Rates (IPR) | |
| Range of Spindle Speeds (RPM) | 110 - 2,580 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel | 3-1/2" |
| Spindle Travel Auto | |
| Swing | 14-1/2" |
| Table Longitudinal Travel | 14" |
| Table Size (L x W) | 7-1/2" x 23" |
| T-Slot Centers | 1-13/16" |
| T-Slots Number and Size | 4" - 9/16" |
| Product Type | Mill Drills |
| Powerfeed | |
| Overall Dimensions (L x W x H) | 38" x 37-1/2" x 42" |
| Column Diameter | 3-5/8" |
| Configurable Base Item | Yes |
| Configurator Option Type | Base Machine |
| Drilling Capacity | 1" |
| Face Mill Capacity | |
| Max Distance Spindle to Table | 14-1/2" |
| Motor Pahse | |
| Motor Phase | 1 |
| Motor Power (HP) | 1 HP |
| Motor Voltage (V.) | 115/230V |
| Number of Spindle Speeds | 12 |
| Work Table Weight Capacity (Lbs.) | 350 lbs |
