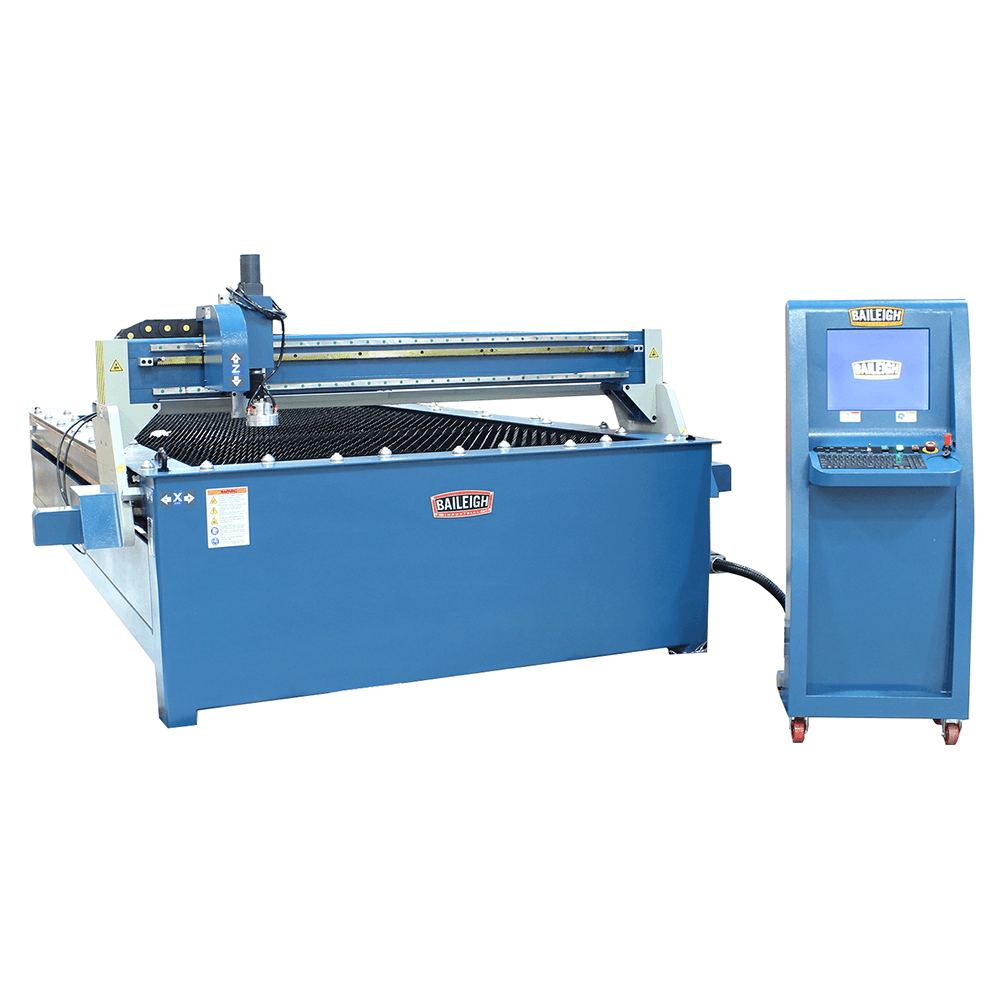

Baileigh PT-105HD 5' x 10' CNC Plasma Table, 1 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details

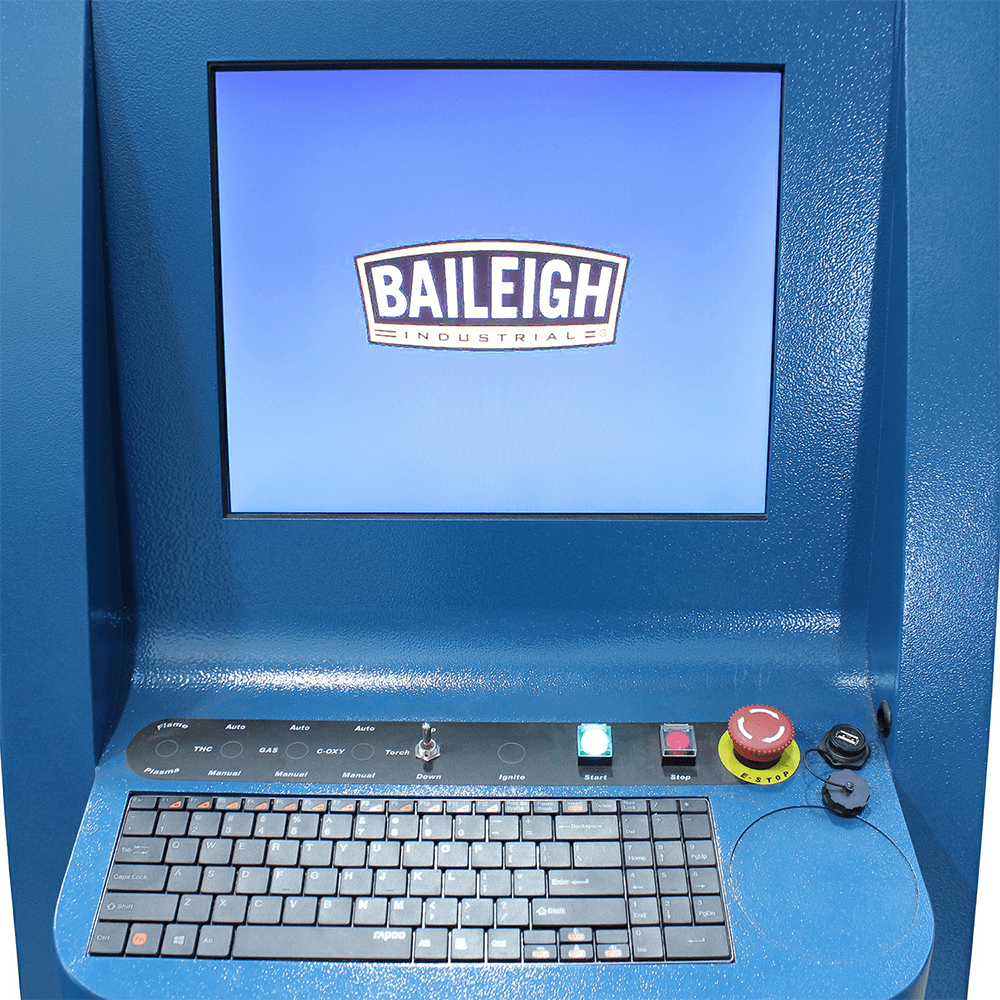

Our PT-105HD has the structural strength to handle 5' x 10' sheets. Automatic height detection is ideal for production runs. It arrives nearly fully assembled and comes with software. Baileigh PT-105HD CNC plasma tables also include a console that offers a pre-loaded library of shapes that you can resize and alter at the table without a computer. Features: • Runs on 220-volt single-phase power • Control the X, Y, and Z axis movement from the sturdy podium with large console screen and keypad • Includes easy-to-learn design software that you can load into any basic PC (more details below) • Console offers a pre-loaded library of shapes that you can resize and alter at the table-without a computer • Automatic height detection on the Z-axis makes perfect cuts in corrugated or uneven materials • Panasonic® brushless servo motors, controlled by Panasonic® servo motion controllers, drive the gantry • Industrial-grade gantry travel system for the X, Y and Z axis made from extremely rigid structural steel • Gantry can move out of the way for a full 10-foot sheet during loading, minimizing the chance of machine damage • High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control • Axes ride on heavy-duty Hiwin square rails • Wipers on rails keep welding dust out of the slide for a smooth transfer without noisy friction caused by dirt build-up • Our design reduces the risk of damaging the table while loading or pinching your forklift-unlike competing plasma tables with recessed work areas • Weigh an impressive 3520 lbs • Fully-welded boxed tubing construction can easily support the weight of maximum capacity material • Steel framework will hold its shape and stay accurate for decades, unlike many competitors' aluminum frames, which buckle and warp under heat • Arrives 80% Pre-built to save you time and effort • The downdraft trolley follows the torch wherever it's cutting for more focused fume extraction. It also catches your small parts so you can collect them at a convenient location • Covered by a 1-year parts warranty
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | Depends on Plasma System Chosen |
| Drive | Servo Motor |

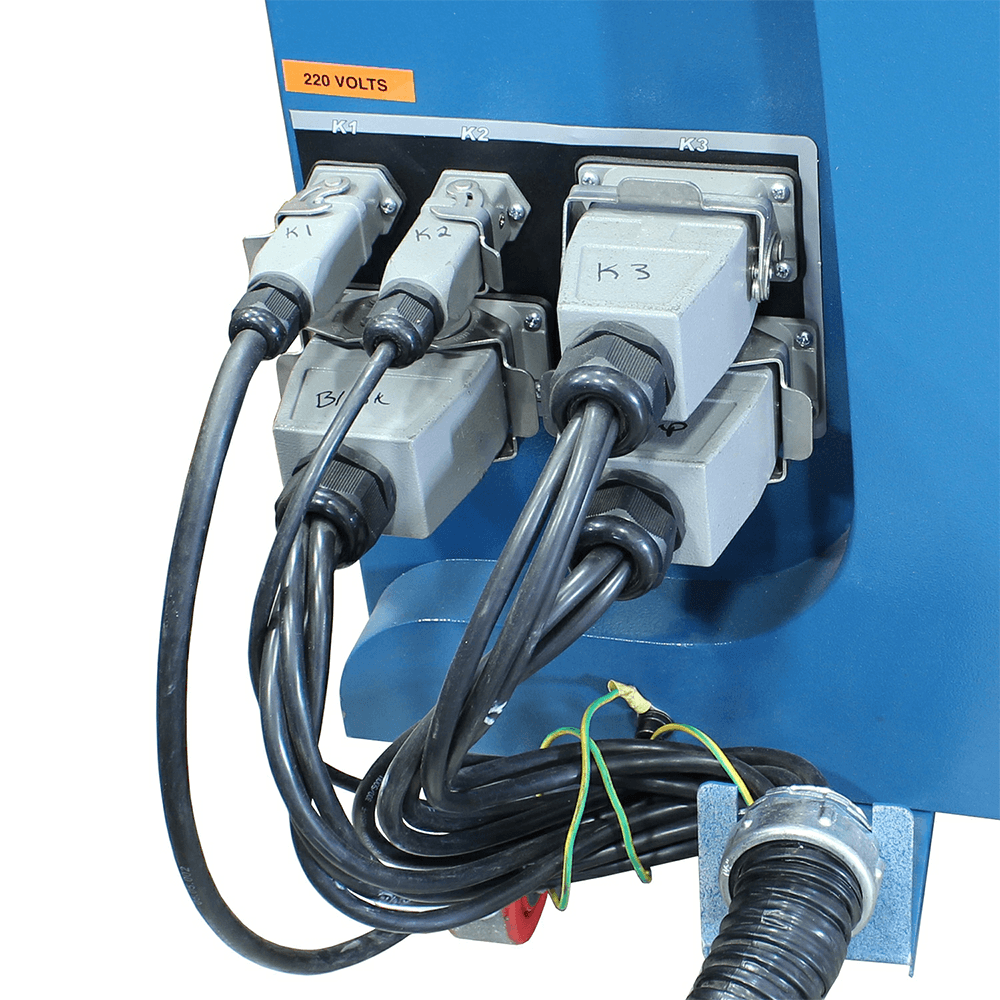

| Input Power | 220V / 1-phase |
| Product Type | Plasma Tables |

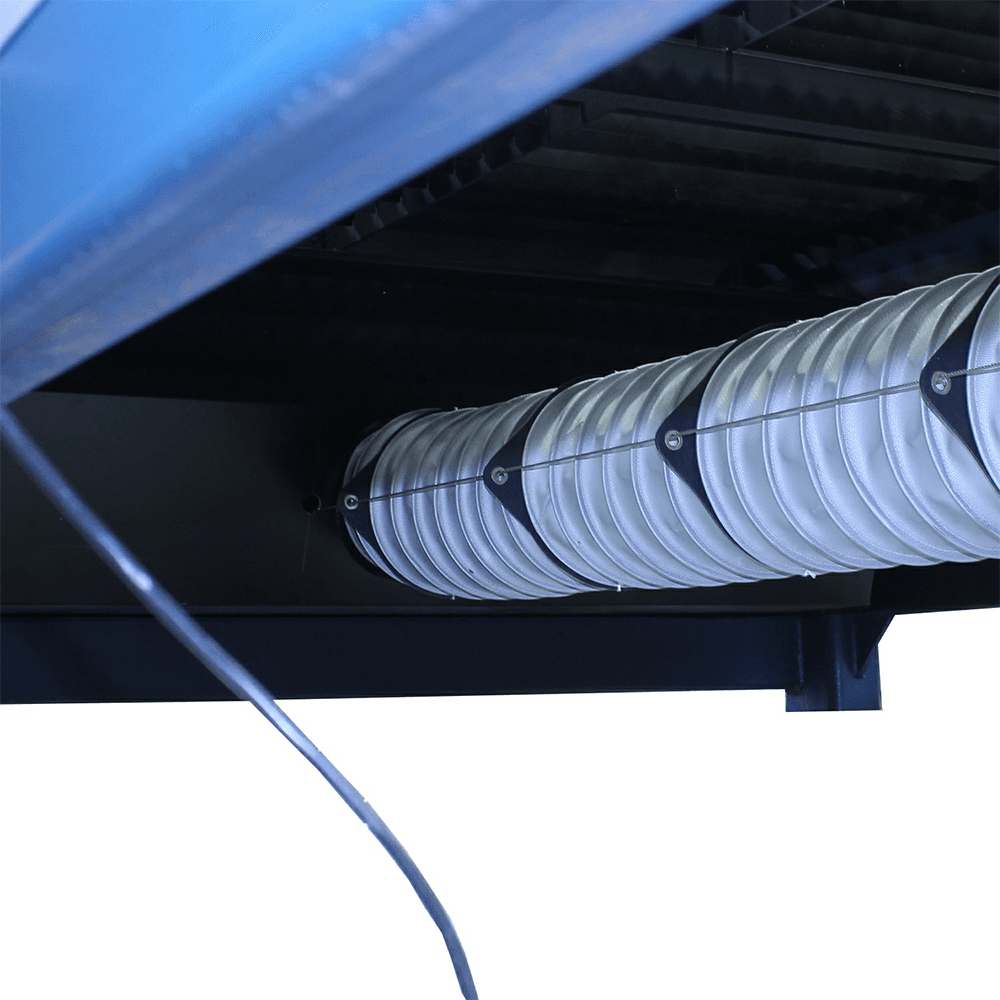

| Short Description | Integrated down draft trolley system Large enough for 5’ X 10’ sheets Automatic height detection Panasonic motors for X, Y, and Z axes 220V 1-phase CNC plasma table BobCAD-Cam Express software included |
| Software | BobCAD-Cam Express software included |
| Table Dimensions | 60" x 140" |
| Table Height | |
| Z-Axis Travel |
